| Product type | Professional espresso machine |
| Brand | Rancilio |
| Model | Classe 6 L |
| Category | Coffee machine |
| Power supply | 230 V / 50 Hz |
| Rated power | 3500 W |
| Dimensions (W x D x H) | 600 x 550 x 500 mm |
| Net weight | 45 kg |
| Water tank capacity | 11 liters |
| Boiler type | Copper heat exchanger boiler |
| Number of groups | 1 group |
| Main functions | Espresso extraction, steam for milk, hot water |
| Pump pressure | 9 bars |
| Maintenance and cleaning | Regular descaling recommended, daily cleaning of the group and steam wand |
| Safety | Automatic safety shut-off, overheat protection |
| Spare parts and repairability | Repairability index: 8.5/10; available parts: gaskets, filters, pump, valves |
| General information | Machine designed for intensive use in coffee shops |
Frequently Asked Questions - Classe 6 L RANCILIO
User questions about Classe 6 L RANCILIO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee machine in PDF format for free! Find your manual Classe 6 L - RANCILIO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Classe 6 L by RANCILIO.
USER MANUAL Classe 6 L RANCILIO
First of all, thank you for choosing RANCILIO
We are confident that the product you have purchased will meet all your expectations just as all our other products are designed to do. The product that you are about to use is the outcome of painstaking research and tests.
Rancilio guarantees the equipment we have supplied to you, is the most functional, safe and satisfactory of its kind to be found on the market, in regards to both its design and its efficiency.
This booklet of instructions, which outlines the correct use and maintenance will help you to get the best possible service out of your machine. We trust you will find our explanations clear and we may continue, in the future, to count you among our esteemed customers.
ES
EN Treatment of waste from electric/electronic equipment Dispose of the product in accordance with current local regulations concerning differentiated waste disposal in dedicated waste disposal areas.
Do not treat as simple urban waste.
For any information please contact the manufacturer at the address specified in the user manual.
This product complies with the requirements of the new directives introduced for the environmental safeguard and must be disposed of appropriately at the end of its life cycle.
Fig. 2
Fig. 3
IT ITALIANO 12-25
FR FRANCAIS 26-39
DE DEUTSCH 40-53
EN ENGLISH 54-67
ES ESPAÑOL 68-81
PT PORTUGUÊS 82-95
SCHEMI ELETTRICI 96-102
SCHEMAS ELECTRIQUES
SCHALTPLÄNE
WIRING DIAGRAMS
ESQUEMAS ELECTRICOS
ESQUEMAS ELÉTRICOS
SCHEMI IDRAULICI 103-106
SCHÉMAS HYDRAULIQUES
HYDRAULIKPLÄNE
HYDRAULIC DIAGRAMS
ESQUEMAS HIDRÁULICOS
ESQUEMAS HIDRÁULICOS
The operations marked with this symbol are to be undertaken exclusively by an installation technician
The operations marked with this symbol are to be undertaken by the user.
EN ENGLISH
CONTENTS
Machine identification data 55
-
General safety rules 55
-
Description 56
2.1. Specifications and composition ..... 56
2.2. Machine equipment 56
2.3. Mechanical protective devices ..... 57
2.4. Electric safety devices 57
2.5. Operating noise ....57
2.6. Vibrations .....57
- Technical data 57
3.1. Dimensions and weights ..... 57
- Use 57
4.1. Precautionary measures .... 58
- Transport 58
5.1.Packaging 58
5.2. Inspection on receipt 58
- Installation 58
6.1.Connections to be made by the user .....59
6.1.1. Water and gas supply .....59
6.1.2. Electric supply 59
6.2. Preliminary operations 59
6.3. Lever assembly (Mod.L) 59
6.4. Installation and first-time start-up ..... 60
- Operation 60
7.1. Controls ....60
7.2. Control instruments 61
7.3. Starting up ......61
- Use 61
8.1. Preparing coffee 61
8.2. Preparing cappuccino ....62
8.3. Heating a beverage 62
8.4. Preparing tea, camomile, etc.... 62
- Adjustments and settings of the dose .... 62
9.1.Models E 62
9.1.1. Adjusting the dose 62
9.1.2. Adjusting the quantity of hot water .... 63

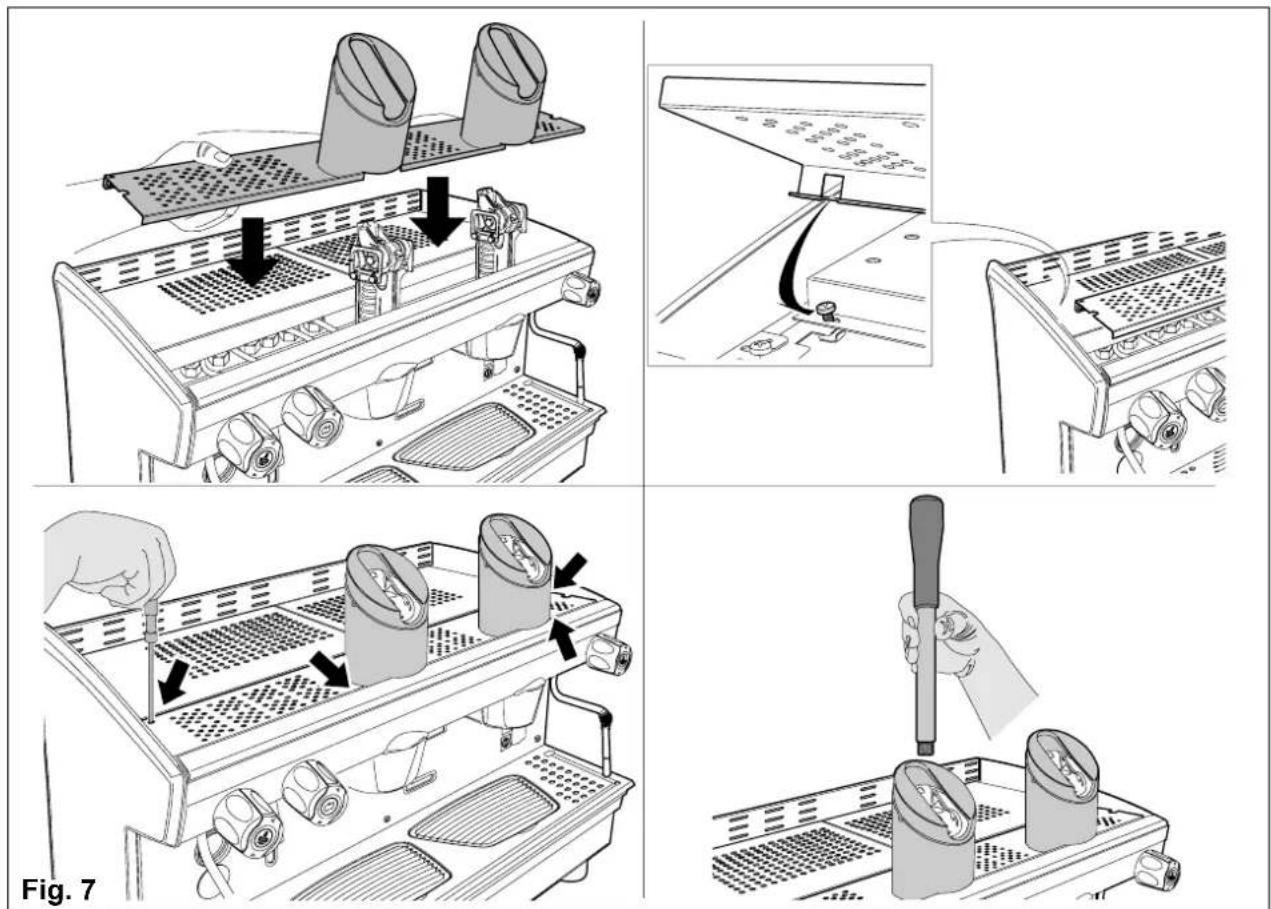

9.2. Tray case assembly 63

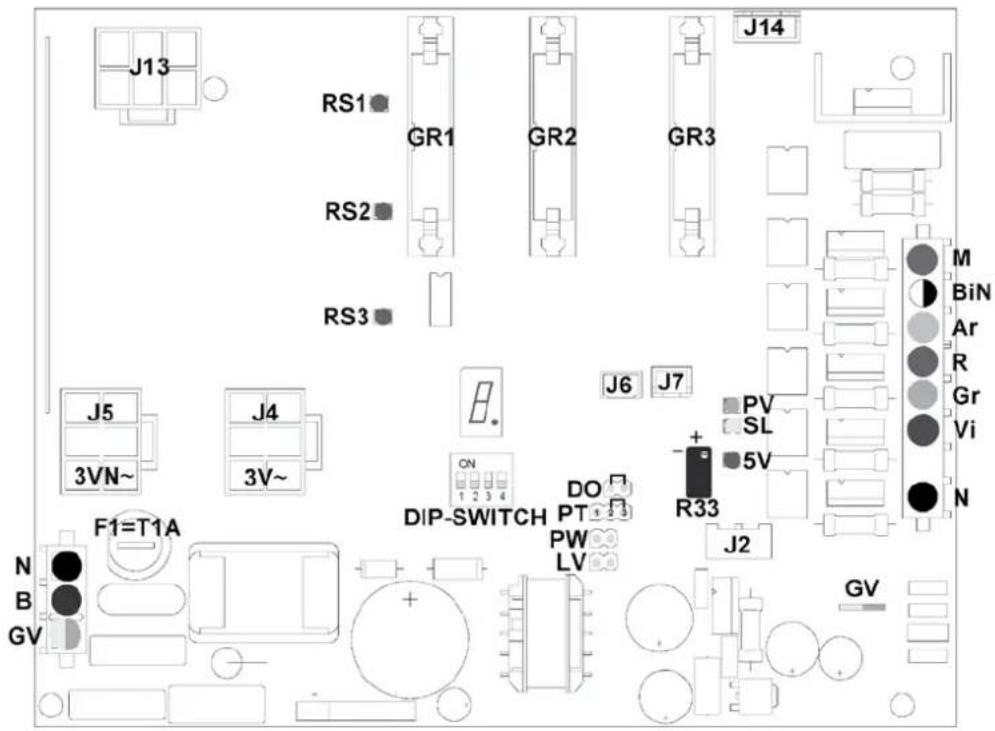

- Advanced functions electronic board E06 63
10.1. Boiler pressure regulation from push-button panel ....63
10.2. Auto-test components 64
10.3.Diagnostic programming 64
- Maintenance ....65
11.1. Daily 65
11.2. Weekly 65
11.3. Regular-interval maintenance and repairs 66
11.3.1. Renewal of water in the boiler ..... 66
-
Stopping the machine ....67
-
Troubleshooting and possible remedies 67
MODEL: E-S-L
VERSIONS: 1 - 2 - 3 - 4 GROUPS (L)
2 - 2 COMPACT - 3 GROUPS (E - S)
The label illustrated on the EC Declaration of Conformity of this instruction manual corresponds to the identification label placed on the machine Fig. 2. (Pos. A).
Label identification (Fig.1):
1 Manufacturer
2 Model and version
3 Voltage
4 EC conformity mark
5 Serial number
6 Pin
7 Machine total absorption
8 Motor power
9 Max. boiler pressure /
Max. static pressure
10 Heating element power
11 Frequency
12 Conformity marks
13 Year of manufacture
Symbols
Warning signal. The instructions which refer to this signal must be followed with great care in order to avoid accidents or damage to the machine.
This manual is an integral and essential part of the product and must be delivered to the user. The warnings contained in it must be read carefully, as they supply important indications relating to the safety of installation, use and maintenance. Keep this manual for future reference.
1. GENERAL SAFETY RULES
- Don't leave the packing elements (plastic bags, expanded polystyrene, nails, cardboard, etc.) within the reach of children, as these elements are potential sources of danger.
- Check that the data on the machine corresponds to that of the electrical supply network, before connecting the equipment.
- Adaptors, multiple sockets and /or extensions must not be used.
- When in doubt, request a detailed diagram of the supplied power from a qualified electrician.
The power supply must be provided with the following safety devices:
- efficient earthing connection;
- section of conductors suitable for absorption capacity
- efficient earthing leakage protection circuit breaker.
- Install the machine on a water repellent surface (laminate, steel, ceramic, etc.) away from heat sources (oven, cooking stove, fireplace, etc.) and in conditions in which the temperature may not go below 5°C. KEEP WARM.
- Do not leave the machine exposed to environmental elements or place them in damp rooms such as bathrooms.
- Do not obstruct the suction or dispersion grilles and do not cover with cloths, etc.
- Keep the packed machine in a dry place, not exposed to environmental elements and in conditions in which the temperature does not go below 5°C.
- Do not stack more than three items of the same kind.
● Do not place heavy items on the packaging. - In an emergency, such as fire, unusual noise, overheating, etc., take immediate action, disconnect the power and close gas and water taps.
- Only use original spare parts in order to avoid compromising the safety and proper functioning of the machine.
● The appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.
● Children being supervised to not play with the appliance.
Improper installation can cause damage to people, animals and things for which the manufacturer cannot be considered responsible
2. DESCRIPTION
The machines in the CLASSE 6 series have been designed to prepare espresso and other hot beverages.
A positive-displacement pump inside the machine powers the boiler. With the push of a button water or steam is supplied to the outlets, depending on your needs.
The hot water used to make drinks comes from the boiler.
The machine is composed of a steel frame on which the mechanical and electrical components are mounted. The side panels are made of aluminum.
The beverages are dispensed at the front of the machine, where all the buttons, control devices and dispensers are to be found.
There is a cup-warming plate on the top of the machine.

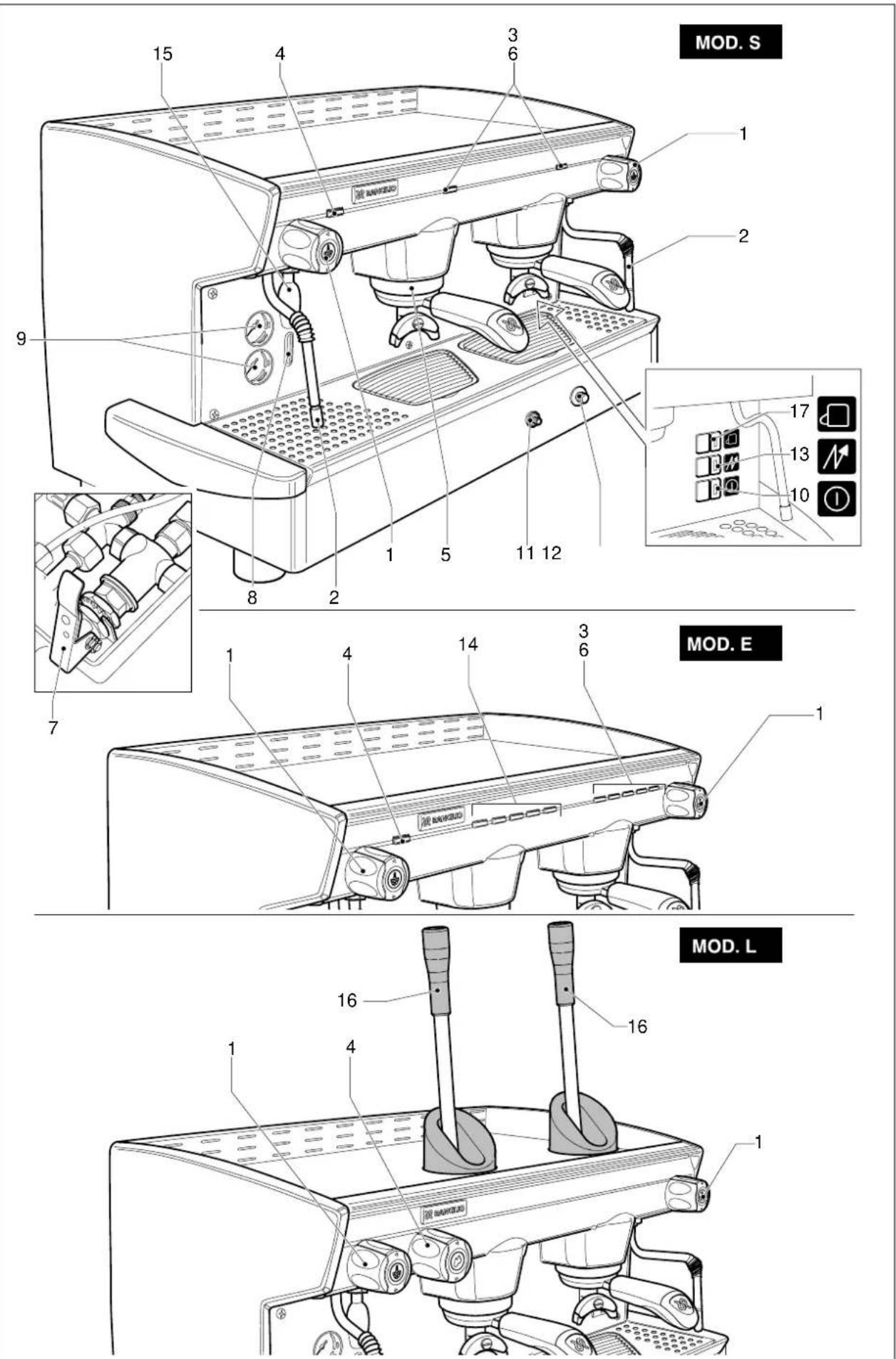

2.1. Specifications and composition (Fig.3)
| A | B | C | D | E | |
| Mod. E | - | ok | 2 - 3 | 2 | 1 |
| Mod. S | ok | - | 2 - 3 | 2 | 1 |
| Mod. L | ok | - | 1 - 2 - 3 - 4 | 2 | 1 |
Legend for chart above:
A Semiautomatic system; manual dispensing start and stop.
B Automatic system; electronic control of coffee and hot water doses dispensed.
C Number of group heads
D Number of steam wands
E Number of water spouts
F Operating with economizer.
Gas heating, on request.
1 Steam tap
2 Steam wand
3 Function/service push-button panel
4 Hot water switch
5 Group head
6 Coffee dispensing push-button panel (mod.S - E)
7 Manual water supply tap
8 Level indicator
9 Gauge
10 Power on-off switch and LED
11 Gas lighter (on specific models)
12 Valved gas tap (on specific models)
13 Switch and boiler heating element light engagement light.
14 Programming panel (mod. E)
15 Hot water spout
16 Group head control lever (mod.L)
17 Cup heating element switch
2.2. Machine equipment
| 1 GROUP | 2 GR.COMPACT 2 GROUPS | 3 GROUPS 4 GROUPS | ||
| 1 cup filter-holder | 1 | 1 | 1 | 1 |
| 2 cups filter-holder | 1 | 2 | 3 | 4 |
| Filters | 2 | 3 | 4 | 5 |
| 1 m supply pipe | 1 | 1 | 1 | 1 |
| 1,5 m supply pipe | 1 | 1 | 1 | 1 |
| 1,5 m drainage pipe | 1 | 1 | 1 | 1 |
| Pipe connections | 1 | 1 | 1 | 1 |
| Blind disks for cleaning | 1 | 2 | 3 | 4 |
| Plastic scoop and tamper | 1 | 1 | 1 | 1 |
| Instruction manual | 1 | 1 | 1 | 1 |
| Brush | 1 | 1 | 1 | 1 |
Models equipped with gas connections (when applied).
2.3. Mechanical protective devices
The machine is equipped with the following protective devices:
- complete panelling protection of all the parts subject to heat and of the steam and hot water supplier;
- cup-warmer plate supplied with a tray to collect spilt liquids;
● work surface provided with grill and tray to collect spilt liquids;
● expansion valve in the water system and valve on the boiler to avoid overpressure;
● nonreturn valve on the water system to avoid backflow to the main water supply.
2.4. Electric safety devices
The safety devices provided are:
● 12V low tension push buttons an the E control key panel;
● thermal protection on the pump motor;
● gas failure thermocouple and thermocouple thermostat automatically closing gas tap;
● safe resistance thermal;
● Electronic safety devices.
2.5. Operating noise
Noise level in the working place does not usually exceed 70dB(A).
2.6. Vibrations
The machine is supplied with rubber vibration damping feet. In normal working conditions, the machine does not produce vibrations harmful to the operator and the environment.
3. TECHNICAL DATA

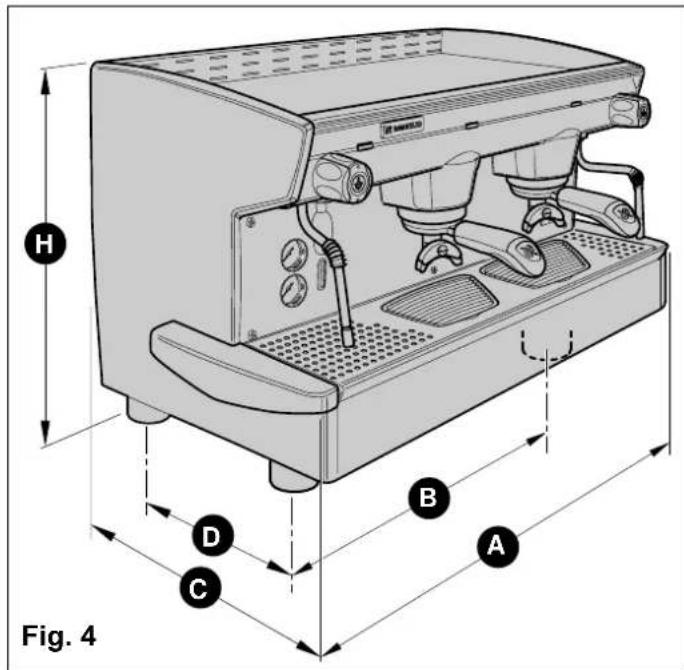

3.1. Dimensions and weights (Fig.4)
| 1 GROUP | 2 GR. COMPACT | 2 GROUPS 3 GROUPS 4 GROUPS | |||
| A mm 690 690 850 1090 1330 | |||||
| A1* mm 570 570 730 970 1210 | |||||
| B mm 505 505 665 905 | 1145 | ||||
| C mm 500 500 500 500 500 | |||||
| D mm 300 300 300 300 300 | |||||
| H mm 490 490 490 490 490 | |||||
| H1** mm | 850 | - | 850 | 850 | 850 |
| Boiler capacity in litres | 5 | 5 | 11 | 16 | 22 |
| Machine weight kg | 53 | 55 | 76 | 94 | 112 |
| Water inlet | 3/8" | 3/8" | 3/8" | 3/8" | 3/8" |
| ∅mm drainage | 14 | 14 | 14 | 14 | 14 |
| Packaging | |||||
| Volume m^3 | 0.28 0.28 0.35 0,45 0,54 | ||||
| Dimensions L x P x H mm | 760x650x605 | 760x650x605 | 880x650x605 | 1120x650x605 | 1360x650x605 |
| Gross weight kg | 63 | 65 | 76 | 90 | 108 |
* A1(reduced overall dimensions with side case assembly)
**H1 (version lever)
You'll find all the technical data on electric connection, on the machine identification label Fig. 1.
Machines provided with gas heating have a standard connection kit to carry out the following connections with:
- direct stiff pipe;
- copper and double cone pipe;
- rubber support.
Gas connections must be made in accordance with all local, state and federal safety regulations.
4. USE
The machine have been designed, manufactured and protected to be used to make express coffee and hot beverages (tea, cappuccino, etc.). Any other use is to be considered unsuitable and therefore dangerous.
The manufacturer cannot be held responsible for any damage caused to people or things due to unsuitable, improper or irrational use of the machine.
The operator must always follow the instructions contained in this manual. In the case of a failure or if the machine is not working properly, switch it off and do not attempt any direct repair. Refer exclusively to a service centre.
The user must not:
● touch the hot surfaces and dispensing areas;
● place liquid containers on the machine;
● put his hands under the spouts during use;
● transport the machine or carry out maintenance operations when the plug is connected or when the machine is hot;
- wash the machine with water or steam jet;
● dip completely or partially the machine in water;
● use the machine if the cable is damaged;
● touch the machine when his hands or feet are wet or damp;
- use the machine when there are children in its proximity;
- allow the machine to be used by children or unfit people;
- obstruct the drainage of the drip tray and grill with a cloth or anything else.
● do not use the machine when wet or very damp.
4.1. Precautionary measures
This machine may only be used with coffee. It cannot be used for heating liquids or grinding any other kind of product that could damage and pollute it.
The manufacturer cannot be held responsible for damage to people or things caused by unsuitable, improper or irrational use.
5. TRANSPORT
5.1. Packaging
The machine is delivered in a strong cardboard box with internal protection.
The packaging bears symbols which must be observed during handling and stocking of the item.
Always keep the package in a vertical position during transport. Do not turn it over or lay it on its side and avoid bumping and exposure to environmental elements.
5.2. Inspection on receipt
Check that the machine received corresponds to the one indicated on the delivery note, including any accessories.
Check that it has not been damaged during transport and, if so, inform the forwarder and our customer service office immediately.
The packing elements (plastic bags, expanded polystyrene, nails, cardboard, etc.) must not be left within reach of children as they are potential sources of danger. Do not dispose of the packing elements in the environment; consign them to firms authorized for their disposal.
6. INSTALLATION
The appliance is only to be installed in locations where use and maintenance is restricted to trained personnel.
The machines are fitted with height adjustable feet.
The support surface shall be levelled, dry, smooth, steady and stable and at such a height that the cup-warming surface is more than 150cm from the floor. Do not use water jets or install where water jets are used.
In order to guarantee normal operation, the machine must be installed in areas that the environmental temperature is between 5°C to 32°C and the humidity is not over 70%.
It does not need to be anchored to the surface and it does not require any technical operations to dampen vibrations in order to operate properly.
It is recommended to leave the area around the machine free to facilitate its use and the performance of any maintenance operations.
If the machine is wet or very damp, wait until it is completely dry before installing or using it. It is always necessary to have your electric service tested by a certified electrician to ensure the machine will run at optimal performance and no harm will come to the machine's electrical components.
Reserve an area near the machine for the installation of the coffee grinding and dosage machine (see relevant documentation).
The machine is usually equipped with a water softener, type DP2 or DP4, which must be connected by the user in compliance with the laws in force. Should a different softener be installed, refer to the documentation of the relevant product.
A knock box should be fitted by the installer.
6.1. Connections to be made by the user
Electrical and water hook-ups must be installed by a personnel in full accordance with federal, state and local laws.

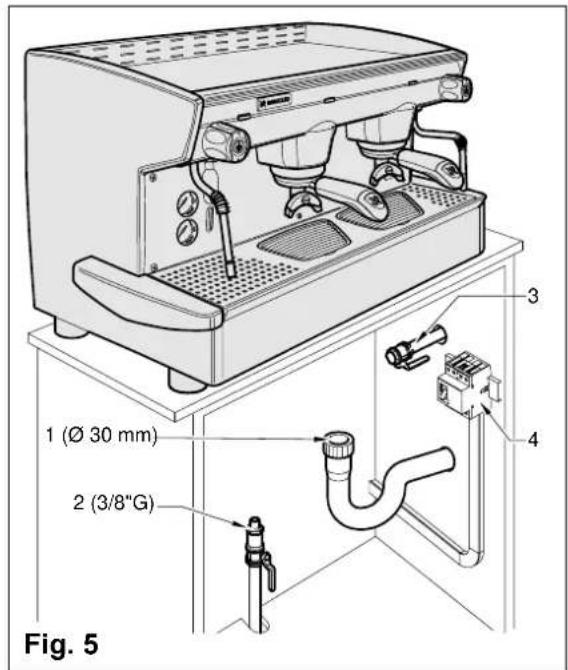

6.1.1. Water and gas supply (Fig.5)
This equipment is to be installed to comply with the applicable federal, state or local plumbing codes.
Make sure that the maximum supply pressure does not exceed 6.5 bar; otherwise, install a pressure reducer.
Connections must be installed close to the machine.
● Water drainage pipe 1, having a minimum internal diameter of 30 mm, equipped with a water-trap accessible for inspection.
● Water supply pipe 2, with a 3/8"G cut-off tap.
Water supplies to the machine must be suitable for consumption by man and for human uses, in compliance with all the laws in force in the installation site. The installation technician is required to get confirmation from the final owner and/or user of the system that the water meets all the foregoing requirements. For machine installation it is necessary to use all the components and/or parts supplied on issue with the machine. Should it ever be necessary to use other parts and/or components, the installation technician is required to verify that said other parts and/or components are suitable for contact with water for human consumption/drinking water. The technician in charge of installation is required to perform all the hydraulic connections so that they are totally compliant to all the related rules, regulations and provisions in force in the installation site on hygiene, hydraulic system safety and environmental protection.
The machine with gas heating must be installed in compliance with current local laws.
● Gas supply pipe 3, with a cutoff tap.
For additional information on machines equipped with supplementary gas heating options, please consult the user's manual provided together with the gas kit, supplied on issue with the machine.
6.1.2. Electric supply
The machine is supplied ready for connection according to the required electrical specifications.
Before connecting the machine ensure that the plate details comply with those of the electrical main supply.
The electrical connection cable must be directly connected to the connection provided according to current legislation.
The earthing and the lightening protection system must be realized in accordance with the provisions of current legislation.
For the main power supply be sure to use cable that is compliant with all local, state and federal regulations and be sure that it is properly earthed.
For three-phase power use a cable with 5 conductors (3 phases + neutral + earth).
For single phase power supply use a cable with 3 conductors (phase + neutral + earth).
In both cases it is necessary to provide an automatic differential switch (Fig.5) at the start of the power cable, complete with magnetic release elements in accordance with the identification plate details (Fig. 1). The contacts must have a 3mm or greater opening with a dispersed current protection of 30mA.
Remember that each machine must be fitted with its own safety elements.
WARNING:
Should the machine's power cable become damaged it is to be replaced by the manufacturer or by a factory trained and certified technician, in order to prevent any risks.

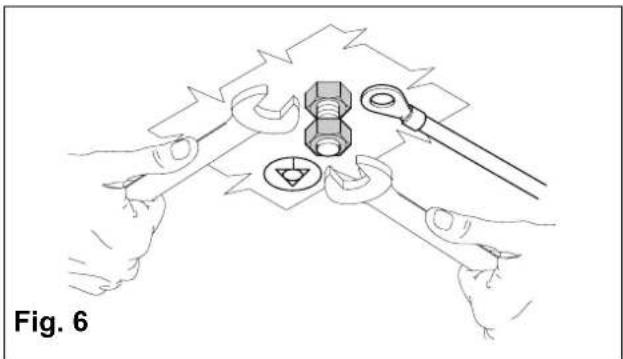

6.2. Preliminary operations (Fig.6) EQUIPOTENTIAL CONNECTION
This connection is ABSOLUTELY NECESSARY and must be made right after the machines is installed.
Connect an earthing wire to the terminal clip which is located underneath the base of the machine.
Be sure that this wire and the connection are performed in accordance with federal, state and local regulations.
6.3. Lever assembly (Mod.L) (Fig.7)
The lever should be assembled during installation of the machine.
To carry out this operation, assemble the upper case according to the instructions in Fig.7 (1 and 2).
Fix the case by tightening the screws and then screw the lever in the upper part.
6.4. Installation and first-time start-up
- Position the machine unit onto the horizontal surface provided for that purpose and adjust the base feet to ensure that the machine is stable and that vibrations are limited.
Before connecting the machine, thoroughly flush the main water supply pipes:
- Open the main water supply taps and let the water run at full pressure for several minutes.
● Connect to the main water supply. - Connect the machine up to the power supply mains.
- Connect the gas pipe.
Thoroughly flush all the water pipes of the machine:
● Leave the water supply taps running at full pressure.
- Switch on main switch 1 (Fig.8): wait until the boiler fills up to the set level.
- Switch on boiler heating element switch 2 (Fig.8) to begin heating the water in the boiler.
- Once standard machine work conditions have been reached with the machine in "ready for operation" mode, switch the machine off and empty all the water filled into the water circuit the first time, thereby eliminating any possible initial impurities.
● Fill the machine up with water again and set it into standard operation mode.
- Once the "ready for operation" status is reached:
- Connect the filter-holders to the dispenser units (without coffee); operate each group head in order to allow the water to escape for about one minute.
- Dispense hot water until at least 2 liters of water have been dispensed from the 1-group or 2-groups compact, 5 liters from the 2-groups machines, 8 liters from the 3-groups machines and 11 liters from the 4-groups machines.
- Open each steam dispensing point for 1 whole minute.
Once installation is terminated, the installation technician MUST issue an installation report.
7. OPERATION

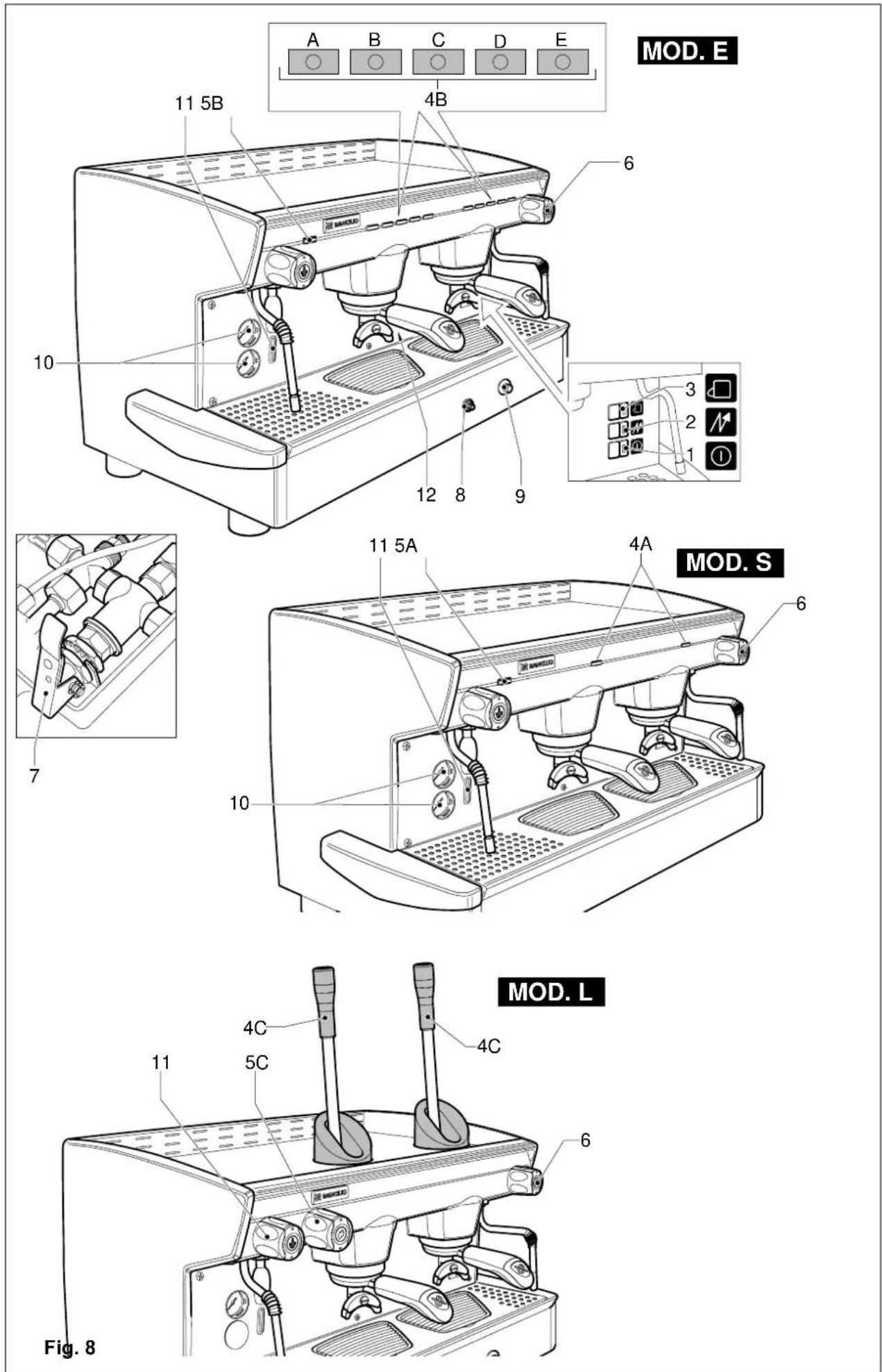

7.1. Controls (Fig.8)
1 Main switch
Two-position switch with LED..
Turn on the switch (LED. on) the machine is turned (apart from the boiler) and the pump is turned on to fill the boiler;
2 Boiler heating element switch
Two-position switch with LED.
Upon activating the switch (LED on) the power is supplied to the heating elements in the boiler.
3 Cup heating resistance switch
Two-position switch with LED
By turning on the switch (LED on), the power is supplied to the cup warmer heating element.
4A Coffee dispensing switch (mod.S)
Two-position switch:
With switch ON, coffee is dispensed;
With switch OFF, dispensing of coffee is interrupted.
4B Coffee Dispensing Electronic Panel (mod. E)
Five buttons with corresponding LEDs:
A Press the button for a second, LED on, release button; a small coffee is dispensed.
The LED turns off and dispensing stops.
B Press the button for a second,LED on, release the button; two small coffees dispensed from the same unit.
The LED turns off and dispensing stops.
C Press the button for a second, LED on, release the button; a big cup of coffee is dispensed.
The LED turns off and dispensing stops.
D Press the button for a second, LED on, release the button; two big cups of coffee are dispensed from the same unit.
The LED turns off and dispensing stops.
E Press the button for a second, LED on, release the button; coffee is continuously dispensed.
Press the button for a second, LED off, release button; continuous dispensing of coffee stops.
To interrupt brewing once the operation has been activated with buttons A-B-C-D, press the same button again or press E.
4C Coffee dispensing control lever (mod.L)
The lever is usually placed in an upward position.
Activate the lever by pushing it down to obtain coffee dispensing.
5A Hot water button (mod.S)
Hot water switch with two positions:
With switch ON, the LED flashes and hot water is dispensed directly from the boiler.
With switch OFF, the LED switches off and dispensing stops.
5B Hot water button (mod.E)
When the button is pressed, hot water is dispensed
directly from the boiler for the set time or until the button is pressed again.
If you press the button for 2 seconds, dispensing is continuous and only stops when the button is pressed again.
Dispensing is discontinued automatically after 30 and 60 seconds, respectively.
5C Hot water supply tap (mod.L)
Tap: turn in a anticlockwise direction to open and a clockwise direction to close.
Safety Devices
Dispensing cannot be carried out if the machine has not reached the operating pressure or temperature at least once, and each time that the boiler pressure drops too much.
6 Steam supply knob.
Tap: turn in an anticlockwise direction to open and a clockwise direction to close.
7 Supplementary manual water filling tap positioned under the discharge basin.
Press down to fill the boiler.
8 Valved gas power tap (models with gas heating).
Open: vertical position;
Closed: turn 90° in clockwise direction.
9 Piezoelectric button (models with gas heating).
Ignition button: press down firmly to give off the spark to light the gas for the burner.
7.2. Control instruments (Fig.8)
10 Gauge with mobile needle on a fixed dial with a double scale.
Visual control of the pump (lower manometer) and of the boiler pressure (upper manometer) (mod. E-S).
11 Minimum and maximum water level indicator.
Visual control of water level in boiler.
12 Control window (models with gas heating).
Visual control of lighting and functioning of the flame of the gas burner.
7.3. Starting up
● Turn on the water supply tap 2 Fig.5.
● Turn the main switch 1; the pump to fill the boiler will activate.
- When the water reaches the correct level, the pump stops.
Turn the main switch 2 to begin heating the water in the boilerthen turn on each group head until water begins to flow from them.
- Wait for the machine to reach its working pressure and to reach the correct thermal balance.
- For lever models without pump, machine starting is identical, the heater will be filled by the water supply pressure.
Models with gas (Fig.8)
● Turn on the water supply tap 2 (Fig.5).
● Turn on the gas tap 3 (Fig.5).
● Turn the main switch 1; the pump is activated, filling the boiler.
- When the correct level is reached, the pump stops. Turn on Switch 2 in order to activate the heating element in the boiler.
- Turn the gas tap 8 to the vertical open position and hold down the corresponding button, at the same time repeatedly press hard on the piezoelectric button 9 until the spark lights the gas flame (carry out this operation looking through window 12). Hold the tap button 8 down for approx. 30 seconds to allow the safety system to keep the flame lighted. If the flame goes out, repeat the operation.
Should the flame not light quickly within a few seconds, please close the gas tap by turning it 90° in a clockwise direction.
- Wait until the machine reaches its working pressure and until the correct thermal balance is achieved.
8. USE
WATER CHANGES: at the start of each daily activity and anyway always after machine stop periods longer than 8 hours, it is necessary to change 100% of the water contained in the circuits via the points appropriately provided on the machine for the purpose.
USING THE STEAM WAND: Before using the steam wand, it is always necessary to flush out all the residual steam condensate for at least 2 minutes.
The machine has a top shelf on which the cups are kept and heated, ready for use.
This is very important to obtain good coffee as the pre-warmed cup stops the coffee from growing cold too quickly.
8.1. Preparing coffee
- Remove the filter-holder from the group head and knock out any grounds into a knock box. Be careful not to damage the rim of the filter.
- Use the filter for 1 or 2 coffees, according to your need.
● Fill the filter with the measure of coffee, level it off and press it down gently with the tamper. - Remove any ground coffee that has stuck to the rim of the filter during tamping.
If ground coffee is left on the rim of the filter, the filter-holder will not seal properly in the group head, and during coffee production, water or coffee grounds may leak into the cup.
- Lock the filter-holder into the group head firmly to obtain a leaktight seal.
- Place the cups under the spouts and start pouring using control 3 - 4 or push-button panel 5 according to your model (Fig.8).
- When the coffee has been poured, leave filter-holder in the group head until it's time to produce another coffee.
Great tasting espresso begins with proper grinding. High quality espresso shots should take an average of 25-30 seconds to produce.
If the coffee is ground too coarsely, the espresso will be pale in color and weak in flavor, with only a very small amount of crema. If coffee is ground too fine, it will be dark in color and have no crema.
Another important factor to consider is the freshness of your coffee beans. Good espresso can only be made if your beans are freshly and uniformly ground. The grinder blades should be sharp and the dosing mechanism of your grinder should be adjusted so that it measures approximately 6 grams per pull.
It is important to grind your coffee fresh each time you produce an espresso because once the beans are ground they rapidly lose their aromatic qualities and the oils in the beans begin to go rancid.
Model L (Fig.8)
Espresso machine with mechanical groups and fixed dosing. Pull down on the group control lever (4C).
Wait for coffee to begin to pour into the cup: Release the lever and let it lift up by itself.
To make 2 coffees, repeat this operation for the second time.
CAUTION: do not pull down on the lever if there is no coffee in the filter-holder.

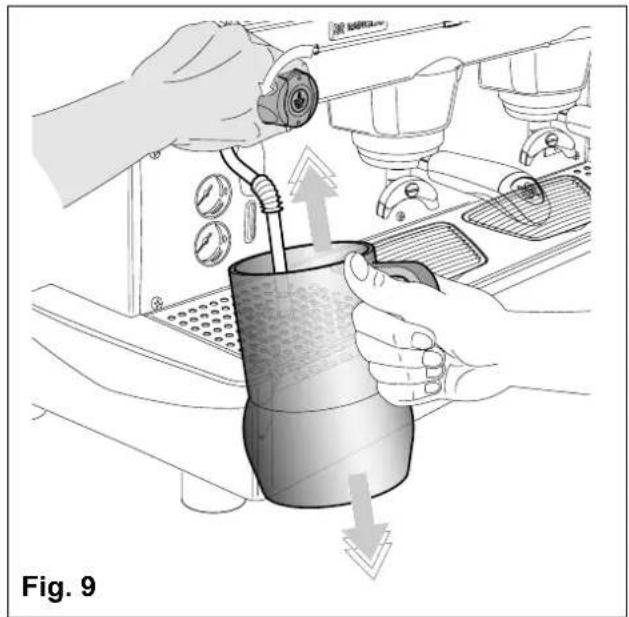

8.2. Preparing cappuccino (Fig.9)
● Pour an espresso in your cappuccino cup.
- Use a tall and narrow jug, fill it half-way with fresh milk.
- Place the jug under the spout so that the nozzle touches the bottom.
● Turn on the steam knob and lower the jug so that the nozzle is almost at the surface of the milk to create froth.
● Turn off the steam knob and pour the milk into the cup.
Immediately after carrying out this operation, clean the wand with a sponge or a clean cloth so that the milk does not dry on it. Be careful as the wand is hot and may burn your hand.
8.3. Heating a beverage
- Immerse the steam wand into the liquid to be heated.
● Gradually turn on the steam knob 6 (Fig.8); the steam that bursts in the liquid heats it to the desired temperature.
● Turn off the steam knob when the desired temperature has been reached.
Immediately after carrying out this operation, clean the wand with a sponge or clean cloth. Be careful as the wand is hot and may burn your hand.
8.4. Preparing tea, camomile, etc.
● Place the jug under the hot water spout and use the delivery control according to the model (Fig.8).
When the desired quantity has been obtained, turn off the switch.
- Add the beverage desired.
Model E
For these models, hot water is dispensed in specific quantities (see paragraph 9, adjusting the dose of hot water).
When purified water is used, these beverages often assume a darker colour.
Should the user prefer a lighter coloured drink, draw fresh water from an ordinary tap and proceed with the steps for heating a beverage as described in point 8.3.
9. ADJUSTMENT AND SETTING OF THE DOSE
9.1. Model E (Fig.8)
With the Model E it is possible to programme the buttons to dispense a set amount of coffee and hot water (if this function is enabled).
9.1.1. Adjusting the dose
The quantity of coffee and hot water dispensed can be adjusted using the push-button panel or the hot water controls.
1 Press the button E on the left push-button panel and hold it down for 8-10 seconds until water stops flowing from the group head and the LED light of the first button on the left begins flashing.
2 It is necessary to act as to make 1 or 2 cups in order to reach the correct coffee amount adjustment in the cup.
3 Put the filter-holder (containing ground coffee) into the left group head and place a cup under the spout.
4 Press the button you would like to programme (i.e. button A for one small cup).
5 Once the desired amount of coffee has been poured, press the button A to stop the flow of coffee. The machine will save this quantity.
6 Pressing the button E again, the LED light will turn off and the machine will store the new quantity.
7 Make a coffee by using the button you programmed and be sure the system stored the correct parameter.
If some doses have to be changed (A-B-C-D), once at point 5 repeat steps 3-4-5 for each dose. Remember to use the correct filter-holder with relevant filter and be sure to use freshly ground coffee. Then carry out point 6 and repeat point 7 to check all changed doses.
If all group heads are to be programmed with the same doses, the programming of coffee doses is finished. If the dosage of another group heads is to be changed (1-2-3-4 doses), proceed as indicated in the above-mentioned point 1-7, Use the push-button panel of the corresponding group head to programme.
9.1.2. Adjusting the quantity of hot water
Proceed as follows:
- Press and hold the button E of any push-button panel, for 8-10 seconds until water stops flowing from the group head and the LED of the button E on the left group head's push-button panel starts flashing. The machine is now ready to accept quantity variations.
- Put a cup or jug beneath the water spout (Fig. 3).
- Push the hot water button (5B).
- Once the desired quantity of water has been delivered, press the hot water button (5B) again. Water will stop pouring and the quantity will be saved.
- Once programmed, press the button E again and the LED will go out and the machine will store the new quantity.
- Double check that programming is correct by producing a hot water drink.
WARNING!
Hot water may also be dispensed by:
- press and hold the hot water button (5A or 5B) for at least 2 seconds: when the button is released, the machine will dispense hot water continuously;
● to manually stop the dispensing, press the hot water button (5A or 5B) again.

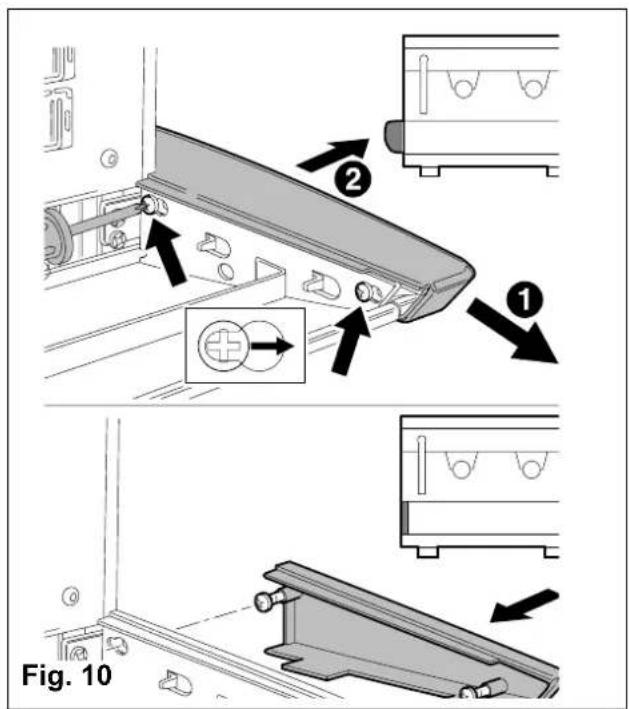

9.2. Tray case assembly (Fig.10)
If space is limited, two smaller side tray casing pieces are available. These pieces replace the existing side tray casings.
To replace the side tray casings, unscrew the 3 screws (Fig. 10), remove the side casing and replace it with the smaller one. Do this for both the left and right sides of the machine.
10. ADVANCED FUNCTIONS ELECTRONIC BOARD E06
10.1. Boiler pressure regulation from push-button panel
With the board E06 it is possible to regulate the boiler pressure directly from the push-button panel, eliminating the need for a technician to open the machine and change the electronics internally.
This is possible thanks to an electronic pressure transducer that detects heater pressure in real time.
To enter the regulation menu proceed as follows:
- Switch off the machine.
- While holding down the button E of the first group turn the machine on (fig. 8).
- Buttons A and B will light up to indicate 1 bar (the default setting) of pressure.
In this menu, only buttons A, B, C, D (fig. 8) of the first group are active with the following functions:
A = Button + (pressure increase with 0.1-bar step).
B = Button - (pressure decrease with 0.1-bar step).
C = 1 bar (factory set at 1 bar).
D = ESC (regulation save and exit from menu).
To increase pressure
Press button A, considering that each time it is pressed, heater pressure increases by 0.1-bar step up to a maximum 1.4 bars.
Pressure increases instantly (regulation visible by means of boiler pressure gauge).
To decrease pressure
Press B, considering that each time it is pressed pressure decreases in real time by 0.1 bar step to a maximum of 0.6 bars.
Opening the steam head, the new pressure regulation can be assessed immediately by means of the heater pressure gauge.
Buttons A and B flash to indicate setting of Boiler pressure as follows:
| LEDBUTTON A | LEDBUTTON B | PRESSURE[bar] |
| ON 4 flashes 0.6 | ||
| ON 3 flashes 0.7 | ||
| ON 2 flashes 0.8 | ||
| ON 1 flash 0.9 | ||
| ON ON | 1.0 | |
| 1 flash | ON | 1.1 |
| 2 flashes | ON | 1.2 |
| 3 flashes | ON | 1.3 |
| 4 flashes | ON | 1.4 |
By pressing button C, the machine returns to the default factory setting of 1-bar of pressure.
After having regulated the desired pressure, press button D to save the setting and quit the menu.
ATTENTION: during programming, water dispensing is interrupted while boiler pressure control is in use.
10.2. Auto-test components
The electronic board E06 enables technicians to individually test and verify the operation of all electronic components of the machine.
In order to utilise this function it is necessary to enter the electronic board by dismantling the left panel of the machine (a descriptive label of the auto-test function is attached to the inside of the panel).
The sequence is guided by means of the display at the centre of the electronic board.
Since the auto-test is conducted with machine open, be careful not to touch any live part.
To enter the auto-test menu proceed as follows:
- Switch off the machine.
- Push and hold button A of the first group's push-button panel (fig. 8) and turn on the machine.
- Buttons A, B, C and D (fig. 8) light up and the board display indicates 0 (auto-test menu in operation).
In this menu only buttons A, B, C, D of the first group operate with the following functions:
A = Button + (increases the number/letter corresponding to the component to be activated).
B =Button - (decreases the number/letter corresponding to the component to be activated).
C = Enter (component activation).
D = ESC (quit component activation).
During activation of the component, the display point will flash.
Each value indicated on the display corresponds to the auto-test of the following components:
0 = auto-test ON
1 = electro-valve group 1 (ON for 3 seconds)
2 = electro-valve group 2 (ON for 3 seconds) (*)
3 = electro-valve group 3 (ON for 3 seconds) (*)
4 = electro-valve hot water supply
(ON for 3 seconds) (*)
5 = electro-valve charge (ON for 3 seconds)
6 = pump motor (ON for 3 seconds)
7 = 1st heating element (ON for 5 seconds) (**)
8 = 2nd heating element (ON for 5 seconds) (**)
9 = 3rd heating element (ON for 5 seconds) (**)
A = push-button panel/LED (pressing each button, the corresponding LED flashes)
B = volumetric meter group 1 (100-pulse supply)
C = volumetric meter group 2 (100-pulse supply) (*)
D = volumetric meter group 3 (100-pulse supply) (*)
E = heater level (water charge if level is not sufficient)
F = pressure transducer (heating element ON until boiler pressure set-point is reached)
(*) Only for predisposed machines.
(**) Only for machines with star resistance connection.
Some of the auto-test operations involve the dispensing of hot water and steam; take care in order to avoid possible burns.
Push buttons A or B (fig. 8) to scroll through display numbers and letters. Once you reach the desired letter or number (component you wish to control) press button C to activate.
Button D stops activation of the component.
To quit auto-test menu switch off the machine then switch on again.
Note: Press esc to quit operations A, E and F During auto-test, brewing will be interrupted and the boiler will not be filled (except for test F).
10.3. Diagnostic programming
Electronic card E 06 allows the operation of diagnostic programming with which possible machine failures or malfunctions can be signalled.
In order to utilise this function it is necessary to access the electronic card by dismantling the left panel of the machine (a descriptive label of the auto-test function is attached to the inside of the panel).
As the use of diagnostic programming is conducted with the machine open, be careful not to touch any live parts.
Malfunctions are shown on the display situated at the centre of the electronic board.
Failures are indicated on the electronic board display by means of numbers or letters. If there is more than one failure, they are displayed one after the other.
1 = Time-out boiler filling level: time limit for correct boiler filling has been exceeded.
2 = Time-out boiler pressure set-point: the time limit to reach boiler pressure set-point has been exceeded
3 = Electronic board E06 12Vdc short: short circuit in the electronic board E06
4 = Capacity level sensor 12Vdc short: capacity level sensor supply has short-circuited. (*).
5 = Pressure transducer 12Vdc short: pressure transducer supply has short-circuited.
6 = Volumetric counter 12Vdc short: short circuit on the supply of volumetric counters.
7 = 5Vdc push-button panel short: the push-button panel has short-circuited.
8 = Transducer/probe short on output signal: short circuit on output signal from the pressure temperature probe / transducer.
9 = Open transducer/probe signal: the output signal from the temperature probe/transducer has been interrupted.
A = Absence of volumetric counter impulses group 1: the volumetric counter of the first group is not transmitting impulses to the electronic board.
B = Absence of volumetric counter impulses group 2: the volumetric counter of the second group is not transmitting impulses to the electronic board (*).
C = Absence of volumetric counter impulses group 3: the volumetric counter of the third group is not transmitting impulses to the electronic board (*).
(*) Only for predisposed machines.
The failures identified by numbers 1 to 9 block machine operation. Apart from the failure being indicated on the display, the push-button panel LED will flash simultaneously informing the user of the malfunction.
After having identified and resolved the failure, switch the machine off and then on again for normal operation
NOTE: The problems identified with the letters A, B and C do not interrupt the functions of the machine. They are identified on the display and during dispensing from the corresponding group, the LED of the button pressed will flash.
11. MAINTENANCE
Maintenance operations have to be carried out when the machine is off and cold and the plug is disconnected. Some particular operations have to be performed when the machine is operating.
Do not clean the machine by using metal or abrasive devices, such as steel wool, metal brushes, needles, etc. or general detergents (alcohol, solvents, etc.)
When necessary, use special detergents for coffee machines that can be bought in specialized service centres.

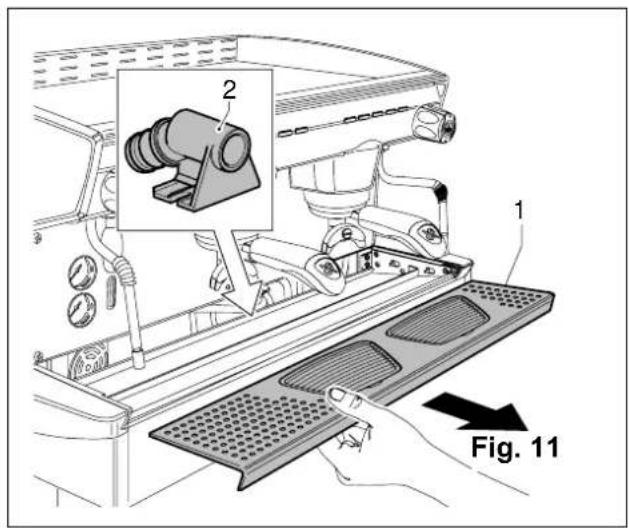

11.1. Daily (Fig.11)
Use a clean cloth or sponge that does not leave any lint (preferably cotton or linen).
● Carefully clean the outside surface, following the grain of the satin finish on the parts in stainless steel.
- Clean the steam wand and hot water outlet and check that the nozzles are not encrusted (if they become encrusted, be careful not to deform or damage them).
● Clean the outlets and the seals under the casing of the group heads using the special brush supplied (Fig.12).
- Remove the filter-holders and remove the filter and the clamp which secures the filter, use a brush to remove any coffee deposits and rinse with hot water in order to dissolve any coffee bean oil residue.
11.2. Weekly
Operations to be carried out with the machine operative and under pressure.
● Assemble the filter membrane supplied with the machine onto the filter-holder, and add a spoonful of detergent powder for coffee machines, then assemble the filter-holder in the set to be cleaned.
- Operate the coffee dispenser button for about 30 seconds.
- Stop and start the dispenser function until clean water begins to descend from the unit discharge pipe.
- Dismantle the filter-holder, remove the filter membrane, re-assemble the filter holder onto the unit and then undertake the dispensing operation several times in order to rinse.
● Make a coffee in order to eliminate any unpleasant tasting residues.
Automatic washing (available only on S models)
● Enter the automatic washing mode by keeping the coffee dispensing button pressed for at least 5s: and the led will slowly flash alternating orange and blue.
- Insert the blunt filter membrane inside the filter-holder and then add a spoonful of coffee machine detergent powder and then assemble the filter-holder onto the unit to be cleaned.
● Activate the washing phase by pressing the coffee dispensing button. The machine will undertake 10 washing cycles lasting 10s each with a 10s interval the led will be orange colour with a short blue flashing interval in between. - At the end of the washing operation the machine goes into I stand-by and the led will begin to flash rapidly alternating orange and blue. Dismantle the filter-holder remove the filter membrane and then re-assemble the whole thing.
- Enable the rinse function by pressing the coffee dispensing button. The machine will undertake 3 rinse cycles lasting 30s each followed by a 10s pause, the led will be orange with a short blue flashing interval.
- At the end of the cycle the led switches off and the machine is ready for a new coffee dispensing operation.
Note: it will be possible to interrupt both the washing and the rinsing stages by pressing the coffee dispensing button twice, in the first case the machine will go on to the stand-by stage ready for rinsing, while in the second case it returns to the normal ready-for-use mode.
| Stage LED signal | |
| Wait – Ready for washing | SLOW flashing orange + blue |
| Washing in progress Orange | + 1 FLASHING blue |
| Wait – Ready for rinsing | FAST flashing orange + blue |
| Rinsing in progress Orange | + 2 FLASHING blue |

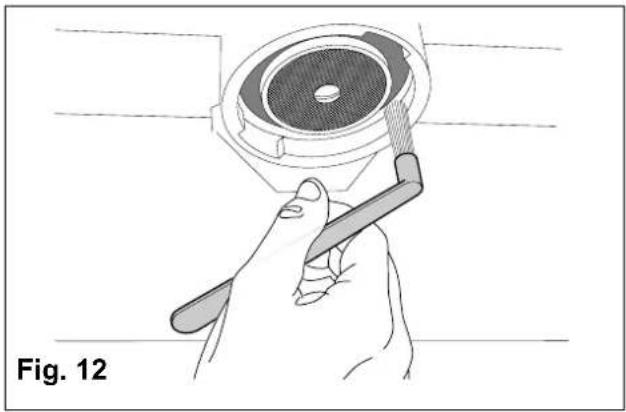

Cleaning the filters and the delivery outlets (Fig.12)
Operation to be carried out when the machine is off and cold.
● Prepare a solution of 4 packages of detergent powder Code 69000124 dissolved in a litre of boiling water in a stainless steel, plastic or glass recipient (NOT ALUMINIUM OR IRON).
- Remove the filters and immerse them with the filter holders in the prepared solution, leaving them for at least 10/20 minutes (all night is better).
- Remove them from the container and rinse them thoroughly in running water.
- Remove the cup-holder grid 1 (Fig. 11) and clean discharge 2 (Fig. 11)
11.3. Regular-interval maintenance and repairs
During all maintenance / repair operations, the components used must be warranted to maintain all the machine's hygiene and safety requirements. Using the machine's original spare parts constitute an effective warranty.
After repair or component replacement operations involving parts coming into contact with water and/or food, it is necessary to run the machine washing procedure as specified under the installation and first-time start-up section herein.
Have been fitted with economizers which do not draw water from the boiler to make hot water, the water in the boiler need only to be renewed from time to time.

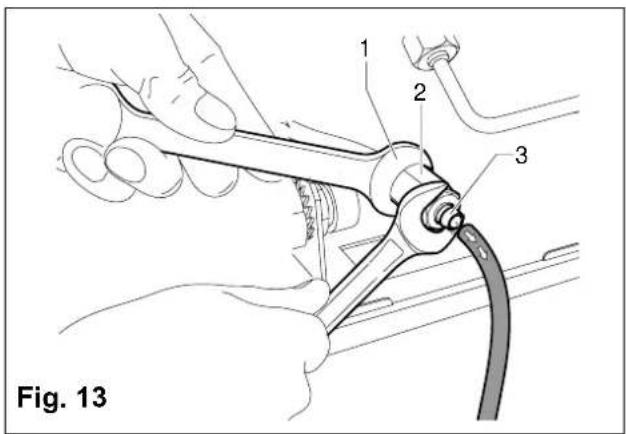

11.3.1. Renewal of water in the boiler (Fig.13)
Must be performed by a certified factory trained technician only.
- Turn off the machine and wait for the pressure in the boiler to diminish (gauge needl on "0").
● Dismantle the reservoir by working on the screws (Fig. 10) - Insert a rubber hose into the hose-end fitting (3) (Fig.13)
- Use the wrench (1) to immobilize the fitting (2) and loosen the hose-end fitting (3).
- Allow the water to flow out completely; then, close the fitting (3) and remove the rubber hose.
● Refill the boiler (paragraph 7.3.).
Whenever descaling operations are necessary, ensure that only specific products suitable for parts contacting water for public, human consumption are used. Make sure that all the relative product instructions are carefully observed and complied with at all times.
12. STOPPING THE MACHINE
A - Temporary stop
● Carry out cleaning and maintenance operations.
● Wind up the cable and fasten it to the machine with sticky tape.
- Cover the machine and place it in a dry room. Do not leave it exposed to environmental elements and do not allow it to be touched by children or untrained persons.
To disconnect from the main power supply, consult qualified personnel.
B - Definitive stop
- Besides carrying out the operations necessary for a temporary stop, cut off the cable, pack the machine in cardboard, polystyrene or other packing material and consign it to firms authorized for its disposal or to a resale dealer.
13. TROUBLESHOOTING AND POSSIBLE REMEDIES
Check operations to be carried out by the user with the plug disconnected.
For any type of problem or inconvenience not specifically indicated, disconnect the plug and contact our service centre. Do not attempt to perform any direct repairs.
A) The machine does not start:
- check that the plug is connected;
- In case of power failure wait for the power to return and check if the earthing protection circuit breaker or the main switch is on;
- check the condition of the plug and the supply cable; if damaged have them replaced by qualified personnel.
B) There is water under the machine:
- check that the drainage tray is not obstructed.
C) Slow dispensing:
- check that the filters and group heads are clean;
- check that the coffee is not too finely ground.
D) Irregular steam delivery:
- check that the steam wand tip is not obstructed.
IT ITALIANO 12-25
FR FRANCAIS 26-39
DE DEUTSCH 40-53
EN ENGLISH 54-67
ES ESPAÑOL 68-81
PT PORTUGUÊS 82-95
SCHEMI ELETTRICI SCHEMAS ELECTRIQUES SCHALTPLÄNE WIRING DIAGRAMS
ESQUEMAS ELECTRICOS 96-102 ESQUEMAS ELÉTRICOS
SCHEMI IDRAULICI SCHÉMAS HYDRAULIQUES HYDRAULIKPLÄNE HYDRAULIC DIAGRAMS ESQUEMAS HIDRÁULICOS ESQUEMAS HIDRÁULICOS
1 Interruptor general
M = MARRONE MARRON BRAUN BROWN
| N | = | NERO | NOIR | SCHWARZ | BLACK | NEGRO | PRETO |
| B | = | BLU | BLEU | BLAU | BLUE | AZUL | AZUL |
| BI | = | BIANCO | BLANC | WEISS | WHITE | BLANCO | BRANCO |
| V | = | VERDE | VERT | GRUEN | GREEN | VERDE | VERDE |
| GV | = | GIALLO-VERDE | JAUNE-VERT | GELB-GRUEN | YELLOW-GREEN | AMARILLO-VERDE | AMARELO-VERDE |
| BIN | = | BIANCO-NERO | BLANC-NOIR | WEISS-SCHWARZ | WHITE-BLACK | BLANCO-NEGRO | BRANCO-PRETO |
| BIB | = | BIANCO-BLU | BLANC-BLEU | WEISS-BLAU | WHITE-BLUE | BLANCO-AZUL | BRANCO-AZUL |
| VI | = | VIOLA | VIOLET | VIOLET | VIOLETT | VIOLETA | ROXO |
| R | = | ROSSO | ROUGE | ROT | RED | ROJO | VERMELHO |
MARRON
MARROM
SCHEDA ELETTRONICA - CARTE ÉLECTRONIQUE - ELEKTRONIKKARTE - ELECTRIC BOARD - TARJETA ELECTRÓNICA - PLACA ELETRÔNICA mod. CLASSE 6 (mod. E)
LV
Sensori livello Level sensors Capteurs de niveau Pegelstandsensoren Detectores de nivel Sensores de nivel
Sensore capacitativo Capacitive sensors Capteur capacitif Kapazitiver Sensor Detector capacitivo Sensor capacitivo
Sensore resistivo Resistive sensors Capteur resistif Kapazitiver Sensor Detector resistivo Sensor resistivo
| PT | Sensore caldaia | Sensors boiler | Sonde chaudière | Sensor-Dampfkessel | Sensor de caldera | Sensor da caldeira |
| 1-2 Sonda temperatura PTC | 1-2 PTC Temperature probe | 1-2 Sonde température PTC | 1-2 Temperatursonde PTC | 1-2 Sonda temperatura PTC | 1-2 Sonda temperatura PTC | |
| 2-3 Trasduttore di pressione | 2-3 Pressure trasducer | 2-3 Transducteur de pression | 2-3 Druckgeber | 2-3 Transductor de presión | 2-3 Transdutor de pressão | |
| DO | Programmazione dosi | Dose program | Programme doses | Programmier. der Dosierungen | Programa dosis | Programar doses |
| Abilitata | Enabled | Habilitée | Freigegeben | Habilitado | Habilitada | |
| Disabilitata | Disabled | Non habilitée | Nicht freigegeben | No habilitado | Não habilitada | |
| PW | Potenza resistenza | Power resistance | Puissance résistance | Widerstandskraft | Potencia de la resistencia | Potência da resistência |
| Piena potenza | Full power | Puissance complète | Volle Leistung | Potencia total | Plena potência | |
| 2/3 di potenza | 2/3 power | 2/3 de puissance | 2/3 der Leistung | 2/3 de potencia | 2/3 de potência | |
| RS1RS2RS3 | Alimentazione resistenze | Resistance power supply | Alimentation résistances | Wasserstand im Heizkessel | Alimentación resistencias | Alimentação das resistências |
| PV | Led Pompa | Pump led | Led pompe | LED Pumpe | Luz testigo bomba | Led da bomba |
| SL | Livello acqua in caldaia | Boiler water level | Niveau eau dans la chaudiere | Wasserstand Im Heizkessel | Nivel agua en la caldera | Nivel da água na caldeira |
| +5V | +5 V | +5 V | +5 V | +5 V | +5 V | +5 V |
DIP-SWITCH
1) Connect cable as shown in the picture.
2) Disconnect the light blue cables (neutral) from electric resistance and insulate them.
3) Connect boiler electric resistance according to the diagram below.
info@ranciliogroup.com
www.rancilio.com
www.egrocoffee.com
Worldwide Branch Locations
SPAIN
Rancilio Espana, s.a.
Gran Vía de Carlos III, 84 3 ^a
Edificio Trade
08028 Barcelona Spain
Ph. +34 902 884 275
Ph. +34 934 923 414
Fax +34 93 496 57 01
www.rancilio.com
info@rancilio.es
PORTUGAL
Rancilio Portugal Lda
Rancilio North America Inc.
8102 S.Lemont Rd. #1200
Woodridge, IL 60517 USA
Ph. +1 630 427 1703
Fax +1 630 427 1713
www.rancilio.com
info@rancilio-na.com
Asian Market Access HK Ltd
601 Tak Woo House
17-19 D'aguilar Street Central
Hong Kong
Ph. +852 2521 7839
Fax +852 2521 5787
www.rancilio.com
