Dear customer,

Congratulations on the purchase of your appliance. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

CONTENTS

Technical Data 12

Safety Instructions 12

Device properties 13

Connection instructions 14

Connection to the radio 16

Assembly of the appliance 17

Disposal Considerations 18

Manufacturer & Importer (UK) 18

TECHNICAL DATA

Output power 90 W x 6
Amplifier output power 6000 W	max.
Input sensitivity	High: 1.0 - 2.0 V impedance 100 Ohm
	Low: 0.1 - 1.0 V impedance 10 kOhm
S/N ratio Better than 95 dB
Speaker impedance 4-16 Ohm
Subwoofer frequency Adjustable	30 Hz - 250 Hz
Power supply DC 14.4 V
Dimensions 360 x 245 x 52 mm
Accessories Screws & spare fuse

SAFETY INSTRUCTIONS

• Always keep these instructions in a safe place so that you can access them at any time.
• Use the product only as described in the instructions. Any other use may lead to damage to the product or in the vicinity of the product.
• Modifying or changing the product will compromise product safety.
• Handle the product carefully. It can be damaged by bumps, blows or falls from a small height.
• Keep the product away from moisture and extreme heat.
• Do not open the device under any circumstances. The warranty is void if the unit is tampered with by third parties.
• Incorrect assembly may lead to malfunctions or total failure.
• The device should be protected from any moisture and direct sunlight.
• Never use cleaning agents for cleaning, only a dry microfibre cloth.
• Never open the product without authorisation and never carry out repairs yourself! Repairs to the device may only be carried out by a specialist workshop.

DEVICE PROPERTIES

Audio

• Auna Car Amplifier acrylic black & blue LEDs with 6000W
• 90W x 6 channel output power (20Hz - 20KHz, into 2 ohms)
• Multiple mode for simultaneous operation of subwoofer and satellite speakers
• Adjustable subwoofer crossover frequency (30-250Hz)
  • High-current output device
• Adjustable RCA input level
• Basic input isolation for suppression of wire interference

Energy supply

• Ultra-stable PWM (pulse width modulated signal)
  • Energy supply (11-16 V)
  • thermal overheating protection
• Remote activation

General Information

• Noise reduction
• Switch-on delay
• Speaker short-circuit protection
  • Gold-plated cinch connections and inputs
• ATC fuse on the device

CONNECTION INSTRUCTIONS

1. Connecting the power cable

• As this is a high-current device, the correct connection of the power cable is very important.
• Connect the red cable to the (+) terminal of your battery using the cable with the fuse holder.
• Connect the black cable firmly to a screw or another part of the bodywork of your car after you have removed the coating from this area. This is necessary for proper earthing.
  • Proper wiring results in clear sound.

2. Connection of the remote on/off cable

• Connect the orange cable to a switched power cable of the car radio. This controls the switching on and off of the amplifier.
• The cable for the automatic antenna on the radio (if present) can be used for this purpose.

3. Amplifier input connection

• This device can be used with all car radios that have high power outputs.
• Separate basic car radio connection: Connect the car radio speaker output cables to the high-power inputs +/- right and left.
• General car radio connection: Connect the negative car radio speaker output cable to the two remaining cables +/- right and left.

4. Connecting the AUX port:

• Connect the AUX input cable to the cinch connector as described: "White" to the left cinch output and "Red" to the right cinch output of the car radio.
• Before connecting the RCA output of the car radio or other equipment, make sure that the impedance and sensitivity match this AUX connection.

5. Input sensitivity control

- Adjust the input sensitivity to match the output signal of the car radio.

6. Connecting the speakers (stereo & mono)

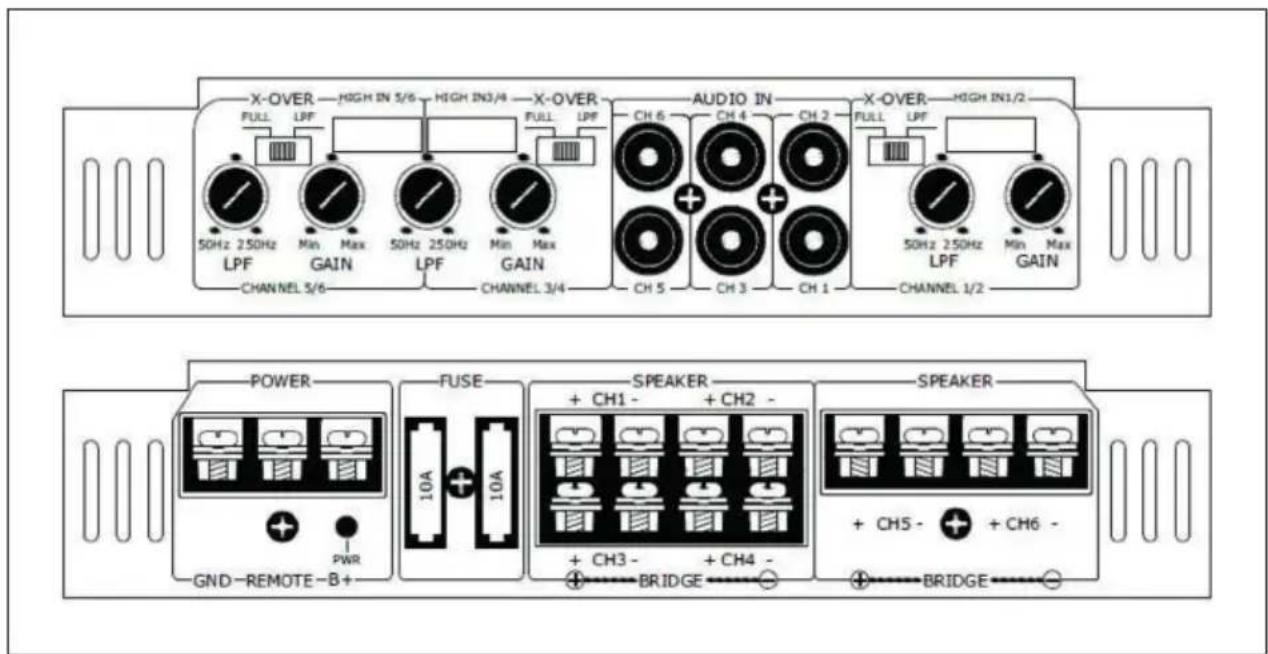

- Connect the speakers as shown in the illustration.

Important instructions

• The amplifier requires 20A at maximum power. If the amplifier is being used while the engine is switched off, the battery may be discharged. Please always switch on the motor before using the amplifier.
• Only use power cables with a suitable cross-section (larger than 3 mm ^2 ).
• This device is suitable for speakers with an impedance of 2-16 ohms. The speakers must have enough capacity to accommodate the power of the device.

CONNECTION TO THE RADIO

BLACK (black) To the (-)	pole of the battery or another ground point
ORANGE (orange) Remote activation
RED (red) To the (+) pole of the battery

ASSEMBLY OF THE APPLIANCE

Assemble the amplifier using screws as described in the illustration.

Important instructions

• The appliance heats up considerably.
- Therefore, please leave enough space for ventilation around the amplifier when assembling it. Do not cover the amplifier during operation.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

If there is a legal regulation in your country regarding the disposal of electrical and electronic equipment, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of this product in accordance with the regulations, you protect the environment and the health of those around you from negative consequences. For information on recycling and disposal of this product, contact your local government or household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom
