USER MANUAL RA 2725 CLATRONIC

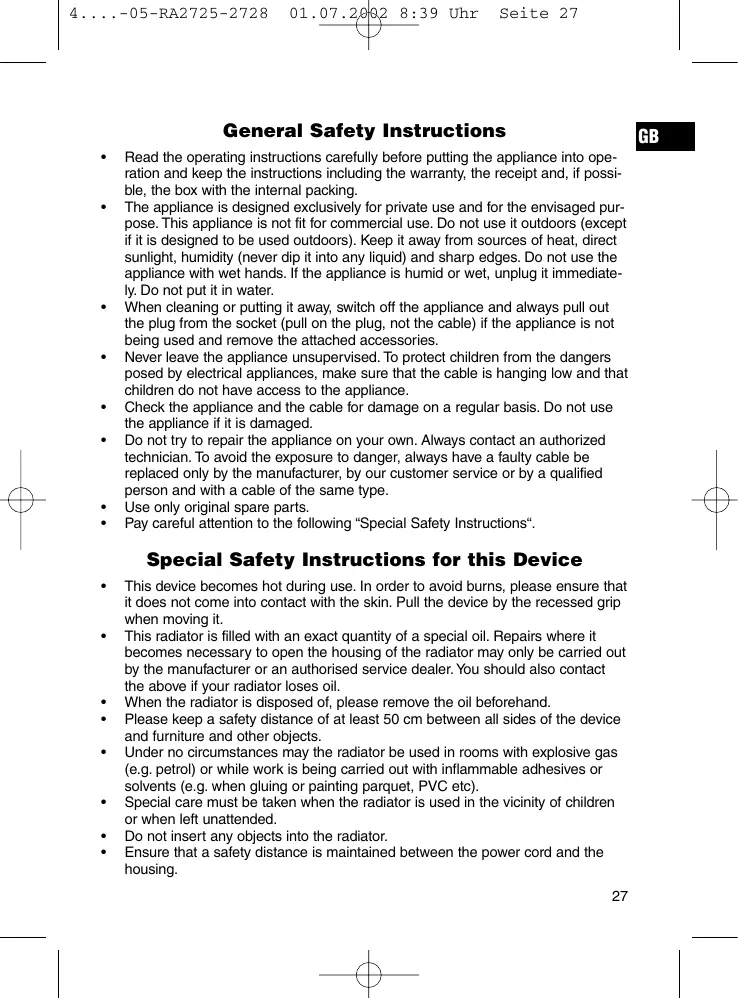

General Safety Instructions •

GB Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water. When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories. Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance. Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged. Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type. Use only original spare parts. Pay careful attention to the following “Special Safety Instructions“.

Special Safety Instructions for this Device

This device becomes hot during use. In order to avoid burns, please ensure that it does not come into contact with the skin. Pull the device by the recessed grip when moving it.

This radiator is filled with an exact quantity of a special oil. Repairs where it becomes necessary to open the housing of the radiator may only be carried out by the manufacturer or an authorised service dealer. You should also contact the above if your radiator loses oil. When the radiator is disposed of, please remove the oil beforehand. Please keep a safety distance of at least 50 cm between all sides of the device and furniture and other objects. Under no circumstances may the radiator be used in rooms with explosive gas (e.g. petrol) or while work is being carried out with inflammable adhesives or solvents (e.g. when gluing or painting parquet, PVC etc). Special care must be taken when the radiator is used in the vicinity of children or when left unattended. Do not insert any objects into the radiator. Ensure that a safety distance is maintained between the power cord and the housing. 27

4....-05-RA2725-2728

In order to avoid overheating it is important that the air inlets and outlets are kept clear. Never suspend objects in front of or above the radiator.

Do not use the radiator in the open air. This radiator is not suitable for use in bathrooms, washing rooms or rooms which are used in a similar manner. The radiator must never be placed in a position where it could fall into a bathtub or other water container. Do not cover the radiator. The radiator should not be placed directly below a mains power socket. The radiator should only be used in an upright position. If the radiator should fall over, first remove the plug from the socket and allow the radiator to cool down before returning it to an upright position.

Assembling the Rollers

Before the radiator is used, the rollers must be attached.

To do so, place the radiator upside-down (hold the underside facing upwards); avoid hard surfaces. In the case of oil radiators with 5 to 10 fins, the rollers should be attached in the right position between the first and second and between the last and penultimate fins. For models with 5-6-7 and 8 fins, the U-shaped roller carriers are used. For oil radiators with more than 10 fins, the straight roller carriers between the second and third fin must be attached to both ends. Pass the U-shaped clamps through the holes of each roller carrier and then tighten the wing nuts.

Levels/Heating Power

The heating power is determined by the various levels. In position 0 the radiator is switched off. ●

The control lamps light up during heating operation.

4....-05-RA2725-2728

(only for radiators with heater blowers)

In order to heat up the room more quickly the blower can be switched on. – only the heater blower is running ●●●

– the heater blower + first and second heating level

Please note that this paragraph only refers to the following model: RA 276 G Setting the Temperature

Set the desired temperature using the thermostat. By regularly switching the radiator on and off, the thermostat ensures that the desired temperature is maintained. 1. In order to find the ideal thermostat setting, turn the thermostat control clockwise to "max". 2. As soon as the desired temperature has been reached, turn the thermostat regulator slowly anticlockwise until the radiator switches off. 3. The radiator will now automatically stay at the desired temperature.

Cleaning and Cable Storage

Always remove the power cable from the socket and allow the radiator to cool down before cleaning it.

Do not use any type of detergent, abrasive or polish on the housing of the radiator as this may damage the surface. Wipe off the radiator with a dry cloth in order to remove dust. A damp cloth (not wet) can be used to remove stains. To save space, store the mains lead in the cable compartment. If the radiator is not going to be used for a prolonged period it can be stored in its original packaging.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

4....-05-RA2725-2728

GB The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. *) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge. Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
