Product Type	Tablet
Brand	ARCHOS
Model	Xenon 101 Lite
Dimensions (W x D x H)	240 x 170 x 10 mm
Weight	510 g
Display	10.1 inches, 1280 x 800 pixels resolution, capacitive touchscreen
Processor	Quad-core 1.3 GHz
RAM	1 GB
Internal Storage	16 GB
Power Supply	5V / 2A AC adapter (included), 5000 mAh lithium-ion battery
Operating System	Android 9.0 (Pie)
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Sensors	Accelerometer, ambient light sensor
Front Camera	0.3 megapixels
Rear Camera	2 megapixels
Speakers	Built-in speaker, 3.5 mm headphone jack
Care and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture, avoid shocks, use only the provided charger.
Spare Parts and Repairability	Contact ARCHOS after-sales service for spare parts. Repairs by a professional recommended.
Warranty	2 years

Frequently Asked Questions - Xenon 101 Lite ARCHOS

How to turn on the ARCHOS Xenon 101 Lite tablet?

Press the power button on the side of the device for a few seconds until the screen turns on.

The tablet does not turn on, what should I do?

Check the battery charge by plugging in the charger. If the screen remains black, press and hold the power button for 10 seconds to force a restart.

How to connect the tablet to a Wi-Fi network?

Go to Settings > Wi-Fi, enable Wi-Fi, then select your network and enter the password if required.

How to transfer files between the tablet and a computer?

Connect the tablet to the computer using the USB cable. On the tablet, select 'File Transfer' mode in the notifications. You can then copy files.

How to insert a microSD card?

Locate the microSD card slot on the side of the tablet. Insert the card with the gold contacts facing down until it clicks into place.

The battery drains quickly, what should I do?

Reduce screen brightness, disable Wi-Fi and Bluetooth when not in use. Check power-hungry apps in Settings > Battery.

How to reset the tablet to factory settings?

Go to Settings > System > Reset options and select 'Erase all data (factory reset)'. Note that this action deletes all your data.

The touchscreen is not responding, what should I do?

Try restarting the tablet. If the problem persists, clean the screen with a soft cloth. If nothing works, contact after-sales service.

How to update the operating system?

Go to Settings > System > System update. If an update is available, follow the on-screen instructions to install it.

Where to find the serial number of the tablet?

The serial number is usually printed on the packaging or on a label on the back of the tablet. It can also be found in Settings > About tablet.

USER MANUAL Xenon 101 Lite ARCHOS

Package contents....2

Getting started....3

Description of the device....4

Inserting SIM & Micro-SD cards....5

3G & WiFi connection....6

The Android™ interface....8

Getting familiar with Android™....12

Troubleshooting....14

For more information, please consult the FAQs on www.archos.com. Make sure to read them before considering any product return. Your deal may be no big deal. As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this Quick Start Guide. Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html

1

Package Contents

ARCHOS 101 Xenon Lite

QSG booklet Warranty, legal & safety booklet

USB cable Charger

2

Getting Started

Charging

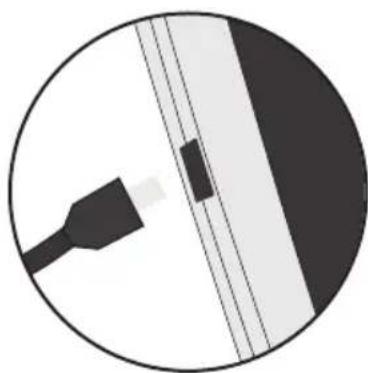

1. Charge your device by plugging your power cable into the micro-USB port. The ARCHOS device will start charging.
2. Press the Power button to turn on the device.

-You can use your ARCHOS whilst it charges. -Let your device charge completely the first time you use it. -Use only the supplied charger.

When your device is completely discharged, you need to charge it for at least 10 minutes before the charging battery icon can be displayed.

TIP:

To receive more complete service, please register your product. From a computer, go to www.archos.com/register.

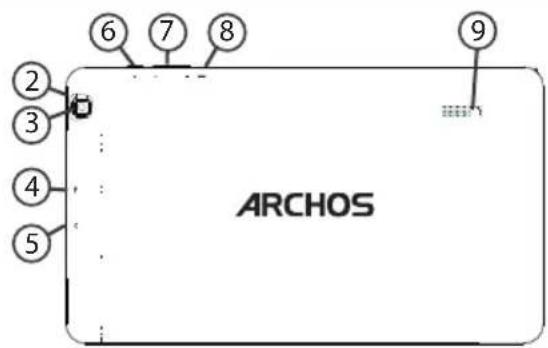

Description of the device

① Webcam ② Notch ③ Camera ④ Micro-USB port

⑤ Headphone jack ⑥ ON/OFF button ⑦ Volume buttons ⑧ Reset button

⑨ Loudspeaker

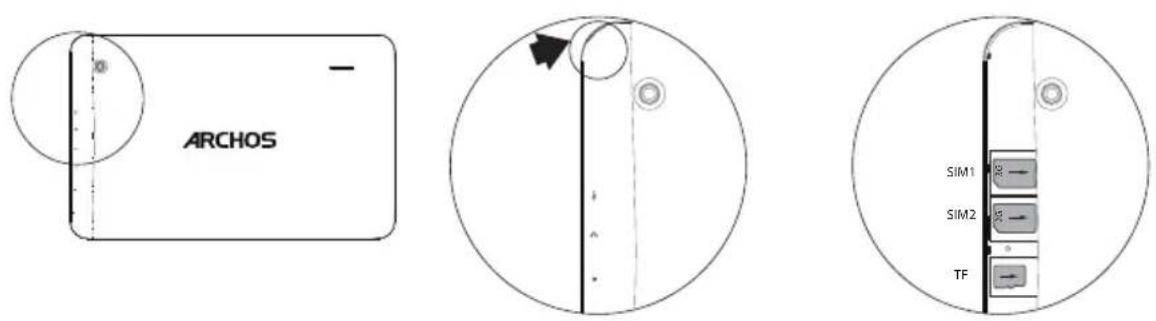

Inserting SIM & Micro-SD cards

WARNING: Make sure to turn off your device before inserting the SIM & memory cards.

Opening

Use the notch to remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Inserting a SIM card

For your SIM card, slide it facing downwards in the 2G/3G slots.

Inserting a Memory card

Slide it facing downwards in the slot TIF

Closing

Replace the back cover clicking it back into position.

3G & WiFi connection

3G connection

To be able to access Internet, the mobile data icon must be activated.

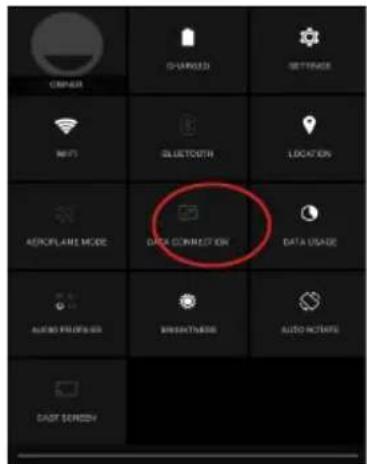

Activating the mobile data

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the white line down to display the status dashboard.
3. Touch the mobile data icon to activate it. When the mobile data is activated, it turns blue. If your device does not connect to your 3G provider's network: Contact your 3G provider to obtain the connection parameters. On your device, tap Settings. Select Wireless & networks > More... > Mobile networks. In Network operators, select your operator. In Access Point Names, select the correct access point name and enter the exact connection parameters.

TIP:

When you encounter connection problems, see the FAQs on www.archos.com or contact your 3G network connection provider.

EN

WiFi connection

WARNING: Make sure that you are in a WiFi zone.

1. Touch and hold the time & battery icons to reveal the status bar.
2. Pull the white line down to display the status dashboard.

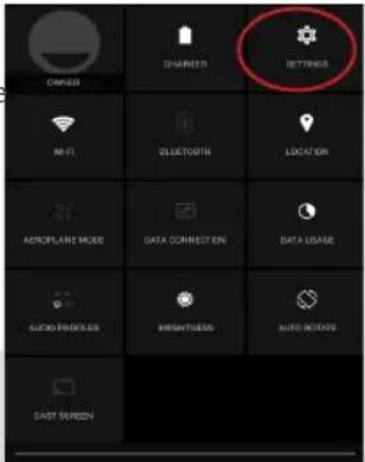

3. Touch the "Settings" icon to open the settings menu.
4. In the "Wireless & networks" section, if the WiFi is off, slide the WiFi switch to the "ON" position. Once the WiFi is on, the ARCHOS will scan for WiFi networks in range.
5. Touch "WiFi" to display available networks.
6. Touch the name of the network you want to connect to. Private networks are shown with a lock icon and will require you to enter your password.

TIPS:

- When entering a WiFi password, we recommend that you select "Show password" so you can see the characters you are typing. To get the correct WiFi password (or settings) for the network, contact the WiFi network provider.

- To keep your WiFi connection ON when the device is on sleep, select the Menu icon in the "WiFi" page. Then, select Advanced > Keep WiFi on during sleep > Always.

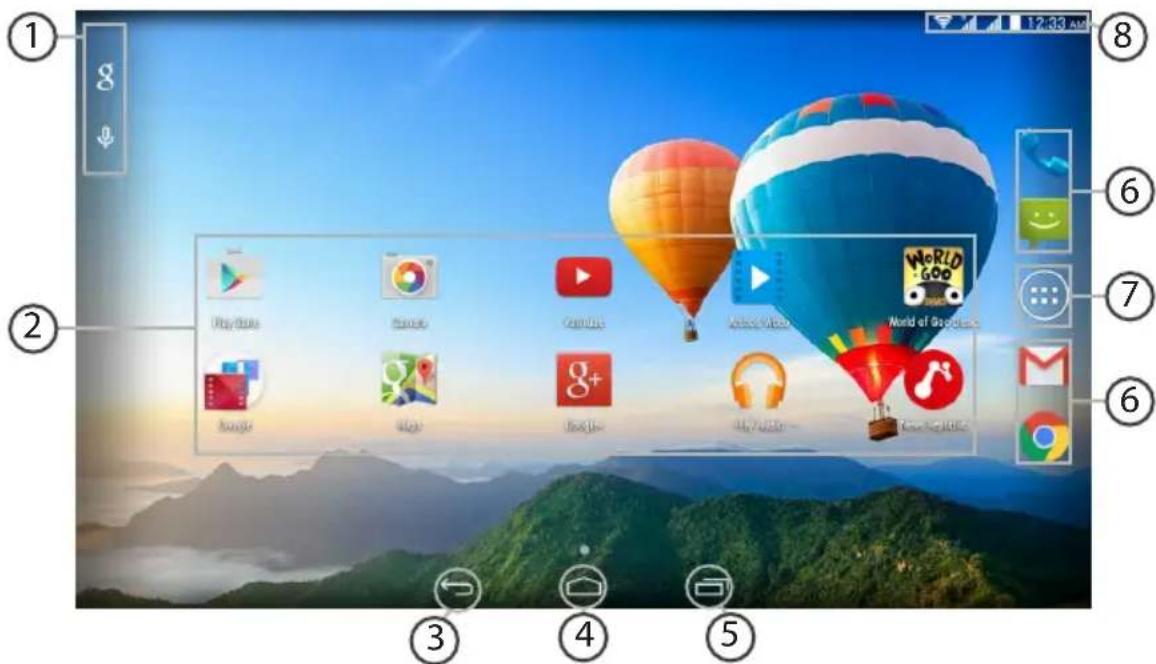

The Android™ Interface

8

① Google™ Search Touch "Google" for text search or touch the microphone icon for voice search. ② Android™ apps shortcuts Touch to start an application. ③ Back button ④ Home button ⑤ Recent apps buttons ⑥ Permanent Android™ apps shortcuts Touch to start an application ⑦ All Apps button Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here. ⑧ The status bar Displays notifications and quick settings

Touch "Google" for text search or touch the microphone icon for voice search. ② Android™ apps shortcuts: Touch to start an application. ③ Back button ④ Home button ⑤ Recent apps buttons ⑥ Permanent Android™ apps shortcuts: Touch to start an application. ⑦ All Apps button: Touch this icon to show all the applications and widgets installed on your ARCHOS. All your downloaded applications are here. ⑧ The status bar: Displays notifications and quick settings.

(1) New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device. (2) You can share movies, YouTube videos, and anything that's on your screen on an HDTV. You need to connect a wireless display adapter to any HDMI-enabled TV to mirror what's on your screen quickly and easily.

(1) New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device. (2) You can share movies, YouTube videos, and anything that's on your screen on an HDTV. You need to connect a wireless

display adapter to any HDMI-enabled TV to mirror what's on your screen quickly and easily.

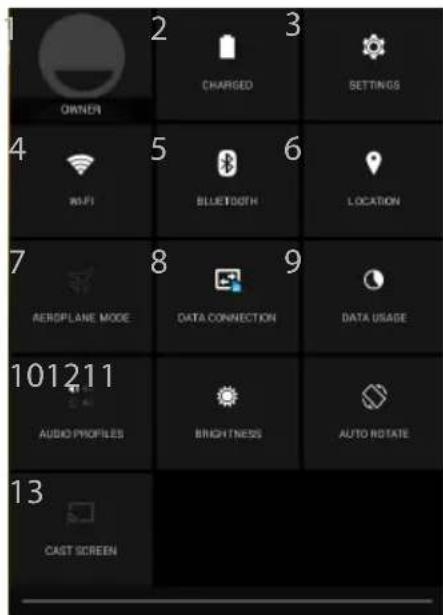

1 Current user ⁽¹⁾ 2 Percentage of battery remaining 3 To access all your settings. 4 To turn on/off your WiFi connection. 5 To turn on/off your Bluetooth connection. 6 To activate/deactivate your GPS location system. 7 To activate/deactivate all wireless connections, especially when flying. 8 To activate/deactivate the data connection. 9 To see how much data have been used. 10 To set an audio profile. 11 To adjust the screen brightness. 12 To activate/deactivate automatic screen orientation as you turn your ARCHOS. 13 To enable wireless display ⁽²⁾

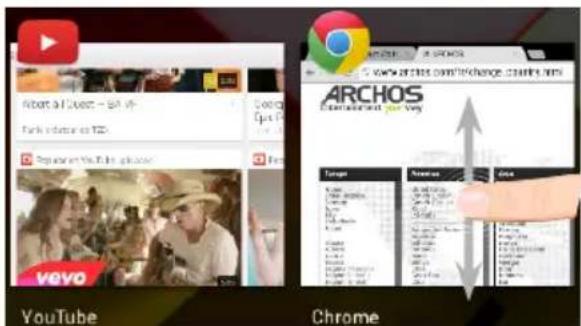

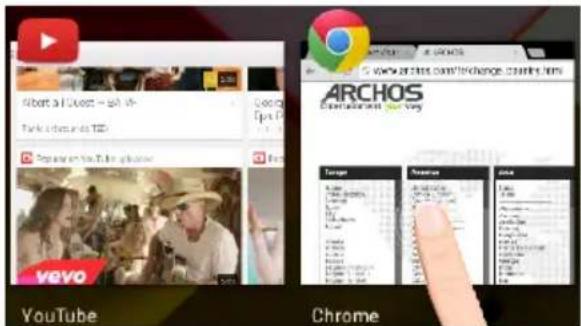

Opens a list of thumbnail images of apps you've worked with recently:

Touch: to open an app.

Opens a list of thumbnail images of apps you've worked with recently.

Swipe up or down: to close an app.

Hold down: to display options

Swipe up or down: to close an app.

Getting familiar with Android™

The extended home screen:

Navigate between different home screen panels by swiping left and right.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item:

From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders:

Drop one app icon over another on a home screen and the two icons will be combined.

Widgets:

Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Changing your wallpaper:

Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Locking the touchscreen:

In Settings, scroll down and touch security. Touch Screen lock. Touch the type of lock you would like to use. After you set a lock, a lock screen is displayed whenever your screen wakes up, requesting the pattern, PIN or other specified key.

Troubleshooting

If your device is frozen:

Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

If your device doesn't turn on:

1. Charge your device.
2. Press the ON/OFF button for 10 seconds or use the reset button. To use the reset button, press the "pinhole reset" button by using a sharp object such as a toothpick.

My tablet cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

ARCHOS 101 Xenon Lite

① Webcam ② Notch ③ Camera ④ Micro-USB port

22

① Google™ Search

Widgets:

ARCHOS 101 Xenon Lite

User Manual

① Webcam ② Notch ③ Camera ④ Micro USB Port

① Google™ Search

Locking the touchscreen:

ARCHOS 101 Xenon Lite

① Webcam ② Notch ③ Camera ④ Micro USB Port

50

① Google™ Search

Changing the wallpaper:

ARCHOS 101 Xenon Lite

① Webcam ② Notch ③ Camera ④ Micro USB Port

⑤ Headphone jack ⑥ ON/OFF buttons ⑦ Volume button ⑧ Reset button

⑨ Speakers

Inserting SIM & Micro-SD cards

① Google™ Search

ARCHOS 101 Xenon Lite

① Webcam ② Inkeping ③ Camera ④ Micro USB port

① Google™ Search

ARCHOS 101 Xenon Lite

User Guide

92

① Google™ Search

ARCHOS 101 Xenon Lite

106

① Google™ Search

Widgets:

Changing the wallpaper:

ARCHOS 101 Xenon Lite

(1) New multi-user support for tablets lets different users have their own separate, customizable spaces on a single device. Add users in Settings > Device.

Removing an item:

Changing the wallpaper:

ARCHOS 101 Xenon Lite

① Front camera

134

① Google™ search

Removing an item:

ARCHOS 101 Xenon Lite

User Guide

Warranty Card

External speaker

From FOUND earphone

Front camera

3G network

148

Press: to open the Sys app

Language: install item:

Change wallpaper:

Screen off:

Entertainment your way

Warranty certificate

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited

to 10 mW e.i.r.p.

within the band 2454-

2483.5 MHz

Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

Italy None If used outside of own premises, general authorization is required.

Luxembourg None General authorization required for network and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Alesund

Russian Federation None Only for indoor applications

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Archos company declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC).

C€1313

Open Source Software Offer

The software bundled with this product includes software files subject to certain open source license requirements. Such open source software files are subject solely to the terms of the relevant open source software license. Such open source software is provided on an "AS IS" basis to the maximum extent permitted by applicable law. For the open source files contained herein, please access "Open source license" section located at: Settings\About tablet\Legal information on the device for the relevant copyright and licensing terms. You may obtain a copy of Apache License, Version 2.0 at http://www.apache.org/licenses/LICENSE-2.0. You may also obtain a copy of GNU General Public License, Version 2 at the Free Software Foundation, INC, 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA.

Until the date that is three years after our last shipment of this product, you may obtain a copy of the source code corresponding to the binaries for any GPL-Licensed file by contacting ARCHOS customer service at http://www.archos.com and ARCHOS will send you a link to such source code or will provide instructions to get the source on a physical medium.

This offer is valid to anyone in receipt of this information.

The highest SAR value reported under this standard during product certification for use and when properly worn on the body is 1.659W/Kg.
