| Product type | Built-in extractor hood |
| Brand | Indesit |
| Model | H563IX |
| Height (extracting version) | 73.3 - 114.8 cm (telescopic) |
| Height (recirculation version) | 81.8 - 114.8 cm (telescopic) |
| Width | 59.9 cm |
| Depth | 51.5 cm |
| Gross weight | 12.1 kg |
| Power supply | 230 V, 50 Hz |
| Total absorption | 200 W |
| Motor absorption | 1 x 120 W |
| Lighting | 2 bulbs 40 W max (E14) |
| Connection diameter extraction | 150 mm |
| Number of speeds | 3 (low, medium, high) |
| Control type | Push buttons |
| Grease filter | Washable metal (dishwasher safe) |
| Activated carbon filter | Optional, replace every 4 months |
| Functions | Extraction, recirculation, lighting |
| Maintenance | Monthly cleaning of grease filters |
| Safety | Minimum distance of 60 cm (electric) or 70 cm (gas) above the hob |
| Spare parts | Filters, bulbs (E14 40W) |
| Repairability | Authorized technical support |
| Standards | Low Voltage Directive 2006/95/EC, EMC Directive 2004/108/EC |
Frequently Asked Questions - H563IX INDESIT
User questions about H563IX INDESIT
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Built-in oven in PDF format for free! Find your manual H563IX - INDESIT and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. H563IX by INDESIT.
USER MANUAL H563IX INDESIT
It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product. Read the instructions carefully: there is important information about installation, use and safety. Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
GENERAL SAFETY
The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 60cm from electric cookers and 70cm from gas or mixed cookers.
If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.
Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood. Do not tile, grout or silicone this appliance to the wall. Surface mounting only.
WARNING! Do not connect the appliance to the mains until the installation is fully complete.
Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
Always wear work gloves for all installation and maintenance operations.
The appliance is not intended for use by children or persons with impaired physical, sensorial or mental faculties, or if lacking in experience or know-how, unless they are under supervision or have been trained in the use of the appliance by a person responsible for their safety.
Children should be monitored to ensure that they do not play with the appliance. This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the appliance. Never use the hood without effectively mounted grating!
The hood must NEVER be used as a support surface unless specifically indicated.
The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together with other gas combustion devices or other fuels.
The suctioned air must not be conveyed into a conduit used for the disposal of the fumes generated by appliances that combust gases or other fuels.
The flaming of foods beneath the hood itself is severely prohibited.
The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.
Any frying must be done with care in order to make sure that the oil does not overheat and burst into flames.
With regards to the technical and safety measures to be adopted for fume discharging, it is important to closely follow the regulations provided by the authorized authorities.
The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
This must be completed in accordance with the maintenance instructions provided in this manual. Failure to follow the instructions provided in this user guide regarding the cleaning of the hood and filters will lead to the risk of fires.
Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
We will not accept any responsibility for any faults, damage or fires caused to the appliance as a result of the non-observation of the instructions included in this manual.
ELECTRICAL CONNECTION
The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug, connect the hood to a socket in compliance with current regulations and positioned in an accessible area. If it is not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.
Warning! Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.
Replacing the power cable
Warning! Power cable replacement must be undertaken by the authorized service assistance centre or similar qualified person.
AIR VENT
(for the suction versions)
Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).
Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.
Any responsibility in the matter is therefore declined.
Use a duct of the minimum indispensable length. Use a duct with as few elbows as possible (maximum elbow angle: 90°). Avoid drastic changes in the duct cross-section. Use a duct with as smooth as possible inside. The duct must be made of certified material. The company declines any responsibility whenever these regulations are not respected.
FILTERING OR DUCTING?
Your cooker hood is ready to be used in suction version.
To use the hood in filtering version the special ACCESSORY KIT must be installed.
Check on the first pages of this manual if the ACCESSORY KIT is furnished or must be bought separately.
Note: If furnished, in certain cases, the additional activated carbon filtering system may be installed on the hood.
Information about the conversion of the hood from suction version to filtering version is present in this manual.
Ducting version
In this case the fumes are conveyed outside by means of a special pipe connected with the connection ring located on top of the hood.
Attention! The exhausting pipe is not supplied and must be purchased apart.
Diameter of the exhausting pipe must be equal to that of the connection ring = 150mm.
In the horizontal runs the exhausting pipe must be slightly slanted (about 10°) and directed upwards to vent the air easily from the room to the outside.
Attention! If the hood is supplied with active charcoal filter, then it must be removed.
Filter version
Order and install 2 active carbon filters (active carbon filters are available from your dealer).
The filter removes grease and odors from the extracted air before sending it back into the room through the upper outlet grid.
CONTROLS
A. On/off light switch B. On/off aspiration switch and minimum power selection B+C. Medium power selection aspiration switch B+D. Maximum power selection aspiration switch E. Operating gauge
MAINTENANCE
ATTENTION! Before performing any maintenance operation, isolate the hood from the electrical supply by switching off at the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and socket, then the plug must be removed from the socket.
Cleaning
The cooker hood should be cleaned regularly (at least with the same frequency with which you carry out maintenance of the fat filters) internally and externally. Clean using a cloth dampened with neutral liquid detergent. Do not use abrasive products. DO NOT USE ALCOHOL!
WARNING: Failure to carry out the basic cleaning recommendations of the cooker hood and replacement of the filters may cause fire risks.
Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to the motor or any fire damage linked to inappropriate maintenance or failure to observe the above safety recommendations.
Maintenance of the anti-grease filters
Traps cooking grease particles.
This must be cleaned once a month using non-aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

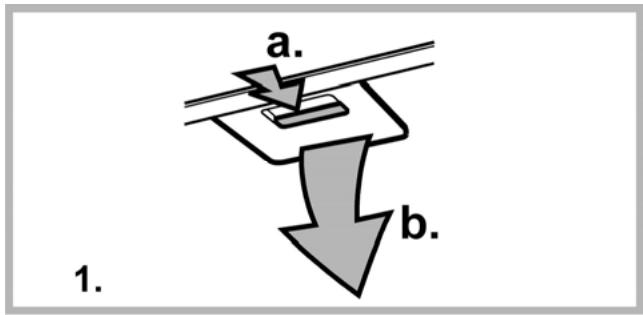

To remove the grease filter, pull the spring release handle.

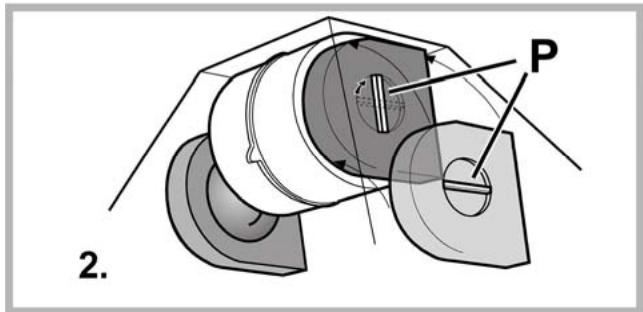

Maintenance of the charcoal filter
It absorbs unpleasant odours caused by cooking.
The saturation of the activated charcoal occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least every four months. The carbon filter may NOT be washed or regenerated.
- Remove the grease filter.
- Apply one on each side covering both grills protecting the motor propeller, then turn the filter central handles P clockwise. In order to dismantle turn the central handle P anti-clockwise for each filter. Put the grease filters back in place.
Replacing lamps
Disconnect the hood from the electricity.
Warning! Prior to touching the light bulbs ensure they are cooled down.
Remove the grease filters
- Replace faulty bulbs, always using new bulbs of max. 40 W (E14).
- Refit the grease filters.
DISPOSAL
This appliance is marked according to the European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
The symbol on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact your local authority.
MALFUNCTIONS
If something appears not to be working properly, do the following simple checks before calling Technical Service:
If the hood is not working: Check that:
- The power has not been disconnected.
- A speed has been selected.
If the hood performs inefficiently: Check that:
- The motor speed selected is sufficient for the amount of smoke and vapours released.
- The kitchen is sufficiently ventilated to allow air intake.
- The charcoal filter is not worn (hood in filtering version).
If the hood has turned off during normal functioning: Check that:
- The power has not been disconnected.
- the omnipolar disconnection device has not tripped.
If the hood fails to operate correctly, briefly disconnect it from the mains power supply for almost 5 sec. by pulling out the plug. Then plug it in again and try once more before contacting the Technical Assistance Service.
TECHNICAL DATA
Model H 563
Height (Ducting version) 73.3-114.8 cm
Height (Filter version) 81.8-114.8 cm
Width 59.9 cm
Depth 51.5 cm
Gross weight: 12.15 kg
Total absorption 200
Motor absorption 1x120 W
Lamp absorption 2x40 W (E14)
Exhaust pipe 015 cm
Model H 573
Height (Ducting version) 73.3-114.8 cm
Height (Filter version) 81.8-114.8 cm
Width 69.9 cm
Depth 51.5 cm
Gross weight: 14 kg
Total absorption 200 W
Motor absorption 1x120 W
Lamp absorption 2x40 W (E14)
Exhaust pipe 015 cm
Model H 593
Height (Ducting version) 73.3-114.8 cm
Height (Filter version) 81.8-114.8 cm
Width 89.9 cm
Depth 51.5 cm
Gross weight: 14.85 kg
Total absorption 200 W
Motor absorption 1x120 W
Lamp absorption 2x40 W (E14)
Exhaust pipe 0 15 cm
This appliance conforms to the following EEC Directive:
Low Voltage Equipment Directive 2006/95/EC (12-12-2006) "Electromagnetic Compatibility" Directive 2004/108/EC (15-12-2004)
Components not provided with the product
Low Voltage Directive 2006/95/EC (12-12-2006) EMC Directive 2004/108/EC (15-12-2004)
SAFETY INSTRUCTIONS
The distance between the lower edge of the extractor hood and the hob surface must be at least 60 cm for electric hobs, and at least 70 cm for gas or combination hobs.
If the installation instructions for the gas hob specify a greater distance, take this into account.
The extractor is supplied with plugs for fixing it to most walls/ceilings. However, it is necessary to contact a qualified technician to ensure that the materials are suitable for the type of wall/ceiling. The wall/ceiling must have sufficient strength to support the weight of the appliance.
Warning! Do not connect the appliance to the electrical supply until the installation is completely finished.
Before carrying out cleaning or maintenance operations, disconnect the extractor from the mains by pulling out the plug or switching off the main switch of the electrical supply.
Perform all installation and maintenance operations wearing protective gloves.
The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Do not leave children unattended to ensure they do not play with the appliance.
Do not use the extractor if the grille is not correctly installed!
It is strictly forbidden to use the hood as a shelf, unless this is specifically stated.
To ensure reliable air exchange in the room, use the hood simultaneously with other appliances with gas combustion or other fuels.
The extracted air must not be discharged into an air duct used for exhaust fumes from appliances with gas combustion or other fuels.
It is strictly forbidden to cook food "flambé" under the hood, as free flames can damage the filters and cause a fire; therefore, refrain from doing so in any case.
Frying in oil must be carried out under constant supervision, keeping in mind that overheated oil can ignite.
Regarding technical measures and safety conditions for the discharge of fumes, strictly follow the rules provided by the regulations of local competent authorities.
Attention! The exhaust pipe is not included in the package and must be purchased separately.
In the horizontal part, the pipe must be slightly inclined upwards (by about 10°) so that the air can quickly escape outside. If the hood is equipped with a charcoal filter, remove it.
Air recirculation mode
Order and install 2 charcoal filters (charcoal filters are sold by your dealer).
The extracted air is deodorized, purified, and then returned to the room through the upper grille.
Controls
A-Key: on/off light; B-Key: off/on hood and switch to minimum power; B+C-Key: switch to medium power; B+D-Key: switch to maximum power; E- Operation indicator.
MAINTENANCE
Attention! Before performing any operation on the hood or maintenance, disconnect the hood from the electrical supply, disconnect the hood or the main switch of the room.
Clean the grease filter both inside and outside (at least with the same frequency as the filter maintenance for grease filters). For cleaning, use a special cloth moistened with neutral liquid detergent. Do not use products containing abrasive materials.
DO NOT USE SPRAY!
Attention: Failure to follow the cleaning rules for the appliance and replacement of filters may lead to a risk of fire. Therefore, we recommend following the provided instructions.
The manufacturer declines all responsibility for possible damage to the motor and for fires arising as a result of improper maintenance or failure to follow the above warnings.
Maintenance of grease filters
Retains grease particles coming from cooking.
The filter should be cleaned monthly with neutral detergents, either by hand or in the dishwasher at low temperature and with an economical wash cycle.
Washing in the dishwasher may cause some discoloration of the grease filter, but its filtering characteristics remain essentially unchanged.
For the grease filter, keep a spare filter on hand.
Maintenance of the charcoal filter
Removes unpleasant odors from cooking.
Saturation of the charcoal filter occurs after a period of more or less intensive use, determined by the type of cooking and the frequency of cleaning the grease filters. In any case, replace the charcoal filter at least every 4 months.
The charcoal filter cannot be regenerated.
- Remove the grease filter and the charcoal filter.
- Install the coal filter on each side, covering both protective grilles of the engine cowling in this way, then turn the central filter handle clockwise.
