Product Type	Manual pull-down projection screen
Brand	Avtek
Model	1EVF11
Screen dimensions (width x height)	180 cm x 180 cm (square format)
Diagonal	254 cm (100 inches)
Weight	6.5 kg
Screen material	White matte PVC flame-retardant fabric
Gain	1.0
Viewing angle	160°
Deployment mechanism	Manual pull-down
Mounting	Wall or ceiling mount (brackets included)
Housing	White lacquered steel, round shape
Power supply	None (manual)
Main features	Video projection display, 1:1 format
Care and cleaning	Soft dry or slightly damp cloth, no abrasive products
Safety precautions	Do not pull the tab too hard, avoid impacts
Operating temperature	10°C to 40°C
Relative humidity	20% to 80% (non-condensing)
Package contents	Screen, wall brackets, anchors, screws, user manual
Warranty	2 years
Spare parts and repairability	Available on request, screen not user-serviceable

Frequently Asked Questions - 1EVF11 Avtek

How to install the Avtek 1EVF11 projection screen?

Attach the wall brackets to the wall or ceiling using the provided anchors and screws. Hang the screen housing on the brackets. Make sure the screen is level before unrolling it.

Can I clean the screen with water?

Yes, you can use a slightly damp soft cloth. Avoid chemical or abrasive products. Gently dry with a dry cloth.

What is the diagonal size of the 1EVF11 screen?

The diagonal is 254 cm, or 100 inches, for a square format of 180 cm x 180 cm.

How to store the screen after use?

Gently pull the tab downward to unroll, then release to automatically roll up. For long-term storage, roll it up completely and store away from dust.

What to do if the screen has wrinkles?

Light wrinkles often disappear after a few hours of use. For stubborn wrinkles, unroll the screen and apply gentle heat with a hairdryer on low power from a safe distance.

Can I use the screen with a short-throw projector?

Yes, the white matte fabric is suitable for all types of projectors, including short-throw. Make sure the projector is positioned correctly to avoid shadows.

What is the maximum weight the mounts can support?

The included brackets are designed to support the weight of the screen (6.5 kg). For ceiling installation, check that the ceiling can support this load.

Is the screen flame-retardant?

Yes, the PVC fabric is treated to be flame-retardant, compliant with safety standards.

How to adjust the screen height?

The 1EVF11 screen does not allow height adjustment after installation. You must choose the mounting height during installation.

Where to find spare parts?

Contact Avtek customer service or check the spare parts section on the official website. Available parts include the housing, brackets, and rolling mechanism.

USER MANUAL 1EVF11 Avtek

Framed Projection Screen

(Rys. 1)

(Rys. 2)

Uwaga!

Nie wolno...

Thank you for choosing our screen.

Please read through the user manual before using the screen. Correct usage and maintenance will insure a long life for the product.

User instructions

■ Dust, dirt and scratches on the projection surface will affect the picture quality, take note of the points below to prevent this:

1. Do not touch the projection surface with hands.
2. Do not write or draw on the projection surface.
3. Do not use fingers or sharp objects to point on the projection surface, this will damage the screen fabric.
4. Use a soft damp cloth to clean the projection surface, do not use chemical cleaning agents or alcohol. Use clean water.

■ After using the screen, disassemble the screen and store it in the box provided.
■ To avoid accidental damage and injury the screen should only be operated by adults.

Product Description

■ Design:

The aluminium frame is designed to be light weight and easily operated. This makes it easy to carry, assemble and disassemble.

■ Screen Fabric:

The screen fabric is attached to the rectangular frame and held in place by several press studs, which ensure an evenly stretched and perfectly flat surface.

Projection fabric has a viewing angle of 100° and a gain of 1.0.

Can be folded many times with out damage or distortion.

■ Assembly:

The screen can be assembled in 3 minutes and with out the use of tools. When not in use the screen is stored in an impact resistant carrying case.

■ Ideal for:

Business meetings, churches, schools, family centers and industrial training rooms. Correct use of the projection screen will ensure better results. For projection assemble and view the screen as indicated in Fig. 1 & 2.

(Fig. 1)

(Fig. 2)

Content and accessories list: When unpacking the screen, check that all the parts from the appropriate list are there. Use the parts as instructed by the user manual.

Part list

FOLD 500
Part	Part number	Quantity
Screen fabric	2	1	Pcs
Folding legs	3	2	Pcs
Screen fabric bag	4	1	Pcs
Hand screws M8X80	5	12	Pcs
Hand screws M8X50	5	2	Pcs
User manual	6	1	Pcs
QC PASS	7	1	Pcs
Fabric bag carton box	8	1/2	Pcs
Aluminum storage box	9	2	Pcs
Folding frame	10	2	Pcs
Connecting pole	11	4	Pcs
Hand screw M8X16	12	16	Pcs
Service card	13	1	Pcs

Part list

FOLD 240, 300, 360, 400 (4:3); FOLD 180, 220, 280, 340, 380 (16:9)
Part	Part number	Quantity
Folding frame	1	1	Pcs
Screen fabric	2	1	Pcs
Folding legs	3	2	Pcs
Screen fabric bag	4	1	Pcs
Hand screws M8X50	5	8/10	Pcs
User manual	6	1	Pcs
QC Pass	7	1	Pcs
Fabric bag carton box	8	1	Pcs
Aluminum storage box	9	1	Pcs
Service card	13	1	Pcs

Note: The part lists above are subject to change without prior notice.

Start diagrams

1. Folding frame

1. Screen fabric - front projection

1. Left and right folding legs

1. Screen fabric bag

1. Hand screw M8X80, M8X50

1. User manual

1. QC PASS

1. Fabric bag carton

1. Aluminum storage

1. Folding frame

1. Connecting pole

1. Hand screw M8X16

Assembly instructions

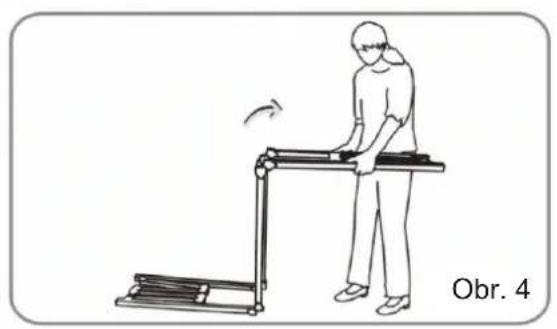

1. Take the frame out of the box and place it on a flat surface, Unfold the longer sections first, (Fig. 3 + 4)

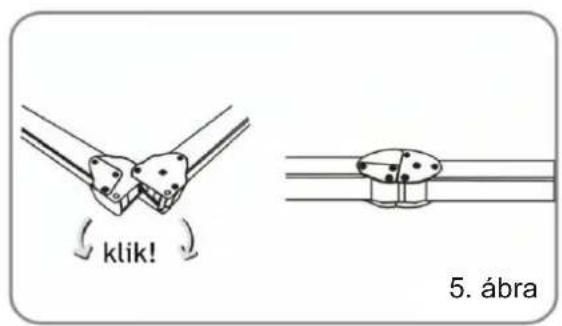

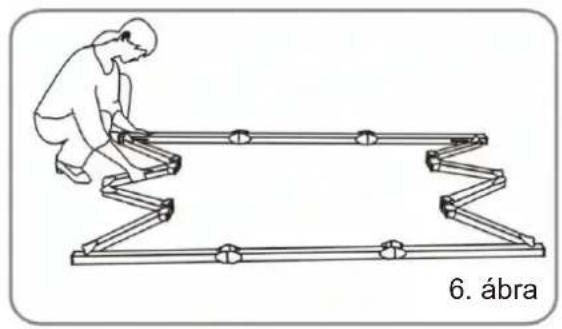

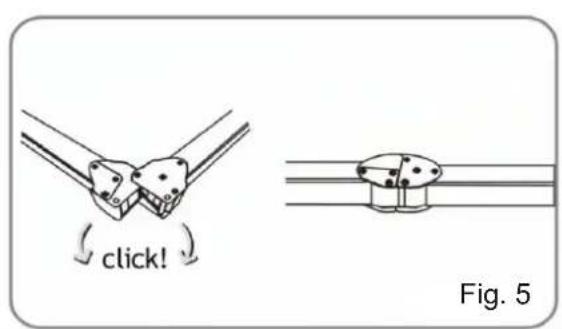

2. Unfold the frame until the latch on the hinge "clicks" into place. Repeat the procedure for the shorter sections. (Fig. 5 + 6)

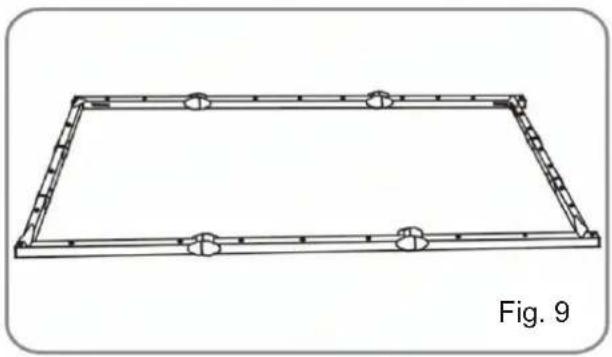

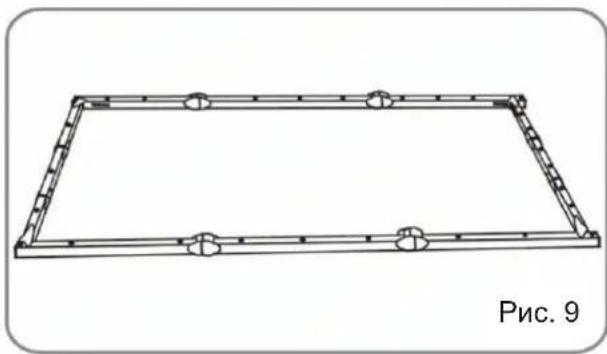

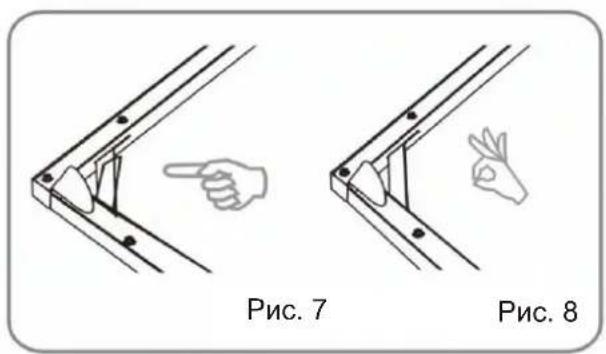

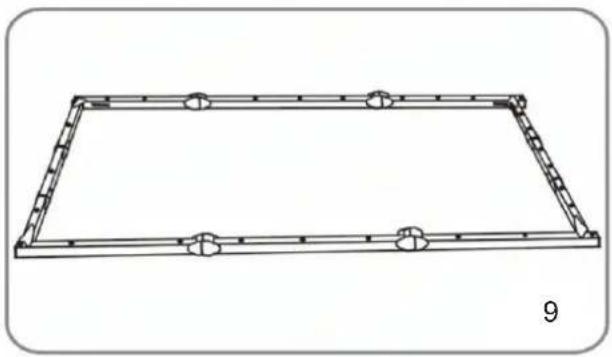

3. Make sure all 4 corners of the frame are at 90° and the hinged support bar is straight and not bent, (Fig. 7 - 9)

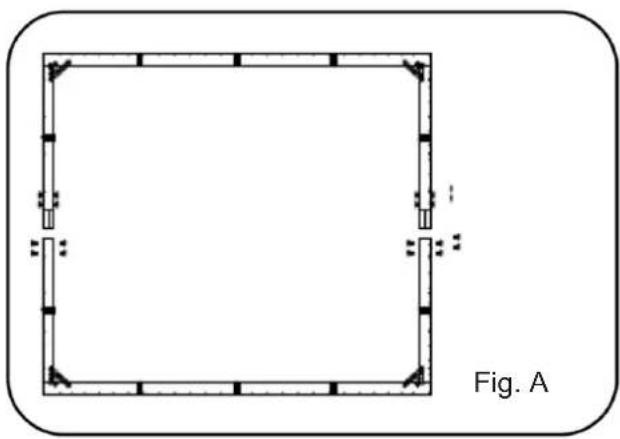

Attach the upper frame to the lower frame and fasten two frames with M8X16 screws. (Fig. A-B)

FOLD 500 250" Assembly instructions

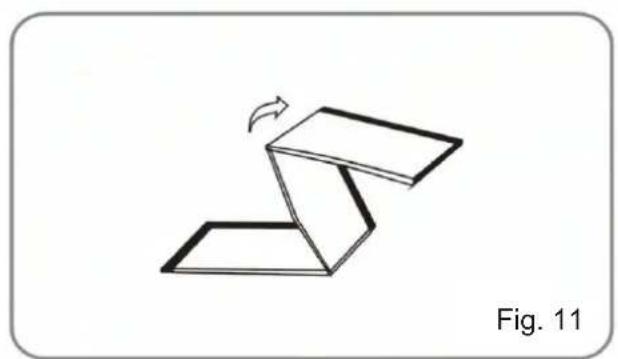

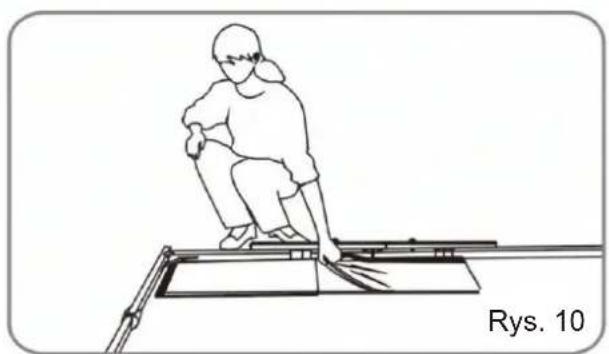

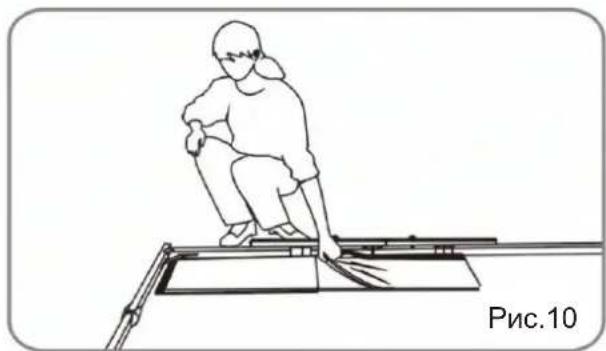

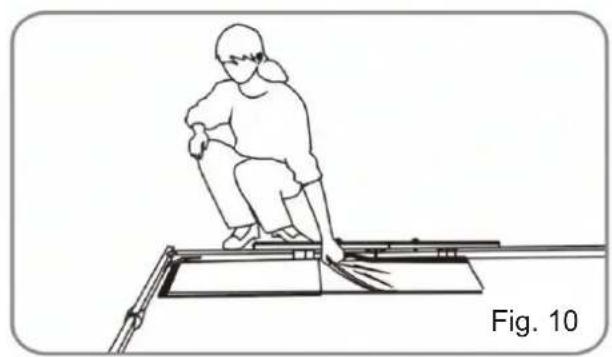

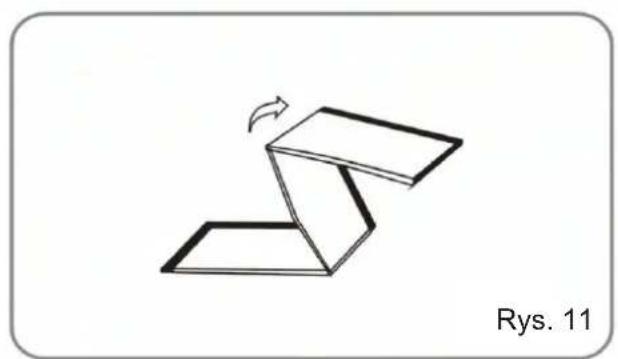

1. Take the screen fabric out of the bag and put it inside the frame next to the corner. Unfold as shown in the diagram. (Fig. 10 + 11).

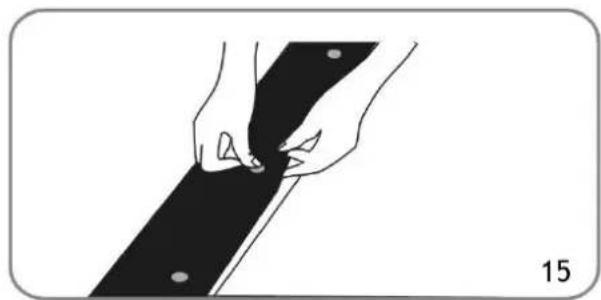

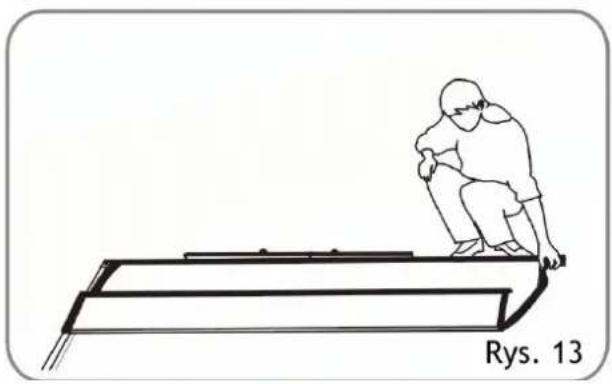

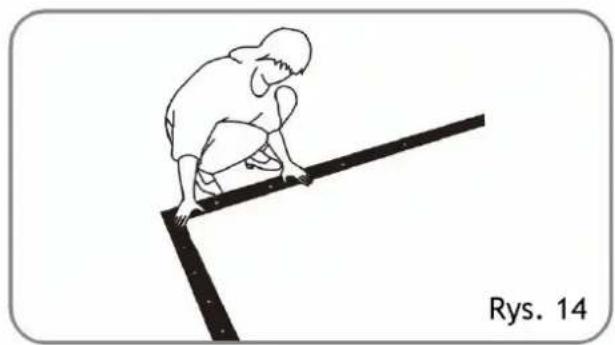

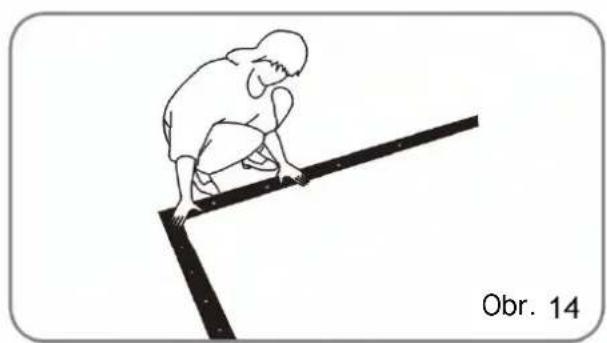

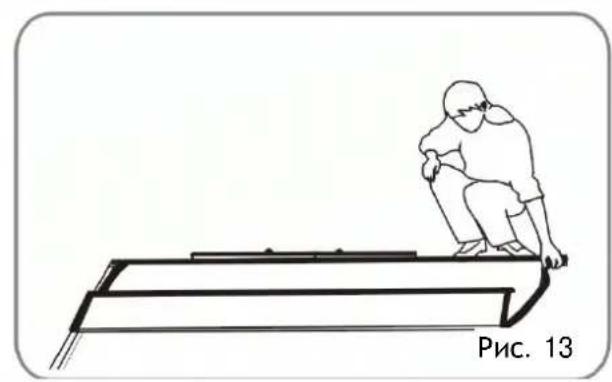

1. Once the screen fabric is fully unfolded, secure it to the frame by the press studs. Secure the press studs in the order shown in Fig. 1 2-15.

1. Jake the folding legs out of the box and unfold as shown in Fig. 1 6. and make sure the hinges click into place.

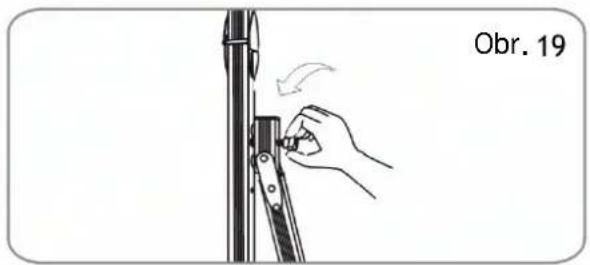

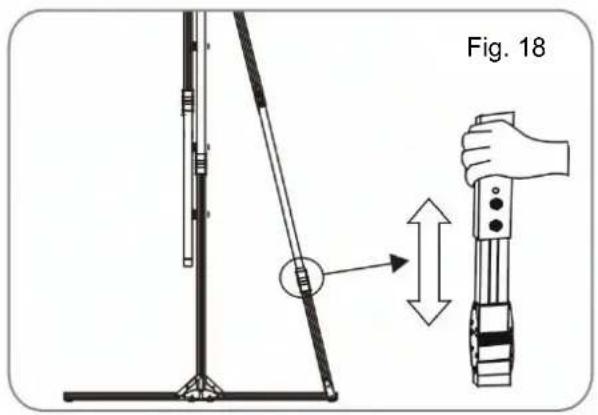

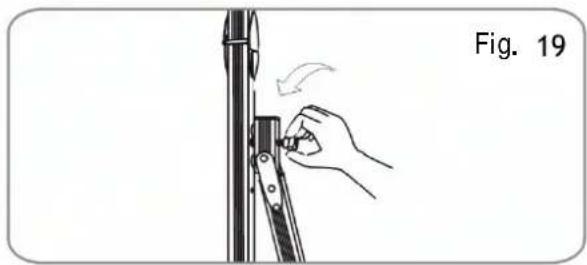

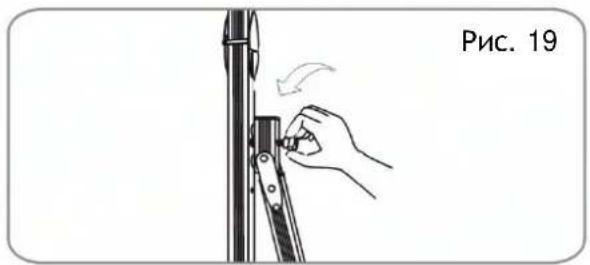

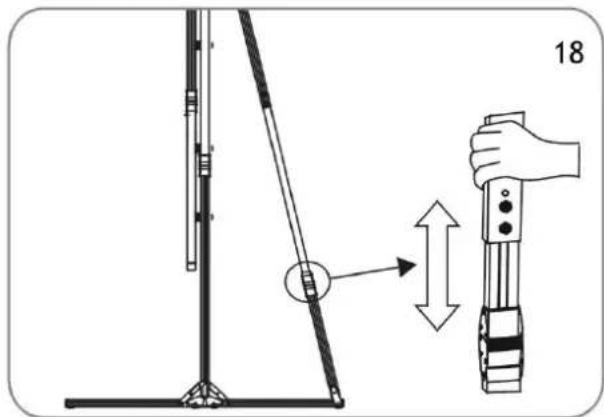

1. Once the legs are locked in place use the hand screws to secure the support leg to the vertical leg in an appropriate position. The support leg can be adjusted to an appropriate length. If the frame is attached to the legs higher up then the support leg should also be attached higher up. (Fig. 1 7-19)

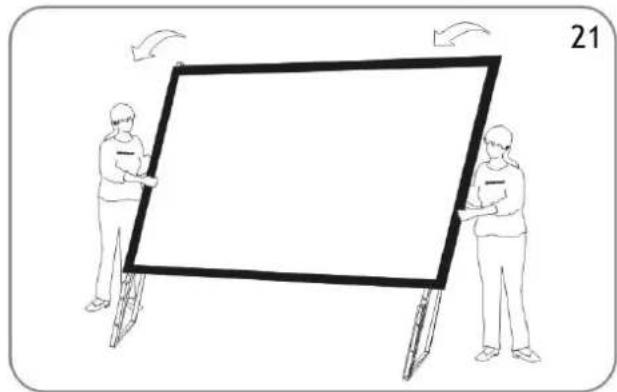

1. Lay the frame on the floor and position the legs over the sides of the frame. Use the hand screws to attach the frame to the legs just little before tighten two sides of them firmly.(Fig. 20 + 21)

1. When the frame is in the vertical position fold the front facing feet of the legs out. Assembly is complete and the projection screen will be stable on a flat surface. (Fig. 22)

1. After using the screen disassemble the screen and store it in the box provided.

To disassemble the screen, implement the assemble procedure in reverse order.

Safety Notice

Misuse of the screen may cause damage to the screen, or injury to persons.

The projection screen must be set up on a stable surface where there is sufficient space. Failure to do so may cause the screen to fall over causing damage to the screen and injury to persons.

Do not hang things from the screen or climb on it. Doing so may cause the screen to fall off and damage the screen and cause injury.

After using the projection screen disassemble the screen and store it in the box provided. This will protect it from dust, dirt and accidental damage.

Do not disassemble the screen. Doing so may damage the screen and may cause injury. If the screen needs to be repaired contact the dealer from which the screen was purchased.

Note: If the screen is faulty or is damaged in any way do not try to repair the projection screen yourself. Contact customer service to arrange for it to be repaired. The projection screen parts and specifications are subject to change with out prior notice.

Screen Specifications

Model	Ratio	Alu-minium size	Gain	Projection area W*H (mm)	Total Width L (mm)	Total Height F (mm)	B1 (mm)	B2 (mm)	C1 (mm)	C2 (mm)	Height H2 (mm)		Height H1 (mm)		Support leg height. M (mm)
											max	min	max	min	M1	M2
240	4:3	32*32	1,0	2438*1828	2638	2028	100	100	100	100	3425	2225	1393	193	/	/
300	4:3	32*32	1,0	3048*2286	3248	2486	100	100	100	100	4028	2678	1540	190	1660	2260
360	4:3	32*32	1,0	3658*2743	3858	2943	100	100	100	100	4256	3206	1312	262	1660	2260
400	4:3	32*32	1,0	4064*3048	4264	3248	100	100	100	100	4330	3430	1086	186	1660	2260
500	4:3	32*64	1,0	5080*3810	5280	4010	100	100	100	100	5538	4188	1530	180	1660	2260
180	16:9	32*32	1,0	2032*1143	2192	1323	80	80	80	80	2234	1634	934	334	/	/
220	16:9	32*32	1,0	2438*1372	2638	1572	100	100	100	100	2294	1844	724	274	/	/
280	16:9	32*32	1,0	3048*1727	3248	1927	100	100	100	100	2769	2169	849	249	/	/
340	16:9	32*32	1,0	3658*2057	3858	2257	100	100	100	100	3614	2714	1354	454	/	/
380	16:9	32*32	1,0	4064*2286	4264	2486	100	100	100	100	4101	3261	1621	721	1660	2260

Notice

Do Not...

Do not touch the projection surface with hands.

Do not use chemical cleaning agents to clean the projection surface.

Do not draw or write on the projection surface.

Do not disassemble the screen.

Correct...

Use a soft cloth or brush to clean the projection surface..

Use water and a soft cloth to clean the screen.

After using the screen disassemble the screen and store it in the box provided.

(Abb. 1)

(Abb. 2)

Achtung!

Nicht...

(dessin 1)

(dessin 2)

FOLD 500

Instruction d'installation version 250"

Attention!

Il est interdit...

Obr. 1

Obr. 2

Pozor!

Nesmí se...

Obr. 1

Obr. 2

1. Ručná skrutka M8X80, M8X50

Pozor!

Nesmie sa...

Po projekčnej ploche nepíšte ani nekreslite.

1. ábra

1. ábra

FOLD 500

A 250" változat

Figyelem!

Nem szabad...

Рис. 1

Рис. 2

Внимание!

Нельзя...

Fig. 1

Fig. 2

Atentie!

Este interzisă...
