TG100N/CZ - Boiler GORENJE - Free user manual and instructions

Product type	Wall-mounted gas condensing boiler
Brand	Gorenje
Model	TG100N/CZ
Dimensions (H x W x D)	800 x 400 x 300 mm
Weight	35 kg
Power supply	230 V / 50 Hz
Gas type	Natural gas (G20)
Nominal power	24 kW
Main functions	Central heating and domestic hot water production
Regulation	Electronic with digital display
Maintenance and cleaning	Annual check by professional, bleeding radiators, pressure control
Safety	Anti-overheat, safety valve, anti-freeze device, water shortage safety
Spare parts	Available from the manufacturer
Repairability index	8.5/10
Energy class	A
Efficiency	Up to 94%
Working pressure	1.0 to 2.0 bar
Flow temperature	30 to 80 °C
Warranty	2 years

Frequently Asked Questions - TG100N/CZ GORENJE

How to turn on the Gorenje TG100N/CZ boiler?

Press the on/off button on the control panel. The screen lights up and the boiler starts automatically if the pressure is correct (between 1 and 2 bars).

What to do if the boiler displays an error code?

Refer to the error code table in the manual. Common codes include: E01 (flame failure), E02 (overheating). Cut off the power supply and contact a professional if necessary.

What is the ideal pressure of the heating circuit?

The pressure should be between 1.0 and 2.0 bars cold. If it is lower, use the filling valve to add water.

How to bleed the radiators?

Open the bleed valve at the top of the radiator using a bleed key. Let the air escape until water comes out. Then close it. Check the pressure after bleeding.

How to adjust the domestic hot water temperature?

Turn the DHW selector on the control panel. The recommended temperature is 45-55 °C to prevent burns and limescale deposits.

What to do in case of water leak?

Immediately close the water inlet valve and gas supply. Contact a certified installer. Do not attempt to repair it yourself.

How often should the boiler be serviced?

An annual service by a professional is mandatory. This ensures proper operation, safety and validity of the warranty.

How to detect a circulation pump failure?

If the radiators remain cold despite the heating being on, the pump may be blocked. Try to unblock the pump using the release screw (see manual). Otherwise, call a technician.

Can I install the boiler myself?

No, installation must be carried out by a qualified professional (RGE). Incorrect installation can lead to risks of gas leakage and asphyxiation.

What does the flashing red light mean?

A flashing red light generally indicates a fault. Consult the manual to identify the corresponding code. Press the reset button if specified.

USER MANUAL TG100N/CZ GORENJE

TG 30 - 200 N

Navodila za uporabo 3
Instructions for Use 7
Gebrauchsanweisung 11
Руководство по эксплуатации	15
Upute za upotrebu 19
Упатства за употреба	23
Návod k obsluze 27
Instrukcja obsługi	31
Инсрукции за употреба	35
Használati útmutató 39
Упутства за употребу	43
Upute za upotrebu 47
Udhëzime për përdorim 51
Instrucțiuni de utilizare 55
Návod na obsluhu 59
Naudojimo instrukcija 63
Notice d’utilisation 67
Gebruiksaanwijzing	71

Dear buyer, we thank you for purchasing our product.

PRIOR TO INSTALLATION AND FIRST USE OF THE ELECTRIC WATER HEATER, PLEASE CAREFULLY READ THESE INSTRUCTIONS.

THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

This water heater has been manufactured in compliance with the relevant standards and tested by the relevant authorities as indicated by the Safety Certificate and the Electromagnetic Compatibility Certificate. The technical characteristics of the product are listed on the label affixed between the inlet and outlet pipes. The installation must be carried out by qualified staff. All repairs and maintenance work within the water heater, e.g. lime removal or inspection/replacement of the protective anticorrosion anode, must be carried out by the authorized maintenance service provider.

BUILDING-IN

The water heater shall be built-in as close as possible to the outlets. When installing the water heater in a room with bathtub or shower, take into account requirements defined in IEC Standard 60364-7-701 (VDE 0100, Part 701). It has to be fitted to the wall using appropriate rag bolts with minimum diameter of 8 mm. The wall with feeble charging ability must be on the spot where the water heater shall be hanged suitably reinforced. The water heater may be fixed upon the wall only vertically. We recommend the distance between the water heater and the ceiling is large enough to allow simple replacement of the MG anode (see dimension G in the Installation Drawing), in order to avoid unnecessary dismounting of the heater during the servicing intervention.

TECHNICAL PROPERTIES OF THE APPLIANCE

Type TG 30 N TG 50 N TG 80 N TG	100 N TG 120	N TG 150 N	TG 200 N
Model TG 30 N TG 50 N TG 80 N	TG 100 N TG	120 N TG 150	N TG 200 N
Volume [I]	30 50 80 100	120 150 200
Rated pressure [MPa]	0,6
Weight / Filled with water [kg]	20/50	24/74	30/110	34/134	38/158	44/194	70/270
Anti-corrosion protection of tank	Enameled / Mg Anode
Connected power [W]	2000
Voltage [V~]	230
Heating time to 75°C 1) [h]	105	155	305	355	435	545	740
Quantity of mixed water at 40°C [I]	50	89	145	200	236	298	399
Energy consumption 2) [kWh/24h]	0,90	1,32	1,85	2,20	2,60	3,20	2,80

1) Time for heating of the whole volume of heater with electric immersion heater by entering temperature of cold water from water supply 15°C. 2) Energy consumption to maintain stable temperature of water in the water heater 65°C at surrounding temperature 20°C, measured according to EN 60379.

	A	B	C	D	E	F
TG 30 N 459	275 173	- 454 46	1 80
TG 50 N 561	365 185	- 454 46	1 130
TG 80 N 766	565 190	- 454 46	1 180
TG 100 N 92	6 715 20	0 - 454 4	61 260
TG 120 N 10	81 865 2	05 - 454	461 260
TG 150 N 12	96 1065	220 - 454	461 260
TG 200 N 15	05 1050	444 800	500 507	260

Connection and installation dimensions of the water heater [mm]

CONNECTION TO THE WATER SUPPLY

The water heater connections for the in-flowing and out-flowing water are colour-coded. The connection for the supply of cold water is coloured blue, while the hot water outlet is coloured red.

The water heater may be connected to the water supply in two ways. The closed-circuit pressure system enables several points of use, while the open-circuit gravity system enables a single point of use only. The mixer taps must also be purchased in accordance with the selected installation mode.

The open-circuit gravity system requires the installation of a non-return valve to prevent water from draining out of the tank if the water supply runs dry or is shut down. This installation mode requires the use of an instantaneous mixer tap. As heating water expands its volume, this causes the tap to drip. The dripping cannot be stopped by tightening it further; on the contrary, tightening can only damage the tap.

The closed-circuit pressure system requires the use of pressure mixer taps. For safety reasons, the supply pipe must be fitted with a return safety valve or, alternatively, a valve of the safety class that prevents the pressure in the tank from exceeding the nominal pressure by more than 0.1 MPa. The outlet opening on the relief valve must be equipped with an outlet for atmospheric pressure.

The heating of water in the heater causes the pressure in the tank to increase to the level set by the safety valve. As the water cannot return to the water supply system, this can result in dripping from the outlet of the safety valve. The drip can be piped to the drain by installing a catching unit just below the safety valve. The drain installed below the safety valve outlet must be piped down vertically and located in an environment free from freezing conditions.

If the existing plumbing does not allow you to pipe the dripping water from the return safety valve into the drain, you can avoid the dripping by installing a 3-litre expansion tank on the inlet water pipe of the boiler.

To ensure correct operation of the relief valve, the user must carry out periodic inspections of the relief valve. To check the valve, open the outlet of the return safety valve by turning the handle or unscrewing the nut of the valve (depending on the type of valve). The valve is operating properly if water comes out of the nozzle when the outlet is open.

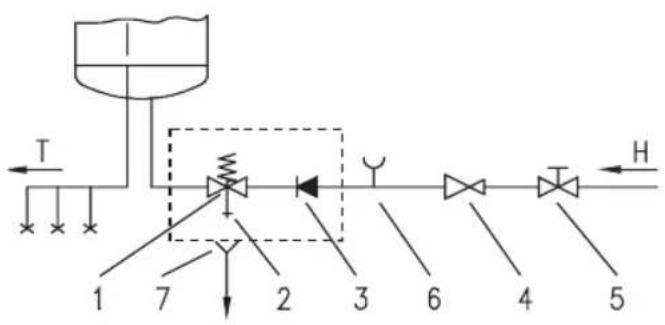

Closed (pressure) system

Open (non-pressure) system

Legend:

1 - Safety valve 6 - Checking fitting 2 - Test valve 7 - Funnel with outlet connection 3 - Non-return valve 4 - Pressure reduction valve H - Cold water 5 - Closing valve T - Hot water

Between the water heater and the return safety valve, no closing valve may be installed because it would impede the function of the return safety valve.

The water heater may be connected to the water network in the house without a reduction valve if the pressure in the network is lower than 0.5 MPa (5 bar). If the pressure exceeds 0.5 MPa (5 bar), a reduction valve must be installed. Prior to the electrical connection, the water heater must obligatorily be filled with water. When first filling, the tap for hot water upon the mixing tap must be opened. When the heater is filled with water, the water starts to run through the outlet pipe of the mixing tap.

CONNECTION OF THE WATER HEATER TO THE ELECTRIC NETWORK

Before connecting to the power supply network, install a power supply cord in the water heater, with a minimum diameter of 1.5 mm² (H05VV-F 3G 1.5 mm²). For this, the protection plate must be removed from the water heater.

The connection of the water heater to the electric network must be performed according to standards for electrical installation. Install a disconnect switch (separating all poles from the power supply network) between the water heater and the permanent power connection, in compliance with national regulations.

Legend:

1 - Thermostat and bipolar thermal fuse 2 - Electric heater 3 - Connection terminal 4 - Pilot lamp

L - Live conductor N - Neutral conductor 1/2 - Earthing conductor

Electric installation

CAUTION: Prior to each access to the interior of the water heater, it must absolutely be disconnected from the electric network!

USE AND MAINTENANCE

After connection to water and electric network, the water heater is ready for use. The temperature of water in the appliance is automatically controlled by the thermostat, which is adjusted by the manufacturer. The adjustment can be modified by turning the adjustment screw on the thermostat inside the water heater. The adjustment range is between 20°C and 75°C. We do not recommend changing the manufacturer's adjustment, as this ensures the most economical consumption of electric energy and the smallest excretion of limestone. The operation of the electric immersion heater is shown by the pilot light. On the casing of the water heater, a bimetal thermometer is mounted, pointing clockwise (to the right) whenever there is hot water in the water heater.

When the heater is not to be used for a longer time, it must be disconnected from the electric network. At any risk of freezing of water in the water heater, the water must be emptied from it. Water is discharged from the heater via the inlet pipe. To this purpose, a special fitting (T-fitting) shall be mounted between the relief valve and the heater inlet pipe, or a discharge tap. The heater can be discharged directly through the relief valve, by rotating the handle or the rotating valve cap to the same position as for checking the operation. Before discharge, make sure the heater is disconnected from the power supply, and open the hot water on the connected mixer tap. After discharging through the inlet pipe, there is still some water left in the water heater. The remaining water will be discharged after removing the heating flange, through the heating flange opening.

The external parts of the water heater may be cleaned with a mild detergent solution. Do not use solvents or abrasives.

Regular preventive maintenance inspections ensure faultless performance and long life of your heater. The first of these inspections should be carried out by the authorized maintenance service provider about two years from installation in order to inspect the wear of the protective anticorrosion anode and remove the lime coating and sediment as required. The lime coating and sediment on the walls of the tank and on the heating element is a product of quality, quantity and temperature of water flowing through the water heater. The maintenance service provider shall also issue a condition report and recommend the approximate date of the next inspection.

Never try to repair any possible faults of the water heater by yourself, but inform about it the nearest authorized service workshop.
