Product type	Glue gun
Brand	Skil
Model	2055 MA
Dimensions (L x W x H)	20 cm x 5 cm x 5 cm
Weight	300 g
Power supply	Electric, 220-240 V, 50 Hz
Power	40 W
Heating temperature	180 °C (approx.)
Glue stick type	Hot melt glue sticks, diameter 11 mm
Main functions	Quick heating, adjustable flow, integrated stand
Care and cleaning	Clean after use with a damp cloth, avoid water
Safety	Heat protection, stand, automatic shut-off after 30 min of inactivity
Spare parts and repairability	Glue sticks, stand, power cord (replaceable)
Color	Black and red
Warranty	2 years

Frequently Asked Questions - 2055 MA SKIL

How to use the Skil 2055 MA glue gun?

Insert a glue stick into the back of the gun, plug it into an electrical outlet and wait 3 to 5 minutes for the glue to heat up. Squeeze the trigger to apply glue onto the desired surface.

What type of glue stick to use?

Use standard hot melt glue sticks of 11 mm diameter. Avoid using sticks of different diameter to avoid damaging the tool.

How to clean the glue gun after use?

Let the tool cool down, then wipe away glue residue with a dry or slightly damp cloth. Do not use abrasive products or immerse the tool in water.

What to do if glue does not flow?

Check that the tool is hot (about 5 minutes of heating). Ensure the glue stick is properly inserted and that no residue is blocking the nozzle. If necessary, clean the nozzle with a toothpick.

Does the glue gun get too hot?

The nozzle and glue reach about 180 °C. Do not touch the nozzle during use. The gun is equipped with thermal protection to prevent overheating.

Can I use the glue gun on plastic?

Yes, hot melt glue is suitable for many materials such as plastic, wood, fabric or glass. Test on a small area first.

How to store the glue gun?

Store it in a dry, dust-free place. Remove the glue stick after use and let it cool completely before storing.

What to do in case of glue on skin?

Immediately cool the area with cold water for several minutes. Do not remove the glue while hot. If the burn is severe, consult a doctor.

Does the glue gun have automatic shut-off?

Yes, the Skil 2055 MA is equipped with automatic shut-off after 30 minutes of inactivity to save energy and ensure safety.

Where to find spare parts for the Skil 2055 MA?

Spare parts (stand, power cord) are available from Skil customer service or authorized dealers. Glue sticks are available in most hardware stores.

USER MANUAL 2055 MA SKIL

Illustration of a SKIL MASTERS handheld tool with trigger and handle (no text or symbols on the device itself)

GB ORIGINAL INSTRUCTIONS....6
F NOTICE ORIGINALE 9
D ORIGINALBETRIEBSANLEITUNG ..... 12
NL ORIGINELE GEBRUIKSAANWIJZING....16
S BRUKSANVISNING I ORIGINAL ..... 20
DK ORIGINAL BRUGSANVISNING ..... 23
N ORIGINAL DRIFTSINSTRUKS....26
FIN ALKUPERÄISET OHJEET 29
E MANUAL ORIGINAL 32
P MANUAL ORIGINAL....36
I ISTRUZIONI ORIGINALI .... 40
H EREDETI HASZNÁLATI UTASÍTÁS.....43
CZ PÚVODNÍM NÁVODEM K POUŽÍVÁNÍ ... 47
TR ORIJINAL İŞLETME TALİMATI ..... 50
PL INSTRUKCJA ORYGINALNA....53

RU ОРИГИНАЛНЬОЕ РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ ..... 57
UA ОРИГІНАЛЬНА ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ 62
GR ΠΡΩΤΟΥΠΟ ΟΔΗΓΙΩΝ ΧΡΗΣΗΣ ..... 65
RO INSTRUCTIUNI DE FOLOSIRE ORIGINALE....70
BG ОРИГИНАЛНО РЪКОВОДСТВО ЗА ЕКСПЛОАТАЦИЯ 73
SK PÔVODNÝ NÁVOD NA POUŽITIE.....77
HR ORIGINALNE UPUTE ZA RAD ..... 81
SRB ORIGINALNO UPUTSTVO ZA RAD.....84
SLO IZVIRNA NAVODILA....87
EST ALGUPÄRANE KASUTUSJUHEND.....90
LV ORIGINĀLĀ LIETOŠANAS PAMĀCĪBA ... 93
LT ORIGINALI INSTRUKCIJA....97

www.skilmasters.com

1 2055

②

Simple line drawing of a house with an arrow pointing to it (no text or symbols)

Simple geometric diagram of two concentric squares (no text or symbols)

Simple line drawing of a shield with an internal circle and number 6 in the top-left corner (no text or symbols within the shield itself)

13

Line drawing of a hand holding a small object inside a cylindrical container (no text or symbols)

Technical line drawing of a mechanical component with a lock and numbered part (15), no text or symbols present.

ACCESSORIES SKIL nr.
	4,8 V 1,2 Ah NiMH 2610395922

GB

Cordless sealant gun 2055

INTRODUCTION

• This tool is intended for dispensing sealant out of standard cartridges
• Read and save this instruction manual ③

TECHNICAL SPECIFICATIONS ①

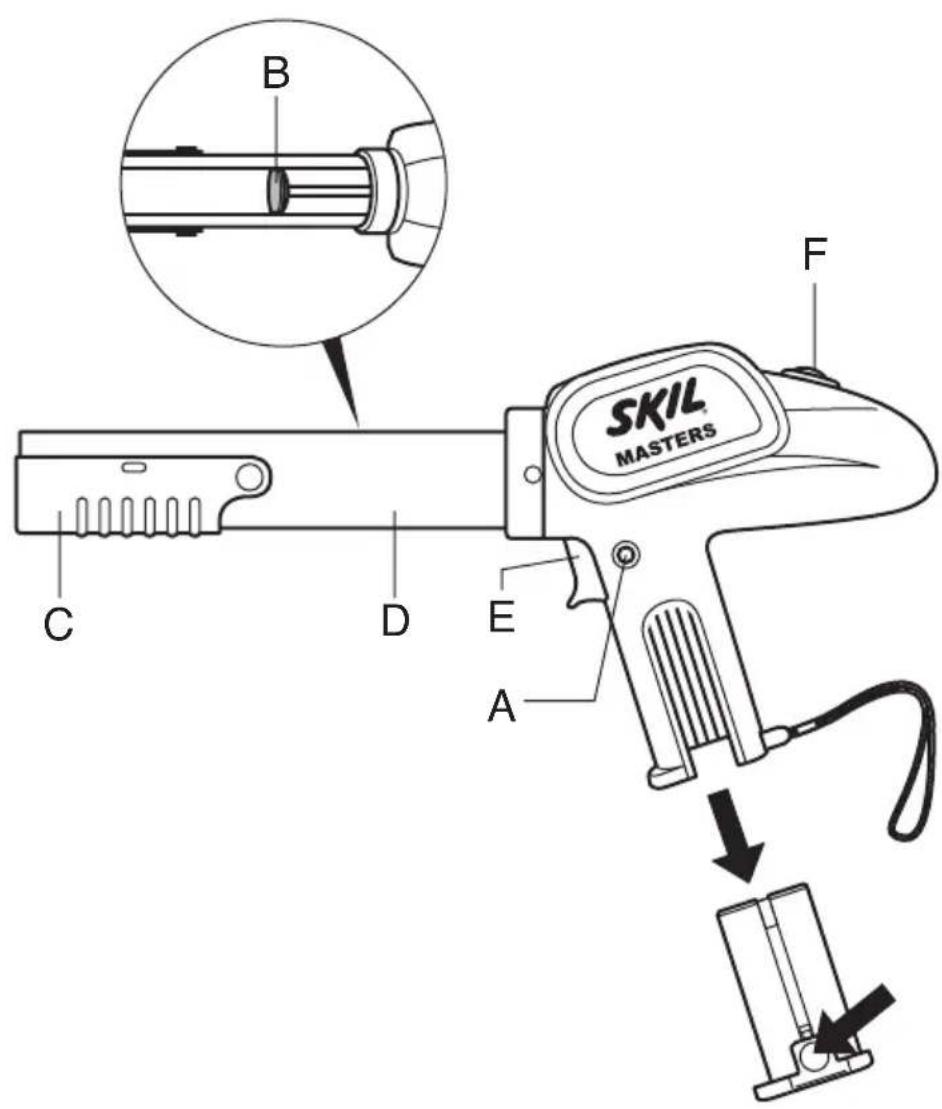

TOOL ELEMENTS ②

A Multifunctional switch
B Plunger
C Cartridge cover
D Carriage frame
E Trigger switch
F Speed selection wheel

SAFETY

GENERAL SAFETY INSTRUCTIONS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) WORK AREA SAFETY

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) ELECTRICAL SAFETY

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use an earth leakage circuit breaker. Use of an earth leakage circuit breaker reduces the risk of electric shock.
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your fi nger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

3) PERSONAL SAFETY

4) POWER TOOL USE AND CARE

e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) BATTERY TOOL USE AND CARE
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) SERVICE
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

SAFETY INSTRUCTIONS FOR CORDLESS SEALANT GUNS

• Always check that the supply voltage is the same as the voltage indicated on the nameplate of the charger (chargers with a rating of 230V or 240V can also be connected to a 220V supply)
• In case of electrical or mechanical malfunction, immediately switch off the tool or unplug charger from power source
• SKIL can assure fl awless functioning of the tool only when the correct accessories are used which can be obtained from your SKIL dealer
• The tool/charger is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the tool/charger by a person responsible for their safety
• Ensure that children do not play with the tool/charger

CHARGING/BATTERIES

• Charge battery only with the charger that is supplied with the tool
• Do not touch the contacts in the charger
• Do not charge battery in damp or wet environments
• Do not expose tool/charger/battery to rain
• Store tool/charger/battery in locations where temperature will not exceed 40°C or drop below 0°C
• Batteries will explode when disposed of in fire, so do not burn battery for any reason
• Do not use charger when damaged; take it to one of the offi cially registered SKIL Service Stations for a safety check
• Do not use charger when cord or plug is damaged; cord or plug should be replaced immediately at one of the offi cially registered SKIL Service Stations
• Do not use battery when damaged; it should be replaced immediately
• Do not disassemble charger or battery
• Do not attempt to recharge non-rechargeable batteries with the charger
• Explanation of symbols on charger/battery

④ Only use the charger indoors
⑤ Double insulation (no earth wire required)
⑥ Fail-safe isolating transformer (the power source is electrically separated from the transformer output)
⑦ Automatic shut-off when charger gets too hot (thermic fuse blows and charger becomes useless)
⑧ Incorrect polarity of the charger connection could cause a hazard (only charge the battery with the charger supplied)
⑨ Do not dispose of the charger together with household waste material
⑩ Do not dispose of the battery together with household waste material
⑪ NiMH technology provides more energy in a less environment-polluting way

WHEN CONNECTING NEW 3-PIN PLUG (U.K. ONLY):

• Do not connect the blue (= neutral) or brown (= live) wire in the cord of the charger to the earth terminal of the plug
• If for any reason the old plug is cut off the cord of the charger, it must be disposed of safely and not left unattended

USE

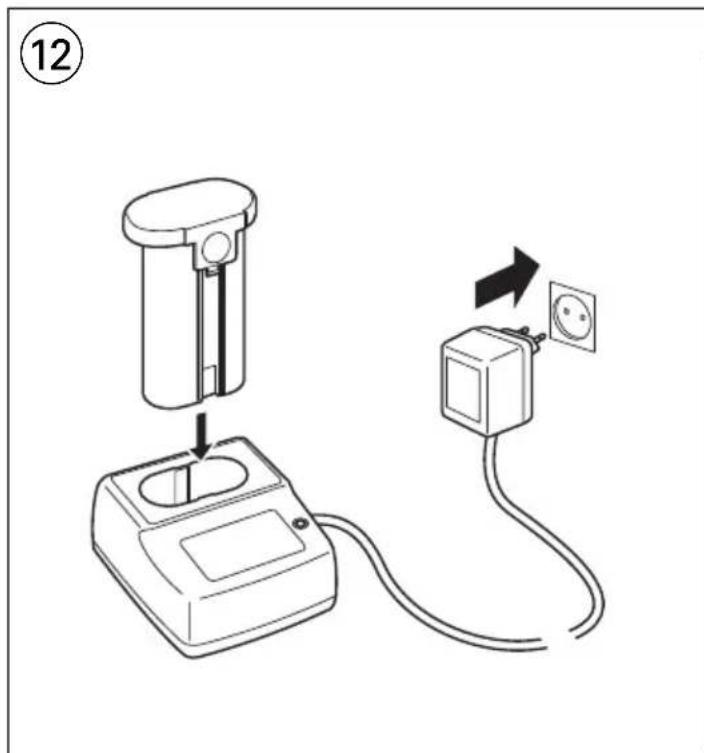

- Charging battery ⑫

- battery of new tools is not fully charged

! remove battery from charger after charging period has ended thereby lengthening the service life of the battery

IMPORTANT:

- after 3 hours the charging operation will be completed, and the battery may be used, even though the red light may still be on (the red light may require more than 3 hours to turn off)

- while charging, the charger and the battery may become warm to touch; this is normal and does not indicate a problem

• ensure that the outside surface of the battery is clean and dry before inserting into charger
• do not charge at temperatures below 0^ C and over 40^ C; this will seriously damage the battery as well as the charger
• do not remove battery from tool while it is running

! a battery that is new or has not been used for a longer period does not develop its full capacity until after approximately 5 charging/discharging cycles

• do not repeatedly recharge the battery after only a few minutes of operation; this may result in a reduction of operating time and battery efficiency
• the nickel-metalhydride battery must be kept separate from the natural environment and should not be disposed of as normal domestic waste (symbol ⑩ will remind you of this when the need for disposing occurs)

! prior to disposal protect battery terminals with heavy tape to prevent short-circuit

- if you anticipate long periods of non-use for the tool, it is best to unplug the charger from its power source

- Loading cartridges ⑬

• open a standard cartridge with a utility knife
• mount the nozzle on top of the opened cartridge

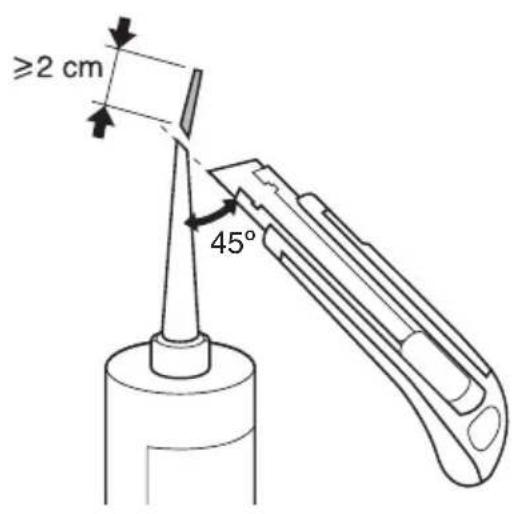

• cut off at least 2 cm of the nozzle tip at a 45^ angle, so that the opening is large enough when using the highest speed setting
• push switch A to the left
• push plunger B back to its starting position until it snap-locks (no snap-locking results later on in malfunctioning of the plunger)
• open cartridge cover C
• insert cartridge until its base reaches the back of carriage frame D
• close cartridge cover C

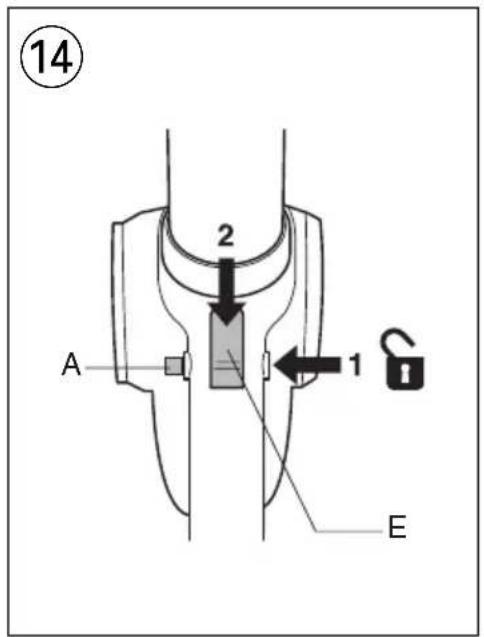

- On/off ⑭

• push switch A to the right to unlock trigger switch E
• switch on/off tool by pressing/releasing trigger switch E
• the tool switches off automatically when the cartridge is empty

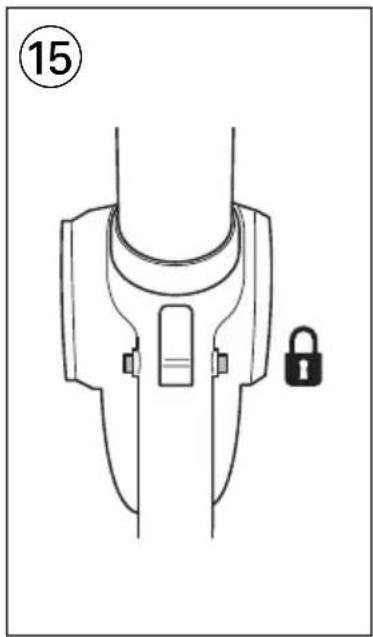

! ensure that switch A is in the locking position after each use ^15

- Variable speed ⑯

• with wheel F the sealant flow output can be adjusted (6 positions)
• before starting a job, find the optimal speed by testing out on spare material
  ! if the tool does not run with wheel F in position 1, adjust the speed while pressing trigger switch E ② until the optimal setting is found

- Applying sealant ⑰

• ensure that the area to be sealed is clean and dry (remove old sealant, if applicable)
• after pushing switch A to the right, press trigger switch E to start the sealant flow output

• hold the tool at a slight angle and carefully move the tool at an even pace along the gap/crack to be filled while pressing trigger switch E

• ensure that the sealant comes in full contact with both surfaces to be sealed

• release trigger switch E for ending the sealant flow output
• to avoid spilling of sealant, push switch A to the left immediately after releasing trigger switch E
• draw a moistened finger along the sealant flow after applying and use a clean, damp cloth to remove any excess sealant

! remove any residuary sealant from the cartridge nozzle and carriage frame

• Electronic overload protection

Stops the motor automatically in case too much pressure is applied on the cartridge thus preventing the tool and cartridge from damage

• release trigger switch E
• allow the electronics to re-set for 5 seconds
• press trigger switch E
• if motor stops again, move wheel F to the middle position, and press trigger switch E again

To avoid overload, always ensure that

• the nozzle tip is cut off at least 2 cm
• hardened material is removed from the nozzle
• the cartridge is not damaged or frozen
• the carriage frame is free of sealant
• the lowest possible speed setting is selected

- Troubleshooting

In case halfway the sealing job plunger B ② stops moving forward

• switch off the tool
• remove cartridge from carriage frame D ②
• push switch A ② to the left

! push plunger B back to its starting position until it snap-locks

• insert cartridge again
• push switch A to the right
• press trigger switch E ② to continue the sealing job

- Vibration level

The vibration emission level stated at the back of this instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
• the times when the tool is switched off or when it is running but not actually doing the job, may signifi cantly reduce the exposure level

! protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

MAINTENANCE / SERVICE

- Keep tool and charger clean

• clean charging contacts in charger with alcohol or contact cleaner
  ! unplug charger from power source before cleaning

• Keep carriage frame D ② free from any residuary sealant by using a clean, damp cloth

• If the tool/charger should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for SKIL power tools
• send the tool or charger undismantled together with proof of purchase to your dealer or the nearest SKIL service station (addresses as well as the service diagram of the tool are listed on www.skilmasters.com)

ENVIRONMENT

- Do not dispose of electric tools, accessories and packaging together with household waste material (only for EU countries)

• in observance of European Directive 2002/96/EC on waste of electric and electronic equipment and its implementation in accordance with national law, electric tools that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility
• symbol ⑨ will remind you of this when the need for disposing occurs

E Trekker-schakelaar

- druk trekker-schakelaar E in

VEDLIKEHOLD / SERVICE

ÜLDISED OHUTUSJUHISED

APKALPOŠANA / APKOPE

CE DECLARATION OF CONFORMITY We declare under our sole responsibility that this product is in conformity with the following standards or standardized documents: EN 60 335, EN 60 745, EN 55 014, in accordance with the provisions of the directives 2006/95/EC, 2004/108/EC, 98/37/EC (until Dec. 28, 2009), 2006/42/EC (from Dec. 29, 2009 on).

NOISE/VIBRATION Measured in accordance with EN 60'745 the sound pressure level of this tool is < 70 dB(A) (standard deviation: 3 dB) and the vibration < 2.5m / s^2 (hand-arm method; uncertainty K = 1.5m / s^2 ). Technical file at: SKIL Europe BV (PT-SEU/PJE), 4825 BD Breda, NL.

F
