Product Type	Professional Monitor
Brand	Sharp
Model	PN70TA3
Screen Size	70 inches (177.8 cm)
Resolution	3840 x 2160 (4K UHD)
Aspect Ratio	16:9
Brightness	500 cd/m²
Contrast Ratio	4000:1
Viewing Angle	178° horizontal / 178° vertical
Video Inputs	HDMI (3), DisplayPort, VGA, Composite
Audio Inputs	3.5 mm Mini-jack
Audio Outputs	3.5 mm Mini-jack, built-in speakers (2 x 10 W)
Connectivity	USB 2.0 (2), RS-232C, LAN RJ45
Dimensions (without stand)	157.2 x 89.6 x 8.3 cm (W x H x D)
Weight (without stand)	34.5 kg
Power Supply	100-240 V AC, 50/60 Hz
Power Consumption (typical)	220 W
Power Consumption (standby)	0.5 W
Operating Temperature	0°C to 40°C
Maintenance and Cleaning	Wipe with a soft, dry cloth. Do not use chemical or abrasive products.
Safety	Securely mount on a wall or suitable support. Ensure adequate ventilation. Do not expose to moisture.
Spare Parts and Repairability	Contact Sharp aftersales service for any parts or repairs. Repairability index: 7.5/10 (estimated).
Warranty	2 years (depending on country)

Frequently Asked Questions - PN70TA3 SHARP

How to connect a computer to the PN70TA3 monitor?

Use an HDMI, DisplayPort, or VGA cable depending on your computer's outputs. Connect one end to the computer and the other to a corresponding input on the monitor. Then select the input source via the OSD menu.

The monitor does not turn on, what to do?

Check that the power cable is properly connected and the power outlet works. Try another power cable. If the problem persists, contact Sharp support.

How to adjust brightness and contrast?

Press the 'Menu' button on the remote control or control panel. Use the arrow keys to access the 'Brightness' and 'Contrast' settings. Adjust according to your preferences.

Can the monitor be used as a TV screen?

Yes, if you have an external tuner or TV box. The monitor accepts HDMI signals with resolution up to 4K. You can also add external speakers.

What is the power consumption of the monitor?

Typical consumption is about 220 W during operation. In standby, it drops to less than 0.5 W. These values may vary depending on settings and usage conditions.

How to clean the screen without damaging it?

Use a soft, lint-free cloth, slightly damp if necessary. Never use products containing alcohol, ammonia, or abrasives. Wipe gently in circular motions.

Does the monitor have built-in speakers?

Yes, the PN70TA3 is equipped with two stereo speakers of 10 watts each. For more powerful sound, you can connect external speakers via the audio output or use a Bluetooth audio system (not built-in).

How to update the monitor firmware?

Download the latest firmware version from the Sharp website. Copy the file to a USB drive formatted in FAT32. Insert the drive into the monitor's USB port, then access the 'Update' menu in the system settings.

Can the monitor be wall-mounted?

Yes, the PN70TA3 is compatible with a VESA 400x400 mm mount. Use a wall mount suitable for the screen's weight (34.5 kg). Ensure the wall can support the load.

Where to find spare parts?

Contact Sharp customer service or an authorized dealer. Spare parts such as the power supply, electronic boards, or cables can be ordered. Check the Sharp website for availability.

USER MANUAL PN70TA3 SHARP

The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW: Earth

BLUE: Neutral

BROWN: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth 12 or coloured green or green-and-yellow.
• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.
  • The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.
  Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified electrician.

"WARNING: THIS APPARATUS MUST BE EARTHED."

Contents

[ENGLISH]

IMPORTANT INFORMATION ....1
DEAR SHARP CUSTOMER ....1
SAFETY PRECAUTIONS ......2
SAFETY INSTRUCTION ....3
MOUNTING PRECAUTIONS ....4
Specifications 4

Supplied Components ....5
Preparing the Remote Control Unit and the Touch Pen ..5
Connections 6
Turning Power On/Off 7
Mounting Precautions
(For SHARP dealers and service engineers) .....10

For information on Touch Pen Utility, Touch Panel Settings Tool, Pen Software and Touch Display Link, see the manual for each.

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within a triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

DEAR SHARP CUSTOMER

Thank you for your purchase of a SHARP LCD product. To ensure safety and many years of trouble-free operation of your product, please read the Safety Precautions carefully before using this product.

SAFETY PRECAUTIONS

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD product, please read the following precautions carefully before using the product.

1. Read instructions — All operating instructions must be read and understood before the product is operated.
2. Keep this manual in a safe place — These safety and operating instructions must be kept in a safe place for future reference.
3. Observe warnings — All warnings on the product and in the instructions must be observed closely.
4. Follow instructions — All operating instructions must be followed.
5. Cleaning — Unplug the power cord from the AC outlet before cleaning the product. Use a dry cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
6. Attachments — Do not use attachments not recommended by the manufacturer. Use of inadequate attachments can result in accidents.
7. Water and moisture — Do not use the product near water. Do not install the product in a place where water may splash onto it. Be careful of equipment which drains water such as an air-conditioner.
8. Ventilation — The vents and other openings in the cabinet are designed for ventilation.
   Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a sofa, rug or other similar surface, since they can block ventilation openings. Do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.
9. Power cord protection — The power cords must be routed properly to prevent people from stepping on them or objects from resting on them.
10. The screen used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the screen breaks.
11. Overloading — Do not overload AC outlets or extension cords. Overloading can cause fire or electric shock.
12. Entering of objects and liquids — Never insert an object into the product through vents or openings. High voltage flows in the product, and inserting an object can cause electric shock and/or short internal parts.
    For the same reason, do not spill water or liquid on the product.
13. Servicing — Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified service person to perform servicing.
14. Repair — If any of the following conditions occurs, unplug the power cord from the AC outlet, and request a qualified service person to perform repairs.
    a. When the power cord or plug is damaged.
    b. When a liquid was spilled on the product or when objects have fallen into the product.
    c. When the product has been exposed to rain or water.
    d. When the product does not operate properly as described in the operating instructions.
    Do not touch the controls other than those described in the operating instructions. Improper adjustment of controls not described in the instructions can cause damage, which often requires extensive adjustment work by a qualified technician.
    e. When the product has been dropped or damaged.
    f. When the product displays an abnormal condition. Any noticeable abnormality in the product indicates that the product needs servicing.
15. Replacement parts — In case the product needs replacement parts, make sure that the service person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric shock and/or other danger.
16. Safety checks — Upon completion of service or repair work, request the service technician to perform safety checks to ensure that the product is in proper operating condition.
17. Wall mounting — When mounting the product on a wall, be sure to install the product according to the method recommended by the manufacturer.
18. Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).
19. Batteries — Incorrect use of batteries may cause the batteries to burst or ignite. A leaky battery may corrode the equipment, dirty your hands or spoil your clothing. In order to avoid these problems, make sure to observe the precautions below:
20. Use the specified batteries only.
21. Install the batteries with due attention to the plus (+) and minus (-) sides of the batteries according to the instructions in the compartment.
22. Do not mix old and new batteries.
23. Do not mix batteries of different types. Voltage specifications of batteries of the same shape may vary.
24. Replace an exhausted battery with a new one promptly.
25. If you will not use the remote control for a long time, remove the batteries.
26. If leaked battery fluid gets on your skin or clothing, rinse immediately and thoroughly. If it gets into your eye, bathe your eye well rather than rubbing and seek medical treatment immediately. Leaked battery fluid that gets into your eye or your clothing may cause a skin irritation or damage your eye.

SAFETY PRECAUTIONS (Continued)

1. Usage of the monitor must not be accompanied by fatal risks or dangers that, could lead directly to death, personal injury, severe physical damage or other loss, including nuclear reaction control in nuclear facility, medical life support system, and missile launch control in a weapon system.
2. Do not stay in contact with the parts of the product that become hot for long periods of time. Doing so may result in low-temperature burns.

WARNING:

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

To maintain compliance with EMC regulations, use shielded cables to connect to the following terminals: HDMI input terminal, D-SUB input terminal, and DisplayPort input/output terminals.

If a monitor is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using fixing devices like wall mount brackets recommended by the manufacturer.
• Only using furniture that can safely support the monitor.
• Ensuring the monitor is not overhanging the edge of the supporting furniture.
• Not placing the monitor on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the monitor to a suitable support.
• Not standing the monitors on cloth or other materials placed between the monitor and supporting furniture.
  • Educating children about the dangers of climbing on furniture to reach the monitor or its controls.

Especially for child safety

• Don't allow children to climb on or play with the monitor.
• Don't place the monitor on furniture that can easily be used as steps, such as a chest of drawers.
• Remember that children can become excited while watching a program, especially on a "larger than life" monitor. Care should be taken to place or install the monitor where it cannot be pushed, pulled over, or knocked down.
• Care should be taken to route all cords and cables connected to the monitor so that they cannot be pulled or grabbed by curious children.

SAFETY INSTRUCTION

• Do not use the monitor where there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam. Do not use in an environment where there are corrosive gases (sulfur dioxide, hydrogen sulfide, nitrogen dioxide, chlorine, ammonia, ozone, etc.). As this could lead to fire.
• Ensure that the monitor does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.
• Do not place the monitor on top of unstable objects or in unsafe places. Do not allow the monitor to receive strong shocks or to strongly vibrate. Causing the monitor to fall or topple over may damage it.
• Do not use the monitor near heating equipment or in places where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.
• Do not use the monitor in places where it may be exposed to direct sunlight.
• The AC outlet shall be installed near the equipment and shall be easily accessible.
• Do not operate the screen with a hard or pointed object such as a fingernail or pencil.

The Power Cord

• Use only the power cord supplied with the monitor.
• Do not damage the power cord nor place heavy objects on it, stretch it or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.
• Do not use the power cord with a power tap. Adding an extension cord may lead to fire as a result of overheating.
• Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.
• Unplug the power cord if it is not used for a long time.
• Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

MOUNTING PRECAUTIONS

• This product is for use indoors.
- A mounting bracket compliant with VESA specifications is required.
- Since the monitor is heavy, consult your dealer before installing, removing or moving the monitor.
- Mounting the monitor on the wall requires special expertise and the work must be performed by an authorized SHARP dealer. You should never attempt to perform any of this work yourself. Our company will bear no responsibility for accidents or injuries caused by improper mounting or mishandling.
- Use the monitor with the surface perpendicular to a level surface. If necessary, the monitor may be tilted up to 20 degrees upward.
- When moving the monitor, be sure to hold it with the handles and the unit bottom. Do not grasp the screen or tray. This may cause product damage, failure, or injury.
- This monitor should be used at an ambient temperature between 41^ F ( 5^ C) and 95^ F ( 35^ C). Provide enough space around the monitor to prevent heat from accumulating inside.

• If it is difficult to provide sufficient space for any reason such as the installation of the monitor inside a housing, or if the ambient temperature may be outside of the range of 41°F (5°C) to 95°F (35°C), install a fan or take other measures to keep the ambient temperature within the required range.
• Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.
• Do not block any ventilation openings. If the temperature inside the monitor rises, this could lead to a malfunction.
• Do not place the monitor on a device which generates heat.
• Do not use the product in locations where the unit is exposed to direct sunlight or other strong light. Since this product operates with infrared rays, such light may cause a malfunction.
• When using multiple monitors closely, be sure the infrared transmitter/receiver does not affect the other ones.

Specifications

Model PN-70TA3 PN-60TA3
Power requirement AC 100 V - 240 V, 3.0 A, 50/60 Hz	60 Hz AC 100 V - 240 V, 2.5 A, 50/60 Hz
Operating temperature *	41°F to 95°F (5°C to 35°C)
Operating humidity 20% to 80% (no condensation)
Power consumption (Maximum) 250 W 210 W
Dimensions (excluding protrusions) inch (mm)	Approx. 64-13/16 (W) x 3-11/16 (D) x 39-3/4 (H) (1647 x 94 x 1010)	Approx. 56-9/16 (W) x 3-11/16 (D) x 35-1/16 (H) (1437 x 94 x 890)
Weight lbs. (kg)	Approx. 134.5 (61) Approx. 105.9 (48)

* Temperature condition may change when using the monitor together with the optional equipments recommended by SHARP. In such cases, please check the temperature condition specified by the optional equipments.

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Supplied Components

If any component should be missing, please contact your dealer.

□ Liquid Crystal Display Monitor: 1
□ Remote control unit: 1
□ Power cord
☐ Remote control unit battery (R-6 ("AA" size)): 2
□ Cable clamp: 3

□ Cable clamp (insertion type): 2

□ CD-ROM (Utility Disk): 1
□ CD-ROM (Touch Display Link): 1
□ Touch Display Link License: 1
□ Setup Manual (this manual): 1
□ Touch pen (PN-ZL02): 1
□ Touch pen adapter (PN-ZL01): 1
□ Pen tip (for touch pen): 2
☐ Touch pen battery (LR-03 ("AAA" size)): 1
□ Tray: 1
□ USB cable: 1

□ Eraser: 1
□ Camera mount: 1
☐ Camera screw (inch thread): 1
□ Touch pen adapter screw (Step screw, M3): 1
□ Tray mounting screws (M3) : 5
□ Cover SHARP logo: 1

Place this sticker onto the SHARP logo to cover the logo.

* SHARP Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.
* For environmental protection!

Do not dispose of batteries in household waste. Follow the disposal instructions for your area.

Preparing the Remote Control Unit and the Touch Pen

Installing the batteries

1. Press the cover gently and slide it in the direction of the arrow.

Line drawing of a device casing with internal components (no text or symbols)

1. See the instructions in the compartment and put in the supplied batteries (R-6 ("AA" size) x 2) with their plus (+) and minus (-) sides oriented correctly.
2. Close the cover.

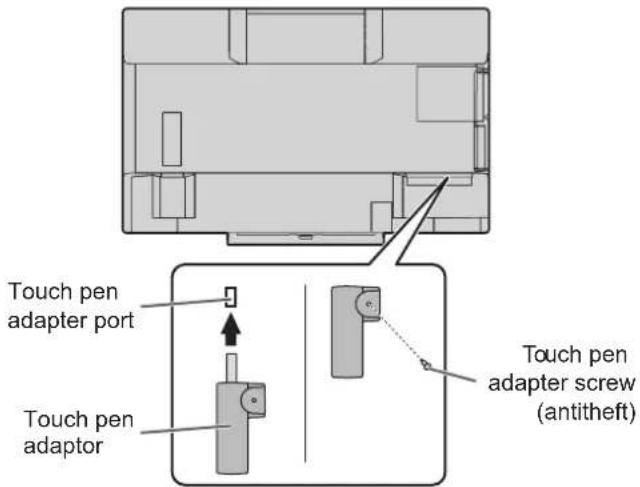

Connecting the touch pen adapter

To use the touch pen, insert the touch pen adapter into the touch pen adapter port on the monitor.

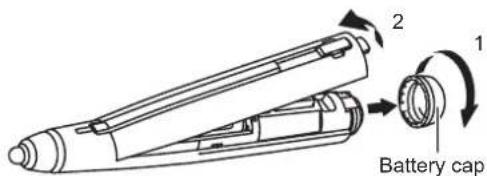

Inserting the battery

1. Remove the battery cap.
2. Open the cover and insert the supplied battery (LR-03 ("AAA" size)) into the touch pen.

Check the plus (+) and minus (-) markings on the inside of the touch pen and insert the battery in the correct orientation.

1. Replace the cover and battery cap.

TIPS

• Calibration must be performed prior to initial use of the touch pen.
• To use an optional touch pen with the monitor, the touch pen must be registered in the touch pen adapter. (pairing) For details, see the operation manual.

Connections

!Caution

• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables connected to the input and output terminals may cause malfunctions and the other problems.

For power outlet

1. AC input terminal
2. Power cord (Supplied)
3. External speaker terminals
4. Audio output terminal
5. DisplayPort output terminal
6. Touch pen adapter port
7. USB 1 port
8. LAN terminal
9. D-sub 1 input terminal
10. DisplayPort input terminal
11. HDMI 1 input terminal
12. Audio 1 input terminal
13. USB 2 port
14. D-sub 2 input terminal
15. HDMI 2 input terminal
16. HDMI 3 input terminal
17. Audio 2 input terminal

WHITEBOARD mode terminals

1. USB ports

2. LAN terminal

TIPS

- Set the audio input terminal to be used in each input mode in AUDIO SELECT on the SETUP menu. The factory settings are shown below.

Input mode Audio input terminal (Factory setting)

D-SUB1 Audio1 input terminal

D-SUB2 Audio2 input terminal

DisplayPort DisplayPort input terminal

HDMI1 HDMI 1 input terminal

HDMI2 HDMI 2 input terminal

HDMI3 HDMI 3 input terminal

WHITEBOARD WHITEBOARD

- To use the touch panel with a computer connected to the monitor, the touch panel and computer must be connected, and Touch Panel Settings Tool, Touch Pen Utility, and Pen Software must be installed on the computer from the provided CD-ROM. To install the software, see the manual for each.

- To use a touch panel with a computer connected to the bottom, connect to the USB 1 port. To use a touch panel with a computer connected to the side, connect to the USB 2 port. (Factory setting. Can be changed in TOUCH INPUT SELECT in the SETUP menu.)

- The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

- DisplayPort is a registered trademark of Video Electronics Standards Association.

Turning Power On/Off

!Caution

• Turn on the monitor first before turning on the computer or playback device.
• To keep the performance of the WHITEBOARD stable, put the monitor in the Power off (Standby mode) state once a day.

Turning on the main power

The monitor enters the Power off (Standby mode) state.

Caution

• The main power must be turned on/off with the main power switch. Do not connect/disconnect the power cord or turn the breaker on/off while the main power switch is on.
• When switching the main power switch or the POWER button off and back on, always wait for at least 5 seconds.
• For a complete electrical disconnection, pull out the main plug.
• Before switching off the main power switch, always put the monitor in the Power off (Standby mode) state. (Hold down the POWER button until the exit screen appears.)

Turning power on

1. Press the POWER button.


POWER button / Power LED

Status Status of the monitor
Green lit Power on
Orange lit Power off (Standby mode)
Orange flashing	Power off(Whiteboard standby mode)
Green flashing Input signal waiting mode

- The WHITEBOARD appears. (Factory setting. Can be changed in START INPUT MODE in the SETUP menu.)

Blank white image with a thin black border at the bottom (no text or symbols)

Turning Power On/Off (Continued)

■Operation mode

When the monitor is turned on for the first time after being shipped from the factory, the operation mode setting screen will be displayed. Set it to MODE1 or MODE2.

MODE1 ... OFF IF NO OPERATION is set to ON, and STANDBY MODE is set to LOW POWER. (These settings can not be changed.) Determines whether or not to set the monitor to go into standby mode when there is no operation from the remote control unit, or LAN for over 4 hours. Power consumption in standby mode is also minimized.

MODE2 ... Will perform standard operation. OFF IF NO OPERATION is set to OFF, and STANDBY MODE is set to STANDARD. These settings can be changed.

Even after being set, changes can be made using OPERATION MODE, located in the menu of the monitor. (See Operation manual.)

■Date/time setting

- If the time has yet to be set when the monitor is first turned on, the date/time setting screen appears. Set the date and time.

1. Press or to select the date and time, and press or to change the numerical values.

2. Press ENTER.

3. Be sure to set the date and time.

4. The date/time setting screen will close automatically if no operation is performed for about 15 seconds. The date and time can be set using DATE/TIME SETTING from the SETUP menu when the date/time setting screen disappears.

TIPS

• Set the date in "Day/Month/Year" order.
• Set the time on a 24-hour basis.
• The clock is maintained by the internal battery.
• If you already set the time but the date/time setting screen appears when the power is turned on, the internal battery may be exhausted. Please contact your local SHARP servicing dealer or service center for assistance with battery replacement.
• Estimated service life of the internal battery: About 5 years (depending on monitor operation)
• The initial battery was inserted at the factory when the monitor was shipped, so it may run out of power before its expected operation life.

Turning Power On/Off (Continued)

Calibration

Calibration is used to perform position alignment so that the mouse cursor moves to the correct position when the screen is touched.

Before initial use, perform calibration.

1. Set the input to WHITEBOARD.
2. Touch the launch button.

The launcher appears.

1. Touch [Setting].

You will be prompted to enter a password.

1. Enter the password and touch [OK].

Enter the password set in the Admin Password. If a password is not set, enter "00000".

1. Touch [Admin Settings] and [Calibration].
2. Follow the instructions on the screen to perform calibration.

TIPS

- If you will be using the touch panel with a computer, perform calibration from the Touch Panel Settings Tool. For details, see the Touch Panel Settings Tool Operation Manual.

Turning power off

The power can be turned off in the following ways.

(1) Press the POWER button.

The monitor enters whiteboard standby mode. This method allows faster startup and shutdown than (2), however, more power is consumed while in standby mode.

(2) Hold down the POWER button until the exit screen appears.

The monitor enters standby mode. The WHITEBOARD is in the shutdown state. More time is required for shutdown and startup than (1), however, less power is consumed in standby mode.

Before switching off the main power switch, always put the monitor in the Power off (Standby mode) state.

!Caution

• When the power is turned off, any data on the WHITEBOARD is lost. If there is unsaved data, a message will appear prior to shutdown. Save the data.
• If the monitor will be turned off by SCHEDULE, LAN control, or OFF IF NO OPERATION, save any data you need in advance. The power will turn off even if there is unsaved data. (The data will be lost.)
• When turning the monitor power on again, wait at least 5 seconds after shutdown is completed.
• Do not disconnect the power cord, open the breaker, or switch off the main power switch before shutdown is finished. Risk of failure.

Mounting Precautions (For SHARP dealers and service engineers)

• When installing, removing or moving the monitor, ensure that this is carried out by at least 4 people.
• Be sure to use a wall-mount bracket designed or designated for mounting the monitor.
• This monitor is designed to be installed on a concrete wall or pillar. Reinforced work might be necessary for some materials such as plaster / thin plastic board / wood before starting installation.

This monitor and bracket must be installed on a wall which can endure at least 4 times or more the weight of the monitor. Install by the most suitable method for the material and the structure.

• To attach a VESA-compliant mounting bracket, use M6 screws that are 5/16 inch (8 mm) to 3/8 inch (10 mm) longer than the thickness of the mounting bracket.
• Do not use an impact driver.
  • After mounting, please carefully ensure the monitor is secure, and not able to come loose from the wall or mount.
• Do not use any screw holes other than VESA holes for installation.

■Attaching the Tray

Secure the tray using 5 tray mounting screws (M3) (supplied).

Technical line drawing of a flat-screen monitor with a bracket and mounting holes (no text or symbols)

Table des matières

[FRANÇAIS]

INFORMATION IMPORTANTE ....1
CHER CLIENT ....1
PRÉCAUTIONS DE SÉCURITÉ ......2
MESURES DE SÉCURITÉ ....3
PRÉCAUTIONS POUR LE MONTAGE ....4
Caractéristiques ....4

(LR-03 (format "AAA")) : 1

Technical line drawing of a mechanical device with no visible text or symbols

Blank white image with a thin black horizontal line at the bottom (no text or symbols)

Bouton de lancement

Technical line drawing of a flat-screen monitor with a base panel and mounting holes (no text or symbols)

Line drawing of a device casing with internal components and a handle (no text or symbols)

Blank white image with a thin black horizontal line at the bottom (no text or symbols)

Blank white image with a thin black horizontal line at the bottom (no text or symbols)

Botón de activación

Technical line drawing of a flat-screen monitor with a bracket and mounting holes (no text or symbols)

Inhalt

[DEUTSCH]

(LR-03 (Größe "AAA")): 1

□ Ablage: 1
□ USB-Kabel: 1

Line drawing of a device casing with internal components and a handle (no text or symbols)

Blank white image with a thin black border at the bottom (no text or symbols)

Technical line drawing of a flat-screen monitor with a base panel and mounting holes (no text or symbols)

Содержание

[РУССКИЙ]

SERIAL No. 0 1 234567

Год

4: 2014

5: 2015

⋮ ⋮

0: 2020

1: 2021

⋮ ⋮

Месяц

1: Январь

: :

9: Сентябрь

0: Октябрь

X: Ноябрь

Y: Декабрь

Diagram of a device casing with internal components and a directional arrow (no text or symbols)

Blank white image with a thin black border at the bottom (no text or symbols)

Blank white image with a thin black horizontal line at the bottom (no text or symbols)

Кнопке запуска

Technical line drawing of a flat-screen monitor with a bracket and mounting feet (no text or symbols)

MEMO

WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures.

WARNUNG

Hereby, SHARP ELECTRONICS, declares that this TOUCH PEN PN-ZL01/PN-ZL02 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at:
