Product Type	Electric table barbecue with raclette function
Brand	Philips
Model	HD4419
Dimensions (L x W x H)	50 x 30 x 15 cm
Weight	3.5 kg
Power	1500 W
Power supply	220-240 V, 50-60 Hz
Plate material	Non-stick Teflon coating
Capacity	Up to 6 people (with raclette pans)
Main functions	Grill, raclette, warmer
Temperature settings	Adjustable thermostat with Min, Medium, Max positions
Indicator light	Heating indicator (red)
Control type	Temperature control knob
Safety	Automatic shut-off in case of overheating, insulated handles
Maintenance and cleaning	Removable cooking plate and pans are dishwasher safe
Non-slip feet	Yes
Power cord	Removable, approximately 1 m long
Package contents	Unit, cooking plate, 6 raclette pans, 6 spatulas, manual
Spare parts available	Replacement plate, pans, spatulas (references on Philips website)
Repairability	Repairability index (10/10) - parts available from after-sales service

Frequently Asked Questions - HD4419 PHILIPS

How to clean the cooking plate?

Let the appliance cool down, then remove the removable plate. Wash it by hand with a soft sponge or in the dishwasher. Avoid abrasives to avoid damaging the non-stick coating.

Can oil be used on the plate?

Yes, a light drizzle of oil or cooking spray is recommended to prevent food from sticking. Prefer oils suitable for cooking (sunflower, rapeseed).

How long does it take to preheat?

Allow approximately 5 to 10 minutes for the plate to reach maximum temperature. The indicator light turns off when the temperature is ready.

Is the cooking plate compatible with all types of stoves?

No, this appliance is exclusively a self-contained electric barbecue. Do not place the plate on an open flame or induction hob.

What to do if the appliance overheats and turns off?

It has overheating protection: if the internal temperature is too high, it stops automatically. Let it cool for 30 minutes before using it again.

Can I use standard raclette pans?

Yes, the supplied pans are suitable, but you can use other aluminum pans of similar size (about 10 cm in diameter).

How to adjust the temperature for even cooking?

Turn the knob to the desired position: Min to keep warm, Medium for gentle cooking, Max for searing. The indicator light cycles on to maintain the temperature.

Is there a risk of burns with the handles?

The handles are made of insulated plastic and stay cool during use. However, avoid touching the underside of the appliance, which may heat up.

How to store the appliance?

Store it in a dry place, preferably in its original packaging. Wrap the cord around the base provided for this purpose under the appliance.

Where to find spare parts?

On the Philips.com website or through customer service. The part numbers (plate, pans) are listed in the manual.

USER MANUAL HD4419 PHILIPS

Black-and-white photo of a flat-screen grater with fresh tomatoes and breaded vegetables on top (no text or symbols visible)

ENGLISH 6

DANSK 10

DEUTSCH 15

ΕΛΛΗΝΙΚΑ 20

ESPAÑOL 25

SUOMI 30

FRANÇAIS 34

ITALIANO 39

한국어 44

NEDERLANDS 48

NORSK 53

PORTUGUÊS 57

SVENSKA 62

TÜRKÇE 66

繁體中文 70

简体中文 74

81 فارسی

العربية 85

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Your new grill with drip tray allows you to prepare all kinds of tasty food almost smoke-free. Grilling with this appliance is easy because of the large grilling surface.

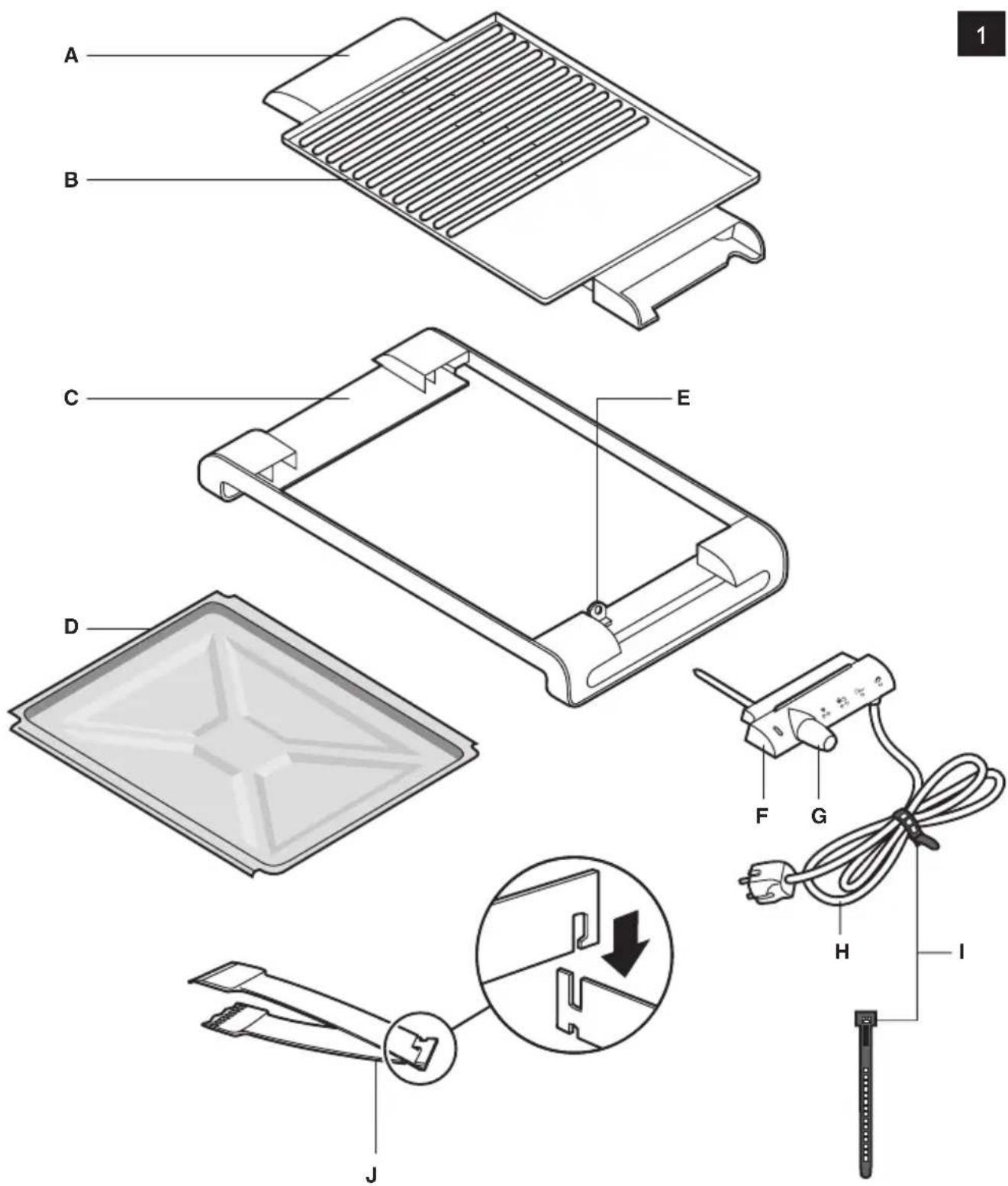

General description (Fig. 1)

A Cool-touch handgrips
B Dishwasher-safe grilling plate
C Base
D Drip tray
E Thermostat unit socket
F Thermostat unit
H Mains cord
I Cord strap
J Two-in-one spatula and tongs
Also included: Recipe booklet

G Temperature control with on/off position and heating-up light

Important

Read this user manual carefully before you use the appliance and save it for future reference.

Danger

• Do not immerse the thermostat unit with mains cord in water or any other liquid.
• Check if the voltage indicated on the bottom of the appliance corresponds to the local mains voltage before you connect the appliance.
• Do not use the appliance if the plug, the mains cord or the appliance itself is damaged.
• If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualified persons in order to avoid a hazard.
• Only connect the appliance to an earthed wall socket.
• Keep the mains cord away from hot surfaces.
• Do not let the mains cord hang over the edge of the table or worktop on which the appliance stands.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Never let the appliance operate unattended.
• Never connect this appliance to an external timer switch in order to avoid a hazardous situation.
• Never leave the spatula/tongs on the grilling plate when it is hot.

Warning

Caution

• Always insert the thermostat unit into the appliance before you put the plug in the wall socket.
• Only use the thermostat unit supplied.
• Make sure that the inside of the thermostat unit socket is completely dry before you insert the thermostat unit.
• Put the appliance on a flat, stable surface with sufficient free space around it.
• Make sure the drip tray is always in place during grilling.

• Make sure the drip tray is filled with water at least up to the MIN level before you start using the appliance.

• Always preheat the plate before you put any food on it.

• The accessible surfaces may become hot when the appliance operates.
• Be careful of spattering fat when you grill fatty meat or sausages.
• Always unplug the appliance after use.
• Always switch off the appliance after use and remove the mains plug from the wall socket before you remove the thermostat unit from the thermostat unit socket.
• Always clean the appliance after use.
• Let the appliance cool down completely before you remove the plate, clean the appliance or put it away.
• Never touch the plate with sharp or abrasive items, as this damages the non-stick coating.
• Make sure you reassemble the plate properly after you have removed it.
• This appliance is only intended for indoor use. Do not use it outdoors.

Electromagnetic fields (EMF)

This Philips appliance complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientific evidence available today.

Before first use

1 Remove any stickers and wipe the body of the appliance with a damp cloth.
2 Clean the appliance and the plate thoroughly (see chapter 'Cleaning').

Using the appliance

Note: The appliance may produce some smoke when you use it for the first time. This is normal.

1 Slide the drip tray into the base (Fig. 2).

Note: The drip tray can only be slid into the base in one way.

2 Fill the drip tray up to the minimum water level indication (MIN) (Fig. 3).

• The water in the drip tray helps to prevent food particles from getting burnt.
• To make cleaning easier, you can line the drip tray with aluminium foil before you fill it with water.
• When you line the drip tray, make sure the foil does not hang over the sides of the tray, as this prevents proper air circulation.

3 Place the grilling plate into the slots in the base (Fig. 4).

Note: The grilling plate only fits in the base in one way.

4 Insert the thermostat unit into the thermostat unit socket in the side of the appliance. (Fig. 5)

5 Turn the temperature control to the position appropriate for the ingredients to be grilled (see section ‘Grilling times’ in this chapter).

The heating-up light goes on.

6 Use the spatula/tongs provided to place the ingredients on the grilling plate when the heating-up light goes out.

Be careful: the grilling plate is hot!

Note: Use the spatula with the serrated end for the ribbed section of the plate and use the spatula with the straight end for the flat section of the plate.

During the grilling process, the heating-up light comes on and goes out from time to time. This indicates that the heating element is switched on and off to maintain the correct temperature.

ENGLISH8

7 Turn the food from time to time with the spatula/tongs provided.
8 When the food is done, remove it from the grilling plate.

Use the spatula/tongs provided to remove the food. Do not use metal, sharp or abrasive kitchen utensils.

9 For optimal results, remove excess oil from the grilling plate with a piece of kitchen paper. Loosen any caked food or grease carefully with the spatulas provided and remove it from the plate before you grill the next batch of food.
10 To continue grilling, place the next batch of food on the grilling plate when the heating-up light goes out.

Grilling times

In the table at the end of this booklet you find some types of food you can cook on this table grill. The table shows which temperature to select and how long the food has to be grilled. The time required to heat up the appliance has not been included in the grilling times indicated in the table. The grilling time and temperature depend on the type of food that you prepare (e.g. meat), its thickness and its temperature and also on your own taste. You can also refer to the indications on the thermostat unit.

Tips

• The ribbed section of the grilling plate is ideal for preparing meat and poultry (Fig. 6).
• The flat section of the grilling plate is ideal for preparing fish, eggs, ham, mushrooms, tomatoes, onions, etc. It is also handy for keeping food hot (Fig. 7).
• You can also use the table grill as a thermostatically controlled hotplate that automatically keeps your dishes at the required temperature. Cover the ribbed section of the plate with aluminium foil with the shiny side facing upwards. Then set the temperature control to position 2 or 3.
• Tender pieces of meat are best suited for grilling.
• Pieces of meat such as steaks or spare rib chops become more tender if marinated overnight.
• Turn the food from time to time with the spatula/tongs provided to ensure that it remains juicy inside and does not dry out. Do not use any metal tools like forks or grill tongs as they damage the non-stick coating of the grilling plate.
• Do not turn the grilled food too frequently. When the items are brown on both sides, grill them at a lower temperature to ensure they do not dry out and are cooked more evenly.
• If you want to defrost frozen food, wrap the frozen food in aluminium foil and set the temperature control to position 3 or 4. Turn the food from time to time. The defrosting time depends on the weight of the food.
• When you prepare satay, chicken, pork or veal, first sear the meat at a high temperature (position 5). If necessary, you can then set the temperature control one position lower and grill the food until it is done.
• When you make satay or kebab, soak bamboo or wooden skewers in water to prevent them from getting scorched during grilling. Do not use metal skewers.
• Sausages tend to burst when they are being grilled. To prevent this, punch a few holes in them with a fork.
• Fresh meat gives better grilling results than frozen or defrosted meat. Do not put salt on the meat until after you have grilled it. This helps to keep the meat juicy. For the best result, make sure the pieces of meat you prepare are not too thick (approx. 1.5cm).

This table grill is not suitable for grilling breadcrumb food.

Cleaning

Never use abrasive cleaning agents and materials, as this damages the non-stick coating of the plate.

1 Set the temperature control to the 'OFF' position.
2 Unplug the appliance and let it cool down.
3 Pull the thermostat unit out of the appliance (Fig. 8).
4 Wipe the thermostat unit with a damp cloth.
Do not immerse the thermostat unit with mains cord in water or any other liquid.
5 Remove excess oil from the grilling plate with a piece of kitchen paper before you remove the grilling plate for cleaning.
6 Lift the grilling plate from the base by its handgrips (Fig. 9).
Note: If the thermostat unit is still inserted into the appliance, you cannot remove the grilling plate.
7 Soak the grilling plate in hot water with some washing-up liquid for five minutes or drizzle some lemon juice onto the grilling plate. This loosens any caked food or grease.
8 Slide the drip tray out of the base (Fig. 10).
Note: The drip tray can only be slid out of the base in one way.
9 Clean the base and the drip tray with a damp cloth.
10 Clean the grilling plate and spatula/tongs with a soft cloth or sponge in hot water with some washing-up liquid or in the dishwasher.
11 Dry the grilling plate, drip tray and spatula/tongs.
The inside of the thermostat unit socket must be completely dry before you reinsert the thermostat unit into it. To dry the socket, wipe the inside with a dry cloth. If necessary, shake out excess water first.
12 Reassemble the appliance.

Storage

1 Leave the thermostat unit in the grill. Wind the cord and fix it with the cord strap (Fig. 11).

2 Store the grill in upright position on a dry and level surface (Fig. 12).

Note: Make sure that the stoppers are at the bottom, so that the drip tray cannot fall out of the appliance.

Environment

- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an official collection point for recycling. By doing this, you help to preserve the environment (Fig. 13).

Guarantee & service

If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your country (you find its phone number in the worldwide guarantee leaflet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.

Food table (Fig. 14)

Introduktion

		Min.	°C
		8-12	5
		8-12	5
		6-8	4-5
		6-8	4-5
		8-10	4-5
		8-10	4-5
		8-10	4-5
		6-8	4-5
		8-10	4-5
		8-12	4-5
		5-7	4-5
		5-7	4-5
		5-7	4-5
		8-10	5
		4-5	5
		6-8	4-5
		8-10	4-5
			2-3
		3-4	1-2
