USER MANUAL EXABOX 1J SAUNIER DUVAL

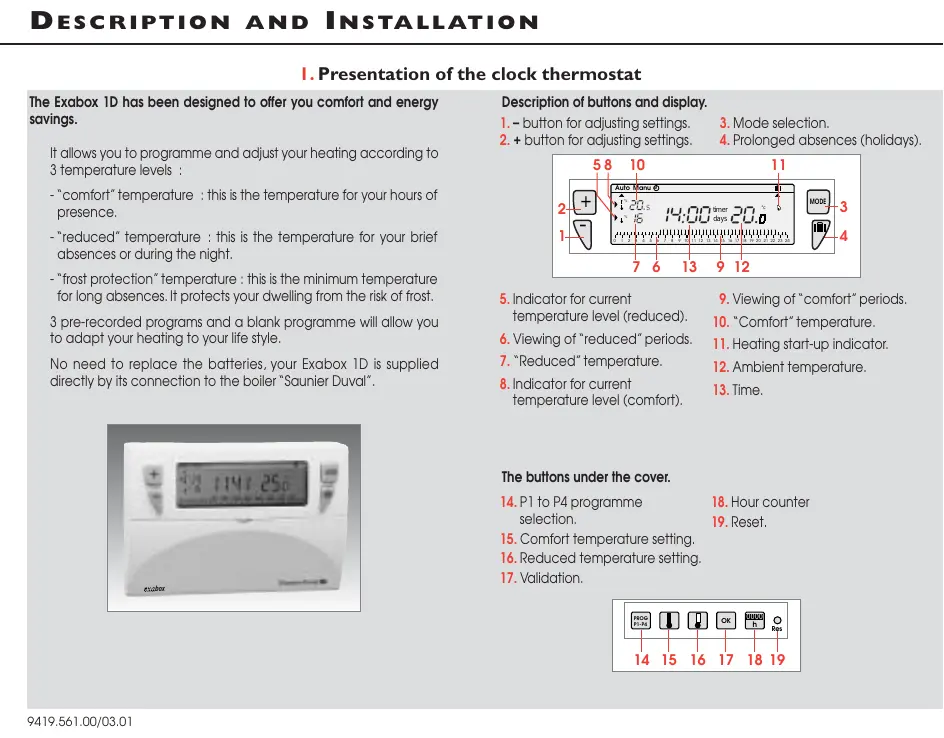

I. Presentation of the clock thermostat

The Exobox 1D has been designed to offer you comfort and energy savings.

It allows you to programme and adjust your heating according to 3 temperature levels :

• "comfort" temperature : this is the temperature for your hours of presence.
• "reduced" temperature : this is the temperature for your brief absences or during the night.
• "frost protection" temperature : this is the minimum temperature for long absences. It protects your dwelling from the risk of frost.

3 pre-recorded programs and a blank programme will allow you to adapt your heating to your life style.

No need to replace the batteries, your Exobox 1D is supplied directly by its connection to the boiler "Saunier Duval".

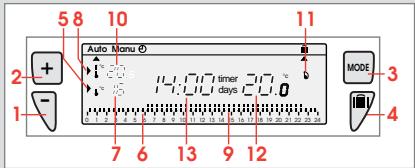

Description of buttons and display.

1. • button for adjusting settings.
2. • button for adjusting settings.

3. Mode selection.

4. Prolonged absences (holidays).

1. Indicator for current temperature level (reduced).
2. Viewing of "reduced" periods.
3. "Reduced" temperature.

4. Indicator for current temperature level (comfort).

5. Viewing of "comfort" periods.

6. "Comfort" temperature.
7. Heating start-up indicator.
8. Ambient temperature.
   13.Time.

The buttons under the cover.

1. P1 to P4 programme selection.
2. Hour counter
3. Comfort temperature setting.
4. Reset.
5. Reduced temperature setting.
6. Validation.

2. Installation of your clock thermostat.

Your Exobox 1D should be installed at least 1,50m above the ground, on an inside wall protected from direct sun ray and from any heat source such as television, lamp, draughts, etc...

Slide the cover down and unscrew screw.

Fix the base to the wall.

Connect the device according to the diagram below.

··

Important settings.

ut the first micro-switch on BATTERY ON to activate the saving battery (to keep your programs on memory when the clock thermostat is OFF).

According to your geographical position, select the pre-recorded programmes version North or version South (cf. chapter 6 - programme).

Replace the product on its base.

Screw it on and close the cover.

3. Link between your boiler and Exobox.

Link between your boiler and Exobox.

Your Exobox 1D operates in direct connection with your boiler.

When your boiler is turned off or in summer mode, your Exobox 1D is OFF and only displays the ambient temperature.

All your programmation is saved on memory.

Your Exobox 1D will automatically switch itself ON when you will turn ON your boiler.

You are putting the device into operation for the first time, before starting your programmation, slide cover down and press RESET with the tip of a pen.

Technical specifications.

• adjustment range for comfort temperature : +5 to +30°C.
• adjustment range for reduced temperature : +5 to +30°C.
• adjustment range for holiday temperature : +5 to +30°C.
  display of ambient temperature : 0^ to +40^
• static differential <0.3°C
  supply : by the connection to the boiler.
• Saving battery life span : 8 years.
• Operating temperature : -10 to +50^
• Storage temperature : -20°C to +65°C.
• Hygrometry : 90% max at 25^ C
• degree of protection : IP30.
• insulation class II.

4. Time setting

Time setting.

Setting current time.

You are putting the device into operation for the first time, you have just pressed the "reset" button.

12:00 flashes

1. Set the time using the · buttons (the numbers run off more quickly when the button is pressed continuously).

2. Validate with

If you MODE to change the time, press unthe pointer appears under the clock sign and continue as above for points 1 anu

5. Temperature settings

To set the "comfort" temperature.

Slide cover down.

Press

Adjust the temperature with

or

Until you display the required temperature.

Confirm with

OK

To set the "reduced" temperature.

Press

Adjust the temperature with

or

Until you display the required temperature.

Confirm with

OK

N.B. These temperatures are adjustable from 5 to 30^ by steps of 0.5^ .

6. Programming.

Open the cover.

To programme your device, you have 4 programs at your disposal.

• 3 of these programs are pre-recorded and cannot be modified.
• The 4th programme is blank and allows you to create a personalised programme.

The 3 pre-recorded programs exist on version North and on version South :

NORTH

P1: Comfort temperature from 6h to 23h.

Reduced temperature from 23h to 6h.

P2: Comfort temperature from 6h to 8h30 and from 16h30 to 23h. Reduced temperature from 8h30 to 16h and from 23h to 6h.

P3: comfort temperature from 6h to 8h30, from 11h30 to 13h30 and from 16h30 to 23h00.

Reduced temperature from 8h30 to 11h30, from 13h30 to 16h30 and from 23h to 6h.

P4: Blank programme allowing you to create 3 comfort temperature periods and 3 reduced temperature periods.

SOUTH

P1: Comfort temperature from 7h to 23h.

Reduced temperature from 23h to 7h.

P2: Comfort temperature from 7h to 9h and from 18h to 23h.

Reduced temperature from 9h to 18h and from 23h to 7h.

P3: comfort temperature from 7h to 9h,from 13h to 15h and from 18h to 23h.

Reduced temperature from 9h to 13h, from 15h to 18h and from 23h to 7h.

P4: blank programme.

Important : To switch between pre-recorded programs version

North and version South, take the product out of its base and use

the microswitch PROG N / PROG S.

To program your heating according to the 3 pre-recorded programs P1, P2 and P3.

1. Press

PROG P1-P4

to go into programming mode.

1. Press

PROG P1-P4

until the programme you wish to select is displayed.

Check your programming on the 24 hour profile.

1. Press

OK

to confirm.

7. Creating a P4 programme.

Create your programme according to your needs

1. Press

PROG P1-P4

to go into the programming mode.

1. Press

PROG P1-P4

until the P4 programme flashes in the right side of the screen.

Your display panel indicates 0h00 and the first thermometer flashes on the 24 hour profile.

The pointer flashes between 0h00 and 0h30.

···

For example, you want to programme comfort temperature between 7h30 and 9h30 and then from 19h00 to 23h00.

Press

several times to obtain 7h30.

Press

several times to obtain 9h30.

Press

several times to obtain 19h00.

Press

several times to obtain 23h00

To validate this programme P4

press

OK

You have programmed comfort temperature between 7h30 and 9h30 and from 19h to 23h.

8. Programme reading.

From "auto" mode

press

PROG

P1-P4

Check your programming on the 24 hour profile at the bottom of the display panel (see example above).

Press

MODE

to return to automatic mode.

Automatic mode "auto".

You pass into automatic mode by pressing the "mode"

button until the pointer appears under Auto I

In automatic mode, your Exobox 1D adapts your heating to your lifestyle by running the programs you have selected.

9. Temporary temperature modification.

In automatic mode, this very useful function allows you to modify ambient temperature temporarily.

• to increase the temperature,

press

(several times if necessary).

• to decrease the temperature,

press

(several times if necessary).

The current temperature level indicator (comfort or reduced) will begin flashing.

This modification ends with the next change in programmed temperature.

To return to the initial programme,

press

MODE

an re-position the pointer under "auto".

The current temperature level indicator (comfort or reduced) will stop flashing.

1. Permanent temperature modification.
2. Counting running hours.

To maintain a constant temperature in your dwelling (adjustable between 5^ and 30^ ) without taking into account any programmation. This mode transforms your device into a simple thermostat.

1. Press

MODE

to position the pointer under "Manu".

1. Press

to adjust the required temperature.

To quit the MANU mode,

Press

MODE

and re-position the pointer under auto.

Counting running hours.

This very useful function will allow you to know the number of hours your boiler has been running since the last reset.

Press

The display panel will indicate the number of hours your boiler has been running.

Press

during 5 sec, to return the counter to zero.

12. Prolonged absence mode - holidays.

Prolonged absence mode - holidays.

This mode protects your dwelling from the risk of frost by maintaining a minimum adjustable temperature in your dwelling during your absences (from 1 to 99 days).

You can programme the length of your absence so that the temperature rises for your return.

1. Press

1. Press

to set the length of your absence in days (from 1 to 99 days)
The current day count as one.

1. Validate with

OK

1. Press

to set the temperature level required during your absence

1. Validate with

OK

Remain in this mode!

To cancel and return to automatic mode, press

MODE
