USER MANUAL AHD Z700 Extreme AIPTEK

Dear user, thanks for purchasing this product.

Much investment in time and effort has gone into its development, and it is our hope that it will give you many years of trouble-free service.

Safety Notice:

1. Do not drop, puncture or disassemble the device; otherwise the warranty will be voided.
2. Avoid all contact with water, and dry hands before using.
3. Do not expose the device to high temperature or leave it in direct sunlight. Doing so may damage the device.
4. Use the device with care. Avoid pressing hard on the device body.
5. For your own safety, avoid using the device when there is a storm or lightning.
6. Do not use batteries of different specifications. Doing so may lead to the potential for serious damage.
7. Remove the battery during long periods between usage, as a deteriorated battery may affect the functionality of the device.
8. Remove the battery if it shows signs of leaking or distortion.
9. Use only the accessories supplied by the manufacturer.
10. Keep the device out of the reach of infants.
11. Risk of explosion if battery is replaced by an incorrect type.
12. Dispose of used batteries according to the instructions.

FCC Compliance Statement:

This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FEDERAL COMMUNICATION COMMISSION U.S.A. FC

This equipment has been tested and found to comply with limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference in residential installations. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television equipment reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Move the equipment away from the receiver.

-Plug the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/television technician for additional suggestions.

You are cautioned that any change or modifications to the equipment not expressly approved by the party responsible for compliance could void Your authority to operate such equipment.

If the time arises to throw away your product, please recycle all the components possible.

Batteries and rechargeable batteries are not to be disposed in your domestic waste! Please recycle them at your local recycling point.

Together we can help to protect the environment.

■ DE: Umweltschutz

RoHS COMPLIANT

Getting Started .... 1

Knowing your camcorder parts .... 1

Installing the battery.... 2

Charging the battery 2

Inserting a memory card (optional) 2

Turning on/off your camcorder 2

Setting language .... 3

Reading LCD indicators .... 3

Basic Operations 4

Recording a video clip ....4

Taking a still picture 7

Recording TV program 9

Playing back your recordings.... 10

Playing back your recordings on PC.... 11

Connecting the camcorder to TV 12

MENU Operations 14

Basic Setting items 14

Advanced Setting items 15

Advanced Setting items (continued) 16

Menu items in Setting mode (continued) 17

Battery Life Indicator 17

Battery Life.... 17

Storage Capacity 18

System Requirements 18

Specifications....19

Getting Started

• Knowing your camcorder parts


Internal Microphone Lens Flash strobe Speaker External Microphone Battery cover Tripod socket SD/MMC card slot

LCD monitor Macro mode switch Flash switch LED Playback button Zoom (in/out) button MENU button Record button Shutter button OK key/ Joystick 5-way HDMI USB connector AV connector/ Earphone Strap hook Power button Delete button Expert button ICON Display switch Resolution switch

Installing the battery

1. Press the Push button first and slide the battery cover open.

2. Place the accessory Li-Ion battery into the compartment. Note that the metallic contacts must be aligned with the contacts in the compartment.

3. After the battery is properly installed, replace the battery cover.

Diagram of a mechanical component with a red circle and arrow indicating direction (no text or symbols)

Charging the battery

Please charge the battery for at least 8 hours prior to its first use.

1. Connect the cable.

Connect one end of the supplied AC adapter to the USB port of the camcorder and the other end to a wall outlet.

Close-up of a cable connector inserted into a device, showing wiring and cable (no text or symbols visible)

OR

Connect one end of the supplied USB cable to the USB port of the camcorder and the other end to a powered PC. Make sure the camcorder is powered off.

1. The charging LED turns red and charging begins.

2. When charging is interrupted or the battery pack is fully charged, the charging LED will turn green.

When using a PC to charge the battery, do not power on the camcorder, or charging will be halted.

- Inserting a memory card (optional)

To insert a memory card, do the following:

(1) Open the SD/MMC card cover.
(2) Gently push the card until the card reaches the bottom of the slot.

To remove the memory card, gently push the card and it will pop up. Then pull the card out of the slot.

Turning on/off your camcorder

Open the LCD monitor or press and hold down the Power button for 1 second to turn on the camcorder.

To turn off the camcorder, press and hold down the Power button for 1 \~ 3 seconds or close the LCD monitor.

If the camcorder stays inactive for a long period of time, it may automatically shut down due to the Auto-Off setting.

Setting language

1. Power on the camcorder.
2. Press the MENU button to enter the Setting screen.
3. Use the Joystick to select the Language item, and then Press OK to confirm.
4. Move the Joystick up/down to select a language.
5. When done, press OK to confirm the setting.

- Reading LCD indicators

1 2 3 4 5 6 7 00:05:12 Digital zoom 8 Optical zoom w 9 00:06:40 EP 10 11

1 Mode icon Battery life 7
2 Video resolution Zoom ratio indicator 8
3 Picture resolution Flash 9
4 Continuous shot Expert mode 10
5 Focus Remaining recordable time 11
6 Internal memory/SD card inserted Recording time

Basic Operations

Recording a video clip

1. Select the video resolution in different scenarios.

To choose the video resolution among various options, push the Down (S-) button of the 5-way joystick to switch to preferred video resolution.

S+ S- 口

Resolution switch

1) Full HD (1920x1080): allows you to record video in crystal-clear details and playback it later on the HD TV.
2) HD 60fps (1280x720): allows you to capture high speed motion at 60 frames per second rate, recording videos in precise quality level without any delay or jerky side-effect.
3) HD 30fps (1280x720): for recording standard HD videos.
4) WVGA 60fps (484x480): for recording high speed motion at 60 frames per second rate but in a lower resolution to keep file size small.
5) QVGA 30fps (320x240): for recording iPod and iPhone compatible videos.

1. Adjust the focus:

Normally the camcorder can auto focus without adjusting focus. If you want to take close-up pictures, you can push the Up button of the 5-way Joystick to switch to Macro mode ( ).

Macro mode Switch

Diagram showing a circular mechanical or electrical component with labeled sections S- and +, and an upward arrow indicating direction.

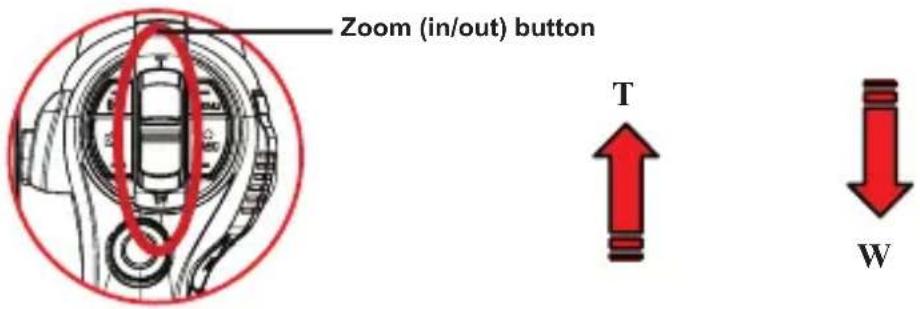

1. Adjust the zoom:

Move the Zoom button up or down to zoom in or zoom out the screen.

The camcorder possess 5X optical zoom and 4X digital zoom* for you to capture image in detail even from a long distance.

Zoom (in/out) button T W

The zoom function is also available during recording (except in macro mode).

4X digital zoom is not available for Full HD video recording.

1. Press the Record button to start recording.

2. Press the Record button again to stop recording.

Record button

1. While recording, press the button to pause recording, and press the button again to resume recording.

7. Picture in Video (PIV)

During recording, you can capture images by pressing the Joystick switch. The image you captured will appear the same resolution as the one you set for still picture.

OK key / Joystick 5-way

8. Electronic Image Stabilization (E.I.S.)

The camcorder has built-in electronic stabilizer.

Electronic Image Stabilization can be activated in HD 720P(60f) and WVGA(60f) video mode. In FULL HD(30f), HD 720P(30f) and QVGA(30f) video mode, this function is disabled.

Taking a still picture

1. Adjust the focus: Normally the camcorder can auto focus without adjusting focus. If you want to take close-up pictures, you can push the Up button to switch to Macro mode ( ).

2. Zooming: Move the Zoom button up or down to zoom in or zoom out the screen.

3. For better image quality, it is recommended that you hold the LCD panel steadily to avoid the image from blurring caused by hand shake.

Illustration of two hands holding a digital camera with a blank screen (no text or symbols visible)

1. Press the Shutter button half way down and hold for the camcorder to auto focus. When the focus frame turns green, press the button fully down to take a still picture.

focus frame

Due to the sensor capture feature, the LCD preview and ratio of still picture capture will vary depending upon different video resolution settings. The image capture of the camera is set where as video resolutions are different.

Video resolution Preview		Taking pictures and focusing
FULL HD (1920x1080)	16:9 ratio	4:3 ratio
HD 60f(1280x720)	16:9 ratio 4:3 ratio
HD 30f(1280x720)
WVGA 60f(848x480)
QVGA 30f(320x240)	4:3 ratio 4:3 ratio

Continuous shot

While in preview mode you can capture continuous images (at video resolution) by "clicking and holding down" the Joystick. The camcorder will continuously snap shots (up to 10 per second) until you release the OK key / Joystick, or until the memory is full.

OK key / Joystick 5-way

★ Available on select models only. Please refer to the package printing for detailed specification.

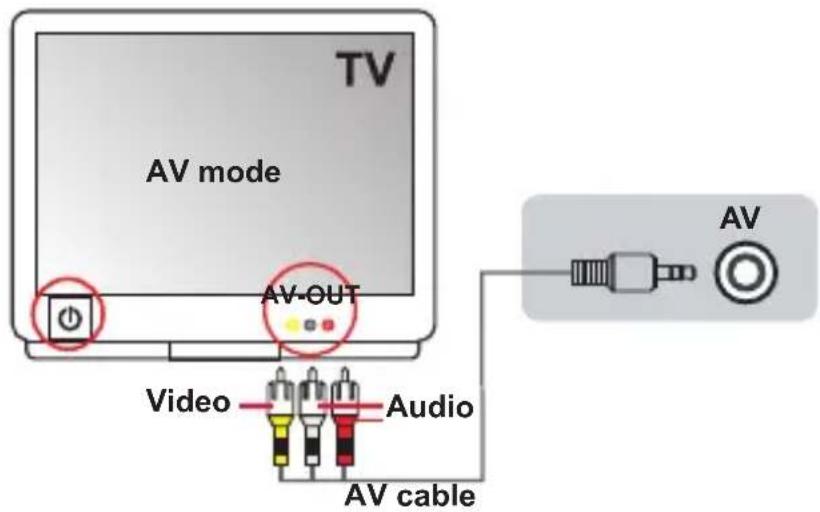

Recording TV program

The digital video recording technology allows you to record TV program via AV-IN cable.

TV AV mode AV-OUT Video Audio AV cable AV

1. Turn on your TV or DVD player.

2. Connect the AV cable (yellow/white/red color) to the AV-Out jacks on the TV or DVD player. (Normally, it's not necessary to switch the mode, please refer to the User's Manual of the TV or DVD player.)

3. Power on the camcorder.

4. Connect the other end of the AV cable to the "AV" port on your camcorder. When the pop-up message appears on the screen, please select "AV-IN".

5. Make sure that the image displayed on the TV or DVD player is also displayed on the camera's LCD screen.

6. Press the Record button to start recording.

7. Press the Record button again to stop recording.

Please dont' switch TV channels or turn off TV during TV program recording, or it would stop recording.

When recording videos from TV or DVD player, the resolution is 480P (D1).

The TV-program recording will fail if the TV signal is unstable.

Playing back your recordings

1. Press the PLAYBACK ( ▶ ) button and use the Joystick to select files.

2. Operations in playback mode:

File type How to... Action
Index modeFull-screen mode	Shift between Index mode and Full-screen mode	In Index mode, press the OK key to switch to Full-screen mode. In Full-screen mode, press the MENU button to switch to Index mode.
	Shift between files	1. In Index mode: Use the Joystick to move the highlight box.2. In Full-screen mode: Use the Joystick to move left or right.
	Delete	1. In Index mode: Press the MENU button or the Delete button to delete files.2. In Full-screen mode: Press the Delete button to delete files.
Video	Start playing	When selected (in full-screen mode), the file automatically starts playing.
	Pause/Resume playing	During playing/While paused, press the OK key.
	Adjust the volume level	During playing, push the Joystick up or down.
	Stop playing During playing, press the MENU button.
	Return to the preview screen	Press the Shutter button.
	Fast forward	During playing, push the Joystick to the right. To stop, press the MENU button.
	Fast backward	During playing, push the Joystick to the left. To stop, press the MENU button.
Picture	Zoom in/out Push the Joystick up or down.
	Lock/Release zoom ratio	When the zoom ratio is greater than 1.0x, press the OK key.
	Browse the enlarged picture	When the zoom ratio is locked, use the Joystick to browse the picture.

- Playing back your recordings on PC

Installing software

Please notice that the recorded videos are .mov format. So you need some special programs to view the recordings on PC. Please install the TotalMedia Extreme software on the bundled CD.

Connecting to PC

After the software is properly installed on your PC, please turn on the camcorder and connect the camcorder (with SD card inserted) to your computer with the USB cable.

Connecting the camcorder to TV

Connecting the camcorder to HDTV

TV: HDTV with HDMI input port

TV 2 1 HDMI In HDMI Out

1. Turn on your HDTV.
2. Connect the HDMI-in connector (the bigger end) of the HDMI cable to the HDTV.
3. Turn on the camcorder.
4. Connect the other end of the HDMI cable to your camcorder.
5. Switch the HDTV to "HDMI input" mode.

The HD TV will display your video clips in 1080i (60 fields) resolution mode even though it is recorded in 1080P (30 frames) setting.

Connecting the camcorder to Standard TV

TV = Traditional CRT TV

TV AV mode AV-IN Video Audio AV cable AV

1. Power on your TV and switch the TV to AV mode.
2. Connect the audio and video ends of the AV cable (yellow/white/red color) to the TV "AV-IN" jacks.
3. Power on the camcorder.
4. Connect the other end of the AV cable to the "AV" port on your camcorder. When the pop-up message appears on the screen, please select "AV-Out".

MENU Operations

Basic Setting items

Power-on → Press the Menu button.

Item Option Description
Video Resolution	FULL HD(30f) Set the video resolution to FULL HD (1920x1080 pixels).
	HD 60f(720P) Set the video resolution to HD 60f (1280x720 pixels).
	HD 30f(720P) Set the video resolution to HD 30f (1280x720 pixels).
	WVGA 60f(DVD)	Set the video resolution to WVGA 60f (848x480 pixels).
	QVGA 30f Set the video resolution to QVGA 30f (320x240 pixels).
Picture Resolution	3M Set picture resolution to 3 mega pixels.
	5M Set picture resolution to 5 mega pixels.
	8M Set picture resolution to 8 mega pixels.
	12M Set picture resolution to 12 mega pixels.
Beep	Off	Disable beep sound.
	On	Enable beep sound.
	Shutter On	Disable beep sound, but keep Shutter sound.
Clock -		Set date and time.
Language	-	Let you select the language used for OSD.
Date Stamp	On Print a date mark on each picture.
	Off Disable date mark.
Icon	On/Off	Enable/Disable OSD icons to display on the screen.
Slide Show On/Off		Enable/Disable the camcorder from displaying images/videos in sequence.

Advanced Setting items

If you want to fine-tune your camcorder functions, press the "E" (Expert) button on the side of the unit as illustrated. This will expand the menu items as follows.

Diagram of a digital camera with an external screen and control panel, no text or symbols present

Item Option Description
Flash Strobe	On The flash is forced to fire in every shot.
	Auto The flash automatically fires when the lighting is insufficient.
	Off The flash is disabled.
NightShot	Auto/Off	Default setting allows you to take a photograph with a dark background. Since the shutter speed will slow down when taking photographs in dark locations, we recommend the use of a tripod to help eliminate blur from hand shake.Note: Noise increases when shooting in the dark with this function enabled.Note: The stabilizer function is disabled when this function is enabled.
EV -2~+2		Manually adjust the exposure to gain better effect when the preview image appears too bright or too dark. A positive value indicates the image will be brighter than usual; while a negative value makes the image dimmer.
Selftimer On/Off		Enable/Disable the selftimer. After the selftimer is turned on, the camera will delay ten seconds before capuring when the Shutter button is pressed.
Continuous Shot (at video resolution)	On/Off Enable/Disable continuous shot function.
White Balance	Auto The camera automatically adjusts white balance.
	Sunny This setting is suitable for outdoor recording in sunny weather.
	Cloudy	This setting is suitable for recording in cloudy weather or shady environments.
	Fluorescent	This setting is suitable for indoor recording with fluorescent lamp lighting, or environments with high color temperature.
	Tungsten	This setting is suitable for indoor recording with incandescent lamp lighting, or environments with low color temperature.
Effect	Normal Make recordings in natural color.
	Black & White	Make recordings in black and white.
	Classic Make recordings in sepia-toned color.
AF Lock On/Off Enable/Disable the auto focus function.

- Advanced Setting items (continued)

Item Option Description
Stabilizer	On Minimize blur caused by hand shake.
	Off Disable stabilizer.
Face Tracking	On/Off Enable/Disable face tracking function.
LCD Brightness	1~4	Set LCD brightness.
TV System	NTSC	Set TV system compatibility to NTSC. This option is suitable for America, Taiwan, Japan, and Korea areas.
	PAL	Set TV system compatibility to PAL. This option is suitable for Germany, England, Italy, Netherlands, China, Japan, and Hong Kong.
Flicker	50Hz	Set flicker frequency to 50Hz*.
	60Hz	Set flicker frequency to 60Hz*.
Auto Off	Off	Disable Auto-off function.
	3 min	The camera automatically shuts down after remaining inactive for over 3 minutes.
Format	Yes	Format the storage medium. Note that all files stored in the medium will be gone.
	No	Cancel action.
Default	On	Restore factory defaults. Note that your current settings will be overridden.
	Off	Cancel action.

- Menu items in Setting mode (continued)

* Flicker settings table:

Region	England	Germany	France	Italy	Spain		Netherlands	Russia
Setting	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz
Region	Portugal	America	Taiwan	China	Japan	Japan	Korea	Thailand
Setting	50Hz	60Hz	60Hz	50Hz	50/60Hz	60Hz	60Hz	50Hz

Battery Life Indicator

Icon Description
	Full battery life
	Moderate battery life
	Low battery life* The flash strobe will be disabled.”
	Empty battery life

Note: To avoid sudden outage of power supply, it is recommended that you replace the battery when the icon indicates low battery life.

Battery Life

Still picture Video clip
Number of shots Recording time (minute)
500 80 min.
* shoot every 30 seconds** flash is off*** resolution is set to 5M (2592x1944)	* resolution is set to 720P 60f(1280x720 @60f)

Note: This table is for your reference only. The actual battery life depends on your battery type and recharge level.

Storage Capacity

Memory	Video (min.) Still picture
	FULL HD 30f / HD 720P 60f	HD 720P 30f / WVGA 60f	QVGA 30f 5M
SD card (512MB)	7 15 45 290
SD card (1GB) 15 30 90 580
SD card (2GB)	30 60 180 160
SD card (4GB) 60 120 240 2320
SD card (8GB)	120 240 480 2320

Note: Actual capacity may vary (up to ± 30%) depending on the color saturation and complexity of your subject and surroundings.

System Requirements

System requirements are different for different video resolution settings:

Video Resolution PC system requirements
FULL HD(1920x1080) @30fps	OS = Windows XP SP2, Vista or aboveCPU = Pentium 4 3.2GHz Core 2 Dual or aboveSystem RAM = 1GB (2GB recommended)Graphic card = 256MB of RAM
HD 60f (1280x720) @60fps
HD 30f (1280x720) @30fps	OS = Windows XP SP2, Vista or aboveCPU = Pentium 4 3.2GHz or aboveSystem RAM = 512MB (1GB recommended)Graphic card = 256MB of RAM
WVGA 60f (848x480) @60fps
QVGA 30f (320x240) @30fps
Item Description
Image sensor 5 Mega (2592x1944 pixels)
Resolution	Still image: 3M, 5M, 8M, 12MVideo resolution:1920x1080, up to 30fps (FULL HD)1280x720, up to 60fps (HD 60f)1280x720, up to 30fps (HD 30f)848x480, up to 60fps (WVGA 60f)320x240, up to 30fps (QVGA 30f)
Lens 5X Optical auto focus zoom lens
Focus Range	Normal: 80cm ~ Macro focus: 1cm ~ 80cm
Aperture Range F3.5 ~ F3.7, f=6.8~34.0mm
Digital zoom 4X (N/A in FULL HD mode)
Shutter Speed 1 ~ 1/2000 sec.
File format MOV, JPEG
Internal memory 40MB for storage
External memory SD/SDHC card (min. 256MB up to 32GB)
LCD display 7.6cm (3") LTPS LCD
TV out HDTV HDMI, NTSC/PAL system supported
Interface USB 2.0
Microphone Embedded stereo microphone; external microphone jack
Speaker Yes
Nightshot	Yes (both in still image and video modes)
Electronic Image Stabilization (E.I.S.)	Available in 720P 60fps and WVGA 60 fps
Battery	NP60 compatible Li-ion rechargeable battery
External Power Supply	100~240V, 50~60Hz, 5V, 2A
Dimensions 120 x 84 x 48 mm

Note: Specifications are subject to change without notification.

For more information on camcorder details and more advanced operations, please refer to the electronic manual included in the accessory CD.

CE RoHS COMPLIANT

Diagram of a mechanical component with a red circle highlighting a directional arrow (no text or symbols)

Close-up of a cable being inserted into an electronic device, enclosed in a red circle (no text or symbols visible)

ODER

Diagram showing a circular mechanical or electrical component with labeled sections S- and +, and an upward arrow indicating direction.

1. Anpassen des Zooms:

Technical diagram of a mechanical component with concentric circles and internal gears (no text or labels)

Diagram of a car interior with directional arrows and a highlighted section (no text or symbols)

Aufnahmetaste

Diagram of a mechanical component with a red circle highlighting a circular feature, no text or symbols present.

OK-Taste / 5-Wege-Joystick

Illustration of two hands holding a digital camera module (no text or symbols visible)

Technical diagram of a mechanical component with concentric circles and internal grid lines, no visible text or symbols

OK-Taste / 5-Wege-Joystick

Diagram of a digital camera with an external screen and control panel, showing no text or symbols.

CE RoHS COMPLIANT

Diagram of a mechanical component with a red circle and arrow indicating direction (no text or symbols)

Charger la batterie

Close-up of a cable connector with wires and connectors, no visible text or symbols

OU

Technical diagram of a mechanical component with labeled parts and a highlighted circular section marked 'G'

Bouton OK / Joystick 5 directions

Illustration of two hands holding a digital camera module (no text or symbols visible)

Technical diagram of a mechanical or electronic component with concentric circles and internal grid lines, no visible text or symbols.

Bouton OK / Joystick 5 directions

Diagram of a digital camera with labeled parts and a magnified inset showing a device's screen and key.

Diagram of a mechanical component with a red circle and arrow indicating direction (no text or symbols)

Close-up of a cable connector with wires and connectors, no visible text or symbols

OPPURE

Diagram showing a circular mechanical or electrical component with labeled sections S- and +, and an upward arrow indicating direction.

1. Regolare lo zoom:

7. PIV (Picture in Video)

Technical diagram of a mechanical component with labeled parts and a highlighted circular section marked 'G'

8. E.I.S. (Electronic Image Stabilization)

Illustration of two hands holding a digital camera (no text or symbols visible)

Technical diagram of a mechanical component with concentric circles and internal grid lines, no visible text or symbols

Diagram of a digital camera with an attached screen and control panel (no text or symbols)

Specifications....19

Aan de slag

Diagram of a mechanical component with a red circle and arrow indicating direction (no text or symbols)

De batterij opladen

Close-up of a cable connector with wires and connectors, no visible text or symbols

OF

Technical diagram of a mechanical or electrical component with labeled parts and a red circle highlighting a specific section.

Knop OK / 5-weg joystick

1. Elektronische beeldstabilisatie (E.I.S. = Electronic Image Stabilization)

Illustration of two hands holding a digital camera with a blank screen (no text or symbols visible)

Technical diagram of a mechanical component with concentric circles and internal grid lines, no visible text or symbols

Knop OK / 5-weg joystick

Diagram of a digital camera with an external screen and control panel, showing no text or symbols.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

Close-up of a cable connector with wires and connectors, no visible text or symbols

O BIEN

Diagram showing a circular mechanical or electrical component with labeled sections S- and +, and an upward arrow indicating direction.

1. Ajuste el zoom:

Technical diagram of a mechanical component with labeled parts and a red oval highlighting a specific section.

Technical diagram showing a circular component with internal components and a red circle highlighting a specific area.

Botón Grabar

Technical diagram of a mechanical component with labeled parts and a highlighted spiral symbol

Illustration of two hands holding a digital camera (no text or symbols visible)

Technical diagram of a mechanical component with concentric circles and internal grid (no text or symbols)

Diagram of a digital camera with an external screen and control panel, showing no text or symbols.

Diagram of a mechanical component with a red circle and arrow indicating direction (no text or symbols)

Carregar a bateria

Close-up of a cable connector with wires and connectors, no visible text or symbols

1. Ligue o cabo.

Technical diagram of a mechanical component with no visible text or symbols

Illustration of two hands holding a digital camera (no text or symbols visible)

Diagram of a digital camera with labeled parts and a magnified inset showing the screen and key adjustment.

Diagram of a mechanical component with a red circle and arrow indicating direction (no text or symbols)

1. Podłącz kabel.

Close-up of a cable connector with wires and connectors, no visible text or symbols

LUB

Diagram showing a circular mechanical or electrical component with labeled sections S- and +, and an upward arrow indicating direction.

1. Regulacja zoomu:

Technical diagram of a mechanical component with red circular outline and internal cross-section (no text or symbols)

Diagram of a car interior with directional arrows and a highlighted section (no text or symbols)

Przycisk nagrywania

Technical diagram of a mechanical or electrical component with labeled parts and a red circular annotation highlighting a specific section.

Illustration of two hands holding a digital camera case (no text or symbols visible)

Technical diagram of a mechanical component with concentric circles and internal grid lines, no visible text or symbols

Technical line drawing of a handheld device with a screen and control panel, showing internal components (no text or symbols)

Diagram of a mechanical component with a red circle and arrow indicating direction (no text or symbols)

1. Podłącz kabel.

Close-up of a cable connector with wires and connectors, no visible text or symbols

LUB

Diagram showing a circular mechanical or electrical component with labeled sections S- and +, and an upward arrow indicating direction.

1. Regulacja zoomu:

Technical diagram of a mechanical component with red circular outline and internal cross-section (no text or symbols)

Diagram of a car interior with directional arrows and a highlighted section (no text or symbols)

Przycisk nagrywania

Technical diagram of a mechanical component with labeled parts and a red circle highlighting a specific section.

Illustration of two hands holding a digital camera case (no text or symbols visible)

Technical diagram of a mechanical component with concentric circles and internal grid lines, no visible text or symbols

Technical line drawing of a handheld device with a screen and control panel, showing internal components (no text or symbols)

CE RoHS COMPLIANT

Diagram of a mechanical component with a red circle and arrow indicating direction (no text or symbols)

Close-up of a cable connector inserted into a device, enclosed in a red circle (no visible text or symbols)

Technical diagram of a mechanical component with labeled parts and a red oval highlighting a specific section.

Diagram of a device interior with labeled components and a red oval highlighting a specific area.

Кнопка записи

Technical diagram of a mechanical component with labeled parts and a red circular annotation highlighting a feature.

Illustration of two hands holding a digital camera with a blank screen (no text or symbols visible)

Technical diagram of a mechanical or electronic component with concentric circles and internal grid (no visible text or symbols)

Diagram of a digital camera with an external screen and control panel, no text or symbols present

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

电池充电

Close-up of a cable being inserted into an electronic device, showing wires and components (no text or symbols visible)

或者

Technical diagram of a mechanical component with labeled parts and a red circle highlighting a specific section.

确认键/5-向操纵杆

8. 电子图像防抖(E.I.S.)

此摄像机内置电子防抖功能。

Illustration of two hands holding a digital camera module (no text or symbols visible)

Technical diagram of a device with labeled ports and a red circle highlighting a specific component.

确认键/5-向操纵杆

录制电视节目

Diagram of a digital camera with an external screen and control panel, showing no text or symbols

Diagram of a rectangular object inside a circular boundary with an arrow indicating direction (no text or symbols)

電池充電

Diagram showing cable connection with labeled components including 'USB' and 'CAN'

或

Technical diagram of a mechanical component with labeled parts and a red oval highlighting a specific section.

縮放（放大／縮小）鈕

Diagram of a vehicle interior with directional arrows and a highlighted section (no text or symbols)

攝錄鍵

Technical diagram of a mechanical component with labeled parts and a red circular annotation highlighting a specific section.

OK鍵／5段式操控鍵

8. 電子影像穩定 (E.I.S.)

攝影機具有內建的電子穩定器。

Illustration of two hands holding a digital camera module (no text or symbols visible)

Technical diagram of a device with labeled components and a red circle highlighting a specific section.

OK鍵／5段式操控鍵

錄製電視節目

Diagram of a digital camera with an LCD screen and control panel, showing no text or symbols.

Diagram of a mechanical component with a red circle and arrow indicating direction (no text or symbols)

배터리 충전하기

Close-up of a cable connector with wires and connectors, no visible text or symbols

또는

Technical diagram of a mechanical component with a red circular annotation highlighting a specific section (no text or symbols present)

OK 키/5방향 조에스틱

Illustration of two hands holding a digital camera module (no text or symbols visible)

Technical diagram of a mechanical component with a red circle highlighting a circular feature (no text or symbols present)

OK(확인) 키/5방향 죄이스틱

TV 프로그램 녹화하기

Diagram of a digital camera with an external screen and control panel, no text or symbols present

Diagram of a mechanical component with an arrow indicating direction (no text or symbols)

تركيب الطارية

Close-up of a cable being inserted into an electronic device (no visible text or symbols)

شحن البطارية

Technical diagram of a mechanical component with labeled parts and a red circular annotation highlighting a specific section.

Illustration of two hands holding a digital camera module (no text or symbols visible)

Technical diagram of a mechanical or electrical component with labeled parts and a red circular annotation highlighting a specific section.

Diagram of a digital camera with an attached screen and control panel (no text or symbols)
