Product type	Corded electric hedge trimmer
Brand	Einhell
Model	BG-EH 6051
Supply voltage	230 V ~ 50 Hz
Power consumption	600 W
Blade length	510 mm
Cutting length	460 mm
Tooth spacing	14 mm
Maximum cutting thickness	14 mm
Cutting speed	4200 cuts/min
Sound pressure level (L_pA)	85.5 dB(A)
Sound power level (L_WA)	99 dB(A)
Vibration level (a_hv)	2.9 m/s²
Weight	3.1 kg
Safety	Two-hand switch, electric brake
Included accessories	Hand guard, blade guard, 2 screws
Maintenance	Regular cleaning and oiling of blades
Warranty	2 years (conditions according to manual)
Use	For hedges, bushes, and undergrowth

Frequently Asked Questions - BG-EH 6051 EINHELL

How to start the hedge trimmer?

The hedge trimmer has a two-hand safety switch: press simultaneously the switch on the guide handle and the one on the main handle. Release one switch to stop the blades.

What is the maximum cutting thickness?

The maximum cutting thickness is 14 mm. Do not exceed this limit to avoid damaging the device.

How to clean and oil the blades?

Unplug the device. Remove deposits with a brush, then apply a thin layer of oil on the blades (see figure 9 of the manual).
Perform this operation regularly for optimal performance.

What to do if the device does not start?

First check that the cable is properly plugged in and that the fuses are in good condition. If voltage is present but the device does not work, contact the after-sales service.

Can I use the hedge trimmer in the rain?

No, the device must not be exposed to rain or humidity. The symbol on the plate indicates to protect from rain. Use it only in dry weather.

What accessories are supplied?

The delivery includes: the hedge trimmer, the hand guard, the blade guard, 2 fixing screws, the instruction manual, and the safety instructions.

How to store the device?

Store it in a dark, dry, and frost-free place, out of reach of children. The ideal temperature is between 5 and 30 °C. Preferably use the original packaging.

What is the noise level of this device?

The sound pressure level is 85.5 dB(A) and the sound power level is 99 dB(A). Wear ear protection to protect yourself.

What is the vibration level?

The vibration level (a_hv) is 2.9 m/s² with an uncertainty K of 1.5 m/s². To limit risks, use the device for short periods and wear gloves.

Where to order spare parts?

To order, specify the device type, article number, identification number, and part number. Visit www.isc-gmbh.info for prices.

USER MANUAL BG-EH 6051 EINHELL

Close-up of a mechanical rollerblading device with motion blur effect, labeled '3a' and '2', showing no readable text or symbols beyond labels.

Close-up of a mechanical assembly with labeled parts (3b and 8), no readable text or symbols beyond labels

Close-up of a hairpin with a textured handle and needle inserted, showing mechanical components (no text or symbols)

Black-and-white sketch of a tractor pulling a pile of papers or documents, no text or symbols visible

Diagram of a mechanical assembly with a cylindrical component inserted into a row of pins (no text or symbols)

Achtung!

When using the equipment, a few safety precautions must be observed to avoid injuries and damage.

Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the information is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions.

1. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

CAUTION!

Read all safety regulations and instructions.

Any errors made in following the safety regulations and instructions may result in an electric shock, fire and/or serious injury.

Keep all safety regulations and instructions in a safe place for future use.

Explanation of the plate (see Fig. 10)

1. Warning
2. Do not expose to rain! Do not expose the hedge trimmer to rain or wet conditions.
3. Read the operating instructions before using for the first time.
4. Pull the plug from the power supply immediately if the cable gets damaged or severed.
5. Wear goggles and ear muffs.

2. Layout (see Fig. 1)

1. Cutter rail
2. Hand guard
3. Steady grip with button switch
4. Handle with button switch
5. Cable grip
6. Power cable
7. Cutter guard
8. Fastening screws for hand guard

Important! You must never use the hedge trimmer without hand guard.

3. Items supplied

●Original operating instructions
●Safety instructions
●Hedge trimmer
●Cutter guard
●Hand guard
●Screw (2x)

- Open the packaging and take out the equipment with care.

• Remove the packaging material and any packaging and/or transportation braces (if available).
• Check to see if all items are supplied.
  ●Inspect the equipment and accessories for transport damage.
• If possible, please keep the packaging until the end of the guarantee period.

IMPORTANT

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suffocating!

4. Proper use

Important. This hedge trimmer is suitable for cutting hedges, bushes and shrubs. Observe the maximum permissible cutting capacity; see technical data.

The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

GB

5. Technical data

Voltage 230V \~ 50Hz

Power consumption 600 W

Cutting length 460 mm

Cutter rail length 510 mm

Tooth spacing 14 mm

max. cutting ø 14 mm

Cuts/min 4200

Sound pressure level L_pA 85.5 dB(A)

Sound power level L_WA 99 dB(A)

K uncertainty 2.5 dB(A)

Vibration a_hv 2.9 m/s ^2

K uncertainty 1.5 m/s

Weight 3,1 kg

Additional information for electric power tools

Warning!

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric equipment is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the equipment with other electric power tools.

The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum.

●Only use appliances which are in perfect working order.
●Service and clean the appliance regularly.
●Adapt your working style to suit the appliance.
●Do not overload the appliance.
●Have the appliance serviced whenever necessary.
●Switch the appliance off when it is not in use.
●Wear protective gloves.

Residual risks

Even if you use this electric power tool in accordance with instructions, certain residual risks cannot be rules out. The following hazards may arise in connection with the equipment's construction and layout:

1. Lung damage if no suitable protective dust mask is used.
2. Damage to hearing if no suitable ear protection is used.
3. Health damage caused by hand-arm vibrations if the equipment is used over a prolonged period or is not properly guided and maintained.

Warning! The electric power tool generates an electromagnetic field during operation. Under certain circumstances this field may actively or passively impede medical implants. To reduce the risk of serious or fatal injuries, we recommend persons with medical implants to consult their doctor and the manufacturer of the medical implant prior to using the equipment.

6. Before starting the equipment

Before you connect the equipment to the mains supply make sure that the data on the rating plate are identical to the mains data.

Fitting the hand guard (Fig. 3a-3b)

Attach the hand guard (Fig. 3a/Item 2) in the direction of the arrow as shown in Figure 3a. Then secure with the two screws (Fig. 3b/Item 8).

7. Operation

The hedge trimmer is equipped with a two-handed safety switch. The machine works only when the switch on the steady grip (Fig. 4/Item A) is pressed with one hand and the switch on the handle (Fig. 4/Item B) is pressed with the other hand.

Releasing any of the switches will bring the hedge trimmer to a stop.

In so doing, please check the running of the blades.

• Please check that the blades function correctly. The blades cut on both sides and run in opposite directions to each other, for guaranteed high cutting performance and quiet operation.
  ●Fasten the extension cable to the cable holder before starting to use the machine (see Fig. 4).
  ●For use in the open air you must only use extension cables certified for the purpose.

Tips on use

●The hedge trimmer can be used not only for trimming hedges but for trimming shrubs and bushes as well.

GB

• For optimum trimming performance, guide the blade teeth at an angle of approx. 15^ to the hedge (see Fig. 5).
• Since the blades cut on both sides and run in opposite directions to each other, you can trim in both directions (see Fig. 6).

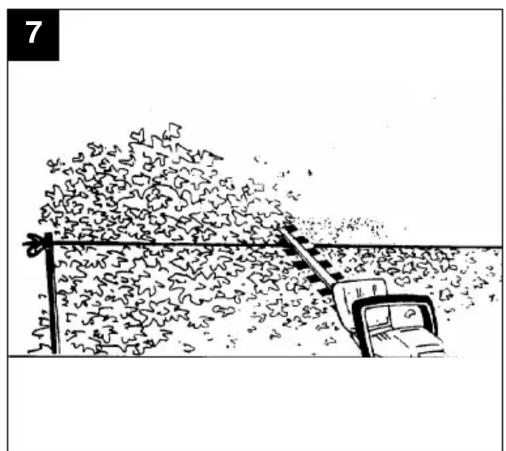

• It is recommended to tie a guide line of string or the like along the hedge so that you cut the hedge to a level height. Cut off all branches which protrude beyond the guide line (see Figure 7). Ensure that the blades do not come into contact with the string.

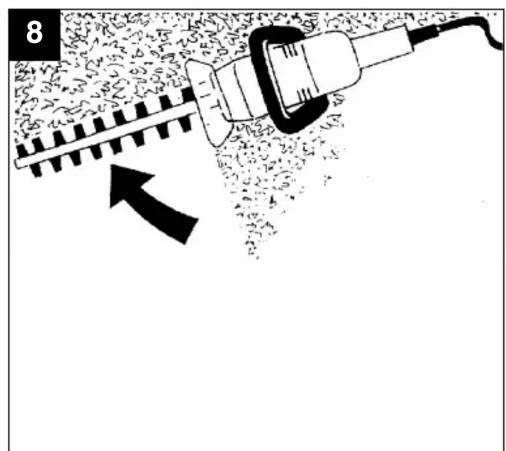

  ●The sides of the hedge should be trimmed with arc-type movements from below upwards (see Fig. 8).

Electric brake

For safety reasons, the equipment is supplied with an electric brake system that stops the cutting blades as quickly as possible after the equipment has been switched off. The equipment may therefore emit an odor or generate sparks when it is switched off. This has no influence on the future operational performance or safety of the equipment. Please avoid switching the equipment on and off more often than necessary.

8. Replacing the power cable

If the power cable for this equipment is damaged, it must be replaced by the manufacturer or its after-sales service or similarly trained personnel to avoid danger.

9. Cleaning, maintenance and ordering of spare parts

Always pull out the mains power plug before starting any cleaning work.

9.1 Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device.

9.2 Maintenance

9.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

●Type of machine
●Article number of the machine
●Identification number of the machine
●Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

10. Storage

Store the equipment and accessories out of children's reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30^ . Store the electric tool in its original packaging.

11. Disposal and recycling

The unit is supplied in packaging to prevent its being damaged in transit. This packaging is raw material and can therefore be reused or can be returned to the raw material system. The unit and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

12. Faults

The machine does not start: Check that the power cable is correctly connected and check the mains fuses. If the machine still does not work even with connected voltage, please send it to the specified customer services address.

F

⚠ Attention!

2009/105/EC
2006/95/EC
2006/28/EC
2005/32/EC
x 2004/108/EC
2004/22/EC
□ 1999/5/EC
97/23/EC
□ 90/396/EC

89/686/EC_96/58/EC

x 2006/42/EC

Annex IV

Notified Body: Notified Body No.: Reg. No.:

x 2000/14/EC_2005/88/EC

x Annex V

□ Annex VI

Noise: measured L_WA = 93,6 dB (A); guaranteed L_WA = 96 dB (A) P = kW; L/∅ = cm Notified Body:

2004/26/EC

Emission No.:

Standard references: EN 60745-1; EN 60745-2-15; EN 62233; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar

Documents registrar: Alexander Scheifl

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

©Nur für EU-Länder

Never place any electric tools in your household refuse.

To comply with European Directive 2002/96/EC concerning old electric and electronic equipment and its implementation in national laws, old electric tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot.

Recycling alternative to the demand to return electrical devices:

As an alternative to returning the electrical device, the owner is obliged to cooperate in ensuring that the device is properly recycled if ownership is relinquished. This can also be done by handing over the used device to a returns center, which will dispose of it in accordance with national commercial and industrial waste management legislation. This does not apply to the accessories and auxiliary equipment without any electrical components which are included with the used device.

The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of ISC GmbH.

F

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
2. Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device. This applies in particular to rechargeable batteries for which we nevertheless issue a guarantee period of 12 months.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

1. The guarantee is valid for a period of 2 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

2. In order to assert your guarantee claim, please send your defective device postage-free to the address shown below. Please enclose either the original or a copy of your sales receipt or another dated proof of purchase. Please keep your sales receipt in a safe place, as it is your proof of purchase. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.
