USER MANUAL 58275 UNOLD

Two kitchen appliances: a stovet with a pot and a pan on an induction cooktop, and a digital display with a flat-screen appliance (no visible text or symbols)

Bedienungsanleitung

Modelle 58275/58235

Instructions for use Model 58235/58275

Technical Data 13

Safety Information 14

Functioning.... 15

Safety functions 15

Cooking Utensil Selection 15

Before first use.... 16

Operation panel 16

Operation of the induction cooker.... 17

Cleaning and maintenance 18

Trouble shooting 18

Guarantee Conditions....59

Waste Disposal / Environmental Protection 62

Black and white photo of a digital kitchen scale with control buttons (no visible text or symbols)

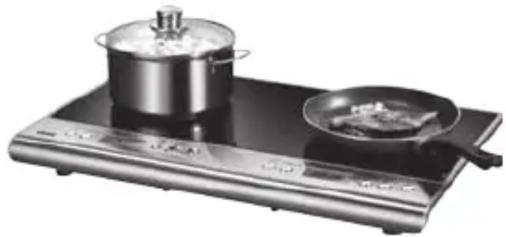

Exterior view of a modern electric stove with two cooking pots (no text or symbols visible)

Leistung: 2.000 Watt, 220-240 V\~, 50 Hz 3.400 Watt, 220-240 V\~, 50 Hz

Single induction cooker

Model 58275

Double induction cooker

CE

RoHS√

Black and silver digital kitchen scale with control buttons and a digital display (no visible text or symbols)

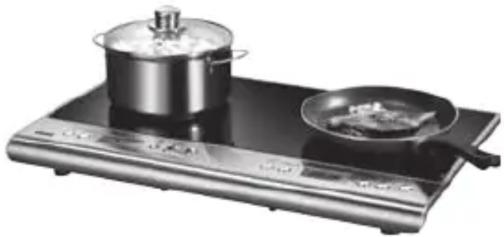

Exterior view of a modern electric stove with two cooking pots (no text or symbols visible)

Power rating: 2.000 Watt, 220-240 V\~, 50 Hz 3.400 Watt, 220-240 V\~, 50 Hz

1 plate approx. 30 x 30 cm

Max. 2.000 Watt

2 plates, each 30 x 30 cm

Left side max. 1.800 Watt

Right side, max. 1.600 Watt

Size W/D/H: 32,0 x 41,6 x 7,0 cm 67,0 x 41,6 x 7,0 cm

Weight: Approx. 3 kg Approx. 5,7 kg

Power cord: Approx. 120 cm Approx. 120 cm

Housing: Stainless steel, brushed

Plate: Heat resistant, unbreakable glass

Features: Automatic adaptation to power voltage

Automatic shutoff after 2 hours

Automatic detection of suitable saucepans with alarm function

Timer

6 temperature settings

Overheat protection

Protection against excess voltage

Automatic restart after power failure

Stationary heat display

For saucepans from 12-26 cm diameter

Load up to 4 kg

Accessories: Instructions for use

Magnet for detection of the induction useability of saucepans

Subject to technical modifications.

SAFETY INFORMATION

1. Please read these instructions carefully and keep them in a safe place.
2. This appliance is not designed to be used by persons (including children) with limited physical, sensory, or mental capabilities, or lacking in experience and/or knowledge. This is unless they are supervised by a person responsible for their safety, or they are instructed by such a person on how to use the appliance.
3. Children should be supervised in order to ensure they don't play with the machine.
4. Connect the appliance to alternating current only, in accordance with the rating plate.
5. Appliances are not intended to be operated by means of an external timer or separate remote-control system.
6. Persons with pacemakers, in particular with older pacemakers, should consult their doctor before using the appliance.
7. Ensure that the appliance is connected to a A.C. power outlet as per rating label.
8. CAUTION!

In case of model 58275 we recommend not to use any other electrical appliance in the same power circuit.

1. Never immerse the appliance into water or any other liquid. Protect the appliance against water.
2. This appliance is intended to be used in household and similar applications such as:

■ staff kitchen areas in shops, offices and other working environments;
■ farm houses;
■ by client in hotels, motels and other working environments;
■ bed and breakfast type environments.

1. Unwind the power cord completely before using the appliance in order to avoid any contact of the power cord with the hot appliance.

2. Place the appliance on a solid, flat and dry surface, but never on hot surface, metal surfaces or surfaces covered with cloths.

3. Do not place near objects which are affected by magnets such as cheque cards, radio, television, video tapes etc.
4. Keep sufficient distance to walls and combustible objects such as curtains.
5. Never use the appliance on or near hot surfaces.

6. Do not use with saucepans etc. which are not suitable for induction cooking.

7. The appliance is not provided for being installed in a working top.

8. The appliance heats up quickly. Do not heat empty saucepans. This might damage the appliance as well as the saucepan.
9. Only switch on the appliance if a filled saucepan in placed on the plate. Do not overfill saucepans to avoid boiling over.
10. Do not leave any metallic objects such as knife, forks, spoons etc. on the hotplate, since they can get hot.
11. Do not heat closed metal cans, as they may burst.
12. Ensure that the ventilation slots are always free and clean.
13. Do not move the appliance during use. Switch off and remove saucepans before moving the appliance.
14. Do not drop objects on the hotplate. In case of cracks turn off the power supply immediately and unplug the appliance. Send the appliance to our after sales service for repair.
15. Continuous operation should not exceed 4 hours. If necessary please stop for 30 minutes during operation and then continue to cook.
16. The hotplate may get hot during use by the heat reflected from the saucepan. Do not touch the hotplate directly after use and follow the heat display.
17. Do not place a sheet of paper or foil between the saucepan and the hotplate. It may get burnt or melted.
18. Do not pull the saucepan over the operation buttons to avoid damaging of the buttons.
19. Do not place hot saucepans on the operation panel.
20. Do not use the appliance outdoors.
21. After use, before moving and before cleaning always switch off and unplug the appliance.
22. Check the plug and power cord regularly for wear and damage. In case of a fault, please send the appliance for inspection/repair to our after sales service (address see last page). Inadequate repair may constitute a risk for the user and result in the loss of guarantee.
23. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

The appliance is only provided for domestic use. The manufacturer does not assume any warranty in case of improper or incorrect use or after repair by unauthorized third parties.

FUNCTIONING

Cooking on an induction cooker saves up to 50% of electric power. The cooking time is reduced by up to 30%.

When cooking on an induction cooker, not the hotplate is heated, but the saucepan on it, provided that the bottom is ferromagnetic. The heating is effected by a magnetic alternating field below the hotplate.

The advantages of induction cooking are:

■ Short reaction time, short preheating time, quick and exact heating.

■ Rapid heating, since the full amount of energy is immediately available.

■ Cool hotplate, which is only heated by the heat reflected from the saucepan.

■ Great energy saving of up to 50%.

■ Easy cleaning, as food cannot burn in case of boiling over.

■ high safety: as soon as the saucepan is taken away from the plate, the heat supply is stopped automatically.

SAFETY FUNCTIONS

1. Overvoltage / low voltage protection

When power voltage is too high or too low, the induction cooker will compensate the voltage automatically and will adjust the output power.

2. Overheating protection

When the temperature of the hotplate is too high, the induction cooker will stop automatically and a long buzzer sound will be heard to alert you until the temperature returns to normal (fault E 5).

3. High voltage pulse protection

During operation, when power supply receives a transient high voltage pulse (e.g. lightning strike), the induction cooker will stop automatically and in one minute will resume automatically.

4. Small metal part protection

If small iron metal parts with a diameter of less than 80 mm are detected on the hotplate, the appliance cannot be switched on.

5. Suitable pans

The appliance detects automatically if the used saucepan is suitable for induction cooking or not. If the saucepan is not suitable, a buzzer sound will be heard to alert you until an appropriate saucepan is put on the hotplate (fault E O).

6. Heat display

The appliance detects automatically, if the hotplate has become hot by heat reflection from the saucepan. In this case the display will be lighted in red. As long as the display is red, do not touch the glass surface.

COOKING UTENSIL SELECTION

1. Only use cooking utensils, which are approved for induction cooking.
2. Useable pans are: stainless steel saucepans with ferro magnetic bottom. cast iron pans and saucepans, enamelled iron saucepans and pans.

3. You can check with a magnet, if your saucepans are useable for induction cooking. Whenever the magnet is adhering at the bottom outside, the saucepan can be used on the induction cooker.

4. Not useable are saucepans and pans made of aluminium, copper, glass, ceramic and some chrome nickel alloys.

5. The diameter of the saucepans should be min. 12 cm and max. 26 cm.

6. Attention:

Adapt the power or temperature setting to the used saucepans. When using small saucepans you can already cook with 180 °C or 1.400 watts. A too high setting

in combination with small saucepans can cause damages of the appliance.

1. The non-stick-coating of coated saucepans and frying pans can be damaged if used with too strong heating. Please follow the information of the saucepan manufacturer

with regard to the application of the pots. Choose in the case of doubt a lower power setting or temperature to avoid damages.

1. Put the saucepan always precisely in the middle of the cooking field to avoid error messages and automatic switching off.

BEFORE FIRST USE

1. Remove all packaging materials.
2. Wipe the appliance with a damp cloth.

3. Place the appliance of a flat, solid and dry surface with sufficient distance to all sides

4. Put the plug into a power outlet as per rating label.

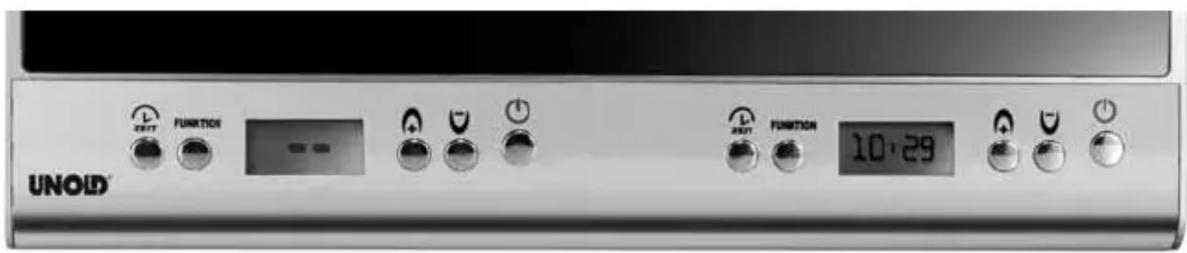

OPERATION PANEL

UNOLD F U N F T I O N 10:29

ZEIT/TIME button

The time button allows you to determine the cooking time. The period should not exceed 4 hours without interruption.

Press the TEIT/TIME button. The display shows TIMER.

Both figures left of the colon are blinking. Set the hour value by pressing the plus resp. minus button.

Press ZEIT/TIME again. Now the figures right of the colon are blinking. (If not pressing TIME; this will also occur after some seconds). Set the minute value by pressing the plus resp. minus button.

Confirm the preset cooking time by pressing the ZEIT/TIME button. A short acoustic signal will confirm the setting.

During cooking the remaining time will be shown in the display alternating with the selected power resp. temperature level.

FUNKTION/FUNCTION button

For cooking you can either preset the power rating from 400-2.000 Watt or preset the desired temperature from 60 °C to 240 °C. A combination of both options is not possible.

Power rating

Press the FUNKTION/FUNCTION button.

The display shows HEAT.

Select the required power rating by touching the plus resp. minus button. The following rating steps can be selected:

Model 58235	Model 58275 Application
	Left Right
400 W	400 W	400 W	Keeping warm, swelling
800 W	800 W	800 W	Cook gently
1.000 W 1	000 W 1.000 W		Cook and roast gently
1.200 W 1	200 W 1.200 W		cook and roast gently
1.400 W 1	400 W 1.400 W		Sear / cook
1.600 W 1	600 W 1.600 W		Roast
1.800 W 1	800 W		Grilling
2.000 W			Grilling

The above values are roughly estimated for stainless steel saucepans with approx. 20 cm diameter. The values may vary depending on the material and size of the used cookware.

For safety reason the total power rating for model 58275 is limited to 3.400 Watt in order to avoid damages of the domestic power system.

Temperature

Press the FUNKTION/FUNCTION button twice. The display shows WARM.

Select the required temperature by touching the plus resp. minus button. The following temperatures can be selected:

Level 1 60 °C Keep warm

Level 2 100 °C Cook gently

Level 3 140 °C Roaste gently

Level 4 180 °C Start to cook / roast

Level 5 220 °C Grill

Level 6 240 °C Grill

PLUS/MINUS buttons

The plus and minus buttons are used to preset the cooking time, the power rating or the temperature as described above.

Start/Stop button

Press START/STOPP to switch on the appliance.

The display shows -- -- to confirm that the appliance is connected to the mains.

If no button is pressed the appliance will switch off after two hours.

1. Insert the power cord into a power outlet as per rating label. A buzzer sound will be heard and the display is lighted in blue. All display options are shown for 1 second. Then the display shows -- --.
2. If no key is pressed within 10 seconds, the blue lighting turns off (power save function in standby mode). As soon as a key is pressed to start cooking, the display is lighted again and remains lighted in blue during the cooking time.
3. Place an appropriate, filled saucepan in the middle of the hotplate.
4. Press the START-STOPP button. The display shows 00:00.
5. Press the button FUNKTION/FUNCTION and set within the next 5 seconds the selected power rating or temperature as described above by using the plus and minus buttons. You can operate the induction cooker either by selecting a power rating level or a temperature level. As soon as a selection is made, the fan begins to operate.
6. If no saucepan is placed on the hot plate, a buzzer alarm is heard in intervals, the display shows E O and the appliance is switched off after 60 seconds.
7. The induction cooker can be set either in the temperature range setting or in the power setting.

8. If no power level is selected press the FUNKTION/FUNCTION button again and select the temperature level up to max. 240 °C. Whenever the appliance reaches the preset maximum temperature, the heating is interrupted automatically.

9. During cooking you can change the power rating or temperature at any time.

10. If you want to preset the cooking time, press the button ZEIT/TIME. Select the cooking time as described above.
11. After some seconds the two fogures right of the colon start to blink. Set the minute value now.
12. Press the ZEIT/TIME button again to confirm the preset cooking time. This will be conformed by a short buzzer sound.
13. During cooking the remaining time will be shown in the display alternating with the selected power resp. temperature level.
14. After reaching the preset cooking time, the appliance is switched off auto matically.
15. The display is lighted in red (residual heat display).
16. During cooking the appliance can be switched off at any time by pressing the START-STOP button.
17. The preset cooking time will not be kept in memory after the end of cooking.
18. The fan will run for about 30 seconds after the end of the cooking time.
19. If no cooking time has been preselected, the appliance will be switched off automatically after 2 hours.
20. Disconnect after use the plug from the outlet to save electricity.

CLEANING AND MAINTENANCE

1. Unplug the appliance and let it cool down before cleaning it.
2. Do not immerse the appliance into water or any other liquid for cleaning.
3. Wipe the surface and the housing with a damp cloth.

4. Do not use any strong or abrasive cleansers or spoges.

5. Do not pour water or any other liquid on the hotplate.

6. If necessary you can use a cleanser or scraper for ceran glass cookers.
7. Please clean the ventilation slots regularly with a soft brush to prevent dust deposits.

TROUBLE SHOOTING

Fault Reason Reaction
E0 No cookware	on the plate, cookware not fitted for induction, cookware not placed correctly in the middle	Only use cookware approved for induction cooking with a diameter of at least 12 cm and max. 26 cm, Place the cookware in the middle of the respective cooking plate.
E1 Power circuit	fault Send the appliance to our technical service for repair.
E2 Temperature	control fault Send the appliance to our technical service for repair.
E3 E4	Variations of voltage In case of sudden fluctuations of the voltage cooking is automatically interrupted. After approx. 1 minute cooking is continued.
E5 Too high surface temperature If the surface temperature is too high, an acoustic signal is given and the appliance is shout off automatically. As soon as the temperature has fallen to the normal temperautre range, cooking can be restarted. In order to avoid overheating, we recommended to use low power or temperature settings for small saucepans and medium to hiogh settings for large saucepans .
E6 Overheating	due to fan fault As soon as the temperature has fallen to the normal temperautre range, cooking can be restarted.
E7 Overheating	due to fault of the temperature sensor	Send the appliance to our technical service for repair.

SPÉCIFICATION TECHNIQUE

Modèle 58235

Plaque à induction

Modèle 58275

Black and white photo of a digital kitchen scale with control buttons (no visible text or symbols)

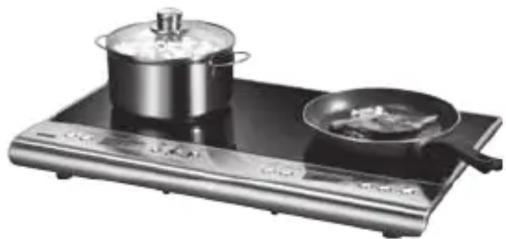

Exterior view of a modern electric stove with two cooking pots (no text or symbols visible)

Puissance: 2.000 Watt, 220-240 V\~, 50 Hz 3.400 Watt, 220-240 V\~, 50 Hz

1 plaque env. 30 x 30 cm

Max. 2.000 Watt

Dimensions: 32,0 x 41,6 x 7,0 cm 67,0 x 41,6 x 7,0 cm

Poids: Env. 3 kg Env. 5,7 kg

Cordon: Env. 120 cm Env. 120 cm

Black and white photo of a digital kitchen scale with control buttons (no visible text or symbols)

Exterior view of a modern electric stove with two cooking pots (no text or symbols visible)

Vermogen: 2.000 Watt, 220-240 V\~, 50 Hz 3.400 Watt, 220-240 V\~, 50 Hz

1 kookveld ca. 30 x 30 cm

Maximaal 2.000 Watt

Digital kitchen scale with digital display and control buttons (no visible text or symbols)

Two stainless steel cookers on a black electric stove, one cooking and the other frying (no visible text or symbols)

Potenza: 2.000 Watt, 220-240 V\~, 50 Hz 3.400 Watt, 220-240 V\~, 50 Hz

Ingombro 32,0 x 41,6 x 7,0 cm 67,0 x 41,6 x 7,0 cm

(B/P/A):

Digital kitchen scale with digital display and control buttons (no visible text or symbols)

Two stainless steel cookers on a black electric stove, one cooking and the other frying (no visible text or symbols)

Potencia: 2.000 Vatio, 220-240 V\~, 50 Hz 3.400 Vatio, 220-240 V\~, 50 Hz

Digital kitchen scale with control buttons and display (no visible text or symbols)

Two stainless steel cookers on a black electric stove, one cooking and the other frying (no visible text or symbols)

Výkon: 2.000 Watt, 220-240 V\~, 50 Hz 3.400 Watt, 220-240 V\~, 50 Hz

Black and silver digital kitchen scale with control buttons and a digital display (no visible text or symbols)

Modern electric stove with two cooking pots on top (no visible text or symbols)

Moc: 2.000 Watt, 220-240 V\~, 50 Hz 3.400 Watt, 220-240 V\~, 50 Hz

Wymiary: 32,0 x 41,6 x 7,0 cm 67,0 x 41,6 x 7,0 cm

Waga: Ok. 3 kg Ok. 5,7 kg

We grant a 24 months guarantee, and in case of commercial use a 12 months guarantee, starting from the date of purchase for any damage demonstrably due to manufacturing defects and when the appliance has been used according to its intended use. Within the warranty period we will remedy defective materials or workmanship through repair or replacement, at our option.

Our warranty terms apply only to appliances sold in Germany and Austria. For other countries, please contact the responsible importer. In the event of a claim for remedy of defects, please send the appliance to our after sales service, properly packaged and postage paid, together with a copy of the automatically generated sales receipt, which must show the date of purchase, and a description of the defect. If the defect is covered by the warranty, the customer will be reimbursed for the shipping costs. The warranty does not cover damage from normal wear, improper handling and failure to comply with the maintenance and care instructions. The warranty is void if repairs or modifications are made to the appliance by third parties. Any claims of the end consumer vis-à-vis the retailer are not limited by this warranty.

CONDITIONS DE GARANTIE

E-Mail [e-mail]

SCHWEIZ

MENAGROS SA

Route der Servion

CH - 1083 Mezières

Telefon [phone]

Telefax [phone]

E-Mail [e-mail]

Internet www.menagros.ch

POLEN

„Quadra-net“ Sp. z o.o.

Skadowa 5

61-888 Poznan Skadowa 5

Internet www.quadra-net.pl

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid rectangle below (no text or labels)

Our appliances are produced on a high quality level for a long lifetime. Regular maintenance and expert repairs by our after-sales service can extend the useful life of the appliance. If an appliance is defective and repair is not possible we ask you to follow the following instructions for disposal.

Do not dispose this appliance together with your standard household waste. Please bring this product to an approved collection point for recycling of electric and electronic products.

By separate collection and disposal of waste products you help to protect natural resources and ensure, that the product is disposed in an adequate way to protect health and environment.

TRAITEMENT DES DÉCHETS / PROTECTION DE L'ENVIRONNEMENT
