USER MANUAL 460 Trike Big Wheeler GUDE

Black-and-white photo of a cam lawn mower with visible wheels and headrest (no text or symbols)

Big Wheeler 561 TRIKE

95355

Black-and-white photo of a lawn mower with attached motors and wheels (no visible text or symbols)

460 TRIKE

95370

ENGLISH Please read the instructions carefully before starting the machine.

Mechanical assembly diagram showing a bracket and cable connection (no text or symbols)

Product assembly diagram showing motor control components including wheels, stator, and wheel assembly (no text or labels)

DE Montage SI Montaža

GB Assembly HR Montaža

FR Montage BG Монтаж

IT Montaggio RO Montaj

NL Montage BA Montaža

CZ Montáž

SK Montáž

HU Szerelés

1

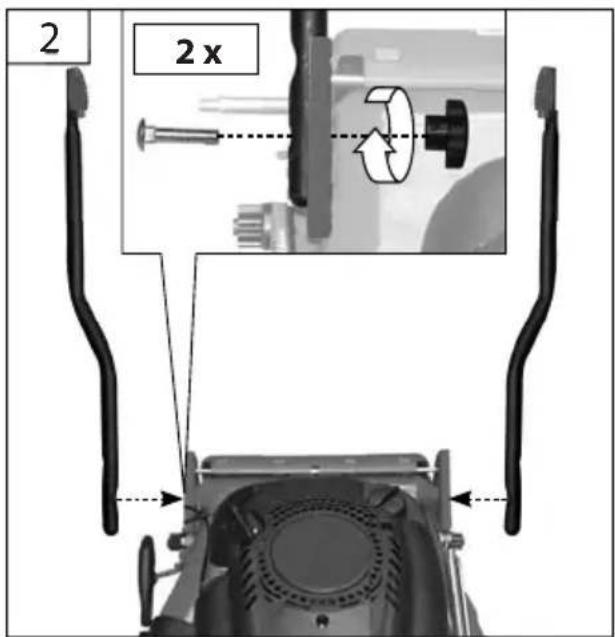

2-5

Diagram showing a device with internal components and an open box, no text or symbols present

2 2 x

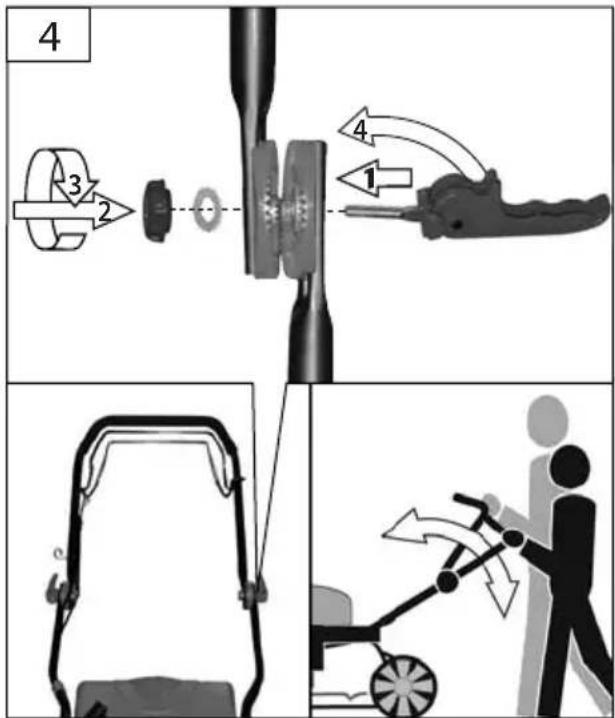

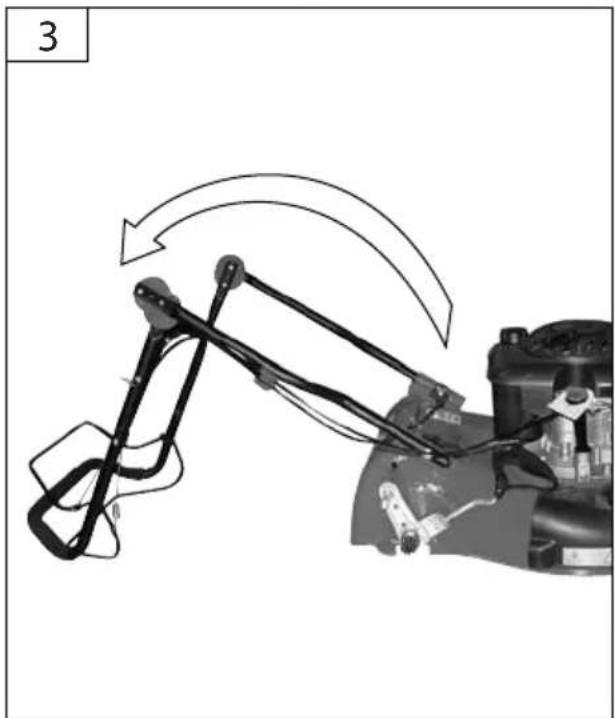

Mechanical linkage diagram showing motion with arrows indicating rotational direction (no text or symbols)

4 3 2 1 4 1

DE montage

SI Montaža

GB Assembly

HR Montaža

FR Montage

BG Монтаж

IT Montaggio

RO Montaj

NL Montage

BA Montaža

CZ Montáž

SK Montáž

HU Szerelés

561 TRIKE #95355

6 2 x

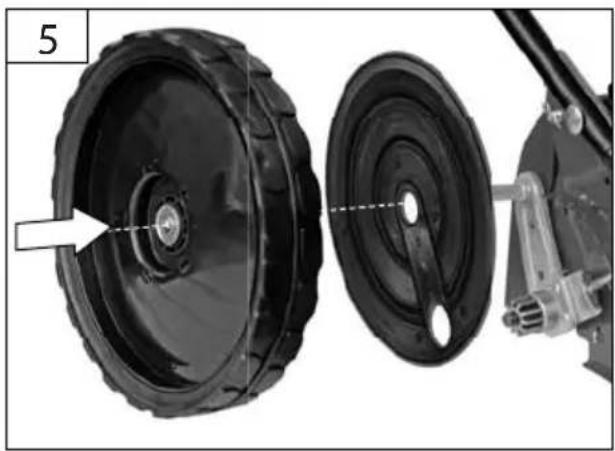

Mechanical assembly diagram showing two views of a tire component with a labeled part (5), no text or symbols present.

Mechanical assembly diagram showing a wheel with a gear and a shaft, no text or symbols present

Close-up of a mechanical component showing a wheel assembly with a labeled part (7), no visible text or symbols.

Mechanical diagram showing a car tire with a padlock and lock mechanism, no text or symbols present

1	DE	montage	SI	Montaža
	GB	Assembly	HR	Montaža
	FR	Montage	BG	Монтаж
	IT	Montaggio	RO	Montaj
	NL	Montage	BA	Montaža
	CZ	Montáž
	SK	Montáž
	HU	Szerelés

561 TRIKE #95355 | 460 TRIKE #95370

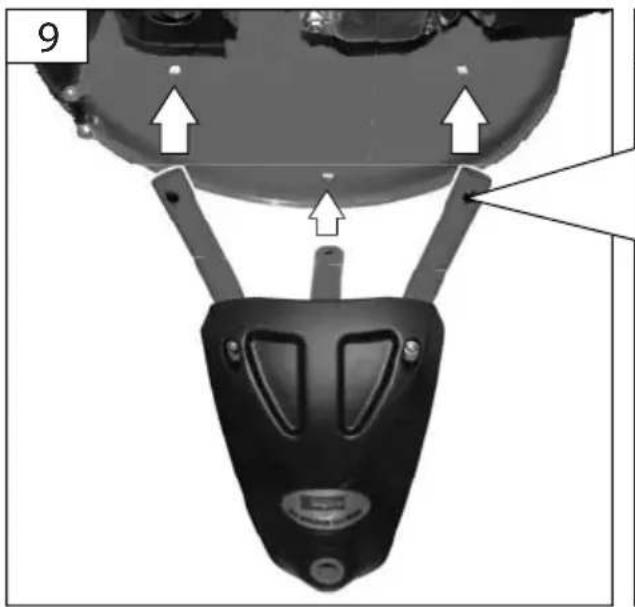

9

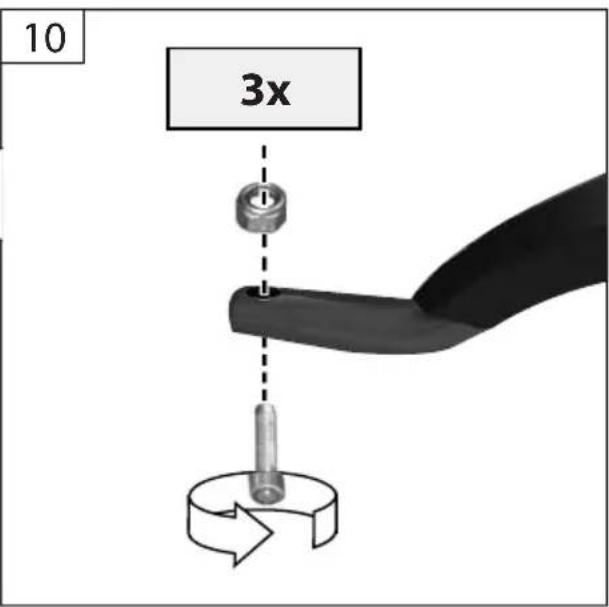

10 3x

11 9

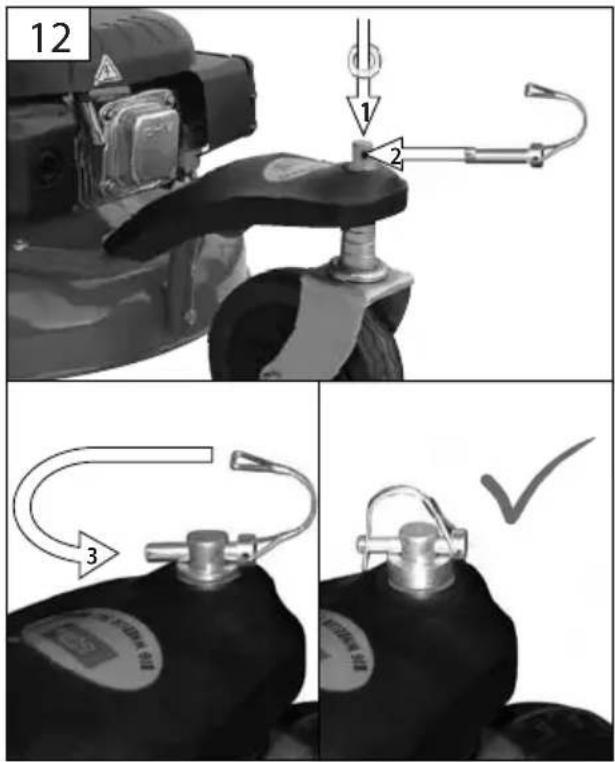

12 1 2 3

DE	montage	SI	Montaža
GB	Assembly	HR	Montaža
FR	Montage	BG	Монтаж
IT	Montaggio	RO	Montaj
NL	Montage	BA	Montaža
CZ	Montáž
SK	Montáž
HU	Szerelés

561 TRIKE #95355 | 460 TRIKE #95370

Black-and-white photo of a lawn mower with a side view showing a small inset image of the blade (no text or symbols)

2

DE Ölstand kontrollieren

GB Oil level inspection

GB Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary. Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Simple line drawing of a lawn mower with a checkmark indicating right angle (no text or symbols)

2

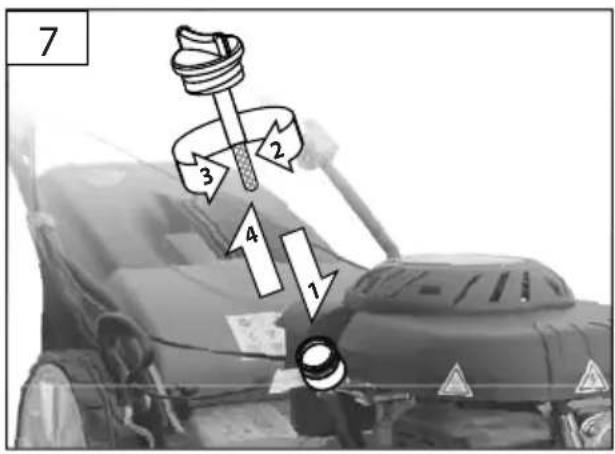

DE Ölstand kontrollieren

GB Oil level inspection

Line drawing of a hand holding a small object with a pipette inserted, no text or symbols present

4

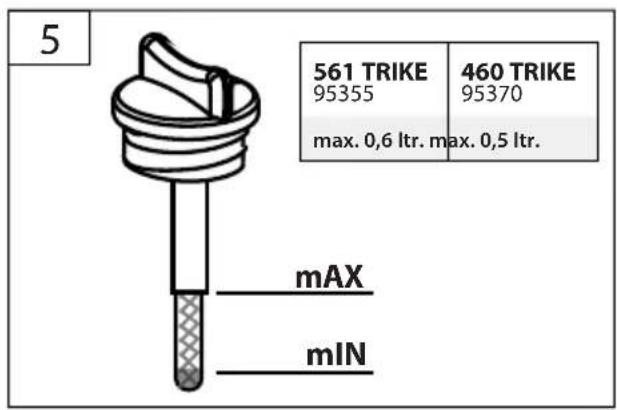

5 561 TRIKE 95355 460 TRIKE 95370 max. 0,6 ltr. max. 0,5 ltr. MAX MIN

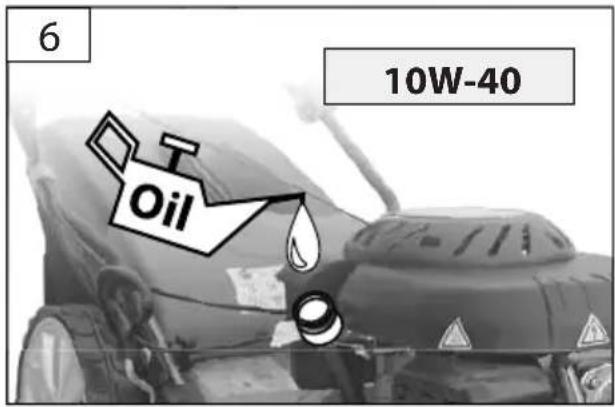

6 10W-40 Oil

7 3 2 4 1

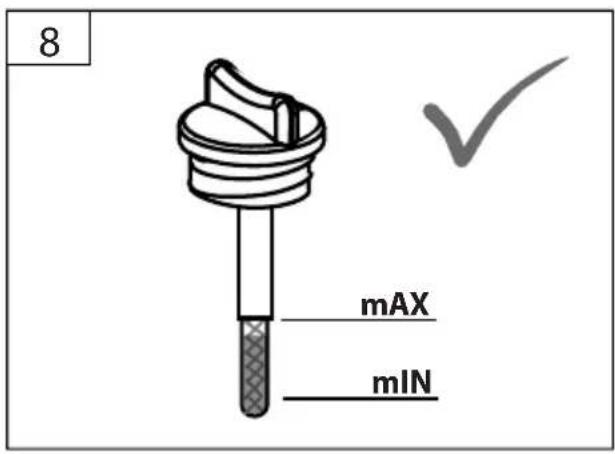

8 mAX mIN

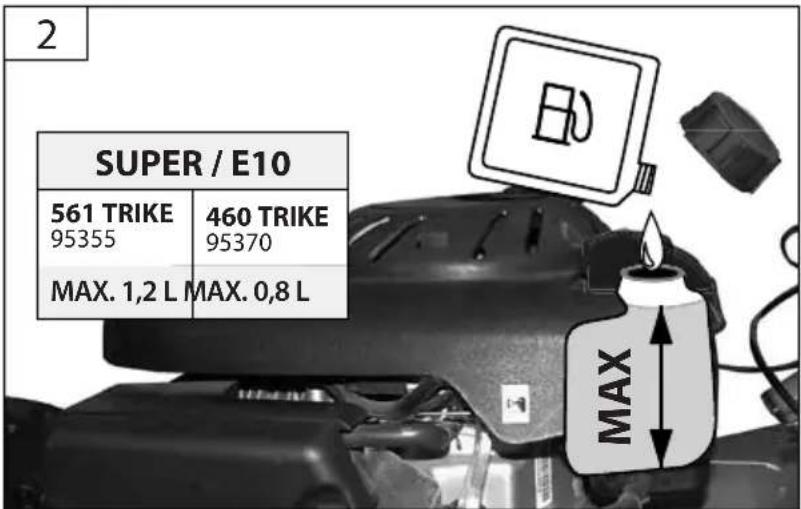

2	DE	Tanken	SI	Dolivanje goriva
	GB	Fuel tank fi lling	HR	Dopunjavanje goriva
	FR	Ravitaillement	BG	Зареждане
	IT	Rabbocco	RO	Alimentarea cu combustibil
	NL	Tanken	BA	Dopunjavanje goriva
	CZ	Tankování
	SK	Tankovanie
	HU	Tankolás

561 TRIKE #95355 | 460 TRIKE #95370

1 °C °C °C

2 SUPER / E10 561 TRIKE 460 TRIKE 95355 95370 MAX. 1,2 L MAX. 0,8 L MAX

Close-up of a black automotive helmet with a lock icon and arrow indicating rotation (no text or symbols)

Diagram showing safety warning and hand gesture on a device, with warning symbol and warning labels

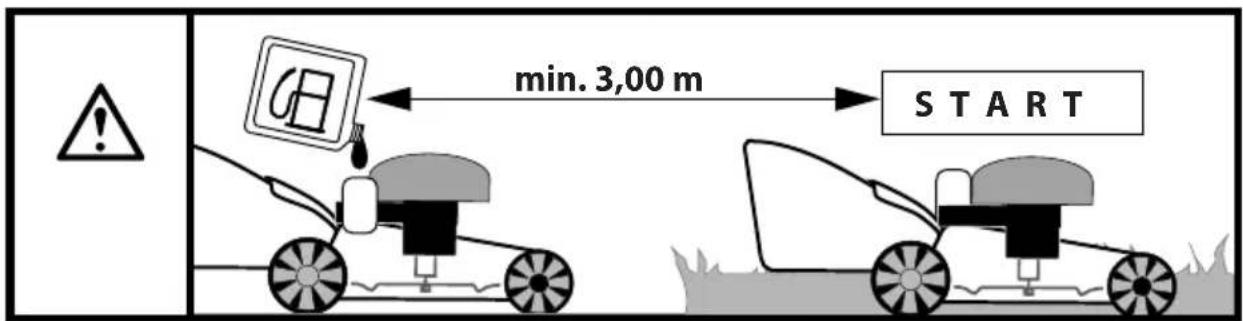

min. 3,00 m START

GB Cutting height setting

a 75 mm 6

5mm 55 mm

Mechanical assembly diagram showing a hand pressing a cylindrical component (no text or symbols visible)

d 45 mm 3

25 mm

Close-up of a mechanical press or lift mechanism with a metallic cylindrical component inserted into a chair (no text or symbols visible)

Side view of a Big Wheeler motorcycle with visible engine and wheels, no text or symbols present.

2

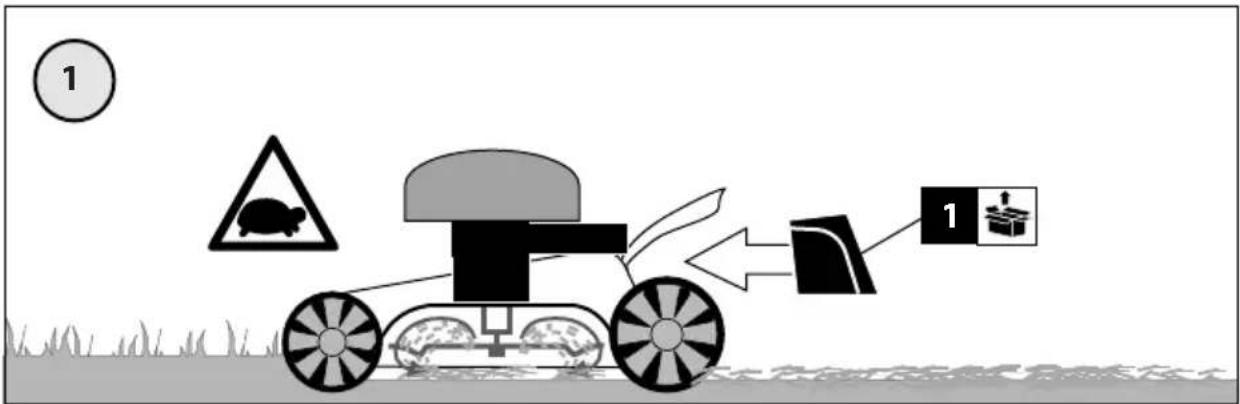

DE mähen - mulchenGB mow - mulchingFR tondre - paillageIT falciare - pacciamaturaNL maaien - mulchingCZ sekat - mulčováníSK kosiť - mulčovanieHU szénaboglya - talajtakarás

SI kosite - mulčenjeHR kositi - zagrtanje biljakaBG koся - наторяванeRO cosi - mulcireBA kositi - zagrtanje biljaka

STOP

561 TRIKE #95355 | 460 TRIKE #95370

Diagram illustrating a robot's collision with warning symbols and labeled components, including a turtle symbol and a gear mechanism.

Mechanical lawn mower with attached tool and mounting bracket, no visible text or symbols

Close-up of a white plastic housing with a square opening and mounting holes (no visible text or symbols)

2 CLICK

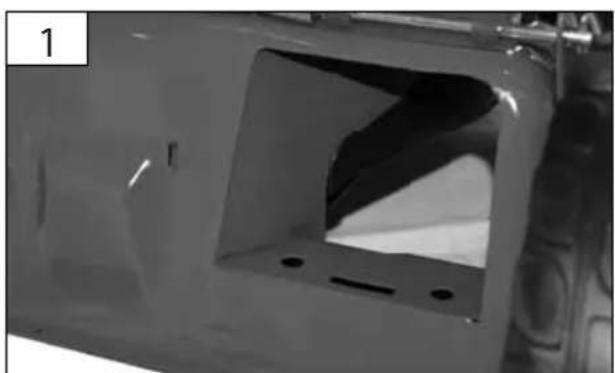

DE Mähen - Sammeln

GB mow - collect

FR tondre - collecter

Close-up of a mechanical component with a wrench and circular arrow indicating rotation (no text or symbols)

1 Gudi

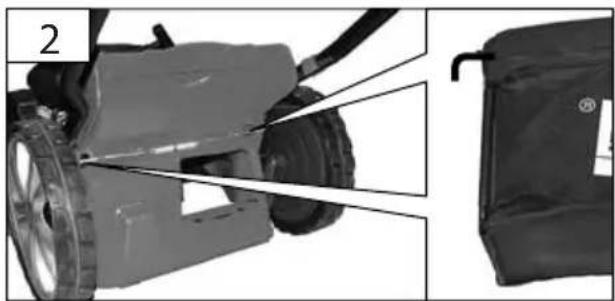

Mechanical diagram showing a lawn mower and its side cover with a bag (no text or symbols)

Lhouette of a lawn mower with a water drop diagram showing the blade and wheel (no text or symbols)

4 Dude

2

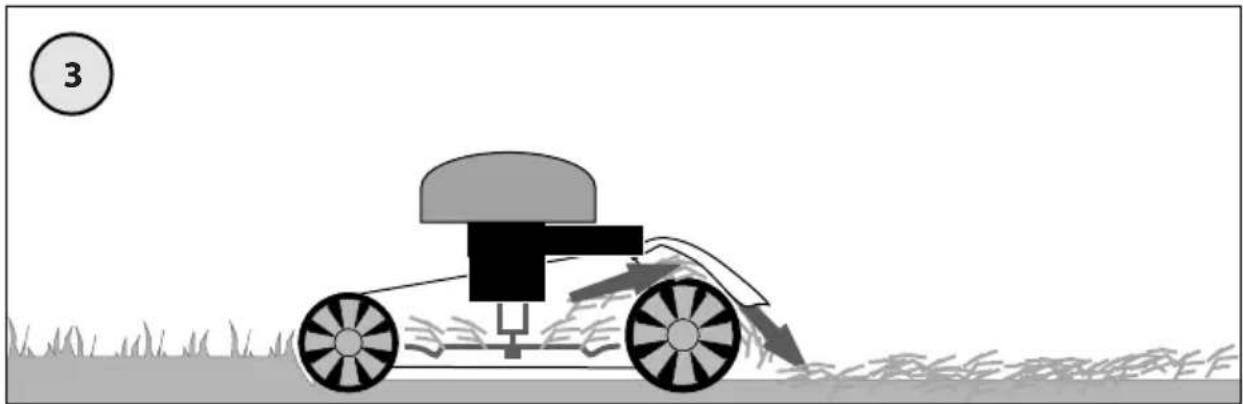

DE mähen - AuswerfenGB mow - ejectFR tondre - éjecterIT falciare - espellereNL maaien - uitwerpenCZ sekat - vyhnatSK kosit' - vyhnat'HU szénaboglya - kiadása

SI kosite - izmetHR kositi - izbacitiBG koся - изхвърлямRO cosi - evacuaBA kositi - izbaciti

561 TRIKE #95355 | 460 TRIKE #95370

Illustration of a tractor pulling crops with a curved arrow indicating motion (no text or symbols)

4 2

Diagram showing car wheel assembly and lock mechanism with numbered steps and directional arrows

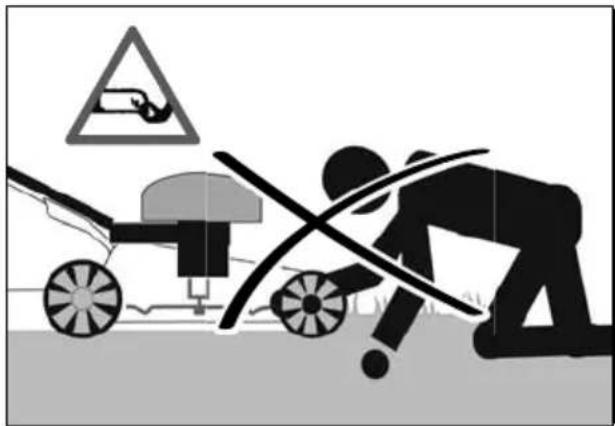

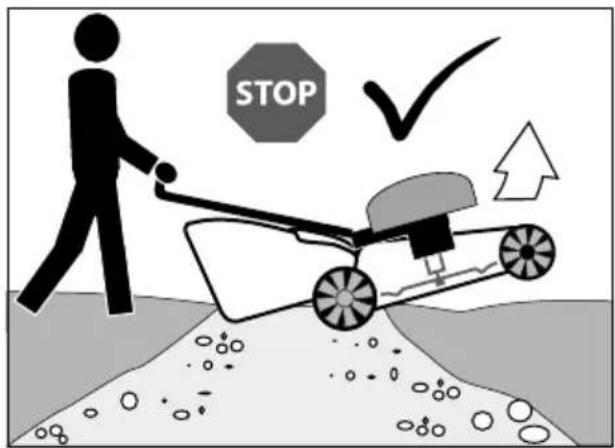

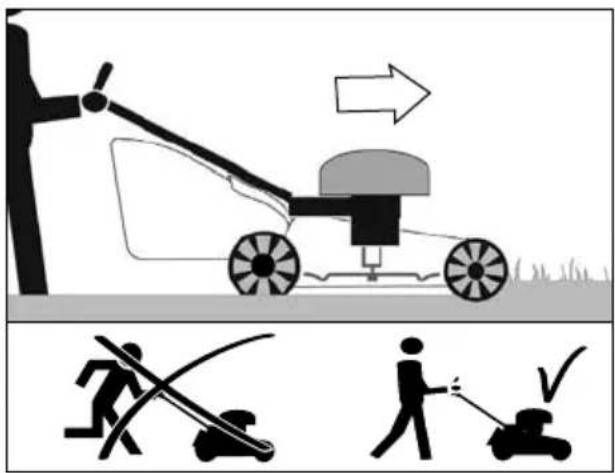

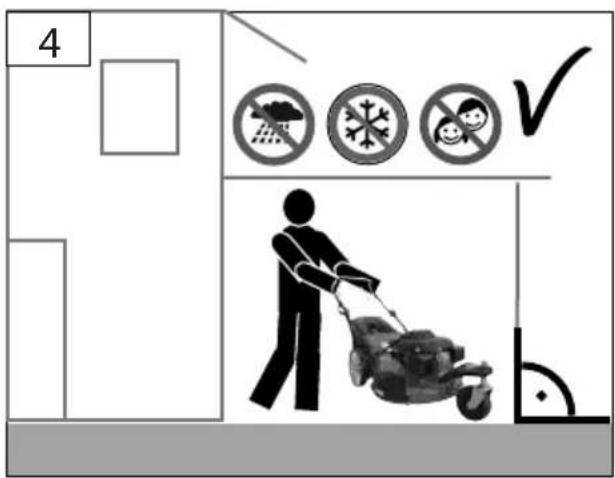

DE mähanweisungen

SI Napotki za košnjo

GB Cutting instructions

Safety warning illustration showing a manual lawn mower with hazard symbols and crop diagrams below

Illustration of a grass lawn mower with motion arrows and pictograms below (no text or symbols)

STOP

Illustration of a person crossing a road with a construction vehicle and warning sign (no text or symbols)

max. 20°

Silhouette of a person pushing a cart with a curved ramp, no text or symbols present

Silhouette of a person using a power tool to cut a cart, with a warning sign and hazard symbol (no text or labels)

	DE	Betrieb - START	SI	Delovanje - START
	GB	Operation - START	HR	Rad - START
	FR	Fonctionnement - START	BG	Páboṭa - START
	IT	Esercizio - START	RO	Funcționare - START
	NL	Gebruik - START	BA	Rad - START
	CZ	Provoz - START
	SK	Prevádzka - START
	HU	Üzemeltetés - START

561 TRIKE #95355 | 460 TRIKE #95370

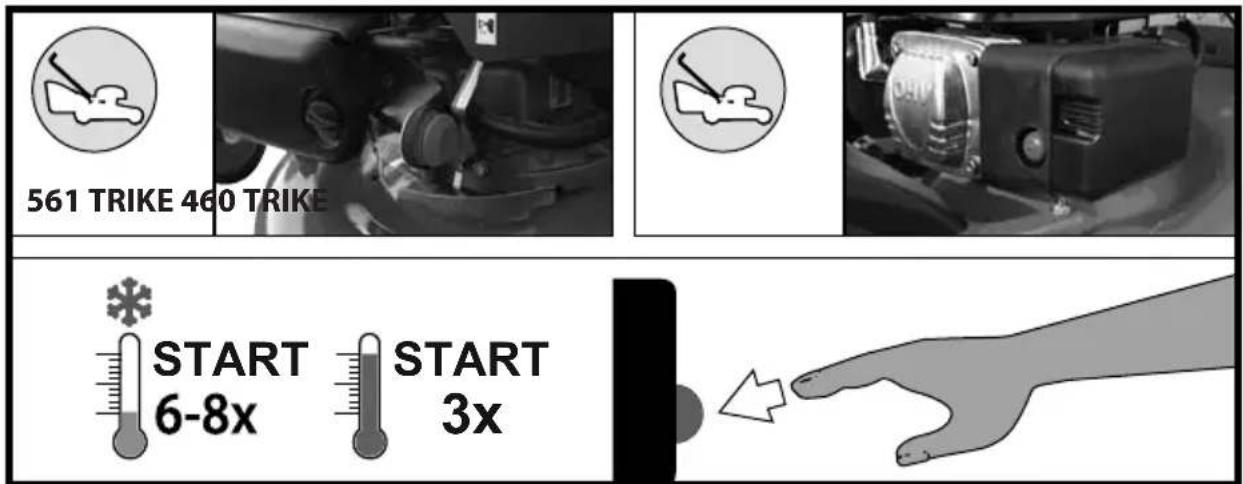

561 TRIKE 460 TRIKE START 6-8x START 3x

Diagram of a medical or surgical tool with a curved line and arrow indicating direction (no text or symbols)

Mechanical lawn mower with attached lever and head-mounted sensor (no visible text or symbols)

3

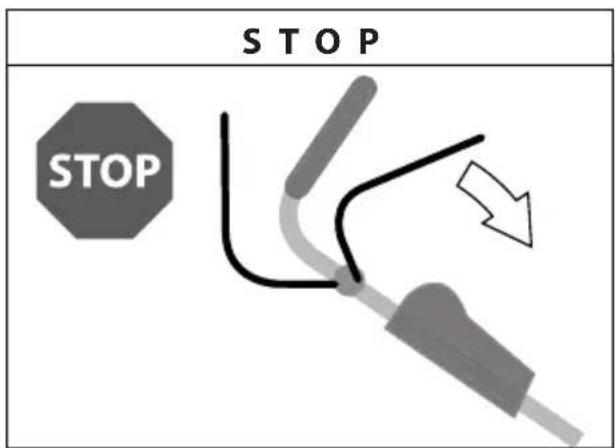

STOP STOP

GB Cleaning / Maintenance

Black and white photo of a bag labeled 'Gide' dumping material from its side, with no visible text or symbols on the bag itself.

2 max. 30° !

3

4 ✓

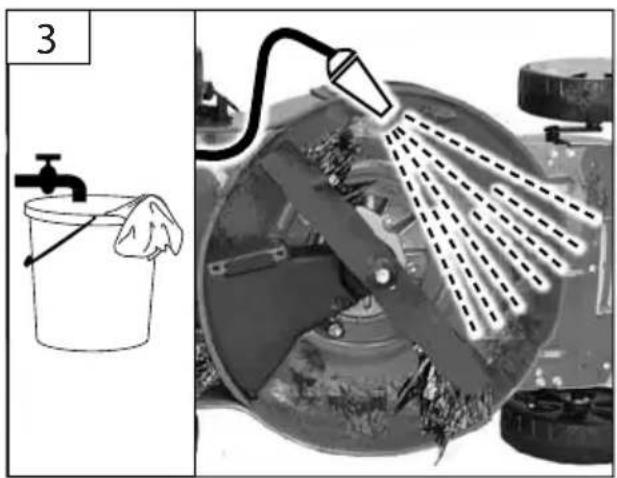

5	DE Reinigung / Wartung	SI Čiščenje / Vzdrževanje
	GB Cleaning / Maintenance	HR Čiščenje / Održavanje
	FR Nettoyage / Entretien	BG Чистене / Поддръжка
	IT Pulizia / Manutenzione	RO Curățare / Întreținere
	NL Schoonmaken / Onderhoud	BA Čiščenje / Održavanje
	CZ Čištění / Údržba
	SK Čistenie / Údrzba
	HU Tisztítás / Karbantartás

561 TRIKE #95355

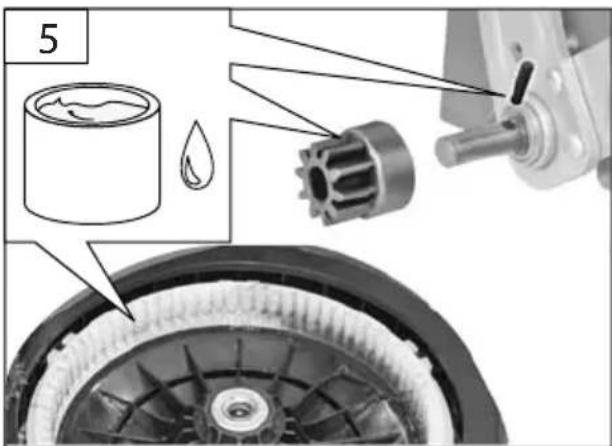

Mechanical assembly diagram showing a wheel assembly with labeled components (no text or symbols present)

2

3 H₂O °C 1 2 3

4 H₂O °C

5

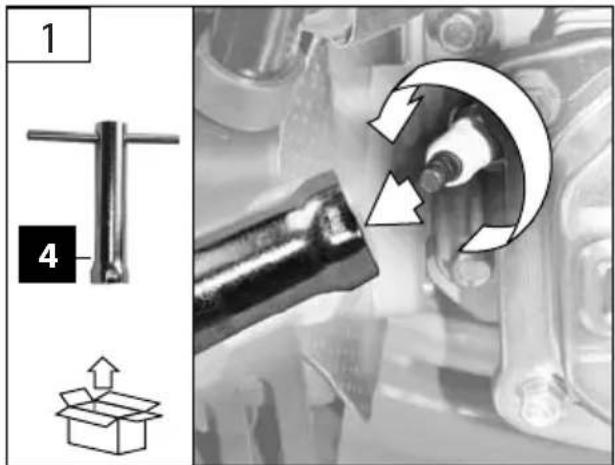

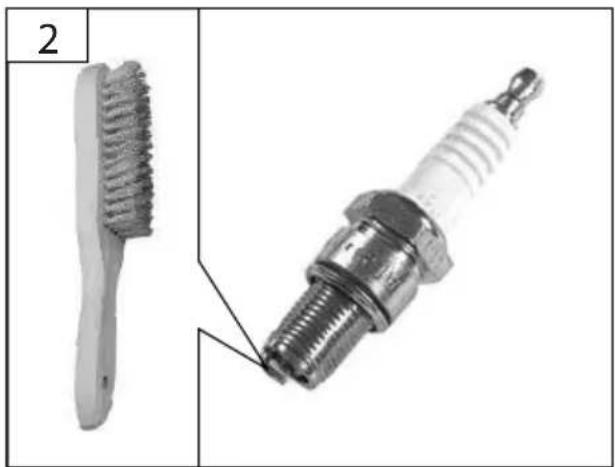

DE Zündkerze

GB Spark plug

Safety warning symbols including warning triangle, circuit diagram, crossed-out cigarette, no-smoking, and lightning bolt

561 TRIKE #95355 | 460 TRIKE #95370

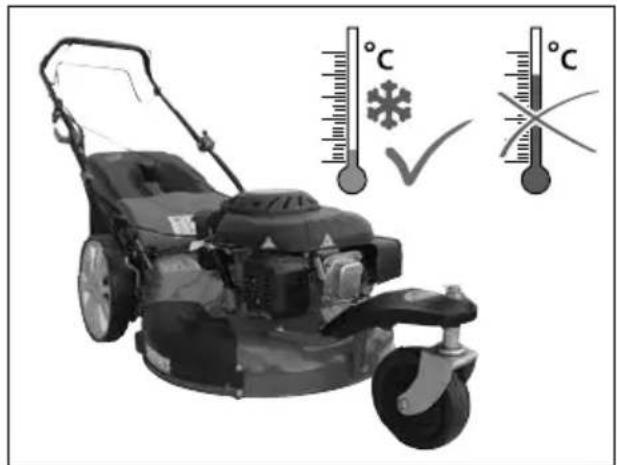

Diagram of a lawn mower with temperature and weather indicators showing thermometer readings

1 4

Two mechanical components: a toothbrush and a spark plug, shown side by side with no visible text or symbols.

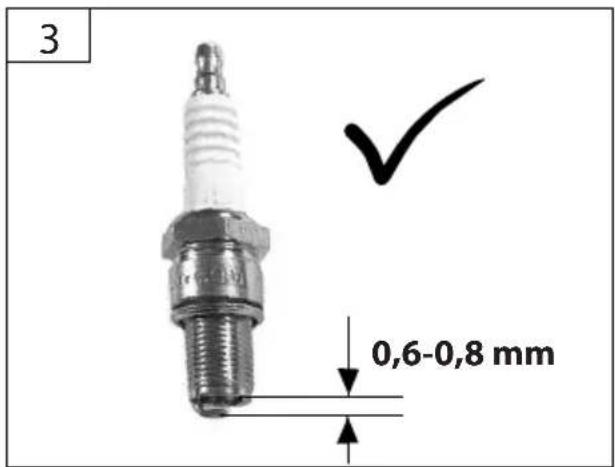

3 0,6-0,8 mm

4 4

5

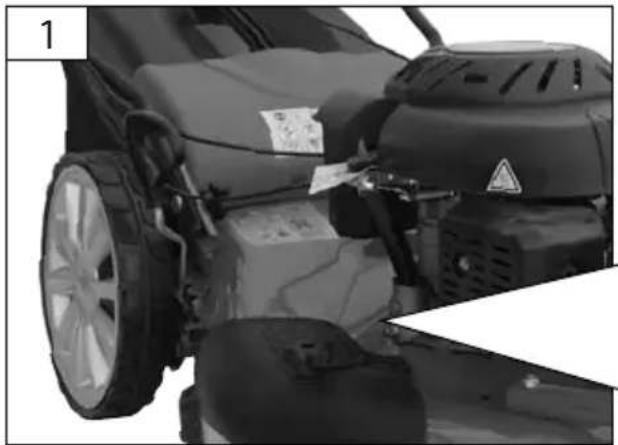

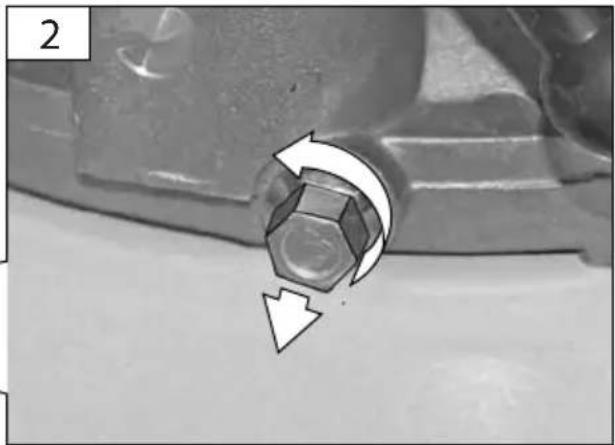

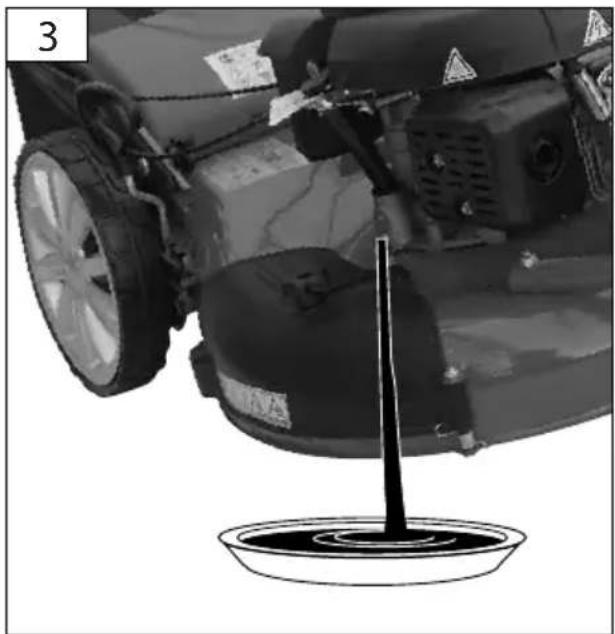

DE ÖlwechselGB Oil changeFR Remplacement d'huileIT Cambio dell'olioNL OlieverversingCZ Výměna olejeSK Výmena olejaHU Olajcsere

SI Menjava oljaHR Zamjena uljaBG Смяна на маслотоRO Înlocuirea uleiuluiBA Zamjena ulja

Four safety and hazard symbols: warning triangle, circuit switch, cigarette flame, and no-smoking cigarette.

561 TRIKE #95355 | 460 TRIKE #95370

Close-up of a lawn mower with visible tire, wheels, and safety tags (no text or symbols)

Close-up of a mechanical component with a hexagonal nut and directional arrows indicating motion (no text or symbols)

Close-up of a car's wheel and dashboard with a black plastic cup pouring liquid into a bowl (no text or symbols visible)

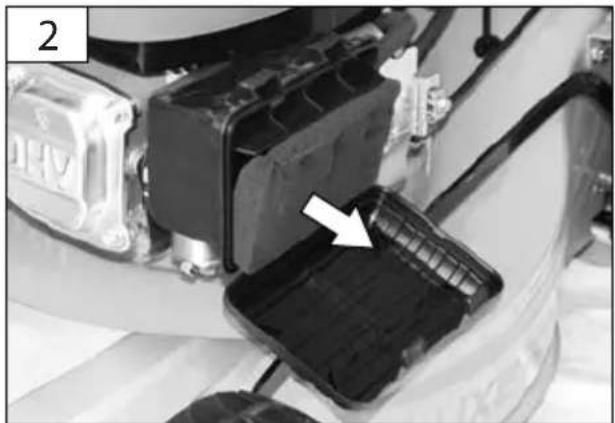

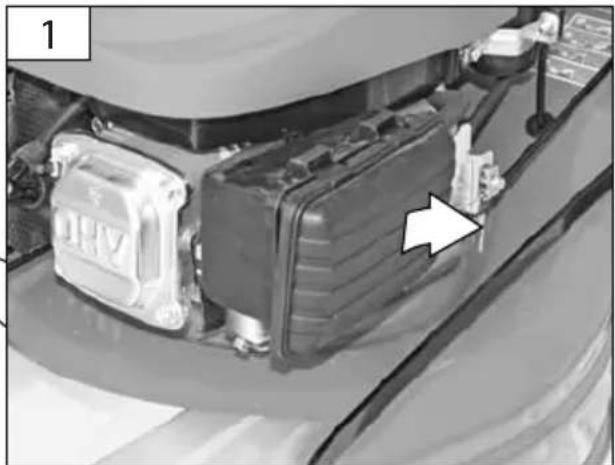

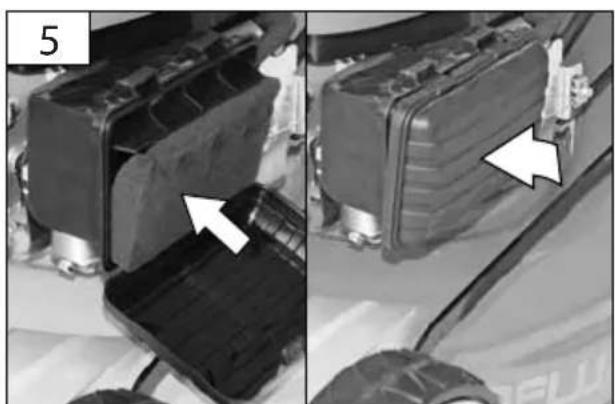

DE Luftfilter

GB Air filter

FR Filtre à air

IT Filtro d'aria

NL Luchtfi Iter

CZ Vzduchový fi ltr

Four safety and hazard symbols: warning triangle, circuit switch, cigarette with flame, and no-smoking cigarette.

460 TRIKE #95370

Close-up of a mechanical pump or scrubber with visible warning labels and mounting brackets (no readable text or symbols)

Close-up of a car engine bay with visible battery and intake manifold (no text or symbols)

Close-up of a mechanical component with a highlighted internal structure and an arrow pointing to it (no visible text or symbols)

3 H₂O

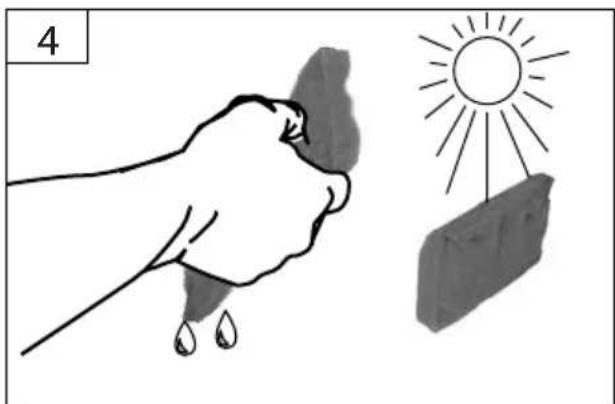

Illustration of a hand holding a leaf with droplets, next to a sun and a rock (no text or symbols)

Close-up of mechanical components with arrows indicating parts of a device (no visible text or symbols)

5

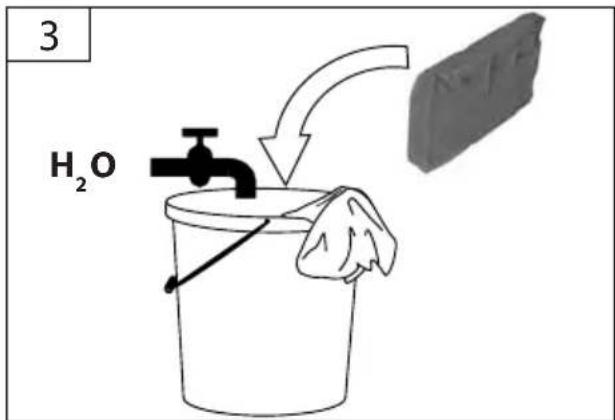

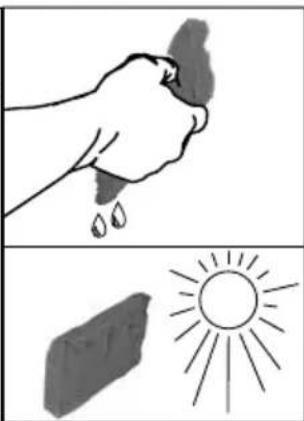

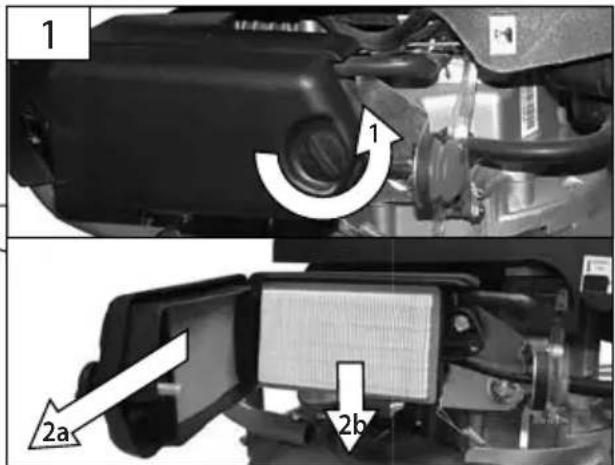

DE Luftfilter

GB Air filter

FR Filtre à air

IT Filtro d'aria

NL Luchtfilter

CZ Vzduchový fi ltr

Four safety and hazard symbols: warning triangle, circuit switch, cigarette with flame, and no-smoking cigarette.

561 TRIKE #95355

Close-up of a camouflaged lawn mower with visible warning labels and mounting brackets (no readable text or symbols)

1 2a 2b

2a H₂O

Illustration showing a hand pouring liquid into a container and a sun symbol (no text or labels)

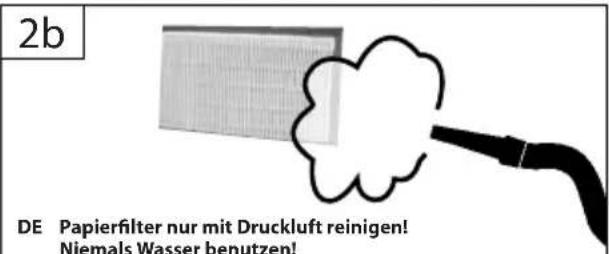

GB Paper filter to be cleaned with compressed air only! Never use water!

GB The motor does not start

Diagram of a mechanical cart with wheels and a curved path, no text or symbols present

1

2
3

Close-up of a mechanical cable with a connector and spring (no visible text or symbols)

Pure mechanical assembly diagram without any text, numbers, or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

GB Automatic feed is not working

Simple line drawing of a grass lawshaw with wheels and a curved ramp (no text or symbols)

1

2

Close-up of a metallic pipe fitting with a flanged connector (no text or symbols visible)

Technische Daten

Cutting width....456 mm....550 mm

Collection bag capacity 65 l 65 l

Fuel....Unleaded petrol/E10....Unleaded petrol/E10

Weight....29 kg....37,3 kg

Dimensions....1600 x 560 x 970 mm....1750 x 560 x 980 mm

Noise and Vibration Information

Sound pressure level L_n^1) 80 dB (A) 85 dB (A)

Sound power level L 96 dB (A) 98 dB (A)

Wear ear protectors!

Vibration emission value a_b^2) 4,517 m/s ^3 8,912 m/s ^3

1) Uncertainty K=3 dB (A), 2) Uncertainty K=1.5 m/s²

Warning: The vibration emission level will vary because of the ways in which a power tool can be used and may increase above the level given in this information sheet.

The vibration emission level may be used to compare one tool with another.

It may be used for a preliminary assessment of exposure.

An accurate estimate of the vibratory load should also take into account the times when the tool is shut down or when it is running but not actually in use. This may significantly reduce the vibratory load over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Read and understand the operating instructions before using the appliance. Familiarise with the

control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

In case of any doubts about connection and operation refer please to our customer center

delivered items

1 Mulching wedge

2 Side ejection

3 Collection bag

4 Spark plug wrench

5 Bowden clamps

6 Wheels/screens including star screw/U-washer

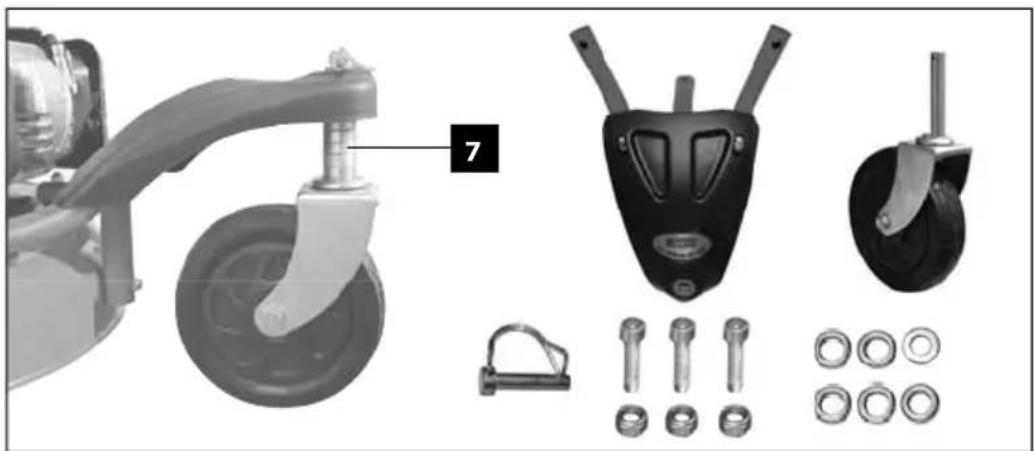

7 height adjustable nose wheel

Specified Conditions Of Use

The mower has been designed for cutting grass and grass areas with a maximum climb of 20^ in private gardens around the house and in garden colonies. Do not use this product in any other way as stated for normal use. Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

⚠️ Use the appliance only outside, never use it in confined and bad ventilated areas.

The mower must not be used for cutting bushes, hedges and thickets, for cutting and mulching creepers or lawns on roofs or in balcony boxes. The mower must also not be used as a crusher for mulching tree cuttings and hedges or levelling any terrain roughness.

Requirements for operating staff

The operating staff must carefully read the Operating Instructions before using the appliance.

This device is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or without the necessary lack experience or knowledge unless they are supervised by a person who is responsible for their safety or were instructed by that person in how to use the device.

Qualifi cation: Apart from the detailed instructions by a professional, no special qualifi cation is necessary for appliance using.

Minimum age: Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

Local regulations may stipulate the minimum age of the user.

Training: Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

Emergency procedure

Danger of injury!

Never put your hands and feet near the rotating parts. Keep a distance from the ejection opening at all times.

Danger of burns!

Some parts of the appliance get too hot when the appliance is operated. Do not touch any hot parts, e.g. engine and muffler.

Conduct a fi rst-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. For the sake of eventual accident, in accordance with DIN 13164, a workplace has to be fitted with a fi rst-aid kit. It is essential to replace any used material in the fi rst-aid kit immediately after it has been used. If you seek help, state the following pieces of information:

1. Accident site
2. Accident type
3. Number of injured persons
4. Injury type(s)

Symbole

Achtung!

Read all safety warnings and all instructions, including those given in the accompanying brochure.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

Keep children and other persons including animals in a safe distance when using the appliance. Minimum safe distance is 5 m.

Wear personal protective equipment.

Wear solid shoes and long trousers. Never use the appliance when barefooted or in light sandals.

Wear protective gloves if necessary.

Use the appliance in broad daylight or in a well-lit environment.

Check carefully the terrain where the appliance is being used and remove any items that could get caught and be thrown away.

Fuel is highly flammable.

Keep the fuel in suitable containers only.

The appliance may only be refuelled outdoors and not near open fire or burning cigarettes.

Refuel before starting the appliance. If the engine is running or still hot, it must not be refuelled or the tank cover opened.

Make sure the fuel does not overflow. If the fuel overflows, the engine must not be started. Remove any dirt from the appliance and prevent any attempt at ignition until fuel fumes have evaporated.

The engine must necessarily be filled with engine oil before being put into operation for the first time.

Check the oil level whenever the appliance is to be put into operation. Add engine oil if necessary.

Carry out a visual inspection before any use to make sure the appliance, especially the cutting tools, fastening parts and the entire cutting unit are not damaged.

⚠️ Check all screw and plug-in connections and protective equipment if firm and tightened properly and whether all moving parts are running smooth whenever the appliance is to be put into operation.

The protective equipment on the appliance is strictly prohibited to be disassembled, changed, used in conflict with the designation and it is prohibited to attach any protective equipment of other manufacturers.

⚠ The appliance must not be used if damaged or safety equipment is defective. Replace any worn-out and damaged parts.

Do not start the engine before your feet are in a safe distance from the cutting tools.

Do not incline the appliance when being started.

Do not start the appliance when you are standing in front of the ejection opening.

Make sure your posture is safe, especially on slopes. Do not cut on too steep slopes. Be particularly careful when changing travelling direction on slopes.

Pay maximum attention when turning around and pulling the appliance to you.

Switch the mower off whenever carrying or inclining it or when being outside a grass area. Wait until all rotating parts have stopped.

If an undesirable item is encountered or the appliance starts vibrating, the appliance must be switched off and the socket plug removed. Check whether the appliance is not damaged. Repair any damage.

Switch the appliance immediately off after finishing your work.

Do not store the appliance in enclosed places just after being switched off but let it cool down outdoors instead.

Never store the appliance with petrol in the tank inside a building where petrol fumes may potentially get in touch with open fire or sparks.

When the appliance is not going to be used for a long time, store it with an empty tank.

Replace any defective muffler.

Do not change the controlled engine setting and do not rev the engine up.

Maintenance

Switch the engine off and remove the socket plug before any work on the engine. Wait until all rotating parts have stopped and ambiance has cooled down.

Keep the appliance, especially the tank and engine, clean at all times. Clean the ejection opening and cover at regular intervals.

Apply environment-friendly oil to all moving parts.

Check the collection bag at regular intervals for any wear and aging.

Refer all servicing to qualified service personnel.

Use only original accessories and original spare parts.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Guarantee

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee does not cover any unauthorised use such as appliance overloading, use of violence, damage as a result of any unauthorised interference or caused by foreign items. Failing to follow the operating and assembly instructions and common wear are also not included in the guarantee.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Please enter it here for future reference:

Serial No.:

Art. No:

Year of production:

Inspection and maintenance plan

Regular servicing period Before		any start-up	After 1 month	After 3 months	After 6 months	After 12 months	After 24 months
			5 Hours of operation	25 Hours of operation	50 Hours of operation	100 Hours of operation	250 Hours of operation
Engine oil (10W-40)	Inspection	√
	Change		√		√
Air filter Inspection		√
Spark plug	Inspection Clean					√
	Change						√

Provide appropriate servicing upon the earlier of the following: in the given month or after the specified hours of operation have expired.

Defects searching

Defect	Causes	Measure
The motor does not start	Start-Stop lever has not been pressed Press the Start-Stop lever
	Primary pump has not been used Use the primary pump
	Lack of fuel Add some fuel
	Bowden cables are too long Adjust the Bowden cables using the coupling nut.
	Wrong fuel, storing without petrol tank being drained	Drain the fuel tank and carburettor.Add fresh petrol.
	Sooted spark plug (carbon residues on electrodes), electrodes distance too big	Clean the spark plug, check the plug thermal value, possibly change the plug, set the electrodes distance to 0.6-0.7 mm
	The spark plug is wet from petrol (oversaturated engine).	Dry the spark plug out and refit it.
Grass is not collected	Blocked channelFull collection bagToo wet grass	Clean the ejection channelEmpty the collection bagCut in dry weather
Automatic feed is not working	Bowden cables are too long Adjust the Bowden cables using the coupling nut.

EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.

97/68/EG & 2004/26/EC 97/68/EG & 2004/26/EC

Angewandte harmonisierte Normen | Harmonised standards used | Normes harmonisées applicables | Applicate norme armonizzate | Gebruikte harmoniserende normen | Použité harmonizované normy | Použité harmonizované normy | Használt harmonizált normák | Uporabljeni usklajeni standardi | Primijenjeni harmonizirani standardi | Използвани хармонизирани норми | Norme armonizate aplicate | Primenjeni harmonizovani standardi

460 TRIKE #95370 561 TRIKE #95355

EN 836: 1997+A4 EN 836: 1997+A4

ZEK 01.2-08/12.08 ZEK 01.2-08/12.08

EN ISO 14982: 2009 EN ISO 14982: 2009

eIRL*97/68SA*2004/26*0095*00 e1*97/68SN3-IA*2004/26SN3-IIA*0331*03

Güde GmbH & Co. KG

Birkichstraße 6

74549 Wolpertshausen

Germany

Wolpertshausen, 2012-10-31

TÜV Rheinland LGA Products GmbH

Tillystraße 2

D-90431 Nürnberg

Deutschland

Kenn-Nr. 0197

Joachim Bürkle,

GÜDE GmbH & Co. KG,

Birkichstrasse 6, 74549 Wolpertshausen,

Germany

Technische Dokumentation | Technical documentation | Documents techniques | Documentazione tecnica Technische documentatie | Technická dokumentace Technická dokumentácia | Múszaki dokumentáció Technična dokumentacija | Tehnička dokumentacija Техническа документация | Documentație tehnică Tehnička dokumentacija

Helmut Arnold

Geschäftsführer | Managing Director | Gérant | Amministratore delegato | Bedrijfsleider | Jednatel | Konatel | Ügyvezető igazgató | Direktro | Direktor | Управител | Administrator | Direktor

														0.5	0.5	0.5	0.5	0.5	0.5	0.5
													0.5	0.5
\( {\mathrm{A}}_{1} = {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\sigma } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {2\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi } + {3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{3\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }+{4\pi }-{4\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - 4{\pi }, - (1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1,1), \( {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {\mathrm{B}}_{1} = {{8.5}\% }\;{\mathrm{{B.6}}}_{6}{8.5}\;{\mathrm{{B.6}}}_{6}{8.5}\;{\mathrm{{B.6}}}_{6}{8.5}\;{\mathrm{{B.6}}}_{6}{8.5}\;{\mathrm{{B.6}}}_{6}{8.5}\;{\mathrm{{B.6}}}_{6}{8.5}\;{\mathrm{{B.6}}}_{6}{8.5}\;{\mathrm{{B.6}}}_{7}\;{\mathrm{{B.6}}}_{7}{8.5}\;{\mathrm{{B.6}}}_{7}{8.5}\;{\mathrm{{B.6}}}_{7}{8.5}\;{\mathrm{{B.6}}}_{7}{8.5}\;{\mathrm{{B.6}}}_{7}{8.5}\;{\mathrm{{B.6}}}_{7}{8.5}\;{\mathrm{{B.6}}}_{7}{8.5}\;{\mathrm{{B.6}}}_{{8.5}\% }\;{\mathrm{{B.6}}}_{{8.5}\% }\;{\mathrm{{B.6}}}_{{8.5}\% }\;{\mathrm{{B.6}}}_{{8.5}\% }\;{\mathrm{{B.6}}}_{{8.5}\% }\;{\mathrm{{B.6}}}_{{8.5}\% }\;{\mathrm{{B.6}}}_{{8.5}\% }\;{\mathrm{C.6}}_{9}\text{；} - 4{\mathrm{{B.6}}}_{9}\text{；} - 4{\mathrm{{B.6}}}_{9}\text{；} - 4{\mathrm{{B.6}}}_{9}\text{；} - 4{\mathrm{{B.6}}}_{9}\text{；} - 4{\mathrm{{B.6}}}_{9}\text{；} - 4{\mathrm{{B.6}}}_{9}\text{；} - 4{\mathrm{{B. 6 }}}_{9}\text{；} - 4{\mathrm{{B. 6 }}}_{9}\text{；} - 4{\mathrm{{B. 6 }}}_{9}\text{；} - 4{\mathrm{{B. 6 }}}_{9}\text{；} - 4{\mathrm{{B. 6 }}}_{9}\text{；} - 4{\mathrm{{B. 6 }}}_{9}\text{；} - 3{\mathrm{{B.6}}}_{9}\text{；} - 3{\mathrm{{B. 6 }}}_{9}\text{；} - 3{\mathrm{{B. 6 }}}_{9}\text{；} - 3{\mathrm{{B. 6 }}}_{9}\text{；} - 3{\mathrm{{B. 6 }}}_{9}\text{；} - 3{\mathrm{{B. 6 }}}_{9}\text{；} - 3{\mathrm{{B. 6 }}}_{9}\text{；} - 2{\mathrm{{B. 6 }}}_{9}\text{；} - 2{\mathrm{{B. 6 }}}_{9}\text{；} - 2{\mathrm{{B. 6 }}}_{9}\text{；} - 2{\mathrm{{B. 6 }}}_{9}\text{；} - 2{\mathrm{{B. 6 }}}_{9}\text{；} - 2{\mathrm{{B. 6 }}}_{7}\text{；} - 2{\mathrm{{B. 6 }}}_{7}\text{；} - 2{\mathrm{{B. 6 }}}_{7}\text{；} - 2{\mathrm{{B. 6 }}}_{7}\text{；} - 2{\mathrm{{B. 6 }}}_{7}\text{；} - 2{\mathrm{{B. 6 }}}_{7}\text{；} - 2{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\cdots }\;\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left( {{8.5}\% }\right) }\;{\left(\frac{x}{x},y,y,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots , z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,z,\cdots ,c.\operatorname*{}^a,b,c,d,e,f,g,h,i,j,k,l,m,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,,n,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n ,, n.,

\( {\mathrm{A}}^{\text{① }}\;{\mathrm{A}}^{\text{② }}\;{\mathrm{A}}^{\text{③ }}\;{\mathrm{A}}^{\text{④ }}\;{\mathrm{A}}^{\text{⑤ }}\;{\mathrm{A}}^{\text{⑥ }}\;{\mathrm{A}}^{\text{⑦ }}\;{\mathrm{A}}^{\text{⑧ }}\;{\mathrm{A}}^{\text{⑨ }}\;{\mathrm{A}}^{\text{⑩ }}\;{\mathrm{A}}^{\text{⑪ }}\;{\mathrm{A}}^{\text{⑫ }}\;{\mathrm{A}}^{\text{⑬ }}\;{\mathrm{A}}^{\text{⑭ }}\;{\mathrm{A}}^{\text{⑮ }}\;{\mathrm{A}}^{\text{⑯ }}\;{\mathrm{A}}^{\text{⑰ }}\;{\mathrm{A}}^{\text{⑱ }}\;{\mathrm{A}}^{\text{⑲ }}\;{\mathrm{A}}^{\text{⑳ }}\;{\mathrm{A}}^{\text{㉑ }}\;{\mathrm{A}}^{\text{㉒ }}\;{\mathrm{A}}^{\text{㉓ }}\;{\mathrm{A}}^{\text{㉔ }}\;{\mathrm{A}}^{\text{㉕ }}\;{\mathrm{A}}^{\text{㉖ }}\;{\mathrm{A}}^{\text{㉗ }}\;{\mathrm{A}}^{\text{㉘ }}\;{\mathrm{A}}^{\text{㉙ }}\;{\mathrm{A}}^{\text{㉚ }}\;{\mathrm{A}}^{\text{㉛ }}\;{\mathrm{A}}^{\text{㉜ }}\;{\mathrm{A}}^{\text{㉞ }}\;{\mathrm{A}}^{\text{㉟ }}\;{\mathrm{A}}^{\text{㉟ } }\;{\mathrm{A}}^{\text{㉟ } }\;{\mathrm{A}}^{\text{㉟ } }\;{\mathrm{A}}^{\text{㉟ } }\;{\mathrm{A}}^{\text{㉟ } }\;{\mathrm{A}}^{\text{㉟ } }\;{\mathrm{A}}^{\text{㉟ } }\;{\mathrm{A}}^{\text{㉟ } }\;{{10},{12},{14},{16},{18},{20},{22},{24},{26},{28},{30},{32},{34},{36},{38},{40},{42},{44},{46},{48},{50},{52},{54},{56},{58},{60},{62},{64},{66},{68},{70},{72},{74},{76},{78},{80},{82},{84},{86},{88},{90},{92},{94},{96},{98},{100}({10},{12},{14},{16},{18},{20},{22},{24},{26},{28},{30},{32},{34},{36},{38},{40},{42},{44},{46},{48},{50},{52},{54},{56},{58},{60},{62},{64},{66},{68},{70},{72},{74},{10}{12},{14},{16},{18},{20},{22},{24},{26},{28},{30},{32},{34},{36},{38},{40},{42},{44},{46},{48},{50},{52},{54},

GÜDE GmbH & Co. KG

birkichstrasse 6

74549 Wolpertshausen

Deutschland
