Brand	Ferm
Model	CDM1086
Product type	Cordless drill/driver
Battery voltage	18 V
Battery type	Lithium-Ion, 1.5 Ah
Charger	230-240 V~, 50 Hz, charging time 70 min
Number of speeds	2
No-load speed (Position I)	0 - 350 rpm
No-load speed (Position II)	0 - 1250 rpm
Maximum torque	20 Nm
Number of torque settings	21 positions + drilling
Chuck	1.0 - 10 mm (keyless)
Weight (with battery)	1.5 kg
Sound pressure level (Lpa)	75 dB(A), K=3
Sound power level (Lwa)	86 dB(A), K=3
Vibration (drilling)	1.68 m/s², K=1.5
Protection class	II (double insulation)
Main functions	Drilling, screwing/unscrewing, speed and torque adjustment, integrated bubble level
Package contents	Drill, battery, charger, 2 double drill bits, manuals, warranty card
Maintenance and cleaning	Clean with a soft damp cloth, no solvents. Lubrication not necessary.
Safety	Double insulation, overload protection, automatic chuck stop
Spare parts and repairability	Parts available via after-sales service (diagram provided in the manual)
Warranty	See provided warranty certificate

Frequently Asked Questions - CDM1086 Ferm

How to install a drill bit in the Ferm CDM1086?

Unlock the chuck (6) by turning the tightening ring (5). Insert the shank of the drill bit into the chuck opening, then tighten the chuck to secure the bit. To remove, loosen the chuck.

How to charge the drill battery?

Place the battery on the charger by inserting the stem into the cavity. Make sure it is fully inserted. Plug the charger into a power outlet. The red LED blinks during charging, the green LED blinks when charging is complete. After 2 hours, the charger goes into standby.

How to adjust the tightening torque?

Turn the torque adjustment ring (5) to the desired number (from 1 to 21). The higher the number, the higher the torque. For drilling, select the drill symbol. Choose a low torque for screwing to avoid damaging the screw.

How to change the drilling speed?

Use the speed selector (7) located on the top of the drill. Position '1' for slow speed (0-350 rpm) suitable for screwing, position '2' for high speed (0-1250 rpm) for drilling. Never change speed while the motor is running.

How to reverse the rotation direction?

Use the direction selector (1) above the switch. Push it left for screwing (clockwise), right for unscrewing (counterclockwise). Set it to the middle to lock the trigger.

What to do if the drill does not start?

Check that the battery is charged and properly inserted. Make sure the direction selector (1) is not in the locked position (middle). If the battery is empty, recharge it. If the problem persists, contact after-sales service.

How to use the integrated bubble level?

The drill is equipped with a horizontal level (21) on the top and a vertical level (22) on the back. The bubble should be centered in the circle to indicate that the drill is level. Useful for precise drilling.

What accessories are included with the CDM1086?

The package contains: 1 cordless drill, 1 Lithium-Ion battery 18V 1.5Ah, 1 charger, 2 double drill bits, 1 user manual, 1 safety manual, 1 warranty card.

How to clean and maintain the drill?

Clean the housing with a soft, dry or slightly damp cloth. Do not use solvents like petrol or alcohol. The ventilation slots must be free of dust. No lubrication is necessary.

What safety precautions should be taken with the battery?

Do not expose the battery to water or fire. Do not short-circuit it. Charge it only between 5°C and 40°C. Use only the supplied charger. In case of contact with acid, rinse thoroughly and consult a doctor.

USER MANUAL CDM1086 Ferm

Fig. D

Fig. E

Fig. F

Fig. G

Fig. H

CORDLESS DRILL

Thank you for buying this Ferm product.

By doing so you now have an excellent product, delivered by one of Europe's leading suppliers. All products delivered to you by Ferm are manufactured according to the highest standards of performance and safety. As part of our philosophy we also provide an excellent customer service, backed by our comprehensive Warranty. We hope you will enjoy using this product for many years to come.

The numbers in the text refer to the diagrams on pages 2 - 4.

Read the operating instructions carefully before using this device. Familiarise yourself with its functions and basic operation. Service the device as per the instructions to ensure that it always functions properly. The operating instructions and the accompanying documentation must be kept in the vicinity of the device.

Contents

1. Machine information
2. Safety instructions
3. Mounting accessories
4. Operation
5. Service & maintenance

1. MACHINE INFORMATION

Technical specifications

Voltage 18 V	---
Charger voltage 230-240 V~
Charger frequency 50 Hz
Battery output 1.5 Ah
Charge time 70 minutes
Chuck capacity 1.0 - 10 mm
Drill speeds 2
Max. torque (low speed) 20 Nm
No-load speed
Position I	0 - 350/min
Position II	0 - 1250/min
Weight (incl. battery)	1.5 kg
Lpa (acoustic pressure)	75 dB(A), K=3
Lwa (acoustic power)	86 dB(A), K=3
Vibration	1.68 m/s ^2 , K=1.5

Vibration level

The vibration emission level stated in this

instruction manual has been measured in accordance with a standardised test given in EN 60745; it may be used to compare one tool with another and as a preliminary assessment of exposure to vibration when using the tool for the applications mentioned

• using the tool for different applications, or with different or poorly maintained accessories, may significantly increase the exposure level
- the times when the tool is switched off or when it is running but not actually doing the job, may significantly reduce the exposure level

Protect yourself against the effects of vibration by maintaining the tool and its accessories, keeping your hands warm, and organizing your work patterns

Contents of packing

1 Cordless drill
1 Battery
1 Charger
2 Double-sides bits
1 Operating instructions
1 Safety instructions
1 Warranty card

Check the appliance, any loose parts and accessories for damage caused during transport.

Product information

Fig. A

1. Direction switch
2. Battery release button
3. Battery
4. On/Off switch
5. Torque setting ring
6. Chuck
7. Speed selection switch

2. SAFETY INSTRUCTIONS

Explanation of the symbols

Denotes risk of personal injury, loss of life or damage to the tool in case of non-observance of the instructions in this manual.

Indicates electrical shock hazard.

The number of revolutions of the machine can be electronically set.

Do not use in rain.

Indoor use only.

Do not dispose of in household waste.

In case of failure, the transformer is not dangerous

Max. temperature 40°

Do not throw the battery into fire

Do not throw the battery in the water

Important safety notes on charger and battery block

If you come in contact with acid from the battery block, rinse it off with water immediately. If acid gets into your eyes, rinse out your eyes at once with water and contact a doctor immediately!

1. Read and note the operating instructions and safety notes for the charger and battery block before use!
2. NB! Only use the charger and battery block that were supplied by the manufacturer - otherwise you will risk an accident.
3. Protect the charger, battery block and power tool from moisture, e.g. rain or snow.

4. Always check that all cables are connected correctly before using the charger.

5. If you discover that a cable is damaged, you should not use the charger again. Have the damaged cable replaced immediately.

6. When the charger is not in use, it should be removed from the power socket. Do not pull out the charger by grasping the cable.
7. If the charger has been dropped or has otherwise been exposed to high mechanical stresses, you should have it checked for damage by an authorised dealer before using it again. Damaged parts should be repaired.
8. Exercise caution when handling the battery block and do not drop it or expose it to impacts.
9. Never attempt to repair the charger or battery block yourself. Repairs must always be carried out by an authorised dealer - otherwise you risk an accident.
10. Before cleaning or servicing the charger or battery block, always pull the plug from the charger socket.
11. Never charge the battery block when the ambient temperature is below 5 °C or above 40 °C.
12. The battery block must not be short-circuited.

A short-circuit will cause a high current to flow. This may result in overheating, the danger of fire or explosion of the battery block. This may damage the battery block or the user may risk an accident.

Therefore:

• Do not connect any cables to the poles of the battery block.
  • Take care that there are no metal objects (nails, paper clips, coins, etc.) on the contact surface of the battery block.
• Do not expose the battery block to water or rain.

• Only use the battery block supplied in combination with this cordless drill/ screwdriver so as to avoid faults and/or risks to persons.

• A damaged battery block or one that can no longer be charged must be disposed of as special waste. Do not discard it with household waste.

• Never throw the battery block onto a fire or into water. This will risk explosion!

Electrical safety

Always check that the voltage on the battery block corresponds to the voltage on the rating plate. Also check that your mains voltage corresponds to the input voltage of the battery charger.

Class II machine – Double insulation – You don't need any earthed plug.

Replacing cables or plugs

Immediately throw away old cables or plugs when they have been replaced by new ones.

• Remove the battery block when the power tool is not being used and prior to maintenance.
• The tool is suitable for use as a screwdriver and drill. Any other application is specifically excluded.

3. MOUNTING ACCESSORIES

Prior to mounting an accessory always remove the battery.

Fitting and removing drill cutters

Fig. B

In addition to screwdriver bits with a hexagonal shaft, this tool can also accommodate drill bits with a hexagonal shaft.

• Loosen the drill chuck (6) by rotating the hand-grip (8).
• Insert the shaft of the drill cutter into the chuck.
• Tighten the drill chuck so that the drill cutter is firmly clamped.
• Rotate the drill chuck in the opposite direction when you wish to change the cutter.

Connecting and removing the battery

Fig. C

Ensure that the exterior of the battery block or tool is clean and dry before connecting the charger.

• Ensure that the direction reversing switch (1, Fig. A) is in the central position in order to prevent the appliance from being switched on unexpectedly.
• Insert the battery (3) into the base of the

appliance, as shown on the illustration. Push the battery until it latches in.

- Press the locking buttons (2) on both sides before removing the battery, and disengage the battery from the base of the appliance.

4. OPERATION

Always follow the safety notes and the relevant safety code.

Hold the appliance firmly and press the drill steadily onto the workpiece. Do not overload the appliance. Only use drills with no visible wear. Worn drills will have a bad effect on the functioning of the appliance.

Adjusting the speed

Fig. D

The appliance has two drill speeds.

• For slow drilling or for driving or removing screws, set the speed selection switch (7) to '1'.
• For fast drilling set the speed selection switch (7) to '2'.

Never switch over when the motor is running!

Adjusting the torque

Fig. E

The appliance has 21 different torque settings with which to set the power for driving and removing screws.

• Set the torque adjustment ring (5) to the desired position. The available torque settings are indicated on the adjustment ring by the numbers 1 to 21 and by dots between the figures to define intermediate settings.
• You should preferably choose a setting as low as possible when using the screwdriver. Select a higher setting if the motor slips.

Driving and removing screws

Fig. A

• Set the direction reversing switch (1) to position ‘→’ in order to drive screws.
  • Set the direction reversing switch (1) to

position ‘←’ in order to remove screws.

Drilling

- Rotate the torque adjustment ring (5) to the drilling position.

Ensure that the direction reversing switch (1) is always set to ‘→’ during drilling.

Switching the device on and off

Fig. A

• Depress the on/off switch (4). It regulates the speed of the appliance by transmitting power to the switch.
• Release the on/off switch (4) to halt the drill chuck immediately, it will no longer run on.
• Move the direction reversing switch (1) to the centre in order to lock the appliance in its disabled state.

Only lay down the appliance when it has stopped running completely. Do not place it on a dusty surface as particles of dust could get into the mechanism.

Spirit level

Fig. H

The drill is equipped with a dual reading horizontal/vertical level to assist in keeping the drill "level" while drilling horizontal and vertical holes. The horizontal level (13) is located in the top of the drill housing. The vertical level (14) is located on the rear of the drill housing.

To maintain a level drilling position, hold the drill where the level bubble is centred in the level indicator circle.

Charging the battery

• The included battery is delivered in partly charged condition.
• Only use the battery charger in a temperature range between +5 °C to +40 °C.
• Only use the battery charger in dry, ventilated rooms.

Charging

Fig. F

One advantage of using Lithium-Ion batteries is that, until the battery is almost empty, hardly any power fading is noticeable. The machine can be used until you start noticing that the power of the drill is elapsed. The battery is discharged now and needs to be charged.

Charging the battery

Fig. F

• Place the battery stem (9) into the matching cavity on top of the charger (10).
  • Make sure the battery stem is pressed fully into the charger as far as it will go.
  • Plug the charger into the electrical outlet.

LED indicators

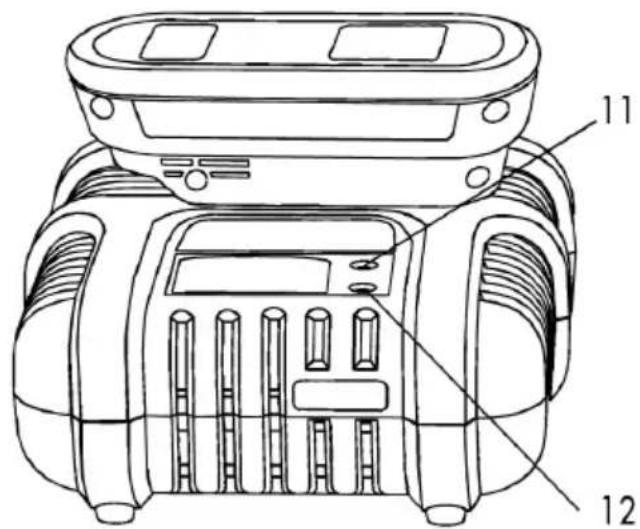

Fig. G

When the battery charger is plugged in and the battery inserted, the battery charger will begin charging the battery. The red LED (11) and the green LED (12) on top of the charger will indicate the charging status.

• When the charger is plugged in without a battery inserted, the green LED (12) will be lit up.
• When a battery is inserted, the red LED (11) will start blinking, indicating charging has started.
• When the battery is full, charging will stop and the green LED (12) will start blinking.
• If the battery is left in the charger, the charger will go on standby after 2 hours. The green LED (12) will stop blinking and light up.

When an error occurs the red LED (11) will be lit up.

If the temperature of the battery is too high to get charged safely, both the green LED (12) and red LED (11) will be lit, indicating charging process is on hold. Charging will start when the battery has cooled down.

Lithium-Ion cells can be stored for a long period without losing much of their charge. When the machine is not being used over a longer period of time, it is best to store the battery in charged condition.

5. SERVICE & MAINTENANCE

Make sure that the machine is not live when carrying out maintenance work on the motor.

These machines have been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper machine care and regular cleaning.

Cleaning

Keep the ventilation slots of the machine clean to prevent overheating of the engine. Regularly clean the machine housing with a soft cloth, preferably after each use. Keep the ventilation slots free from dust and dirt. If the dirt does not come off use a soft cloth moistened with soapy water. Never use solvents such as petrol, alcohol, ammonia water, etc. These solvents may damage the plastic parts.

Lubrication

The machine requires no additional lubrication.

Faults

Should a fault occur, e.g. after wear of a part, please contact the service address on the warranty card. In the back of this manual you find an exploded view showing the parts that can be ordered.

Environment

To prevent damage during transport, the appliance is delivered in a solid packaging which consists largely of reusable material. Therefore please make use of options for recycling the packaging.

Faulty and/or discarded electrical or electronic apparatus have to be collected at the appropriate recycling locations.

Warranty

The warranty conditions can be found on the separately enclosed warranty card.

AKKU-BOHRSCHRAUBER

5. SERVICE OG VEDLIKEHOLD

Position	Description	No
4	Battery	CDA1070
5till19 + 12till41 Gearbox complete 409870
10	Chuck	409871
11 Chuck screw 409283
43 +54 + 55 Motor + switch 409872
45 Speed elector 409873
50 Spirit level 409874
53 L/R Switch 409875
56 Battery lock assy 490012
-	Charger	409876

CE

DECLARATION OF CONFORMITY FDCD-1800NL POWER LITHIUM ION DRILL

(GB) We declare under our sole responsibility that this product is in conformity and accordance with the following standards and regulations:
(D) Der Hersteller erklärt eigenverantwortlich, dass dieses Produkt den folgenden Standards und Vorschriften entspricht:
(NL) Wij verklaren onder onze volledige verantwoordelijk heid dat dit product voldoet aan, en in overeenstem ming is met, de volgende standaarden en reguleringen:
(F) Nous déclarons sous notre seule responsabilité que ce produit est conforme aux standards et directives suivants:
(E) Declaramos bajo nuestra exclusiva responsabilidad que este producto cumple con las siguientes normas y estándares de funcionamiento:
(P) Declaramos por nossa total responsabilida-de que este produto está em conformidade e cumpre as normas e regulamentações que se seguem:
(I) Dichiariamo, sotto la nostra responsabilità, che questo prodotto è conforme alle normative e ai regolamenti seguenti:
(S) Vi garanterar på eget ansvar att denna produkt upp fyller och följer följande standarder och bestämmelser:
(FIN) Vakuutamme yksinomaan omalla vastuullamme, että tämä tuote täyttää seuraavat standardit ja säädökset:
(N) Vi erklærer under vårt eget ansvar at dette produktet er i samsvar med følgende standarder og regler:
(DK) Vi erklærer under eget ansvar, at dette produkt er i overensstemmelse med følgende standarder og bestemmelser:
(H) Felelősségünk teljes tudatában kijelentjük, hogy ez a termék teljes mértékben megfelel az alábbi szabványoknak és előírásoknak:

(CZ) Na naši vlastní zodpovědnost prohlašujeme, že je tento výrobek v souladu s následujícími standardy a normami:
(SK) Vyhlasujeme na našu výhradnú zodpovednosť, že tento výrobok je v zhode a súlade s nasledujúcimi normami a predpismi:
(SLO) S polno odgovornostjo izjavljamo, da je ta izdelek v skladu in da odgovarja naslednjim standardom terpredpisom:
(PL) Deklarujemy na własną odpowiedzialność, że ten produkt spełnia wymogi zawarte w następujących normach i przepisach:
(LT) Prisiimdami visą atsakomybę deklaruojame, kad šis gaminys atitinka žemiau paminėtus standartus arba nuostatus:
(LV) Apgalvojam ar visu atbildību, ka šis produkts ir saskaņā un atbilst sekojošiem standartiem un nolikumiem:
(EST) Deklareerime meie ainuvastutusel, et see toode on vastavuses ja kooskõlas järgmiste standardite ja määrustega:
(RO) Declarăm prin aceasta cu răspunderea deplină că produsul acesta este în conformitate cu următoarele standarde sau directive:
(HR) Izjavljujemo pod vlastitom odgovornoL,šu da je strojem ukladan sa slijedešim standardima ili standardiziranim dokumentima i u skladu sa odredbama:
(SB) Pod punom odgovornošću izjavljujemo da je usaglašen sa sledećim standardima ili normama:
(RUS) Под свою ответственность заявляем, что данное изделие соответствует следующим стандартам и нормам:
(UA) На свою власну відповідальність заявляемо, що дане обладнання відповідає наступним стандартам і нормативам:
(GR) Δηλώνουμε υπεύθυνα ότι το προϊόν αυτό συμφωνεί και τηρεί τους παρακάτω κανονισμούς και πρότυπα:

EN55014-1, EN55014-2, EN60745-1, EN60745-2-1, EN60745-2-2, EN60335-1, EN60335-2-29, EN61000-3-2, EN61000-3-3

2006/42/EC, 2002/95/EC, 2002/96/EC, 2006/95/EC, 2004/108/EC

Zwolle, 01-10-2011

1.

CEO

Mönnink

Ferm

BV

It is our policy to continuously improve our products and we therefore reserve the right to change the product specification without prior notice.

Ferm BV • Lingenstraat 6 • 8028 PM • Zwolle The Netherlands
