USER MANUAL 332845 Remote Control PRINCESS

Remote Control Vacuum Cleaner Article 332845

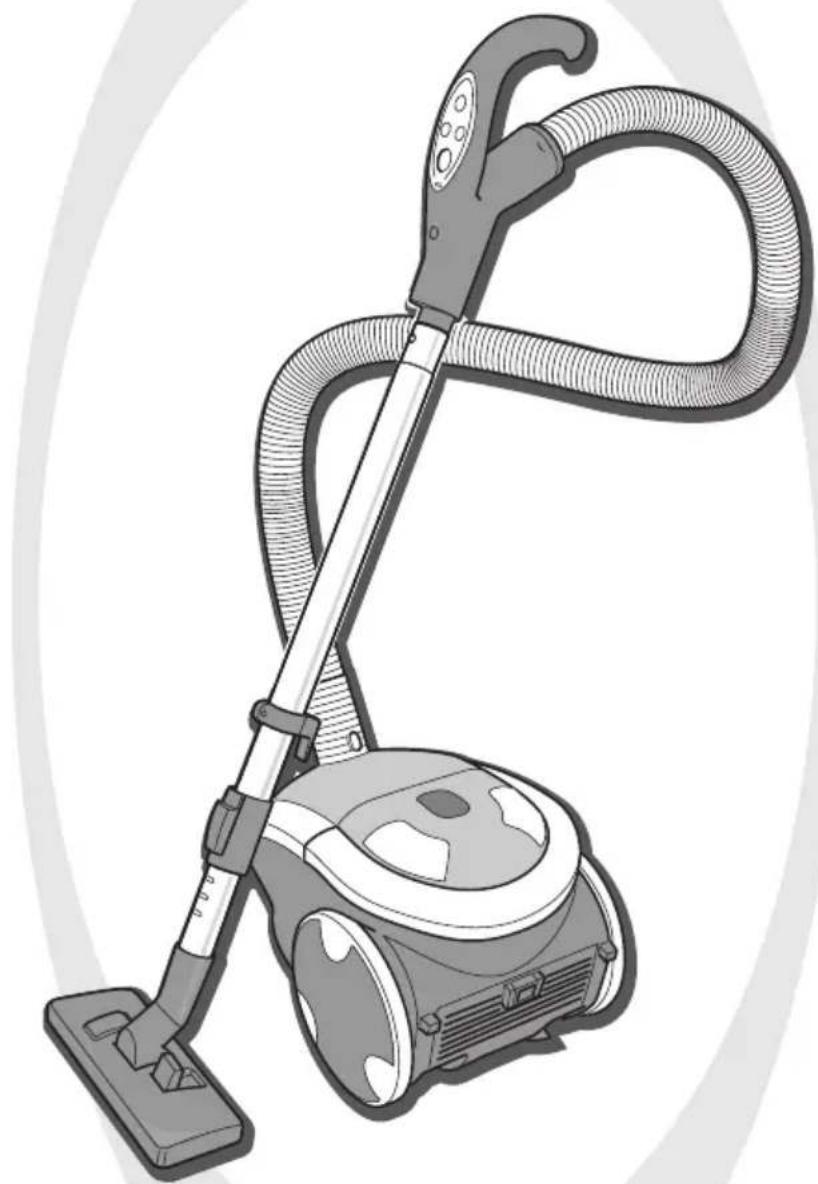

Illustration of a vacuum cleaner with coiled hose and control panel (no text or symbols)

• Gebruiksaanwijzing • User's instructions • Mode d'emploi
• Bedienungsanleitung • Instrucciones de uso • Istruzioni per l'uso
• Bruksanvisning • Brugsanvisning • Bruksanvisning • Käyttöohje
  • Instruções de uso • Οδηγίες χρήσης المستخدم دليل

Nederlands 1

English 7

Français 13

Deutsch 19

Español 25

Italiano 31

Svenska 35

Dansk 42

Norsk 47

Suomi 52

Português 47

Ελληνικά 63

المملكة المتحدة 70

Labeled diagram of a vacuum cleaner with numbered parts for identification

4 3 10 2

15 3

Diagram of a computer mouse with a coiled tube and directional arrows indicating motion (no text or symbols)

20 22 23 21

8

Cross-sectional diagram of a device showing internal components and a numbered label (23), no readable text or symbols present.

24

26 25

9
10

Diagram of a car handle with labeled components and polarity indicators

11

Algemene informatie

This powerful, Remote Control Vacuum Cleaner is equipped with a useful infrared remote control that is positioned on top of the vacuum cleaner hose handle. This vacuum cleaner has a disposable dust bag and dust filters, which makes the appliance very efficient and hygienic in use.

Operation and controls

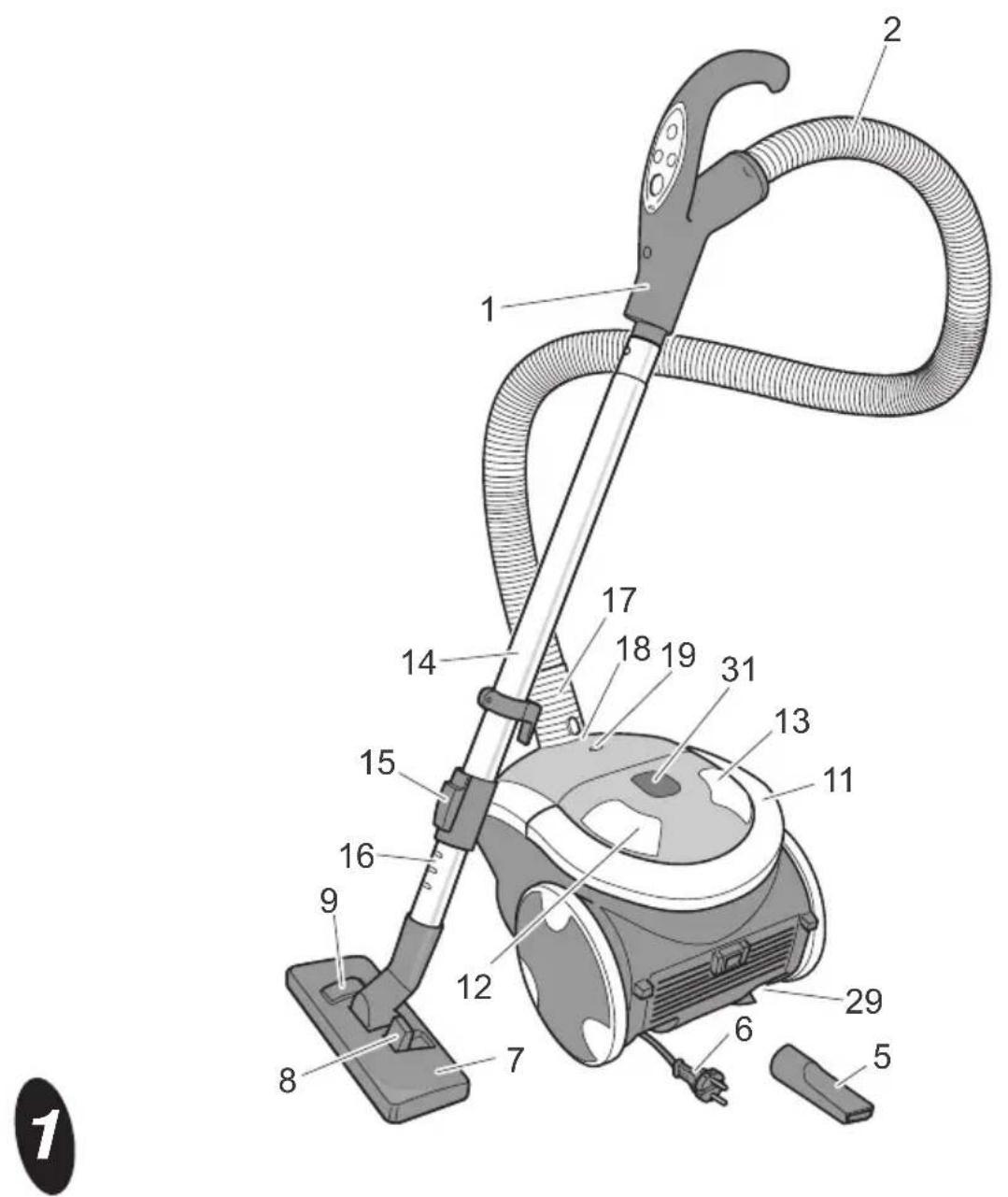

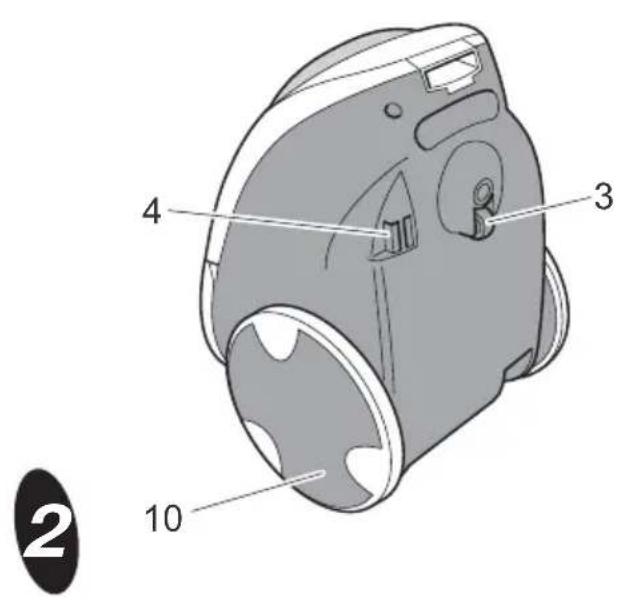

See figures 1, 2, 3, 6, 7, 8, 9 and 10.

The appliance includes the following components:

1 Vacuum cleaner hose handle with remote control
2 Vacuum cleaner hose
3 Front castor
4 Slot for the telescopic tube
5 Crevice tool
6 Power cord with plug
7 Combi nozzle
8 Switch for the combi nozzle with a brush
9 Switch for the combi nozzle without a brush
10 Rear castor
11 Vacuum cleaner handle
12 Cord rewind button
13 On/Off switch
14 Telescopic tube holder
15 Telescopic tube locking button
16 Telescopic tube
17 Vacuum cleaner hose attachment piece
18 Vacuum cleaner hose connection
19 "Dust collector full" indicator
20 Dust bag cover lock
21 Dust bag holder
22 Dust bag

23 Inlet filter
24 Outlet filter grille
25 Outlet filter holder
26 Outlet filter
27 Cover battery compartment
28 Remote control
29 Storage crevice tool
30 Infrared sender
31 Infrared receiver

Before using for the first time

• Read and follow these instructions. Keep this instruction manual in a safe place.
• Make sure the mains voltage is the same as the voltage on the appliance's type plate.

1 Remove all the packaging materials and stickers from the appliance.

2 Attach the vacuum cleaner hose to the appliance by pushing the hose attachment piece into the connection on the appliance till the locking clicks in position.

3 Press the vacuum cleaner hose handle to the telescopic tube holder. Make sure that the telescopic tube locking button points upwards.

Use

Always make sure that all the filters and the dust bag are correctly fitted before using the appliance. Damaged or incorrectly fitted filters or dust bag may cause damage to the appliance.

Preparations

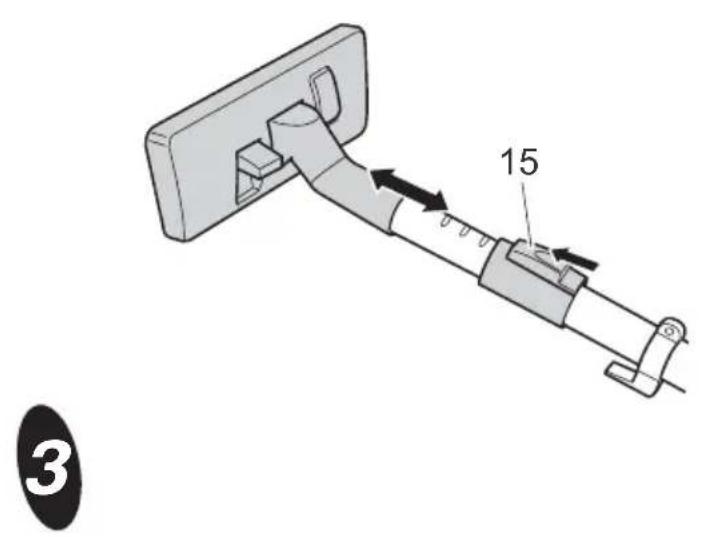

1 Adjust the telescopic tube to the required length (see figure 3). Push the telescopic tube locking button in the direction indicated by the arrow on the button. Keep the locking button pressed and extend or retract the telescopic tube. Release the locking button to lock the telescopic tube to the desired length.

2 Fit the combi nozzle to the end of the tube. You can also fit the combi nozzle

or the crevice tool directly to the end of vacuum cleaner hose handle. The combi nozzle has two settings: with a brush for vacuuming hard floors (parquet, tiles, linoleum, etc.) and without a brush for vacuuming soft floors (carpet, etc.). Press the button on the combi nozzle to either vacuum with a brush (without a brush) (see figure 4).

Vacuuming

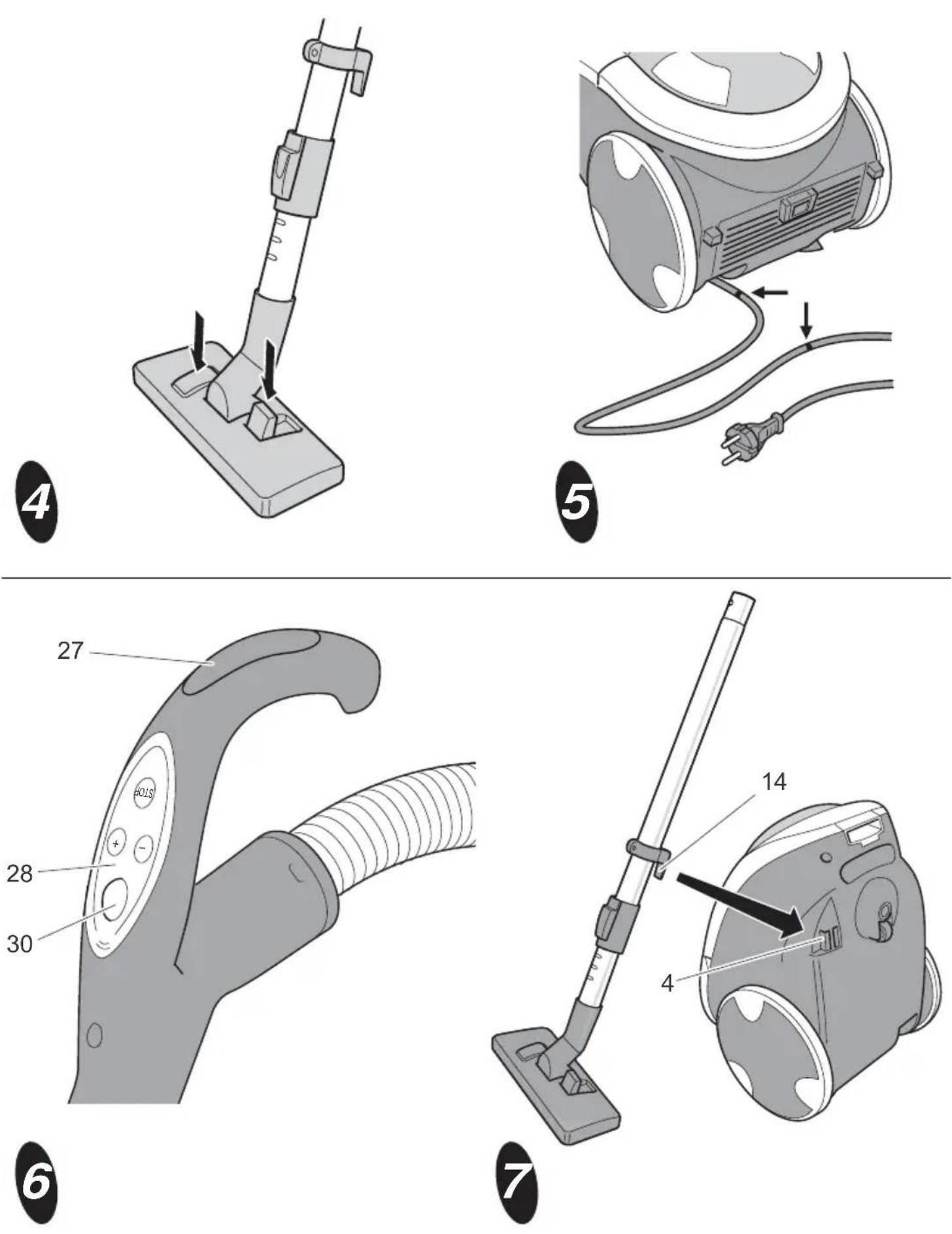

1 The power cord has a yellow mark and a red mark on it (see figure 5). Extend the power cord beyond the yellow mark. The red mark indicates the end of the power cord. Never extend the cord beyond the red mark. This could damage the power cord.
2 Insert the plug into a plug socket and switch ON the appliance with the On/Off switch.
3 Use the vacuum cleaner tube with handle to move the nozzle over the surface to vacuum.
You can pull the appliance back and forth with the vacuum hose.
You can lift the appliance using the vacuum cleaner's handle.
4 Press the On/Off button to switch the appliance OFF.

Remote Control

You can use the remote control on top of the vacuum hose handle to control the vacuum cleaner (see figure 6). The remote control uses infrared light to control the vacuum cleaner. Point the infrared sender (30) to the receiver (31) on the vacuum cleaner when using the remote control.

The remote control has three buttons:

STOP	Stops the appliance.
+ Starts	up the appliance after it has been stopped by the STOP button on the remote control.When running, each time the + button is pressed, the power of the appliance will be increased till maximum power is reached.It takes 5 steps to increase from minimum to maximum power.
- Starts	up the appliance after it has been stopped by the STOP button on the remote control,When running above minimum power, each time the - button is pressed, the power of the appliance will be decreased till minimum power is reached.It takes 5 steps to decrease from maximum to minimum power.

Note:

When the appliance is switched OFF with the ON/OFF switch, the remote control will not function.

Accessories

Besides the combi nozzle for cleaning large surfaces, there is also a crevice tool, to clean radiators, window frames, crevices, small openings, etc.

The crevice tool is stored on the backside of the vacuum cleaner.

Storing the appliance

1 Remove the plug from the plug socket.
2 Lightly hold the end of the power cord.
Press the cord rewind button and allow the cord to gently slide through your fingers back into the appliance.
Note! You must guide the cord whilst it is rewinding. If you do not do so, the cord may become tangled or the plug may strike the back of the appliance.
This can damage the appliance or the power cord.

3 Stand the appliance upright. Fully retract the telescopic tube. A slot for the telescopic tube is located at the bottom of the appliance, next to the front castor. Slide the holder on the telescopic tube into the slot (see figure 7).

Maintenance and cleaning

• Clean the appliance thoroughly after use.
• Make sure the plug has been removed from the plug socket before cleaning the appliance.
• Make sure no moisture comes into contact with the appliance's electrical parts.
• Never immerse the appliance, the power cord or the plug in water or other liquids.
• Never use aggressive or scouring cleaning products or sharp objects (such as a knife or a hard brush) to clean the appliance.

Cleaning the appliance

1 Remove the plug from the plug socket.
2 Clean the exterior of all the components with a damp cloth. Only use cleaning products that are suitable for plastic.
3 Dry the appliance and the accessories thoroughly before storing them.
4 Over the course of time, dust and dirt can accumulate around the wheel axles, thereby preventing the wheels from turning easily. They should, therefore, be kept clean.

Replacing the dust bag

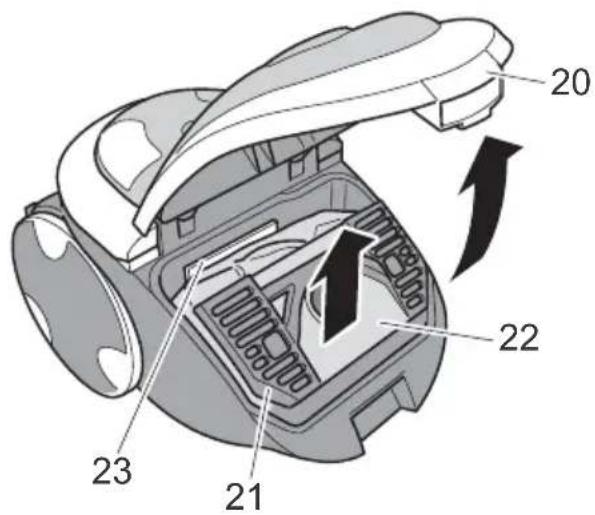

See figure 8.

The "Dust collector full" indicator indicates when the dust bag must be replaced.

1 Remove the plug from the plug socket.

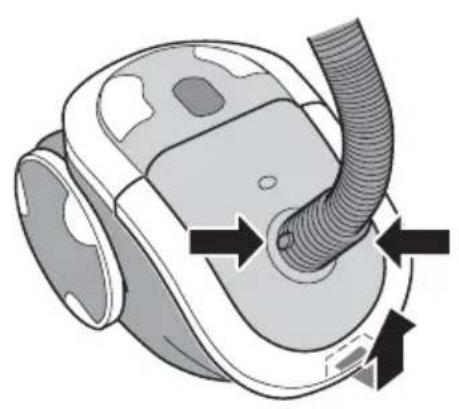

2 Remove the vacuum cleaner hose from the appliance by pressing in both buttons and pulling the hose from the appliance.
3 Open the dust bag cover by pulling on the dust bag cover lock.
4 Remove the dust bag holder with the full dust bag from the appliance.
5 Shift the dust bag from the dust bag holder and dispose of it.
6 Take a new dust bag and shift the cardboard part in the dust bag holder.
7 Place the dust bag holder with the new dust bag in the vacuum cleaner. Shift the two positioning pins in the guidances to position the dust bag holder in the correct position.
8 Close the dust bag cover till the dust bag cover lock clicks in position and the cover stays closed.
9 Attach the vacuum cleaner hose to the appliance by pushing the hose attachment piece into the connection on the appliance till the locking clicks in position.

Replacing the inlet filter

See figure 9.

Replace the inlet filter when it becomes blocked. You cannot wash or rinse this filter.

1 Remove the dust bag holder with the dust bag as described in 'Replacing the dust bag'.
2 Slide the inlet filter up and remove it from the appliance.
3 Slide a new filter behind the inlet filter holder.
4 Position the dust bag holder with the dust bag in position as described in 'Replacing the dust bag'.

Replacing the outlet filter

See figure 10.

Replace the outlet filter when it becomes blocked. You cannot wash or rinse this filter.

1 Remove the plug from the plug socket.
2 Remove the grille at the back by pushing the unlocking button downwards and tilting the grille.
3 Remove the holder and the outlet filter from the appliance.
4 Remove the outlet filter from the holder and fit a new filter. The soft side of the filter must face the holder and the rough side must face the inside.
5 Place the holder and the new filter in the appliance.
6 Place the grille back in the appliance and click it into place.

Replacing the batteries

See figure 11.

When the remote control is not functioning properly, the batteries may be discharged and must be replaced.

1 Open the cover of the battery compartment.
2 Remove the discharged batteries out of the compartment.
3 Place new batteries as indicated in the compartment.
4 Close the cover of the battery compartment.

Safety

General information

• Read and follow these instructions carefully. Keep this manual for future reference.

• Use this appliance only in accordance with these instructions.

• This appliance is intended solely for domestic use.

• The use of this appliance by children or persons with a physical, sensory, mental or motor disability or with a lack of the necessary knowledge and experience may cause a hazard. Persons responsible for the safety of such people must give explicit instructions or supervise the use of the appliance.

- Keep the appliance out of the reach of children, and of persons who may not be able to operate it safely.

- Have the appliance repaired only by a qualified electrician. Never try to repair the appliance yourself.

- Only use accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user.

- The appliance is not intended to be operated by means of an external timer or separate remote control system.

Heat and electricity

• Verify that the mains voltage is the same as that indicated on the appliance's type plate before use.
  • Always remove the plug from the plug socket when the appliance is not going to be used for a period of time.
• When you remove the plug from the wall socket, pull the plug and not the power cord.
• Never pull the power cord to move the appliance.

• Do not use the appliance if the appliance or the power cord is damaged. Have a damaged power cord replaced by a qualified electrician.

• Make sure the appliance, the power cord and the plug do not come into contact with heat sources, such as a hot hob or a naked flame.

• Make sure the appliance, the power cord and the plug do not come into contact with water, other fluids or chemicals.
• Do not pick up the appliance if it falls into water. Immediately remove the plug from the wall socket. Do not use the appliance anymore.
• Make sure the air vents are not covered or blocked.

During use

• Never use the appliance outdoors.
• Never use the appliance in a humid room.
• Make sure your hands are dry when you touch the appliance, the power cord or the plug.
• Switch off the appliance and/or remove the plug from the wall socket in the event of a malfunction during use, before cleaning the appliance, before fitting or removing an accessory and before storing the appliance after use.
• The power cord has a yellow mark and a red mark. Extend the power cord beyond the yellow mark. The red mark indicates the end of the power cord. Never pull out the power cord beyond the red mark. This could damage the power cord.
• Guide the power cord whilst it is being rewound, otherwise the cord could become tangled or the plug could strike the back of the appliance. This may damage the appliance or the power cord.
• Never use the appliance to vacuum smouldering or burning objects, pieces of broken glass or other sharp objects, pieces of plaster, cement,

stone, soot and similar objects, or liquids and damp waste. These objects could cause serious damage to the appliance and the filter system and make the appliance unsafe to use.

• Do not use the vacuum cleaner to vacuum wet rugs or carpets.
• Never insert objects into the outlet openings.
• Make sure the suction and outlet openings are clear and the filters are not blocked. Blockages will cause the appliance to overheat. Switch off the vacuum cleaner if it overheats! Once you have rectified the problem, wait 20 to 30 minutes to allow the vacuum cleaner to cool down. The vacuum cleaner will then be ready for use again.
• Keep the nozzle, the end of the telescopic tube and the end of the vacuum cleaner hose away from your body when the vacuum cleaner is turned on. This could cause an injury, for example, to the eyes or ears.
• Never roll the appliance over the power cord.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

- The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

- The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

WARNING: ON NO ACCOUNT SHOULD EITHER THE LIVE OR NEUTRAL WIRES BE CONNECTED TO THE EARTH TERMINAL

With this appliance, if a 13A plug is used a 13A fuse should be fitted. If any other type of plug is used, a 15A fuse must be fitted either in the plug or at the distribution board.

The environment

Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers.

If you wish to dispose of the appliance whilst it still works properly or can be easily repaired, then ensure that the appliance is recycled.

When the appliance reaches the end of its useful life, it should be disposed of in a responsible manner, thereby ensuring the reuse of the appliance or its parts. Do not dispose of the appliance with normal household waste, but hand it over to a recycling collection point. Contact your local authority for information about available disposal and collection systems in your area.

Applicable European guidelines:

• 2002/95/EC
• 2002/96/EC
