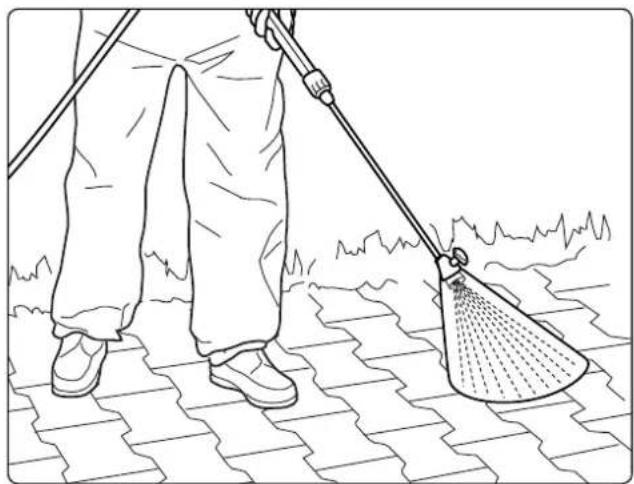

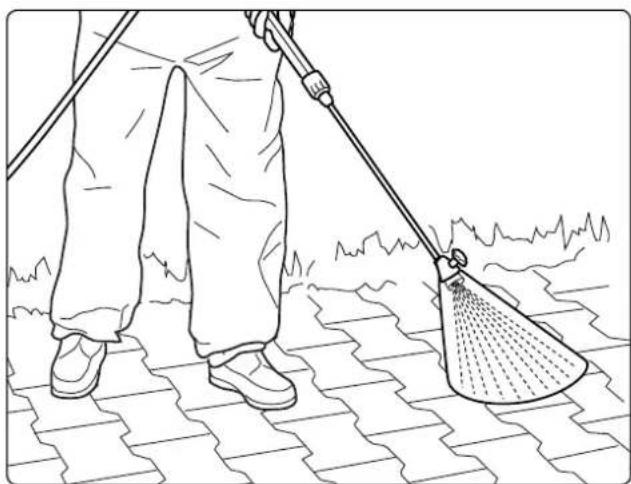

Spritzschutz

Art.-Nr. 41.052

Line drawing of a person wearing gloves and a long pole, holding a net near grass (no text or symbols)

Description of high-pressure cleaner

Kränzle 1152 TS T

Kranzle 7152TST

Ergonomically shaped handle

Cable reel with 5 m cable

Hose drum with 15 m steel-weave high-pressure hose

Trigger gun with safety catch

Detergent injector hose

Special brass pump head Large stainless steel pressure gauge

Continuously adjustable pressure and quantity control

Storage for trigger gun with safety catch On/Off switch with motor protection

Receptacle for Vario-Jet lance with stainless steel pipe and Dirtkiller with stainless steel pipe

Integrated trolley takes steps and rough ground in its stride

Contents

Page

Description....32

Contents....33

Overview "This is what you have purchased" 34

General rules - accident prevention....35

Safety precautions - accident prevention 36

Please note - important 39

Kränzle-technology....41

Putting into operation....43

Suction of detergents.... 47

To shut down the pump....48

Small repairs – do it yourself!......50

EC declaration of conformity 54

Guarantee 55

Versatile due to Kränzle accessories....56

Inspections – inspection reports....58

This is what you have purchased

Line drawing of a mechanical device with wheels and a spherical component (no text or symbols)

1. Kränzle high-pressure cleaner 1152 TS T with 15 m steel-weave highpressure hose and hose drum

Line drawing of a cleaning spray gun (no text or symbols)

1. Trigger gun with insulated handle and screw connection

1. Dirtkiller lance with stainless steel pipe (except order no. 41.217)

1. Vario-Jet lance with stainless steel pipe

1. Handle with fixing screw for hose drum

1. Attachment hook for cable with 2 fixing screws

K1192737 K1192737

1. Operating manual

General rules

■Range of application

Use machines for cleaning tasks with high-pressure water jet and detergents or with high-pressure water jet without detergents only.

Inspections

The machine must be inspected according to the “Guidelines for Liquid Spray Devices” at least once every 12 months by a qualified person, to ensure that continued safe operation is guaranteed. The results of the inspection are to be recorded in writing. This may be done in any form. For inspection reports see pages 58-59.

High-pressure cleaners used for commercial purposes have to be checked by a qualified person at least every 12 months!

■ Accident prevention

The machine is designed for accidents to be impossible if used correctly. The operator is to be notified of the risk of injury from hot machine parts and the high pressure water jet. The "Guidelines for Liquid Spray Devices" must be complied with (see pages 36-38).

Oil change:

The first oil change should be carried out after approximately 50 operating hours. After that no further oil change will be necessary to perform an oil change for the life cycle of the high-pressure cleaner. If it becomes necessary during repairs, or because the oil has a greyish colour then the oil draining screw should be opened and the oil emptied into a container. The oil is to be caught in the reservoir and disposed of in an approved manner. New oil: 0.25 l - Motor oil: W 15/40.

Oil leakage: If oil leaks contact your nearest after-sales service (dealer) at once. (Environmental damage, damage to the transmission)

In case of increased humidity or fluctuations in temperature development of condensed water is possible; if the oil turns grey, it must bee changed.

Safety precautions

Line drawing of a person in protective gear using a power tool next to a machine (no text or symbols)

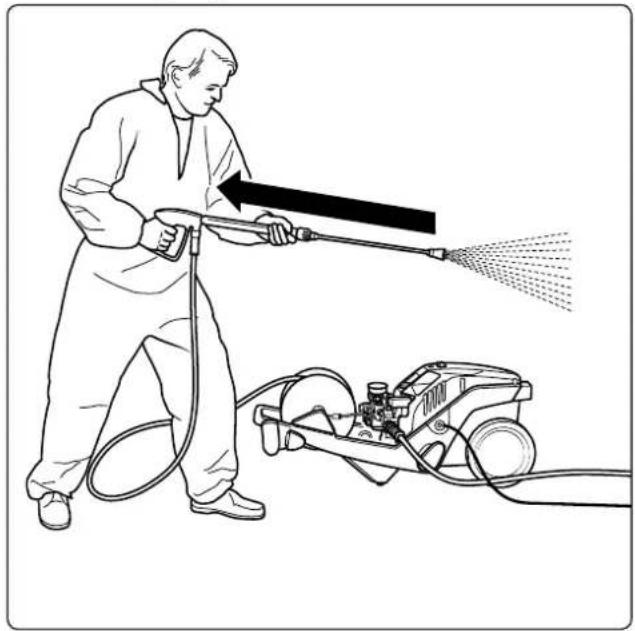

Bear in mind that during cleaning tasks with a high-pressure water jet a significant recoil at the lance arises. Please stand firmly.

Line drawing of a fuel pump nozzle with a handle and valve mechanism (no text or symbols)

Apply safety catch on the trigger gun after each use, in order to prevent unintentional spraying!

Diagram of a vehicle's wheel assembly with hoses and spray, showing motion arrows (no text or symbols)

Always aim the underbody lance! Bear in mind when using a curved or angled spraying lance that there is a significant amount of torque in the recoil (the underbody lance is available as optional accessory)

Safety precautions – This is prohibited!

Illustration of a child and adult walking with a dog, showing a hand holding a pen and a cross symbol (no text or labels)

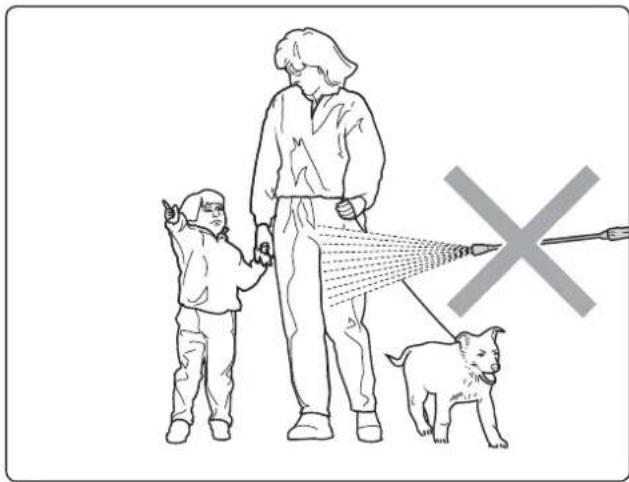

Never direct the water jet at people or animals!

Never direct the high-pressure jet at yourself or other persons, not even to clean clothing or shoes.

Simple line drawing of a plug inserted into a wall, with a cable and a cross symbol indicating a resistance or failure (no text or labels)

Only use power cables which are in perfect working order!

Do not damage the power cable or repair it incorrectly!

Illustration of a person in protective suit using a vacuum cleaner with a cross symbol (no text or symbols present)

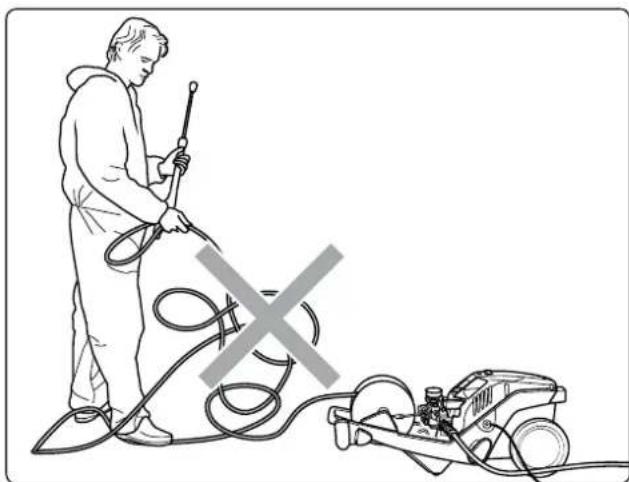

Never pull the high pressure hose if it has formed kinks or "nooses"!

Never pull the hose over sharp edges!

Safety precautions – This is prohibited!

Illustration of a child spraying water with a sprayer, no text or symbols present

Never allow children or untrained persons to use the high pressure cleaner!

Illustration of a person in protective suit using a vacuum cleaner with a cross symbol (no text or symbols present)

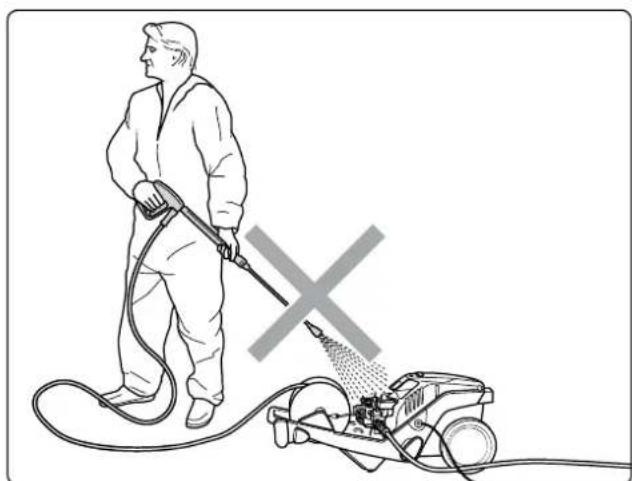

Never direct the water jet at the machine itself!

The machine may not be placed within reach of the water jet spray mist!

Diagram showing a showerhead spraying water onto a surface with a cross mark (no text or symbols)

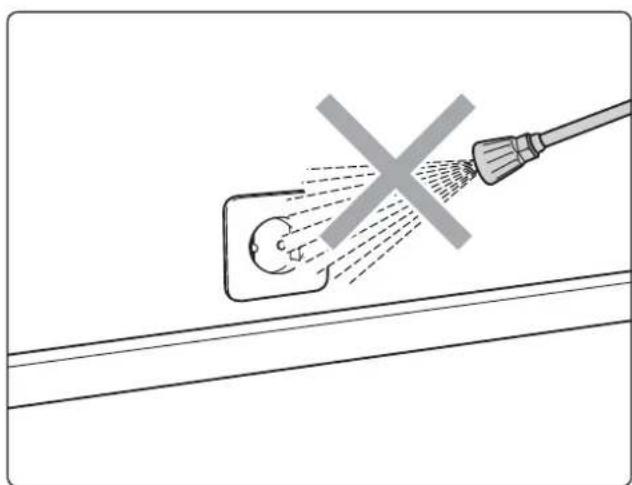

Never direct the water jet at power sockets or any other electrical installations!

Please note - important:

Lack of water

Illustration of a hand interacting with a container containing a patterned object, with a wristwatch nearby (no text or symbols)

Lack of water occurs more often than you probably believe. The more powerful a high-cleaner is the greater is the danger that a lack of water occurs. If there is only an insufficient amount of water available, cavitation (water-gas mixture) arises inside the pump, which is normally noticed too late or even not at all. The pump will be destroyed! Please check the available quantity of water by filling a bucket with litre scale for one minute.

A minimum water quantity of 10 litres per minute must be available to guarantee a trouble-free operation of the Kränzle 1152 TS T.

If the metered quantity of water is too small, you have to use a different water connection, guaranteeing the necessary output.

Lack of water leads to an accelerated wear of the joints (guarantee void).

Water supply

Please pay attention to the regulations of your waterworks company! In accordance with DIN EN 61770, the machine may not be directly connected to the public drinking water supply lines. A brief connection however is permissible according to DVGW (German Association for Gas and Water Affairs) if a non-return valve with tube ventilator (Kränzle order no. 41.016 4) is built into the water supply. Once the water has passed through the non-return valve it is no longer considered as drinking water.

Also indirect connection to the public drinking water supply lines is permissible by way of free emission in accordance with EN 61 770; e.g. by using a reservoir with a float valve.

Direct connection to a non-drinking water supply line is permissible.

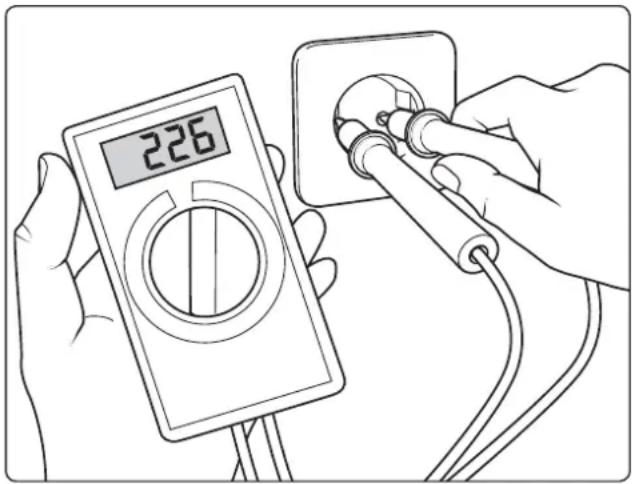

■ Insufficient quantity of electricity

226

If there are too many collectors in your proximity connected to the network at the same time, the available voltage and the current intensity may decline.

Consequently the motor of the high-pressure cleaner does not start or even blows.

The power supply may also be insufficient if the power cable is too long or too thin.

If extension cables are too long, this may lead to a voltage drop causing malfunctions or start-up difficulties.

Kränzle 1152 TST:

230 V \~, 12,0 A, 50 Hz

Check the line fusing and have the voltage and the available current intensity checked by an expert in case of uncertainty.

■ Electrical connection

The machine is supplied with a 5 meter electrical power cable with plug. The mains plug must be fitted to a standard grounded socket with a 30mA residual current operated device. The socket must be protected with a 16A delay action fuse on the mains side.

When using an extension cable, this must have an earthed lead which is properly connected to the socket. The conductors in the extension cable must have a minimum cross section of 1.5 mm.

Plug connections must be of a spray-proof design, and may not be located on a wet floor.

With extension cables of more than 10 m the minimum cross section must be

2.5 mm! When using a cable drum, always keep the cable wound as far as possible.

Kränzle technology

■ Water and cleaning system

Water can be connected at mains pressure (1-8 bar pre-pressure) to the high-pressure pump.

The water is then forced under pressure by the high pressure pump to the lance. The high pressure jet is formed by the nozzle at the end of the lance.

GB

Environmental, refuse disposal and water protection regulations must be observed!

■ Lance with trigger gun with safety catch

The machine can only be operated when the trigger of the trigger gun with safety catch is pulled. When the trigger is pulled, the trigger gun opens. The liquid is then pumped to the nozzle. The spray pressure increases and quickly reaches the selected operating pressure. When the trigger is released, the trigger gun closes and any further spraying of liquid from the lance is stopped. The pressure gauge must show 0 bar. When the trigger gun with safety catch is closed the increase in pressure causes the pressure control valve/safety valve to open. The motor is switched off by the pressure switch. When the trigger gun is opened, the pressure control valve/safety valve closes, the motor is started and the pump resumes pressure spraying from the lance with the selected operating pressure.

The trigger gun with safety catch is a safety device.

Repairs should only be performed by qualified persons.

Should replacement parts be required, use only components authorized by the manufacturer.

■ Pressure control valve - safety valve

The pressure control valve - safety valve protects the machine from a build up of excess pressure, and is designed not to permit an excess pressure to be selected for operation. The limit nut on the handle is sealed with a spray coating. The operating pressure and spray rate can be steplessly adjusted by turning the handle.

Replacements, repairs, new adjustments and sealing should only be performed by qualified persons.

■ Total stop system

Kränzle 1152 TS T high-pressure cleaners are equipped with a total stop system. If the main switch is switched on the motor is started by a pressure switch, as soon as the trigger gun with safety catch is operated. If the trigger gun is released the motor is switched off at once.

■ Motor protection switch

The motor is protected from overload by a motor protection switch, which cuts out the motor in the event of overload. However should the switch trip frequently, the cause of the malfunction should be located and rectified (see page 40).

Replacements and inspection work should only be performed by qualified persons when the machine is disconnected from the power supply, i.e. with plug pulled out from the electrical socket.

■High pressure hose and spray device

The high pressure hose and spraying device supplied with the machine are made of high grade material, they are also optimized for the machine and marked as required by the appropriate regulations. (max. hose length 20 m)

If replacement parts are required, only such parts that are authorized by the manufacturer may be used. The warranty is automatically void if spare parts of third-party providers are used! The high pressure hose and spray device must be connected in a pressure-tight manner (without leakage).

The high pressure hose may not be driven over, pulled excessively, or twisted. The hose may under no circumstances be pulled over sharp edges. Defective high-pressure hoses must not be repaired (acc. to DIN 20022) but have to be replaced by new hoses approved by the manufacturer.

■ Explanatory symbols affixed to the high-pressure cleaner

DAS GOURT DARF WITH IN LIGGEN BETWEEN WEREMI THE HIGH PRESSURE CLEANER IS ONLY TO BE OPPIATED IN HORIZONTAL POSITION! UTILIZEN 1 APPAREL UNQUISMENT ER POSITION HORIZONTALE!

Operate high-pressure cleaner in horizontal position only.

Never direct the high-pressure jet at people or animals.

Never direct the water jet at power sockets or any other electrical installations!

The high-pressure cleaner may only be operated in horizontal position!

Putting into operation

Mechanical assembly diagram showing a bracket with screws and a cable, no text or symbols present

1. Screw bottom attachment hook for cable to the respective position on the frame.

GB

■ Setting up – Location

Neither set up or operate the machine in rooms where there is a risk of fire or explosion nor put it into puddles. Do not use the machine under water.

Technical line drawing of a mechanical device with a spring and lever mechanism (no text or symbols)

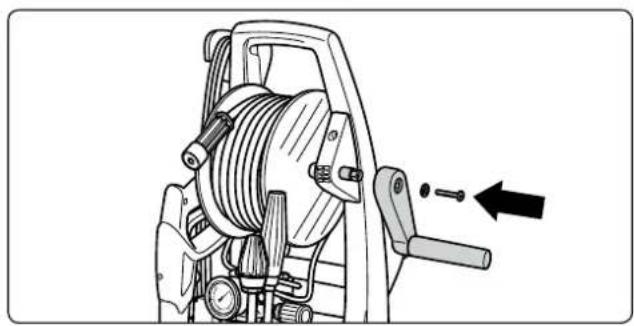

1. K 1152 TS T: Put up machine. Release fixing screw from hexagonal base of hose drum, put tiltable handle onto the hexagonal base and fix with screw.

Line drawing of a person in protective suit pushing a cart near a forklift (no text or symbols)

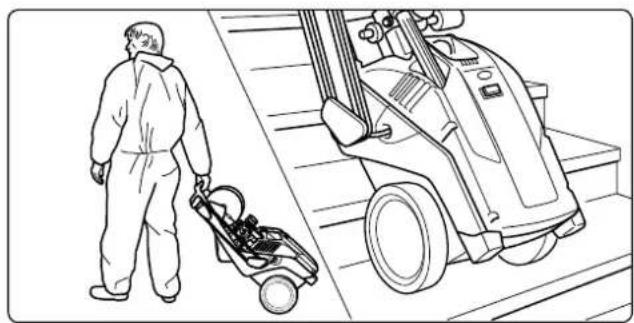

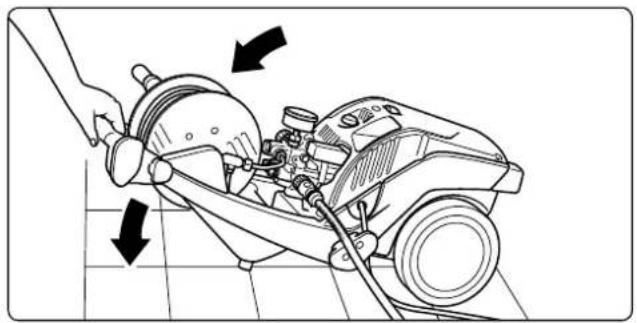

1. Move high-pressure cleaner to the job site. The Kränzle 1152 TS T is a movable machine with sturdy trolleys ideally suited for difficult terrain and stairs.

Diagram of a tool being inserted into a cylindrical component, showing a connector and directional arrow (no text or symbols)

1. Push Vario-Jet lance or Dirtkiller lance on to trigger gun with safety catch.

Putting into operation

Diagram showing a cable being inserted into a wire with a circular arrow indicating rotation (no text or symbols)

1. Screw together lance and trigger gun pressure-tightly.

Mechanical diagram showing a rotating brush and spring mechanism with directional arrows (no text or symbols)

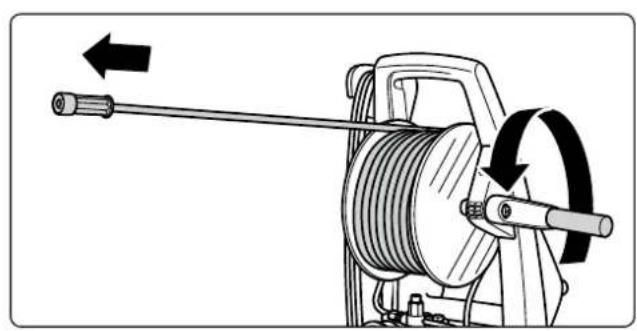

1. Unwind high-pressure hose straight and without nooses. (When using hose extensions take care that the max. length of 20 m is not exceeded!)

Line drawing of a spray gun with an attached hose and directional arrow (no text or symbols)

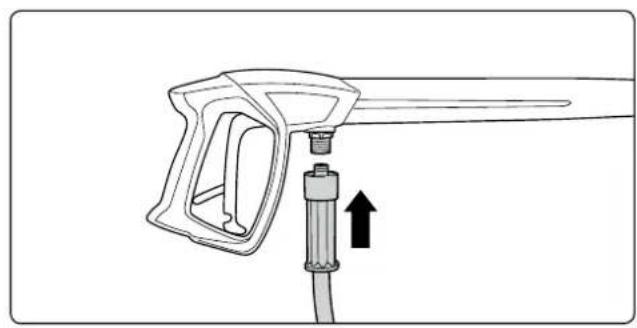

1. Push on high-pressure hose to trigger gun with safety catch.

Line drawing of a hairdryer tool with a lever and handle, showing motion arrows (no text or symbols)

1. Tightly screw together high-pressure hose and trigger gun with safety catch.

Mechanical assembly diagram showing a cable inserted into a housing with a valve and bolt (no text or symbols)

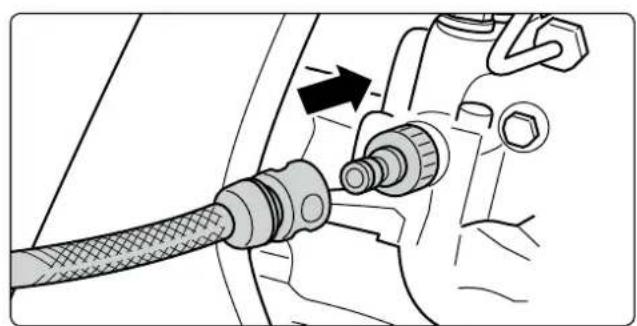

1. Connect water hose to water inlet.

The cleaner may be connected to a water mains (1-10 bar pre-pressure) with either cold or hot water (up to 60°C).

■ Be careful when using hot water!

When running your high pressure cleaner with hot water of 60^ C raised temperatures occur. Do not touch the metal parts of the cleaner without safety gloves!

GB

Diagram of a plug connected to a wall socket, showing an arrow indicating direction (no text or symbols present)

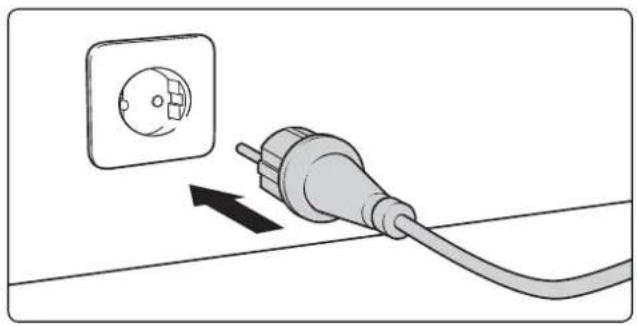

1. Connect to circuit.

Kränzle 1152 TS T:

230 V \~, 12.0 A, 50 Hz

The socket must be protected with a 16 A delay action fuse on the mains side.

Line drawing of a lawn mower with hand operating the blade and arrows indicating motion (no text or symbols)

1. Put HP cleaner into horizontal position.

The machine must be operated in horizontal position!

Mechanical assembly diagram showing a hand using a wrench to adjust or install components (no text or symbols visible)

1. Check water inlet filter for cleanliness prior to putting the machine into operation!

Manually unscrew hose attachment. Take out the serial water inlet filter using needle nose pliers and clean if filter is soiled.

Technical diagram of a car engine intake system with valve and pressure gauge (no text or labels)

1. Prior to putting HP cleaner into operation always check oil level at oil-level glass.

(Make sure that cleaner is in horizontal position!) The oil level must reach the top edge of the "OK" marking.

Line drawing of a person in protective suit using a spray gun to clean or disinfect equipment (no text or symbols)

1. Switch on HP cleaner with opened trigger gun (trigger pulled). Bleeding of the machine: Pull and release trigger of trigger gun with safety catch several times. Start cleaning task.

Technical line drawing of a mechanical assembly with no visible text or symbols

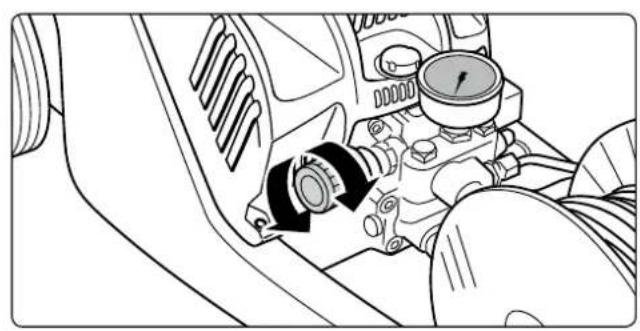

1. Steplessly adjust operating pressure with handwheel. The maximum pressure is adjusted ex work. Kränzle 1152 TS T: max. 130 bar

Technical line drawing of a water purifier with attached pump and motor (no text or symbols)

Kränzle 1152 TS T high-pressure cleaners are equipped with a practical holding device for trigger gun with Dirtkiller lance during breaks.

Suction of detergents

■When using cleansing agents

Suction of cleansing agents by means of the detergent injector is only possible if the Vario Jet lance is fitted. The lance mus be set to low pressure.

GB

Technical line drawing of a car engine bay with hoses and control panel (no text or symbols)

1. Please chemicals filter into container with cleansing agent.

Diagram of a hairbrush emitting particles from a tip, with an arrow indicating direction (no text or symbols)

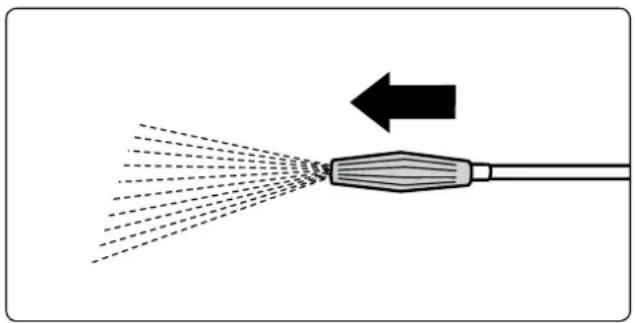

1. To reach the low pressure push Vario nozzle to the front so that the injector can suck in the cleansing agent.

Diagram showing a droplet being sprayed into a pipe with an arrow indicating direction (no text or symbols)

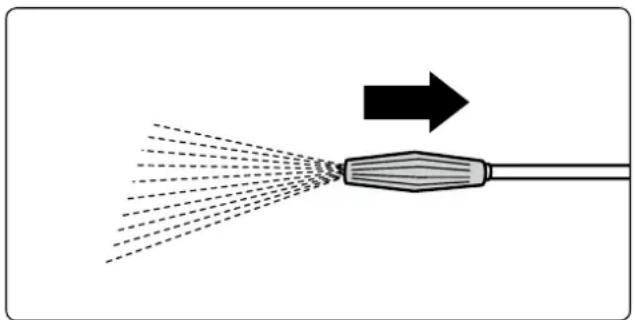

1. The chemicals supply is automatically stopped when closing the Vario nozzle by pushing it backwards. Let cleansing agent take effect and then spray off with a high-pressure jet.

Observe specifications of detergent manufacturer! e.g. protective equipment, rules for waste water treatment etc.

Caution: Solvents! Never suck in liquids containing solvents like varnish solvents, petrol, oil or similar liquid! Observe specifications of detergent manufacturers! Seals inside the appliance are not resistant against solvents! The spray mist of solvents is highly inflammable, explosive and poisonous.

To shut down the pump

1. Switch off the high-pressure cleaner
2. Cut off the water supply
3. Open the trigger gun with safety catch briefly until the pressure is released
4. Apply safety catch on the trigger gun
5. Remove water hose and trigger gun with safety catch
6. Drain the pump: switch on the motor for approx. 20 seconds
7. Pull the plug from the socket
8. Clean HP hose and wind up without loops
9. Clean power cable and wind up
10. Clean water filter
11. Store high-pressure cleaners in frost-free rooms in winter

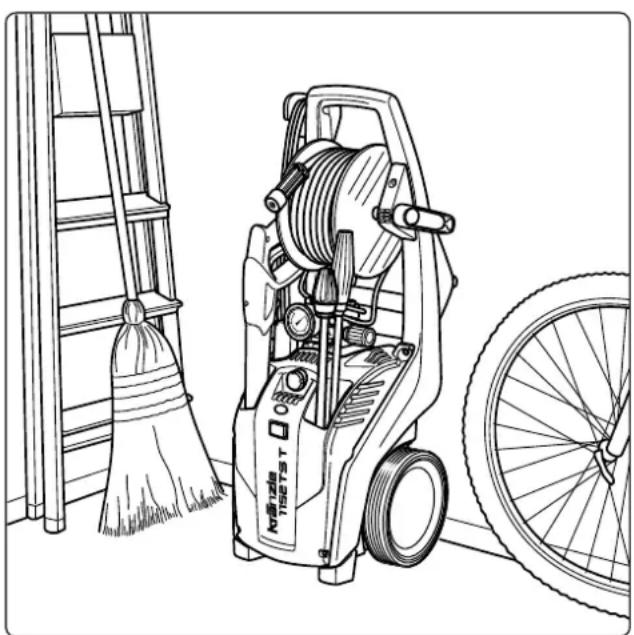

■ Store in a place-saving manner

Line drawing of a cleaning power supply machine next to a broom and a bicycle (no text or symbols)

Due to their compact and space saving design the Kränzle 1152 TS T cleaners can be stored practically anywhere.

GB

Small repairs - do it yourself!

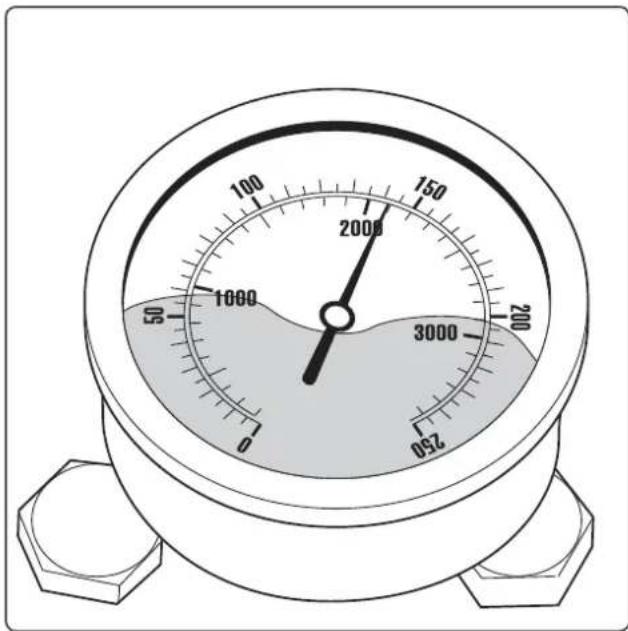

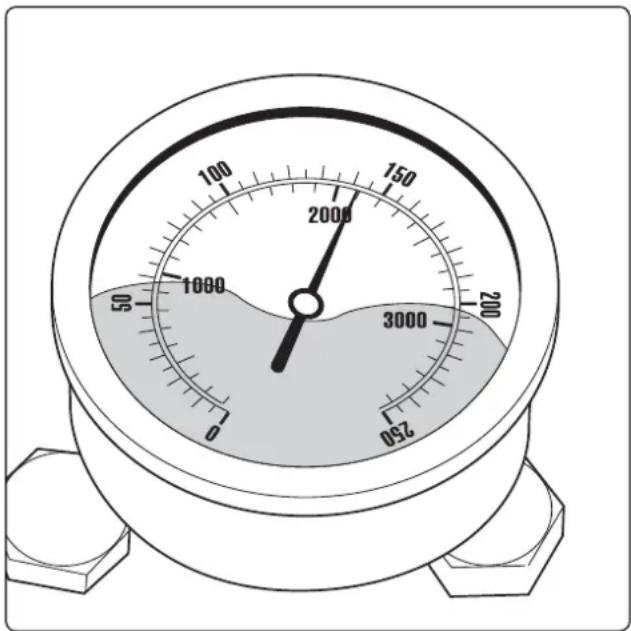

No water from the nozzle but the gauge shows full pressure: Most likely the nozzle is blocked.

100 2000 150 200 50 1000 3000 250

The pressure gauge shows full pressure, but emerges from the nozzle only little water or no water at all.

(Inside the pressure gauge there is no water but a filling with glycol to damp the vibration of the pointer.)

Proceeding:

Switch off the cleaner. Pull plug from the socket. Operate trigger gun with safety catch several times to decrease the pressure.

Unscrew trigger gun and lance first, then rinse high-pressure gun to remove possible soiling.

Check water inlet filter for soiling.

Line drawing of a magnifying glass focusing on internal components, with no text or symbols present.

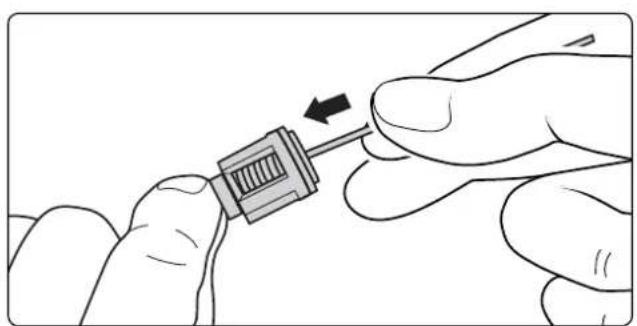

If the problem still exists, take wire (paper clip) and push through nozzle opening. If this procedure is not successful, the nozzle has to be dismantled and cleaned or even replaced, if necessary.

CAUTION! Pull plug from socket prior to starting any repair work!

■Pressure gauge shows little pressure, the water from the nozzle comes in squirts: Most likely the valves are soiled or sticky.

100 2000 150 200 1000 50 3000 0 250

The pressure gauge shows little pressure despite fully turned up pressure regulation. The water from the lance comes in squirts. The HP hose vibrates.

GB

(Inside the pressure gauge is no water but a filling with glycol to damp the vibration of the pointer.)

Mechanical assembly diagram showing a wrench inserted into a vehicle engine housing (no text or labels)

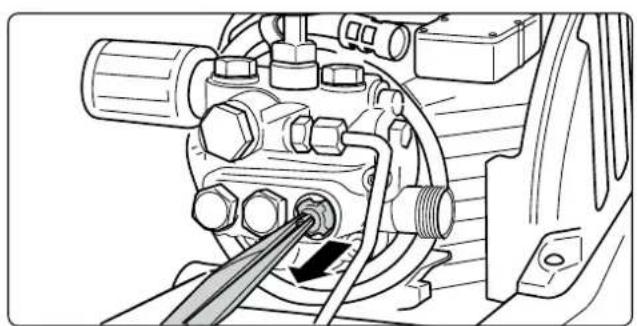

Proceeding:

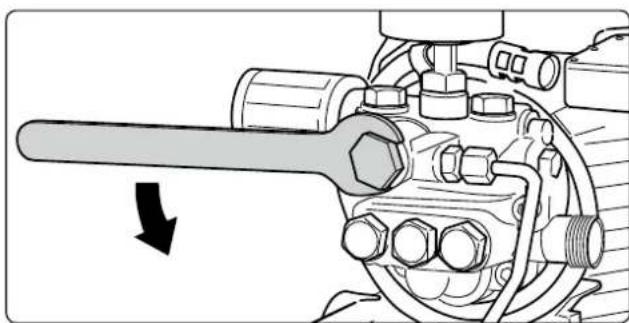

Unscrew all 6 valves, one after the other (hexagonal brass screws, 3 in a row, vertically and horizontally)

Mechanical assembly diagram showing a valve mechanism with no visible text or symbols

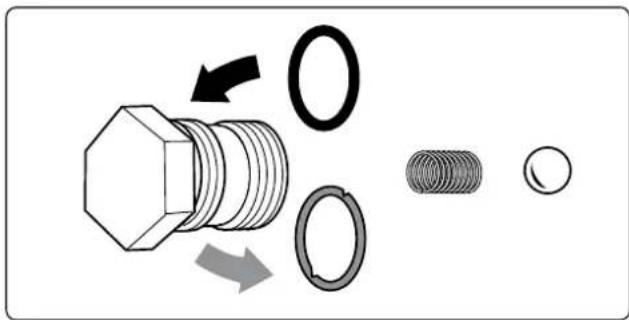

Take out valve body (with green or red plastic coating) and O-ring by means of needle nose pliers. Check O-ring for damage. In case of a damage the O-ring has to be replaced.

Illustration of a hand holding a small electronic component with an arrow indicating direction (no text or symbols)

Take a wire (paper clip) and clean valves under running water.

Do not forget the O-ring during reassembly!

Small repairs - do it yourself!

■he pressure gauge shows full pressure although the trigger gun with safety catch has been closed. The pressure switch valve switches constantly.

100 2000 150 200 50 1000 3000 250

Possible cause no.1: Leakage

Having closed th trigger gun with safety catch, the HP cleaner must shut down and the pressure gauge must show „0“ bar.

If the pressure gauge shows full pressure but the motor constantly switches on and off, a leakage at the pump, at the high-pressure hose, at the trigger gun or at the lance can be the reason.

Line drawing of a spray gun with water droplets spraying downward (no text or symbols)

Proceeding:

Check connections from the HP cleaner to the high-pressure hose and from the hose to the trigger gun and also the connection between lance and trigger gun for tightness.

Diagram of a cable connector with internal components and directional arrows indicating movement (no text or symbols)

Switch off the cleaner. Shortly press the trigger of the trigger gun with safety catch to decrease the pressure.

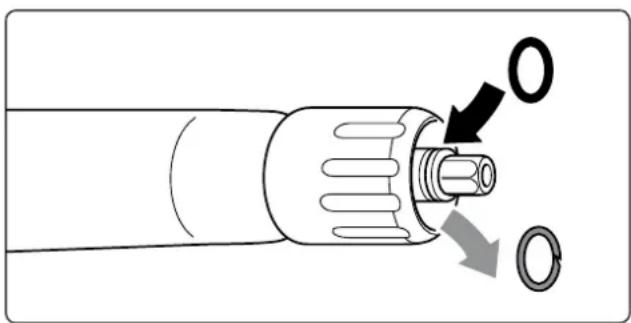

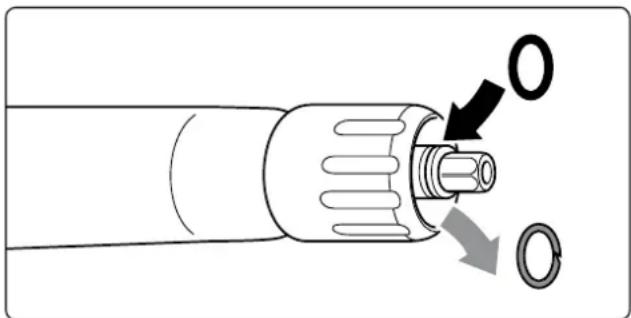

Unscrew HP hose, trigger gun with safety catch and lance and check the O-rings.

If the O-rings are damaged they have to be replaced.

In case of a leakage there is no guarantee for possible consequential damages.

■The pressure gauge shows full pressure although the trigger gun with safety catch has been closed. The motor constantly switches on and off.

Possible cause no. 2: The non-return valve is soiled or defective.

GB

Mechanical assembly diagram showing a wrench inserted into a mechanical component with no visible text or symbols

Proceeding:

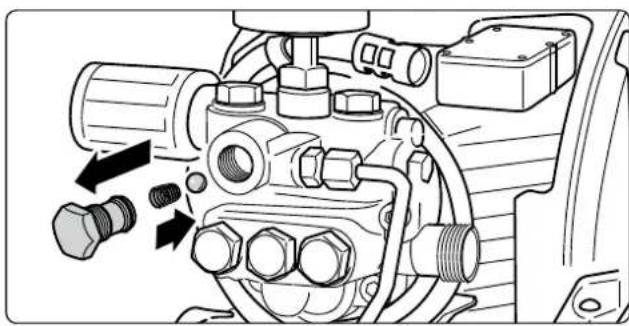

Switch off the HP cleaner and pull plug from socket. Stop water supply. Unscrew pump outlet.

Mechanical assembly diagram showing bolted components and directional arrows (no text or labels)

Take out check ball and check for soiling or damage.

Also check stainless steel seat of ball inside the pump housing for soiling or damage.

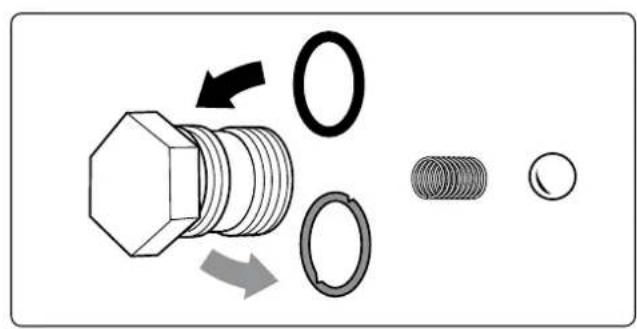

Diagram showing a hexagonal bolt with two arrows indicating direction and a separate diagram of three types of components: a ring, a spring, and a circle.

If sealing rings are defective replace O-rings at once.

There is no guarantee if the pump is damaged by defective O-rings due to air induction or lack of water (cavitation).

EC declaration of conformity

Hereby we declare that: Kränzle 1152 TS T

technical specifications available from: Manfred Bauer, Fa. Josef Kränzle Rudolf-Diesel-Str. 20, 89257 Illertissen

comply with the following guidelines and their amendments for high-pressure cleaners:

Machinery directive 2006/42/EC EMC-directive 2004/108/EC Noise directive 2005/88/EC, Art. 13 HP water spraying machines Annex 3, part B, chapter 27

Sound level measured: 91 dB (A) Sound level guaranteed: 93 dB (A)

Applied conformity assessment procedure:

Annex V, Noise directive 2005/88/EC

Applied specifications and standards:

EN 60 335-2-79 :2009 EN 55 014-1 :2006 EN 61 000-3-2 :2006 EN 61 000-3-3 :2008

Bielefeld, June 01, 2012

Creeple jroch

Kränzle Josef (Managing director)

Guarantee

The guarantee is only valid for material and manufacturing errors.

Wearing does not fall within this guarantee.

The instructions in our operating manual must be complied with.

The operating instructions form part of the guarantee.

For high-pressure cleaners sold to the user the guarantee period is 24 month.

For high-pressure cleaners sold for industrial use the guarantee period is 12 month.

In the case of a guarantee please contact your dealer or authorized seller delivering accessories and your purchase receipt. You can find them in the internet under

www.kraenzle.com.

The guarantee is also void if the machine is used with exceeding the temperature and speed limits, a voltage below the required rating, with less than the required amount of water or with dirty water.

Pressure gauge, nozzle, valves, sleeves, high pressure hose and spray equipment are wear parts and are not covered by the guarantee.

Versatile due to Kränzle accessories

Line drawing of a cleaning brush with a handle and lever (no text or symbols)

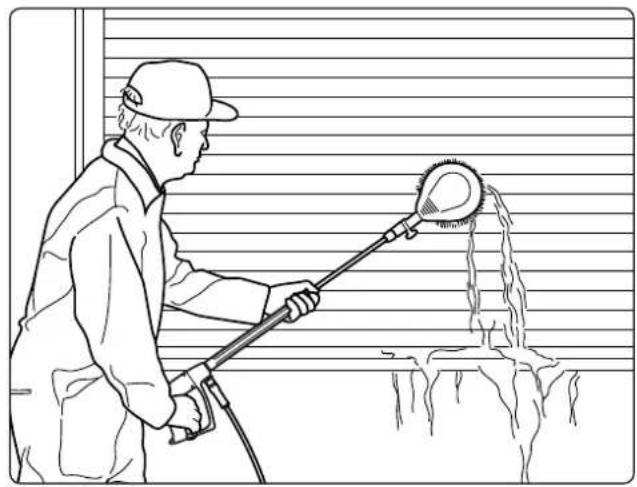

Rotating washing brush with 400 mm extension, Order no. 41 050 1

Line drawing of a worker using a tool to clean or wash material, no text or symbols present

Technical line drawing of a mechanical component with a lever and textured base (no text or symbols)

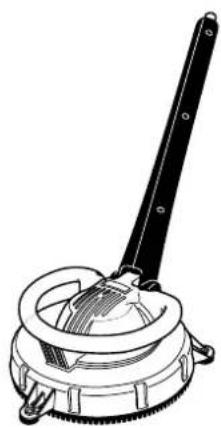

Floor cleaner round cleaner UFO Order no. 41.850

Line drawing of a person in protective suit using a cleaning tool (no text or symbols)

Dirtkiller lance with stainless steel pipe 400 mm, Order no. 41.072 5

Diagram illustrating a mechanical tool interacting with a textured surface, showing rotational motion (no text or symbols)

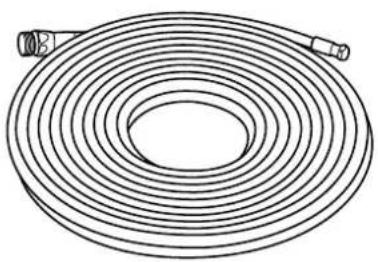

Diagram of a coiled hose with two connectors (no text or labels)

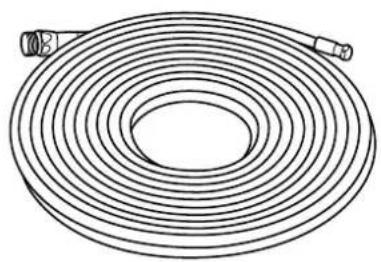

Pipe cleaning hose with nozzle,

10 m - order no. 41.058 1

15 m - order no. 41.058

20 m - order no. 41.058 2

25 m - order no. 41.058 3

30 m - order no. 41.058 4

Line drawing of a person using a hose to clean or wash equipment near a vertical structure (no text or symbols)

GB

Simple line drawing of a conical container with a side outlet and two circular ports (no text or symbols)

Spray guard

Order no. 41.052

Line drawing of a person using a long-handled tool to clean or filter a tiled floor (no text or symbols)

All accessories for high-pressure cleaners are safety components! These, in particular, include high-pressure hoses, trigger guns with safety catch, high-pressure lances, pipe cleaning hoses, surface cleaners, etc.

If components are used which are not approved by Kränzle any guarantee is rendered void.

Inspection report for HP cleaners

HP cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Kränzle test seals: Order no. UVV200106

Owner: Type:

Address: Serial no.:

Rep. order no.:

Scope of inspection	o.k.	yes	no	repaired
Type plate (on hand)
Operating manual (on hand)
Protective covering, -device
Pressure line (tightness)
Pressure gauge (function)
Float valve (tightness)
Spraying device (marking)
HP-hose / connector (damage, marking)
Safety valve opens at 10 % / 20 % exceeding of operang pr.
Power cable (damage)
Protective conductor (connected)
On / Off switch
Used chemicals
Allowed chemicals

Inspection data	determined value	set value
High-pressure nozzle
Operating pressure......bar
Switch off pressure......bar
Conductor resist. not exceeded / value
Insulation
Leakage current
Trigger gun locked

Inspection result (tick)

The appliance was checked by an expert according to the Guidelines for Liquid Spray Equipment, the defects found have been rectified so that the Labour Safety can be confirmed.

☐ The appliance was checked by an expert according to the Guidelines for Liquid Spray Equipment. The Labour Safety cannot be confirmed unless the defects found are rectified by repair or replacement of the faulty parts.

The next retest according to the Guidelines for Liquid Spray Equipment has to be carried out by: Month ____ Year ____

Place, date Signature

Inspection report for HP cleaners

HP cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Kränzle test seals: Order no. UVV200106

Owner: ....

Type:

Address:

Serial no.:

[EMPTY]

Rep. order no.: ....

Scope of inspection	o.k.	yes	no	repaired
Type plate (on hand)
Operating manual (on hand)
Protective covering, -device
Pressure line (tightness)
Pressure gauge (function)
Float valve (tightness)
Spraying device (marking)
HP-hose / connector (damage, marking)
Safety valve opens at 10 % / 20 % exceeding of operang pr.
Power cable (damage)
Protective conductor (connected)
On / Off switch
Used chemicals
Allowed chemicals

Inspection data	determined value	set value
High-pressure nozzle
Operating pressure......bar
Switch off pressure......bar
Conductor resist. not exceeded / value
Insulation
Leakage current
Trigger gun locked

Inspection result (tick)

☐The appliance was checked by an expert according to the Guidelines for Liquid Spray Equipment, the defects found have been rectified so that the Labour Safety can be confirmed.
☐ The appliance was checked by an expert according to the Guidelines for Liquid Spray Equipment. The Labour Safety cannot be confirmed unless the defects found are rectified by repair or replacement of the faulty parts.

The next retest according to the Guidelines for Liquid Spray Equipment has to be carried out by: Month ____ Year ____

Place, date

Signature....

Line drawing of a mechanical device with wheels and a spherical component (no text or symbols)

Line drawing of a cleaning tool (no text or symbols)

Line drawing of a person in protective suit using a power tool next to a machine (no text or symbols)

Line drawing of a fuel pump nozzle with internal components and directional arrow (no text or symbols)

Diagram of a vehicle's wheel assembly with hoses and spray, showing motion direction (no text or symbols)

Illustration of a child and adult walking with a dog, showing a dog being pulled by a stringed line (no text or symbols)

Simple line drawing of a plug inserted into a wall, with a curved wire and a cross mark on the ground (no text or symbols)

Illustration of a person in protective suit using a power washer next to a cleaning machine with a cross symbol (no text or labels)

Illustration of a child spraying water with a sprayer, no text or symbols present

Illustration of a person in protective suit using a water purifier with a cross symbol (no text or symbols present)

Diagram showing a showerhead spraying water onto a surface with a cross mark (no text or symbols)

Illustration of a hand interacting with a wristwatch and a bucket containing a fingerprint pattern (no text or symbols)

230 V \~, 12,0 A, 50 Hz

Mechanical assembly diagram showing a bracket with screws and a cable, no text or symbols present

Technical line drawing of a mechanical device with a spool and lever mechanism (no text or symbols)

Line drawing of a person in protective suit pushing a lawn mower next to a forklift on stairs (no text or symbols)

Diagram of a tool being inserted into a cylindrical component, showing a connector and directional arrow (no text or symbols)

Diagram showing a cable being inserted into a plug with a circular arrow indicating rotation (no text or symbols)

Mechanical diagram showing a mechanical device with a rotating shaft and spring, no text or symbols present

Line drawing of a spray gun with an attached hose and directional arrow (no text or symbols)

Diagram of a spray gun with lever and handle, showing motion direction (no text or symbols)

Mechanical assembly diagram showing a cable inserted into a housing with a valve and bolt (no text or symbols)

Diagram of a plug connected to a wall socket, showing an arrow indicating direction (no text or symbols present)

Line drawing of a lawn mower with hand operating the blade and arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a hand using a wrench to adjust or install components (no text or symbols visible)

Line drawing of a car engine bay with a dial indicator and mechanical components (no text or symbols)

Line drawing of a person in protective suit using a spray gun to clean or disinfect equipment (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a power tool with hoses and a pump, showing mechanical components without any text or symbols.

Technical line drawing of a car engine bay with hoses and control panel (no text or symbols)

Diagram of a hairbrush emitting particles from a tip, with an arrow indicating direction (no text or symbols)

Diagram showing a droplet being sprayed into a pipe with an arrow indicating direction (no text or symbols)

Attention aux solvants!

Line drawing of a cleaning power supply machine next to a broom and bicycle (no text or symbols)

Line drawing of a magnifying glass focusing on internal components, with no text or symbols present.

Mechanical assembly diagram showing a wrench inserted into a housing component (no text or labels visible)

Procédure à suivre:

Mechanical assembly diagram showing a valve or pump with adjustment knobs and tubing (no text or symbols visible)

Illustration of a hand holding a small electronic component with an arrow indicating rotation (no text or symbols)

Line drawing of a spray gun with water droplets spraying downward (no text or symbols)

Diagram of a cable connector with internal components and directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a wrench inserted into a valve with bolted components (no text or labels)

Procédure à suivre:

Mechanical assembly diagram showing bolted components and directional arrows (no text or labels)

Diagram showing a hexagonal bolt with threaded end, indicating fastening direction and internal threading, alongside three types of bolts and a separate circle.

Creeple Jocet

Line drawing of a cleaning brush with a handle and lever (no text or symbols)

Line drawing of a worker using a tool to clean or wash material, no text or symbols present

Technical line drawing of a mechanical component with a lever and textured base (no text or symbols)

Line drawing of a person in protective suit using a cleaning tool (no text or symbols)

Diagram illustrating a mechanical tool interacting with a textured surface, showing rotational motion (no text or symbols)

Diagram of a coiled hose with two connectors (no text or symbols)

Line drawing of a person using a hose to clean or wash the roof next to a mobile phone (no text or symbols present)

FR

Simple line drawing of a conical container with a lid and internal components (no text or symbols)

Carter anti-projections

N° de réf. 41.052

Line drawing of a person wearing pants and holding a long pole, with grass and tiled floor in background (no text or symbols)

Line drawing of a vehicle with wheels and a wheel assembly (no text or symbols)

Line drawing of a cleaning tool (no text or symbols)

Line drawing of a person in protective suit using a power tool next to a machine (no text or symbols)

Line drawing of a fuel pump nozzle with internal components and directional arrow (no text or symbols)

Diagram of a vehicle's wheel assembly with hoses and spray, showing fluid flow direction (no text or symbols)

Illustration of a child and adult walking with a dog, showing a close-up of the dog's hand using a long rod to observe a large X-shaped object (no text or symbols present)

Diagram of a plug inserted into a wall with a cable, showing no text or symbols

Illustration of a person in protective suit using a cleaning power cleaner with a cross symbol (no text or symbols present)

Illustration of a child spraying water with a sprayer, no text or symbols present

Illustration of a person in protective suit using a vacuum cleaner with a cross symbol (no text or symbols present)

Diagram showing a showerhead spraying water onto a surface with a cross mark (no text or symbols)

Illustration of a hand interacting with a wristwatch and a bucket containing a fingerprint pattern (no text or symbols)

Prohibition sign indicating no signage or barrier, featuring a diagonal line with a valve symbol inside a circle.

230 V \~, 12,0 A, 50 Hz

Mechanical assembly diagram showing a bracket with screws and a cable, no text or symbols present

Technical line drawing of a mechanical device with a spring and lever mechanism (no text or symbols)

Line drawing of a person in protective suit pushing a lawn mower next to a forklift on stairs (no text or symbols)

Diagram of a tool being inserted into a cylindrical component, showing a connector and directional arrow (no text or symbols)

Diagram showing a cable being inserted into a plug with a circular arrow indicating rotation (no text or symbols)

Mechanical diagram showing a rotating spring with a shaft and rope, no text or symbols present

Diagram of a spray gun with an attached hose and directional arrow (no text or symbols)

Diagram of a hairdryer tool with a lever and handle, showing motion arrows (no text or symbols)

Mechanical assembly diagram showing a cable inserted into a housing with a valve and bolt (no text or symbols)

Diagram of a plug connected to a wall socket, showing an arrow indicating direction (no text or symbols present)

230 V \~, 12,0 A, 50 Hz

Line drawing of a lawn mower with hand operating the blade and arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a hand using a wrench to adjust or install components (no text or symbols visible)

Technical diagram of a car engine bay with valve and pressure gauge (no text or symbols)

Line drawing of a person in protective suit using a spray gun to clean or disinfect equipment (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a water purifier with attached pump and motor (no text or symbols)

Technical line drawing of a car engine bay with hoses and control panel (no text or symbols)

Diagram of a hairbrush emitting particles from a tip, with an arrow indicating direction (no text or symbols)

Diagram showing a tool emitting particles from a nozzle with an arrow indicating direction (no text or symbols)

Line drawing of a cleaning power supply machine next to a broom and bicycle (no text or symbols)

Line drawing of a cylindrical object with a magnifying glass highlighting internal features, no text or symbols present

Mechanical assembly diagram showing a wrench inserted into a vehicle engine housing (no text or labels visible)

Procedure:

Mechanical assembly diagram showing a valve mechanism with no visible text or symbols

Illustration of a hand holding a small electronic component with an arrow indicating rotation (no text or symbols)

Line drawing of a spray gun with water droplets spraying downward (no text or symbols)

Procedure:

Diagram of a cable connector with internal components and directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a wrench inserted into a housing with bolts and components (no text or labels)

Mechanical assembly diagram showing bolted components and directional arrows (no text or labels)

Diagram showing a hexagonal bolt with two arrows indicating direction and a separate spring component, alongside a circle.

Procedure:

Line drawing of a cleaning brush with a handle and lever (no text or symbols)

Line drawing of a worker using a tool to clean or wash material, no text or symbols present

Technical line drawing of a cleaning or cleaning tool with a handle and mesh component (no text or symbols)

De vloerreiniger round cleaner UFO Bestelnr. 41.850

Line drawing of a person in protective suit using a cleaning tool (no text or symbols)

Diagram illustrating a mechanical tool interacting with a textured surface, showing rotational motion (no text or symbols)

Diagram of a coiled hose with two connectors (no text or symbols)

Line drawing of a person using a hose to clean or wash equipment near a solar panel array (no text or symbols)

NL

Simple line drawing of a conical flask with a handle and two circular ports, no text or symbols present.

Spatbescherming

Bestelnr. 41.052

Line drawing of a person using a long-handled tool to clean or filter a tiled floor (no text or symbols)

Line drawing of a mechanical device with wheels and a spherical component (no text or symbols)

Line drawing of a hand tool with handle and grip (no text or symbols)

Illustration of a person in protective suit using a power tool next to a machine (no text or symbols)

Line drawing of a fuel pump nozzle with a handle and valve mechanism (no text or symbols)

Diagram of a vehicle's tire and hose assembly with spray gun, showing mechanical components and motion arrows (no text or symbols)

Illustration of a woman and child walking with a dog, showing a dog pulling a dog with a diagonal line extending from her (no text or symbols)

Simple line drawing of a plug inserted into a wall, with a curved wire and a cross mark on the ground (no text or symbols)

Illustration of a person in protective suit using a cleaning power cleaner with a cross symbol (no text or symbols present)

Illustration of a child spraying water with a sprayer, no text or symbols present

Illustration of a person in protective suit using a vacuum cleaner with a cross symbol (no text or symbols present)

Diagram showing a showerhead spraying water onto a surface with a cross mark (no text or symbols)

Illustration of a hand interacting with a wristwatch and a bucket containing a fingerprint pattern (no text or symbols)

Prohibition sign indicating no pollution or leakage, featuring a diagonal line crossing a pipe symbol.

230 V \~, 12,0 A, 50 Hz

Mechanical assembly diagram showing a bracket with screws and a cable, no text or symbols present

Technical line drawing of a mechanical device with a spring and lever mechanism (no text or symbols)

Line drawing of a person in protective suit pushing a lawn mower next to a forklift on stairs (no text or symbols)

Diagram of a tool being inserted into a cylindrical component, showing a connector and tip (no text or symbols)

Diagram showing a cable being inserted into a plug with a circular arrow indicating rotation (no text or symbols)

Mechanical diagram showing a mechanical device with a rotating shaft and spring, no text or symbols present

Line drawing of a spray gun with an attached hose and directional arrow (no text or symbols)

Diagram of a spray gun with lever and handle, showing motion direction (no text or symbols)

Mechanical assembly diagram showing a cable inserted into a housing with a valve and bolt (no text or symbols)

Diagram of a plug connected to a wall socket, showing an arrow indicating direction (no text or symbols present)

230 V \~, 12,0 A, 50 Hz

Line drawing of a lawn mower with hand operating the blade and arrows indicating motion (no text or symbols)

Mechanical assembly diagram showing a hand using a wrench to adjust or install components (no text or symbols visible)

Technical diagram of a car engine intake system with valve and pressure gauge (no text or labels)

Line drawing of a person in protective suit using a spray gun to clean or disinfect equipment (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a power plant with a water dispenser and pump, showing mechanical components without any text or symbols.

Technical line drawing of a car engine bay with hoses and control panel (no text or symbols)

Diagram of a hairbrush emitting powder from a tip, with an arrow indicating direction (no text or symbols)

Diagram showing a droplet being sprayed into a pipe with an arrow indicating direction (no text or symbols)

Line drawing of a cleaning power supply machine next to a broom and bicycle (no text or symbols)

Line drawing of a magnifying glass focusing on internal components, no text or symbols present

Mechanical assembly diagram showing a wrench inserted into a vehicle engine housing (no text or labels visible)

Forma de proceder:

Mechanical assembly diagram showing a valve mechanism with no visible text or symbols

Illustration of a hand holding a small electronic component with an arrow indicating rotation (no text or symbols)

Line drawing of a spray gun with water droplets spraying downward (no text or symbols)

Diagram of a cable connector with internal components and directional arrows indicating movement (no text or symbols)

Mechanical assembly diagram showing a wrench inserted into a valve with a downward arrow indicating force (no text or symbols present)

Forma de proceder:

Mechanical assembly diagram showing bolted components and directional arrows (no text or labels)

Diagram showing a hexagonal bolt with two arrows indicating direction and a separate diagram of three types of components: threaded, coiled, and plain.

Line drawing of a cleaning brush with a handle and lever (no text or symbols)

Line drawing of a worker using a spray gun to clean or wash material, no text or symbols present

Technical line drawing of a cleaning or cleaning tool with a handle and mesh component (no text or symbols)

El limpiapisos round cleaner UFO

N° de pedido 41.850

Line drawing of a person in protective suit using a cleaning tool (no text or symbols)

Diagram illustrating a mechanical tool interacting with a surface, showing motion and rotation (no text or symbols)

Diagram of a coiled hose with two connectors (no text or symbols)

Line drawing of a person using a hose to clean or wash equipment near a solar panel array (no text or symbols)

ES

Simple line drawing of a conical container with a lid and internal components (no text or symbols)

Line drawing of a person using a long-handled tool to clean or filter a patterned surface (no text or symbols)
