USER MANUAL Quadro 799 TST KRANZLE

High pressure cleaners

quadro 599 TS T

150 bar / 2175 psi

quadro 799 TS T

180 bar / 2600 psi

quadro 899 TS T

150 bar / 2175 psi

Cutaway view of a white power Libya water heater with visible internal components and hoses (no text or symbols)

Read and conform safety instructions before use!

Keep instructions in a safe place for later use and pass them on to any future user.

Technical data

Technical data		quadro 799 TSTquadro 599 TST quadro 899 TST
Operating pressure, steplessly adjust.	10 - 150 bar	10 - 180 bar	10 - 150 bar
max. permissible overpressure	165 bar	200 bar	170 bar
Water output at 0 bar	10,0 l/min	14,0 l/min	15,0 l/min
at nominal pressure	9,5 l/min	13,0 l/min	14,5 l/min
Nozzle size (Flat jet)	25035	25045	25060
(Dirt killer)	035	045	060
Volume
Water tank	10 l	10 l	10 l
max. inlet water temp. to water tank *2	max. 60 °C	max. 60 °C	max. 60 °C
Direct suction height	2,5 m	2,5 m	2,5 m
Hose drum	ja	ja	ja
High pressure hose	20 m	20 m	15 m
Electrical ratings	230 V/50 Hz	400 V/50 Hz	400 V/50 Hz
	14 A	8,5 A	8,5 A
Motor speed adjust.	1400 U/min	1400 U/min	1400 U/min
Connect.wattage Inp.	P1: 3,2 kW	P1: 5,5 kW	P1: 5,5 kW
Output	P2: 2,3 kW	P2: 4,0 kW	P2: 4,0 kW
Weight (incl. access. with empty water tank)	60 kg	60 kg	60 kg
Dimensions incl. handle L x W x H in mm	780 x 395 x 870	780 x 395 x 870	780 x 395 x 870
Sound level acc. to DIN
45 635 (reg. working place)	88 dB (A)	88 dB (A)	88 dB (A)
with dirtkiller	90 dB (A)	90 dB (A)	90 dB (A)
Guaranteed sound level L_WA	88 dB (A)	88 dB (A)	88 dB (A)
Vibrations at lance	ca. 20 N	ca. 20 N	ca. 22 N
Recoil at lance	2,0 m/s2	2,1 m/s2	2,1 m/s2
Order n°	40.431	40.432	40.434

*1 Min. water quantity to be supplied to the high pressure cleaner! (2 - 8 bar admission pressure)

*2 Direct suction is possible through by-passing of water tank! (see page 5)

Description

Dear customer

We would like to congratulate you on your new high pressure cleaner with integrated water tank and to thank you for the purchase.

To ease your introduction to the use of the cleaner, we have provided the following pages of explanations, tips and hints, which we ask you to read before using it for the first time.

The equipment will assist you professionally in all cleaning tasks, e.g.:

- facades

- vehicles of all types

- barrels and containers

- flagstones

- stables

- channels

- terraces

- machines etc.

Contents

Page

Technical data 2

Construction and components ....4

Water system 5

Detergent / caring system....5

Lance and spay gun....5

High pressure hose and spray device....6

Unloader valve - safety valve....6

Delayed motor cut-out....7

Safety cut-out....7

Setting up / Location ....7

Electrical connection....8

Brake....9

Brief operating instructions....9

This is what you've purchased....10

Preparation for use....11

External suction....13

When using detergents....14

To shut down the pump / Frost protection....14

Safety notes „This is prohibited !“....15

Additional accessories ....18

Small repairs....20

Spare parts lists ....22

Wiring diagram....42

General rules / oil change / guarantee....44

Declaration of conformity ....45

Inspection report ....46

Description

9 8 10 2 7 1 230V/50Hz quadro 599 quadro 799 quadro 899 400V/50Hz

Connection principle

The KRÄNZLE quadro 599 TST, 799 TST and 899 TST- high pressure cleaners are mobile machines with hose drum and 20m industrial hose.

The connection principle can be seen from the illustration.

Components

1 Water inlet connection with filter
2 Cover for water tank
3 High pressure pump
4 Press. gauge with glycerin filling
5 Unloader valve - safety valve

6 Detergent valve
7 High pressure hose
8 Spray gun
9 Interchangeable lance with flat jet nozzle and nozzle protection
10 Interchangeable lance with dirtkiller

Description

Water system

The water must be lead to the high pressure cleaner under pressure (2 – 8 bar ad-mission pressure). A float valve regulates the water inlet. Then, the water is sucked by the high pressure pump from the water tank and supplied to the lance under the set pressure. The high pressure jet is formed by the nozzle at the end of the lance.

Detergent and caring system

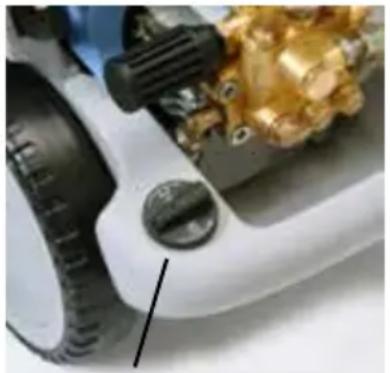

The high pressure pump can also suck a detergent/caring agent and mix it with the high pressure jet. The additive is sucked through the pump and brought in with the set pressure.

Insert the detergent hose into the detergent container and open the detergent valve (6). The detergent must have the ph-value 7-9 neutral.

The detergent discharges with the water at the high pressure nozzle.

Close-up of a mechanical component with a black tool and metallic parts, no visible text or symbols

6

Only open the dosing valve, if the chemistry sieve is placed in a liquid. Sucked air leads to destruction of the pump seals !!!

The rules concerning the environment, refuse and ground water protection must be complied with!

Lance with spray gun

The machine can only be operated when the safety trigger is squeezed.

When the lever is squeezed, the spray gun opens. The liquid is then pumped to the nozzle. The spray pressure increases and quickly reaches the selected operating pressure. For the deairing of the system open and close the gun quickly a few times. When the trigger is released, the trigger gun closes and any further spraying of liquid from the lance is stopped and the pressure gauge must show 0 bar.

The increase in pressure when the trigger gun is closed causes the unloader valve-safety valve to open. The pump remains switched on and continues to pump liquid through the pump at reduced pressure. When the spray gun is opened, the unloader valve - safety valve closes and the pump ressumes spraying from the lance with the selected operating pressure.

The spray gun is a safety device. Repairs should only be performed by qualified persons. Should replacement parts be required, use only components authorized by the manufacturer.

Description

High pressure hose and spraying device

The high pressure hose and spraying device supplied with the machine are made of high grade material. They are also optimized for the machine and marked as required by the appropriate regulations.

If replacement parts are required, only such parts that are authorized by the manufacturer and which bear the markings required by the appropriate regulations may be used. The high pressure hose and spraying device must be connected in a pressure-tight manner.

The high pressure hose may not be driven over, pulled excessively or twisted. Hose lines are wear parts. Guarantee is accepted only for manufacturing errors, not for external damages.

High pressure hose lines and spraying equipment must not be repaired, but replaced by a new hose or spraying equipment.

Unloader valve - safety valve

The unloader valve - safety valve protects the machine from a build up of excess pressure, and is designed not to permit an excess pressure to be selected for operation. The limit nut on the handle is sealed with a spray coating.

The operating pressure and spray rate can be steplessly adjusted by turning the handle.

Replacements, repairs, new adjustments and sealing should only be performed by qualified persons.

Take care that all screw connections are pressure-tight. A leakage of gun, high-pressure hose or hose drum has to be repaired at once. Leakages lead to an increased wear and to the destruction of the delayed motor cut-out.

Operator's task:

Prior to each usage of this liquid spraying device, the operator is obliged to check if all safety relevant parts are in perfect working condition. (e.g. safety valves, high-pressure hose, cables and connections, spraying devices, etc.)

Description

Delayed motor cut-out

Cartoon illustration of a smiling man giving a thumbs-up gesture (no text or symbols)

Frequent, work-necessitated switching on and off of motors on machines of this size puts a heavy load on the power network and causes increased wear on internal electrical parts. Therefore the motor of the new KRANZLE device only switches off 30 seconds after closing the gun and then goes to stand still. By opening the gun, the device is started again.

Safety cut-out

If the device is accidentally not turned off after use or the pistol is not used for 20 minutes, the device automatically goes into the safety state via deactivating. By operating the main switch again, the device is activated again.

Replacements and inspection work should only be performed by qualified persons when the machine is disconnected from the power supply, i.e. the plug pulled out from the electrical socket.

Setting up

Location

Neither set up and operate the machine in rooms where there is a risk of fire or explosion nor put it into puddles. Do not use the machine under water. The device must not stand in the spray area of the high pressure jet.

CAUTION!

Never suck in liquid containing solvents such as paint thinners, petrol, oil or similar liquid matter. Pay attention to the instructions of the manufacturers of the cleaning agents. The seals in the machine are not resistant to solvents! The spray of solvents is inflammable, explosive and poisonous.

CAUTION!

When running your high pressure cleaner with hot water of 60^ C raised temperatures occur. Do not touch the machine without safety gloves!

Description

quadro 599 230V/50Hz quadro 799 400V/50Hz

Electrical connection

The machine is supplied with an electrical power cord with plug.

The mains plug must be fitted to a standard grounded socket with a 30mA residual current operated device. The socket must be protected with a 16A delay action fuse on the mains side.

KRÄNZLE quadro 599 TST = 230 Volt / 50 Hz

KRÄNZLE quadro 799 TST = 400 Volt / 50 Hz

KRÄNZLE quadro 899 TST = 400 Volt / 50 Hz phase-sequence not significant)

When using an extension cable, this must have a grounded lead which is properly connected to the socket. The conductors in the extension cable must have a minimum cross section of 1.5 mm^2 . Plug connections must be of a spray-proof design and may not be located on a wet floor.

CAUTION!

The use of extension cables which are too long may lead to malfunctions and start up difficulty. If the extension cable is longer than 10m it must have a min. cross section of 2.5mm^2 .

When using a cable drum, always keep the cable wound as far as possible.

Description

Cartoon illustration of a smiling man waving, no text or symbols present

Brake

Close-up of a person's foot and ankle joint interacting with a vehicle wheel (no visible text or symbols)

Close-up of a hand pressing a small white object on a wheeled device (no visible text or symbols)

Brake applied Brake not applied

Brief operating instructions:

1. Connect high pressure hose with spray gun.
2. Connect to suitable water supply.
3. Connect current

(quadro 599: 230V/50Hz AC;

quadro 799, 899: 400V/50Hz three-phase current).

1. Switch on machine and start cleaning.
2. After having completed the cleaning process, put main switch in zero position and by opening the gun, reduce the pressure in the high pressure hose.

Then, the high pressure hose can be rolled up.

- Only use clean water! Protect from frost!

CAUTION!

Please pay attention to the regulations of your waterworks company.

Because of the water tank, the device can be connected to any drinking water line without worries.

This is what you've purchased:

Line drawings of three different hair guns: a pointed tool, a black-handled tool, and a compact gun (no text or symbols present)

1. Dirtkiller

Lance with nozzle protection and high pressure nozzle Flat jet 25°

1. Spray gun M2000 with insulated handle and screw connection

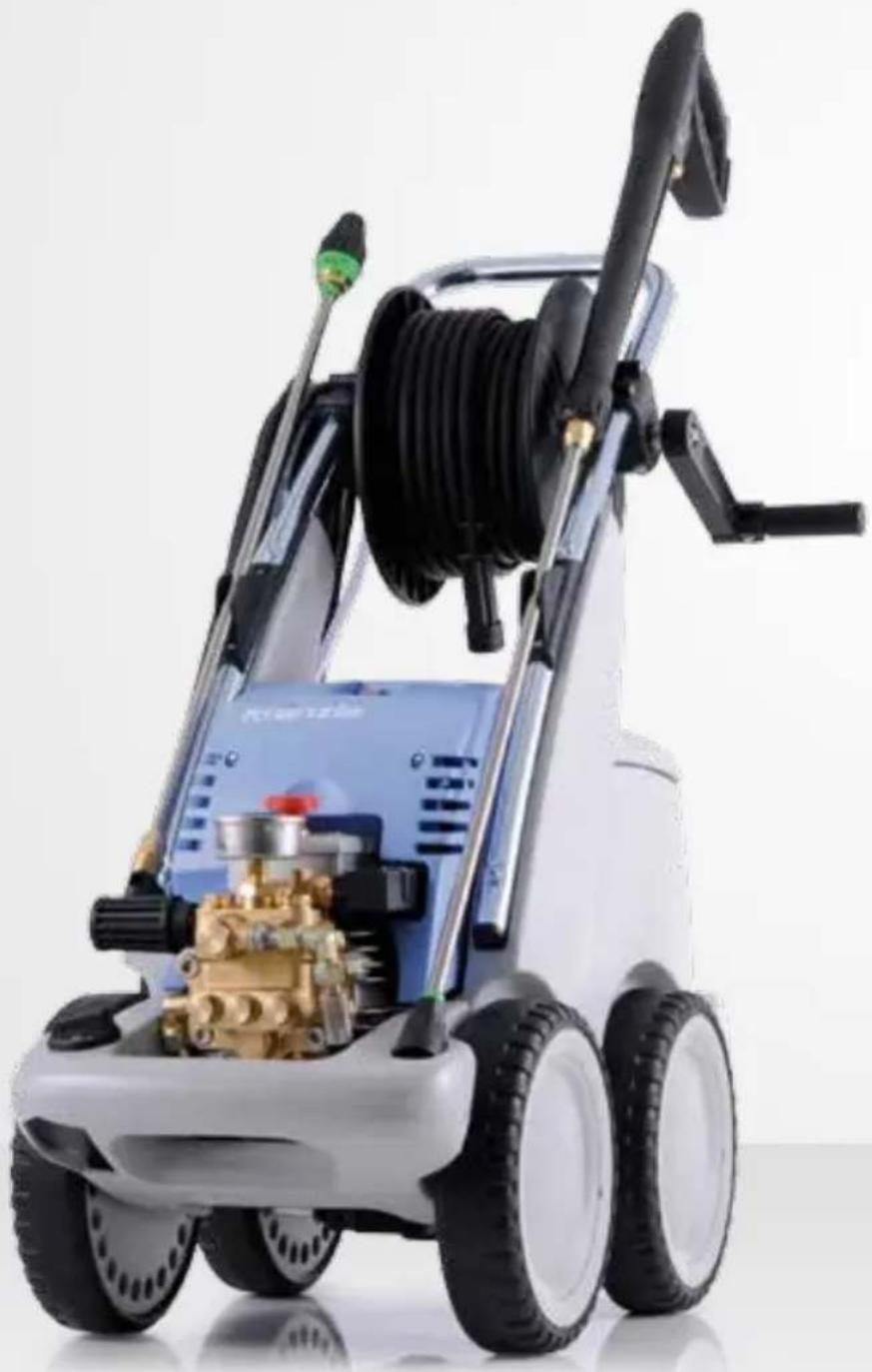

2. KRÄNZLE - High pressure cleaners quadro 599 TST and quadro 799 TST with hose drum and 20 m HP hose NW 6 with steel reinforcement

Close-up of a modern pressure washer with blue water pump and black adjustable arm (no visible text or symbols)

1. Operating manual

In the world in the world

1. HP hose 20 m NW 6 with hose drum

2. Collapsible crank for hose drum (already installed)

3. Plug-in connection of water inlet parts and filter (already installed)

3D rendered image of a gray mechanical bracket or bracket (no text or symbols visible)

Preparation for use

To control the high press put 1. the foot against the t 2. then pull the device t

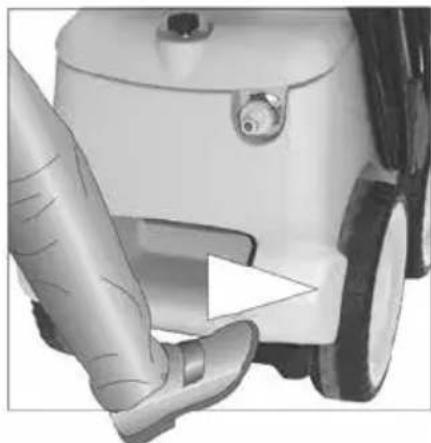

To control the high pressure cleaner put

1. the foot against the tilt bases and

2. then pull the device towards you.

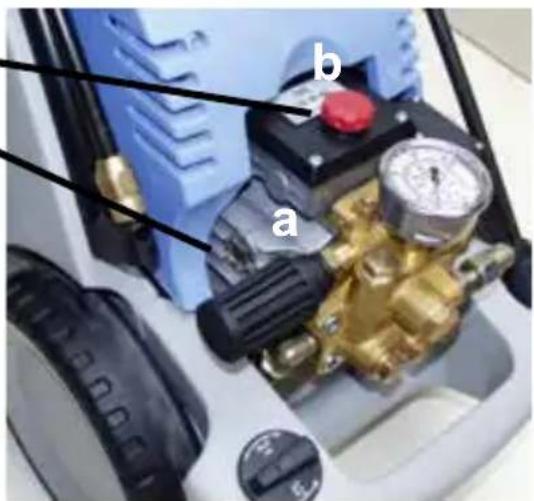

3. Check oil level.

There are two

possibilities for checking the oil level of the pump:

a) Oil must be visible in the viewing window
b) The oil level must be between the two markings on the oil dip stick.

Close-up of a hand using a pressure water heater to adjust a brass valve on a white industrial machine (no visible text or symbols)

Close-up of a mechanical pressure pump assembly with labeled parts (a and b), no visible text or symbols beyond labels.

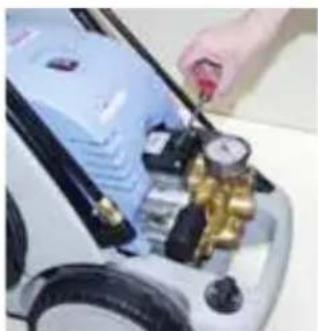

To check the oil level, loosen the oil cover screw and take out the oil dip stick. The oil level must be between the two markings.

Preparation for use

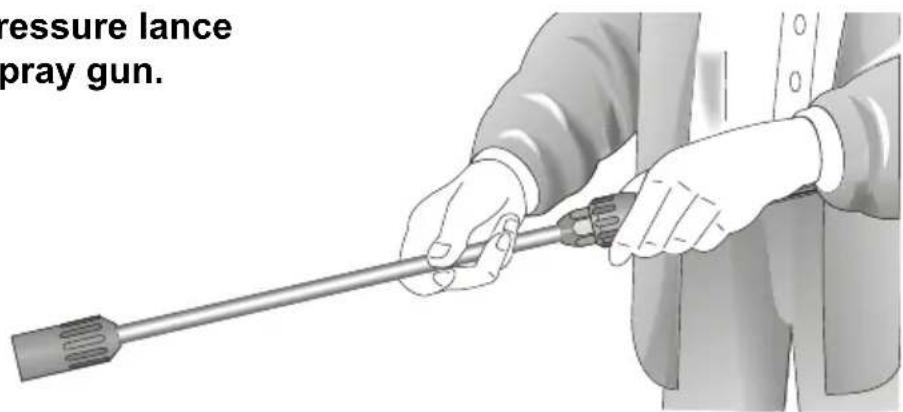

1. Connect the high pressure lance or dirtkiller to the spray gun.

pressure lance pray gun.

1. Unroll hose without kinks and connect with handgun and pump. Use max. 20 m HP hose.

links and con- d pump. Use

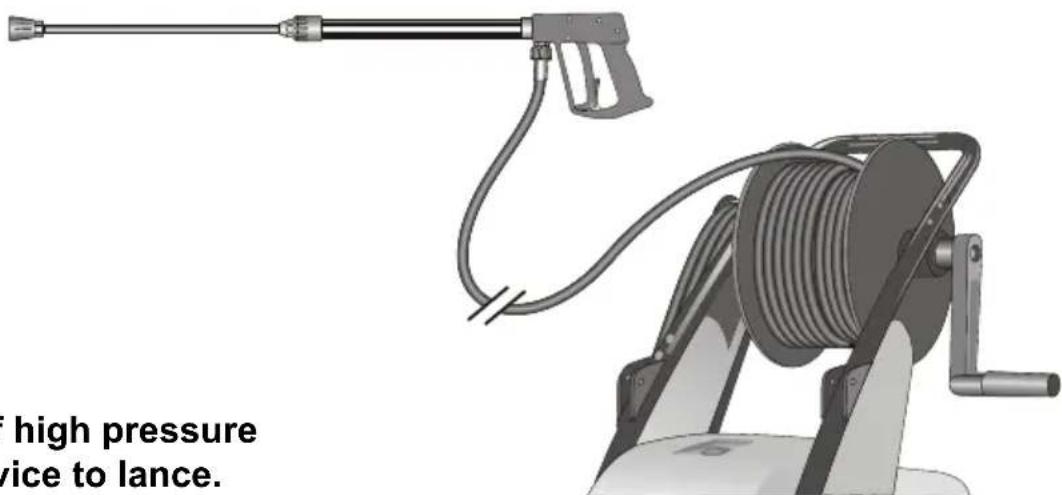

1. Connection of high pressure hose from device to lance.

high pressure vice to lance.

Preparation for use

1. The machine must be connected to the water line with cold water or up to 60^ C warm water (see page 2).

The hose cross section must be at least 3/4" = 16 mm (free passage). Filter 1 must always be clean.

Please make sure that the filter is clean before using your high pressure cleaner.

Close-up of hands using a tool to adjust or install a white robotic device (no visible text or symbols)

CAUTION!

When running your high pressure cleaner with hot water of 60^ C raised temperatures occur. Do not touch the pump without safety gloves!

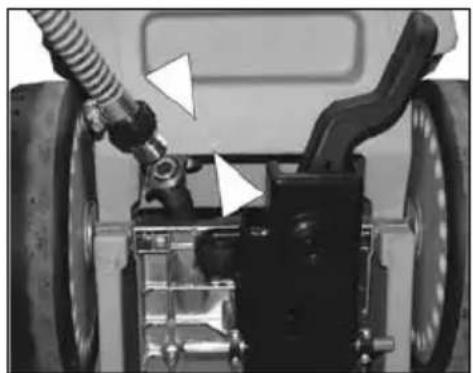

External suction

Top-down view of a vehicle chassis showing four wheels and internal components (no text or symbols visible)

Undercarriage Undercarriage

Mechanical assembly diagram showing a vehicle chassis with wheels and a valve, no visible text or symbols

If water is to be sucked from an external container for the high pressure cleaner, the connection hose between the high pressure pump and the water tank must be screwed off and the suction hose must be connected via a double nipple 3/4" (Order no.: 46.004) to the connection hose.

Make sure that the water is clean. Use the Kränzle suction hose with suction filter. (Order no. 15.038 3)

Maximum suction height 2.5 m, maximum water temperature for direct suction: 60^ C (see technical data on page 2)

To shut down the pump

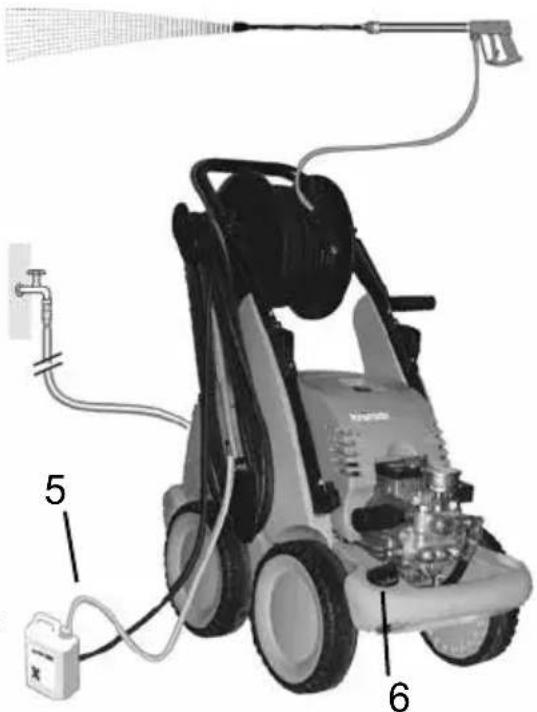

When using detergents

Put chemistry sieve number 5 into the detergent container. Open the detergent valve (6), then the detergent is sucked in. When closing the detergent valve, the chemistry supply is automatically closed. Allow detergent to act and then wash off. (see page 5).

Diagram of a Kevada water heater with labeled components including pump, hose, and water tank

Note that you must always comply with the instructions provided by the manufacturer of the detergent (e.g. safety clothing) and the water protection regulations!

Only open the valve, if the chemistry sieve is in a liquid. Sucked in air leads to the destruction of the pump seals !!!

Damages to the pump caused by sucked in air are not covered by the guarantee.

To shut down the pump:

1. Switch off the machine. Device switch to „0“ position.
2. Cut off the water supply.
3. Open the spray gun briefly until the pressure is released.
4. Apply the safety catch on the spray gun.
5. Remove the water hose and spray gun.
6. Pull the plug from the socket.
7. Winter: store the pump in rooms above 0^ C.
8. Clean the water filter.

Safety notes

Frost protection

Normally after operation, there is still some water in the device. Thus, you must take special measures to protect the device from frost.

- Completely drain the device

For this purpose, separate the device from the water supply. Then, turn on the main switch and open the gun. Now, the pump presses the remaining water from the water tank and the pump. However, do not allow the device to operate without water for longer than one minute.

- Fill the device with antifreeze agent

If the device is not operated for longer periods, especially over the winter, you should pump an antifreeze agent through the device. For this purpose, fill the anti-freeze agent into the water box and turn on the device. Wait with opened gun, until the agent comes from the nozzle.

However, the best way to protect the device from frost is to store it at a frost-free location.

Cartoon illustration of a man in a suit using a power tool to interact with a large arrow symbol (no text or symbols present)

As to the recoil - see notice on page 2!

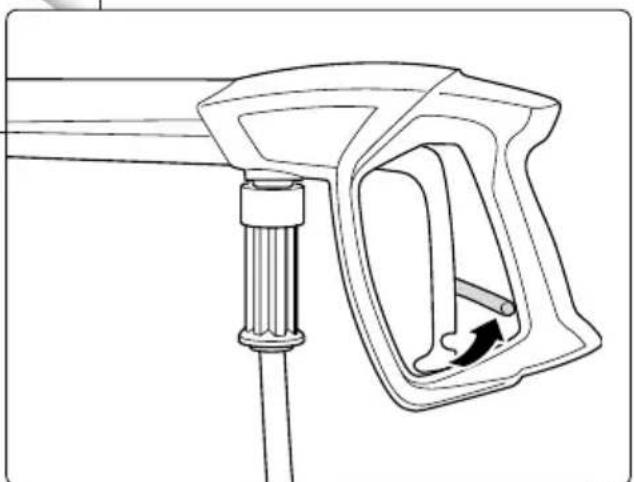

Apply the safety catch on the spray gun after each use, in order to prevent unintentional spraying!

Line drawing of a fuel pump nozzle with a handle and valve mechanism (no text or symbols)

This is prohibited !

Illustration of a woman holding two babies with a dog and a light beam, no text or symbols present

Never direct the water jet at people or animals!

Diagram of a cable being twisted with a loop, showing no text or symbols

Do not damage the power cable or repair it incorrectly!

Illustration of a person in a suit holding a hose and a walking stick, with Olympic rings in the background (no text or symbols)

Never pull the high pressure hose if it has formed kinks or "nooses"!

Never pull the hose over sharp edges!

This is prohibited !

STOP

Illustration of a child standing with a long pole, holding a tool, crossed by diagonal lines (no text or symbols)

Never allow children to use the high pressure cleaner!

Illustration of a person spraying a pressure cooker next to a water purifier (no text or symbols visible)

Never direct the water jet at the machine itself!

Diagram showing a connector with three pins and a paintbrush touching it, crossed by intersecting diagonal lines (no text or symbols)

Never direct the water jet at a power socket!

Additional accessories for ... (on demand)

Line drawing of a hand tool with handle and grip (no text or symbols)

Rotary scrubbing brush Order No. 41.050 1

Drain and pipe cleaning hose

10 m - Order No. 41.058.1 15 m - Order No. 41.058

Illustration of a cleaning brush and a coiled hose assembly (no text or symbols)

Environmental, refuse disposal and water protection regulations must be observed when using the accessories!

Guarantee

The guarantee is only valid for material and manufacturing errors. Wearing does not fall within this guarantee.

The instructions in our operating manual must be complied with. The operating instructions form part of the guarantee. The Guarantee is void if other parts are used than genuine Kränzle accessory parts or genuine Kränzle spare parts.

For high-pressure cleaners sold to the user the guarantee period is 24 month.

For high-pressure cleaners sold for industrial use the guarantee period is 12 month. In the case of a guarantee please contact your dealer or authorized seller delivering accessories and your purchase receipt. You can find them in the internet under www.kraenzle.com.

The guarantee is also void if the machine is used with exceeding the temperature and speed limits, a voltage below the required rating, with less than the required amount of water or with dirty water. Pressure gauge, nozzle, valves, sleeves, high pressure hose and spray equipment are wear parts and are not covered by the warranty.

... further combination possibilities

Cartoon illustration of a smiling man giving a thumbs-up gesture (no text or symbols)

Cartoon illustration of a man using a power tool to clean or wash a large window (no text or symbols visible)

Car cleaning, glass, caravan, boat etc.: rotary washing brush with 40 cm extension and ST 30 nipple M22 x 1.5

Illustration of a person using a tool to connect pipes, no text or symbols present

Cleaning pipes, channels and drains: pipe cleaning hose with KN nozzle and ST 30 nipple M22 x 1.5

Cartoon illustration of a man holding a rifle near a vehicle (no text or symbols)

Cleaning cars and all smooth surfaces: brush with ST 30 nipple M22 x 1.5

Cartoon illustration of a man spraying water on a tiled surface with trees in the background (no text or symbols)

Rotary point sprayer for extreme soiling: Turbokiller with 40 cm extension and ST 30 nipple M22 x 1.5

Small repairs ...

The nozzle is blocked!

● No water but the gauge shows full pressure!

Cartoon illustration of a smiling man gesturing with his hand (no text or symbols)

do it yourself!

Nozzle dirty or sticky!

● Pressure gauge does not show full pressure ● The high-pressure hose vibrates
● Water comes out in spurts.
- If you do not use the high-pressure cleaner for some time the valves can stick

When a valve is blocked.

the gauge shows little pressure or no pressure at all

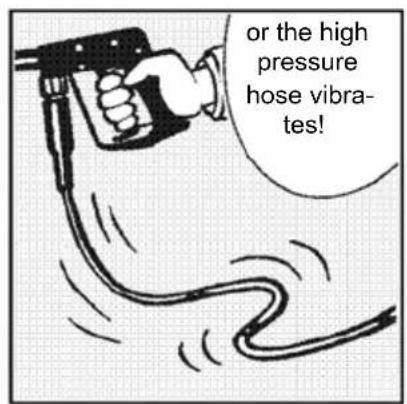

or the high pressure hose vibra- tes!

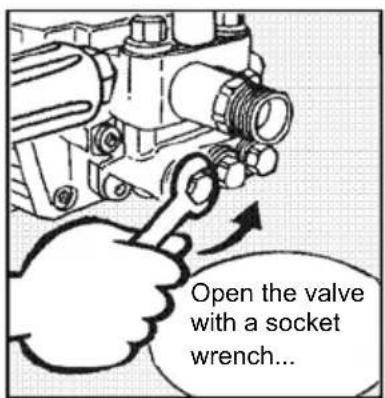

Open the valve with a socket wrench...

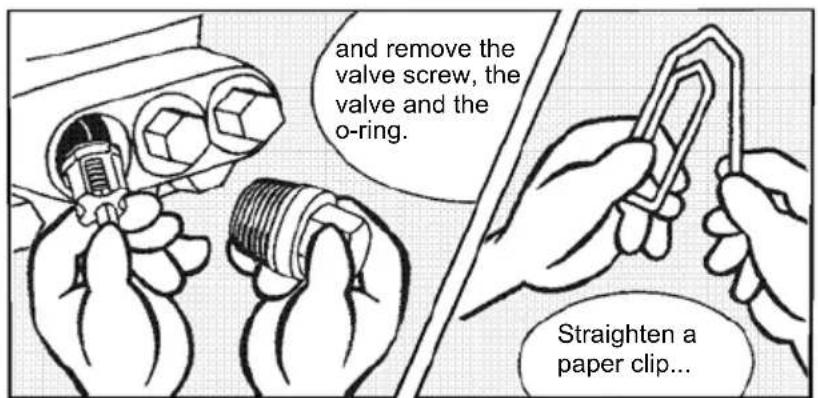

and remove the valve screw, the valve and the o-ring. Straighten a paper clip...

and remove the dirt from the valve - the valve inside must be closed.

Replace the rubber o-ring.

Hand holding a mechanical component with threaded shaft and bolts (no text or symbols visible)

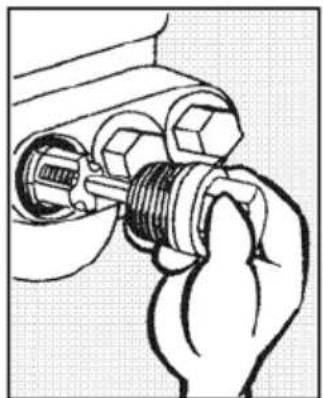

Retighten the valve screw

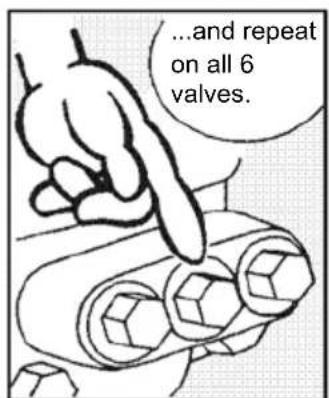

...and repeat on all 6 valves.

Now it works as well as before!

Complete Assembly

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Spare parts list KRÄNZLE quadro 599 TST - 899 TST Complete assembly

Water inlet and brake

Exploded view diagram of a car's internal components with numbered parts for identification

Spare parts list KRÄNZLE quadro 599 TST - 899 TST Water inlet and brake

No Description Qty. Ord.-No

Exploded view diagram of an electric motor assembly with numbered components and labeled parts

Spare parts list KRÄNZLE quadro 599 TST Pump motor
No Description Qty. Ord.-No

Exploded view diagram of an electric motor assembly with numbered components and labeled parts

Spare parts list KRÄNZLE quadro899 TST Pump motor
No Description Qty. Ord.-No

Technical diagram of an electric motor assembly with numbered components for identification

Spare parts list KRÄNZLE quadro 599 TST Pump transmission unit for AM-pump

with ball bearing for quadro 599

consisting of: Items 1-24

Transmission unit

Exploded view diagram of a mechanical assembly with numbered parts for identification

Spare parts list KRÄNZLE quadro 799 TST Pump transmission unit for AM-pump
No Description Qty. Ord.-No

Unloader valve and pressure switch

Technical diagram of a mechanical assembly with numbered parts, likely a valve or pump component, showing exploded and assembled views.

Spare parts list KRÄNZLE quadro 599 TST - 899 TST Unloader valve and pressure switch

Technical diagram of a mechanical assembly with numbered components for identification

Spare parts list KRÄNZLE quadro 599 TST -899 TST Valve housing for integrated AM-pump

Technical diagram of a mechanical device with numbered components and labeled parts

Spare parts list KRÄNZLE quadro 599 TST - 899 TST Hose drum

Exploded view diagram of a mechanical device with numbered parts for identification

No Description Qty. Ord.-No

1 Pistolenschale re+li 1 12.450

2 Schraube 3,5 x 14 10 44.525

52 Rohr 500 mm; bds. M12x1 1 41.527 1

53 ST 30 Nippel M 22 x 1,5 / M12x1 m. ISK 1 13.363

54 Flachstrahldüse 20035 (quadro 599) 1 M20035

54.1 Flachstrahldüse 20045 (quadro 799) 1 M20045

54.2 Flachstrahldüse 2506 (quadro 899) 1 D2506

55 Aluminium-Dichtring 8,3x11,3x2 2 13.275 1

Exploded view diagram of a mechanical device with numbered parts for identification

No Description Qty. Ord.-No

The machine must be inspected according to the “Guidelines for Liquid Spray Devices” at least once every 12 months by a qualified person, to ensure that continued safe operation is guaranteed.

The results of the inspection are to be recorded in writing.

This may be done in any form. (see pages 46-47)

Accident prevention

The machine is designed for accidents to be impossible if used correctly.

The operator is to be notified of the risk of injury from hot machine parts and the high pressure water jet. The “Guidelines for Liquid Spray Devices” must be complied with. (see pages 15 - 17).

Check the oil level at the oil dip stick prior to each use (see also page 11).

(Ensure horizontal position!)

Oil change:

The first oil change should be carried out after approximately 50 operating hours, then every year or after 1000 operating hours. If the oil turns grey or white, you must change the oil of your high pressure pump in any case. Open the oil discharge screw at the bottom of the device over a collection resevoir. Ensure a horizontal position to drain the oil completely. The oil is to be caught in the reservoir and disposed of in an approved manner.

New oil: 0,8 l

Motor oil: Castrol 10 W-60 SAE halfsynthetic oil

Top-down view of a vehicle chassis showing front wheel, rear wheels, and internal components (no text or symbols visible)

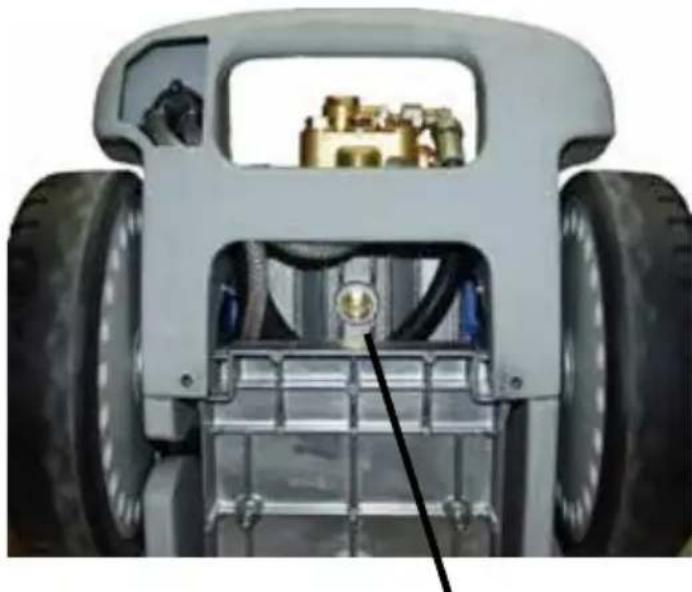

Oil discharge screw

EC declaration of conformity

We hereby declare, that the high-pressure models:

(techn. documentation available from):

Kränzle quadro 599 - 899 TST

Manfred Bauer, Fa. Josef Kränzle Rudolf-Diesel-Str. 20, 89257 Illertissen

Nominal flow:

K quadro 599 TST: 600 l/h

K quadro 799 TST: 780 l/h

K quadro 899 TST: 900 l/h

comply with the following guidelines and specifications and their amendments for high-pressure cleaners:

Machine guideline 2006/42/EEC Specification for electromagnetic compatibility 2004/108/EEC Outdoor noise directive 2005/88/EC, Art. 13, High-pressure water jet machines Appendix 3, part B, chapter 27

Sound power level measured: guaranteed:

86 dB (A)

88 dB (A)

Applied conformity evaluation procedures:

annex V, noise directive 2005/88/EC

Applied specifications and standards:

EN 60 335-2-79 :2009

EN 55 014-1 :2006

EN 55 014-2 / A2:2008

EN 61 000-3-2 :2006

EN 61 000-3-3 :2008

Bielefeld, den 12.19.2012

Cereeple jocf

Kränzle Josef (Managing Director)

Inspection report for HP cleaners

HP cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Kränzle test seals: Order no. UVV200106

Owner:

Address:

[NO TEXT]

Type:

Serial no.:

Rep. order no.: ____

Scope of inspection	o.k.	yes	no	repaired
Type plate (on hand)
Operating manual (on hand)
Protective covering, -device
Pressure line (tightness)
Pressure gauge (function)
Float valve (tightness)
Spraying device (marking)
HP-hose / connector (damage, marking)
Safety valve opens at 10 % / 20 % exceeding of operating pr.
Power cable (damage)
Protective conductor (connected)
On / Off switch
Used chemicals
Allowed chemicals

Inspection data	determined value	set value
High-prsure nozzle
Operating pressure......bar
Switch off pressure......bar
Conductor reist. not exceeded / value
Insulation
Leakage current
Gun locked

Inspection result (tick)

The appliance was checked by an expert according to the Guidelines for Liquid Spray Equipment, the defects found have been rectified so that the Labour Safety can be confirmed.
The appliance was checked by an expert according to the Guidelines for Liquid Spray Equipment. The Labour Safety cannot be confirmed unless the defects found are rectified by repair or replacement of the faulty parts

The next retest according to the Guidelines for Liquid Spray Equipment has to be carried out by: Month ____ Year ____

Place, date

Signature

Inspection report for HP cleaners

HP cleaners for industrial use have to be checked by an expert every 12 months! Inspection report on annually carried out Labour Safety Inspection (UVV) according to the Guidelines for Liquid Spray Equipment. (This inspection sheet serves as proof for the completion of the retest and must be kept carefully!) Kränzle test seals: Order no. UVV200106

Owner:

Address:

[EMPTY]

Type:

Serial no.:

Rep. order no.: ____

Scope of inspection	o.k.	yes	no	repaired
Type plate (on hand)
Operating manual (on hand)
Protective covering, -device
Pressure line (tightness)
Pressure gauge (function)
Float valve (tightness)
Spraying device (marking)
HP-hose / connector (damage, marking)
Safety valve opens at 10 % / 20 % exceeding of operating pr.
Power cable (damage)
Protective conductor (connected)
On / Off switch
Used chemicals
Allowed chemicals

Inspection data	determined value	set value
High-prsure nozzle
Operating pressure......bar
Switch off pressure......bar
Conductor reist. not exceeded / value
Insulation
Leakage current
Gun locked

Inspection result (tick)

The appliance was checked by an expert according to the Guidelines for Liquid Spray Equipment, the defects found have been rectified so that the Labour Safety can be confirmed.

The appliance was checked by an expert according to the Guidelines for Liquid Spray Equipment. The Labour Safety cannot be confirmed unless the defects found are rectified by repair or replacement of the faulty parts

The next retest according to the Guidelines for Liquid Spray Equipment has to be carried out by: Month ____ Year ____

Place, date Signature

Ingrid Kränzle GmbH

Elpke 97

33605 Bielefeld (Germany)

Telefon: +49 (0) 521 / 9 26 26-0

Telefax: +49 (0) 521 / 9 26 26-40

[e-mail]

Made
in
Germany
