USER MANUAL Vela NRS FALMEC

INSTRUCTIONS BOOKLET

MANUAL DE INSTRUÇÕES

Dear Sir/Madam, congratulations!

You have purchased a prestigious range hood of guaranteed quality. For best results, we suggest that you carefully follow the operating and maintenance instructions provided in this booklet; in addition, to order spare charcoal filters, use the special coupon on the cover.

512 mm H Y X ① ② ③ ④ ø 8 mm S V1

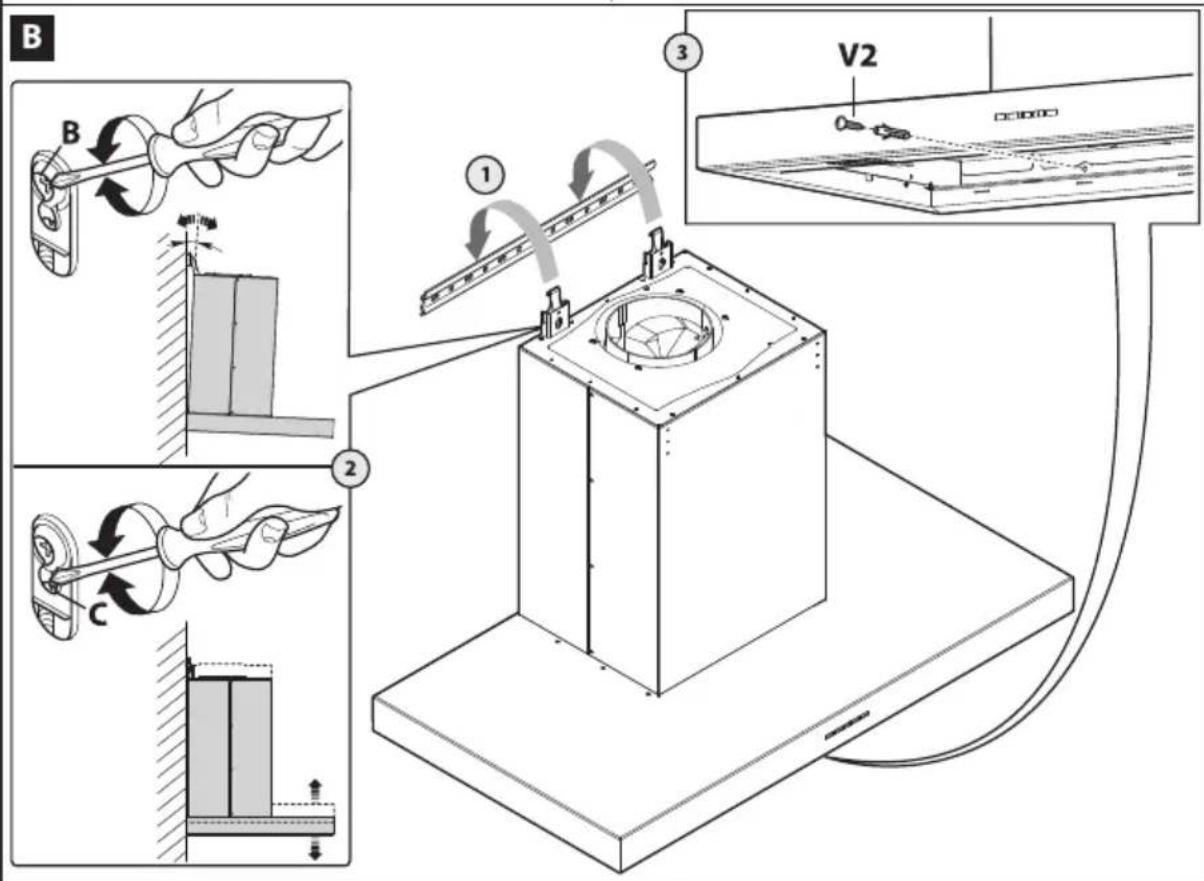

B ① ② ③ V2

D

F ① C

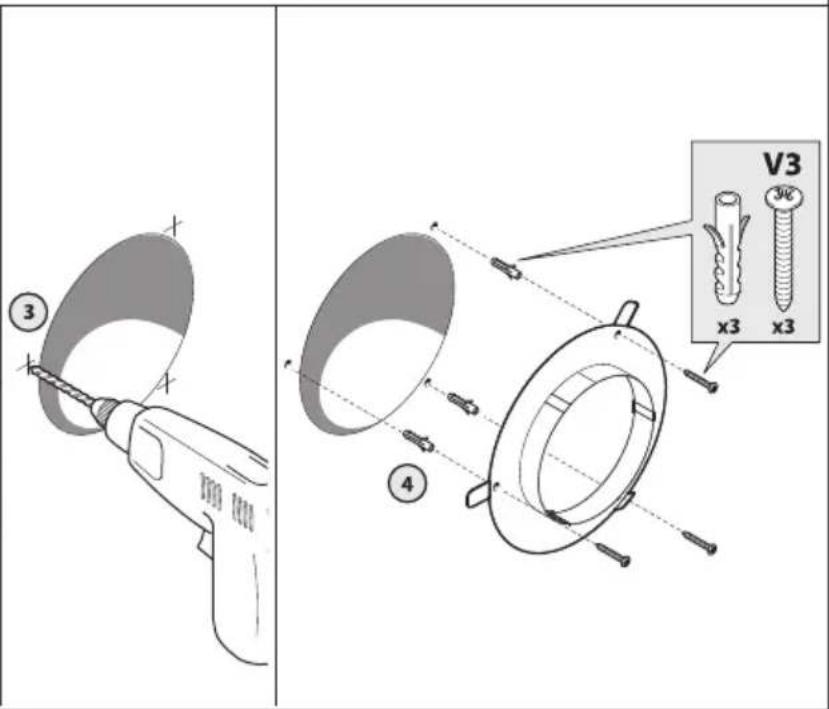

V3 x3 x3

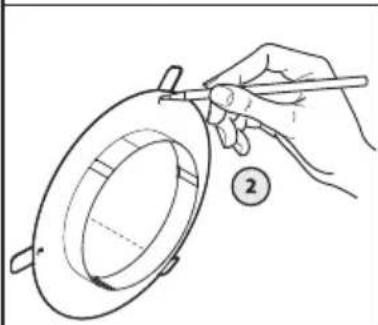

Line drawing of a hand holding a tool over a circular component, with no visible text or symbols

V3 x3 x3

E

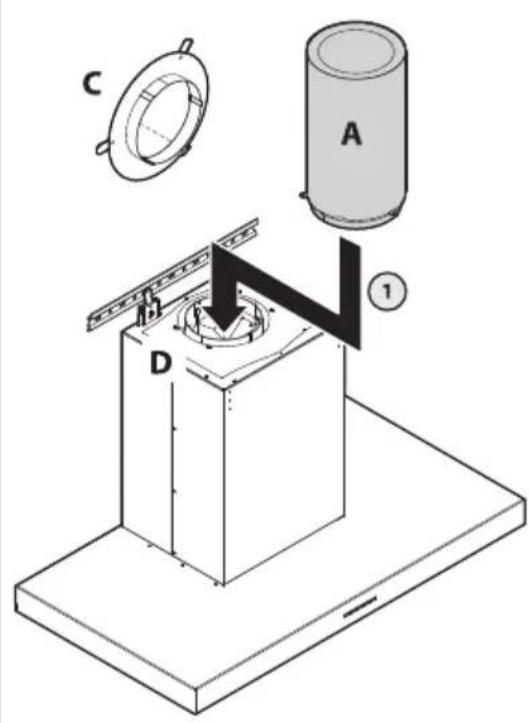

C A D ①

V4 x 3

3 C B A

Diagram illustrating a mechanical or electrical component being adjusted with a tool, showing motion arrows and labeled parts.

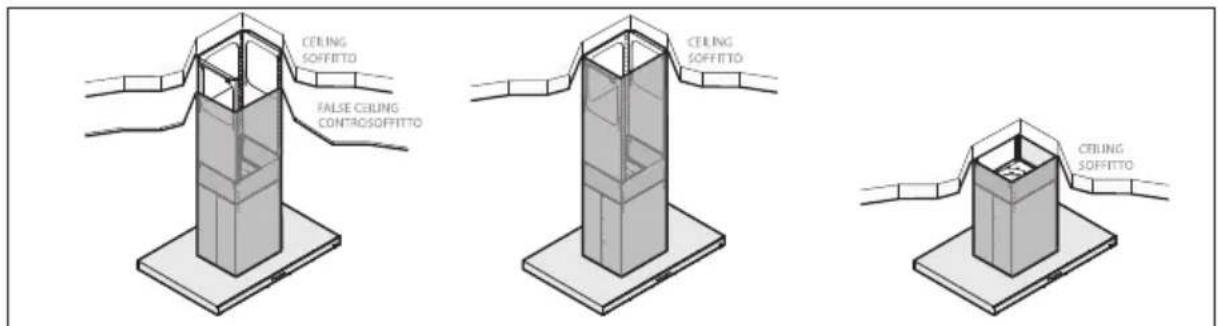

CEILING SOFFITTO FALSE CEILING CONTROSOFFITTO CEILING SOFFITTO CEILING SOFFITTO

A1 H1 H Y X FALSE CEILING CONTROSOFFETTO CEILING SOFFETTO H1 H Y X

B1 Lumina NRS AP PN (Lumina NRS) CO

C1 ① ② ③ CM

D1 V1 x7 TI CM

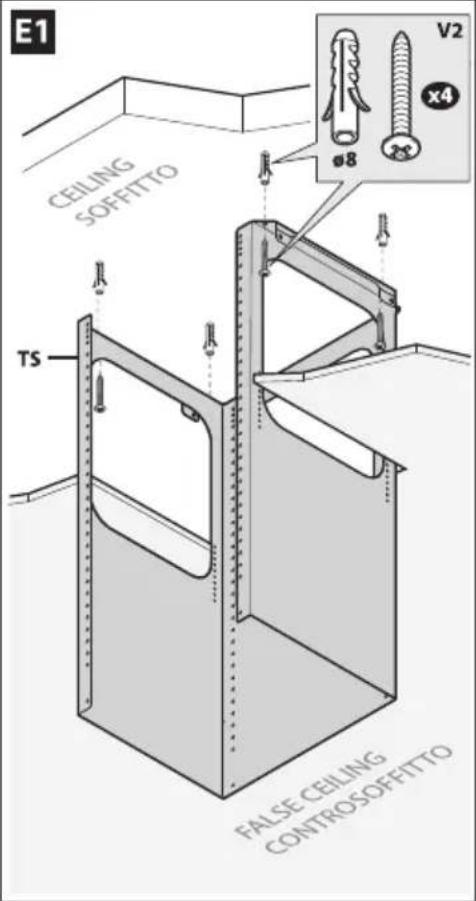

E1 CEILING SOFFITTO TS FALSE CEILING CONTROSOFFITTO V2 x4 Ø8

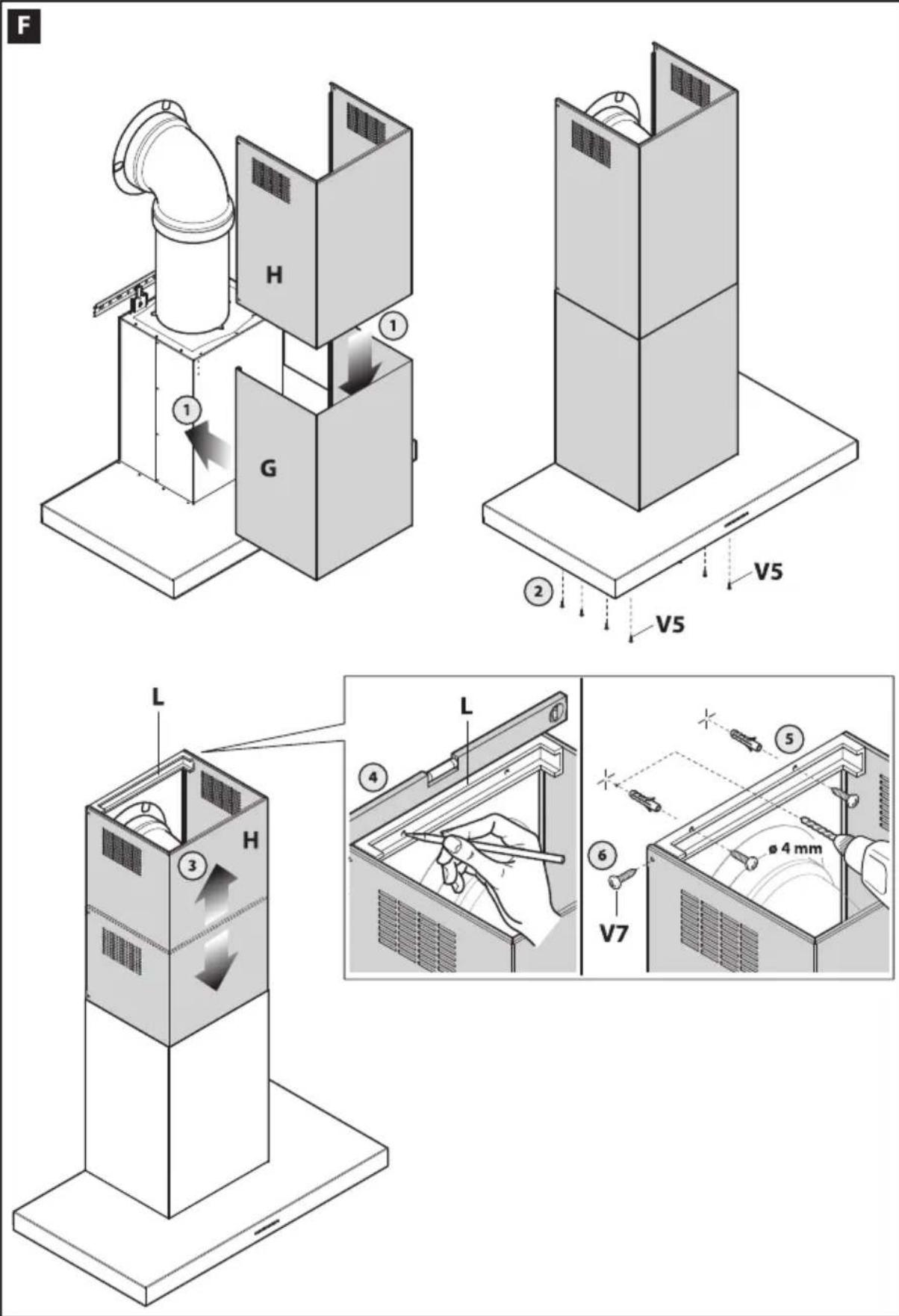

F1

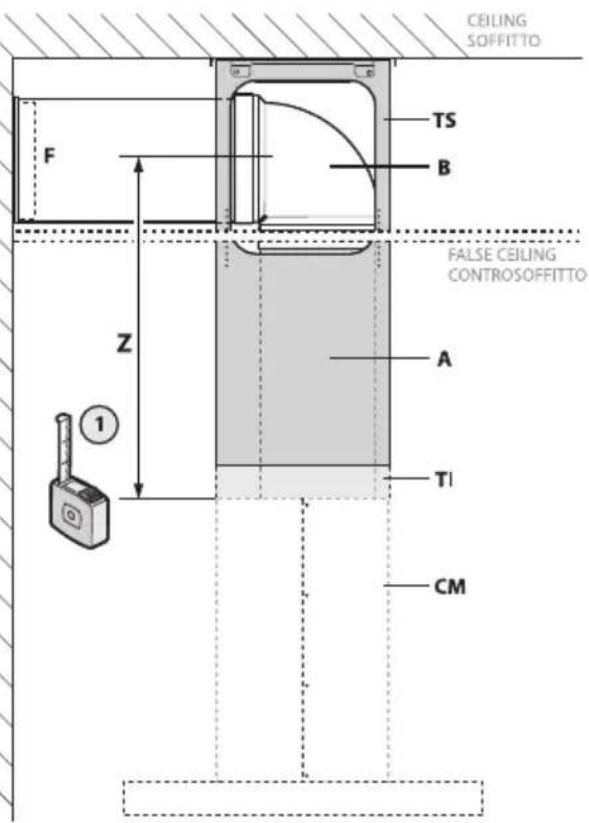

CEILING SOFFITTO TS B FALSE CEILING CONTROSOFFITTO A TI CM F Z 1

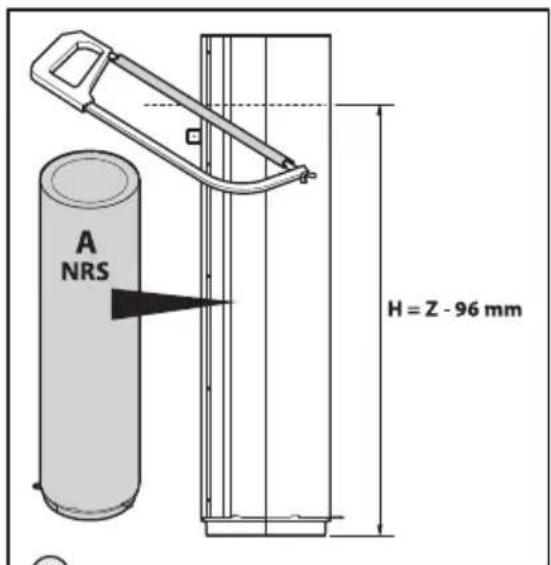

A NRS H = Z - 96 mm

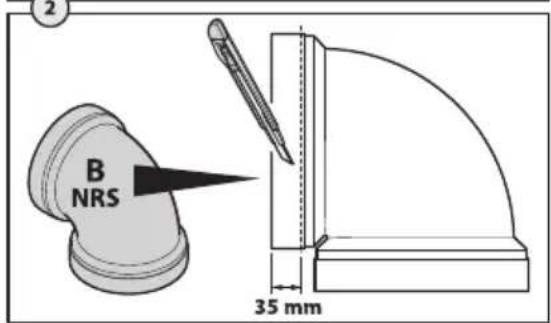

B NRS 35 mm

G1

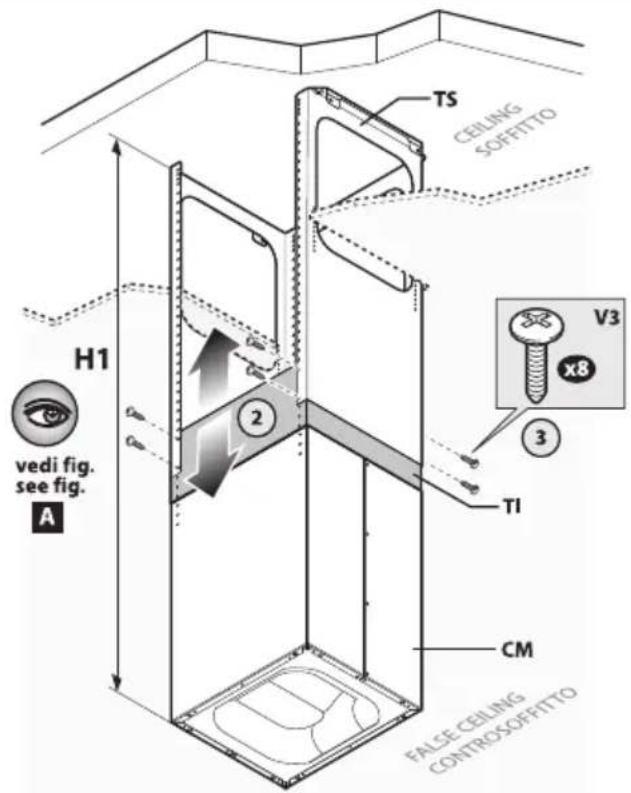

TS CEILING SOFFITTO H1 vedi fig. see fig. A 2 V3 x8 ③ TI CM FALSE CEILING CONTROSOFFITTO

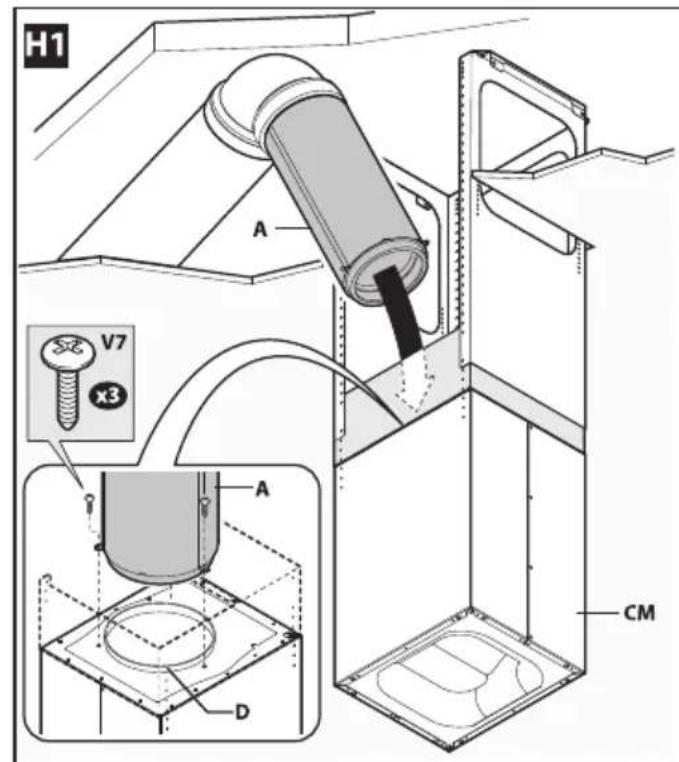

H1 A V7 x3 A D CM

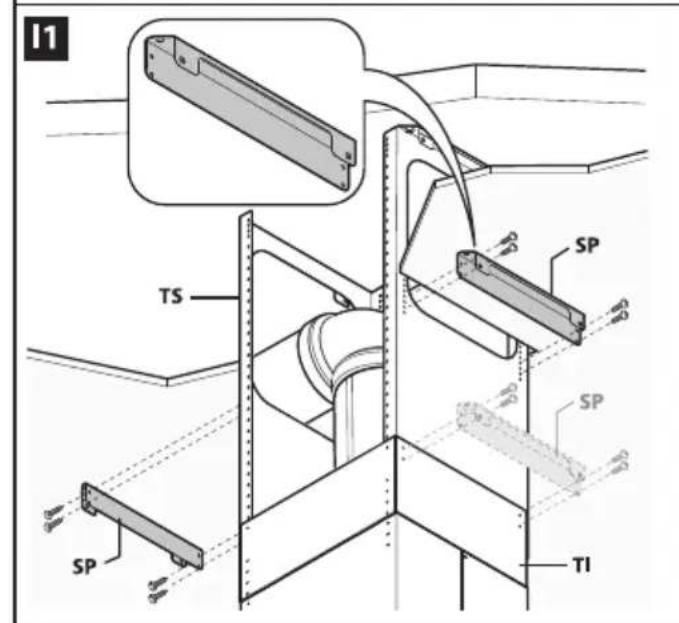

I1 TS SP SP TI

L1 CEILING SOFFITTO SP FALSE CEILING CONTROSOFFITTO SP CM H G 1 2 VS x4

SP H VS ③

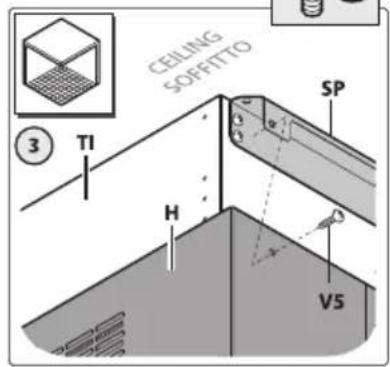

CEILING SOFFITTO TS H V5

CEILING SOFFITTO SP H V5 ③ TI

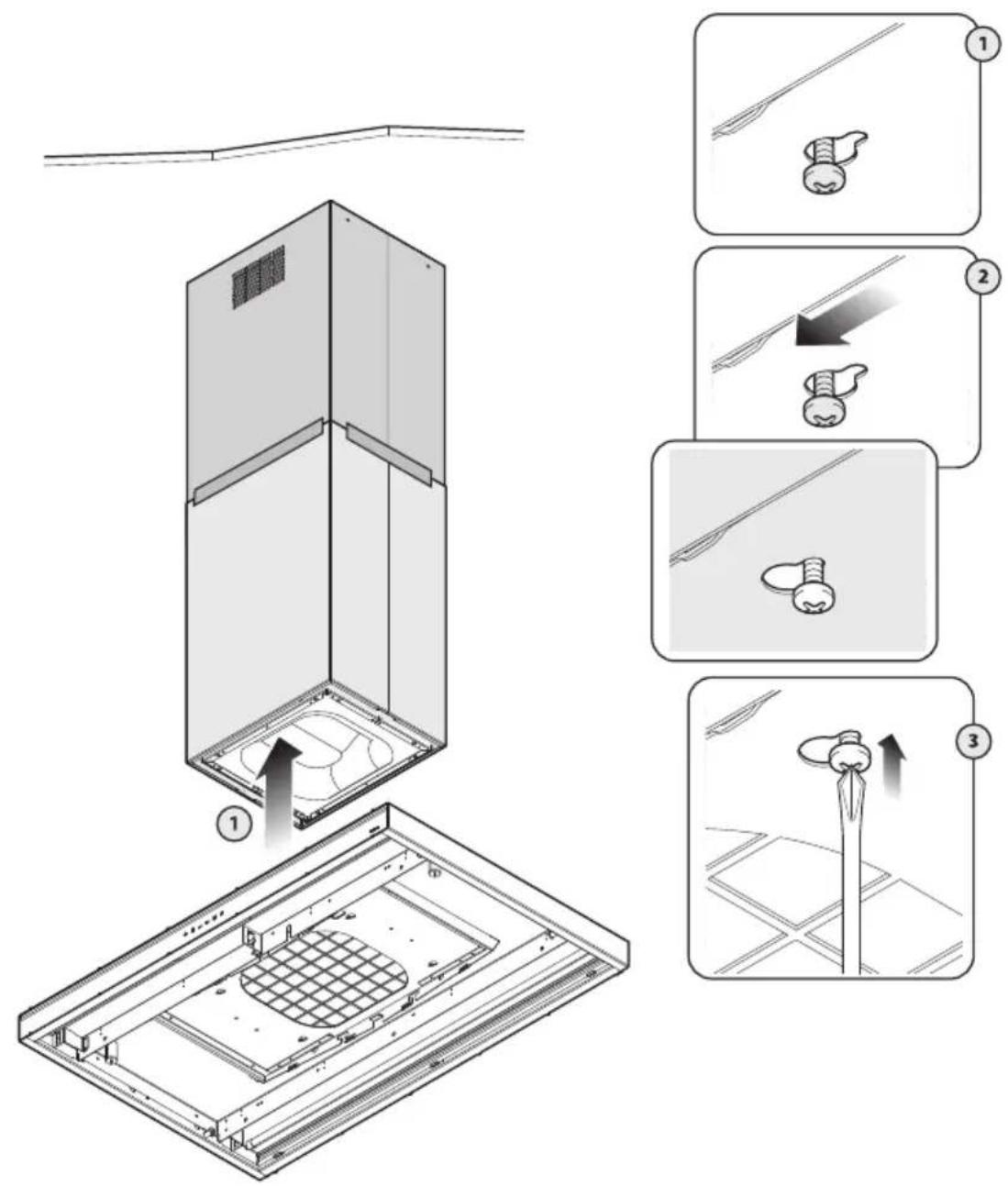

M1

Technical diagram illustrating the step-by-step installation of a mechanical component, showing assembly and disassembly steps with numbered annotations.

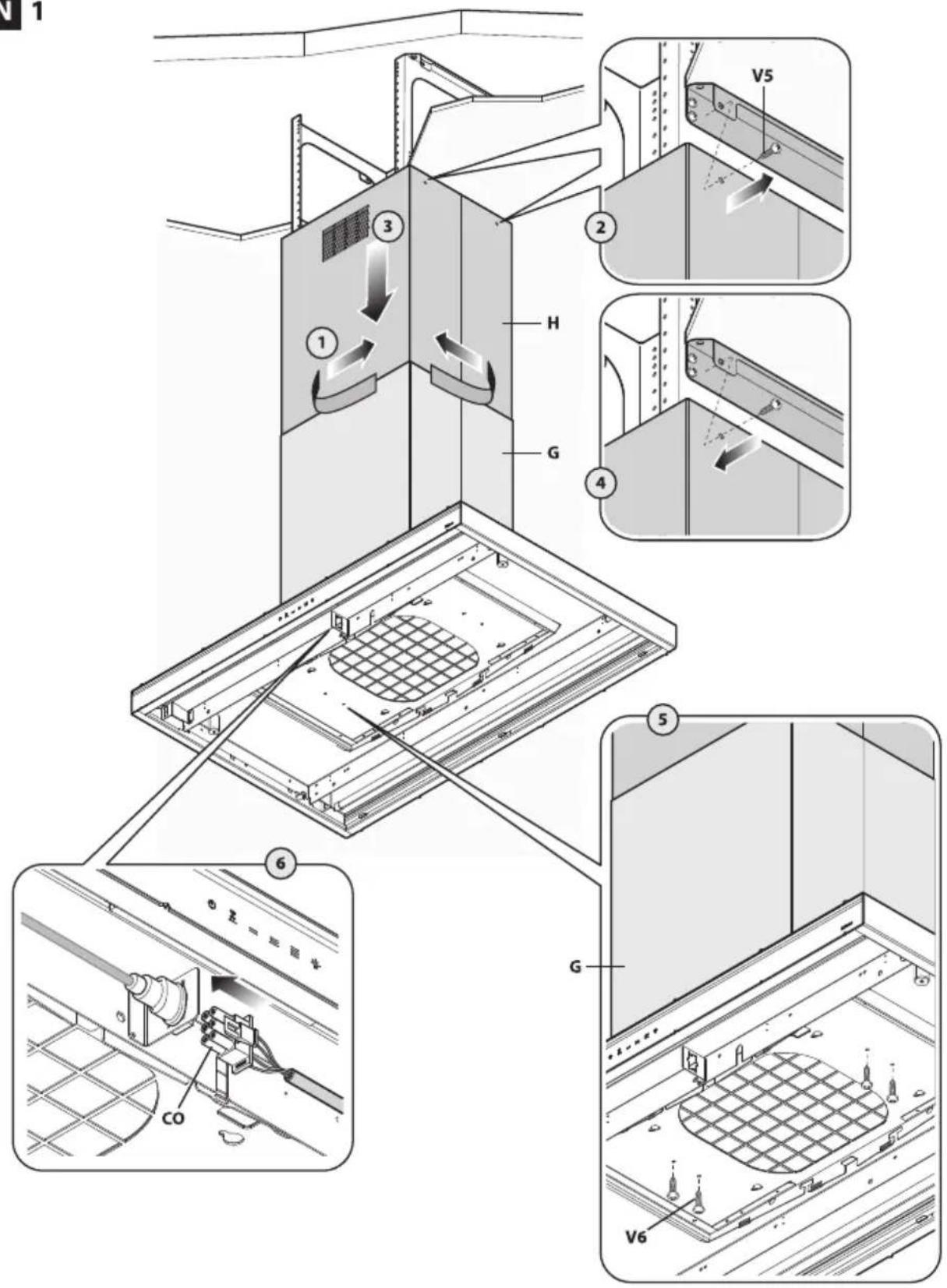

N 1

Technical diagram of a server rack with labeled components and airflow directions, including fan, drive, and control panels.

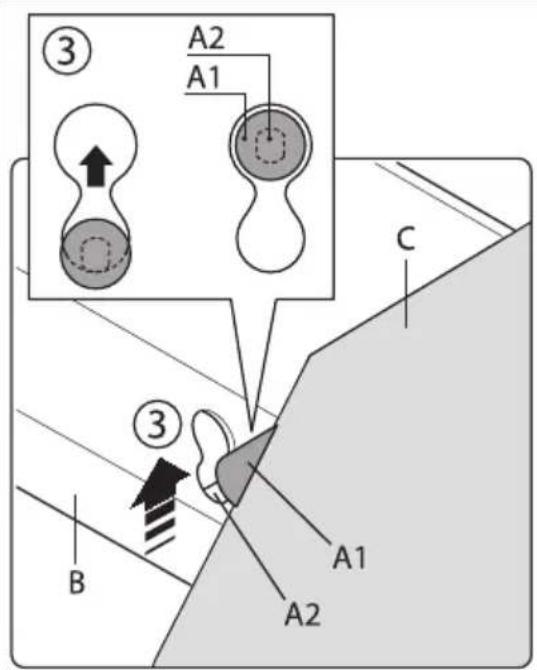

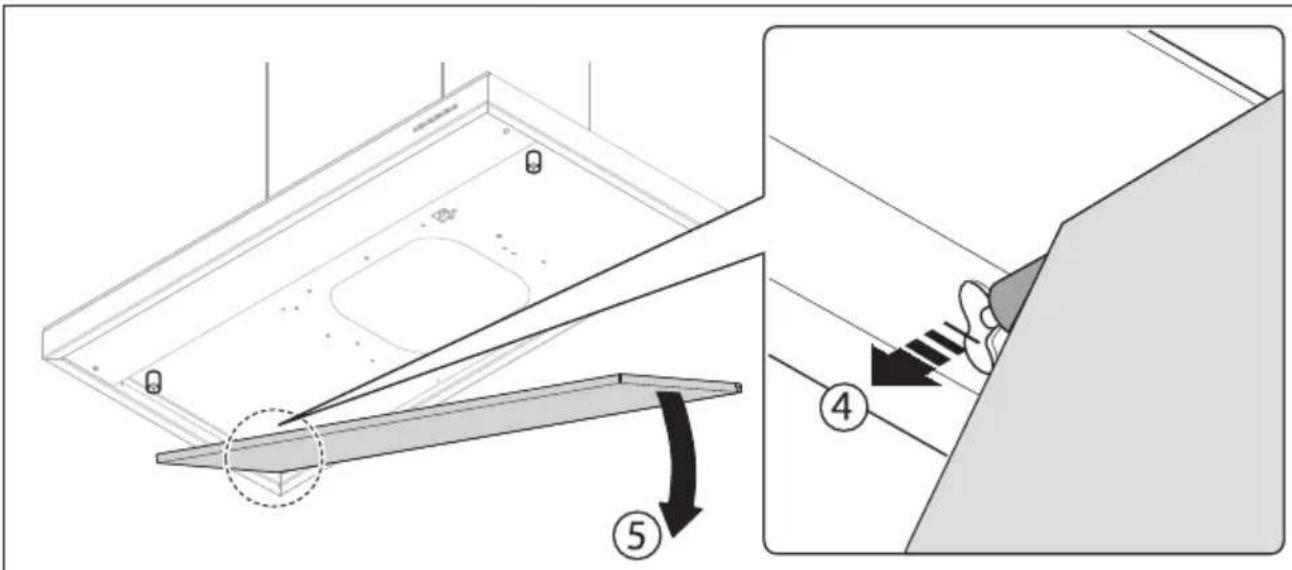

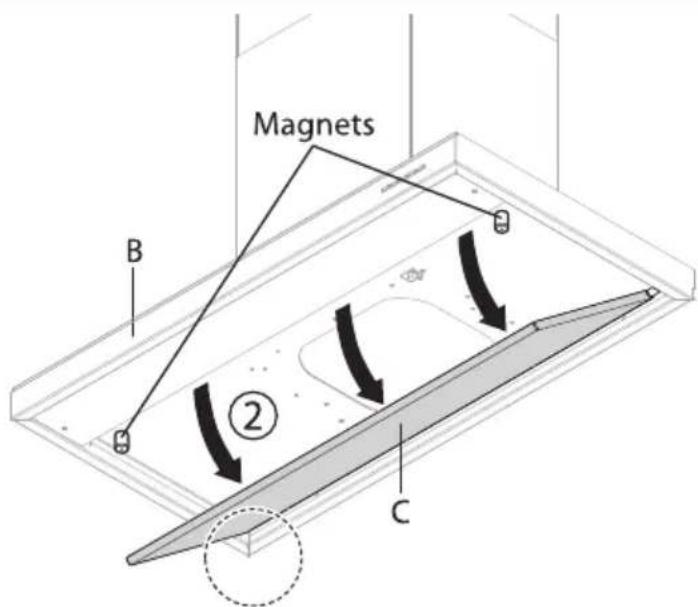

ISTRUZIONI PER PANNELLO REMOVIBILE INSTRUCTION FOR REMOVABLE PANEL

(HORIZON NRS, LUMINA NRS, VELA NRS)

MOVIBILE THE PANEL (A NRS) ①

③ A2 A1 C ③ B A1 A2

Magnets B ② C

Technical diagram showing a component with labeled parts and directional arrows, likely illustrating a machining or assembly process.

LIBRETTO ISTRUZIONI

AVVERTENZE

Weather and weather icons including clock, plus sign, flower, minus sign, and sun with blank boxes below

1. PULSANTIERA ELETTRONICA CAPACITIVA (HORIZON NRS, LUMINA NRS, VELA NRS)

1: Timer/Allarme filtri

6: Luce - Remote Binding

Diagram showing a device with labeled parts and directional arrows indicating flow or movement

2. LAMPADA FLUORESCENTE

This instruction booklet must be kept together with the appliance for future reference. If the appliance is sold or consigned to other parties, check that the booklet is supplied with it, to ensure that the new user has the correct information on the operation of the range hood and is aware of the warnings. These warnings have been provided for the your safety and the safety of others. As a result, please read them carefully before installing and operating the appliance.

This appliance is not intended for use by young children or infirm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure they do not play with the appliance.

The appliance must be installed by qualified personnel, in accordance with the standards in force. If the supply cord is damaged, it must be re-placed by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Any modifications that may be required to the electrical system for the installation of the range hood must only be made by qualified electricians.

It is dangerous to modify or attempt to modify the characteristics of this system. In the event of malfunctions or if repairs are required to the appliance, do not attempt to solve the problems directly.

Repairs performed by unqualified persons may cause damage. For all repair and other work on the appliance, contact an authorised service/spare parts centre.

Always check that all the electrical parts (lights, exhaust device), are off when the appliance is not being used. Read the entire instruction booklet before performing any operations on the range hood.

The range hood must only be used for the exhaust of cooking fumes in home kitchens. The manufacturer disclaims all liability for any other use of the appliance.

The maximum weight of any object placed above the hood, or hung to it (if possible) must not exceed 1.5 kilos. After installing the stainless steel hood, clean it in order to remove any residue of the protective glue, and stains of grease or oil. The manufacturer recommends its cleaning cloth available for purchase. The manufacturer accepts no liability in case of damage caused by the use of different detergent types.

TECHNICAL SPECIFICATIONS

The technical data pertaining to the electric appliance The technical specifications of the appliance are shown on the rating plates located inside the range hood.

INSTALLATION

(Section reserved for qualified installers of the range hood)

The distance between the hob and the lowest part of the rangehood is normally at least 65 cm. This distance is measured in the lowest part of the rangehood not operating at safety voltage. Based on this detail provided by European Standards, the distance may be reduced in some models as specified in the general catalogue. If the instructions for installation for the gas hob

specify a greater distance, this has to be taken into account.

In the outside exhaust version, the diameter of the fume discharge duct must be no smaller than the range hood connection.

In the horizontal sections, the duct must slope slightly (around 10%) upwards, so as to better convey the air outside of the room.

Avoid using angled pipes, make sure that the pipes are at least of the minimum length.

Comply with the current regulations on air discharge into the atmosphere.

If a boiler, stove, fireplace, etc. that uses gas or other fuels is being used at the same time, make sure the room where the fumes are extracted is well ventilated, in compliance with the current regulations.

Mounting instruction: see section "O" of the booklet.

ELECTRICAL CONNECTIONS

(Section reserved for qualified installers)

WARNING!

Before doing any work inside the range hood, disconnect the appliance from the mains power supply.

Check that the wires inside the range hood are not disconnected or cut; if this is the case, contact your nearest service centre. The electrical connections must be performed by qualified personnel.

The connections must be performed in compliance with the legal standards in force. Check that the relief valve and the electrical system are able to support the load of the appliance (see the technical specifications in point B).

Some types of appliance are supplied with a cable without plug; in this case, “standardised” plugs must be used, keeping in mind that:

• the yellow-green wire must be used for the earth,
• the blue wire must be used for the neutral,
• the brown wire must be used for the phase; the cable must not come into contact with hot parts (over 70°C).
• fit a plug that is suitable for the load to the power cable, and connect it to a suitable power outlet.

For appliances that come supplied with cable and plug please ensure they are plugged into a circuit suitable for this appliance.

Please refer to a qualified person. (See technical specifications in point B).

The manufacturer declines all liability if the safety standards are not observed.

RANGE HOOD WITH OUTSIDE DISCHARGE (exhaust)

In this version, the fumes and steam from the kitchen are conveyed outside through an exhaust duct.

The exhaust conveyor that protrudes from the upper part of the range hood must be connected to a duct that carries the fumes and steam outside. In this version, the charcoal filters, if fitted, should be removed; to do this, see the instructions in point F. There must be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels, according to the standard.

Deviation for Germany:

When the range hood and appliances supplied with energy other than electricity are simultaneously in operation, the negative pressure in the room must not exceed 4 Pa (4x10 E-5 bar).

RECIRCULATING RANGE HOOD (with filter)

In this model, the area passes through the charcoal filters to be purified and is then recycled into the kitchen environment. See sect. H for assembly.

OPERATION

1. ELECTRONIC CONTROL PANEL (PLANE NRS)

Light pushbutton

• ON: light on (the pushbutton is lit);
- OFF: light off;

Pushbutton -

Press to reduce motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

Pushbutton +

Press to increase motor speed

Speed 1, 2 and 3 are indicated by the number of LEDs that light up (excluding the light and the timer LEDs).

(In the 4-speed version the pushbutton + blinks. The fourth speed remains on for a set duration of time. After 15 minutes the motor returns to the third speed).

Mode pushbutton

Function: it turns hood motor on and off.

The function "desired speed" enables to start the motor at the speed that was selected before the hood was last turned off.

Optional: version with remote control (some versions only).

WARNING:

Install the hood away from sources of electromagnetic waves, as these could affect the correct operation of the electronic system.

Maximum operating distance: 5 metres. The maximum operating distance could be less than 5 metres in case of electromagnetic interference by other equipment.

Light pushbutton on remote control: light on/off.

- and + pushbutton: increase/decrease speed (to start the motor press either the + or the - pushbutton).

Timer pushbutton: see instructions below.

Timer and 'filter clogged' alarm pushbutton

• This function allows the automatic turning off of the hood after running for 15 minutes at the speed previously set (the pushbutton shows a flickering light).
• After about 30 hours of running the pushbutton indicates the need for washing the metal filters (the pushbutton shows a solid red light). To disable the alarm press the pushbutton for a few seconds until the red light turns off. Then turn the hood off and on again to check that the alarm has disappeared.

Weather and weather icons including alarm clock, plus sign, flower, minus sign, and sun symbol

2. ELECTRONIC CONTROL PANEL (HORIZON NRS, LUMINA NRS, VELA NRS)

1: Timer/Alarm filters

The steady RED light indicates that the fat filter alarm is activated (after 30 hours), to deactivate this alarm and zero the meters, maintain the Key pressed for 3 seconds.

Flashing RED light indicates that the timer function is activated. This function can only be activated if the motor is activated and running at any velocity when the Key is pressed (either prolonged or not). This function will cause the automatic switch-off of the hood after 15 minutes.

With the Timer function activated, the hood can be switched-off by the operator in any case and the function will be deactivated.

The Timer function remains associated to a velocity. A change in the velocity, with the Timer function activated, will deactivate it.

2: 1st Velocity

When the LED is switched-off, non-prolonged pressing of the key will switch-on the hood at the 1 ^st velocity and illuminate the respective LED. The function will switch-on when the Key is released.

When the LED is switched-off and another velocity is activated, pressing the Key will imply selection of the 1^st velocity, switching-on of the respective LED and switching-off of the LED associated with the velocity that was previously selected.

When the LED is on, pressing the Key will imply the switching-off the LED and MOTOR.

When the LED is switched-off, prolonged pressing (at least 3 seconds) of the Key will cause activation of the recirculation function. During the recirculation function (with a duration of 24 hours), the LED will flash. From the activation of this function, the hood will remain switched-on for one hour at the 1^st velocity, after which it will switch-off for 3 hours and then reactivate for another hour. These cycles are repeated until the timeout.

With this function activated, the other functions cannot be selected. To remove this function, keep Key 2 pressed for at least 3 seconds.

3: 2nd Velocity

When the LED is switched-off and another velocity activated, pressing the Key (either prolonged or not) will imply the selection of the 2^nd velocity, switching-on of the respective LED and switching-off of the LED associated with the velocity that was previously selected.

When the LED is switched-off and no velocity activated, pressing the Key will have no effect.

When the LED is switched-on, pressing the Key 3 will have no effect.

To switch the hood off, it will be necessary to firstly select the 1 ^st velocity and then repress the same Key.

4: 3rd Velocity

When the LED is switched-off and another velocity activated, pressing the Key (either prolonged or not) implies the selection of the 3^rd velocity, the switching-on of the respective LED and switching-off of the LED associated to the velocity that was previously selected.

When the LED is switched-off and no velocity activated, pressing the Key will have no effect.

When the LED is switched-on, pressing the Key 4 will have no effect.

To switch the hood off, it will be necessary to firstly select the 1 ^st velocity and then repress the same Key.

5: 4th Velocity

When the LED is switched-off and another velocity activated, pressing the Key (either prolonged or not) implies the selection of the 4^th velocity, switching-on of the respective LED and switching-off of the LED associated to the velocity that was previously selected. When the LED is switched-off and no velocity activated, pressing the Key will have no effect.

When the LED is switched-on, pressing the key 5 will have no effect.

The forth velocity must remain on for a maximum of 14 minutes, after which, one must return to the third.

To switch the hood off, it will be necessary to firstly select the 1 st velocity and then repress the same key.

6: Light - Remote Binding

Light: Briefly pressing key T6 will turn the light on and off. The T6 key will light up if the light is on.

Remote Binding (optional): With motor and light turned off, applying prolonged pressure on the T6 key will activate remote binding mode. The T6 Key will flash for a maximum of 10 seconds. During flashing, at least one radio control key must be pressed. The function will deactivate upon completion of the 10 seconds, or earlier if a compatible remote control is detected.

Key pressure management:

Prolonged pressure = finger pressed on key for at least 3 seconds, the function activates during pressure.

Non-prolonged pressure = finger pressed on key for less than 3 seconds, the function activates upon its release.

Radio control (optional): Place the device far from sources of electromagnetic waves which could interfere with the range hood's electronic functions

Maximum operating distance 4 metres. This distance may vary in defect based on electromagnetic interference of other devices.

Function of the remote control	DESCRIPTION
Light Key	Pressing the Light key will switch the light on/off
‘-’Key	Pressing the ‘-’ Key will decrease motor speed. If 1° (1st) speed is in gear, pressing the ‘-’ key will turn off the motor
‘+’Key	If the motor is turned off, pressing the ‘+’ key will activate the motor at 1° (1st) speed. If the motor is operating, pressing the ‘+’ key will increase motor speed up to the maximum.
Timer Key	If the motor is active, pressing the timer key will activate/deactivate the timer function
Code Change(only in case of malfunction)	Press the “Luce” (Light) key together with the “Timer” key of the remote control until the blue LED begins to slowly flash. If the “-” key of the remote control is pressed within 5 seconds, the new code will be generated and memorised. Memorisation is confirmed by 3 brief flashes of the LED.To return to the default code, apply pressure on the “-” key together with the “+” key for over 5 seconds. Memorisation of the default code will be signalled with 3 brief flashes of the LED.Each time that a new code is generated or that the default code is set in the remote control, it is necessary to also carry out the previously described Remote Binding (Light Key of the pushbutton) procedure.

FILTERS REMOVING AND REPLACING'S INSTRUCTIONS

1. METAL FILTERS

To remove the anti-grease metal filters, just act on the specific handle. In the perimeter suction hoods (horizon nrs, lumina nrs, vela nrs) remove the steel panel as indicated in fig. H3 and then remove the metal filters.

2. CHARCOAL FILTERS

To assemble or replace the charcoal filters, see the instructions in the specific optional charcoal filter kit for each model.

Plane nrs hood: filter code kacl.921

Horizon nrs 1 motor, lumina nrs hood: filter code 101078900 (2 per hood)

Horizon nrs 2 motor hood: filter code 101078900 (4 per hood)

Vela nrs hood: filter code 101078900 (1 per hood)

To order new charcoal filters, contact your distributor/dealer.

ONLY FOR ITALY: Download the filter order module from the website:

www.falmec.com (access the drop-down assistance menu).

LIGHTING ASSEMBLY AND REPLACEMENT

WARNING! Light bulbs with different shapes and power ratings from the original may seriously damage the light compartment.

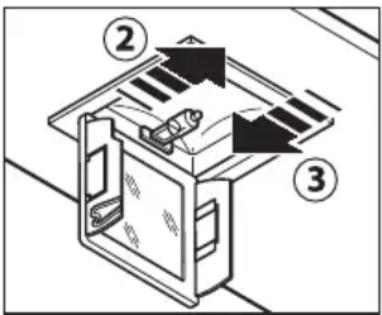

1. SPOTLIGHT

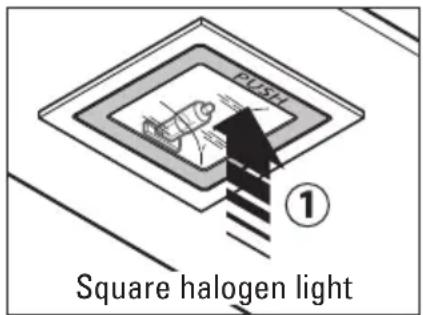

How to replace a square halogen light:

a) Check that the equipment is disconnected from the power supply.
b) Open the panel completely till 90° (see figure) pressing the PUSH button
c) Replace the lamp with a similar one (halogen, max 20 W, 12 Volt, G4 connection).
d) Close the panel. If the panel does not close correctly repeat the operation at point b.

PUSH Square halogen light ①

Diagram showing a device with labeled parts and directional arrows, likely illustrating a process or installation.

2. FLUORESCENT TUBE

(Section reserved for qualified installers)

Replacing the fluorescent tube:

a) Disconnect the device from the mains;
b) Unscrew the fixing screws and remove the bottom panel;
c) Remove the fluorescent tube, by rotating through 90°, and replace it with one of similar features (8W-13W-21W-28W according with the model);
d) Reconnect the device to the mains.

MAINTENANCE AND CLEANING

Constant maintenance ensures the correct operation and efficiency of the appliance over time. Special attention should be paid to the metal grease-trapping filters and the charcoal

filters. Frequent cleaning of the filters and their supports will ensure that fats and grease do not accumulate on the range hood, with the consequent risk of fire.

1. METAL GREASE-TRAPPING FILTERS

These trap the fat and grease particles suspended in the air, and therefore should be washed every month in hot water and detergent, without bending them. Wait until they are completely dry before repositioning them. To remove and replace these filters, see the instructions in point H1. This operation should be performed at regular intervals.

2. CHARCOAL FILTERS

These trap the odours present in the stream of air that passes through them. The air is purified by passing a number of times through the filters and being recirculated into the kitchen. The charcoal filters cannot be cleaned, and should be replaced on average every 3-4 months (according to use). To replace the charcoal filters, see the instructions in point H2.

3. CLEANING THE OUTSIDE OF THE APPLIANCE

It is advised to clean the external hood surfaces at least every 15 days in order to avoid that oily or greasy substances affect the steel surfaces.

The outside of the range hhod should be cleaned using a damp cloth and neutral liquid detergent or denatured alcohol.

In case of fingerprint-less finish (fasteel) clean only with water and neutral soap using clean with a soft cloth, rinse and wipe dry thoroughly. Do not use products that contain abrasive substances, rough cloths or cloths specifically designed for cleaning steel. Using abrasive substances or rough cloths will inevitably damage the finish of steel. The steel surface will be irrevocably damaged if the instructions above are not complied with. Keep these instructions together with the instructions for use of your hood.

The manufacturer accepts no liability for any damage caused by non-compliance with the instructions above.

4. CLEANING THE INSIDE OF THE APPLIANCE

The electrical parts or parts of the motor assembly inside the range hood must not be cleaned using liquids or solvents.

Do not use abrasive products.

above operations must be performed after having disconnected the appliance from the mains power supply.

SAFETY WARNINGS

The electrical system features an earth connection in compliance with international safety standards; furthermore, it is compliant with the European standard for electromagnetic compatibility.

Do not connect the appliance to flues (from boilers, fireplaces, etc.). Make sure the mains voltage corresponds to the values on the rating plate located inside the range hood. The minimum safety distance between the cooktop and the range hood must be at least 65 cm.

Never cook on "open" flames under the range hood.

Check deep-fryers during use: superheated oil may be flammable.

- Ensure there is adequate ventilation of the room when the rangehood is used at the same time as appliances burning gas or other fuels.

- Do not flambe under the rangehood

- The exhaust air must not be discharged into a flue which is used for exhausting fumes from appliances burning gas or other fuels.

- Ensure that all regulations concerning the discharge of exhaust air have been fulfilled before you use the appliance.

Before performing any cleaning or maintenance operations, disconnect the appliance by unplugging it or using the main switch. The manufacturer disclaims all liability for any damage that may be directly or indirectly caused to people, things and animals due to the failure to follow all the instructions provided in this booklet and above all the warnings relating to the installation, operation and maintenance of the appliance.

WARRANTY

The new equipment is covered by warranty. The warranty conditions are provided by the distributor.

The manufacturer is not liable for any inaccuracies in this booklet resulting from printing or transcription errors. The manufacturer reserves the right to modify its products as it considers necessary or in the interests of the user, without compromising their essential safety and operating characteristics.

MOUNTING INSTRUCTIONS

INSTRUCTIONS FOR WALL-MOUNTING OF HORIZON NRS, LUMINA NRS, PLANE NRS, VELA NRS HOODS

Phase 1

(Fig. A)

1) Place the support bar (S) on the wall at a height H from cooker resulting from the sum of the quotas: X + Y + 512 mm .
2) With a spirit level, verify the horizontal alignment;
3) mark 2 drilling points at the ends of support bar.
4) Drill, insert 2 ø 8mm expansion plugs and fasten the support bar (S) with the relative screws (V1).

(Fig. B)

1) Hook the hood on the support bar (S).
2) Adjust the alignment of the hood, using the fixing screws. The upper screw (B) adjusts the distance from the wall, the lower one (C) the vertical scrolling.
3) To prevent the hood from falling due to a pressure below, fasten it to the wall with an expansion plug and relative screw (V2) using the appropriate holes on the back of the hood.

Phase 2

(Fig. C)

- In case of exhaust version, connect the output fitting of the fan to the external exhaust (F) following the indications in fig. C.

1) Measure the quota X as indicated in fig.C detail1.
2) Cut the NRS pipe (A) according to the indication in fig.C detail 2.
3) Cut the NRS elbow (B) according to the indications in fig.C detail 3 so that the exhaust pipe (A) is installed perfectly vertical.

(Fig. D)

1-2-3-4) Fasten the flange (C) at the exhaust hole (F) with the 3 screws V3.

(Fig. E)

1) Carefully insert the pipe (A) in the motor fitting (D);
2) Fasten the pipe (A) to the hood body with the 3 screws (V4).

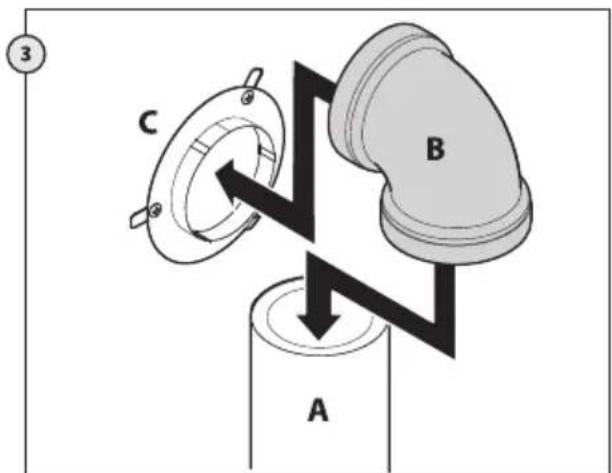

3) Insert the elbow (B) onto the pipe (A) and flange (C).

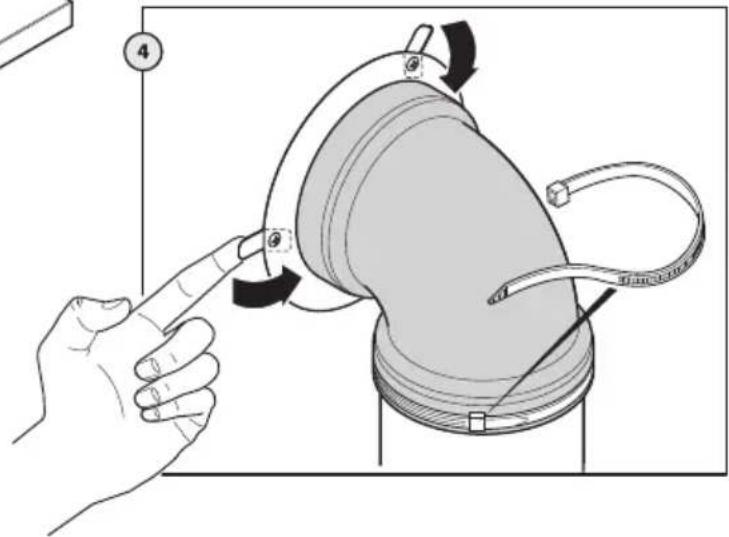

4) Secure the elbow (B) to the pipe (A) with a clamp and bend the flaps of the flange (C) as indicated in the figure.
- Carry out the electric connection only after having disconnected the electric power supply of the hood.

Phase 3

(Fig. F)

1) Insert the extension (H) in the chimney (G).
2) Fasten it all (G+H) to the hood body using the screws (V5).
3) Slide the extension (H) until it reaches the desired height.
4) Place the bracket (L) on the wall, verify the horizontal alignment with a spirit level and mark 2 drilling points at the ends.
5) Drill, insert 2 ø 4mm expansion plugs and fasten the bracket (L) with the relative screws (V6).
6) Screw the extension (H) to the bracket (L) using the two screws (V7).
- Power the hood complying with the regulations in force (see sec. D of the booklet).

02 INSTRUCTIONS FOR ISLAND-MOUNTING OF HORIZON NRS, LUMINA NRS, PLANE NRS, VELA NRS HOODS

Phase 1

(Fig. A1)

- Identify the height H of the cooker resulting from the sum of the quotas: X + Y + H1

(Fig. B1)

- Following the indications in sec. H1, remove the perimeter suction panel (AP) (if present) and the metal filters. Only for the Lumina NRS Island hood, remove the front panel (PN).

- Disconnect the male connector (CO) from the matching female connector fastened to the hood body.

(Fig. C1)

• Loosen the 4 screws securing the NRS motor chamber (CM);
• shift the NRS motor chamber (CM) sideways to position the 4 screws against the hole instead of the slot;
• lift the motor chamber (CM) upwards to remove it from the hood body.

(Fig. D1)

- Fasten the element (TI) to the NRS motor chamber (CM) with the 7 screws (V1).

(Fig. E1)

- Fasten the top trellis (TS) to the ceiling using the 4 ∅ 8 plugs and relative screws (V2).

(Fig. F1 and G1)

• Measure the quota "Z" as indicated in figure F1.
• Cut the NRS pipe (A) and the NRS elbow (B) according to the indications in figure F1 part 2 so that the exhaust pipe (A) is installed perfectly vertical. Fasten the NRS elbow (B) to the NRS pipe (A) with a clamp and connect it all temporarily to the exhaust pipe (F) set up on the false ceiling or loft.
• Slide the whole set (CM+TI) on the trellis (TS) until reaching the desired height (H1) (also see fig. A1)
• Secure the components (CM+TI and TS) with the 8 self-threading screws (V3).

Phase 2

(Fig. H1)

- Carefully insert the NRS pipe (A) in the motor fitting (D) of the motor chamber (CM) and fasten it with 3 screws (V7).

(Fig. I1 and L1)

• Fasten the extension support elements (SP) to the trellis (TS) on the false ceiling or to the motor chamber (CM) if the trellis (TS) is not used.

• Insert the chimney (G) onto the extension (H) and fasten them together with paper adhesive tape.

• Insert the chimney-extension set (G+H) in the motor body (CM).

• Fasten the chimney-extension set (G+H) to the extension support elements (SP) or onto the top trellis TS with the 4 metric screws M4 (V5) without screwing them all the way.

(Fig. M1)

- Lift the hood body so that its lower holes are centred on the 4 M5 metrics screws of the motor chamber (CM). Shift the motor chamber (CM) sideways so that the metric screws are positioned on the slots and then tighten them permanently.

Phase 3

(Fig. N)

• Remove the paper tape, unscrew the 4 M4 metric screws (V5) previously screwed onto the extension support elements (SP) and slide the chimney-extension set (G+H) downwards.
• Perform the following connections:

EXHAUST -> NRS pipe + elbow (A+B) to exhaust pipe (F). For the filter version (see sec. F) the air exhaust must be directed towards the extension slots.

ELECTRIC (only after having disconnected power).

• Fasten the extension (H) once again to the extension support elements (SP) with the 4 M4 metric screws (V5).
• Slide the chimney (G) downwards and fasten it to the hood body with the self-threading screws (V6).
• Reconnect the male connector (CO) to the matching female connector fastened to the hood body.
• Following the indications in sec. H1, reassemble the metal filters and the eventual perimeter suction panel (AP). In the case of the Lumina NRS Island hood, reassemble the front panel (PN).
• Power the hood complying with the regulations in force (see sec. D of the booklet).

BEDIENUNGSANLEITUNG

HINWEISE

1. ELEKTRONISCHES BEDIENFELD (PLANE NRS)

Lichtknopf

Weather and weather icons including alarm, plus sign, flower, minus, and sun symbols

2. ELEKTRONISCHES BEDIENFELD (HORIZON NRS, LUMINA NRS, VELA NRS)

1: Timer/Filterallarm

6: Licht - Remote Binding

Diagram of a device with labeled parts and directional arrows indicating movement or flow

Weather and weather icons including alarm clock, plus sign, flower, minus sign, and sun symbol

2. BOÎTIER DE COMMANDE ÉLECTRONIQUE (HORIZON NRS, LUMINA NRS, VELA NRS)

1: Minuterie/Alarme filtres

6: Eclairage - Remote Binding

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

Weather and weather icons including alarm clock, plus sign, flower, minus sign, and sun symbol

BOTONERA ELECTRÓNICA (HORIZON NRS, LUMINA NRS, VELA NRS)

1: Temporizador/Alarma filtros

6: Luz - Remote Binding

Diagram showing a device inside an oven with labeled parts and directional arrows indicating flow or movement.

MANUAL DE INSTRUÇÕES

ADVERTÊNCIAS

Simple diagram with symbols including clock, plus, flower, minus, and sun, each paired with blank boxes below.

2. BOTOEIRA ELETRÓNICA (HORIZON NRS, LUMINA NRS, VELA NRS)

1: Timer/Alarme filtros

6: Luz - Remote Binding

Diagram of a microwave oven with labeled parts and directional arrows indicating airflow or movement

3. LÂMPADA FLUORESCENTE

Weather and weather icons including alarm clock, plus sign, flower, minus sign, and sun symbol

Diagram showing a device with labeled parts and directional arrows indicating movement or flow

Technical line drawing of a mechanical component with three circular ports and labeled sections (no text or symbols beyond numerical labels)

2. PULPIT STEROWANIA PIECIOPRZYCISKOWY

ŚWIATŁO - przycisk

Simple diagram with symbols including clock, plus sign, flower, minus sign, and sun, each paired with blank boxes below.

FILTRY INSTRUKCJE WYJMOWANIA I WYMIANY

1. FILTRY METALOWE

Diagram of a microwave oven with labeled parts and directional arrows indicating flow or movement

2. LAMPA JARZENIOWA
