USER MANUAL AC-5495 TRISTAR

Front view of a white industrial air conditioner unit with control panel and wheels (no visible text or symbols)

Technical diagram of a portable air conditioner unit with numbered parts labeled 1 to 4

Technical diagram of a device with numbered components for identification

Technical diagram showing exploded view of mechanical components with numbered parts labeled 10 to 16

1 2 3

Bedieningspaneel

Control Panel

Panneau de contrôle

Bedienfeld

Panel de control

Pannello di comando

Painel de controlo

Panel kontrolny

Kontrollpanel

Uitblaas rooster

Air outlet

Sortie d'air

Luftaustritt

Salida de aire

Uscita aria

Saída de ar

Wylot powietrza

Luftutsläpp

Handvat

Handle

Poignée

Griff

Tirador

Impugnatura

Pega

Uchwyt

Handtag

4 5 6

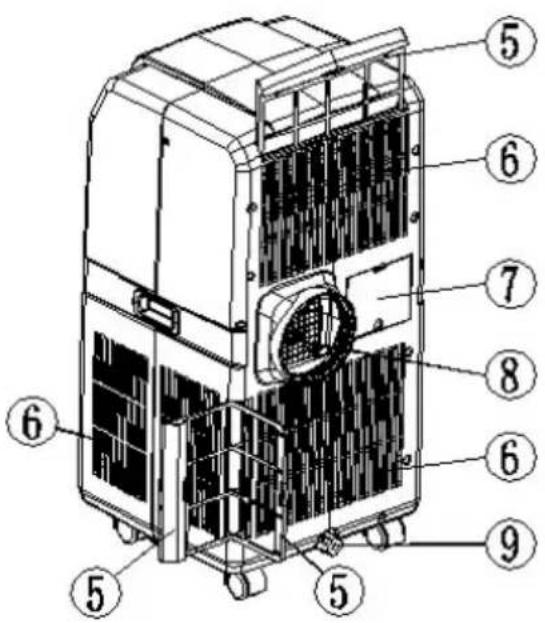

Wielen	Luchtfilter	Lucht inlaat rooster
Wheels	Airfilter	Air inlet
Roulettes	Filtre à air	Entrée d'air
Räder	Luftfilter	Lufteinlass
Ruedas	Filtro de aire	Entrada de aire
Ruote	Filtro aria	Ingresso aria
Rodas	Filtro de ar	Entrada de ar
Koła	Filtr powietrza	Wlot powietrza
Hjul	Luftfilter	Luftintag

7 8 9

Snoer opslagruimte	Warme lucht uitgang	Condenswater aftapdop
Cable storage	Exhaust air outlet	Drainage point
Rangement du cordon	Sortie d’évacuation d’air	Point de vidange
Kabelaufbewahrung	Abluftöffnung	Ablaufstelle
Compartimento para cable	Salida de aire de escape	Punto de drenaje
Alloggiamento cavo	Uscita aria di scarico	Punto di spurgo
Compartimento de armazenamento do cabo	Saída de ventilação do ar	Ponto de drenagem
Schowek na kabel	Wylot spalin	Punkt odpływu
Sladdförvaring	Luftutblås	Dräneringspunkt

10 11 12

Slang	Raamopvulstuk	Aansluiting voor de adapter
Hose	Window spacer	Connection for adapter
Tuyau	Entretoise de la fenêtre	Branchement de l'adaptateur
Schlauch	Fensterabstandshalter	Adapteranschluss
Manguera	Separador de ventana	Conexión para adaptador
Flessibile	Distanziale finestra	Collegamento adattatore
Mangueira	Espaçador de janela	Ligação do adaptador
Wąż	Rozpórka na okno	Połączenie adaptera
Slang	Fönsterbricka	Anslutning för adapter

13 14 15

Adapter	Afstandsbediening	Carbon filter
Adapter	Remote control	Carbon filter
Adaptateur	Télécommande	Filtre à charbon carbone
Adapter	Fernbedienung	Kohlefilter
Adaptador	Mando a distancia	Filtro de carbono
Adattatore	Telecomando	Filtro al carbonio
Adaptador	Controlo remoto	Filtro de carbono
Adapter	Pilot	Filtr węglowy
Adapter	Fjärrkontroll	Kolfilter

16

Condenswater afvoerslang	Tubo de drenaje
Drain tube	Tubo di spurgo
Tube de vidange	Rura odpływowa
Ablaufschlauch	Dräneringsrör

Diagram of a portable air conditioner unit connected to a coiled hose with a cross symbol (no text or labels)

Diagram of a device emitting exhaust via a valve, with a cross symbol indicating no exhaust (no text or labels present)

Condenswater aftappen

Technical illustration of a mechanical device with coiled tubing and a zoomed-in view of its internal components (no text or symbols)

Line drawing of a cart with a handle and arrow indicating motion (no text or symbols)

Gebruik

P K L M Q N O SLEEP MODE TIMER SPEED TEMP

Four safety symbols: no megaphone, no person silhouette, hand holding a sign, and warning triangle with lightning.

Operation and maintenance

Remove all packaging of the device.

Check if the voltage of the appliance corresponds to the main voltage of your home.

Rated voltage : AC220-240V 50Hz. This device is not suitable for outdoor installation or use.

When fixed or moved, the device can not be set horizontally or declined to more then 45^ or upside-down.

Before use

Place the appliance on a flat stable surface and keep at least 30 cm. free space around it.

Make sure the unit is placed in a upright position.

Let the unit, after transport, wait for more than 4 hours before it is plugged in into the wall outlet.

Prevent the cabinet to get wet.

Make sure the power cable to the power plug is not curled up on the back of the device in the cable storage, it can get too hot. Place the plug always into a grounded outlet.

Never place the appliance near any heat sources or direct sunlight.

Installation of the carbon filter (No. 15)

6 1 5

6

2 3 4 5

1

Remove the air filter frame (No. 5) from the unit.

2

Separate the filter holder from the filter frame.

3

Remove the carbon filter (No. 15) from its plastic bag.

4

Insert the carbon filter into the filter frame.

Fix the filter by reassembling the holder onto the filter frame.

Re-fit the filter frame inside the unit.

Mounting the exhaust accessories.

The air conditioning system cools the air in the room where unit is placed. The absorbed heat of the conditioned air, should be removed to outside the room where the unit is placed. During cooling of hot air condenswater will be created. Much of the condensation will be transported with the warm air to outside. At high humidity not all the condense will be transported with the warm air to the outside, the water tank must regularly be emptied. In the chapter "Condensate Drain" is this defined step by step.

There are several ways to transport warm air out of the room:

• Attach the hose (No. 10) in the warm air outlet (No. 8) of the device. Hang the hose out the window or a door. The cooling capacity will not be optimal because of warm outside air will flow into the to cool area.
• Drill a hole of 135 mm. diameter in the outer wall and enter the tubing through the hole. The cool capacity is now optimal.

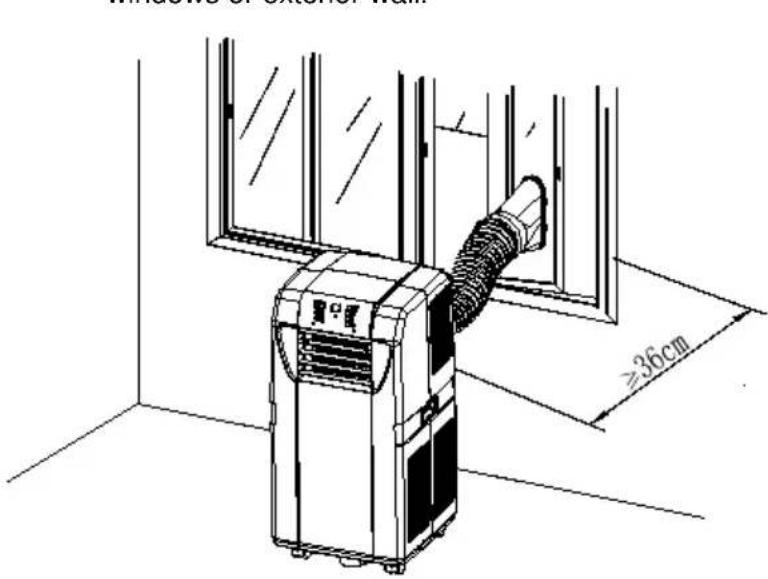

• Screw the adapter (No. 13) at the end of the hose (No. 10). Place the window spacer in the open section of the window. Insert the adapter into the socket for the adapter (No. 12). The cool capacity is optimal. Provide a maximum distance of 36 cm . the device to the windows or exterior wall.

≥36cm

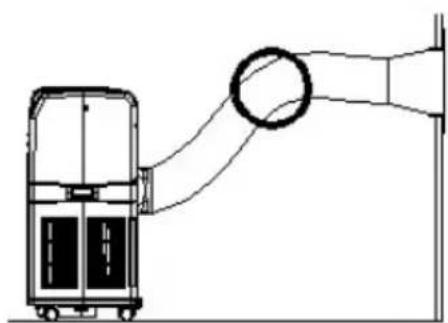

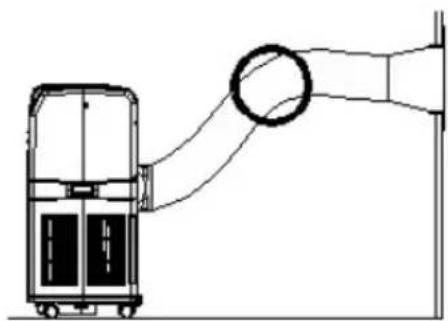

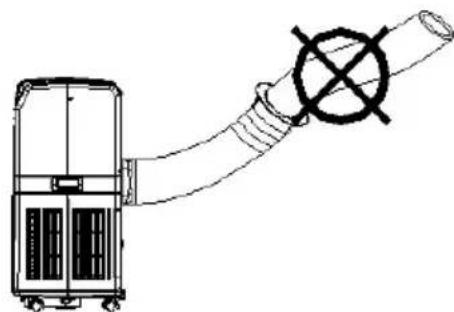

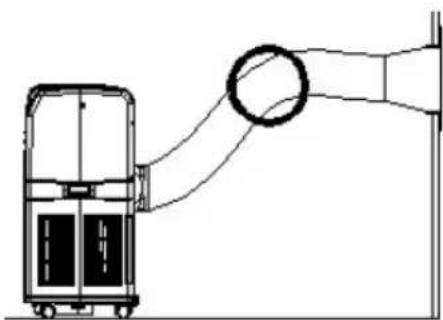

Make sure that the hose (No. 10) is not kinked or that the air flow is obstructed.

Technical line drawing of a mechanical device connected to a circular component (no text or symbols)

Diagram of a vehicle with a circular component connected to a vertical pole, showing airflow or support system (no text or symbols)

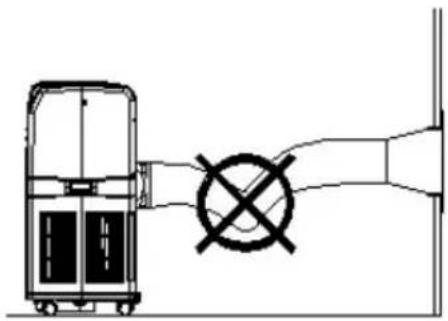

Never extend the hose (No. 10).

Line drawing of a portable air conditioner unit connected to a coiled hose with a prohibition symbol (no text or labels)

Diagram of a device connected to a vertical pipe with a cross symbol (no text or labels)

Drainage

During cooling of hot air, condensation can be created. Much of the condensation will be transported with the warm air outside. At high humidity not all the condense will be transported with the warm air to the outside, the water tank must regularly be emptied.

If the condensation tank is full, the water full indicator light on the control panel (No. 1) will light and a sound goes off, the machine stops automatically. The condensate tank has a maximum capacity of 1.7 liter.

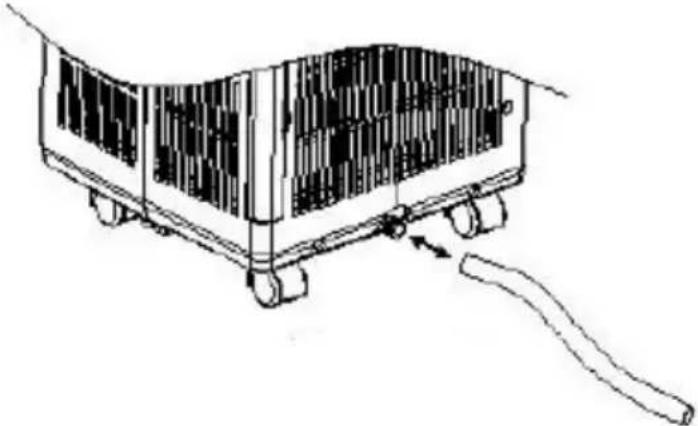

Turn the knob condensate drain (No. 9) off the spout. Place a container under the spout and pull the rubber plug from the spout. The water flows out, when the bowl is full, insert the plug, empty the sump and drain the rest of the water.

Technical line drawing of a mechanical device with coiled tubing and a zoomed-in view of its internal components (no text or symbols)

If the condensation must be removed continuously, place the condensation drain hose (No. 16) on the spout. Do remove the rubber plug. The condensate drain hose can be extended with another hose (not supplied). It can be connected to a drain or be led outside. Make sure this hose does not go up.

Line drawing of a cart with a handle and arrow indicating motion (no text or symbols)

Use

Unplug the cord from the cord storage (No. 7) and plug into a grounded outlet

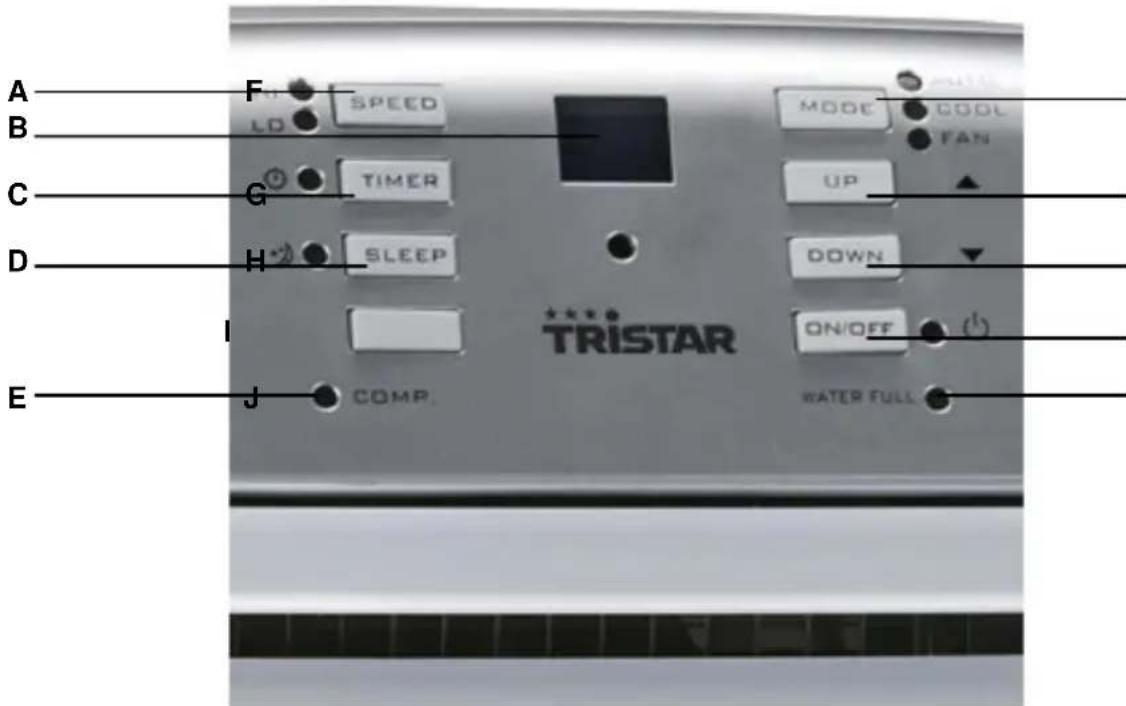

A B C D E F LD SPEED TIMER SLEEP COMP. MODE COOL FAN UP DOWN ON/OFF WATER FULL

A	Speed (ventilation) button	F	Mode function button
B	Display	G	Temperature up button
C	Timer function button	H	Temperature down button
D	Sleep function button	I	On/Off power button
E	Compressor operation indicator	J	Water full indicator

When pressing the on/off button (I), the device switches in the following mode:

Cooling fan low speed and a temperature of 24^ . The display (B) indicates the temperature of the room (between 0^ and 50^ ).

Cooling

Press the on/off button (I) and press the mode function button (F) to select the COOL mode, the indicator COOL lights on, then. Set the desired temperature to the temperature setting buttons, button G to set up the temperature and H button to set the temperature down. The display will return to room temperature. If the temperature is below room temperature, the compressor turns on and the device starts cooling. The compressor indicator (E) goes on. If the desired temperature is reached, the fan still works but is the compressor and the corresponding indicator (E) turn off again. With the speed button (A) select the desired fan speed.

Fan function

Press the mode function button (F) and select the FAN mode, the LED FAN will light, then press the on/off button (I). In FAN mode the device does not cool, the device is now used as a fan.

Auto function

This feature is designed to switch to a certain temperature to be used only as a fan, above this temperature the device will automatically turn to the air conditioning mode (cooling).

Example: Turn the power on by pressing the on/off button (I),

Select the COOL mode with the mode function button (F), set the temperature to 25°C. Then select the AUTO mode by pressing the mode function button (F), the lights COOL and AUTO come on To 25°C FAN function is, from 25°C the device cools.

If the temperature falls below the 25^ C the FAN mode comes on again. Attention! The minimum set temperature in the AUTO mode is 25^ C, when a lower temperature is selected, the device cools only to 25^ C.

Timer function

Press the timer function button (C) and set the desired number of hours, from 1 up to 24 hours. The timer function is available in the cooling, fan and auto mode.

Example:

• Set in 2 hours during the off mode, the machine will begin two hours later with the last set mode.
• Set in 2 hours, while the unit is in operation, the device automatically stops 2 hours later.

Sleep function

This feature only works in the cooling mode. Press the sleep function button (D).

The temperature raises in the first and second hours, respectively, 1°C per hour. Then the device keeps the temperature down. After 12 hours in sleep mode the device will automatically turn off. When using the sleep mode the unit automatically turns in low fan speed.

Remote control

Place the battery in the remote behind the flap on the back. Point the remote at the device and select the desired functions on the remote control.

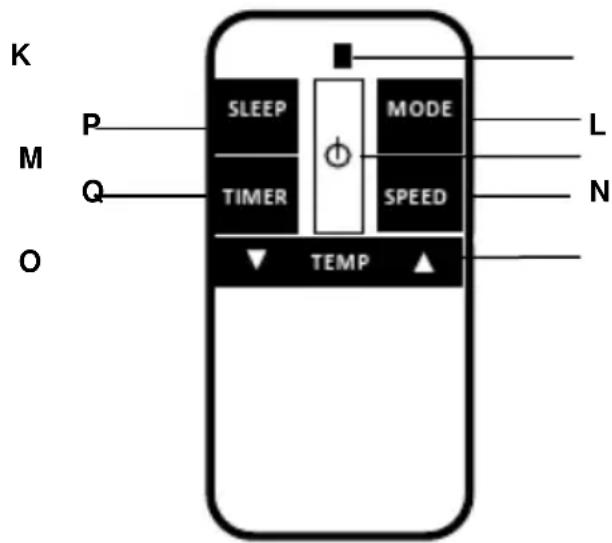

K P M Q O SLEEP TIMER MODE SPEED TEMP L N

K Control light, lights up when the buttons are operated.
L Function button, cooling, ventilation or automatically.
M On/Off key
N Fan speed control button.
0 Temperature setting button, right temperature up and left temperature down.
P Sleep function button.
Q Timer function button.

The cooling capacity of the unit depends on the following factors:

• All windows and doors must be closed, otherwise the hot air will stay flowing inside.
• If the room temperature is not extremely high and for example, there are many heat sources in space, such as computers etc.
• Are the dimensions of the area suitable for this device?

The cooling capacity for the AC-5495 is maximal 103 m3 and the cooling capacity for the AC-5495 is maximal 117 m3.

• Is the heat discharged outwards properly
- Make sure the filters are cleaned regularly.

Cleaning

Always remove the plug from the socket when the device is cleaned.

Clean the outside with a damp cloth. Never use harsh and abrasive cleaners, steel wool or a scouring pad as this will damage the device. Do not immerse in water or other liquid.

Remove filter (No. 5) from the machine and clean it with warm soapy water, let the filter dry completely before being replaced. Turn the appliance without filters. If the unit is stored after the season, drain the condensate water and put the cord into the cord storage area (No. 7).

IMPORTANT SAFEGUARDS

- Read all instructions before use.

- Do not touch hot surfaces. Use handles or knobs.

- To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.

- Unplug from outlet when not in use and before cleaning. Allow the device to cool before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.

- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries and invalidate any warranty you may have.

- Do not use outdoors, or on or near direct heat sources

- Do not let cord hang over edge of table or counter, or touch hot surfaces or come into contact with the hot parts or allow the product to be situated underneath or close to curtains, window coverings etc.

• This appliance is for household use only and only for the purpose it is made for.

• The appliance must be placed on a stable, level surface.

- This appliance is an attended appliance, and as such should never be left ON or whilst hot without adult supervision.

- This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Guarantee

• The device supplied by our Company is covered by 24 month guarantee starting on the date of purchase (receipt).
• During the life of the guarantee any fault of the device or its accessories to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
• Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
• If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.
• Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.
• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!
• The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Guidelines for protection of the environment

Symbol of a trash bin crossed with no text or labels, representing environmental restriction (no text present)

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Technical line drawing of a mechanical device with a circular component connected to a vertical wall (no text or symbols)

Diagram of a mechanical device with a circular component connected to a vertical pole (no text or symbols)

Technical line drawing of a mechanical device with a pipe and valve (no text or symbols)

Diagram of a vehicle with a cross symbol indicating restriction or prohibition (no text or labels)

Evacuation

Technical illustration of a mechanical device with coiled tubing and a zoomed-in view showing internal components (no text or symbols)

Line drawing of a cart with a handle and arrow indicating motion (no text or symbols)

Utilisation

K P M Q O SLEEP MODE TIMER SPEED TEMP L N

Symbol of a trash bin with crossed lines indicating no waste or plastic, and a solid black rectangle below (no text or labels)

Technical line drawing of a mechanical device connected to a circular component (no text or symbols)

Diagram of a mechanical device with a circular component connected to a vertical pipe (no text or symbols)

Diagram of a portable air conditioner unit connected to a coiled hose with a cross symbol (no text or labels)

Diagram of a device connected to a vertical line with a cross symbol (no text or labels)

Ablauf

Technical illustration of a mechanical device with coiled tubing and a zoomed-in view showing internal components (no text or symbols)

Line drawing of a cart with a handle and arrow indicating motion (no text or symbols)

Anwendung

K P M Q O SLEEP TIMER MODE SPEED TEMP L N

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Diagram showing a vehicle with a cross symbol connected to a vertical pipe, no text or labels present

Drenaje

Technical illustration of a mechanical device with coiled tubing and a zoomed-in view of its internal components (no text or symbols)

Line drawing of a cart with wheels and a curved handle, no text or symbols present

Uso

K P M Q O SLEEP MODE L TIMER SPEED TEMP N

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Diagram of a vehicle with a circular component connected to a vertical pole, showing motion lines (no text or symbols)

Line drawing of a portable air conditioner unit connected to a pipe with a cross symbol (no text or labels)

Diagram of a device emitting exhaust via a valve, with no visible text or symbols

Spurgo

Technical illustration of a mechanical device with coiled tubing and a zoomed-in view of its internal components (no text or symbols)

Line drawing of a cart with wheels and a curved handle, no text or symbols present

Utilizzo

A B C D E F LD SPEED TIME G SLEEP I J MODE COOL FAN UP DOWN ON/OFF WATER FULL

K P M Q O SLEEP MODE L TIMER SPEED TEMP N

Symbol of a trash bin with crossed lines indicating no waste or plastic, and a solid black rectangle below (no text or labels)

Technical line drawing of a mechanical device connected to a circular component (no text or symbols)

Diagram of a mechanical device with a circular component connected to a vertical pole (no text or symbols)

Technical line drawing of a mechanical device with a pipe and cross symbol (no text or labels)

Diagram of a device emitting exhaust via a valve, with no visible text or symbols

Drenagem

Technical illustration of a mechanical device with coiled tubing and a close-up view of its internal components (no text or symbols)

Line drawing of a cart with wheels and a curved handle, no text or symbols present

Utilização

P Q SLEEP TIMER MODE SPEED TEMP K L M N O

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Technical line drawing of a mechanical device connected to a circular component (no text or symbols)

Diagram of a vertical container connected to a spherical pipe or hose, with no visible text or symbols.

Diagram of a device emitting exhaust via tubing with a cross symbol (no text or labels)

Diagram of a device connected to a vertical pipe with a cross symbol (no text or labels)

Odpływ

Technical line drawing of a mechanical device with coiled tubing and a zoomed-in view of its internal components (no text or symbols)

Line drawing of a cart with a handle and arrow indicating motion (no text or symbols)

Użytkowanie

K P M Q O SLEEP MODE L TIMER SPEED TEMP N

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Diagram showing two panels with grid patterns and an arrow indicating direction (no text or symbols)

Simple line drawing of a solar panel with grid lines and a clip, labeled with the number 3 (no text or symbols on the panel itself)

Diagram showing two panels: one with a grid pattern and arrow, the other with a grid pattern and arrow (no text or symbols)

Diagram showing two panels with a directional arrow, no text or symbols present

1

Technical line drawing of a mechanical device connected to a circular component (no text or symbols)

Diagram of a vehicle with a circular component connected to a vertical pole, showing airflow or support structure (no text or symbols)

Line drawing of a device with a pipe and a cross symbol (no text or labels)

Diagram of a vehicle with a cross symbol connected to a vertical pipe, no text or labels present

Dränering

Technical line drawing of a mechanical device with coiled tubing and a zoomed-in view of its internal components (no text or symbols)

Line drawing of a cart with a handle and arrow indicating motion (no text or symbols)

Användning

K P M Q O SLEEP TIMER MODE SPEED TEMP L N

Four safety symbols: no megaphone, no person with two people, a hand holding a sign, and a warning triangle.

Symbol of a trash bin crossed with no text or labels, accompanied by a solid black rectangle below (no text or symbols present)
