USER MANUAL APPPCIE150 Approx

Wireless N PCI Adapter

VERSION 1.1

Guía de Usuario User's Guide Guide de l'utilisateur Handleiding Guida per l'Utente Guia do Utilizador

DECLARACIÓN FCC

FC

APPROX Client Installation Program - InstallShield... Preparing Setup Please wait while the InstallShield Wizard prepares the setup. APPROX Client Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Imagen 2-1

APPPCI300 Wireless N Client Utility Installation Program APPPCI300 Wireless N Client Utility Installation Program This program installs the driver and client utilities for your 300Mbps Wireless N PCI Adapter. < Back Next > Cancel

Imagen 2-2

APPPCI300 Wireless N Client Utility Installation Program Setup Type Select the setup type that best suits your needs. Click the type of setup you prefer. Install Client Utilities and Driver Install Driver Only Make Driver Installation Diskette(s) Description Choose this option to install the driver and client utilities. This is the recommended option. < Back Next > Cancel InstallShield

Imagen 2-3

APPPCI300 Wireless N Client Utility Installation Program Choose Destination Location Select the folder where the installation program will install the files. The installation program will install the client utilities in the following location: Destination Folder C:\...\Approx\APPPCI300 Wireless N Client Utility Browse... InstallShield < Back Next > Cancel

Imagen 2-4

APPPCI300 Wireless M Client Utility Installation Program Select Program Folder Select a program folder. The installation program will add program icons to the Program Folder listed below. You may enter a new folder name or select one from the Existing Folders list. Program Folder: Approx Existing Folders: Adobe Design Premium CS3 Foxmail Microsoft Office Snagit 9 Symantec Client Security UltralSO WinPcap WinRAR 附件 InstallShield < Back Next > Cancel

Imagen 2-5

APPPCI300 Wireless N Client Utility Installation Program Choose Configuration Tool Which tool will you use to configure your client adapter? ● APPPCI300 Wireless N Client Utility and Supplicant ○ Third-Party Supplicant InstallShield < Back Next > Cancel

Imagen 2-6

APPCCI300 Wireless X Client Utility The installation program installs the driver automatically when the client adapter is inserted. Insert the adapter now if it is not yet inserted, cancel the Found New Hardware Wizard if it appears, and proceed with the installation. Click OK to continue. OK

Figure 2-7

APPPCI300 Wireless N Client Utility Installation Program Setup Status APPPCI300 Wireless N Client Utility Installation Program executing selected operations... Installing the driver files... InstallShield Cancel

Figure 2-8

Nota:

Hardware Installation The software you are installing for this hardware: 300Mbps Wireless N PCI Adapter has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Figure 2-9

APPPCI300 Wireless N Client Utility Installation Program InstallShield Wizard Complete The installation program has successfully performed the selected operations, but the driver installation is not yet complete. Click Finish to reboot the system; then use the Found New Hardware Wizard to complete the driver installation. Yes, I want to restart my computer now. No, I will restart my computer later. Remove any disks from their drives, and then click Finish to complete setup. < Back Finish Cancel

Figure 2-10

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics aqprox! Profile Name: Default Link Status: Associated Network Type: Infrastructure Wireless Mode: 2.4 GHz 300 Mbps Data Encryption: None Server Based Authentication: None Control Channel: 9 IP Address: 192.168.1.107 Extension 5 Signal Strength: Excellent Advanced

Figure 3-1

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Default New... Modify... Remove Activate Details Network Type: Infrastructure Security Mode: Disabled Network Name 1 (SSID1): Network Name 2 (SSID2): Network Name 3 (SSID3): Import... Export... Scan... Order Profiles... Auto Select Profiles Disable WLAN if LAN is Connected

Imagen 3-2

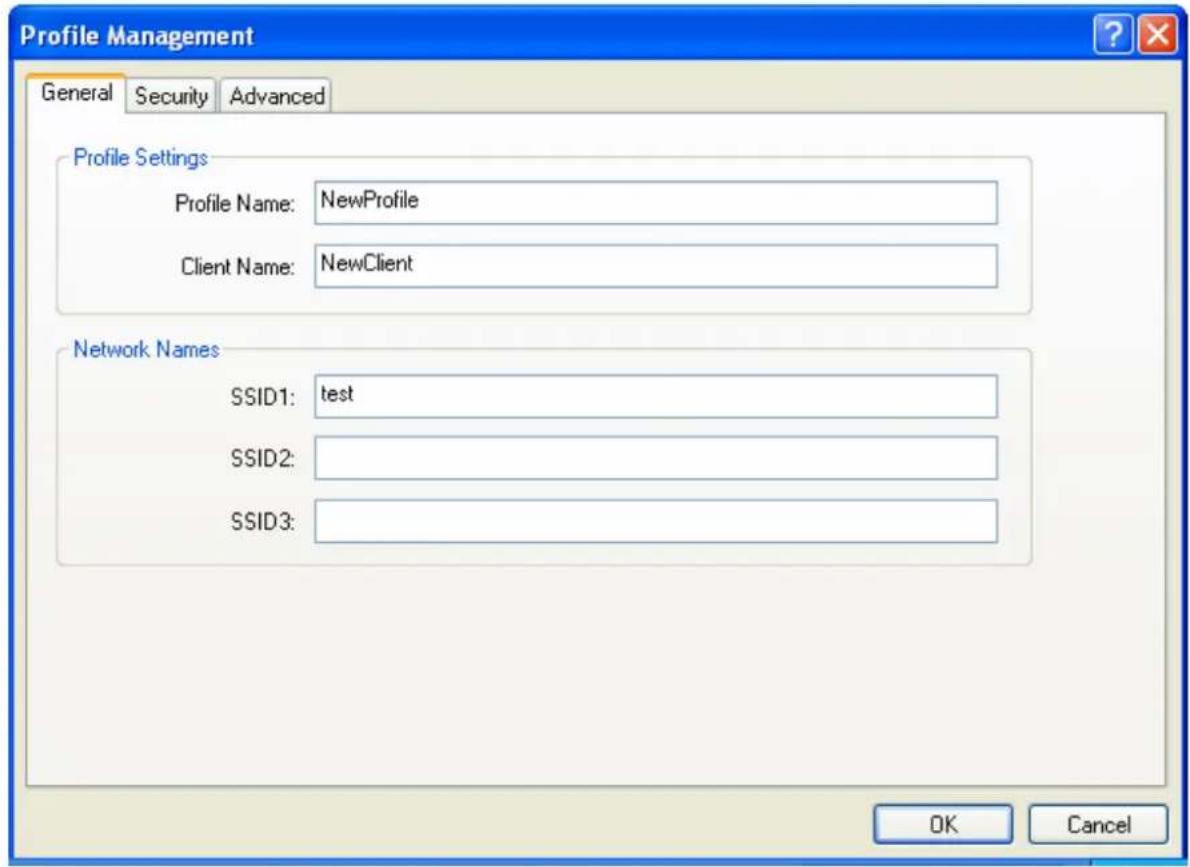

Profile Management General Security Advanced Profile Settings Profile Name: NewProfile Client Name: NewClient Network Names SSID1: test SSID2: SSID3: OK Cancel

Imagen 3-3

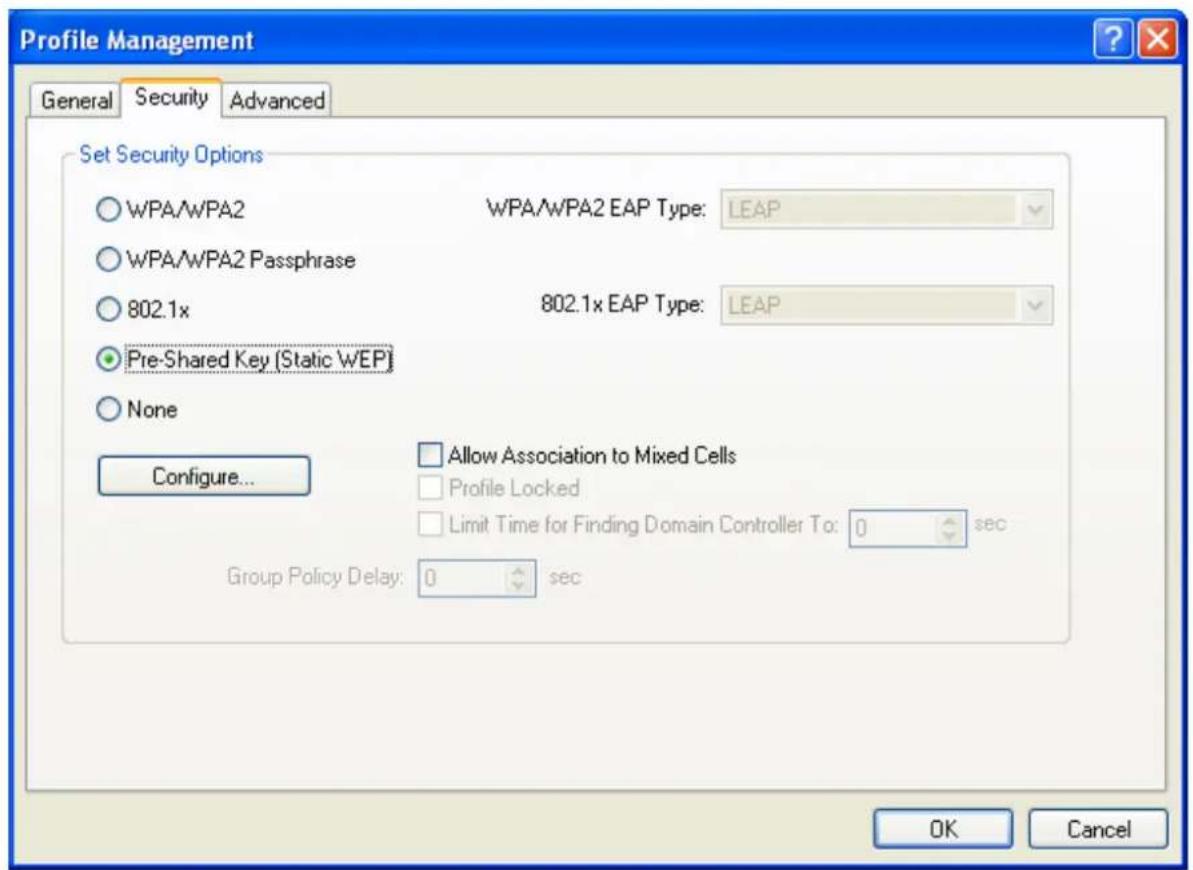

Profile Management General Security Advanced Set Security Options WPA/WPA2 WPA/WPA2 EAP Type: LEAP WPA/WPA2 Passphrase 802.1x 802.1x EAP Type: LEAP Pre-Shared Key (Static WEP) None Configure... Allow Association to Mixed Cells Profile Locked Limit Time for Finding Domain Controller To: 0 sec Group Policy Delay: 0 sec OK Cancel

Imagen 3-4

Configure Pre-Shared Keys (Static WEP) Key Entry Hexadecimal (0-9, A-F) ASCII Text (all keyboard characters) Encryption Keys Transmit Key WEP Key Size: 64 128 152 WEP Key 1: 0123456789 WEP Key 2: WEP Key 3: WEP Key 4: OK Cancel

Imagen 3-5

Nota:

Preferred Access Points Specified Access Point MAC Addresses Access Point 1: Access Point 2: Access Point 3: Access Point 4: OK Cancel

Imagen 3-7

3.2.2 Eliminar un perfil

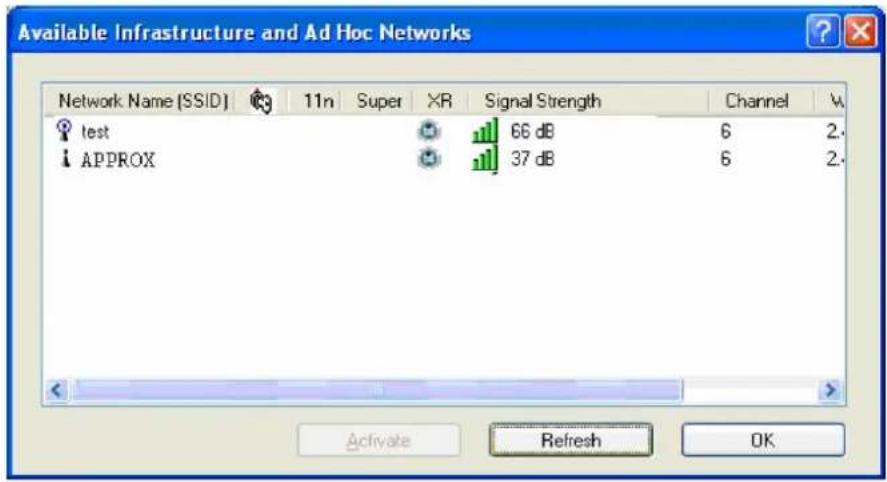

Available Infrastructure and Ad Hoc Networks Network Name (SSID) 11n Super XR Signal Strength Channel V. test 66 dB 6 2. APPROX 37 dB 6 2. Activate Refresh OK

Imagen 3-10

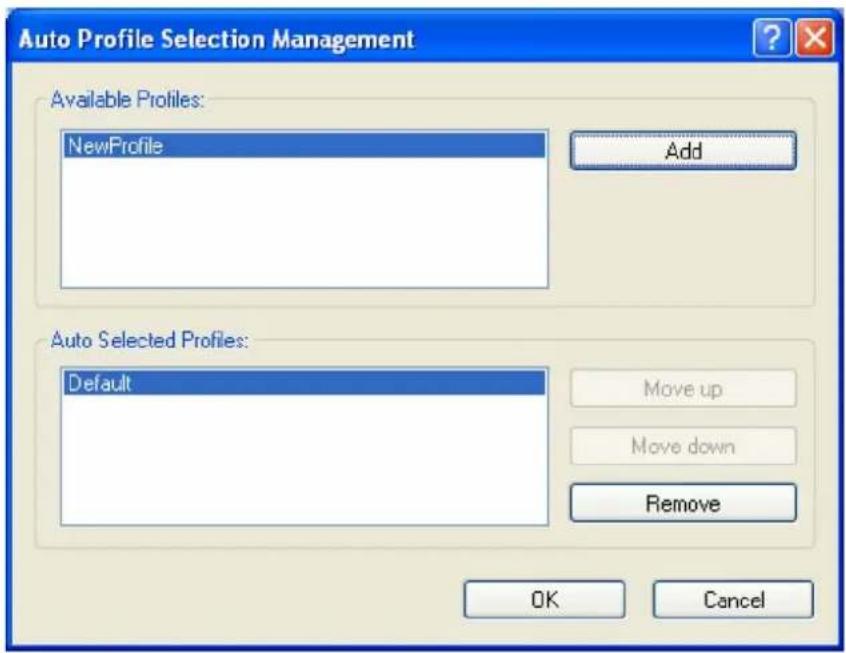

3.2.7 Auto Profile Selection Management

Auto Profile Selection Management Available Profiles: NewProfile Add Auto Selected Profiles: Default Move up Move down Remove OK Cancel

Imagen 3-11

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Transmit Multicast Packets: 0 Broadcast Packets: 0 Unicast Packets: 2 Total Bytes: 133 Receive Multicast Packets: 0 Broadcast Packets: 1 Unicast Packets: 1 Total Bytes: 89 Adapter Information Advanced Statistics

Imagen 3-12

Advanced Statistics Transmit Frames Transmitted OK: 17 RTS Frames: 0 Frames Retried: 20 CTS Frames: 0 Frames Dropped: 0 No CTS Frames: 0 No ACK Frames: 76 Retried RTS Frames: 0 ACK Frames: 17 Retried Data Frames: 20 Receive Beacons Received: 1241 Authentication Time-Out: 0 Frames Received OK: 2 Authentication Rejects: 0 Frames Received with Errors: 1139 Association Time-Out: 0 CRC Errors: 5551 Association Rejects: 0 Encryption Errors: 0 Standard MIC OK: 0 Duplicate Frames: 3 Standard MIC Errors: 0 AP Mismatches: 0 CKIP MIC OK: 0 Data Rate Mismatches: 0 CKIP MIC Errors: 0 OK

Imagen 3-13

3.4 Windows® Vista

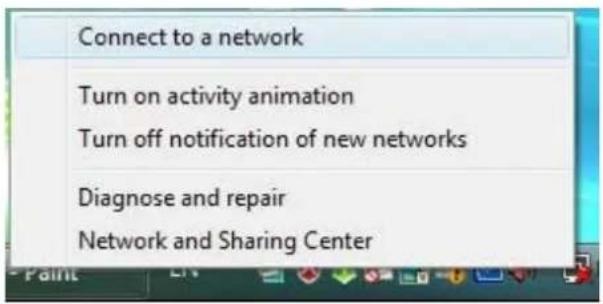

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

Figure 3-14

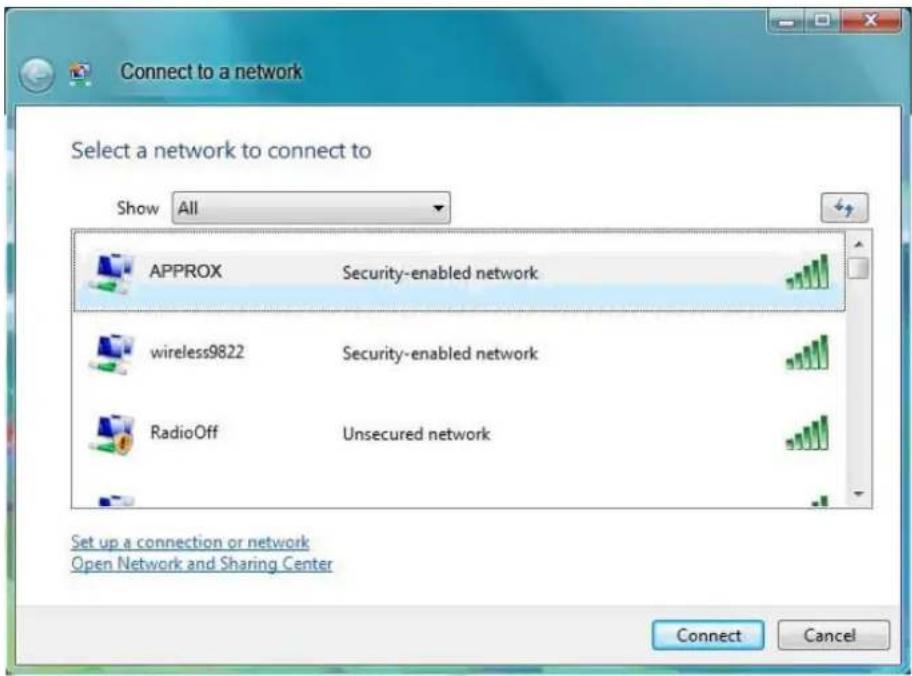

Connect to a network Select a network to connect to Show All APPROX Security-enabled network wireless9822 Security-enabled network RadioOff Unsecured network Set up a connection or network Open Network and Sharing Center Connect Cancel

Imagen 3-15

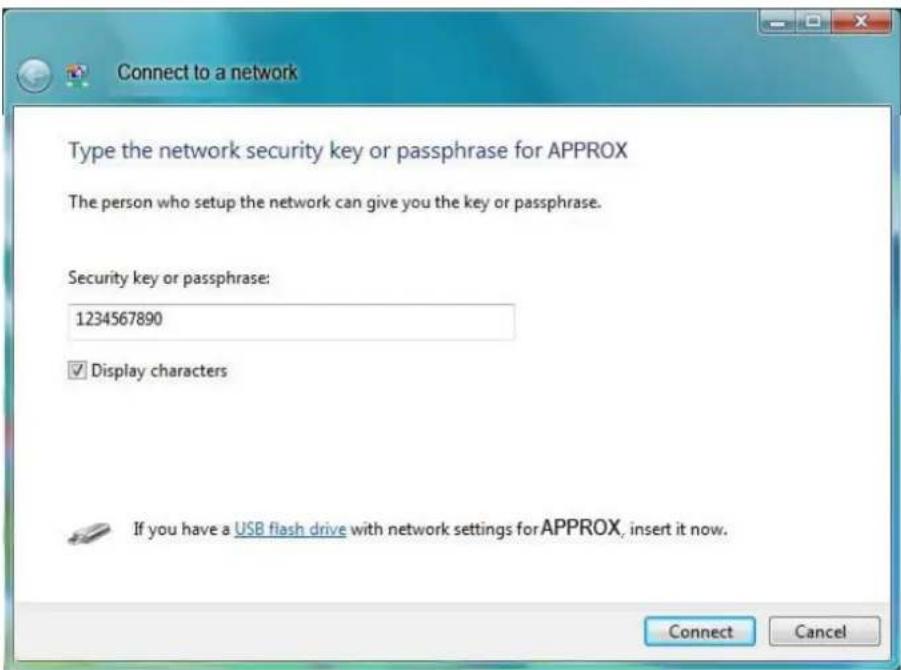

Connect to a network Type the network security key or passphrase for APPROX The person who setup the network can give you the key or passphrase. Security key or passphrase: 1234567890 ✓ Display characters If you have a USB flash drive with network settings for APPROX, insert it now. Connect Cancel

Imagen 3-16

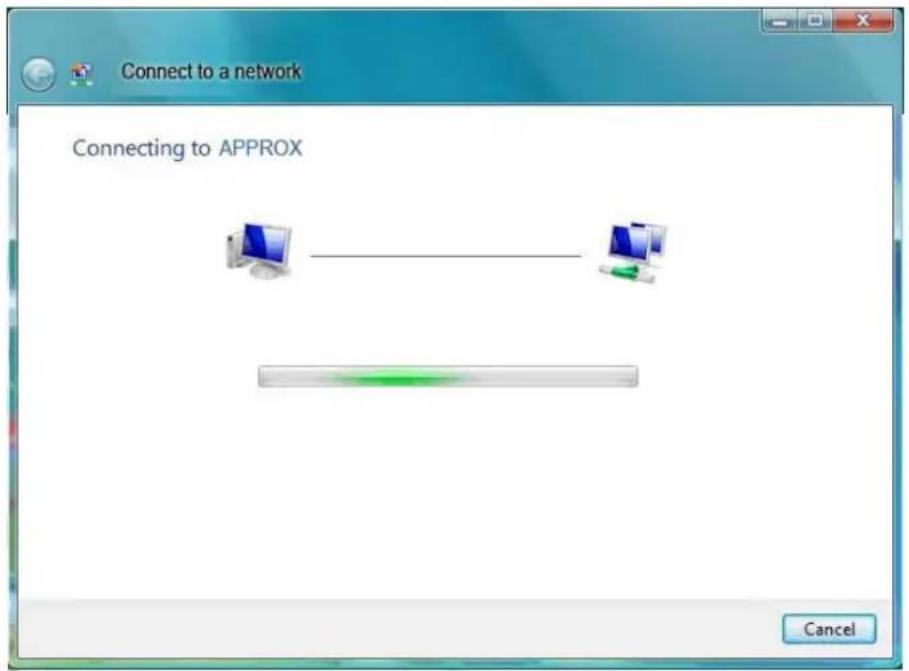

Connect to a network Connecting to APPROX Cancel

Imagen 3-17

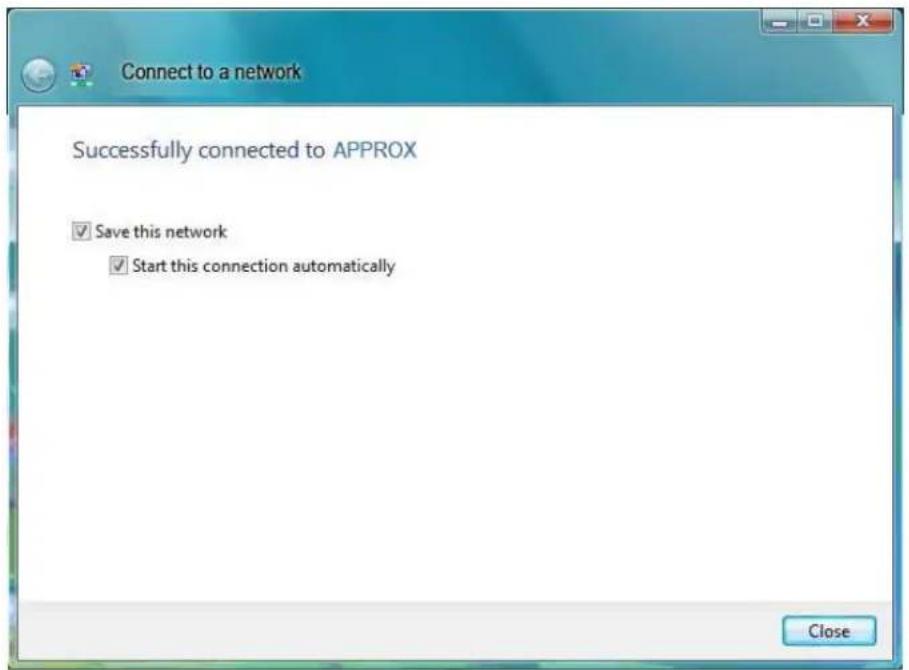

Connect to a network Successfully connected to APPROX ✓ Save this network ✓ Start this connection automatically Close

Imagen 3-18

3.5 Windows® 7

El software APPPCI300 Wireless N Client Utility (AWCU) no está disponible para Windows®

Currently connected to: Network 2 No Internet access Wireless Network Connection TIBIN APPROX Connect automatically Connect test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Imagen 3-19

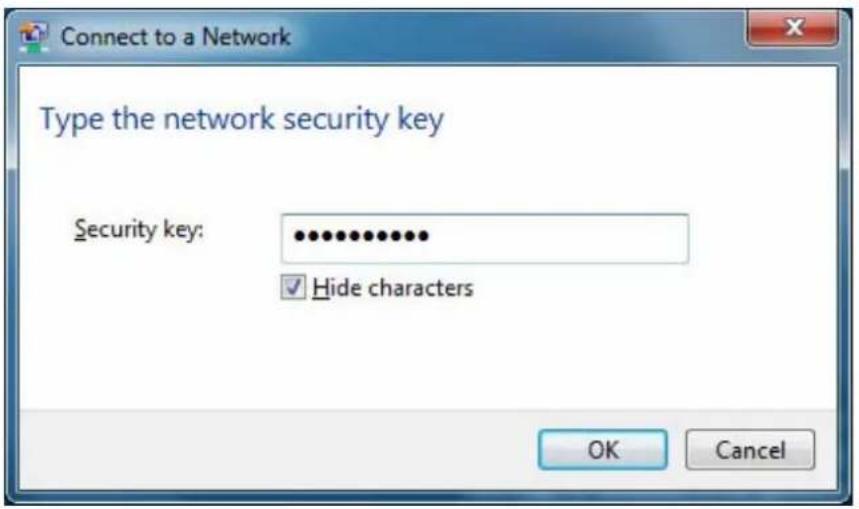

Connect to a Network Type the network security key Security key: Hide characters OK Cancel

Imagen 3-20

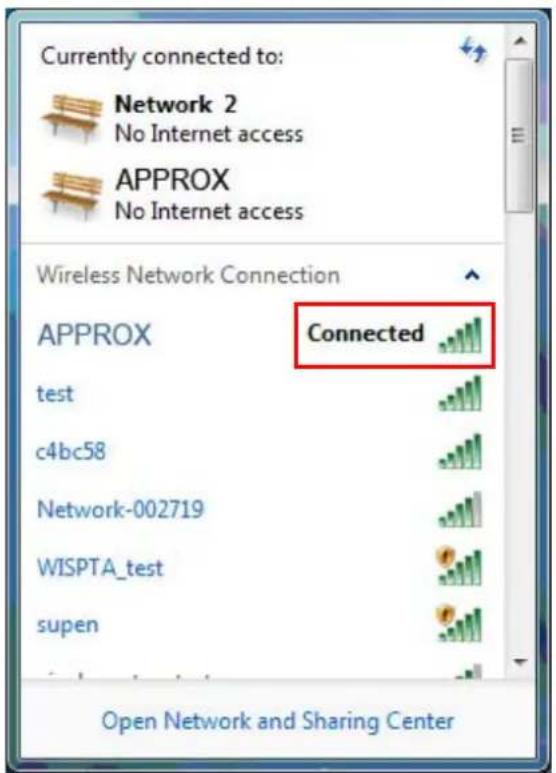

Currently connected to: Network 2 No Internet access APPROX No Internet access Wireless Network Connection APPROX Connected test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Imagen 3-21

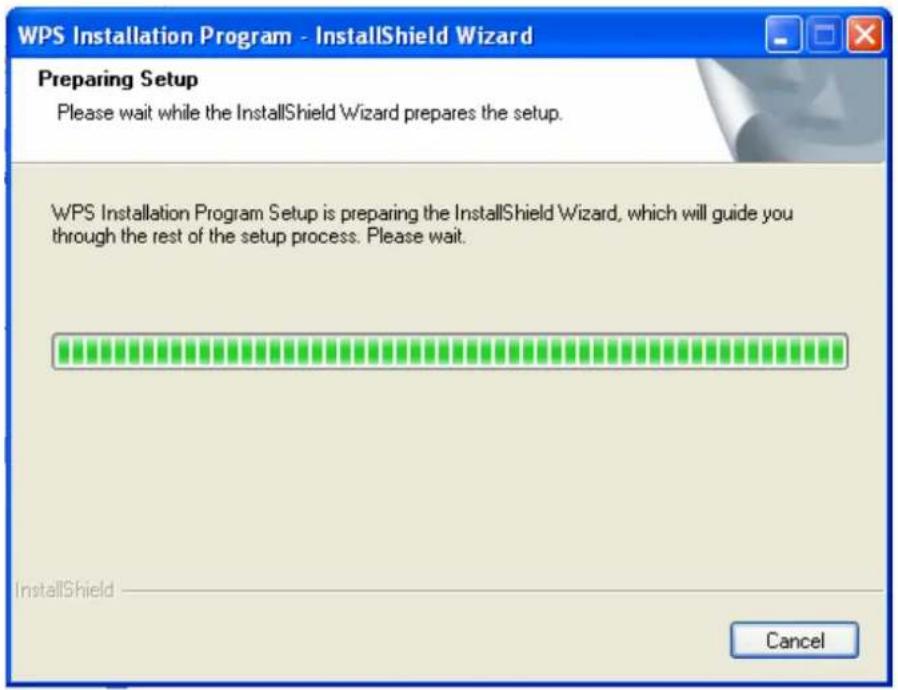

WPS Installation Program - InstallShield Wizard Preparing Setup Please wait while the InstallShield Wizard prepares the setup. WPS Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Imagen 4-1

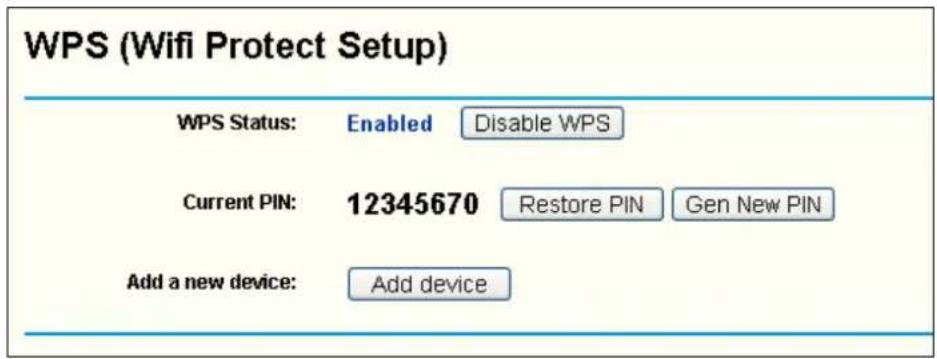

WPS (Wifi Protect Setup) WPS Status: Enabled Disable WPS Current PIN: 12345670 Restore PIN Gen New PIN Add a new device: Add device

Imagen 4-3

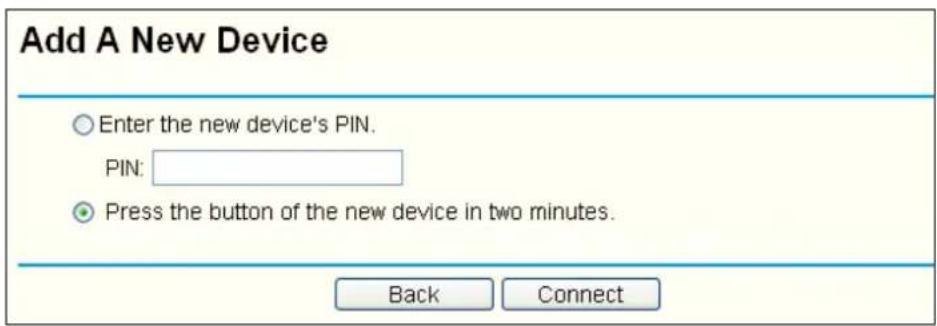

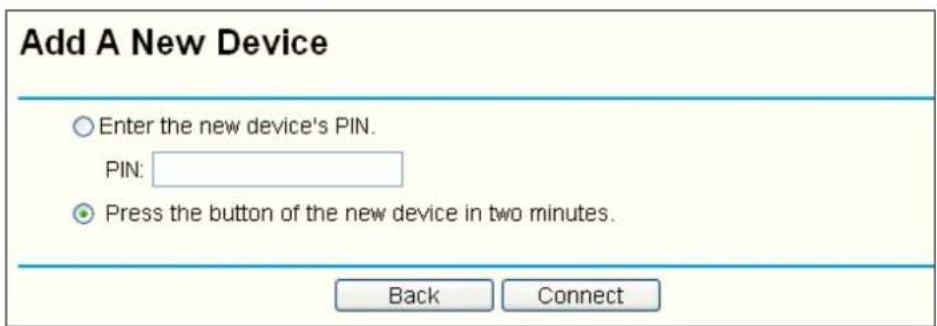

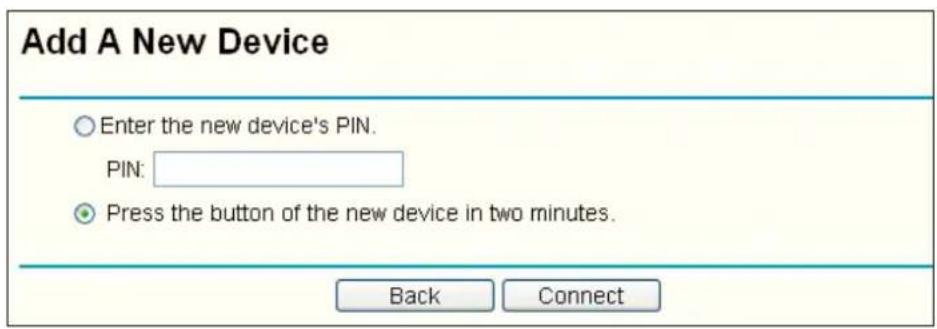

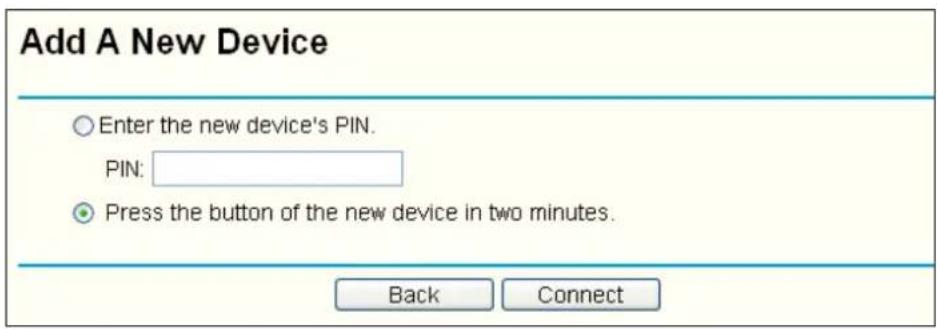

Add A New Device Enter the new device's PIN. PIN: Press the button of the new device in two minutes. Back Connect

Imagen 4-4

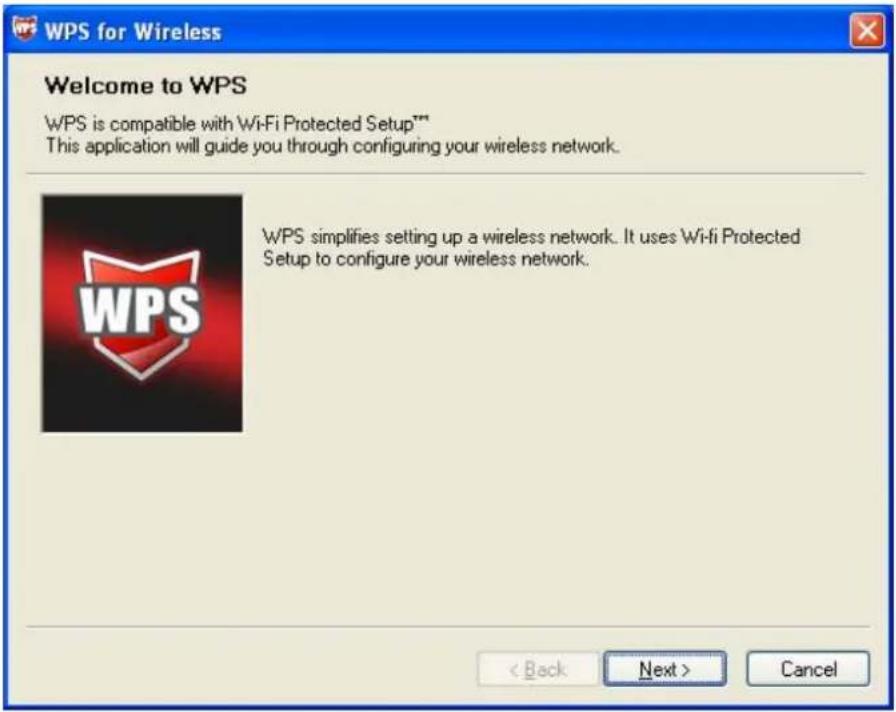

WPS for Wireless Welcome to WPS WPS is compatible with Wi-Fi Protected Setup** This application will guide you through configuring your wireless network. WPS simplifies setting up a wireless network. It uses Wi-fi Protected Setup to configure your wireless network. < Back Next > Cancel

Imagen 4-5

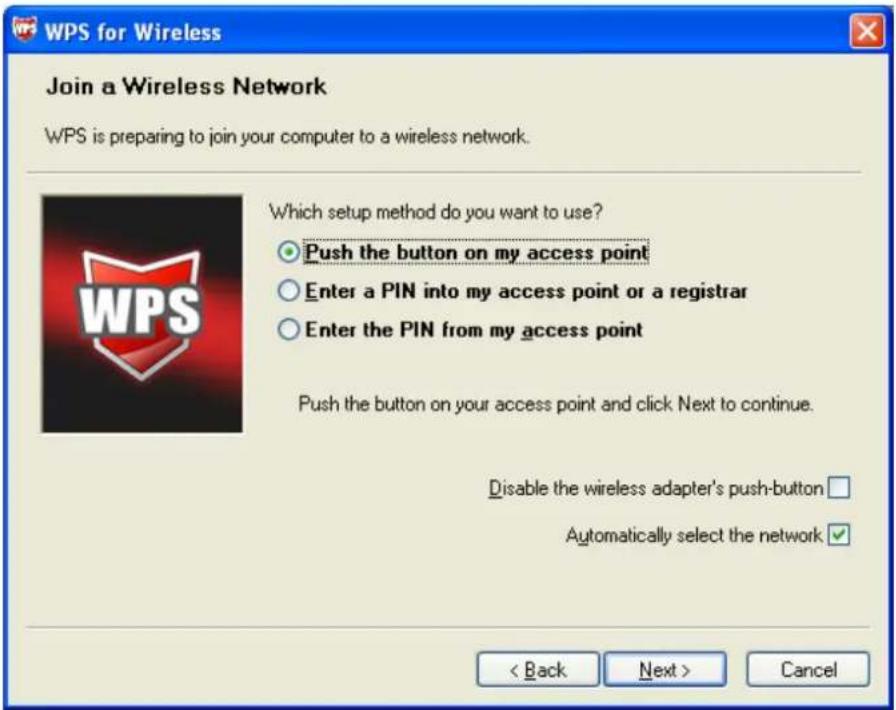

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ● Push the button on my access point ○ Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Push the button on your access point and click Next to continue. Disable the wireless adapter's push-button □ Automatically select the network ✓ < Back Next > Cancel

Imagen 4-6

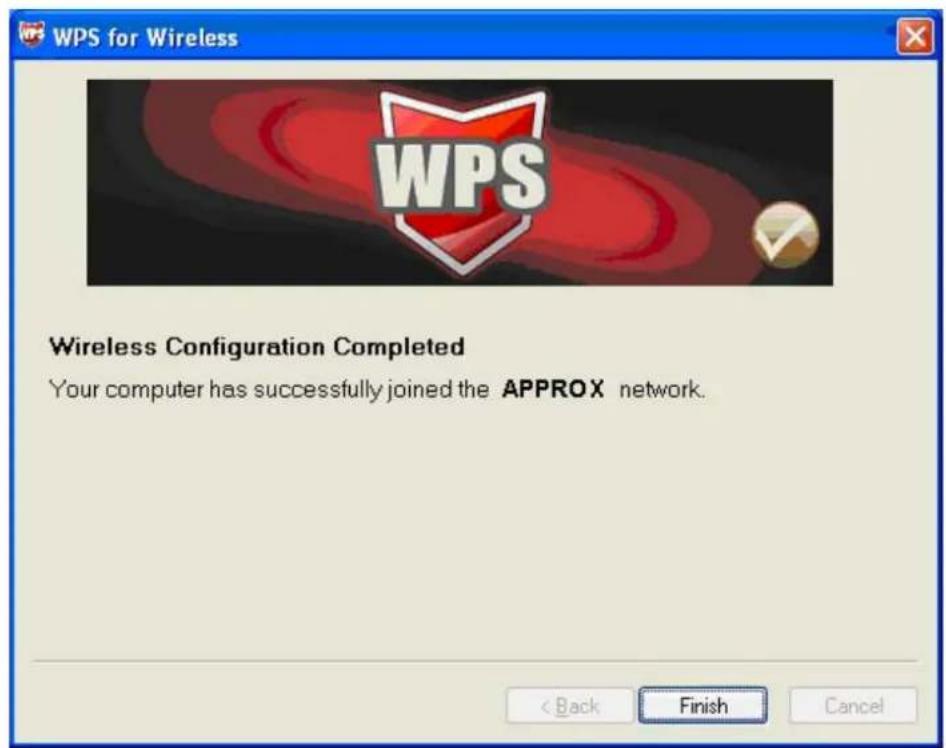

WPS for Wireless Wireless Configuration Completed Your computer has successfully joined the PROWARE network. < Back Finish Cancel

Imagen 4-7

4.2 Método PIN

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ● Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Enter the PIN 79666947 into your access point or external registrar and click Next to continue. Automatically select the network < Back Next > Cancel

Figure 4-8

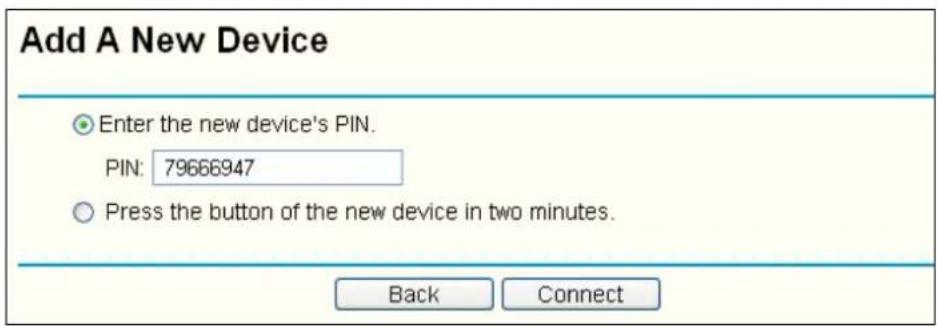

Add A New Device Enter the new device's PIN. PIN: 79666947 Press the button of the new device in two minutes. Back Connect

Figure 4-9

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ○ Enter a PIN into my access point or a registrar ● Enter the PIN from my access point Enter the PIN from your access point below and click Next to continue. Access Point PIN: 12345670 Automatically select the network < Back Next > Cancel

Figure 4-10

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC RF Radiation Exposure Statement:

This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers. This device cannot be used with handheld PDAs (personal digital assistants). This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter. SAR measurements are based on a 5mm spacing from the body and that compliance is achieved at that distance.

CE Mark Warning

This is a class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required to take adequate measures.

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country	Restriction	Reason/remark
Bulgaria	None	General authorization required for outdoor use and public service
France	Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz	Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012
Italy	None	If used outside of own premises, general authorization is required
Luxembourg	None	General authorization required for network and service supply(not for spectrum)
Norway	Implemented	This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund

Russian Federation None Only for indoor applications
Note: Please don't use the product outdoors in France.

CONTENTS

Package Contents

Chapter 1. Introduction

1.1 Overview of the product
1.2 Features
1.3 LED Status

Chapter 2. Installation Guide

2.1 Hardware Installation
2.2 Software Installation
2.2.1 For Windows® XP

Chapter 3. Configuration Guide

3.1 Current Status
3.2 Profile Management

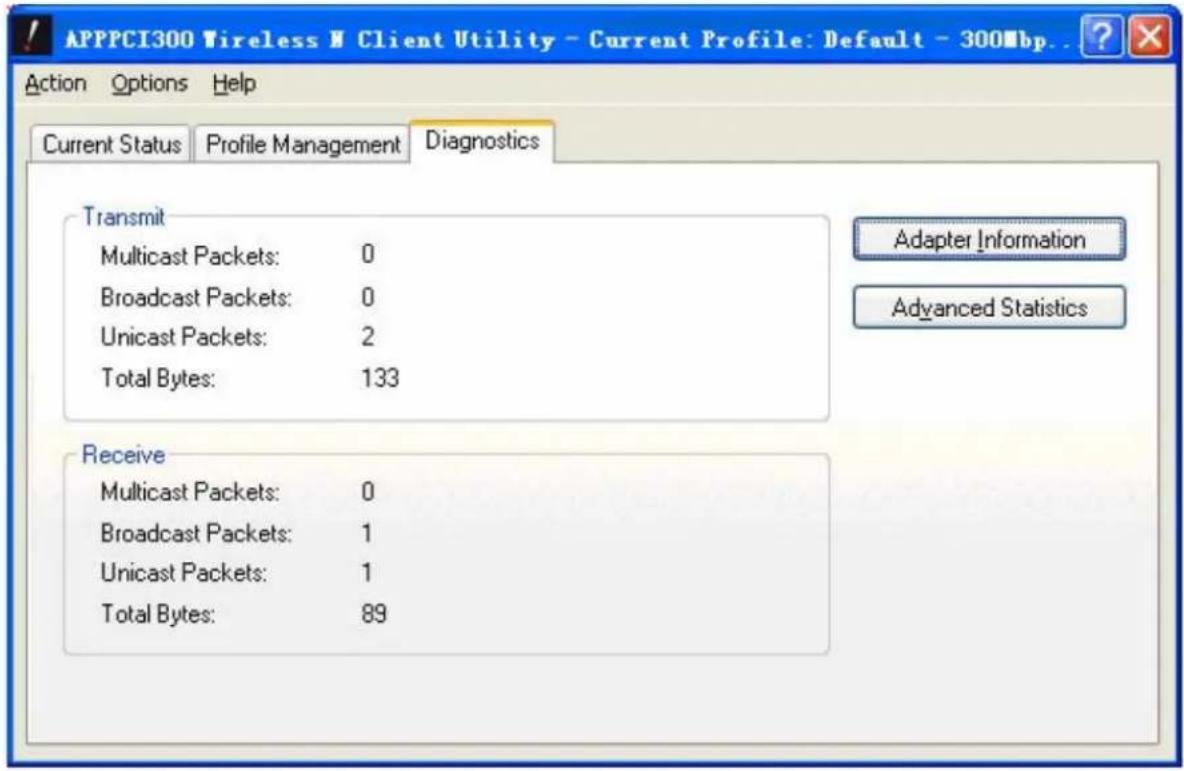

3.3 Diagnostics
3.4 For Windows® Vista
3.5 For Windows® 7

Chapter 4. WPS configuration

4.1 PBC (Push Button Configuration) method
4.2 PIN method
4.2.1 Enter a PIN into your AP device
4.2.2 Enter the PIN from your AP device

Appendix A: Specifications

Appendix B: Glossary

Package Contents

The following contents should be found in your box:

One APPPCI300 300Mbps Wireless N PCI Adapter

Quick Installation Guide
One Resource CD for APPPCI300, including:

• APPPCI300 Wireless N Client Utility (AWCU) and Drivers
• User Guide
  • Other Helpful Information

Note:

Make sure that the package contains the above items. If any of the listed items are damaged or missing, please contact with your distributor.

Chapter 1. Introduction

Thank you for choosing APPPCI300 300Mbps Wireless N PCI Adapter.

1.1 Overview of the product

The adapter is a 802.11n client device designed to provide a high-speed and unrivaled wireless performance for your notebook and PC. With a faster wireless connection, you can get a better Internet experience, such as downloading, gaming, video streaming and so on.

The APPPCI300's auto-sensing capability allows high packet transfer rate of up to 300Mbps for maximum throughput. It has good capability on anti-jamming; it can also interoperate with other wireless (802.11b/g) products. The adapter supports WEP, WPA and WPA2 encryption to prevent outside intrusion and protect your personal information from being exposed.

The Quick Setup Wizard guides you step by step through the installation process; the APPPCI300 Wireless N Client Utility helps you create a wireless connection immediately.

With unmatched wireless performance, reception, and security protection, the APPPCI300 is the best choice for easily adding or upgrading wireless connectivity.

1.2 Features

Complies with IEEE802.11n, IEEE802.11g, IEEE802.11b standards
Supports WPA/WPA2 data security, IEEE802.1x authentication, TKIP/AES encryption, WEP encryption
Make use of IEEE 802.11n wireless technology to provide a wireless data rate of up to 300Mbps
Supports automatically adjust to lower speeds due to distance or other operating limitations
➢ Provides 32 bit PCI interface
Supports Ad-Hoc and Infrastructure modes
Good capability on anti-jamming
Supports roaming between access points when configured in Infrastructure mode
- Easy to configure and provides monitoring information
Supports Windows® 2000, Windows® XP (32/64), Windows® Vista (32/64), Windows® 7 (32/64)

1.3 LED Status

LED Indications Status Working Status
Status Green	Flashing Alternately	The adapter is trying to scan a networking connection.
Activity Green
Status Green	Intermittently	The adapter is already connected but is not transmitting or receiving data.
Activity Green
Status Green	Flashing The adapter is transmitting or receiving data.
Activity Green

Chapter 2. Installation Guide

2.1 Hardware Installation

To install the adapter, follow these steps listed below:

1. Turn off your desktop PC and disconnect the power.
2. Remove your PC case and locate an available PCI slot on the mianboard. Remove the metal slot cover on the back of the PC. Check with your computer manufacturer for instructions if needed.
3. Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the slot's contacts. Once the adapter is firmly in place, secure its fastening tab to your PC's chassis with a mounting screw. Then, close your PC case.
4. Reconnect your PC's power and turn on your desktop PC.

2.2 Software Installation

2.2.1 For Windows® XP

The Setup steps for Windows® 2000 and XP are similar with each other. This user guide takes Windows® XP for example.

1. Insert the Resource CD into your CD-ROM drive. To continue, find the CD/DVD drive where the installation CD was placed. Open APPPCI300 folder, and double-click Setup.exe. Then you will see Figure 2-1.

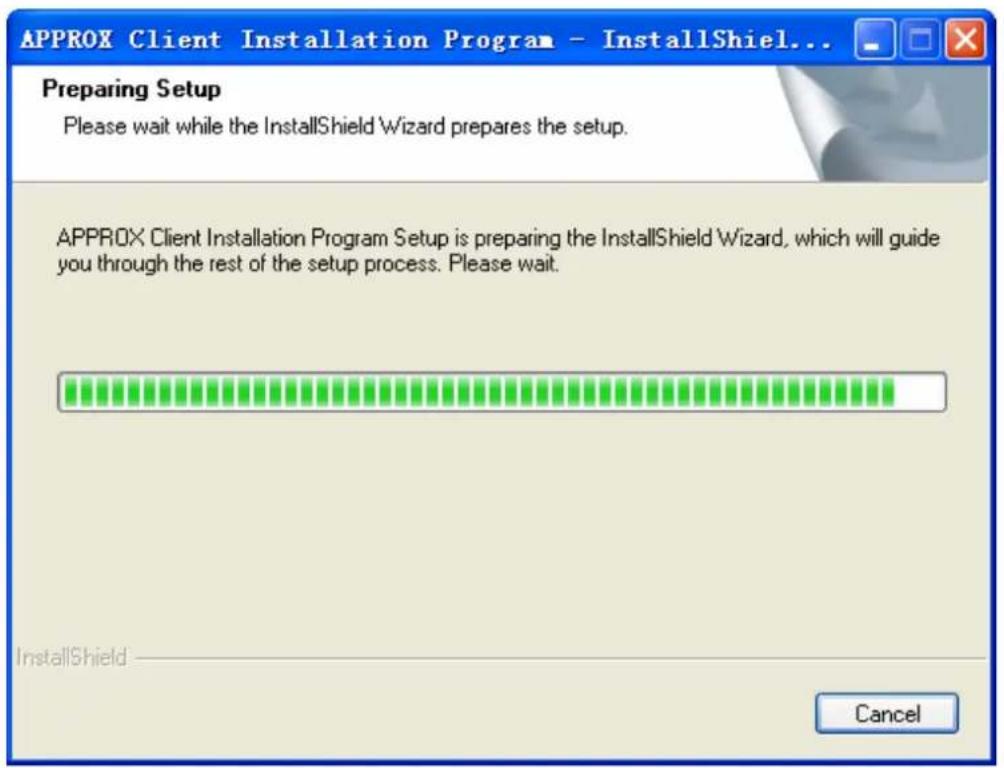

APPROX Client Installation Program - InstallShield... Preparing Setup Please wait while the InstallShield Wizard prepares the setup. APPROX Client Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Figure 2-1

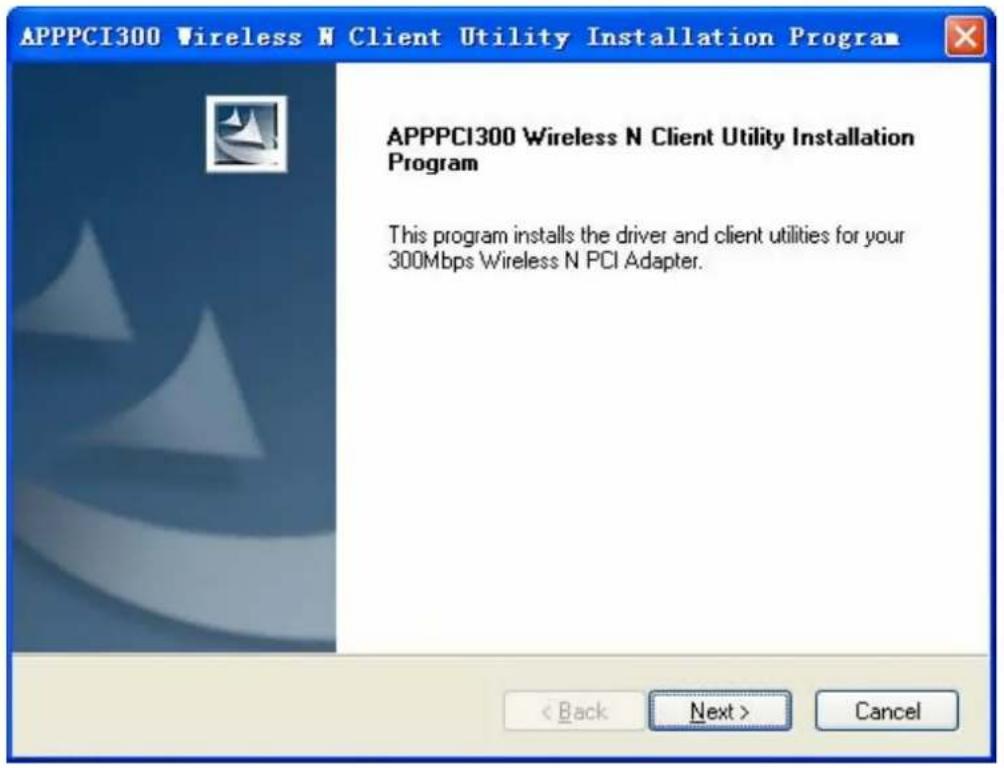

1. Soon, Figure 2-2 will display after a moment. Click Next to continue.

APPPCI300 Wireless N Client Utility Installation Program APPPCI300 Wireless N Client Utility Installation Program This program installs the driver and client utilities for your 300Mbps Wireless N PCI Adapter. < Back Next > Cancel

Figure 2-2

1. After that, you should choose a Setup type. It is recommended that you select Install Client Utilities and Driver. Select Install Driver Only to install driver only, select Make Driver Installation Diskette(s) to make the diskette(s) as the installation driver (shown in Figure 2-3). Click Next to continue.

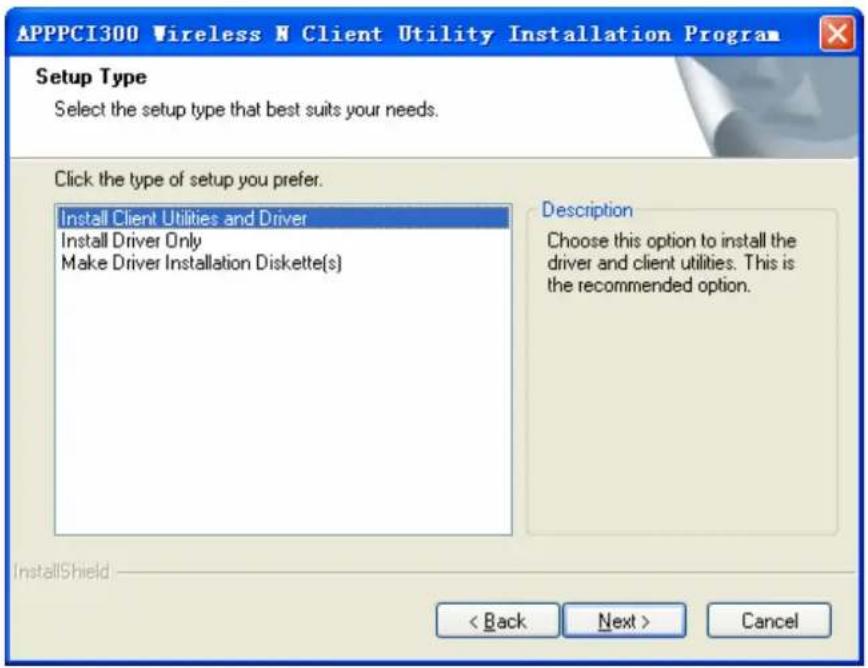

APPPCI300 Wireless N Client Utility Installation Program Setup Type Select the setup type that best suits your needs. Click the type of setup you prefer. Install Client Utilities and Driver Install Driver Only Make Driver Installation Diskette(s) Description Choose this option to install the driver and client utilities. This is the recommended option. < Back Next > Cancel InstallShield

Figure 2-3

1. Click Browse... to change the destination location for the software, then click Next in the

screen below (shown in Figure 2-4).

APPPCI300 Wireless N Client Utility Installation Program Choose Destination Location Select the folder where the installation program will install the files. The installation program will install the client utilities in the following location: Destination Folder C:\...\Approx\APPPCI300 Wireless N Client Utility Browse... InstallShield < Back Next > Cancel

Figure 2-4

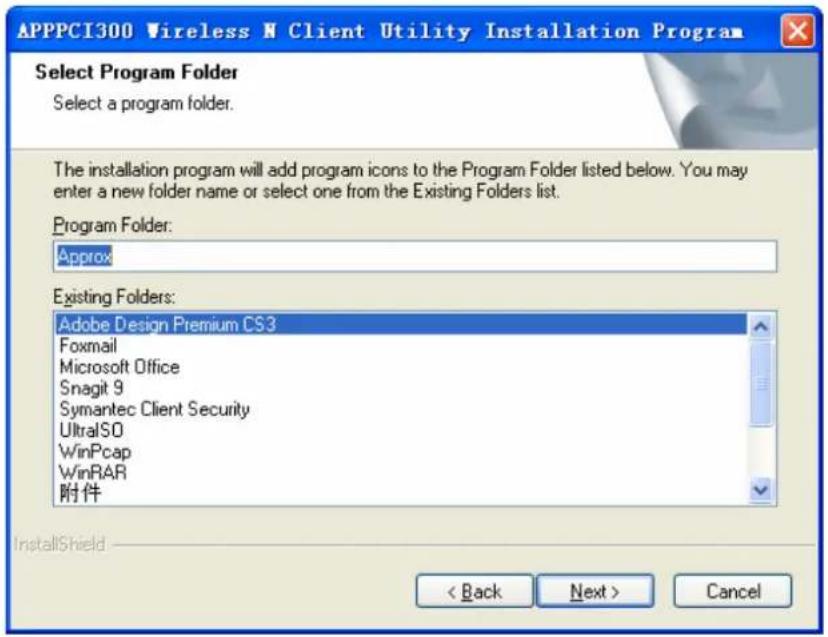

1. After that, select the program folder, you should create a new folder name or select one from the Existing Folders list. It is recommended that you keep the default setting. Click Next to continue the installation.

APPPCI300 Wireless M Client Utility Installation Program Select Program Folder Select a program folder. The installation program will add program icons to the Program Folder listed below. You may enter a new folder name or select one from the Existing Folders list. Program Folder: Approx Existing Folders: Adobe Design Premium CS3 Foxmail Microsoft Office Snagit 9 Symantec Client Security UltraISO WinPcap WinRAR 附件 InstallShield < Back Next > Cancel

Figure 2-5

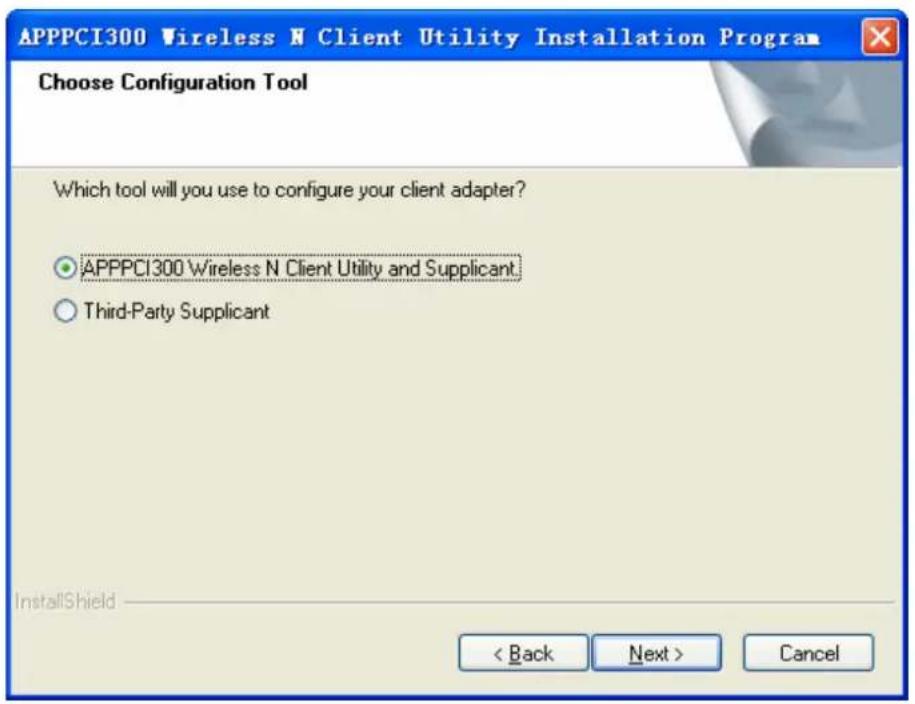

1. Choose configuration tool, if you are not sure, please leave it default. Then click Next to continue.

APPPCI300 Wireless N Client Utility Installation Program Choose Configuration Tool Which tool will you use to configure your client adapter? ● APPPCI300 Wireless N Client Utility and Supplicant ○ Third-Party Supplicant InstallShield < Back Next > Cancel

Figure 2-6

1. Click OK to continue the Installation on the screen below.

APPPCI300 Wireless N Client Utility The installation program installs the driver automatically when the client adapter is inserted. Insert the adapter now if it is not yet inserted, cancel the Found New Hardware Wizard if it appears, and proceed with the installation. Click OK to continue. OK

Figure 2-7

1. Wait a while for the setup as shown in . Figure 2-8

APPPCI300 Wireless N Client Utility Installation Program Setup Status APPPCI300 Wireless N Client Utility Installation Program executing selected operations... Installing the driver files... InstallShield Cancel

Figure 2-8

Note:

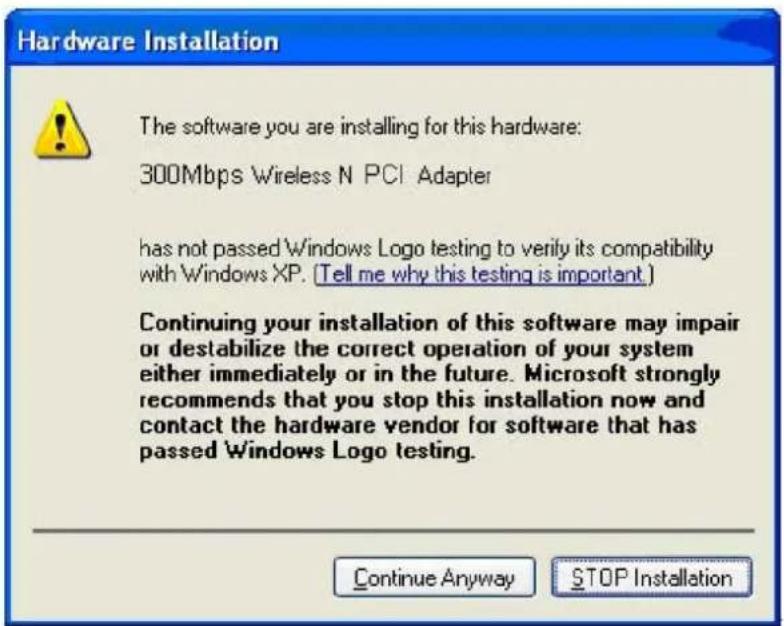

1) For Windows® XP, the Setup Wizard will notify you of how to proceed with the installation during these steps (shown in Figure 2-9). Our drivers have been tested thoroughly, and are able to work with the operating system. Click Continue Anyway to continue the Installation.

Hardware Installation The software you are installing for this hardware: 300Mbps Wireless N PCI Adapter has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Figure 2-9

2) In Windows® 2000, please select Yes to continue installation.

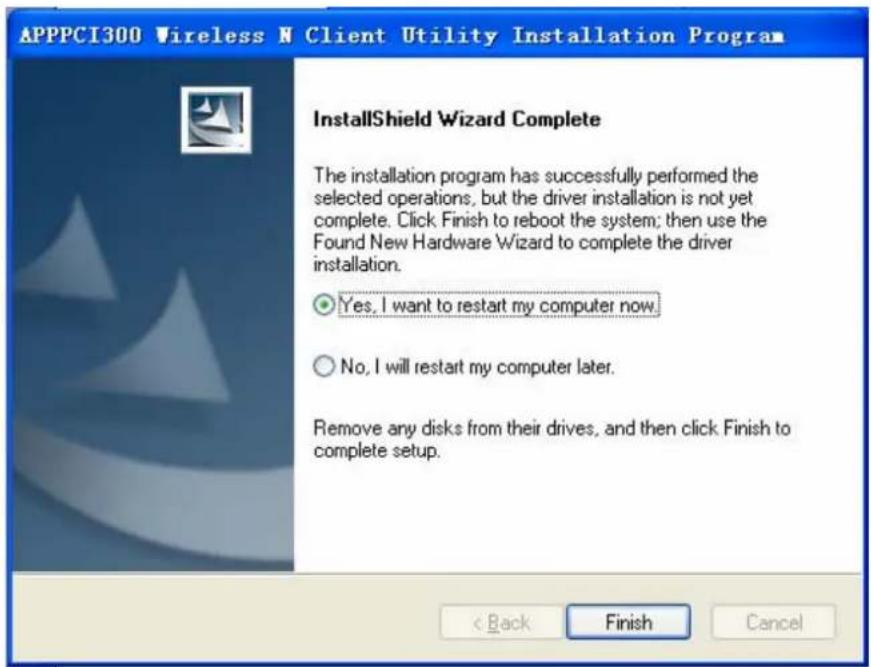

1. After all the steps above, you will see the screen below, click Finish to complete the installation.

APPPCI300 Wireless N Client Utility Installation Program InstallShield Wizard Complete The installation program has successfully performed the selected operations, but the driver installation is not yet complete. Click Finish to reboot the system; then use the Found New Hardware Wizard to complete the driver installation. Yes, I want to restart my computer now. No, I will restart my computer later. Remove any disks from their drives, and then click Finish to complete setup. < Back Finish Cancel

Figure 2-10

Chapter 3. Configuration Guide

APPPCI300 can be configured by APPPCI300 Wireless N Client Utility (AWCU) in Windows® XP & 2000. This chapter describes how to configure your Adapter for wireless connectivity on your Wireless Local Area Network (WLAN) and use the data security encryption features.

The configuration of the adapter in Windows® XP is similar with that of Windows® 2000. This User Guide takes Windows® XP for example.

After Installing the Adapter, the Adapter's tray icon will appear in your system tray. It appears at the bottom of the screen, and shows the signal strength using color and the received signal strength indication (RSSI).

If the icon is gray, there is no connection.
If the icon is red, there is poor signal strength and the RSSI is less than 5dB.
If the icon is yellow, there is poor signal strength and the RSSI is between 5dB and 10dB.
If the icon is green, there is good signal strength and the RSSI is between 10dB and 20dB.
If the icon is green, there is excellent signal strength and the RSSI is more than 20dB.

Double-click the icon and the AWCU will run. You can also run the utility by clicking the Start→Program→Approx→APPPCI300 Wireless N Client Utility. The AWCU provides some integrated and easy tools to:

▶ Display current status information
- Edit and add configuration profiles
▶ Display current diagnostics information

The section below introduces these above capabilities.

3.1 Current Status

The Current Status tab contains general information about the program and its operations. The Current Status tab needn't any configurations.

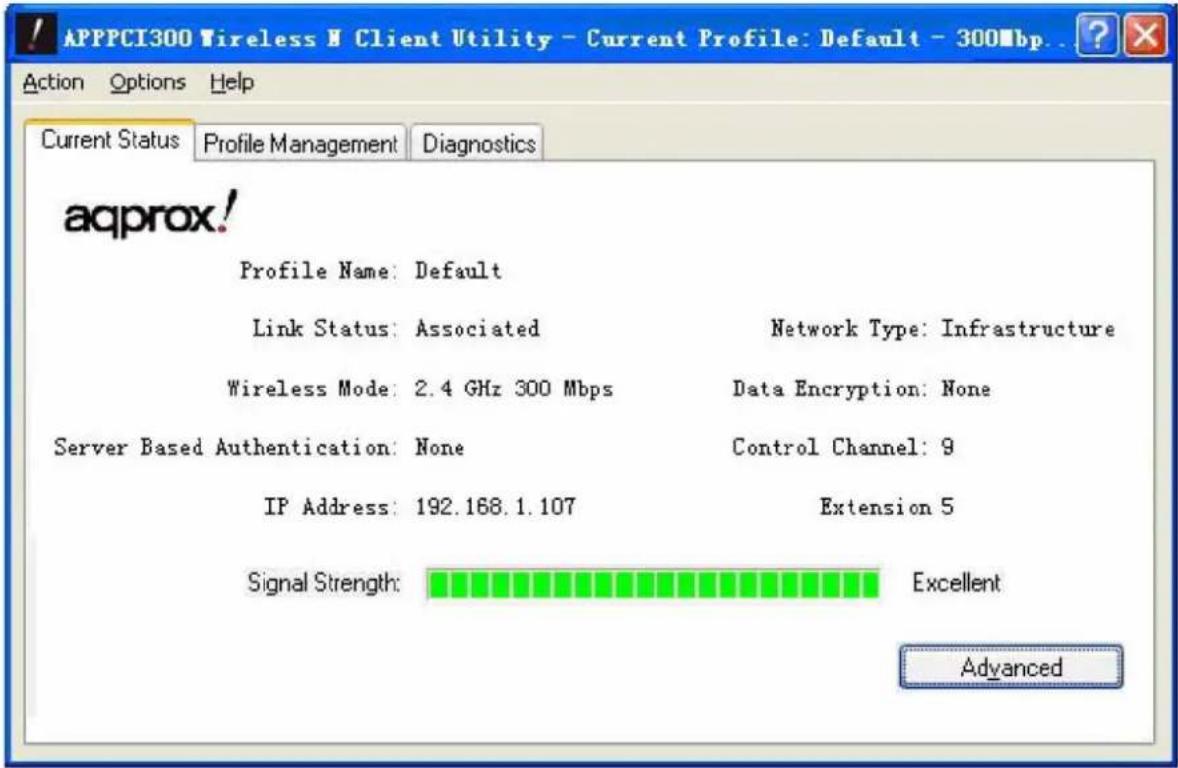

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics aqprox! Profile Name: Default Link Status: Associated Network Type: Infrastructure Wireless Mode: 2.4 GHz 300 Mbps Data Encryption: None Server Based Authentication: None Control Channel: 9 IP Address: 192.168.1.107 Extension 5 Signal Strength: Excellent Advanced

Figure 3-1

The following table describes the items found on the Current Status screen.

Profile Name - This shows the name of current selected configuration profile. The configuration of Profile name will be described on the General tab of Profile Management.
Link Status - This shows whether the station is associated to the wireless network.
Wireless Mode - Here displays the wireless mode.
Network Type - The type of network and the station currently connected are shown here. The options include:
• Infrastructure (acces s point)
- Ad Hoc

Note:

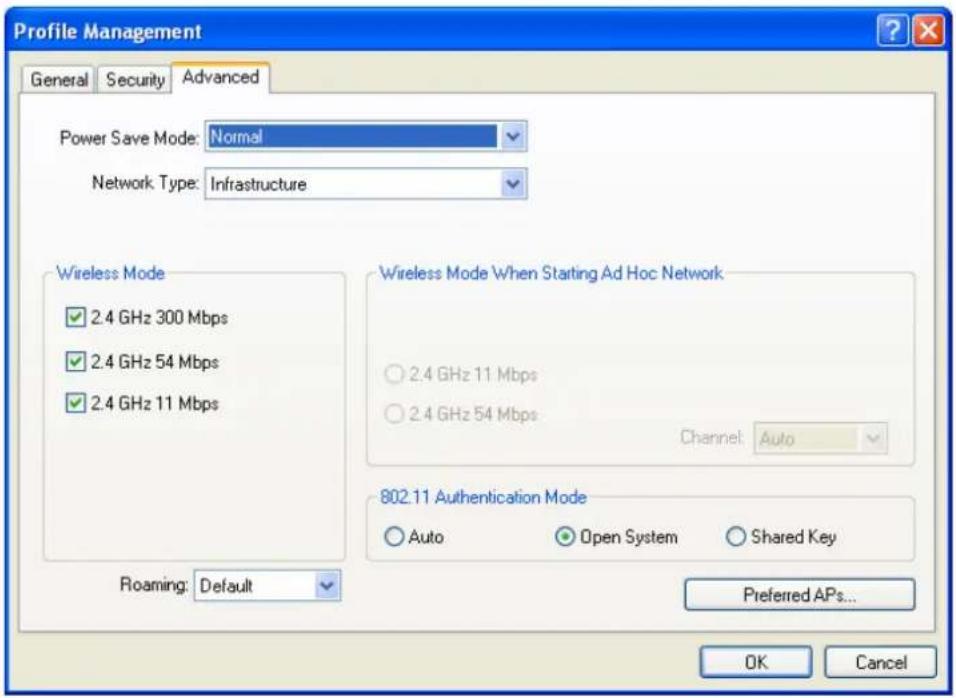

You can configure the network type and wireless mode on the Advanced tab of Profile Management.

IP Address - This displays the computer's IP address.
Control Channel - This shows the currently connected channel.
Data Encryption - Here displays the encryption type the driver is using. You can configure it on the Security tab of Profile Management.
Server Based Authentication - This shows whether the server based authentication is

used.

Signal Strength - This shows the strength of the signal.

Click Advanced on the screen above, you can see advanced information about the program and its operations.

3.2 Profile Management

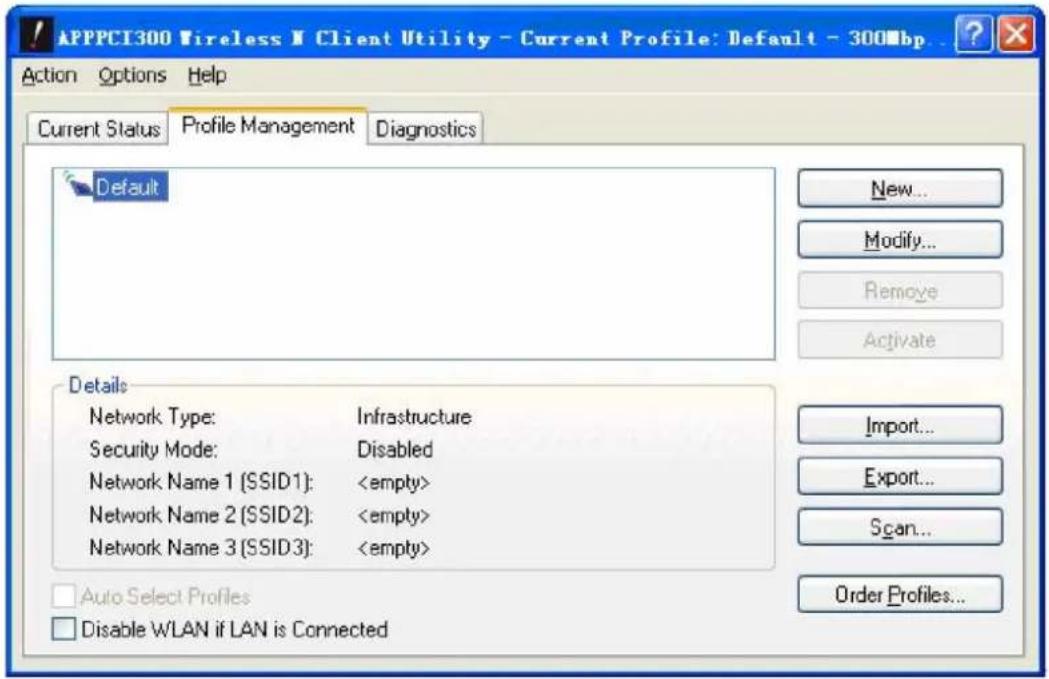

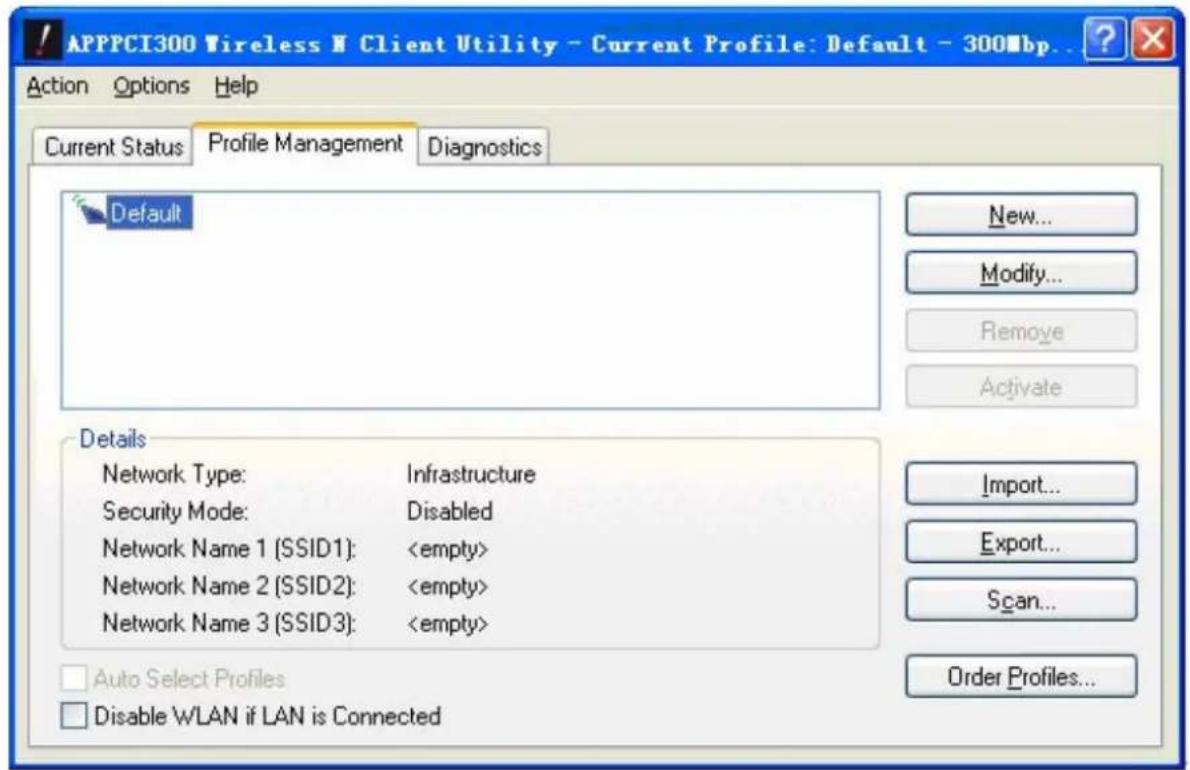

Click the Profile Management tab of the AWCU and the next screen will appear (shown in Figure 3-2). The Profile Management screen provides tools to:

▶ Add a new profile
Modify a profile
Remove a profile
Activate a Profile
Import a Profile
Export a Profile
➢ Scan Available Networks
Order profiles

APPPCI300 Wireless Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Default New... Modify... Remove Activate Details Network Type: Infrastructure Security Mode: Disabled Network Name 1 (SSID1): Network Name 2 (SSID2): Network Name 3 (SSID3): Import... Export... Scan... Order Profiles... Auto Select Profiles Disable WLAN if LAN is Connected

Figure 3-2

le 3.2.1 Add or Modify a Configuration Profi

To add a new configuration profile, click New on the Profile Management tab. To modify a

configuration profile, select the configuration profile from the Profile list and click Modify. Then you will see the Management dialog box (shown in Figure 3-3).

1. Edit the General tab

Profile Name - Please enter the Profile name which identifies the configuration profile. This name must be unique. Note that the profile names are not case-sensitive.
➢ Client Name - Please enter the Pro file name which identifies the client machine.
Network Names (SSIDs) - Please enter the IEEE 802.11 wireless network name. This field has a maximum limit of 32 characters.

Profile Management General Security Advanced Profile Settings Profile Name: NewProfile Client Name: NewClient Network Names SSID1: test SSID2: SSID3: OK Cancel

Figure 3-3

2. Edit the Security tab

Select the Security tab in the screen above, and then you can edit the fields to configure the profile. To define the security mode, select the radio button of the desired security mode as follows.

Profile Management General Security Advanced Set Security Options WPA/WPA2 WPA/WPA2 EAP Type: LEAP WPA/WPA2 Passphrase 802.1x 802.1x EAP Type: LEAP Pre-Shared Key [Static WEP] None Configure... Allow Association to Mixed Cells Profile Locked Limit Time for Finding Domain Controller To: 0 sec Group Policy Delay: 0 sec OK Cancel

Figure 3-4

WPA/WPA2: Wi-Fi Protected Access
WPA/WPA2 Passphrase: Wi-Fi Protected Access Passphrase
802.1x: Enables 802.1x security.
Pre-Shared Key (Static WEP): Enables the use of shared keys that are defined on both the access point and the station. To define shared encryption keys, choose the Shared Key radio button and click Configure to fill in the Define Shared Keys window (shown in Figure 3-5).
None: No security (not recommended).

Note:

If the access point which the Adapter is associated has WEP set and the client has WEP enabled, make sure that Allow Association to Mixed Cells is checked on the Security tab to allow association. To complete WEP encryption configuration, you must select the 802.11 Authentication Mode as appropriate on the Advanced tab of this Profile Management dialog.

To configure the Encryption Keys under the Pre-Shared keys (Static WEP) Security mode:

Configure Pre-Shared Keys (Static WEP) Key Entry Hexadecimal (0-9, A-F) ASCII Text (all keyboard characters) Encryption Keys Transmit Key WEP Key Size: 64 128 152 WEP Key 1: 0123456789 WEP Key 2: WEP Key 3: WEP Key 4: OK Cancel

Figure 3-5

Note:

Select different Security Options, the configurations are different; you can select the appropriate security option and configure the exact key as your need.

3. Edit the Advanced tab

This screen below allows you to make advanced configuration for the profile.

Profile Management General Security Advanced Power Save Mode: Normal Network Type: Infrastructure Wireless Mode 2.4 GHz 300 Mbps 2.4 GHz 54 Mbps 2.4 GHz 11 Mbps Roaming: Default Wireless Mode When Starting Ad Hoc Network 2.4 GHz 11 Mbps 2.4 GHz 54 Mbps Channel: Auto 802.11 Authentication Mode Auto Open System Shared Key Preferred APs... OK Cancel

Figure 3-6

Power Save Mode - Please select the power save mode in the drop-down list.

• Maximum - Selects maximum mode to let the access point buffer incoming messages for the Adapter. The Adapter will detect the access point if any messages are waiting periodically.
• Normal - Normal mode uses maximum when retrieving a large number of packets, then switches back to power save mode after retrieving the packets.
• Off - Turns power saving off, thus powering up the Wireless PCI Adapter continuously for a short message response time.

Network Type - There are basically two modes of networking:

• Infrastructure - All wireless clients will connect to an access point or wireless router.
- Ad-Hoc - Directly connecting to another computer, for peer-to-peer communication, using wireless network adapters on each computer, such as two or more APPPCI300 wireless adapters.

Note:

1) An Infrastructure network contains an Access Point or wireless router. All the wireless devices or clients will connect to the wireless router or access point.
2) An Ad-Hoc network contains only clients, such as laptops with wireless desktop adapters. All the adapters must be in Ad-Hoc mode to communicate.

Wireless 2ModeHz p30,02MbGHz 54 Mbps or 2.4 GHz 11 Mbps

operation in an access point network. The Wireless adapter must match the wireless mode of the access point with which it associates.

Wireless Mode when Starting an Ad Hoc Network - Specifies 2.4 GHz 54/11 Mbps to start an Ad Hoc network if no matching network name is found after scanning all available modes. This mode also allows the selection of the channel that the Wireless Adapter uses. The channels available depend on the regulatory domain. If the adapter finds no other ad hoc adapters, the channel that the adapter starts the ad hoc network with will be selected automatically. The Adapter must match the wireless mode and channel of the clients it associates.
802.11 Authentication Mode - Select which mode the Adapter uses to authenticate to an access point:

• Auto - Automatic causes the adapter to attempt authentication using shared, but switches it to open authentication if shared fails.
• Open - Open System enables an adapter to attempt authentication regardless of its WEP settings. It will only associate with the access point if the WEP keys on both the adapter and the access point match.
• Shared - Shared-key only allows the adapter to associate with access points that have the same WEP key.

For infrastructure (access point) networks, click Preferred APs... to specify four access points at most to the client adapter that attempts to be associated to the access points. The four access points have different priorities; the frontal has the higher priority.

Preferred Access Points Specified Access Point MAC Addresses Access Point 1: Access Point 2: Access Point 3: Access Point 4: OK Cancel

Figure 3-7

3.2.2 Remove a profile

1. Go to the Profile Management tab (shown in Figure 3-2).
2. Select the profile name in the Profiles List.
3. Click Remove.

Note:

The profile being used can't be removed.

3.2.3 Switch another Profile

1. Go to the Profile Management screen (shown in Figure 3-2).
2. Select the profile name required in the Profiles List.
3. Click Activate.

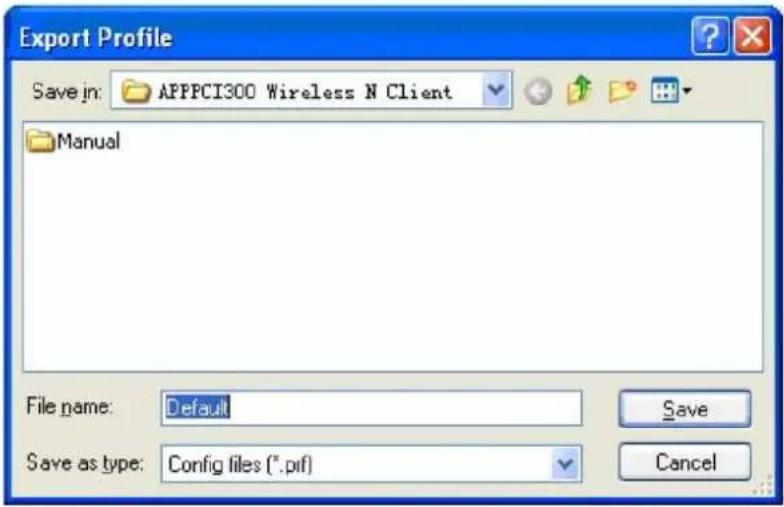

3.2.4 Export a Profile

1. From the Profile Management screen (shown in Figure 3-2), highlight the profile to export.
2. Click Export, the Export Profile window will then appear below.
3. Browse the directory to export the profile to.
4. Click Save The expected should specified location.

Export Profile Save in: APPPCI300 Wireless N Client Manual File name: Default Save as type: Config files (*.pif) Save Cancel

Figure 3-8

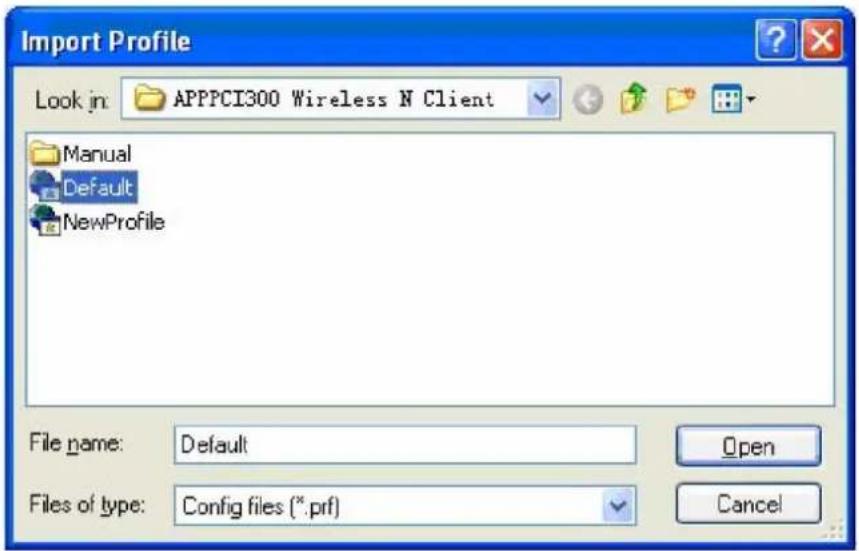

3.2.5 Import a Profile

1. From the Profile Management screen (shown in Figure 3-2), click Import.... Then the Import Profile will appear below.
2. Browse to the directory where the profile is located.
3. Highlight the profile name.
4. Click Operthe imported profile will then appear in the Profiles List.

Import Profile Look in: APPPCI300 Wireless N Client Manual Default NewProfile File name: Default Files of type: Config files (*.prf) Open Cancel

Figure 3-9

3.2.6 Scan Available Networks

1. Click Scan on the Profile Management screen (shown in Figure 3-2), the Available Infrastructure and Ad Hoc Networks window will appear below.
2. Click Refresh to refresh the list at any time.
3. Highlight a network name and click Activate to connect to an available network. If no

configuration profile exists for that network, the Profile Management window will open the General tab screen. Fill in the Profile name and click OK to create the configuration profile for that network.

Available Infrastructure and Ad Hoc Networks Network Name (SSID) 11n Super XR Signal Strength Channel V. test 66 dB 6 2. APPROX 37 dB 6 2. Activate Refresh OK

Figure 3-10

3.2.7 Auto Profile Selection Management

The auto selection feature allows the adapter to automatically select a profile from the list of profiles and use it to connect to the network. To add a new profile into the Auto Selected Profiles list, please follow these steps.

1. On the Profile Management screen (shown in Figure 3-2), click Order Profiles....
2. The Auto Profiles Selection management window will appear (shown in Figure 3-11) with a list of all created profiles in the Available Profiles.

Auto Profile Selection Management Available Profiles: NewProfile Add Auto Selected Profiles: Default Move up Move down Remove OK Cancel

Figure 3-11

1. Highlight the profiles to add to auto profile selection, and click Add. The profile will appear

in the Auto Selected Profiles box.

1. Highlight a profile in the Auto Selected Profiles box.
2. Click Move Up or Move Down as appropriate.

Note:

The first profile in the Auto Selected Profiles box has highest priority, while the last profile has the lowest priority.

1. Click OK.
2. Check the Auto Select Profiles checkbox on the Profile Management tab (shown in Figure 3-2).

Note:

When auto profile selection is enabled by checking Auto Select Profiles on the Profile Management tab, the client adapter will scan for an available network. The profile with the highest priority and the same SSID as one of the found networks will be used to connect to the network. If the connection fails, the client adapter will try the next highest priority profile that matches the SSID until an available network is found.

3.3 Diagnostics

The Diagnostics tab of the APPPCI300 Wireless N Client Utility (AWCU) provides buttons used to retrieve receiving and transmitting statistics. The Diagnostics tab does not require any configuration.

The Diagnostics tab lists the following receiving and transmitting diagnostics for frames received or transmitted by the wireless network adapter:

▶ Multicast frames transmitted and received
▶ Broadcast frames transmitted and received
▶ Unicast frames transmitted and received
➢ Total bytes transmitted and received

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Transmit Multicast Packets: 0 Broadcast Packets: 0 Unicast Packets: 2 Total Bytes: 133 Receive Multicast Packets: 0 Broadcast Packets: 1 Unicast Packets: 1 Total Bytes: 89 Adapter Information Advanced Statistics

Figure 3-12

3.3.1 Check Driver Information

Click the Adapter Information button in the screen above, you will see the adapter information, including general information about the wireless network adapter and the Network Driver Interface Specification (NDIS) driver. Access the adapter information from the Diagnostics tab.

Card Name - The name of the wireless network adapter.
MAC Address - The MAC address of the wireless network adapter.
Driver - The driver name and path of the wireless network adapter driver.
Driver Version - The version of the wireless network adapter driver.
Driver Date - The creation date of the wireless network adapter driver.
- Client Name - The name of the client computer.

3.3.2 Check Receive and Transmit Statistical Information

The Advanced Statistics show receiving and transmitting statistical information about the following receiving and transmitting diagnostics for frames received by or transmitted to the wireless network adapter.

Advanced Statistics Transmit Frames Transmitted OK: 17 RTS Frames: 0 Frames Retried: 20 CTS Frames: 0 Frames Dropped: 0 No CTS Frames: 0 No ACK Frames: 76 Retried RTS Frames: 0 ACK Frames: 17 Retried Data Frames: 20 Receive Beacons Received: 1241 Authentication Time-Out: 0 Frames Received OK: 2 Authentication Rejects: 0 Frames Received with Errors: 1139 Association Time-Out: 0 CRC Errors: 5551 Association Rejects: 0 Encryption Errors: 0 Standard MIC OK: 0 Duplicate Frames: 3 Standard MIC Errors: 0 AP Mismatches: 0 CKIP MIC OK: 0 Data Rate Mismatches: 0 CKIP MIC Errors: 0 OK

Figure 3-13

3.4 For Windows® Vista

APPPCI300 Wireless N Client Utility (AWCU) is not available for Windows® Vista. So after the Adapter's driver has been installed, we have to use Windows® WLAN Autoconfig to establish a connection. Please follow the steps below.

1. Right-click the icon 📋 at the bottom of your screen in your system tray and then select "Connect to a network".

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

Figure 3-14

1. This page will then display and you will see the available wireless network list. Select the SSID of your Access Point, take APPROX for example. Click Connect.

Connect to a network Select a network to connect to Show All APPROX Security-enabled network wireless9822 Security-enabled network RadioOff Unsecured network Set up a connection or network Open Network and Sharing Center Connect Cancel

Figure 3-15 Select A Network

1. Enter the passphrase, take 1234567890 for example. And then click Connect.

Connect to a network Type the network security key or passphrase for APPROX The person who setup the network can give you the key or passphrase. Security key or passphrase: 1234567890 ✓ Display characters If you have a USB flash drive with network settings for APPROX, insert it now. Connect Cancel

Figure 3-16 Enter Passphrase

1. If the key entered is correct, you will successfully connect to the network.

Connect to a network Connecting to APPROX Cancel

Figure 3-17 Connecting

1. Click Close to finish.

Connect to a network Successfully connected to APPROX ✓ Save this network ✓ Start this connection automatically Close

Figure 3-18 successfully Connected

3.5 For Windows® 7

APPPCI300 Wireless N Client Utility (AWCU) is not available for Windows® 7. So after the Adapter's driver has been installed, we have to use Windows® WLAN Autoconfig to establish a connection. Please follow the steps below.

1. Right-click the icon

at the bottom of your screen in your system tray and then you will see the available wireless network list. Select the SSID of your Access Point, take APPROX for example. Click Connect.

Currently connected to: Network 2 No Internet access Wireless Network Connection TIBIN APPROX Connect automatically Connect test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Figure 3-19 Select A Network

1. If your wireless network is secured, you will be required to enter the security key as shown in Figure 3-20. Enter the passphrase, take 1234567890 for example. And then click OK.

Connect to a Network Type the network security key Security key: •••••••••••• ✓ Hide characters OK Cancel

Figure 3-20 Enter Passphrase

1. If the key entered is correct, you will successfully connect to the network as shown in Figure 3-21.

Currently connected to: Network 2 No Internet access APPROX No Internet access Wireless Network Connection APPROX Connected test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Figure 3-21 Connecting

Chapter 4. WPS configuration

WPS (Wi-Fi Protected Setup) function allows you to add a new wireless device to an existing network quickly.

If the wireless card supports Wi-Fi Protected Setup (WPS), you can establish a wireless connection between wireless card and router using either Push Button Configuration (PBC) method or PIN method.

First, the WPS software should be installed. Insert the Resource CD into your CD-ROM drive. To continue, double-click My Computer, and then double-click the CD/DVD drive where the installation CD was placed. Open APPPCI300 folder, and double-click wps.exe. Then you will see Figure 4-1.

WPS Installation Program - InstallShield Wizard Preparing Setup Please wait while the InstallShield Wizard prepares the setup. WPS Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Figure 4-1

Then, please follow the step-by-step instruction to complete the WPS installation. After that, WPS function can be enabled. Here we will introduce two ways to configure the WPS.

4.1 PBC (Push Button Configuration) method

1. Firstly, press the WPS button of rehwoways: There a

1) Press the WPS button dir fetchy Route show panel o

Figure 4-2.

Figure 4-2

2) O PSrlittheoRobteleLeftWebbasaih ldtelby and click W

Then Figure 4-3 will appear. Click Add device, then you can see Figure 4-4. Select Press the button of the new device in two minutes and click Connect.

WPS (Wifi Protect Setup) WPS Status: Enabled Disable WPS Current PIN: 12345670 Restore PIN Gen New PIN Add a new device: Add device

Figure 4-3

Add A New Device Enter the new device's PIN. PIN: Press the button of the new device in two minutes. Back Connect

Figure 4-4

2. Secondly, press the WPS button of the adapter. There are two ways:

1) Press and hold the WPS button of the adapter directly for 2 or 3 seconds.
2) Double click the icon 📄 on the desktop to open the WPS Utility and then you can see the welcome screen shown as Figure 4-5. Click Next to continue. Then select Push the button on my access point in the next screen shown in Figure 4-6 and click Next.

WPS for Wireless Welcome to WPS WPS is compatible with Wi-Fi Protected Setup*** This application will guide you through configuring your wireless network. WPS simplifies setting up a wireless network. It uses Wi-fi Protected Setup to configure your wireless network. < Back Next > Cancel

Figure 4-5

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ● Push the button on my access point ○ Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Push the button on your access point and click Next to continue. Disable the wireless adapter's push-button □ Automatically select the network ✓ < Back Next > Cancel

Figure 4-6

1. Then wait a minute until Figure 4-7 appears. Click Finish to complete the WPS configuration.

WPS for Wireless Wireless Configuration Completed Your computer has successfully joined the APPROX network. < Back Finish Cancel

Figure 4-7

4.2 PIN method

There are two ways to configure the WPS by PIN method:

1) Enter a PIN into your AP device.
2) Enter the PIN from your AP device.

Following are the detailed configuration procedure of each way.

4.2.1 Enter a PIN into your AP device

1. Double click the icon 📄 on the desktop to open the WPS Utility and then you can see the welcome screen shown as Figure 4-5 Click Next to continue. Figure 4-8 will appear. Select the second option, and you will see the PIN value of the adapter which is randomly generated. Click Next.

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ● Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Enter the PIN 79666947 into your access point or external registrar and click Next to continue. Automatically select the network < Back Next > Cancel

Figure 4-8

1. Open the Router's Web-based Utility and click WPS link on the left of the main menu. Then Figure 4-3 will appear. Click Add device, then you can see Figure 4-8 Select Enter the new device's PIN and enter the PIN value of the adapter shown in Figure 4-8, click Connect.

Add A New Device Enter the new device's PIN. PIN: 79666947 Press the button of the new device in two minutes. Back Connect

Figure 4-9

1. When Figure 4-7 appears, the WPS configuration is complete.

4.2.2 Enter the PIN from your AP device

1. Open the WPS Utility and you will see Figure 4-5. Click Next to continue. Then Figure 4-10 will appear. Select the third option and enter the PIN value which is labeled on the bottom of the Router. Click Next.

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ○ Enter a PIN into my access point or a registrar ● Enter the PIN from my access point Enter the PIN from your access point below and click Next to continue. Access Point PIN: 12345670 Automatically select the network ✓ < Back Next > Cancel

Figure 4-10

1. When Figure 4-7 appears, the WPS configuration is complete.

Note:

If you generate a new PIN code for your Router, please enter the new one instead.

Appendix A: Specifications

Normal
Interface	32 bit PCI Interface
Standards	IEEE802.11n; IEEE802.11g; IEEE802.11b;
Operating System	Windows® 2000/ Windows® XP/ Windows® Vista/ Windows® 7
Radio Data Rate	27/54/81/108/162/216/243/270Mbps13.5/27/40.5/54/81/108/121.5/135Mbps13/26/39/52/78/104/117/130Mbps6.5/13/19.5/26/39/52/58.5/65Mbps1/2/5.5/11Mbps(Auto Rate Sensing)
Modulation	11b:CCK,QPSK,BPSK;11g:OFDM;11n: QPSK,BPSK,16-QAM,64-QAM
Media Access Protocol	CSMA/CA with ACK
Data Security	WPA/WPA2; 64/128/152-bit WEP; TKIP/AES
Spread Spectrum Direct	Sequence Spread Spectrum (DSSS)
Safety & Emissions FCC, CE

Environmental and Physical
Operating Temp. 0°C~40°C (32°F~104°F)
Storage Temp. -40°C-70°C (-40°F~158°F)
Working Humidity	-40°C~70°C (-40°F~158°F)
Storage Humidity	10% ~ 95% RH, Non-condensing

Appendix B: Glossary

802.11b - The 802.11b standard specifies a wireless product networking at 11 Mbps using direct-sequence spread-spectrum (DSSS) technology and operating in the unlicensed radio spectrum at 2.4GHz, and WERTeroption networks are also referred to as Wi-Fi networks.
802.11g - specification for wireless networking at 54 Mbps using direct-sequence spread-spectrum (DSSS) technology, using OFDM modulation and operating in unlicensed radio spectrum at 2.4GHz, and backward compatibility with IEEE 802.11b devices, and WEP encryption for security.
Ad-hoc Network - An ad-hoc network is a group of computers, each with a Wireless Adapter, connected as an independent computer spoke to Ad-hoc wireless peer-to-peer basis, communicating directly with the other with point.
Ad-hoc mode is also referred to as an Independent Basic Service Set (IBSS) or peer-to-peer mode, and is O-Subopter-departmental scale or S
DSSS - (Direct-Sequence Spread Spectrum) - DSSS generates a redundant bit pattern for all data transmitted. This bit pattern is called a chip (or chipping code). Even if one or more bits in the chip are damaged during the connection, can be embedded in the receiver can recover the original data without the need of retransmission. To an unintended receiver, DSSS appears as low power wideband noise and is rejected (ignored) by most narrowband receivers. However, to an intended receiver (i.e. another wireless LAN endpoint), the DSSS signal is recognized as the only valid signal, and interference is inherently rejected (ignored).
FHSS - (Frequency Hopping Spread Spectrum) - FHSS continuously changes (hops) the carrier frequency of a conventional carrier several times per second according to a pseudo-random set of channels. Because a fixed frequency is not used, and only the transmitter and receiver know the hop patterns, interception of FHSS is extremely difficult.
Infrastructure Network - An infrastructure network is a group of computers or other devices, each with a Wireless Adapter, connected as an 802.11 wireless LAN. In infrastructure mode, the wireless devices communicate with each other and to a wired network by first going through an access point. An infrastructure wireless network connected to a wired network is referred to as a Basic Service Set (BSS). A set of two or more BSS in a single network is referred to as an Extended Service Set (ESS). Infrastructure mode is useful at a corporation scale, or when it is necessary to connect the wired and wireless networks.

Spread Spectrum - Spread Spectrum technology is a wideband radio frequency technique developed by the military for use in reliable, secure, mission-critical communications systems. It is designed to trade off bandwidth efficiency for reliability, integrity, and security. In other words, more bandwidth is consumed than in the case of narrowband transmission, but the trade off produces a signal that is, in effect, louder and thus easier to detect, provided that the receiver knows the parameters of the spread-spectrum signal being broadcast. If a receiver is not tuned to the right frequency, a spread-spectrum signal looks like background noise. There are two main alternatives, Direct Sequence Spread Spectrum (DSSS) and Frequency Hopping Spread Spectrum (FHSS).

SSID - A Service Set Identification is a thirty-two character (maximum) alphanumeric key identifying a wireless local area network. For the wireless devices in a network to communicate with each other, all devices must be configured with the same SSID. This is typically the configuration parameter for a wireless PC card. It corresponds to the ESSID in the wireless Access Point and to the wireless network name. See also Wireless Network Name and ESSID.
WEP - (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-bit or 128-bit or 152-bit shared key algorithm, as described in the IEEE 802.11 standard. To gain access to a WEP network, you must know the key. The key is a string of characters that you create. When using WEP, you must determine the level of encryption. The type of encryption determines the key length. 128-bit encryption requires a longer key than 64-bit encryption. Keys are defined by entering in a string in HEX (hexadecimal - using characters 0-9, A-F) or ASCII (American Standard Code for Information Interchange – alphanumeric characters) format. ASCII format is provided so you can enter a string that is easier to remember. The ASCII string is converted to HEX for use over the network. Four keys can be defined so that you can change keys easily.
Wi-Fi - A trade name for the 802.11b wireless networking standard, given by the Wireless Ethernet Compatibility Alliance (WECA, see http://www.wi-fi.net), an industry standards group promoting interoperability among 802.11b devices.
WLAN - (Wireless Local Area Network) - A group of computers and associated devices communicate with each other wirelessly, which network serving users are limited in a local area.
WPA - (Wi-Fi Protected Access) - A wireless security protocol uses TKIP (Temporal Key Integrity Protocol) encryption, which can be used in conjunction with a RADIUS server.

DÉCLARATION FCC

FC

4. Configuration WPS

4.1 Méthode PBC (Push Button Configuration)
4.2 Méthode PIN

APPROX Client Installation Program - InstallShield... Preparing Setup Please wait while the InstallShield Wizard prepares the setup. APPROX Client Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Figure 2-1.

APPPCI300 Wireless N Client Utility Installation Program APPPCI300 Wireless N Client Utility Installation Program This program installs the driver and client utilities for your 300Mbps Wireless N PCI Adapter. < Back Next > Cancel

Figure 2-2

APPPCI300 Wireless N Client Utility Installation Program Setup Type Select the setup type that best suits your needs. Click the type of setup you prefer. Install Client Utilities and Driver Install Driver Only Make Driver Installation Diskette(s) Description Choose this option to install the driver and client utilities. This is the recommended option. < Back Next > Cancel InstallShield

Figure 2-3

APPPCI300 Wireless N Client Utility Installation Program Choose Destination Location Select the folder where the installation program will install the files. The installation program will install the client utilities in the following location: Destination Folder C:\...\Approx\APPPCI300 Wireless N Client Utility Browse... InstallShield < Back Next > Cancel

Figure 2-4

APPPCI300 Wireless M Client Utility Installation Program Select Program Folder Select a program folder. The installation program will add program icons to the Program Folder listed below. You may enter a new folder name or select one from the Existing Folders list. Program Folder: Approx Existing Folders: Adobe Design Premium CS3 Foxmail Microsoft Office Snagit 9 Symantec Client Security UltraISO WinPcap WinRAR 附件 InstallShield < Back Next > Cancel

Figure 2-5

APPPCI300 Wireless N Client Utility Installation Program Choose Configuration Tool Which tool will you use to configure your client adapter? ● APPPCI300 Wireless N Client Utility and Supplicant ○ Third-Party Supplicant InstallShield < Back Next > Cancel

Figure 2-6

APPROX Wireless N Client Utility The installation program installs the driver automatically when the client adapter is inserted. Insert the adapter now if it is not yet inserted, cancel the Found New Hardware Wizard if it appears, and proceed with the installation. Click OK to continue. OK

Figure 2-7

APPROX Wireless N Client Utility Setup Status APPROX Wireless N Client Utility is configuring your new software installation. Installing the driver files... C:\temp\devcon.exe InstallShield Cancel

Figure 2-8

Note:

Hardware Installation The software you are installing for this hardware: 300Mbps Wireless N PCI Adapter has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important ) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Figure 2-9

APPPCI300 Wireless N Client Utility Installation Program InstallShield Wizard Complete The installation program has successfully performed the selected operations, but the driver installation is not yet complete. Click Finish to reboot the system; then use the Found New Hardware Wizard to complete the driver installation. Yes, I want to restart my computer now. No, I will restart my computer later. Remove any disks from their drives, and then click Finish to complete setup. < Back Finish Cancel

Figure 2-10

3. Guide de configuration

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp.. Action Options Help Current Status Profile Management Diagnostics aqprox! Profile Name: Default Link Status: Associated Network Type: Infrastructure Wireless Mode: 2.4 GHz 300 Mbps Data Encryption: None Server Based Authentication: None Control Channel: 9 IP Address: 192.168.1.107 Extension 5 Signal Strength: Excellent Advanced

Figure 3-1

APPPCI300 Wireless Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Default New... Modify... Remove Activate Details Network Type: Infrastructure Security Mode: Disabled Network Name 1 (SSID1): Network Name 2 (SSID2): Network Name 3 (SSID3): Import... Export... Scan... Order Profiles... Auto Select Profiles Disable WLAN if LAN is Connected

Figure 3-2

Profile Management General Security Advanced Profile Settings Profile Name: NewProfile Client Name: NewClient Network Names SSID1: test SSID2: SSID3: OK Cancel

Figure 3-3

2. Modifier l'onglet Security

Profile Management General Security Advanced Set Security Options WPA/WPA2 WPA/WPA2 EAP Type: LEAP WPA/WPA2 Passphrase 802.1x 802.1x EAP Type: LEAP Pre-Shared Key (Static WEP) None Configure... Allow Association to Mixed Cells Profile Locked Limit Time for Finding Domain Controller To: 0 sec Group Policy Delay: 0 sec OK Cancel

Figure 3-4

Configure Pre-Shared Keys (Static WEP) Key Entry Hexadecimal (0-9, A-F) ASCII Text (all keyboard characters) Encryption Keys Transmit Key WEP Key Size: 64 128 152 WEP Key 1: 0123456789 WEP Key 2: WEP Key 3: WEP Key 4: OK Cancel

Figure 3-5

Remarque:

Preferred Access Points Specified Access Point MAC Addresses Access Point 1: Access Point 2: Access Point 3: Access Point 4: OK Cancel

Figure 3-7

Available Infrastructure and Ad Hoc Networks Network Name (SSID) 11n Super XR Signal Strength Channel V. test 66 dB 6 2. APPROX 37 dB 6 2. Activate Refresh OK

Figure 3-10

3.2.7 Auto Profile Selection Management

Auto Profile Selection Management Available Profiles: NewProfile Add Auto Selected Profiles: Default Move up Move down Remove OK Cancel

Figure 3-11

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Transmit Multicast Packets: 0 Broadcast Packets: 0 Unicast Packets: 2 Total Bytes: 133 Receive Multicast Packets: 0 Broadcast Packets: 1 Unicast Packets: 1 Total Bytes: 89 Adapter Information Advanced Statistics

Figure 3-12

Advanced Statistics Transmit Frames Transmitted OK: 17 RTS Frames: 0 Frames Retried: 20 CTS Frames: 0 Frames Dropped: 0 No CTS Frames: 0 No ACK Frames: 76 Retried RTS Frames: 0 ACK Frames: 17 Retried Data Frames: 20 Receive Beacons Received: 1241 Authentication Time-Out: 0 Frames Received OK: 2 Authentication Rejects: 0 Frames Received with Errors: 1139 Association Time-Out: 0 CRC Errors: 5551 Association Rejects: 0 Encryption Errors: 0 Standard MIC OK: 0 Duplicate Frames: 3 Standard MIC Errors: 0 AP Mismatches: 0 CKIP MIC OK: 0 Data Rate Mismatches: 0 CKIP MIC Errors: 0 OK

Figure 3-13

3.4 Pour Windows® Vista

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

Figure 3-14

Connect to a network Select a network to connect to Show All APPROX Security-enabled network wireless9822 Security-enabled network RadioOff Unsecured network Set up a connection or network Open Network and Sharing Center Connect Cancel

Connect to a network Type the network security key or passphrase for APPROX The person who setup the network can give you the key or passphrase. Security key or passphrase: 1234567890 ✓ Display characters If you have a USB flash drive with network settings for APPROX, insert it now. Connect Cancel

Connect to a network Connecting to APPROX Cancel

Connect to a network Successfully connected to APPROX ✓ Save this network ✓ Start this connection automatically Close

Currently connected to: Network 2 No Internet access Wireless Network Connection TIBIN APPROX Connect automatically Connect test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Connect to a Network Type the network security key Security key: •••••••••••• ✓ Hide characters OK Cancel

Currently connected to: Network 2 No Internet access APPROX No Internet access Wireless Network Connection APPROX Connected test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Figure 3-21

4 Configuration WPS

WPS Installation Program - InstallShield Wizard Preparing Setup Please wait while the InstallShield Wizard prepares the setup. WPS Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Figure 4-1

WPS (Wifi Protect Setup) WPS Status: Enabled Disable WPS Current PIN: 12345670 Restore PIN Gen New PIN Add a new device: Add device

Figure 4-3

Add A New Device Enter the new device's PIN. PIN: Press the button of the new device in two minutes. Back Connect

Figure 4-4

WPS for Wireless Welcome to WPS WPS is compatible with Wi-Fi Protected Setup*** This application will guide you through configuring your wireless network. WPS simplifies setting up a wireless network. It uses Wi-fi Protected Setup to configure your wireless network. < Back Next > Cancel

Figure 4-5

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ● Push the button on my access point ○ Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Push the button on your access point and click Next to continue. Disable the wireless adapter's push-button □ Automatically select the network ✓ < Back Next > Cancel

Figure 4-6

WPS for Wireless Wireless Configuration Completed Your computer has successfully joined the APPROX network. < Back Finish Cancel

Figure 4-7

4.2 Méthode PIN

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ● Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Enter the PIN 79666947 into your access point or external registrar and click Next to continue. Automatically select the network < Back Next > Cancel

Figure 4-8

Add A New Device Enter the new device's PIN. PIN: 79666947 Press the button of the new device in two minutes. Back Connect

Figure 4-9

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ○ Enter a PIN into my access point or a registrar ● Enter the PIN from my access point Enter the PIN from your access point below and click Next to continue. Access Point PIN: 12345670 Automatically select the network < Back Next > Cancel

Figure 4-10

APPROX Client Installation Program - InstallShiel... Preparing Setup Please wait while the InstallShield Wizard prepares the setup. APPROX Client Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Bild 2-1

APPPCI300 Wireless N Client Utility Installation Program APPPCI300 Wireless N Client Utility Installation Program This program installs the driver and client utilities for your 300Mbps Wireless N PCI Adapter. < Back Next > Cancel

Bild 2-2

APPPCI300 Wireless N Client Utility Installation Program Setup Type Select the setup type that best suits your needs. Click the type of setup you prefer. Install Client Utilities and Driver Install Driver Only Make Driver Installation Diskette(s) Description Choose this option to install the driver and client utilities. This is the recommended option. < Back Next > Cancel InstallShield

Bild 2-3

APPPCI300 Wireless N Client Utility Installation Program Choose Destination Location Select the folder where the installation program will install the files. The installation program will install the client utilities in the following location: Destination Folder C:\...\Approx\APPPCI300 Wireless N Client Utility Browse... InstallShield < Back Next > Cancel

Bild 2-4

APPPCI300 Wireless N Client Utility Installation Program Select Program Folder Select a program folder. The installation program will add program icons to the Program Folder listed below. You may enter a new folder name or select one from the Existing Folders list. Program Folder: Approx Existing Folders: Adobe Design Premium CS3 Foxmail Microsoft Office Snagit 9 Symantec Client Security UltralSO WinPcap WinRAR 附件 InstallShield < Back Next > Cancel

Bild 2-5

APPPCI300 Wireless N Client Utility Installation Program Choose Configuration Tool Which tool will you use to configure your client adapter? ● APPPCI300 Wireless N Client Utility and Supplicant ○ Third-Party Supplicant InstallShield < Back Next > Cancel

Bild 2-6

APPPCI300 Wireless Client Utility The installation program installs the driver automatically when the client adapter is inserted. Insert the adapter now if it is not yet inserted, cancel the Found New Hardware Wizard if it appears, and proceed with the installation. Click OK to continue. OK

Bild 2-7

APPPCI300 Wireless N Client Utility Installation Program Setup Status APPPCI300 Wireless N Client Utility Installation Program executing selected operations... Installing the driver files... InstallShield Cancel

Bild 2-8

Hinweis:

Hardware Installation The software you are installing for this hardware: 300Mbps Wireless N PCI Adapter has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Bild 2-9

APPPCI300 Wireless N Client Utility Installation Program InstallShield Wizard Complete The installation program has successfully performed the selected operations, but the driver installation is not yet complete. Click Finish to reboot the system; then use the Found New Hardware Wizard to complete the driver installation. Yes, I want to restart my computer now. No, I will restart my computer later. Remove any disks from their drives, and then click Finish to complete setup. < Back Finish Cancel

Figure 2-10

APPPCI300 Wireless H Client Utility - Current Profile: Default - 300Mbp... Action Options Help Current Status Profile Management Diagnostics aqprox! Profile Name: Default Link Status: Associated Network Type: Infrastructure Wireless Mode: 2.4 GHz 300 Mbps Data Encryption: None Server Based Authentication: None Control Channel: 9 IP Address: 192.168.1.107 Extension 5 Signal Strength: Excellent Advanced

Bild 3-1

▶ Add a new profile
Modify a profile
Remove a profile
Activate a Profile
Import a Profile
Export a Profile
➢ Scan Available Networks
Order profiles

APPPCI300 Wireless Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Default New... Modify... Remove Activate Details Network Type: Infrastructure Security Mode: Disabled Network Name 1 (SSID1): Network Name 2 (SSID2): Network Name 3 (SSID3): Import... Export... Scan... Order Profiles... Auto Select Profiles Disable WLAN if LAN is Connected

Bild 3-2

Profile Management General Security Advanced Profile Settings Profile Name: NewProfile Client Name: NewClient Network Names SSID1: test SSID2: SSID3: OK Cancel

Bild 3-3

Profile Management General Security Advanced Set Security Options WPA/WPA2 WPA/WPA2 EAP Type: LEAP WPA/WPA2 Passphrase 802.1x 802.1x EAP Type: LEAP Pre-Shared Key (Static WEP) None Configure... Allow Association to Mixed Cells Profile Locked Limit Time for Finding Domain Controller To: 0 sec Group Policy Delay: 0 sec OK Cancel

Bild 3-4

Configure Pre-Shared Keys (Static WEP) Key Entry Hexadecimal (0-9, A-F) ASCII Text (all keyboard characters) Encryption Keys Transmit Key WEP Key Size: 64 128 152 WEP Key 1: 0123456789 WEP Key 2: WEP Key 3: WEP Key 4: OK Cancel

Bild 3-5

Hinweis:

Preferred Access Points Specified Access Point MAC Addresses Access Point 1: Access Point 2: Access Point 3: Access Point 4: OK Cancel

Bild 3-7

Available Infrastructure and Ad Hoc Networks Network Name (SSID) 11n Super XR Signal Strength Channel test 66 dB 6 2. APPROX 37 dB 6 2. < Activate Refresh OK

Bild 3-10

3.2.7 Auto Profile Selection Management

Auto Profile Selection Management Available Profiles: NewProfile Add Auto Selected Profiles: Default Move up Move down Remove OK Cancel

Bild 3-11

APPPCI300 Wireless Client Utility - Current Profile: Default - 300Mbp.. Action Options Help Current Status Profile Management Diagnostics Transmit Multicast Packets: 0 Broadcast Packets: 0 Unicast Packets: 2 Total Bytes: 133 Receive Multicast Packets: 0 Broadcast Packets: 1 Unicast Packets: 1 Total Bytes: 89 Adapter Information Advanced Statistics

Bild 3-12

Advanced Statistics Transmit Frames Transmitted OK: 17 RTS Frames: 0 Frames Retried: 20 CTS Frames: 0 Frames Dropped: 0 No CTS Frames: 0 No ACK Frames: 76 Retried RTS Frames: 0 ACK Frames: 17 Retried Data Frames: 20 Receive Beacons Received: 1241 Authentication Time-Out: 0 Frames Received OK: 2 Authentication Rejects: 0 Frames Received with Errors: 1139 Association Time-Out: 0 CRC Errors: 5551 Association Rejects: 0 Encryption Errors: 0 Standard MIC OK: 0 Duplicate Frames: 3 Standard MIC Errors: 0 AP Mismatches: 0 CKIP MIC OK: 0 Data Rate Mismatches: 0 CKIP MIC Errors: 0 OK

Bild 3-13

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

Bild 3-14

Connect to a network Select a network to connect to Show All APPROX Security-enabled network wireless9822 Security-enabled network RadioOff Unsecured network Set up a connection or network Open Network and Sharing Center Connect Cancel

Connect to a network Type the network security key or passphrase for APPROX The person who setup the network can give you the key or passphrase. Security key or passphrase: 1234567890 ✓ Display characters If you have a USB flash drive with network settings for APPROX, insert it now. Connect Cancel

Connect to a network Connecting to APPROX Cancel

Bild 3-17 Connecting

Connect to a network Successfully connected to APPROX ✓ Save this network ✓ Start this connection automatically Close

Bild 3-18 Successfully Connected

3.5 Für Windows® 7

Currently connected to: Network 2 No Internet access Wireless Network Connection TIBIN APPROX Connect automatically Connect test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Connect to a Network Type the network security key Security key: Hide characters OK Cancel

Currently connected to: Network 2 No Internet access APPROX No Internet access Wireless Network Connection APPROX Connected test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Bild 3-21 Verbunden

4 WPS Konfiguration

WPS Installation Program - InstallShield Wizard Preparing Setup Please wait while the InstallShield Wizard prepares the setup. WPS Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Bild 4-1

WPS (Wifi Protect Setup) WPS Status: Enabled Disable WPS Current PIN: 12345670 Restore PIN Gen New PIN Add a new device: Add device

Bild 4-3

Add A New Device Enter the new device's PIN. PIN: Press the button of the new device in two minutes. Back Connect

Bild 4-4

WPS for Wireless Welcome to WPS WPS is compatible with Wi-Fi Protected Setup** This application will guide you through configuring your wireless network. WPS simplifies setting up a wireless network. It uses Wi-fi Protected Setup to configure your wireless network. < Back Next > Cancel

Bild 4-5

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ● Push the button on my access point ○ Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Push the button on your access point and click Next to continue. Disable the wireless adapter's push-button □ Automatically select the network ✓ < Back Next > Cancel

Bild 4-6

WPS for Wireless Wireless Configuration Completed Your computer has successfully joined the APPROX network. < Back Finish Cancel

Bild 4-7

4.2 PIN Methode

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ● Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Enter the PIN 79666947 into your access point or external registrar and click Next to continue. Automatically select the network < Back Next > Cancel

Bild 4-8

Add A New Device Enter the new device's PIN. PIN: 79666947 Press the button of the new device in two minutes. Back Connect

Bild 4-9

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ○ Enter a PIN into my access point or a registrar ● Enter the PIN from my access point Enter the PIN from your access point below and click Next to continue. Access Point PIN: 12345670 Automatically select the network ✓ < Back Next > Cancel

Bild 4-10

APPROX Client Installation Program - InstallShiel... Preparing Setup Please wait while the InstallShield Wizard prepares the setup. APPROX Client Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Figura 2-1

APPPCI300 Wireless N Client Utility Installation Program APPPCI300 Wireless N Client Utility Installation Program This program installs the driver and client utilities for your 300Mbps Wireless N PCI Adapter. < Back Next > Cancel

Figura 2-2

APPPCI300 Wireless N Client Utility Installation Program Setup Type Select the setup type that best suits your needs. Click the type of setup you prefer. Install Client Utilities and Driver Install Driver Only Make Driver Installation Diskette(s) Description Choose this option to install the driver and client utilities. This is the recommended option. < Back Next > Cancel InstallShield

Figura 2-3

APPPCI300 Wireless N Client Utility Installation Program Choose Destination Location Select the folder where the installation program will install the files. The installation program will install the client utilities in the following location: Destination Folder C:\...\Approx\APPPCI300 Wireless N Client Utility Browse... InstallShield < Back Next > Cancel

Figura 2-4

APPPCI300 Wireless M Client Utility Installation Program Select Program Folder Select a program folder. The installation program will add program icons to the Program Folder listed below. You may enter a new folder name or select one from the Existing Folders list. Program Folder: Approx Existing Folders: Adobe Design Premium CS3 Foxmail Microsoft Office Snagit 9 Symantec Client Security UltralSO WinPcap WinRAR 附件 InstallShield < Back Next > Cancel

Figura 2-5

APPPCI300 Wireless N Client Utility Installation Program Choose Configuration Tool Which tool will you use to configure your client adapter? ● APPPCI300 Wireless N Client Utility and Supplicant ○ Third-Party Supplicant InstallShield < Back Next > Cancel

Figura 2-6

APPPCI300 Wireless Client Utility The installation program installs the driver automatically when the client adapter is inserted. Insert the adapter now if it is not yet inserted, cancel the Found New Hardware Wizard if it appears, and proceed with the installation. Click OK to continue. OK

Figura 2-7

APPPCI300 Wireless N Client Utility Installation Program Setup Status APPPCI300 Wireless N Client Utility Installation Program executing selected operations... Installing the driver files... InstallShield Cancel

Figura 2-8

Nb:

Hardware Installation The software you are installing for this hardware: 300Mbps Wireless N PCI Adapter has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Figura 2-8

APPPCI300 Wireless N Client Utility Installation Program InstallShield Wizard Complete The installation program has successfully performed the selected operations, but the driver installation is not yet complete. Click Finish to reboot the system; then use the Found New Hardware Wizard to complete the driver installation. Yes, I want to restart my computer now. No, I will restart my computer later. Remove any disks from their drives, and then click Finish to complete setup. < Back Finish Cancel

Figure 2-10

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics aqprox! Profile Name: Default Link Status: Associated Network Type: Infrastructure Wireless Mode: 2.4 GHz 300 Mbps Data Encryption: None Server Based Authentication: None Control Channel: 9 IP Address: 192.168.1.107 Extension 5 Signal Strength: Excellent Advanced

Figura 3-1

APPPCI300 Wireless Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Default New... Modify... Remove Activate Details Network Type: Infrastructure Security Mode: Disabled Network Name 1 (SSID1) Network Name 2 (SSID2) Network Name 3 (SSID3) Import... Export... Scan... Order Profiles... Auto Select Profiles Disable WLAN if LAN is Connected

Figura 3-2

Profile Management General Security Advanced Profile Settings Profile Name: NewProfile Client Name: NewClient Network Names SSID1: test SSID2: SSID3: OK Cancel

Figura 3-3

Profile Management General Security Advanced Set Security Options WPA/WPA2 WPA/WPA2 EAP Type: LEAP WPA/WPA2 Passphrase 802.1x 802.1x EAP Type: LEAP Pre-Shared Key (Static WEP) None Configure... Allow Association to Mixed Cells Profile Locked Limit Time for Finding Domain Controller To: 0 sec Group Policy Delay: 0 sec OK Cancel

Figura 3-4

Configure Pre-Shared Keys (Static WEP) Key Entry Hexadecimal [0-9, A-F] ASCII Text (all keyboard characters) Encryption Keys Transmit Key WEP Key Size: 64 128 152 WEP Key 1: 0123456789 WEP Key 2: WEP Key 3: WEP Key 4: OK Cancel

Figura 3-5

Nb:

Preferred Access Points Specified Access Point MAC Addresses Access Point 1: Access Point 2: Access Point 3: Access Point 4: OK Cancel

Figura 3-7

Available Infrastructure and Ad Hoc Networks Network Name (SSID) 11n Super XR Signal Strength Channel V. test 66 dB 6 2. APPROX 37 dB 6 2. Activate Refresh OK

Figura 3-10

3.2.7 Auto Profile Selection Management

Auto Profile Selection Management Available Profiles: NewProfile Add Auto Selected Profiles: Default Move up Move down Remove OK Cancel

Figura 3-11

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp.. Action Options Help Current Status Profile Management Diagnostics Transmit Multicast Packets: 0 Broadcast Packets: 0 Unicast Packets: 2 Total Bytes: 133 Receive Multicast Packets: 0 Broadcast Packets: 1 Unicast Packets: 1 Total Bytes: 89 Adapter Information Advanced Statistics

Figura 3-12

Advanced Statistics Transmit Frames Transmitted OK: 17 RTS Frames: 0 Frames Retried: 20 CTS Frames: 0 Frames Dropped: 0 No CTS Frames: 0 No ACK Frames: 76 Retried RTS Frames: 0 ACK Frames: 17 Retried Data Frames: 20 Receive Beacons Received: 1241 Authentication Time-Out: 0 Frames Received OK: 2 Authentication Rejects: 0 Frames Received with Errors: 1139 Association Time-Out: 0 CRC Errors: 5551 Association Rejects: 0 Encryption Errors: 0 Standard MIC OK: 0 Duplicate Frames: 3 Standard MIC Errors: 0 AP Mismatches: 0 CKIP MIC OK: 0 Data Rate Mismatches: 0 CKIP MIC Errors: 0 OK

Figura 3-13

3.4 Per Windows® Vista

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

Figura 3-14

Connect to a network Select a network to connect to Show All APPROX Security-enabled network wireless9822 Security-enabled network RadioOff Unsecured network Set up a connection or network Open Network and Sharing Center Connect Cancel

Connect to a network Type the network security key or passphrase for APPROX The person who setup the network can give you the key or passphrase. Security key or passphrase: 1234567890 ✓ Display characters If you have a USB flash drive with network settings for APPROX, insert it now. Connect Cancel

Figura 3-16 Inserire Passphrase

Connect to a network Connecting to APPROX Cancel

Connect to a network Successfully connected to APPROX ✓ Save this network ✓ Start this connection automatically Close

Currently connected to: Network 2 No Internet access Wireless Network Connection TIBIN APPROX Connect automatically Connect test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Connect to a Network Type the network security key Security key: Hide characters OK Cancel

Figura 3-20 Inserire la Passphrase

Currently connected to: Network 2 No Internet access APPROX No Internet access Wireless Network Connection APPROX Connected test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

WPS Installation Program - InstallShield Wizard Preparing Setup Please wait while the InstallShield Wizard prepares the setup. WPS Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Figura 4-1

WPS (Wifi Protect Setup) WPS Status: Enabled Disable WPS Current PIN: 12345670 Restore PIN Gen New PIN Add a new device: Add device

Figura 4-3

Add A New Device Enter the new device's PIN. PIN: Press the button of the new device in two minutes. Back Connect

Figura 4-4

WPS for Wireless Welcome to WPS WPS is compatible with Wi-Fi Protected Setup** This application will guide you through configuring your wireless network. WPS simplifies setting up a wireless network. It uses Wi-fi Protected Setup to configure your wireless network. < Back Next > Cancel

Figura 4-5

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ● Push the button on my access point ○ Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Push the button on your access point and click Next to continue. Disable the wireless adapter's push-button □ Automatically select the network ✓ < Back Next > Cancel

Figura 4-6

WPS for Wireless Wireless Configuration Completed Your computer has successfully joined the APPROX network. < Back Finish Cancel

Figura 4-7

4.2 Modalità PIN

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ● Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Enter the PIN 79666947 into your access point or external registrar and click Next to continue. Automatically select the network < Back Next > Cancel

Figura 4-8

Add A New Device Enter the new device's PIN. PIN: 79666947 Press the button of the new device in two minutes. Back Connect

Figura 4-9

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ○ Enter a PIN into my access point or a registrar ● Enter the PIN from my access point Enter the PIN from your access point below and click Next to continue. Access Point PIN: 12345670 Automatically select the network ✓ < Back Next > Cancel

Figura 4-10

APPROX Client Installation Program - InstallShield... Preparing Setup Please wait while the InstallShield Wizard prepares the setup. APPROX Client Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Figura 2-1

APPPCI300 Wireless N Client Utility Installation Program APPPCI300 Wireless N Client Utility Installation Program This program installs the driver and client utilities for your 300Mbps Wireless N PCI Adapter. < Back Next > Cancel

Figura 2-2

APPPCI300 Wireless W Client Utility Installation Program Setup Type Select the setup type that best suits your needs. Click the type of setup you prefer. Install Client Utilities and Driver Install Driver Only Make Driver Installation Diskette(s) Description Choose this option to install the driver and client utilities. This is the recommended option. < Back Next > Cancel

Figura 2-3

APPPCI300 Wireless N Client Utility Installation Program Choose Destination Location Select the folder where the installation program will install the files. The installation program will install the client utilities in the following location: Destination Folder C:\...\Approx\APPPCI300 Wireless N Client Utility Browse... InstallShield < Back Next > Cancel

Figura 2-4

APPPCI300 Wireless N Client Utility Installation Program Select Program Folder Select a program folder. The installation program will add program icons to the Program Folder listed below. You may enter a new folder name or select one from the Existing Folders list. Program Folder: Approx Existing Folders: Adobe Design Premium CS3 Foxmail Microsoft Office Snagit 9 Symantec Client Security UltraISO WinPcap WinRAR 附件 InstallShield < Back Next > Cancel

Figura 2-5

APPPCI300 Wireless N Client Utility Installation Program Choose Configuration Tool Which tool will you use to configure your client adapter? ● APPPCI300 Wireless N Client Utility and Supplicant ○ Third-Party Supplicant InstallShield < Back Next > Cancel

Figura 2-6

APPPCI300 Wireless Client Utility The installation program installs the driver automatically when the client adapter is inserted. Insert the adapter now if it is not yet inserted, cancel the Found New Hardware Wizard if it appears, and proceed with the installation. Click OK to continue.

Figura 2-7

APPPCI300 Wireless N Client Utility Installation Program Setup Status APPPCI300 Wireless N Client Utility Installation Program executing selected operations... Installing the driver files... InstallShield Cancel

Figura 2-8

Nota:

Hardware Installation The software you are installing for this hardware: 300Mbps Wireless N PCI Adapter has not passed Windows Logo testing to verify its compatibility with Windows XP. (Tell me why this testing is important.) Continuing your installation of this software may impair or destabilize the correct operation of your system either immediately or in the future. Microsoft strongly recommends that you stop this installation now and contact the hardware vendor for software that has passed Windows Logo testing. Continue Anyway STOP Installation

Figura 2-9

APPPCI300 Wireless N Client Utility Installation Program InstallShield Wizard Complete The installation program has successfully performed the selected operations, but the driver installation is not yet complete. Click Finish to reboot the system; then use the Found New Hardware Wizard to complete the driver installation. Yes, I want to restart my computer now. No, I will restart my computer later. Remove any disks from their drives, and then click Finish to complete setup. < Back Finish Cancel

Figure 2-10

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics aqprox! Profile Name: Default Link Status: Associated Network Type: Infrastructure Wireless Mode: 2.4 GHz 300 Mbps Data Encryption: None Server Based Authentication: None Control Channel: 9 IP Address: 192.168.1.107 Extension 5 Signal Strength: Excellent Advanced

Figura 3-1

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Default New... Modify... Remove Activate Details Network Type: Infrastructure Security Mode: Disabled Network Name 1 (SSID1): Network Name 2 (SSID2): Network Name 3 (SSID3): Import... Export... Scan... Order Profiles... Auto Select Profiles Disable WLAN if LAN is Connected

Figura 3-2

Profile Management General Security Advanced Profile Settings Profile Name: NewProfile Client Name: NewClient Network Names SSID1: test SSID2: SSID3: OK Cancel

Figura 3-3

2. Editar o tab Security

Profile Management General Security Advanced Set Security Options WPA/WPA2 WPA/WPA2 EAP Type: LEAP WPA/WPA2 Passphrase 802.1x 802.1x EAP Type: LEAP Pre-Shared Key (Static WEP) None Configure... Allow Association to Mixed Cells Profile Locked Limit Time for Finding Domain Controller To: 0 sec Group Policy Delay: 0 sec OK Cancel

Figura 3-4

Configure Pre-Shared Keys (Static WEP) Key Entry Hexadecimal (0-9, A-F) ASCII Text (all keyboard characters) Encryption Keys Transmit Key WEP Key Size: 64 128 152 WEP Key 1: 0123456789 WEP Key 2: WEP Key 3: WEP Key 4: OK Cancel

Figura 3-5

Note:

Preferred Access Points Specified Access Point MAC Addresses Access Point 1: Access Point 2: Access Point 3: Access Point 4: OK Cancel

Figura 3-7

Available Infrastructure and Ad Hoc Networks Network Name (SSID) 11n Super XR Signal Strength Channel V. test 66 dB 6 2. APPROX 37 dB 6 2. Activate Refresh OK

Figura 3-10

Auto Profile Selection Management Available Profiles: NewProfile Add Auto Selected Profiles: Default Move up Move down Remove OK Cancel

Figura 3-11

APPPCI300 Wireless M Client Utility - Current Profile: Default - 300Mbp Action Options Help Current Status Profile Management Diagnostics Transmit Multicast Packets: 0 Broadcast Packets: 0 Unicast Packets: 2 Total Bytes: 133 Receive Multicast Packets: 0 Broadcast Packets: 1 Unicast Packets: 1 Total Bytes: 89 Adapter Information Advanced Statistics

Figura 3-12

Advanced Statistics Transmit Frames Transmitted OK: 17 RTS Frames: 0 Frames Retried: 20 CTS Frames: 0 Frames Dropped: 0 No CTS Frames: 0 No ACK Frames: 76 Retried RTS Frames: 0 ACK Frames: 17 Retried Data Frames: 20 Receive Beacons Received: 1241 Authentication Time-Out: 0 Frames Received OK: 2 Authentication Rejects: 0 Frames Received with Errors: 1139 Association Time-Out: 0 CRC Errors: 5551 Association Rejects: 0 Encryption Errors: 0 Standard MIC OK: 0 Duplicate Frames: 3 Standard MIC Errors: 0 AP Mismatches: 0 CKIP MIC OK: 0 Data Rate Mismatches: 0 CKIP MIC Errors: 0 OK

Figura 3-13

3.4 Para Windows® Vista

Connect to a network Turn on activity animation Turn off notification of new networks Diagnose and repair Network and Sharing Center

Figura 3-14

Connect to a network Select a network to connect to Show All APPROX Security-enabled network wireless9822 Security-enabled network RadioOff Unsecured network Set up a connection or network Open Network and Sharing Center Connect Cancel

Connect to a network Type the network security key or passphrase for APPROX The person who setup the network can give you the key or passphrase. Security key or passphrase: 1234567890 ✓ Display characters If you have a USB flash drive with network settings for APPROX, insert it now. Connect Cancel

Connect to a network Connecting to APPROX Cancel

Figura 3-17 Ligação

Connect to a network Successfully connected to APPROX ✓ Save this network ✓ Start this connection automatically Close

Currently connected to: Network 2 No Internet access Wireless Network Connection TIBIN APPROX Connect automatically Connect test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Connect to a Network Type the network security key Security key: •••••••••••• ✓ Hide characters OK Cancel

Currently connected to: Network 2 No Internet access APPROX No Internet access Wireless Network Connection APPROX Connected test c4bc58 Network-002719 WISPTA_test supen Open Network and Sharing Center

Figura 3-21 A Ligar

4 Configuração WPS

WPS Installation Program - InstallShield Wizard Preparing Setup Please wait while the InstallShield Wizard prepares the setup. WPS Installation Program Setup is preparing the InstallShield Wizard, which will guide you through the rest of the setup process. Please wait. InstallShield Cancel

Figura 4-1

WPS (Wifi Protect Setup) WPS Status: Enabled Disable WPS Current PIN: 12345670 Restore PIN Gen New PIN Add a new device: Add device

Figura 4-3

Add A New Device Enter the new device's PIN. PIN: Press the button of the new device in two minutes. Back Connect

Figura 4-4

WPS for Wireless Welcome to WPS WPS is compatible with Wi-Fi Protected Setup*** This application will guide you through configuring your wireless network. WPS simplifies setting up a wireless network. It uses Wi-fi Protected Setup to configure your wireless network. < Back Next > Cancel

Figura 4-5

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ● Push the button on my access point ○ Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Push the button on your access point and click Next to continue. Disable the wireless adapter's push-button □ Automatically select the network ✓ < Back Next > Cancel

Figura 4-6

WPS for Wireless Wireless Configuration Completed Your computer has successfully joined the APPROX network. < Back Finish Cancel

Figura 4-7

4.2 Método PIN

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ● Enter a PIN into my access point or a registrar ○ Enter the PIN from my access point Enter the PIN 79666947 into your access point or external registrar and click Next to continue. Automatically select the network < Back Next > Cancel

Figura 4-8

Add A New Device Enter the new device's PIN. PIN: 79666947 Press the button of the new device in two minutes. Back Connect

Figura 4-9

WPS for Wireless Join a Wireless Network WPS is preparing to join your computer to a wireless network. Which setup method do you want to use? ○ Push the button on my access point ○ Enter a PIN into my access point or a registrar ● Enter the PIN from my access point Enter the PIN from your access point below and click Next to continue. Access Point PIN: 12345670 Automatically select the network ✓ < Back Next > Cancel

Figura 4-10
