USER MANUAL PINGUINO PAC 10 DELONGHI

Thank you for purchasing an appliance made by De' Longhi, the international leader in portable air conditioning units. Thanks to our years of experience all around the world we are constantly improving the quality and performance of Pinguino.

We are confident that you will be satisfied with your purchase and enjoy cool comfort created by the Pinguino for many years to come.

You should spend some time reading this instruction manual and keep it handy to refer to in order to use your Pinguino of maximum efficiency and peace of mind.

Chere Cliente, Cher Client,

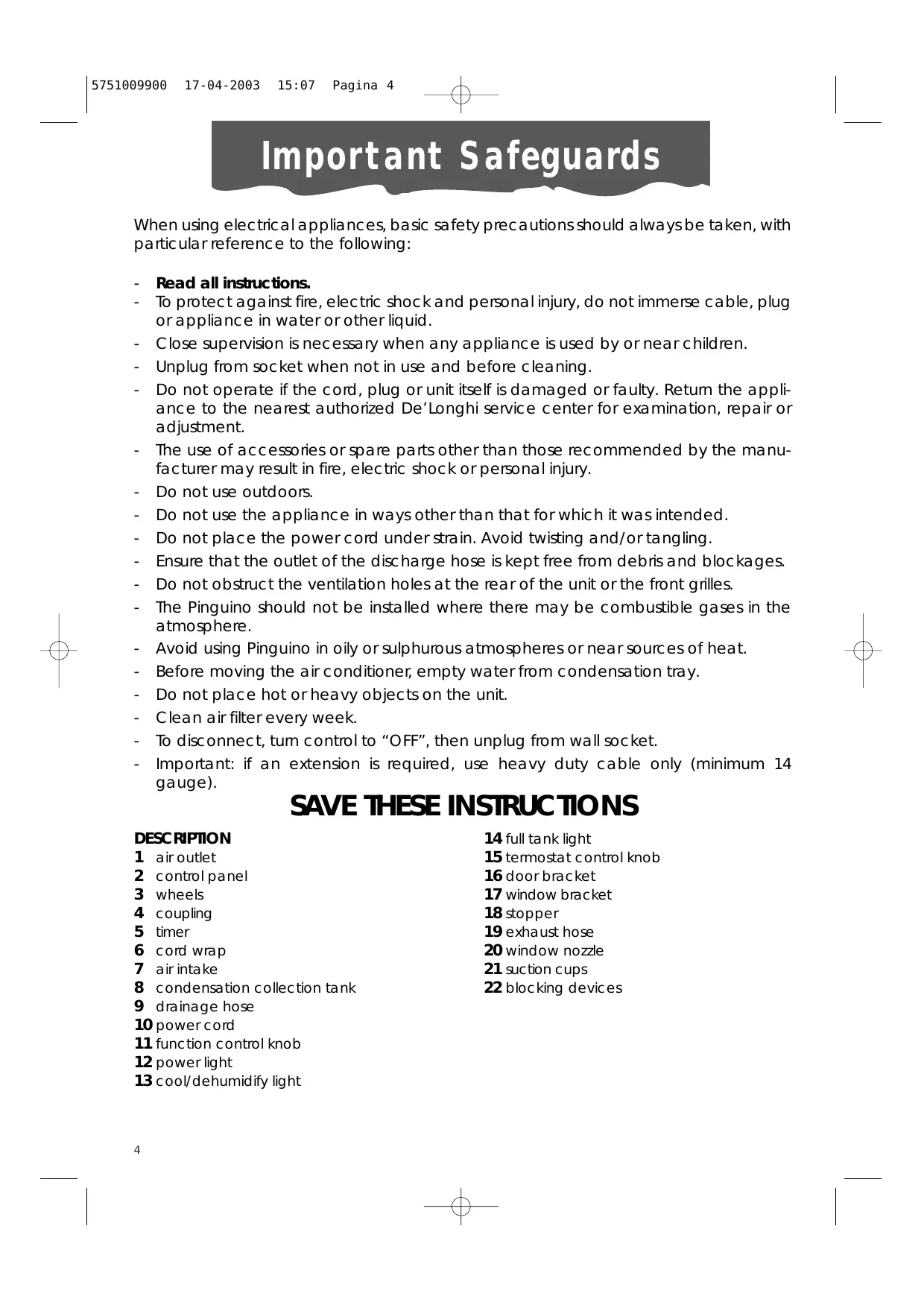

Important Safeguards

When using electrical appliances, basic safety precautions should always be taken, with particular reference to the following:

• Read all instructions.
• To protect against fire, electric shock and personal injury, do not immerse cable, plug or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from socket when not in use and before cleaning.
• Do not operate if the cord, plug or unit itself is damaged or faulty. Return the appliance to the nearest authorized De'Longhi service center for examination, repair or adjustment.
• The use of accessories or spare parts other than those recommended by the manufacturer may result in fire, electric shock or personal injury.
• Do not use outdoors.
• Do not use the appliance in ways other than that for which it was intended.
• Do not place the power cord under strain. Avoid twisting and/or tangling.
• Ensure that the outlet of the discharge hose is kept free from debris and blockages.
• Do not obstruct the ventilation holes at the rear of the unit or the front grilles.
• The Pinguino should not be installed where there may be combustible gases in the atmosphere.
• Avoid using Pinguino in oily or sulphurous atmospheres or near sources of heat.
  Before moving the air conditioner, empty water from condensation tray.
• Do not place hot or heavy objects on the unit.
• Clean air filter every week.
• To disconnect, turn control to "OFF", then unplug from wall socket.
• Important: if an extension is required, use heavy duty cable only (minimum 14 gauge).

SAVE THESE INSTRUCTIONS

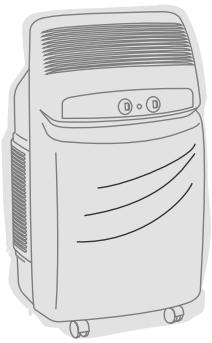

DESCRIPTION

1 air outlet
2 control panel
3 wheels
4 coupling
5 timer
6 cord wrap
7 air intake
8 condensation collection tank
9 drainage hose
10 power cord
11 function control knob
12 power light
13 cool/dehumidify light

14 full tank light
15 termostat control knob
16 door bracket
17 window bracket
18 stopper
19 exhaust hose
20 window nozzle
21 suction cups
22 blocking devices

What is Pinguino

During the summer, optimum comfort is achieved with a temperature of between 75 and 80^ and about 50% relative humidity.

An air conditioner removes moisture and heat from the room where it is located. One advantage of portable air conditioning units over fitted models is that they can be moved from one room to another in the home or even transferred between different buildings.

The hot air in your room is passed through a coil cooled by refrigerant gas, losing excess heat and moisture before being discharged again into the room.

In Pinguino, a small part of this air is used to cool the refrigerant gas before, hot and moist, being discharged outside.

Each Pinguino can also be used as a fan only.

For more details, contact:

DE'LONGHI AMERICA INC.

Tel: [phone]

DE'LONGHI CANADA

tel. [phone]

or visit our Internet site www.delonghiusa.com

for general overlook of DE'LONGHI group visit: www.delonghi.com

Setting up

The following instructions will help you set up your air conditioning unit as efficiently as possible.

AIR CONDITIONING WITHOUT INSTALLATION

With just a few simple operations, Pinguino will restore comfortable conditions in your room:

• Fit the air outlet tube 19 to the coupling 4 on the back of the unit as shown in figure A.

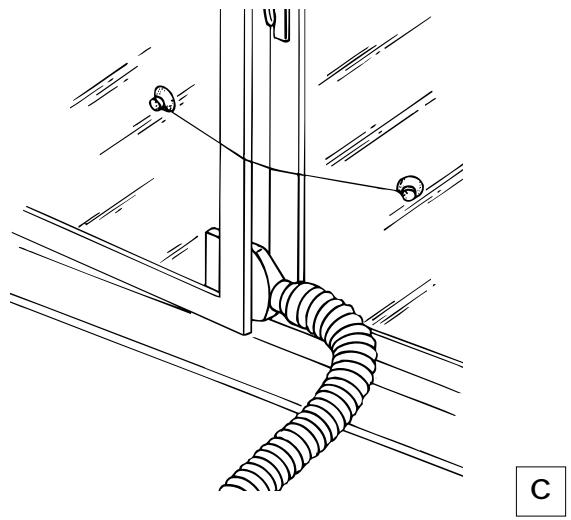

• With a double casement window, use the suction cups [21] provided to hold the two halves of the window together (fig. C).

A

• Fit the window attachment 20 to the end of the tube 19 .
• Place the unit near a window or a French window.

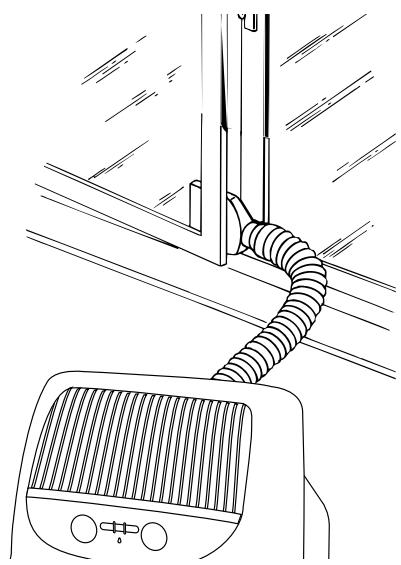

• Open the window or French window slightly and place the window attachment 20 as shown in figure B.

B

Setting up

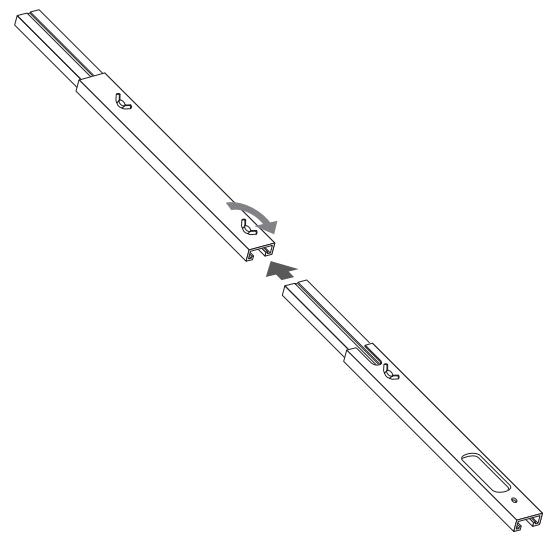

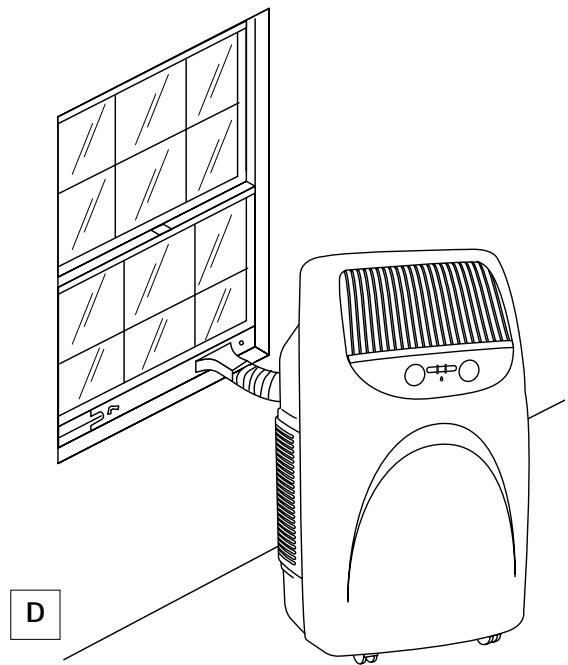

Pinguino is equipped with an adjustable window bracket [17]. If you have a sliding window, place the bracket on the window sill, extend the bracket fully within the window frame and lower the window onto the bracket. Insert the nozzle of the exhaust hose into the slot, then connect the hose to the air conditioner (Fig. D).

Thanks to the wing nut, it's possible to use the window bracket also for sliding windows. Position the hole of the bracket to allow a correct installation of the exhaust hose (see the following instructions).

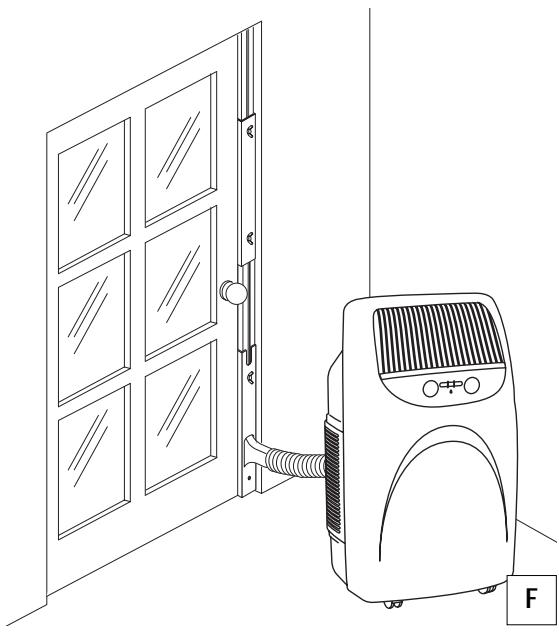

If you have a sliding door, use the additional set provided in order to extend the accessory to the desired length; joining the two parts (fig. E), adjust the total length according to your needs then, fit the bracket with the relevant nuts, close the door and connect the hose (fig. F).

E

Setting up

AIR CONDITIONING WITH INSTALLATION

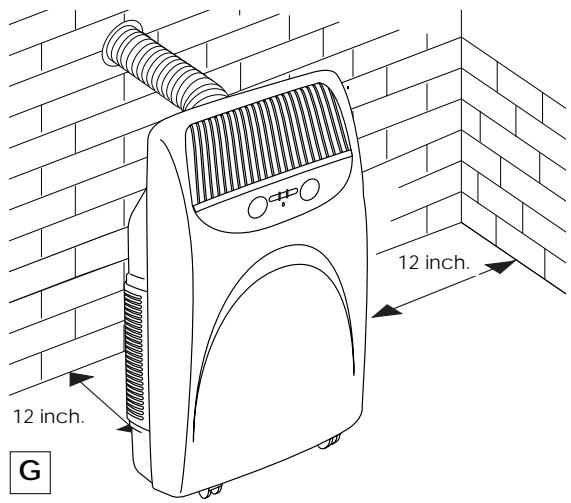

Pinguino can also be semi-permanently installed (fig. G).

To install, proceed as follows:

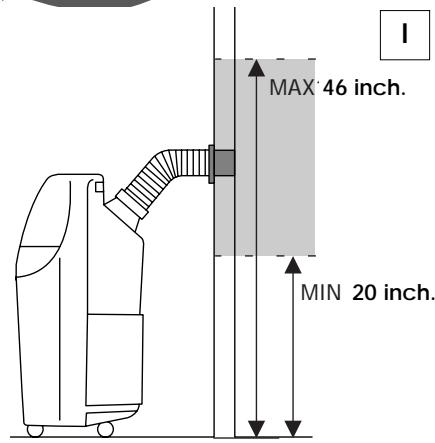

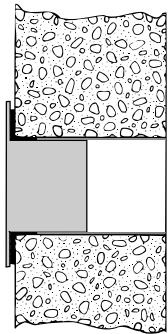

• Make a hole in a wall that goes through to the outside or through the pane of a window. Respect the height and dimensions given in figures H and I.

in a window pane

in the wood sill of a window

in the wall: for optimum results, insulate the section of the wall with suitable insulating material.

• Fit the flange supplied to the hole.
• Fit the tube [19] to the coupling on the back of the unit (figure A, page 6).
• Attach the end of the tube [19] to the flange [18] as shown in the figure I.

When the tube 19 is not attached, close the hole with the stopper 18.

NOTE:

When the unit is installed semi-permanently, we recommend leaving a door slightly open (0.5 in. '1 cm' is enough) to ensure an adequate exchange of air.

The unit must only be used with the air outlet tube provided. Failure to observe the set up and use procedures specified in this manual absolves the manufacturer from all liability.

Turning on and programming the unit

CONNECTING TO THE MAIN ELECTRIC SUPPLY AND TURNING THE UNIT ON

1. Before plugging the unit into the socket, check that:

2. the main electric voltage corresponds to the value indicated on the rating plate on the back of the unit;

3. the socket and power cord 10 are adequate for the voltage required;
4. the socket is the right type for the plug, otherwise have the socket replaced;

5. the socket is effectively grounded. Failure to observe this safety regulation absolves the manufacturer from all liability.

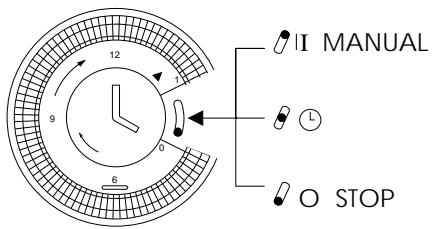

6. Before setting the required function, check that the timer switch 5 is on "I" (manual).

If you want to use the timer, turn the switch to the intermediate position (timer on).

When the timer's on the "0" (POWER OFF) position, the appliance doesn't work.

TIMER: SETTING THE TIME

As with all clocks, the programmer/timer must be set to the right time. If it is 4:00 p.m., rotate the pointers clockwise (follow the direction of the arrow) until you reach 4:00 p.m.

Note: never rotate the timer dial in a counterclockwise direction.

The timer is an electric clock and only works while the unit is connected to the outlet. When it is unplugged or there is no electricity, the timer stops (the clock is "slow") and must be re-set.

TIMER: PROGRAMMING

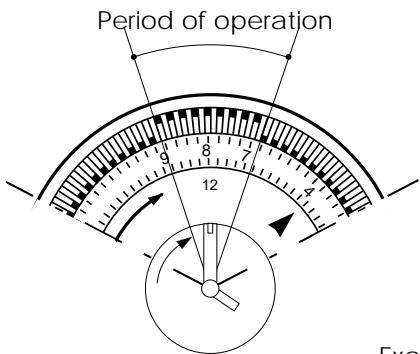

1) Set the times when the unit will function by pushing the notches in the required interval towards the outside (each notch represents 15 minutes).
2) Check that the timer indicates the exact time (see setting the time).
3) Choose the required function according to the instructions on the following page.

Example: from 7:00 p.m. to 9:00 p.m.

In this mode, the unit will repeat the set program every day.

Note: It is not necessary to modify the program to exclude "timer" operation. Just turn the switch to "I" (manual).

Selecting functions

AIR CONDITIONER

With the unit turned off, the function selector 11 is in the "O" position. To turn the unit on in air conditioning mode, proceed as follows:

1. Rotate the function selector knob clockwise:

2. Place the large crystal symbol in line with the reference mark to operate the unit in air conditioning mode at maximum fan speed.

3. Place the small crystal symbol in line with the reference mark to operate the unit in air conditioning mode at minimum fan speed.
4. Now set the required temperature by rotating the room thermostat knob.

Note

The temperature is not expressed in degrees. We therefore recommend rotating the room thermostat knob 15 to the maximum cool position. When room temperature has reached the required level, rotate the thermostat knob slowly clockwise until the thermostat is activated, turning the unit off. This programs the unit to the precise level of comfort required which will then be automatically maintained by the thermostat with considerable energy savings. When regulating the thermostat, the air conditioning function is temporarily interrupted and the unit continues to operate in fan only mode.

HOW TO DEHUMIDIFY

When the appliance is working as an air conditioner, it automatically reduces the excess humidity in the air present in the room. This is eliminated through the exhaust tube [19].

If only the elimination of the excess humidity in the room is desired without lowering the temperature, simply turn the function selector knob in a clockwise direction until the

symbol is reached. The excess condensed humidity automatically gathers in the tank 8. It is also possible to carry out continuous drainage of the condensed humidity, following the instructions aside.

DEHUMIDIFICATION ONLY

Position the appliance in the room without inserting the tube; in this way the dehumidified air will exhaust directly into the room.

Note

In the dehumidifying mode, air colder than the room temperature will exhaust from the air exhaust grill. Conversely, air warmer than room temperature will be exhausted from the coupling 4 on the back side of the appliance.

TO TURN THE UNIT OFF COMPLETELY, SET THE FUNCTION SELECTOR TO THE "O" POSITION AND UNPLUG FROM THE SOCKET.

REMOVING COLLECTED WATER

Condensation will be collected in the removable tank 8

It's also possible to drain it continuously.

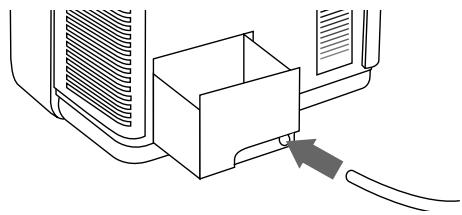

CONTINUOUS EXTERNAL DRAINING

THIS UNIT EMPLOYS AN EXCLUSIVE CONDENSATION RECYCLING SYSTEM TO DISPOSE OF EXCESS MOISTURE. IN NORMAL CONDITIONS, CONDENSATION IS DISPOSED OF AUTOMATICALLY. WHEN THE HUMIDITY IS PARTICULARLY HIGH, AN EXCESS OF CONDENSATION MAY BUILT UP IN THE TANK 8. WHEN THIS HAPPENS, THE INDICATOR LIGHT FULL 14 COMES ON INDICATING THAT THE TANK SHOULD BE EMPTIED. WHENEVER CONDITIONS OF HIGH HUMIDITY MAKE THE PROBLEM RECURRENT, YOU MAY DISCHARGE THE EXCESS WATER DIRECTLY INTO A DRAIN, USING THE RUBBER TUBE SUPPLIED. THE TUBE SHOULD BE INSERTED INTO THE HOLE PROVIDED, AFTER HAVING REMOVED THE RUBBER STOPPER. (see figure below).

MAKE SURE THE TANK IS PUT BACK CORRECTLY OTHERWISE THE LIGHT 14 WILL REMAIN ON.

Recommendations

Follow these recommendations to achieve maximum efficiency from your air conditioning unit:

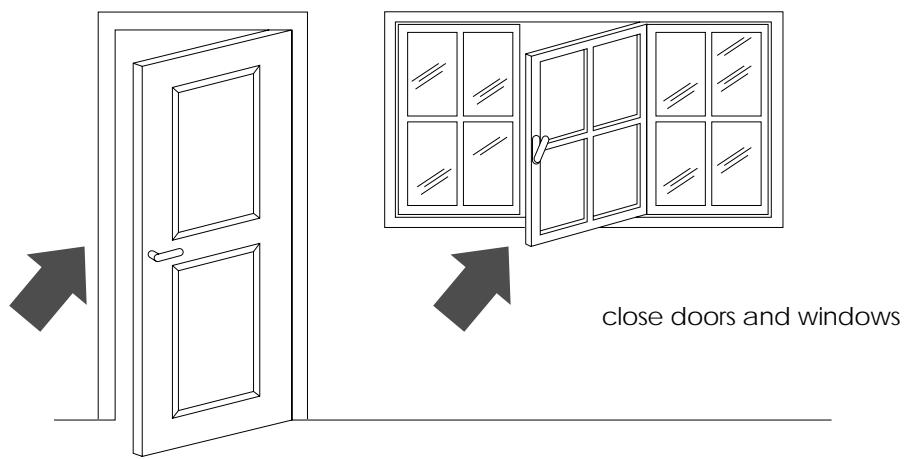

• Close the doors and windows in the room where the unit is functioning. The only exception is in the case of installation through a hole in the wall. In this case, you are recommended to allow a small amount of air to enter through a door or window to guarantee an adequate exchange of air.

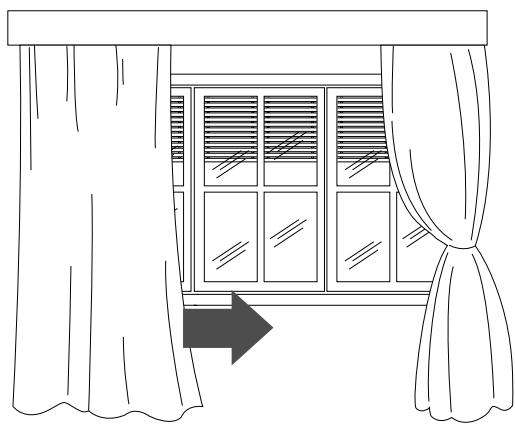

• Protect the room from direct exposure to the sun's rays by drawing the curtains and/or partially lowering the blinds so as to maximize energy savings.

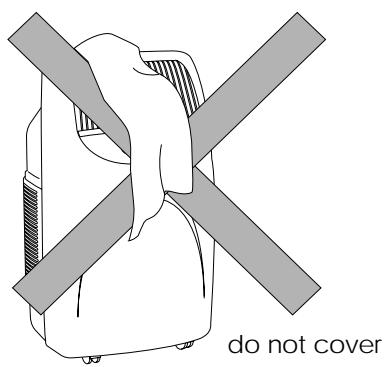

• Do not rest objects on the air conditioning unit.
• Do not obstruct the air intake 7 or outlet 1 .
• Make sure there are no heat sources in the room.

lower the blinds or draw the curtains

• Make sure the unit is located on a level floor. If necessary, place the two blocking devices 22 under the front wheels 3.

Cleaning

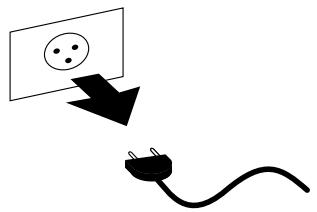

Before cleaning or maintenance, always turn the unit off by placing the selector in the "O" position and unplug from the socket.

CLEANING THE EXTERNAL UNIT

We recommend cleaning the unit with a slightly damp cloth then drying with a dry cloth.

For safety reasons, do not wash the air conditioner with water.

Precautions

Never clean with benzene, alcohol or solvents. Never spray liquid insecticide or similar.

CLEANING THE AIR FILTERS.

To maintain the air conditioning unit at peak efficiency, you are recommended to clean the anti-bacteria filter weekly.

To clean the filters:

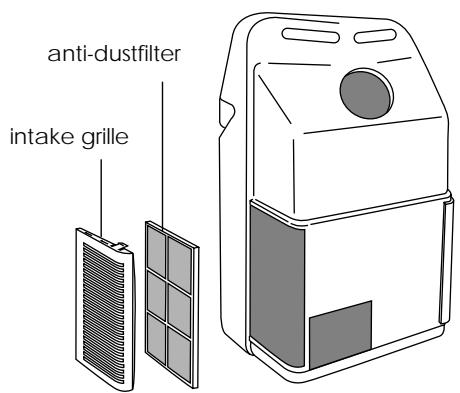

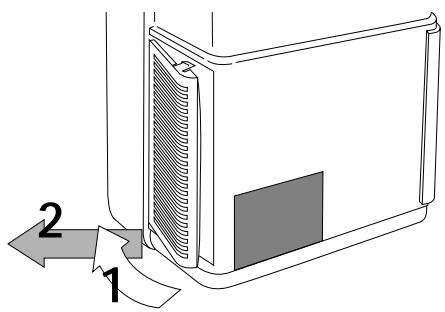

1. Remove the intake grilles by rotating them outwards.

1. Remove the dust filter by unhooking it from the external grille.

To remove dust deposited on the dust filter, use a vacuum cleaner. If it is very dirty, rinse repeatedly in warm water at a temperature of not more than 104^ .

After washing, dry the filter. To replace, put the filters back into the external grill, then hook the latter to the unit.

Cleaning

END OF SEASON OPERATIONS

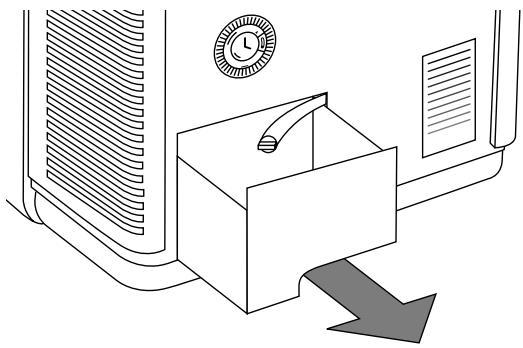

Take out the condensation tank located in the rear of the unit and empty it.

BEGINNING OF SEASON CHECKS

Check that the power cord and outlet are undamaged and that the installation is efficient.

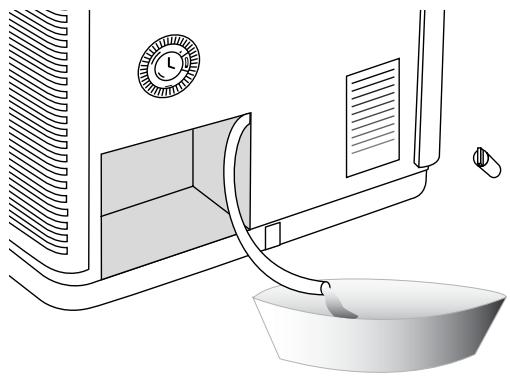

Empty the residual water by removing the stopper in the drainage tube.

After replacing the bung, put the condensation tank back.

Clean the anti-bacteria filters and dry well before replacing.

Protect the unit from dust by covering with a plastic bag.

Troubleshooting

If the unit is not working properly, this may be due to small problems that you can easily resolve yourself. Follow these instructions carefully before contacting your local De'Longhi Authorized Technical Service Center.

PROBLEM	CAUSE	SOLUTION
The unit does not work	there is no electricityit is not plugged inthe function selector is in the “O” positionthe timer pin is in the “0” position or it is not programmed to operate at that moment	waitplug inmove the selector to the desired positionset the timer to the required mode (see turning on the unit and programming the timer)
The unit works for only a short time	there is a kink in the outlet tubethe outlet tube is blockedthere are too many twists in the outlet tubethe fan is blocked	position the outlet tube correctlycheck there are no blockages preventing the discharge of air to the outsiderearrange the tube correctly (see set up instructions)contact the Service Center
The tank full light is on	the tank is full activating the safety floatthe tank is incorrectly positioned	empty the tankreposition the tank correctly
The unit works but does not cool the room	three minutes have not passed since it was turned onwindows opena heat source is operating in the room (burner, light, etc.) or there are a lot of peoplethe air outlet tube has detached from the couplingthermostat adjusted too highair filters cloggedthe cooling capacity of the unit is insufficient for the conditions or size of the room	wait three minutes (safety device)close the windowseliminate heat sourcesfit the tube in the couplinglower the thermostatclean/replace filters

TECHNICAL ASSISTANCE

Keep the list of Technical Service Centers and identify the one nearest to you.

RECOMMENDED OPERATING CONDITIONS

Room temperature:

(21-32 °C)

Outside temperature:

69-109°F

(21-43 °C)

TECHNICAL SPECIFICATION

Power supply see rating plate

Max. absorbed power

in air conditioning

Refrigerating capacity see rating plate

Number of fan speeds 2

Dimensions of internal unit:

width 18"
height 31,50"
depth 16"
weight 72,8 lbs.

DeLonghi

LIMITED WARRANTY

We warrant each DE'LONGHI AIR-CONDITIONER to be free from defects in material and workmanship. Our obligation under this warranty is to provide one year parts and labor free from purchase date, with an additional four (4) years on any part of the sealed system consisting of the compressor, evaporator, condenser and factory connected refrigerant tubing. This warranty shall apply only if the AIR-CONDITIONER is used in accordance with the factory directions which accompany it, and on Alternatign Current (AC) circuit. This warranty is in lieu of all other warranties and representations, expressed or implied, and all other obligations or liabilities on our part. We do not authorize any other person or company to assume for us any liability in connection with the sale or use of our AIR-CONDITIONER. This warranty shall not apply to assume for us any liability in connection with the sale or use of our AIR-CONDITIONER. This warranty shall not apply to any AIR-CONDITIONER which shall have been repaired or altered outside our factory nor shall it apply to any AIR-CONDITIONER which has been subjected to misuse, negligence or accidents.

If repairs become necessary or spare parts are needed, please write to:

De'Longhi America Inc.

Park 80 West Plaza One 4th floor

Saddle Brook, NJ 07663

or call Service Tel. No. 1-800-322-3848

De' Longhi CANADA

1040 Ronsa Court

MISSISSAUGA, ONTARIO

L4W 3Y4 CANADA

CLIMATISATION AVEC INSTALLATION

We warrant each DE LONGHI AIR-CONDITIONER to be free from defects in material and workmanship. Our obligation under this warranty is to provide one year parts and labor free from purchase date, with an additional four (4) years on any part of the sealed system consisting of the compressor, evaporator, condenser and factory connected refrigerant tubing. This warranty shall apply only if the AIR-CONDITIONER is used in accordance with the factory directions which accompany it, and on Alternatign Current (AC) circuit. This warranty is in lieu of all other warranties and representations, expressed or implied, and all other obligations or liabilities on our part. We do not authorize any other person or company to assume for us any liability in connection with the sale or use of our AIR-CONDITIONER. This warranty shall not apply to assume for us any liability in connection with the sale or use of our AIR-CONDITIONER. This warranty shall not apply to any AIR-CONDITIONER which shall have been repaired or altered outside our factory nor shall it apply to any AIR-CONDITIONER which has been subjected to misuse, negligence or accidents.

If repairs become necessary or spare parts are needed, please write to:

SERVICE

Park 80 West Plaza One 4th floor

Saddle Brook, NJ 07663

or call Service Tel. No. 1-800-322-3848

De' Longhi CANADA

1040 Ronsa Court

MISSISSAUGA, ONTARIO

L4W 3Y4 CANADA

or call Service Tel. No. 1-888-335-6644

De Longh i S.p.A.

Via L. Seitz, 47

31100 Treviso Italia

tel. ++39/04224131

fax ++39/0422413647

www.delonghiet
