USER MANUAL PACN 75 DELONGHI

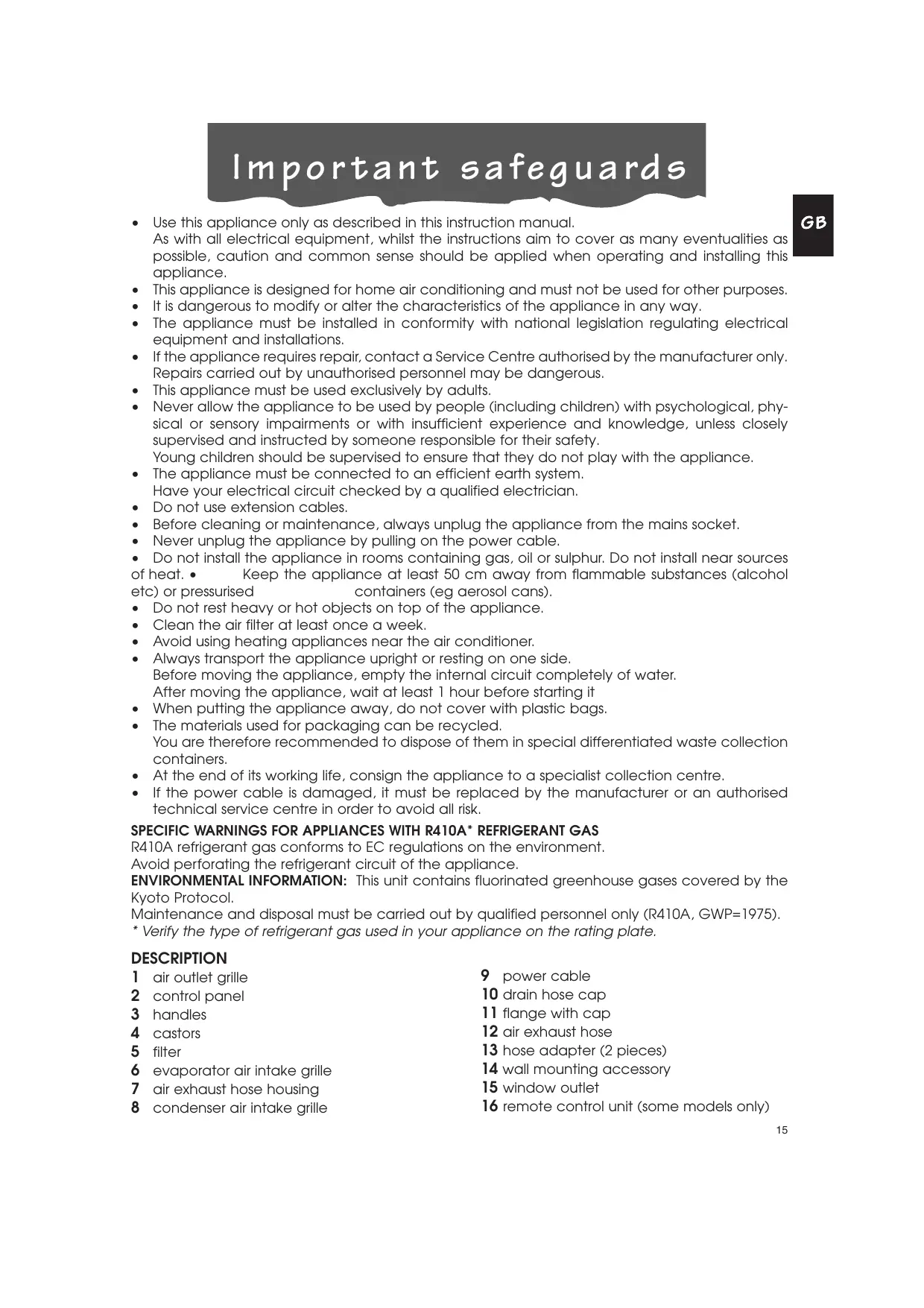

Important safeguards

• Use this appliance only as described in this instruction manual.

As with all electrical equipment, whilst the instructions aim to cover as many eventualities as possible, caution and common sense should be applied when operating and installing this appliance.

This appliance is designed for home air conditioning and must not be used for other purposes.
It is dangerous to modify or alter the characteristics of the appliance in any way.
- The appliance must be installed in conformity with national legislation regulating electrical equipment and installations.
- If the appliance requires repair, contact a Service Centre authorised by the manufacturer only. Repairs carried out by unauthorised personnel may be dangerous.
- This appliance must be used exclusively by adults.
- Never allow the appliance to be used by people (including children) with psychological, physical or sensory impairments or with insufficient experience and knowledge, unless closely supervised and instructed by someone responsible for their safety.

Young children should be supervised to ensure that they do not play with the appliance.

• The appliance must be connected to an efficient earth system.
  Have your electrical circuit checked by a qualified electrician.
• Do not use extension cables.
• Before cleaning or maintenance, always unplug the appliance from the mains socket.
• Never unplug the appliance by pulling on the power cable.
• Do not install the appliance in rooms containing gas, oil or sulphur. Do not install near sources of heat.

• Keep the appliance at least 50~cm away from flammable substances (alcohol etc) or pressurised containers (eg aerosol cans).

• Do not rest heavy or hot objects on top of the appliance.
  Clean the air filter at least once a week.

• Avoid using heating appliances near the air conditioner.
• Always transport the appliance upright or resting on one side. Before moving the appliance, empty the internal circuit completely of water. After moving the appliance, wait at least 1 hour before starting it
• When putting the appliance away, do not cover with plastic bags.
• The materials used for packaging can be recycled.
• You are therefore recommended to dispose of them in special differentiated waste collection containers.
• At the end of its working life, consign the appliance to a specialist collection centre.
• If the power cable is damaged, it must be replaced by the manufacturer or an authorised technical service centre in order to avoid all risk.

SPECIFIC WARNINGS FOR APPLIANCES WITH R410A* REFRIGERANT GAS

R410A refrigerant gas conforms to EC regulations on the environment.

Avoid perforating the refrigerant circuit of the appliance.

ENVIRONMENTAL INFORMATION: This unit contains fluorinated greenhouse gases covered by the Kyoto Protocol.

Maintenance and disposal must be carried out by qualified personnel only (R410A, GWP=1975).

• Verify the type of refrigerant gas used in your appliance on the rating plate.

DESCRIPTION

air outlet grille
2 control panel
3 handles
4 castors
5 filter
6 evaporator air intake grille
7 air exhaust hose housing
8 condenser air intake grille

9 power cable
10 drain hose cap
11 flange with cap
12 air exhaust hose
13 hose adapter (2 pieces)
14 wall mounting accessory
15 window outlet
16 remote control unit (some models only)

Preparing for use

ELECTRICAL CONNECTIONS

Before plugging the appliance into the mains socket, check that:

• The mains power supply corresponds to the value indicated on the rating plate on the back of the appliance;
• The mains socket and electrical circuit are adequate for the appliance;
• The mains socket matches the plug. If this is not the case, have the plug replaced;
• The mains socket is adequately earthed. Failure to follow these important safety instructions absolves the manufacturer of all liability.

The power cable must be replaced by a qualified professional only.

The instructions below will enable you to prepare your air conditioner for operation as efficiently as possible.

Before use, make sure the air intake and outlet grilles are unobstructed.

AIR-CONDITIONING WITHOUT INSTALLATION

Just a few simple steps and your comfort is ensured with your air conditioner:

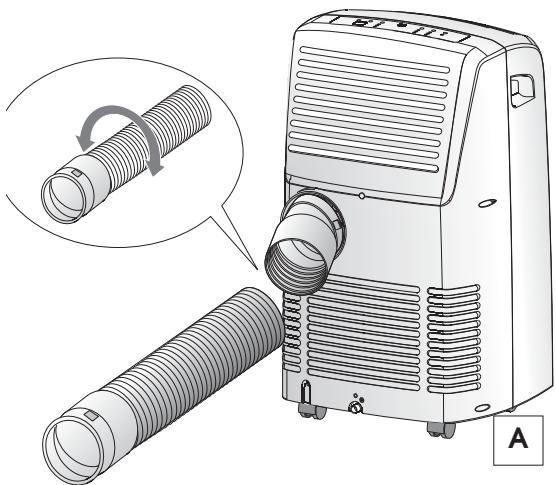

• Screw one of the hose adapters 13 to one end of the air exhaust hose 12.
• Fit the other adapter 13 to the air exhaust hose housing 7 at the back of the appliance (see fig. A).
• Screw the end of the hose without adapter to the adapter previously mounted on the appliance (see fig. A).

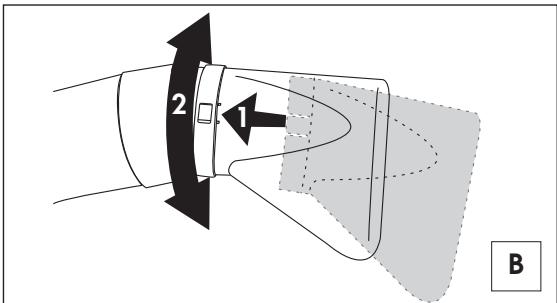

• Fit the window outlet 15 to the air exhaust hose 12 as shown in fig. B.
• Place the air conditioner near a window or French window.
• Make sure the air exhaust hose is unobstructed.

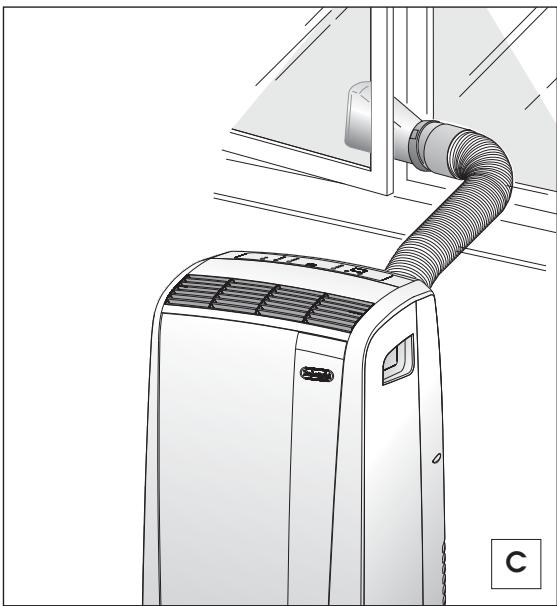

• Open the window or French window slightly and position the outlet [15] as shown in figure C.

Keep the air hoses as short and free of curves as possible to avoid constrictions.

Preparing for use

AIR-CONDITIONING WITH INSTALLATION

If required, your appliance can also be installed semi-permanently (Fig. D).

Proceed as follows:

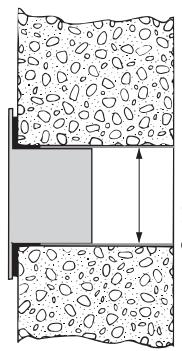

• Drill a hole (ø134mm) in an outside wall or through a window pane.

Respect the height and dimensions of the hole given in figure E.

in the window pane

in the woodenkickboard of aFrench window
in the wall: you are recommended to insulate the section of wall using suitable insulation.

E

Keep the air hoses as short and free of curves as possible to avoid constrictions.

• Fit the wall flange accessory 11 provided in the hole.
• Fit the air exhaust hose 13 in the relevant hose 7 located on the rear side of the appliance (see fig. A).

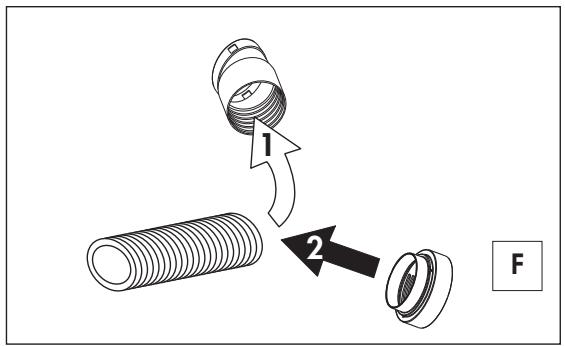

• Screw the wall mounting accessory 14 al tubo uscita aria 12 to the air exhaust hose 13 or, if necessary, unscrew the adapter 12 from the air exhaust hose and replace it with the wall installation terminal 14 (fig. F).

GB

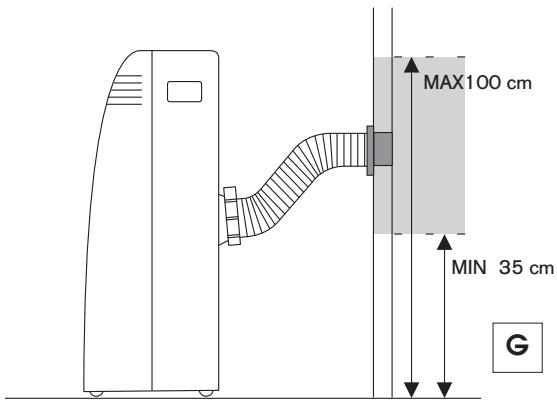

• Insert the other end of the hose 12 on the flange 11 as shown in fig. G.

When the hose 12 is not fitted, the hole can be closed with the flange cap 11 .

NOTE.

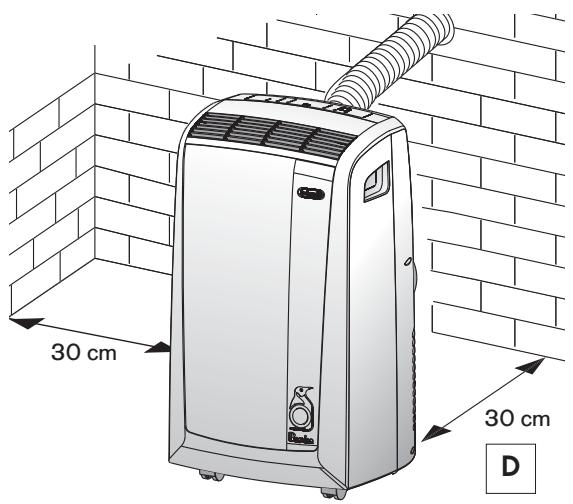

When installing the air conditioner semi-permanently, you should leave a door slightly open (as little as 1 cm) to guarantee correct ventilation.

Control panel

THE CONTROL PANEL

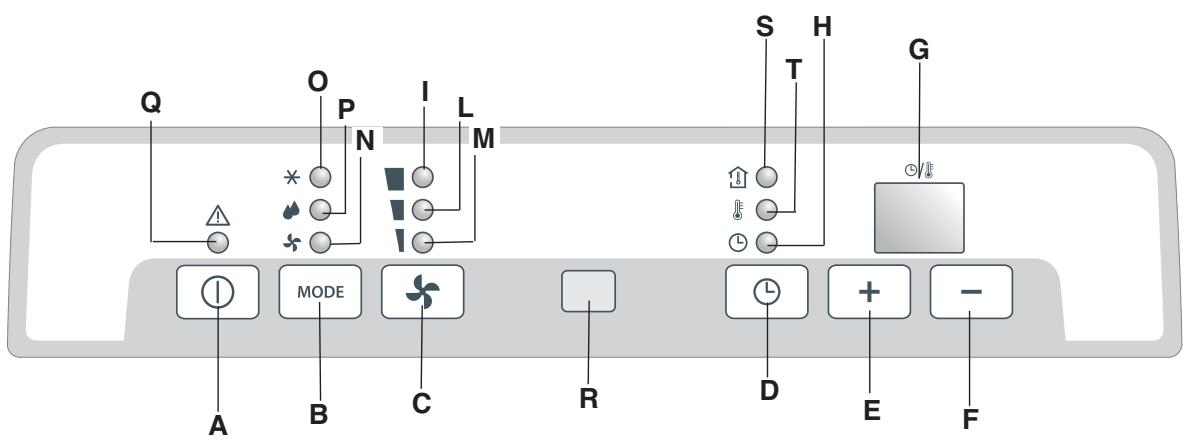

DESCRIPTION OF THE CONTROL PANEL

A ON/OFF button
B MODE selection button

Air conditioning, dehumidifying, fan.
C Fan speed selection button (MAX/MED/MIN)
D Timer button
E Programmed operation increase temperature/time button
F Programmed operation decrease temperature/time button
G Display (Displays the temperature values set, room temperature and the programmed operating time)
H Timer in operation indicator light
I/L/M Fan speed lights
N Fan mode light
O Air-conditioning mode light
P Dehumidifying mode light
Q Alarm light
R Remote control signal receiver
S Light: displays room temperature
T Light: displays set temperature

Never turn the air conditioner off by unplugging from the mains. Always press the button, then wait for a few minutes before unplugging. This allows the appliance to perform a cycle of checks to verify operation.

Operation

TURING THE APPLIANCE ON

Plug the appliance into the mains.

Press the ON/OFF button (A) (when turned on, the air conditioner starts operating in the same mode as when it was turned off).

The display shows the room temperature.

Press the MODE button (B) until the indicator light corresponding to the required mode lights up:

Light (O): air-conditioning mode

Light (N): fan mode

Light (P): dehumidifying mode

AIR-CONDITIONING MODE

Ideal for hot humid weather when you need to cool and dehumidify the room.

By default, the room temperature is displayed.

Light (S) is on.

To set the required temperature, press the + (E) or - (F) buttons until the required temperature is displayed. (to switch between °F and °C, press the E and F buttons together for a few seconds).

Light (T) comes on and light (S) goes off.

Fifteen seconds after setting the temperature, the display switches back to room temperature.

Light ($) comes on again.

You can adjust temperature in air conditioning mode only.

Then select the fan speed by pressing the FAN button (C) until the indicator light corresponding to the required fan speed lights up:

MAX: the air conditioner operates at maximum to reach the required temperature as rapidly as possible

MED: reduces noise levels but still maintains a good level of comfort

MIN: for silent operation

The most suitable temperature for the room during the summer varies from 24 to 27^ . You are recommended, however, not to set a temperature much below the outdoor temperature.

Operation

FAN MODE

Adjust fan speed by pressing the FAN button (C) as described for the air-conditioning mode. Remember that the higher the speed, the more air is filtered. If you select "MIN" speed, less air is filtered but the appliance is also less noisy.

DEHUMIDIFYING MODE

Ideal for reducing the humidity in a room (spring or autumn, damp rooms, rainy spells, etc). When the dehumidifying mode is selected, the light () comes on.

At the same time, the "MIN" fan speed light (M) comes on. In this mode, other speeds cannot be selected.

Note: remember to fit the air exhaust hose as described in the chapter "Preparing for use".

PROGRAMMING THE TIMER

The timer can be used to delay appliance start up or shut down. This avoids wasting electricity by optimising operating periods.

How to programme delayed start up

• Plug the appliance into a mains socket and press the ON/OFF button (A), then select the required operating mode and other settings (temperature, fan speed, etc).
• Press the ON/OFF button (A) again to place the appliance in standby mode.
• Press the timer button (D). The timer light "H" flashes.
• Use the + (E) or - (F) buttons to set the number of hours delay before the appliance comes on.
  The time increases or decreases in steps of one hour.

The indicator light (H) flashes until the appliance starts up.

You can set the appliance to come on with a delay of up to 12 hours.

To cancel the timer programme, press the timer button (D) again.

Light (H) stops flashing.

How to programme delayed shut down

• Delayed shut down can be programmed in any operating mode (air conditioning / fan/ dehumidifying).
• Press the timer button (D). The timer light "H" flashes.
• Use the + (E) or - (F) buttons to set the number of hours delay before the appliance goes off.

The time increases or decreases in steps of one hour.

The light (H) flashes until the appliance turns off as programmed.

At the set time, the air conditioner shuts down and remains in standby.

To cancel the timer programme, press the timer button (D) again.

Light (H) stops flashing.

Using the remote control unit (some models only)

GB

MODELS WITH REMOTE CONTROL

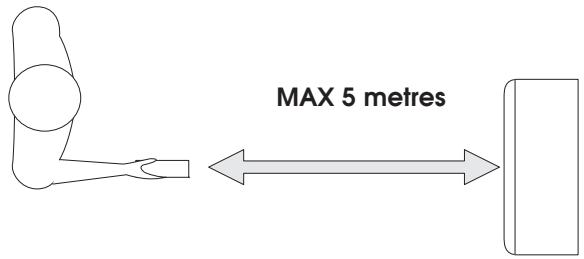

• Point the remote control at the receiver on the air-conditioner. The remote control must be no more than 5 metres away from the appliance (without obstacles between the remote control and the receiver).
• The remote control should be handled with extreme care and respect. Do not drop it, expose it to direct sunlight, or leave it near sources of heat.

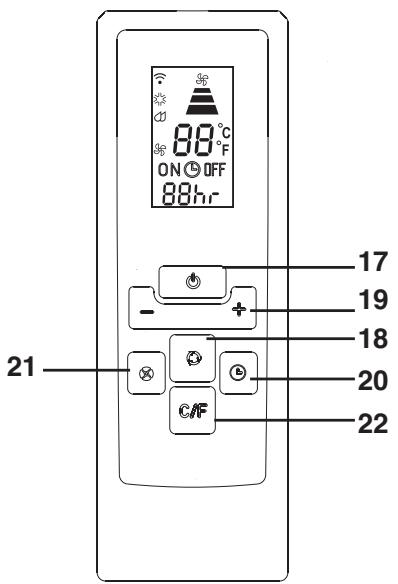

DESCRIPTION OF THE REMOTE CONTROL

17) "ON/OFF" button
18) "MODE" button
19) Programmed operation/ decrease/ increase temperature button
20) Pulsante "TIMER"
21) Pulsante selezione di velocità di ventilazione (MAX/MED/MIN)
22) ^ F / ^ C switching button

Replacing the batteries

• Remove the cover on the rear of the remote control;
• Replace the old batteries with two new LR03 "AAA" 1.5V batteries, inserting them correctly (see the instructions inside the battery compartment);
• Replace the cover.

If the remote control unit is replaced or discarded, the batteries must be removed and disposed of in accordance with current legislation as they are harmful to the environment. Do not mix alkaline, standard (zinc-carbon) and rechargeable (nickel-cadmium) batteries.

Do not throw the batteries in the fire as they could explode or leak dangerous liquids.

TURNING THE APPLIANCE ON

Plug the appliance into the mains.

Press the ON/OFF button (17) (when turned on, the air conditioner starts operating in the same mode as when it was turned off).

Press the MODE button (18) to select the required mode

COOLING

DEHUMIDIFYING

FAN ONLY

On the control panel, the light corresponding to the selected mode comes on.

For air conditioning/dehumidifying/fan only settings and programming the timer, see page 18-19.

Tips

To get the best from your air conditioner, follow these recommendations:

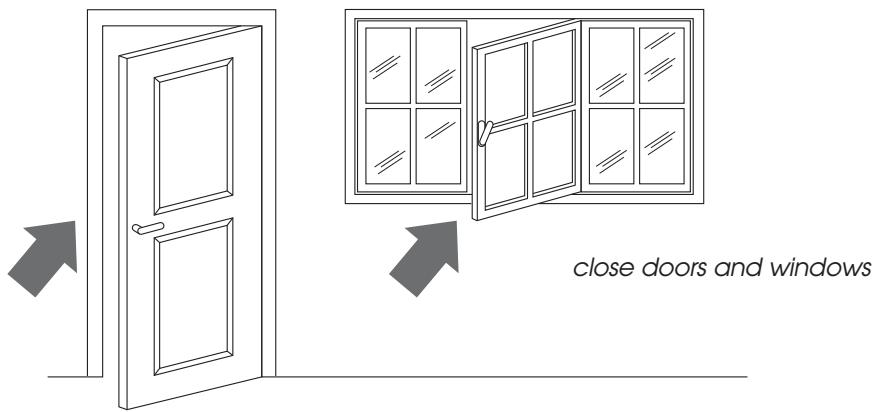

• close the windows and doors in the room to be air conditioned.

The only exception is when the appliance is installed through a hole in the wall.

In this case, you are recommended to leave a slight draught through a door or window to guarantee correct ventilation.

• Never use the appliance in very damp rooms (laundrys for example).
• Never use the appliance outdoors.

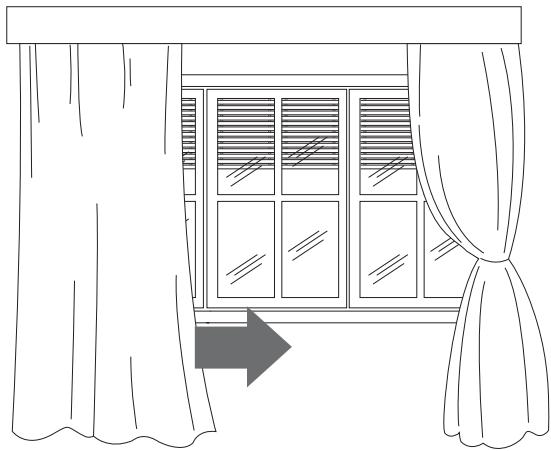

• Protect the room from direct exposure to the sun by partially closing curtains and/or blinds to make the appliance much more economical to run;
• Never rest objects of any kind on the air conditioner;
• Never obstruct the air intake 6 or outlet 1 grilles;
• Make sure there are no heat sources in the room.

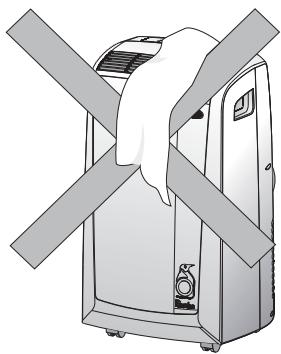

do not cover
the appliance

close blinds or curtains

• Make sure the air conditioner is on a level floor.

Cleaning

Before cleaning or maintenance, turn the appliance off by pressing the ON/OFF button (A) or in models with remote control unit, by pressing the ON/OFF button 17, then always unplug the appliance from the mains socket.

CLEANING THE CABINET

You should clean the appliance with a slightly damp cloth then dry with a dry cloth.

For safety reasons, never wash the air conditioner with water.

Precautions

Never use petrol, alcohol or solvents to clean the appliance. Never spray insecticide liquids or similar.

CLEANING THE AIR FILTERS

To keep your air conditioner working efficiently, you should clean the dust filter every week of operation.

The filter is housed in the intake grille.

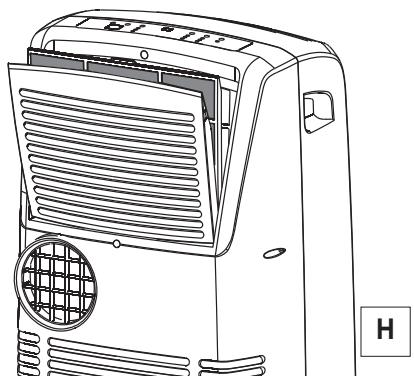

To clean the filters, remove the filter as shown in figure H.

Use a vacuum cleaner to remove the dust collected on the filter.

If it is very dirty, immerse in warm water and rinse a number of times.

The water should never be hotter than 40^ C . After washing, leave the filter to dry.

Put the filter back in its housing.

START OF SEASON CHECKS

Make sure the power cable and plug are undamaged and the earth system is efficient. Follow the installation instructions precisely.

END OF SEASON OPERATIONS

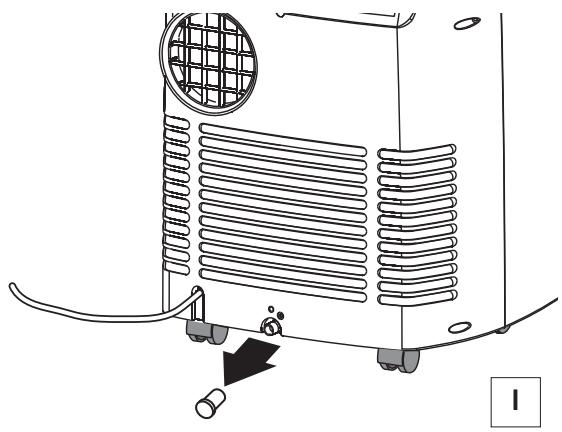

To drain all water from the circuit, remove the cap from the drain hose on the back of the appliance and allow the water to drain out into a basin (figure 1). When all the water has been drained, close the hose with the cap and replace in its housing.

Clean the filter and leave it to dry before putting it back in its housing.

Troubleshooting

PROBLEM	CAUSE	REMEDY
The air conditioner does not come on	no electricityit is not plugged into the mainsthe safety device has tripped	waitplug into the mainscontact your service centre
The air conditioner works for a short time only	the air exhaust hose has a constrictionthe air exhaust hose is blockedthere are bends in the air exhaust hose	position the exhaust hose correctlycheck there are no obstacles obstructing air dischargeeliminate the bends
The air conditioner works, but does not cool the room	window openthere are heat sources in the room (burner, lamp, etc)the exhaust hose is detachedair filter cloggedthe air conditioner is not powerful enough for the conditions or size of the room	close the windoweliminate the heat sourceconnect the exhaust hoseclean or replace the filter
Particular odour in the room	air purifying filters clogged	clean or replace the filters
The air conditioner does not operate for about 3 minutes after turning it on	the safety device has tripped	wait for three minutes
The alarm light Q comes on	the tank inside the appliance is full.	empty the tank (see "End of season operations" on page 23).

SELF-DIAGNOSIS

The appliance has a self diagnosis system to identify a number of malfunctions. Error messages are displayed on the appliance display.

IF...IS DISPLAYED, Lo “Low Temperature” ...MEANS: room temperature is too low

IF...IS DISPLAYED, HI “High Temperature” ...MEANS: room temperature is too high

IF...IS DISPLAYED, EI “Probe Failure” (sensor damaged) ...MEANS: contact your local customer service

Guarantee/technical specification

GB

GUARANTEE AND TECHNICAL ASSISTANCE

The conditions of the guarantee and technical assistance are given on the certificate supplied with your appliance.

TECHNICAL SPECIFICATION

Power supply voltage see rating plate

Max. absorbed power during air conditioning	“
Refrigerant	“
Cooling capacity	“

LIMIT CONDITIONS

Room temperature for air conditioning 21 ÷ 35^ C

Transport, filling, cleaning, recovery and disposal of refrigerant should be performed by a technical service centre appointed by the manufacturer only. The appliance should be disposed of by a specialist centre appointed by the manufacturer only.

IMPORTANT INFORMATION FOR THE CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EUROPEAN DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or a dealer providing this service.

Disposing of household appliances separately avoids all possible negative consequences for the environment and health deriving from inappropriate disposal and enables constituent materials to be salvaged, resulting in considerable savings of energy and resources.

As a reminder of the obligation to dispose of household appliances separately, the product is marked with the symbol of a barred refuse bin.
