SFS 150 B3 - Vacuum Sealer SILVERCREST - Free user manual and instructions

USER MANUAL SFS 150 B3 SILVERCREST

SWIFT (BIC): PBNKDEFF 440

SWIFT (BIC): PBNKDEFF 440

SWIFT (BIC): PBNKDEFF 440

SWIFT (BIC): PBNKDEFF 440

Introduction Information for these operating instructions Congratulations on the purchase of your new appliance! You have clearly decided in favour of a modern and high-quality product. These operating instructions are a part of this product. They contain important information in regard to safety, use and disposal. Before using the product, familiarise yourself with all of these operating and safety instructions. Use the product only as described and only for the specified areas of application. In addition, pass these documents on, together with the product, to any future owner. Copyright This documentation is copyright protected.

All reproductions or duplications, also as extracts, as well as representations of the illustrations, even in an altered state, are only permitted with the written approval of the manufacturer. Limited liability All technical information, data and instructions for installation, connection and operation contained in this operating manual correspond to the latest available at the time of printing and, to the best of our knowledge, take into account our previous experience and know-how. No claims can be derived from the details, illustrations and descriptions in these instructions. The manufacturer assumes no responsibility for damage caused by failure to observe the instructions, improper use, incompetent repairs, making unauthorised modifications or for using unapproved replacement parts.

IB_71770_SFS150B3_LB1.indb Abs2:70 SFS 150 B3

Intended use This plastic film sealer is intended for the occasional vacuum-packing of food in typical household quantities and only for private household use. This appliance is not intended for commercial or industrial applications or for continuous operation. This appliance is not intended for any other use or for uses beyond those mentioned. Claims of any kind for damage resulting from unintended use will not be accepted. The user alone bears liability. Warning symbols used In these operating instructions the following warnings are used: DANGER

A warning at this risk level indicates a threateningly dangerous situation. If the dangerous situation is not avoided, it could result in death or serious injury. ► Follow the instructions given in this warning to avoid the risk of death or severe personal injury. IMPORTANT A warning at this risk level indicates possible property damage. If the situation is not avoided it could lead to property damage. ► Follow the instructions in this warning to avoid property damage. NOTICE ► A notice indicates additional information that assists in the handling of the appliance. SFS 150 B3 IB_71770_SFS150B3_LB1.indb Abs2:71

Safety In this chapter you receive important safety information regarding the handling of the appliance. This appliance complies with the statutory safety regulations. Incorrect usage can lead to personal injury and property damage. Basic Safety Instructions For safe handling of the appliance observe the following safety information: ■ Before use check the appliance for visible external damage. Do not put into operation an appliance that is damaged. There will be a risk of a fatal electrical shock. ■ Repairs should only be carried out by authorised specialist companies or by the Customer Services department. Incompetent repairs may result in injury to the user or damage to the appliance. In addition warranty claims become void.

■ To avoid risks, arrange for a defective power cable to be replaced by qualified technicians or our Customer Service Department. Otherwise there will be a risk of receiving an electric shock! ■ NEVER use the appliance with a defective power cable. There will be a risk of a fatal electrical shock. ■ Do not use extension cables or power socket strips that do not meet the required safety standards. Risk of electic shock! ■ The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency. ■ This appliance is not suitable for continuous use over long periods. Let the appliance cool down for minimum 80 seconds after each vacuum process. The appliance could otherwise be irreparably damaged! ■ Do not use an external timing switch or a separate remote control system to operate the appliance. ■ Do not leave the appliance unsupervised when it is ready for use. To avoid it being switched on accidentally, always unplug the appliance after use or during breaks. ■ This appliance is not intended for use by individuals (including children) with restricted physical, physiological or intellectual abilities or deficiences in experience and/or knowledge unless they are supervised by a person responsible for their safety or receive from this person instruction in how the appliance is to be used. ■ Children should be supervised to ensure that they do not play with the appliance. ■ Never open the appliance housing! There is a risk of receiving a potentially fatal electric shock!

IB_71770_SFS150B3_LB1.indb Abs2:72 SFS 150 B3

Setting up and connecting to the power supply Items delivered and transport inspection The appliance is delivered with the following components as standard: ▯ Vacuum Sealer SFS 150 B3 ▯ 1 Tube film made of PE-HD (Polyethylene of high density) ▯ This operating manual NOTICE ► Check the contents to make sure everything is there and for visible damage. ► If the contents are not complete or are damaged due to defective packaging or through transportation, contact the service hotline (see chapter Service).

Unpacking ♦ Remove the appliance, the tube film and the operating instructions from the carton. ♦ Remove all packing material. DANGER ► Packaging material should not be used as a play thing by children. There is a risk of suffocation! Disposal of the packaging The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable. The recirculation of packaging into the material circuit saves on raw material and reduces the amount of waste generated. Dispose of packaging material that is no longer needed as per the regionally established regulations. NOTICE ► If possible preserve the appliance's original packaging during the warranty period so that in the case of a warranty claim you can package the appliance properly for return. SFS 150 B3 IB_71770_SFS150B3_LB1.indb Abs2:73

Requirements on the installation site For safe and flawless operation of the appliance, the installation site must comply with the following requirements: ■ When setting it up, place the appliance on a firm, flat and horizontal surface. ■ Do not operate the appliance in a hot, wet or very humid environment or close to combustible material. ■ The mains power socket must be easily accessible, so that the power cable can be easily disconnected in the event of an emergency. Electrical connection IMPORTANT

► Before you connect the appliance, compare the connection data (voltage and frequency) on the data plate with that of your mains power network. This data must match in order to avoid any damage to the appliance. ► Ensure that the power cable is undamaged and is not routed over hot surfaces and/or sharp edges. ► Ensure that the power cable is not taut or kinked. ► Do not let the power cable hang over edges (trip wire effect). ♦ Insert the plug into a mains power socket. Appliance description Collection container Suction connector Sealing wire Cutting device Roll storage compartment Guide rail Indication lamp (red) Lid release Sealing button

IB_71770_SFS150B3_LB1.indb Abs2:74 SFS 150 B3

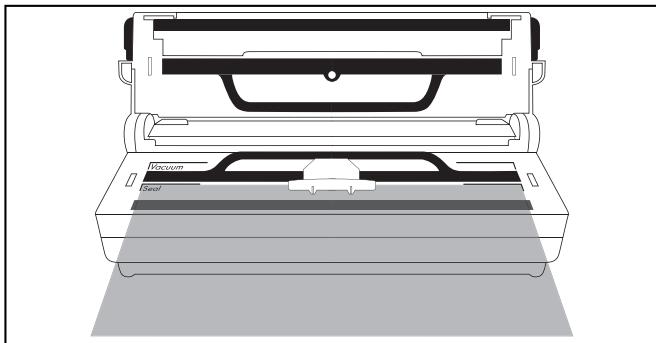

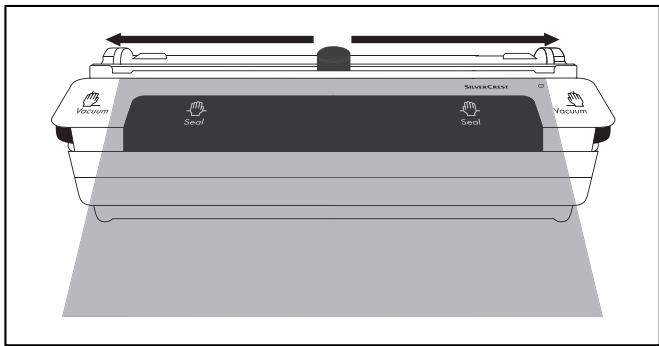

Handling and operation In this chapter you receive important information for the handling and operation of the appliance. Inserting the tube film ♦ Open the roll storage compartment and insert a roll of tubular film. ♦ Fold the guide rail of the cutting device of tube film through between the guide rail ♦ Close the roll storage compartment back down. cutting device to the rear and pull a piece and the appliance lid. and fold the guide rail of the Sealing the tube film

IMPORTANT ► For sealing use only film made from HDPE (high density polyethylene) and LDPE (low density polyethylene). ► The foil thickness must be between 30-50 μ (0.03 - 0.05 mm). Otherwise, the sealing seam will not be tight and the appliance could be damaged. You can identify films of this kind from the markings on the packaging. The quality of the seal varies depending on the type and thickness of the film. ► Do not heat the supplied film, for example in a water-bath or similar. It is construed for temperatures up to a maximum of 60°C. ♦ Pull out the desired length of film under the guide rail device . of the cutting ♦ Press down on the cutting device and then slide it to the left or right over the bag width. You get a clean cut with straight-cut corners. SFS 150 B3 IB_71770_SFS150B3_LB1.indb Abs2:75

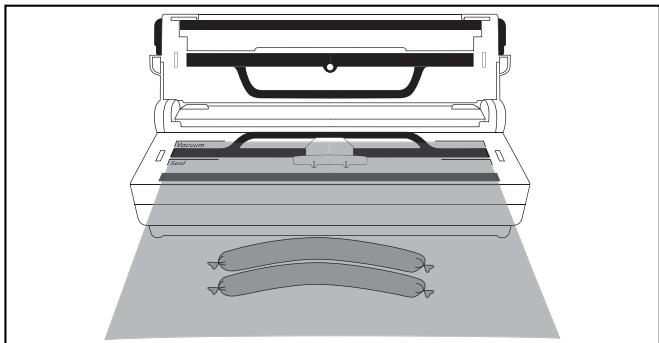

♦ Open the appliance lid by pressing the lid releases to the top. ♦ Place a bag opening on the sealing wire . To ensure that the bag is fixed in place and does not slip, place the end of the bag below the suction connectors . For this you can lift them slightly. The bag needs to extend up to the marking "Seal", which is marked on the appliance.

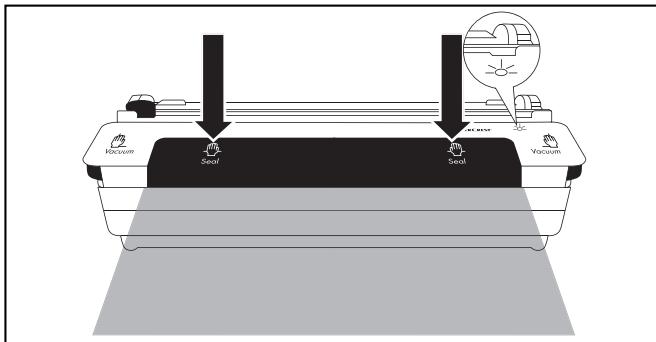

NOTICE ► The bag opening must lie smoothly on the sealing wire sealing does not function properly. . Otherwise, the ♦ Close the appliance lid and, using both hands, press the sealing button The indication lamp glows. ♦ Hold the sealing button extinguishes.

pressed down until the indication lamp SFS 150 B3

IMPORTANT If the indication lamp does not extinguish after 10 seconds at the most, the appliance is defective! ► Immediately remove the plug from the mains power socket. Do not attempt to repair the appliance yourself. In this case, contact Customer Services. ♦ Open the appliance lid and remove the bag. This is now sealed at one end. NOTICE ► Check to ensure that the sealing seam is in order. A correct sealing seam should be a smooth, straight strip without folds. ♦ Fill the bag. You must leave at least 6 cm free to the bag-edge that is to be sealed.

IMPORTANT ► Fill the bags in such a way that, under no circumstances, food remnants or fluids can run out of the bag when sealing it and permeate into the appliance. ♦ If you do not want to vacuum seal the bag you can now seal the open side. Vacuuming the tube film When sealing, you can at the same time extract the air from the bag (vacuuming): IMPORTANT ► Do NOT vacuum bags in which there are liquids. They will permeate into the appliance and damage it. ♦ Place the open end of the bag around the suction connectors . For this you can lift them slightly. The bag needs to extend up to the marking "Vacuum", which is marked on the appliance. SFS 150 B3 IB_71770_SFS150B3_LB1.indb Abs2:77

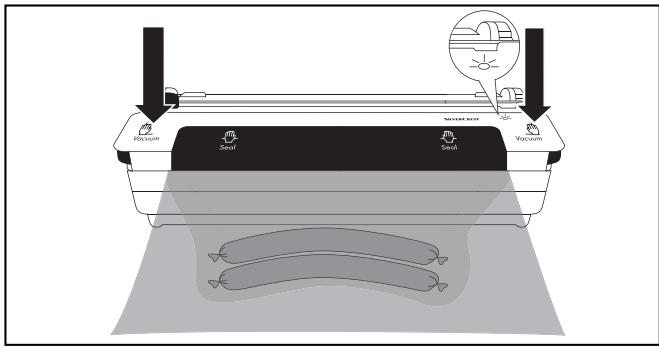

NOTICE and ► The bag opening must lie smoothly against the suction connectors the sealing wire . If it does not, the vacuuming and sealing will not work properly. ♦ Close the appliance lid and then press it down firmly on both sides and with both hands. Thereby, do NOT press the sealing button . The air is now being sucked from the bag.

♦ As soon as the air has been sucked from the bag, press and hold the sealing with both hands, as already described, and seal the bag. The button vacuuming does not stop automatically! Cleaning DANGER Risk of potentially fatal electrical shock! ► Remove the plug from the mains power socket before beginning to clean the appliance. ► Ensure that moisture cannot permeate into the appliance during cleaning. IMPORTANT Possible damage to the appliance. ► Do not use aggressive or abrasive cleaners as they may damage the surface of the housing. ► Do not use hard or sharp objects to remove the glue residues from the sealing wire . If you do, the sealing wire or the isolation could be damaged.

IB_71770_SFS150B3_LB1.indb Abs2:78 SFS 150 B3

Cleaning the appliance ♦ Clean the housing of the appliance only with a lightly moistened cloth and a mild detergent. ♦ Remove glue residue from the sealing wire gently with your fingernail. Cleaning the collection container Should food remnants be unintentionally sucked in when vacuuming, the collection container protects the appliance from damage. Clean the collection container , as soon as contamination is visible: ♦ Open the appliance lid and lift the suction connectors ♦ Carefully pull the collection container side handles to pull it. up. out of the appliance by using the ♦ Clean it in lukewarm washing-up water and then allow it to dry well. ♦ Replace the collection container down. suction connectors

back into the appliance and fold the Storage The appliance has a built-in cable winder on the underside of the housing, on which you can wrap the power cable when it is not in use. This prevents the power cable from being pinched, damaged or soiled, and it cannot become a source of danger by hanging loosely down. ♦ Store the appliance in a clean, dry place away from direct sunlight. Disposal Do not dispose of this appliance with your normal household waste. This product is subject to the provisions of the European Directive 2002/96/EC-WEEE (Waste Electrical and Electronic Equipment). Dispose of the appliance through an approved disposal centre or at your community waste facility. Observe the currently applicable regulations. In case of doubt, please contact your waste disposal centre. SFS 150 B3 IB_71770_SFS150B3_LB1.indb Abs2:79

Power consumption 150 W Protection class II / Recommended operating time 20 Seconds Recommended pause time 80 Seconds Notes on the Declaration of Conformity

This appliance complies, in regards to conformance with the basic requirements and other relevent regulations, with the EMV Directive 2004/108/EC, as well as the Directive for Low Voltage Devices 2006/95/EC. The complete original declaration of conformity can be obtained from the importer. Importer KOMPERNASS GMBH BURGSTRASSE 21 44867 BOCHUM, GERMANY www.kompernass.com

IB_71770_SFS150B3_LB1.indb Abs2:80 SFS 150 B3

Warranty You receive a 3-year warranty for this appliance as of the purchase date. The appliance has been manufactured with care and meticulously examined before delivery. Please retain your receipt as proof of purchase. In the case of a warranty claim, please make contact by telephone with our service department. Only in this way can a post-free despatch for your goods be assured. NOTICE ► The warranty applies only to claims for material and maufacturing defects, not for transport damage, wearing parts or for damage to fragile components, e.g. bulbs or switches. This appliance is intended for domestic use only, NOT for commercial purposes. If this product has been subjected to improper or inappropriate handling, abuse, or modifications not carried out by one of our authorised sales and service outlets, the warranty will be considered void.

Your statutory rights are not restricted in any way by this warranty. The warranty period will not be extended as a result of repairs made under warranty. This applies also to replaced and repaired parts. Damages and defects discovered on purchase are to be reported directly after unpacking, at the latest two days after the date of purchase. On the lapse of the warranty period, all repairs carried out are liable to charges. Service Service Great Britain Tel.: 0871 5000 720 (£ 0.10/Min.) E-Mail: kompernass@lidl.co.uk IAN 71770 SFS 150 B3 IB_71770_SFS150B3_LB1.indb Abs2:81
