USER MANUAL SHS 12.0 A1 12V HAND-HELD VACUUM CLEANER SILVERCREST

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the

Fitting and removing attachments . 25

Switching On / OF. . 26

Fastening the storage bag to a surface in your car boot 26 Servicing and cleaning... 26 Disposal……………….... 26 Warranty and Service... Pole 27 Declaration of Conformity/ Manufacturer….….….."Poe 27

SILVERCREST' GB/MT 23

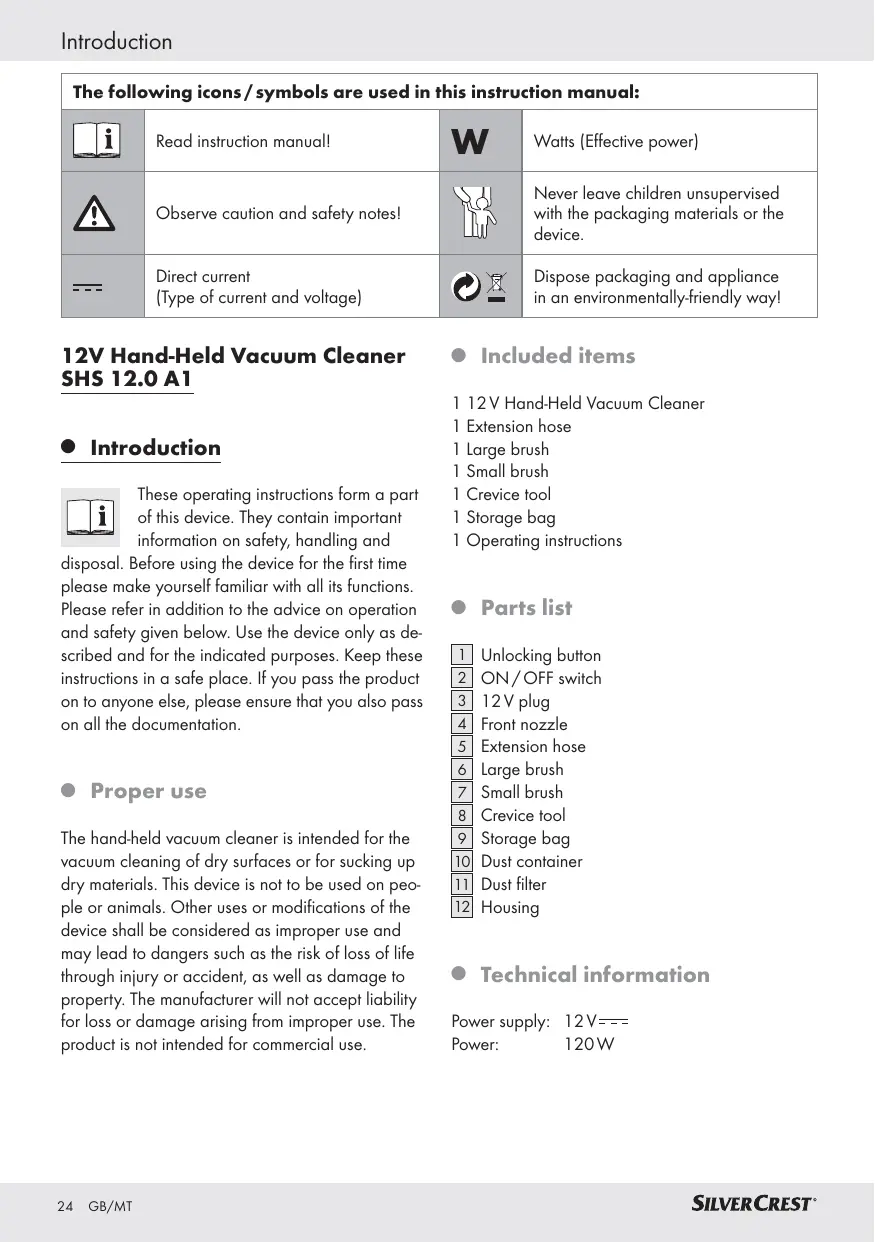

The following icons /symbols are used in this instruction manual:

Read instruction manuall

W Watts (Effective power]

Observe caution and safety notes!

Never leave children unsupervised With the packaging materials or the device.

Direct current (Type of current and voltage]

Dispose packaging and appliance in an environmentally-riendiy way!

12V Hand-Held Vacuum Cleaner SHS 12.0 A1

These operating instructions form a part

of this device. They contain important

information on safety, handling and disposal. Before using the device for the first time please make yourself familiar with all its functions. Please refer in addition to the advice on operation and safety given below. Use the device only as de- scribed and for the indicated purposes. Keep these instructions in a safe place. If you pass the product on to anyone else, please ensure that you also pass on all the documentation.

The hand-held vacuum cleaner is intended for the vacuum cleaning of dry surfaces or for sucking up dry materials. This device is not to be used on peo- ple or animals. Other uses or modifications of the device shall be considered as improper use and may lead to dangers such as the risk of loss of life through injury or accident, as well as damage to property. The manufacturer will not accept liability for loss or damage arising from improper use. The product is not intended for commercial use.

1 Operating instructions

Unlocking button ON/ OFF switch 12V plug

Front nozzle Extension hose [6] Large brush Small brush Crevice tool Storage bag Dust container Dust filter Housing

© Technical information

Power supply: Power:

This safety advice is an important part of these operat- ing instructions and must be observed every time elec- trical devices are used. The advice and instructions will help you to avoid risk to life, accidents and damage to property. Therefore you must read carefuly through the following information conceming safety and proper use. =

Yi ACCIDENT TO INFANTS AND CHILDREN! Never leave children

unsupervised with the packaging materials or the device. There is a risk of suffocation and

RISK OF LOSS OF LIFE AND

loss of life from electric shock. Children often un- derestimate the dangers associated with electri- cal devices. Always keep children away from the device.

m This device is not intended to be used by persons {including children) with restricted physical, senso- ry or mental abilifies or with insufficient experience and/or knowledge, unless they are supervised by a person who is responsible for their safety or have received instruction on how to use the device from such a responsible person. Children must never be allowed to play with the device.

= Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.

= Do not use the lead for any purpose for which it was not intended, e.g. to carry the device or to pull the plug out of the 12 V socket. Keep ihe lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled leads or plugs increase the risk of electric shock.

= Damage to the device, mains lead or plug pre- senis a risk of loss of life from electric shock. Frequently check the condition of the device, mains lead and plug.

m Do not use a device with damaged parts. If a dangerous situation arises pull out the plug from the socket immediately.

EN KZ] Never open up the device.

Always have any repairs carried out or

replacement parts fitted at the service centre or by an electrical equipment repair specialist.

= When not in use always ensure that electrical devices are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice. Electrical devices are dangerous when they are used by inexperienced people.

© Operation Before first use

= Take allthe parts carefully out of the packaging and remove all the packaging material. Dispose of all the packaging material in an environmen- tally friendly manner.

= Fully unwind the lead attached to the 12V Note: Always make sure that the dust filter [11] is installed before you use the device.

ting and removing attachments

Extension hose Insert the smaller end of the snugly into the front nozzle Insert the desired attachi into the extension hose

Use this attachment e.g. for cleaning larger surfac- es such as seats or car mats.

large brush [6] snugly into the front You can also use the large brush[6] in combination with the extension hos described above.

Small brush This attachment has harder bristles and is therefore very suitable for loosening stubborn dirt, e.g. on the upholstery or in the footwells, before vacuuming it away, see Fig. D.

Operation / Servicing and cleaning / Disposal

snugly into the front

Use this attachment to get into narrow, difficultto-

access places. Insert the crevice tool [8] snugly into the front nozzle

Removing attachments: Simply pull the attachment off the front nozzle or the extension hose

Insert the 12V plug cigarette lighter socket of the vehicle, see Fig. C. To switch the device on, press the ON/ OFF switch [2] forwards into the ON position.

To switch the device off, press the ON / OFF

switch [2] back into the OFF position. Pull the 12V plug ut ofthe 12V socket after use.

Tip: I you going to vacuum for a long period, we recommend that you carry out the cleaning with the engine running.

© Fastening the storage bag to a surface in your car boot

You can fasten the storage bag [9] in a suitable place, e.g. in the boot of your car. To do this, press the bag lighily against a suitable textile surface in your vehicle, for example the back of the rear seats. The storage bag [9] is held in place by two hook and loop fastening strips.

© Servicing and cleaning

The device requires no maintenance.

= ATTENTION! Before you clean the device itself, pull the 12V plug [3 ] out of the 12V socket, otherwise there ls a risk of electric shock.

26 GB/MT For the best possible performance, you should empty the dust container [10] immediately after use and when the suction power drops.

Press the unlocking button [1] and take the

clean the dust filter better if you detach it from the end seal. To do this, hold the end seal firmly and twist the filter off carefully anticlockwise {bayonet fitting]. Rinse out the dust filter thoroughly in cold water and allow both parts (filter and end seal) to dry completely. Attach the filter back on to the end seal.

Empty the dust container Careully replace the dust filte: the dust container Never use the vacuum cleaner without the dust filter [T1]in place. Aïtach the dust container [10] caretully back on to the housing [12] and ensure the two parts engage.

Clean all the housing with a soft, dry cloth. Never use liquids or cleaning agents, as they may damage he device.

ATTENTION! The front nozzle [4] must be free and unobstructed at all times. Blockages can lead to overheating and damage to the motor.

In accordance with European Directive 2002/96/EC, worn out electrical devices must be collected separately and taken for environmentally compatible recycling.

The packaging is composed of environ- mentally-friendly materials that can be disposed of at a local recycling centre.

Do not dispose of electrical devices with the household rubbish!

Contact your local refuse disposal authority for more details of how to dispose of your worn out electrical devices.

Warranty and Service / Declaration of Conformity / Manufacturer

© Warranty and Service

The warranty for this appliance is for 3 years from the date of purchase. The ap- pliance has been manufactured with care and meticulously examined before deliv- ery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please make contact by telephone with our Service Department. Only in this way can a post-free despatch for your goods be assured.

The warranty covers only claims for material and mau-

facturing defects, but not for transport damage, for wearing parts or for damage to fragile components, eg. buttons or batteries. This product is for private use only and is not intended for commercial use.

The warranty is void in the case of abusive and im- proper handling, use of force and internal tamper- ing not carried out by our authorized service branch Your statutory rights are not restricted in any way by this warranty.

The warranty period will not be extended by repairs made unter warranty. This applies also to replaced and repaired paris. Any damage and defecis extant on purchase must be reported immediately after unpacking the appliance, at the latest, two days after the purchase date. Repairs made after the expiration of the warranty period are subject to payment.

GB Service Great Britain

© Declaration of Conformity / Manufacturer C€

We, KompernaB GmbH, Burgstr. 21, D-44867 Bochum, Germany, hereby declare that this product complies with the following EC directives:

Electromagnetic compatibility (2004/108/EC)

Type / Description of product: 12V Hand-Held Vacuum Cleaner SHS 12.0 A1

We reserve the right to make technical modifications in the course of further development.

cH Service Switzerland
