USER MANUAL FU-Y30EU SHARP

on Plasmacluster

*Plasmacluster is a trademark of Sharp Corporation.

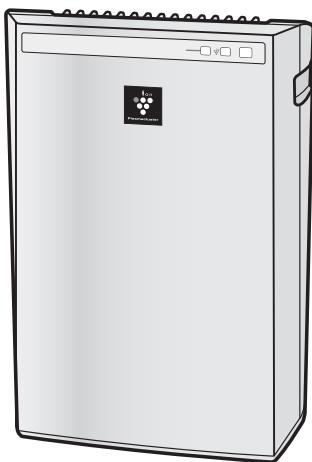

Illustration of a rectangular electronic device with a label and control panel (no readable text or symbols)

Free standing type

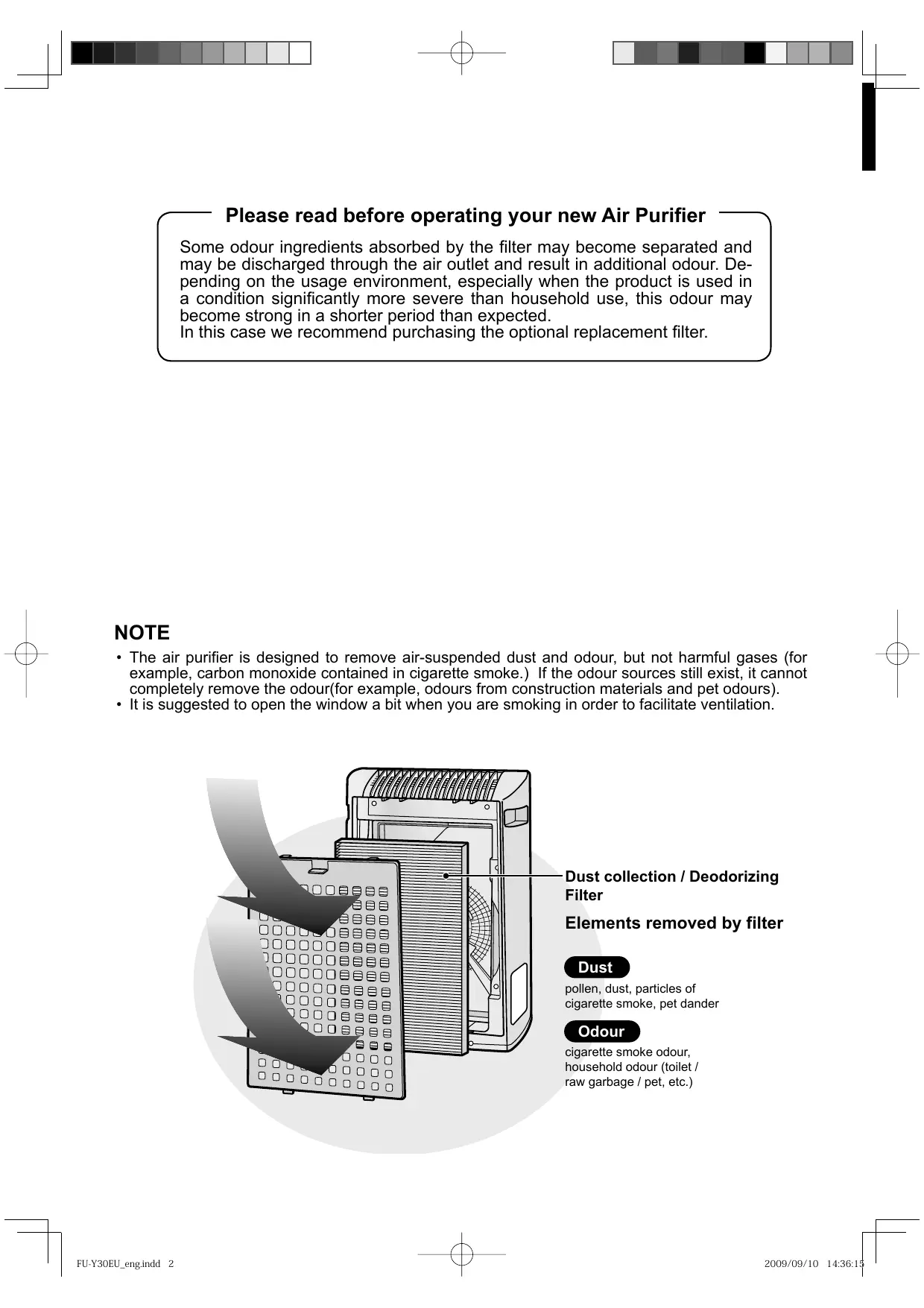

Please read before operating your new Air Purifier

Some odour ingredients absorbed by the filter may become separated and may be discharged through the air outlet and result in additional odour. Depending on the usage environment, especially when the product is used in a condition significantly more severe than household use, this odour may become strong in a shorter period than expected. In this case we recommend purchasing the optional replacement filter.

NOTE

• The air purifier is designed to remove air-suspended dust and odour, but not harmful gases (for example, carbon monoxide contained in cigarette smoke.) If the odour sources still exist, it cannot completely remove the odour (for example, odours from construction materials and pet odours).
• It is suggested to open the window a bit when you are smoking in order to facilitate ventilation.

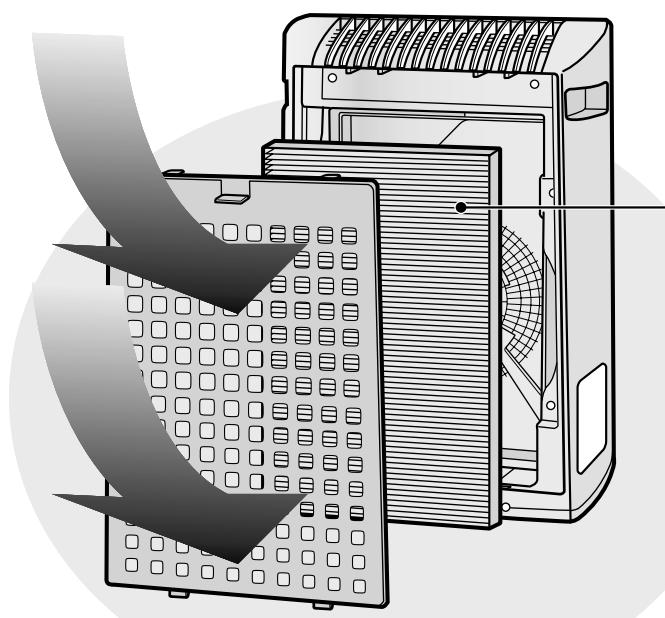

Illustration of a computer tower with a grid keypad and ventilation system, showing a downward arrow indicating compression or disassembly (no text or symbols present)

Dust collection / Deodorizing Filter

Elements removed by filter

Dust

pollen, dust, particles of cigarette smoke, pet dander

Odour

cigarette smoke odour, household odour (toilet / raw garbage / pet, etc.)

FEATURES

"Plasmacluster" technology

Plasmacluster technology uses plasma discharge to produce and release the same positive and negative ions as those found in nature ("Plasmacluster ions").

This is a unique air cleaning technology of the SHARP CORPORATION for breaking down and inactivating such potential allergens as the fecal matter or corpses of aerial mites ^1 , viruses 2 and mold and bacteria *3 suspended in the air, and has been substantiated by third-party organizations both in Japan and overseas.

When there is a high density of Plasmacluster ions in the air, the smell of cigarette smoke trapped in curtains or sofas is removed in about 80 minutes ^*4 , and when clothing is hung in a place exposed to the direct air expelled from the unit generating Plasmacluster ions, the smell of sweat is reduced to a virtually imperceptible level in one night (about 6 hours).

*1 Graduate School of Advanced Sciences of Matter, Hiroshima University, Japan
Measurement of action on the potential allergens of aerial mites in (13m^2)
*2 Retroscreen Virology, Ltd., London, UK Measurement of ratio of viruses eliminated from the air in a 1m^3 box
*3 Ishikawa Health Service Association, Japan
Measurement of aerial mold and bacteria with an air sampler (13m ^4 )
*4 Japan Spinners Inspecting Foundation, Japan
Evaluation of deodorizing effect on odor-imbued fragments of cloth

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS ..... E-2

• WARNING E-2
  • CAUTIONS CONCERNING OPERATION ... E-3
• INSTALLATION GUIDELINES......E-3
• FILTER GUIDELINES ......E-3

PART NAMES.....E-4

• MAIN UNIT DISPLAY ...... E-4
• ILLUSTRATIVE DIAGRAM....E-4
  • INCLUDED....E-5
• BACK.....E-5

PREPARATION ......E-6

- FILTER INSTALLATION ......E-6

OPERATION E-8

- MAIN UNIT OPERATION ...... E-8

CARE AND MAINTENANCE ...... E-9

• BACK PANEL......E-9
• UNIT ...... E-9
  • FILTER REPLACEMENT GUIDELINES.....E-10

TROUBLESHOOTING ...... E-11

SPECIFICATIONS.....E-12

Thank you for purchasing the SHARP Air Purifier. Please read this manual carefully for the correct usage information. Before using this product, be sure to read the section: "Important Safety Instructions."

After reading this manual, retain it in a convenient location for future reference.

When using electrical appliances, basic safety precautions should be followed, including the following:

WARNING - To reduce the risk of electrical shock, fire or injury to persons:

• Read all instructions before using the unit.
• Use only a 220-240 volt outlet.
• Do not use the unit if the power cord or plug is damaged or the connection to the wall outlet is loosened.
• Periodically remove dust from the power plug.
• Do not insert fingers or foreign objects into the intake or air outlet.
• When removing the power plug, always hold the plug and never pull the cord.

Electrical shock and/or fire from short circuit may occur as a result.

• Do not remove the plug when your hands are wet.
• Do not use this unit near gas appliances or fireplaces.
• Remove the power plug from the wall outlet before cleaning the unit and when not using the unit.

Electrical shock from bad insulation and/or fire from short circuit may occur as a result.

• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, Sharp Authorised Service Centre or similarly qualified person in order to avoid a hazard.
• Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense, sparks from lit cigarettes, chemical fumes in the air or in very high humidity conditions, such as a bathroom.
• Be cautious when cleaning the unit. Corrosive cleansers may damage the exterior.
• Only Sharp Authorised Service Centre should service this air purifier. Contact the nearest Service Centre for any problems, adjustments, or repairs.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure they do not play with the appliance.

NOTE - Radio or TV Interference

If this air purifier should cause interference to radio or television reception, try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the unit and radio/TV receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAUTIONS CONCERNING OPERATION

• Do not block the intake and/or air outlet.
• Do not use the unit near or on hot objects, such as stoves or heaters or where it may come into contact with steam.
• Do not lay the unit down when using.
• Always hold the handle on bothsides of the unit when moving it.

Holding the back panel when carrying may cause it to detach, thus dropping the unit and resulting in bodily injury.

• Do not operate the unit without the filter.
• Do not wash and reuse the filter.

Not only does it not improve filter performance, but also may cause electrical shock or malfunction.

- Clean the exterior with a soft cloth only.

The unit surface may be damaged or cracked.

In addition, the sensors may malfunction as a result.

INSTALLATION GUIDELINES

• During the operation of the product, please place the unit at least 2 m away from equipment utilizing electrical waves such as televisions, radios or wave clocks.
• Avoid locations where curtains, etc., come into contact with the intake or air outlet.

Curtains, etc., may become dirty or a malfunction may occur.

- Avoid locations where the unit is exposed to condensation, due to rapid temperature changes.

(If it is unavoidable please allow unit to stand for 1 hour before switching on.)

(Use under appropriate conditions between 0 and 35°C in the room.)

- Place on a stable surface with sufficient air circulation.

When placing the unit on a heavily carpeted area, it may cause the unit to vibrate slightly.

- Do not install when there is a possibility of soot, such as in a kitchen, etc.

The unit surface may crack as a result.

- Leave about 60cm of space from the wall.

The wall behind the air outlet may become dirty as time passes. When using the unit for extended period of time in the same location, use a vinyl sheet, etc., to prevent the wall from becoming dirty. In addition, periodically clean the wall.

FILTER GUIDELINES

- Follow the instructions in this manual for correct care and maintenance of the filter. Use only filters designed for this product.

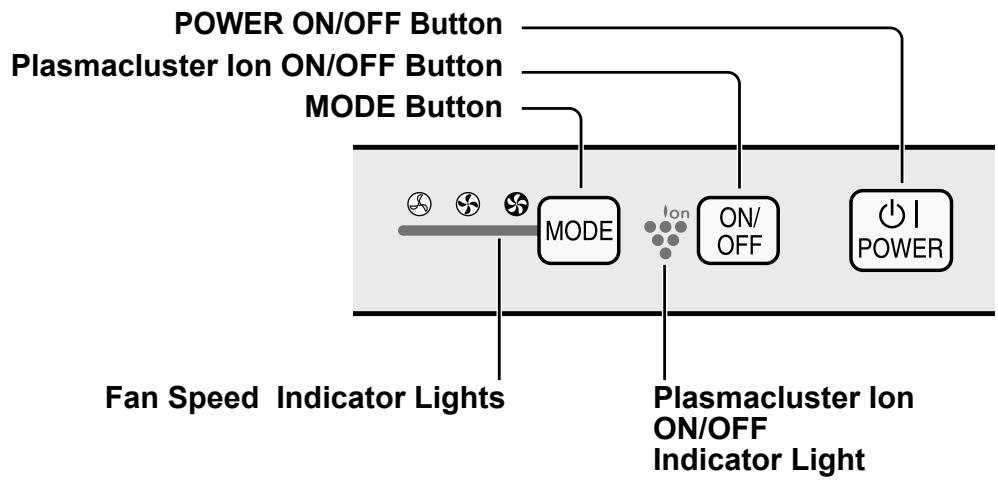

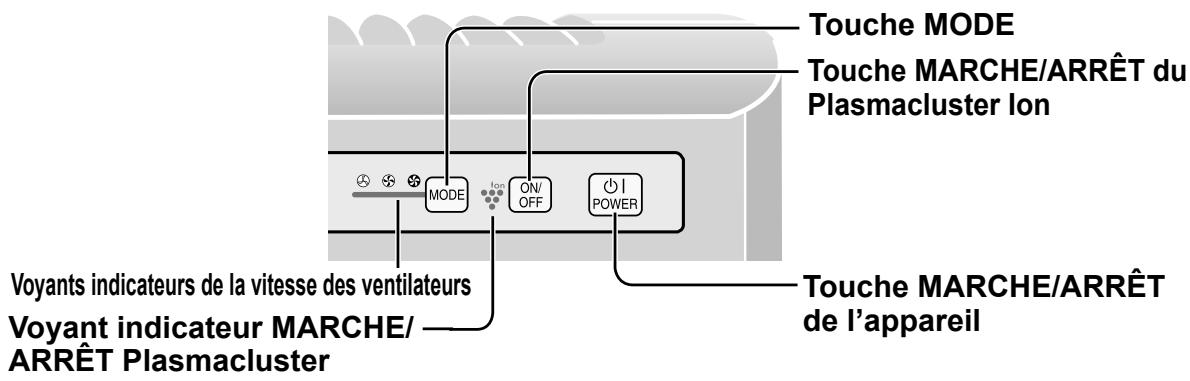

MAIN UNIT DISPLAY

POWER ON/OFF Button Plasmacluster Ion ON/OFF Button MODE Button MODE ON/OFF POWER Fan Speed Indicator Lights Plasmacluster Ion ON/OFF Indicator Light

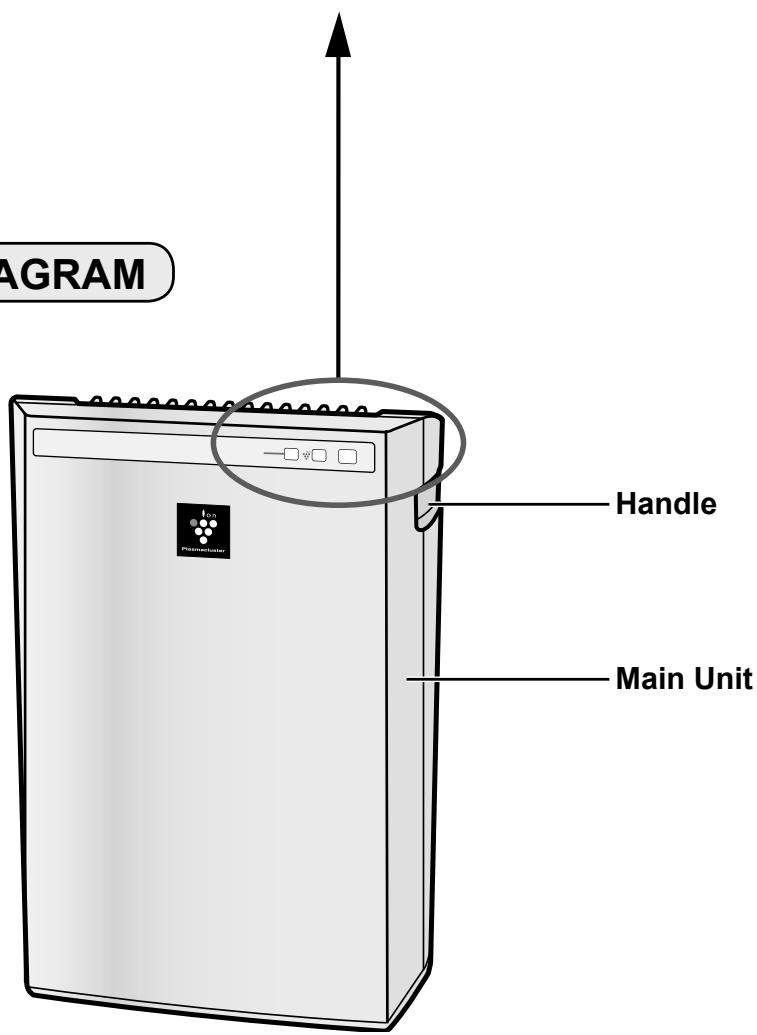

ILLUSTRATIVE DIAGRAM

AGRAM Handle Main Unit

INCLUDED

- Operation manual

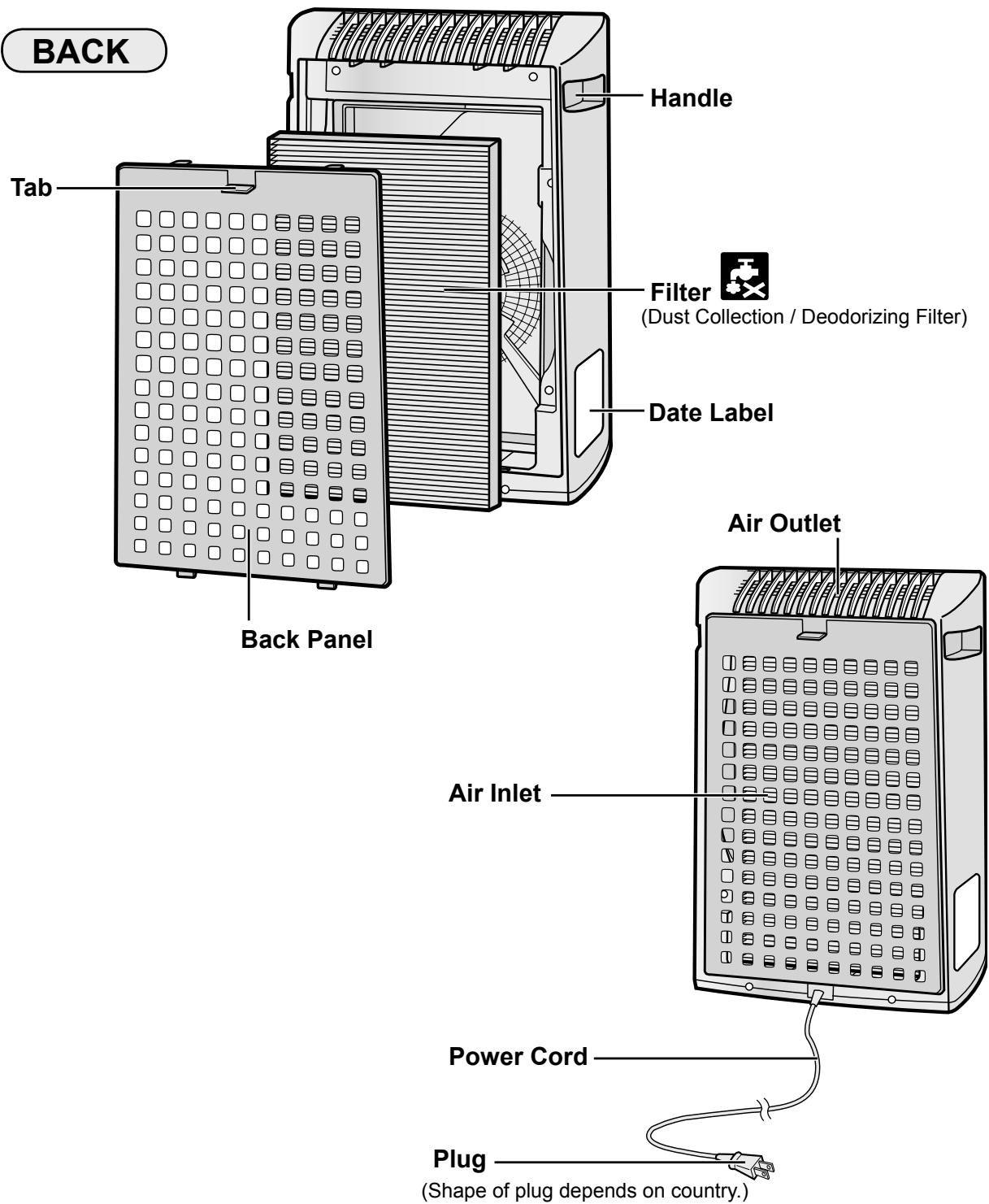

BACK Tab Back Panel Handle Filter (Dust Collection / Deodorizing Filter) Date Label Air Outlet Air Inlet Power Cord Plug (Shape of plug depends on country.)

FILTER INSTALLATION

To maintain the quality of the filter, they are installed in the main unit and packed in plastic bag. Be sure to remove the filter from the plastic bag before using the unit.

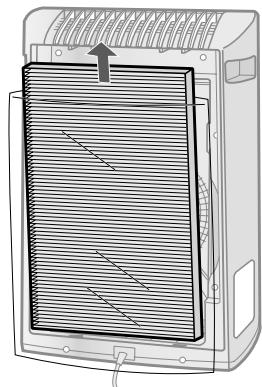

Remove the filter

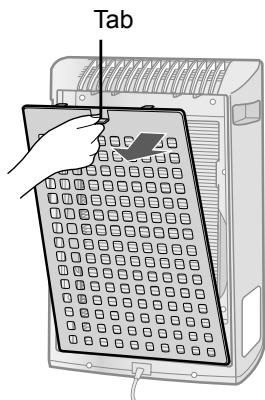

1 Remove the Back Panel. Pull the tab at the top of the Back Panel.

2 Remove the Filter from the plastic bag.

Tab

Diagram of a heat exchanger or cooling unit with internal cooling fins and airflow direction arrow (no text or labels)

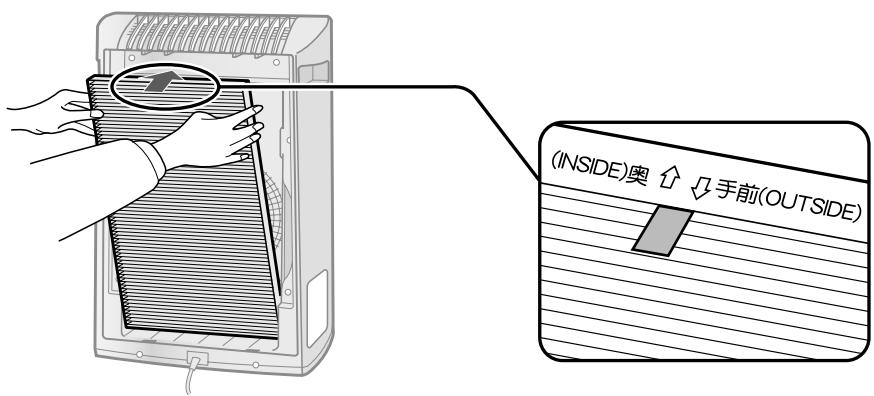

Intall the filter

1 Place the Filter within the main unit. Do not install filter backwards or the unit will not operate properly.

(INSIDE)奥 ↑ ↓ 手前(OUTSIDE)

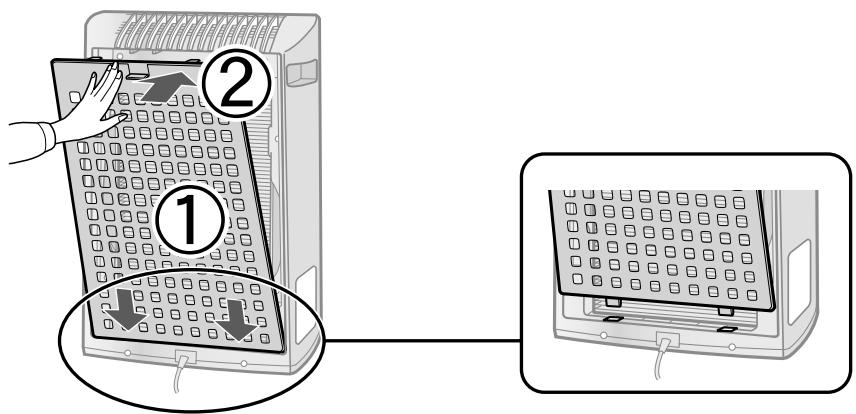

2 Replace the Back Panel to the main unit.

Push until it clicks into place.

Diagram showing a hand pressing down on a computer screen with numbered instructions and a close-up of the device's screen.

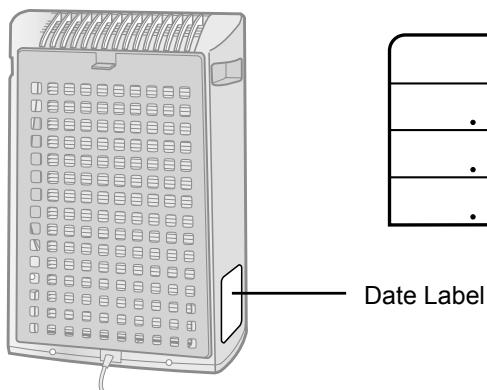

3 Fill in the usage start date on the Date Label.

Use the date as a guide for the filter replacement schedule.

Date Label

Starting date of use
. .	. .
. .	. .
. .	. .

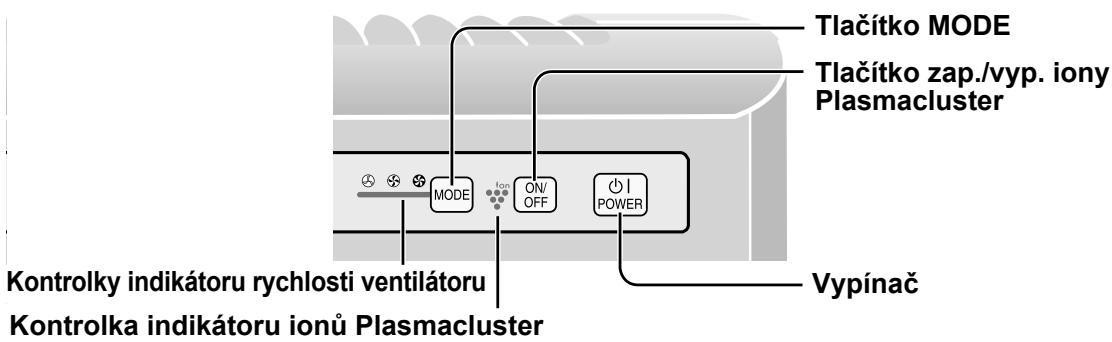

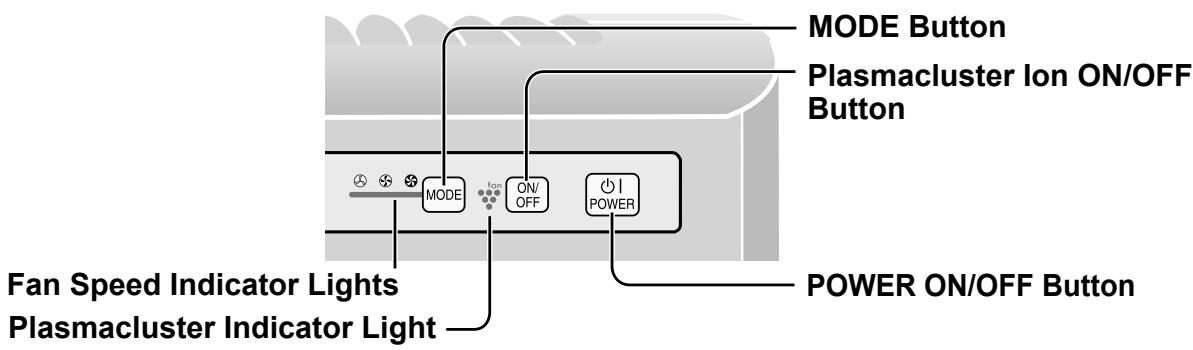

MAIN UNIT OPERATION

I POWER

Power ON/OFF Button

• Press to start operation (short beep) and stop operation (long beep)
• Plasmacluster Indicator Light and Fan Speed Indicator Light turn on/off.
• Unless the power cord has been unplugged, the operations starts in the previous mode it was operated in.

MODE Button

• Press the MODE Button to select the desired fan speed. Indicator Lights will show the fan speed currently selected.
• The operation mode can be switched as below.

LOW operation

The unit will operate quietly using minimal air intake.

MEDIUM operation

The unit will operate at a fan speed of MEDIUM.

MAX operation

The unit will operate at a fan speed of MAX.

ON/ OFF

Plasmacluster Ion ON/OFF Button

Press the Plasmacluster Ion ON/OFF Button to turn Plasmacluster Ion Mode ON and OFF.

When Plasmacluster is ON, the Plasmacluster Indicator Light will turn on.(blue)

To maintain optimum performance of this air purifier, please clean the unit including the filter periodically.

When cleaning the unit, be sure to unplug the power cord, and never handle the plug with wet hands. Electrical shock and/or bodily injury may occur as a result.

BACK PANEL

Care Cycle

Whenever dust accumulates on the unit or every 2 week

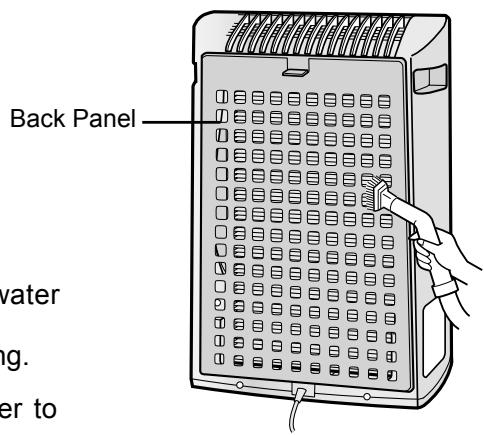

Gently remove dust from the back panel, using a vacuum cleaner attachment or similar tool.

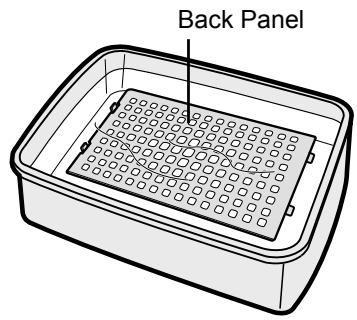

When the back panel has stubborn dirt

1 In case of heavy dirt, soak the back panel in water with kitchen detergent.(Approx. 10min.)
Avoid scrubbing the back panel hard when washing.
2 Rinse the back panel repeatedly with clean water to remove the solution residue.
3 Drip dry filter to remove excess water.

Back Panel water g. er to

Back Panel

UNIT

Care Cycle

Whenever dust accumulates on the unit or every 1 month

To prevent dirt or stains on the main unit, clean as often as necessary. If stains are allowed to remain, they may become difficult to remove.

Wipe with a dry, soft cloth

For stubborn stains or dirt, use a soft cloth dampened with warm water.

Do not use volatile fluids

Benzene, paint thinner, polishing powder, etc., may damage the surface.

Do not use detergents

Detergent ingredients may damage the unit.

FILTER REPLACEMENT GUIDELINES

Filter life vary depending on the room environment, usage, and location of the unit.

If dust or odour persist, replace the filter.

(Refer to "Please read before operating your new Air Purifier")

Guide for filter replacement timing

- The following filter life and replacement period is based on the condition of smoking 5 cigarettes per day and the dust collection/deodorization power is reduced by half compared with that of new filter.

We recommend to replace the filter more frequently if the product is used in a condition significantly severer than normal household use.

-Filter

About 2 years after opening

REPLACING THE FILTER

1 See page E-6,7 for directions on how to install the filter when replacing.

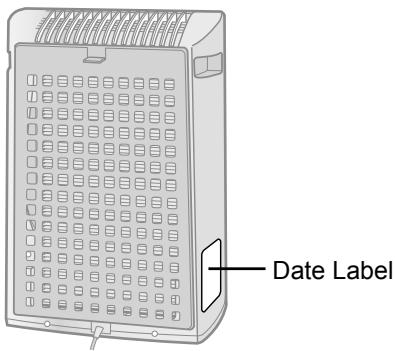

2 Fill in the usage start date of the filter on the Date Label.

Date Label

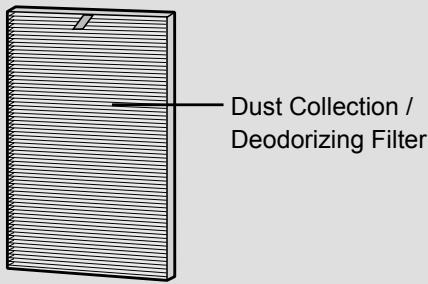

Replacement Filter

Model : FZ-Y30SFE

•Dust Collection / Deodorizing Filter : 1 unit

Dust Collection / Deodorizing Filter

Please consult your dealer for purchase of replacement filter.

Disposal of Filter

Please dispose of replaced filter according to the local disposal laws and regulations.

Filter materials:

-Filter: Polypropylene
•Frame: Polyester
- Deodorizer: Activated charcoal

Before calling for repair, please review the list below, since the problem may not be a unit malfunction.

SYMPTOM		REMEDY (not a malfunction)
Odours and smoke are not removed.		Clean or replace the filter if they appear to be heavily soiled.(Refer to E-10)
A clicking or ticking sound is heard from the unit.		Clicking or ticking sounds may be audible when the unit is generating ions.
The discharged air has an odour.		Check to see if the filter are heavily soiled.Replace the filter.Plasmacluster Air Purifiers emit small traces of ozone which may produce an odour. These ozone emissions are well below safety levels.
Model		FU-Y30EU
Power supply		220-240V 50/60Hz
Fan Speed Operation	Fan Speed Adjustment	MAX	MED	LOW
	Rated Power	49W	32W	23W
	Fan Speed	180m3/hour	120m3/hour	60m3/hour
Recommended Room Size		~21m2*1
High density Plasmacluster ion recommended room size		~13m2*2
Filter type		Dust Collection (HEPA Filter *3) / Deodorising Filter
Cord Length		2.0m
Dimensions		356mm(W)x180mm(D)x510mm(H)
Weight		5.0kg

*1 Size of a room which is appropriate for operating the unit at maximum fan speed.

- It indicates the space where a certain amount of dust particles can be removed in 30 minutes(JEM1467).

*2 Size of a room in which approximately 7000 ions can be measured per cubic centimeter in the center of the room (at a height of approximately 1.2 meters from the floor) when the product is placed next to a wall and run at the MAX operation position.

Standby Power

In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this product consumes about 1.0W of standby power.

For energy saving, unplug the power cord when the unit is not in use.

*3 The class of the HEPA filter by EN 1822 is H10.

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users.

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

Illustration of a computer tower with a fan and grid panel, showing internal components without any text or symbols.

Diagram of a heat exchanger or cooling unit with internal cooling fins and airflow direction arrow (no text or labels)

Filter installieren

Diagram showing a hand pressing down on a computer screen with numbered instructions and a close-up of the device's screen.

Line drawing of a server rack with ventilation grilles and indicator lights (no text or symbols)

Starting date of use
. .	. .
. .	. .
. .	. .

Datumsaufkleber

Illustration of a hand interacting with a grid-based electronic device (no text or symbols visible)

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Illustration of a computer tower with a grid-patterned base and fan blade, showing internal components without any text or symbols.

Diagram of a heat exchanger or cooling unit with internal cooling fins and airflow direction arrow (no text or labels)

Diagram showing a hand pressing down on a computer screen with numbered instructions and a close-up of the device's screen.

Line drawing of a server rack with ventilation grilles and indicator lights (no text or symbols)

Starting date of use
. .	. .
. .	. .
. .	. .

Étiquette de date

FONCTIONNEMENT DE L'UNITÉ PRINCIPALE

REPLACEMENT DU FILTRE

Illustration of a computer tower with a fan and grid panel, showing internal components without any text or symbols.

Stofopvang / Geurfilter

Diagram of a heat exchanger or cooling unit with internal cooling fins and airflow direction arrow (no text or labels)

Diagram showing a hand pressing down on a computer screen with numbered instructions and a close-up of the device's screen.

Line drawing of a hand pressing a button on a grid-patterned device (no text or symbols visible)

Illustration of a computer tower with a grid keypad and ventilation system, showing a downward arrow indicating compression or disassembly (no text or symbols present)

Diagram of a heat exchanger or cooling unit with internal cooling fins and airflow direction arrow (no text or labels)

2 Instalace filtru

Diagram showing a hand pressing down on a computer screen with numbered instructions and a close-up of the device's screen.

Line drawing of a rectangular electronic device with grid pattern and ventilation slots (no text or symbols)

Starting date of use
. .	. .
. .	. .
. .	. .

Štítek s datem

PROVOZ HLAVNÍ JEDNOTKY

I POWER

Vypínač

Line drawing of a hand pressing a button on a grid-patterned device (no text or symbols visible)

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Illustration of a computer tower with a grid keypad and ventilation system, showing a downward arrow indicating compression or disassembly (no text or symbols present)

DÔLEŽITÉ BEZPEČNOSTNÉ POKYNY ... SK-2

• VÝSTRAHA SK-2
- UPOZORNENIA TÝKAJÚCE SA PREVÁDZKY.... SK-3
- POKYNY K INŠTALÁCII ...... SK-3
• SMERNICE TÝKAJÚCE SA FILTRA ..... SK-3

NÁZVY ČASTÍ SK-4

• DISPLEJ HLAVNEJ JEDNOTKY ...... SK-4
• ILUSTRAČNÝ DIAGRAM.... SK-4
• OBSAHUJE SK-5
• ZADNÁ ČASŤ.... SK-5

PRÍPRAVA.... SK-6

• INŠTALÁCIA FILTRA.... SK-6

PREVÁDZKA.... SK-8

• OBSLUHA HLAVNEJ JEDNOTKY ...... SK-8

STAROSTLIVOST A ÚDRŽBA.... SK-9

• ZADNÝ PANEL ...... SK-9
• JEDNOTKA ...... SK-9
- POKYNY K VÝMENE FILTRA ...... SK-10

RIEŠENIE PROBLÉMOV ...... SK-11

TECHNICKÉ ÚDAJE.... SK-12

Diagram of a heat exchanger or cooling unit with internal cooling fins and airflow direction arrow (no text or labels)

Inštalácia filtra

Diagram showing a hand pressing a grid device with labeled steps 1 and 2, illustrating the process of inserting or removing a device.

Line drawing of a rectangular electronic device with grid pattern and ventilation slots (no text or symbols)

Starting date of use
. .	. .
. .	. .
. .	. .

Štítok s dátumom

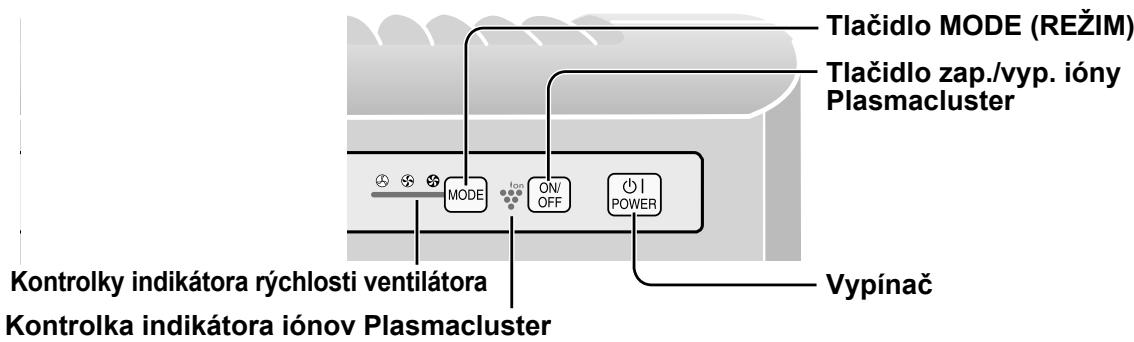

OBSLUHA HLAVNEJ JEDNOTKY

Tlačidlo MODE (REŽIM) Tlačidlo zap./vyp. ióny Plasmacluster MODE ON/OFF POWER Vypínač Kontrolky indikátora rýchlosti ventilátora Kontrolka indikátora iónov Plasmacluster

Vypínač

Line drawing of a hand pressing a button on a grid-patterned device (no text or symbols visible)

Ked' je na zadnom paneli t'ažko odstránitel'ná nečistota

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Illustration of a computer tower with a grid keypad and ventilation system, showing a downward arrow indicating compression or disassembly (no text or symbols present)

Line drawing of a server rack with grid layout and ventilation slots (no text or symbols)

Tápkábel

Tápcsatlakozó

Diagram of a heat exchanger or cooling unit with heat flow direction indicated by an arrow (no text or symbols present)

A szűrő behelyezése

Diagram showing a hand pressing down on a computer screen with numbered instructions and a close-up of the device's screen.

Line drawing of a rectangular electronic device with grid pattern and ventilation slots (no text or symbols)

Starting date of use
. .	. .
. .	. .
. .	. .

Dátum címke

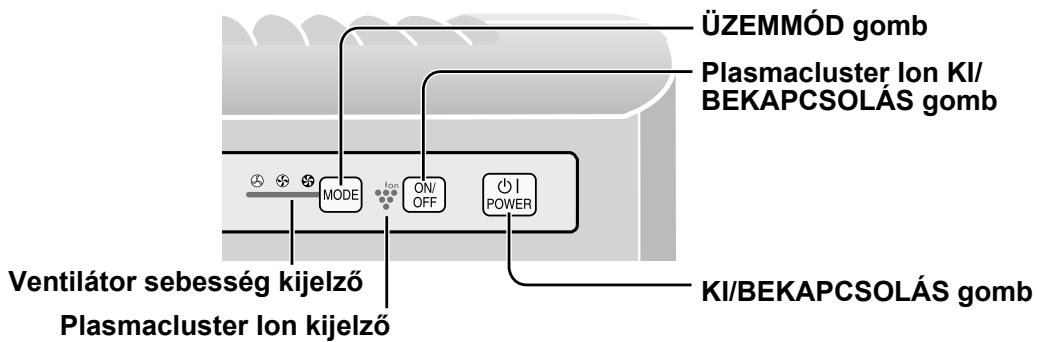

AZ ALAPKÉSZÜLÉK MÜKÖDTETÉSE

KI/BEKAPCSOLÁS gomb

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Illustration of a computer tower with a grid-patterned base and a curved arrow indicating compression or disassembly (no text or symbols)

Diagram of a heat exchanger or cooling unit with internal cooling fins and airflow direction arrow (no text or labels)

Встановіть фільтр

Diagram showing a hand pressing a grid device into a server rack, with numbered annotations indicating step 1 and step 2.

Line drawing of a server rack with ventilation grilles and indicator lights (no text or symbols)

Starting date of use
. .	. .
. .	. .
. .	. .

Наклейка з датами

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)
