USER MANUAL BSS5261 Becken

Becken steam jet easy care air iron with blue and white casing, coiled cord, no visible text or symbols on device body

INSTRUCTIONS MANUAL

MANUAL DE INSTRUÇÕES

BSS5261

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions 6

1.2. Power Cord and Other Cables 5

2. OPERATING INSTRUCTIONS 9

2.1. Product Description 9
2.2. Product usage 10
2.3. Maintenance 12
2.4 Troubleshooting 15

3. POST-SALE SERVICE 16

4. ENVIRONMENTAL PROTECTION 16

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

BECKEN

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage

[you can trust]

resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket. Take it to the Customer Support Service for replacement.

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

BECKEN

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous.

To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

[you can trust]

• This appliance must be used only for the purposes for which it was designed, i.e. as an iron. Any other use will be considered improper and consequently dangerous. The manufacturer will not be held responsible for any damage arising from misuse or improper use.
• This appliance is to be connected and used in accordance with the information stated on its characteristics plate.
• This appliance must be connected to an earthed socket. If it is absolutely necessary to use an extension cable, make sure that it is suitable for 16A and has a socket with an earth connection.
• The appliance must never be placed directly under the tap to fill the water tank.
• The electrical plug must not be removed from the socket by pulling the cable.
• Never immerse the appliance in water or any other liquid.
• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.)
• This appliance reaches high temperatures and produces steam during use, this could cause scalds or burns if not used properly.
• Do not allow the power cable to come into contact with the soleplate when it is hot.

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

BECKEN

• The appliance must not be left unattended while it is connected to the supply mains.
• Remove the plug from the socket before filling the appliance with water or before pouring out the remaining water after use.
• The appliance must be used and placed on a flat, stable surface.
• When placing the iron on its stand or on its heel, make sure that the surface on which the stand or heel is placed is stable.
• Keep the appliance and its cord out of reach of children under 8 years of age when it is turned on or cooling down.
• This appliance is designed only for household use up to 2000m above sea level.
  • CAUTION Hot surface. Surface is liable to get hot during use.

[you can trust]

2. OPERATING INSTRUCTIONS

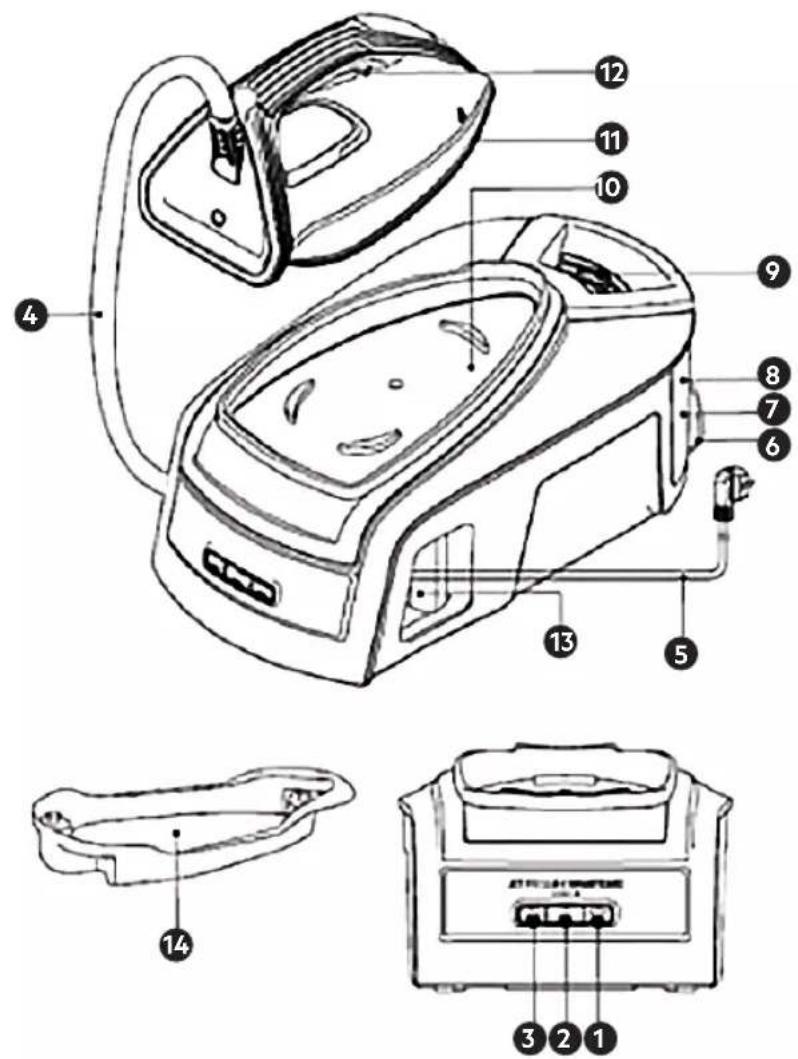

2.1. Product Description

Technical diagram of a steam iron with numbered parts for identification and assembly reference.

WARNING

Please read the instructions for use carefully prior to using the product. Store these in a safe place for future reference.

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

BECKEN

DESCRIPTION

1 "Calc'nClean" descaling button with indicator light
2 "on / off" button with indicator light
3 Energy saving "Eco" button with indicator light
4 Supply hose
5 Mains cable
6 Supply hose storage fixing
7 Water tank
8 Level mark for maximum filling
9 Filling lid
10 Iron pad
11 Soleplate
12 Steam release button
13 Mains cable storage compartment
14 "Calc'nClean" recipient

2.2. Product usage

Preparing for use

1.Filling the water tank

This appliance has been designed to use normal tap water.

Important: Do not additive! Do not use additives! The addition of other liquids, such as perfume, vinegar, starch, condensation from tumble dryers or air conditioning systems, or chemicals will damage the appliance. Any damage caused by the use of the aforementioned products will he guarantee void!

Fill the water tank (7). Never fill beyond the level "max" (8)

Tip: To prolong the optimum steam function, you may mix tap water with distilled or demineralised water 1:1. If the tap water in your area is very hard, mix tap water with distilled or demineralised water 1:2.

2.Heating

1. Unwind the supply hose (4) and the mains cable (5). Plug mains cable into an earthed socket.

[you can trust]

1. Press the button (2) to switch the appliance on. The indicator light (2) will flash indicating that the appliance is heating up.
2. When the iron is ready to use, the indicator light (2) will remain permanently lit. Two beeps will be heard.

3. Ironing

1. Press the steam release button (12) for ironing with steam.

Important:

During first use: Press the steam release button for 40 seconds until steam comes out. During the first seconds of use the amount of steam will be lower and it will increase progressively. Drops of water may leak out while there is still air in the circuit.

Warning: Ironing with an excessive amount of steam may produce condensation of the hot water and dripping from the ironing board or through any other permeable surface.

"Steam Turbo Shot" function

This appliance has a special function for tackling difficult creases.

1. Press the steam release button (12) two times in quick succession (double-click). Powerful shots of steam will be released.

Vertical steam

Can be used to remove creases from hanging clothes, curtains, etc.

1. Hold the iron in an upright position 15 cm away from the garment to be steamed.
2. Press the steam release button (12) repeatedly with pauses of at least 5 seconds.

Warning: Never point the steam jet at garments being worn, or at people or animals.

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

BECKEN

4. Energy saving

If the energy saving setting is selected, you can save energy and water and still achieve good results when ironing most of your garments.

1. Press the energy saving button "Eco" (3). The indicator light will come on.
2. To switch back to the normal energy setting, press the "Eco" button again. It is advisable to use the normal energy setting to get optimum results on thick and very wrinkled fabrics.

Tips to help you save energy:

• If you tumble dry your fabrics before ironing them, set the tumble drier on the iron dry programme.
• Try to iron the fabrics while they are still damp and reduce the steam setting. Steam will be generated from the fabrics rather than the iron.
• The most efficient way to iron with steam generators is to use the steam function in a forward direction (the steam permeates the fabric and gives volume back to it) and in a backwards direction without steam (fixing the fabric).

5. Auto switch off

For your safety and to save energy, the appliance switches off automatically when it has not been used for 8 minutes.

Three beeps will be heard, and all indicator lights (1, 2, 3) will flash.

1. To switch the steam station back on, press the steam release button (12) again.

2.3. Maintenance

Cleaning and maintenance

1. Descaling process

This appliance is equipped with an automatic clean warning indicator, which indicates that scale particles must be removed from inside the steam chamber.

[you can trust]

When activated, three beeps will be heard and the “Calc’nClean” indicator light (1) will flash, indicating that the process should be performed.

You may continue ironing for a time. Once this time has passed, you will only be able to dry iron (without steam).

To start steam ironing again, follow this descaling process:

1. Fill the tank (7) with water.
2. Plug in the mains cable (5) and press the button (2) to switch the appliance on.
3. Press the descaling button (1) for 2 seconds. Its indicator light will remain permanently lit.
4. Wait until the indicator light (2) stops flashing and remains lit permanently. Two beeps will be heard.
5. Place the iron on the "Calc'nClean" container (14). Make sure that the surface on which the container is placed is stable.

Warnings:

• Do not remove the iron from the container until the process has finished. Boiling water and steam will be released through the soleplate, removing limescale and/or deposits that may be inside.
• The container must only be used to perform the descaling process. It must not be used as a stand for the iron while ironing.
• Press the steam release button (12) for 2 seconds. The descaling process will start automatically. During this process, short beeps will be heard.
• After approximately 3 minutes, the iron will stop releasing steam. A long beep will be heard, indicating that descaling process has finished. The appliance will switch off automatically.

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

BECKEN

1. To clean the soleplate (11), immediately rub off any residue by running the hot iron over a wet cotton cloth. Wipe the housing of the iron with a cloth.

Warning: The container gets hot during the descaling process.

1. Let it cool down and then empty the container.

2. Cleaning the appliance

Regularly clean your appliance for properly maintenance. Attention!

Burn risk!

If the appliance is only slightly soiled, wipe it with a damp cotton cloth only, and then dry it.

To keep the soleplate smooth, you should avoid contact with hard metal objects. Never use a scouring pad, or chemicals to clean the soleplate.

3. Storing the appliance

1. Unplug the appliance and let it cool down. Empty the water tank (7).
2. Place the iron on the steam station, standing on the pad (10).
3. Store the mains cable in the storage compartment (13) and the supply hose in the storage fixing (6). Do not wrap the cords too tight.

[you can trust]

2.4. Troubleshooting

Problem Possible causes Solution
The iron begins to smoke when switched on.	During first use: certain components on the appliance have been lightly greased at the factory and may produce a small amount of smoke when initially heated.	This is completely normal and will stop after a short while.
The iron does not produce any steam.	During first use, water has not filled the hose (4) completely.	Press and hold the steam release button (12) until steam comes out.
	The “calc’nclean” indicator light (1) will flash. The descaling process has not been completed.	Perform a cleaning cycle (see the “Descaling process” section).
Dirt comes out through the soleplate.	There is a build-up of lime scale or minerals in the iron.	Run a cleaning cycle (see section “Descaling Process”).
	Chemical products or additives have been used.	Never add products to the water (see the “filling the water tank” section). Clean the soleplate with a damp cloth.
The “calc’nclean” indicator light (1) does not turn off.	The iron descaling process has been stopped before being completed.	Restart and complete the iron Descaling process.
The appliance makes a pumping sound.	Water is being pumped into the iron.	This is normal.
	The water tank is empty. Fill the water tank.	It is normal, the iron produces steam gradually until it is stabilized.
The iron produces little steam.	The iron was turned on some time ago.	It is normal, the iron produces steam gradually until it is stabilized.

If the above tips do not solve the problem, get in touch with our customer service.

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

BECKEN

3. POST-SALE SERVICE

Becken has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

[you can trust]

Vertical gradient bar transitioning from light purple to dark blue, no text or symbols present

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

EN

17

Estimado cliente,

Technical diagram of a steam iron with numbered parts for identification and assembly reference.

ATENCIÓN

Symbol of a trash bin crossed with no text or symbols, representing waste sorting or disposal (no text present)

[you can trust]

Vertical gradient bar transitioning from light purple to dark blue, no text or symbols present

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

ES

33

Caro(a) cliente,

Labeled diagram of a steam iron with numbered parts for identification

Diagram of a mechanical component with numbered parts and a labeled point '14'

3 2 1

AVISO

Symbol of a trash bin crossed with two crossed lines, no text or labels present

[you can trust]

Vertical gradient bar transitioning from light purple to dark blue, no text or symbols present

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

PT

49

BECKEN

50

[you can trust]

Vertical gradient bar transitioning from light purple to dark blue, no text or symbols present

Steam Generator Iron | Centro de Planchado | Ferro com Caldeira

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
