USER MANUAL CP-7EX PIONEER

Pioneer sound.vision.soul

CP-7EX

Speaker Stand / Socle d'enceinte / Lautsprecherständer / Base per diffusori / Luidsprekerstandaard / Soportes de altavoz / Suporte para colunas / Högtalarstativ / Højttalerstativ / Høyttalerstativ / Kaiutinjalusta / Стойка под динамик

Discover the benefits of registering your product online at www.pioneer.co.uk (www.pioneer-eur.com). Découvrez les nombreux-avantages offerts en enregistrant votre produit en ligne maintenant sur www.pioneer.fr (ou www.pioneer-eur.com). Bitte nutzen Sie die Möglichkeit zur Registrierung Ihres Produktes unter www.pioneer.de (oder www.pioneer-eur.com) Registra il tuo prodotto su www.pioneer.it (o www.pioneer-eur.com) e scopri subito quali vantaggi puoi ottenere! Ontdek nu de voordelen van online registratie! Registreer uw Pioneer product via www.pioneer.nl - www.pioneer.be (of www.pioneer-eur.com) Registre su producto en www.pioneer.es (o en www.pioneer.eur-com) Descubra los beneficios de registrarse on-line: Registe o seu produto em www.pioneer.pt (ou em www.pioneer-eur.com). Descubra as vantagens de o fazer agora on-line. Registrera din produkt på www.pioneer.se (eller på www.pioneer-eur.com). Upptäck fördelarna med att göra det on-line nu. Registrer dit produkt på www.pioneer.dk (eller www.pioneer-eur.com). Oplev fordelene ved at gå online nu. Registrer produktet ditt på www.pioneer.no (www.pioneer-eur.com). Oppdag fordelene med dette på nettet i dag. Rekisteröi tuote sivustossa www.pioneer-eur.com. Tutustu nyt online-rekisteröi tymisen etuihin. Зарегистрируйте Ваше изделие на www.pioneer-rus.ru (или www.pioneer-eur.com). Ознакомьтесь с преимуществами регистрации в Интернет

Operating Instructions / Mode d'emploi / Bedienungsanleitung / Istruzioni per l'uso / Gebruiksaanwijzing / Manual de instrucciones / Manual de instruções / Bruksanvisning / Brugsanvisning / Bruksanvisning / Käyttöohjeet / Инструкции по эксплуатации

Thank you for buying this Pioneer product. This speaker stand should only be used with the S-7EX Pioneer speaker system. Please read through these operating instructions for proper assembly and use. After you have finished reading the instructions, put them away in a safe place for future reference.

Before you start

Before setting up your speaker system, we recommend reading the operating instructions for your system thoroughly.

Caution

• Only use the screws supplied when fixing the speaker to the speaker stand.
• Do not place the stand on an unstable and/or sloping surface. The stand and speaker may fall and cause injury.
• Do not use with any speaker system other than the one for which the unit was designed. The stand may collapse and be damaged and/or the speaker may fall and cause injury.
• When moving the speaker and stand, first remove the speaker from the stand, and then move the stand, holding it by the two stems.

Installing the speaker stands

Place the stand on a stable, level surface; placing the stand on an unstable surface can be dangerous.

Line drawing of a three-tiered cylindrical device mounted on a base (no text or symbols)

Adjust the position as necessary to obtain optimal sound from your system.

Important

- Pioneer assumes no liability whatsoever for damages resulting from assembly, improper mounting, insufficient reinforcement, misuse of the product, acts of nature, etc.

Assembling the speaker stands

Assemble the speaker stands as illustrated below. Please note that a flathead screwdriver will be necessary for assembly. The following illustration shows the fully assembled speaker stand:

Speaker support Screw slots for securing speaker Stand stems Stand base

- Align the screw slots on the stand base and screw holes on the speaker support with the screw holes in the two stems, then insert the screws and tighten.

The screw slots allow you to fine-tune the positioning of the speaker.

Screws (Bind head, M6xL55) 55 mm Black (SBA6051) Speaker support Stand stems Stand base Please note that sunken screw holes are provided in the speaker support. Screws (Bind head, M6xL40) Nut Spike (SBA6053) Spike base (SLA1057) 40 mm Black (SBA6054)

Caution

• Make sure you assemble the stand on a flat surface that is relatively soft (such as a carpet).
• Make sure the screws are inserted in the screw holes as shown above (with the screw head hidden) when securing the speaker. Improper setup could result in damage or injury if the speaker falls from the stand.

Using the spikes

The speaker stand includes spikes that you can use to isolate the speaker from the floor. Spikes are recommended when placing the stand on a thick carpet (for added stability), or for better sound when placing the stand on a hard reverberant surface (such as a concrete or wood floor). Use the supplied spike bases to avoid scratching the floor or other surface where the stand is placed.

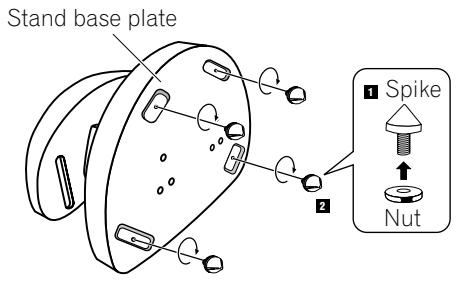

Stand base plate 1 Spike Nut

1 Attach the spikes to the nuts provided.
2 Attach all four spikes to the threaded metal inserts at the base of the speaker stand.
3 Choose the location for speaker placement then put the spike bases on the floor.
4 Place the stand so that the spikes are resting on the spike bases on the floor.

Before placing the speaker on the speaker stand, make sure the stand is stable and resting squarely on all four spikes.

Caution

• Note that these spikes are sharp metal and can cause damage to flooring. Make sure to lay down a cloth or suitable base before setting up.
• The spike bases should be placed as shown below (with the depression on the top side).

- Make sure to use the spike bases provided to avoid damaging the surface where you place the stand.

Attaching a speaker to the stand

To avoid accident or injury, please use screws to secure the speaker to the speaker stand. Note that there are fastening nuts provided on the speaker base (see below). Secure the speaker to the speaker support using the washer, spring washer and the 60 mm screws as shown below.

Speaker base Speaker support 60 mm Black (SBA6058) Screws (Bind head, M6xL60) Fastening nuts Screw slots for securing speaker Washers (SBE6008) Spring washer (SBE6007)

Cabinet and stand maintenance

• Use a polishing cloth or dry cloth to wipe off dust and dirt.
• If the cabinet or stand is very dirty, use a soft cloth dipped in some neutral cleanser diluted 5 or 6 times with water. Finally, wipe again using a dry cloth. Do not use furniture wax or cleaners.
• Never use thinners, benzine, insecticide sprays and other chemicals on or near the cabinet or stand, since these will corrode the surfaces.

Specifications

External dimensions ..... 498 (W) x 310 (H) x 412 (D) mm

Weight 14.0 kg

Supplied accessories

Stand base plate .... 1

Speaker support .... 1

Stems 2

Spikes (with attached nuts) [SBA6053] 4

Spike bases [SLA1057] 4

Screws (Bind head, M6xL55) [SBA6051] 6

Screws (Bind head, M6xL60) [SBA6058] 2

Screws (Bind head, M6xL40) [SBA6054] 6

Spring washers [SBE6007] 2

Washers [SBE6008] 2

These operating instructions [SRD6046] .... 1

Note

• Specifications and design subject to possible modification without notice, due to improvements.
• The product number are listed above in square brackets.

Replacement part numbers

Part name

• Protector (Top)
• Protector (Middle)
• Protector (Bottom)
• Packing case
• Protection sheet
• Protection sheet
• Protection sheet

Part no.

SHA6101
SHA6102
SHA6103
SHG6148
SHC6048
SHC6049
SHC6050

If you want to dispose this product, do not mix it with general household waste. There is a separate collection system for used electronic products in accordance with legislation that requires proper treatment, recovery and recycling.

Private households in the 25 member states of the EU, in Switzerland and Norway may return their used electronic products free of charge to designated collection facilities or to a retailer (if you purchase a similar new one).

For countries not mentioned above, please contact your local authorities for the correct method of disposal.

By doing so you will ensure that your disposed product undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health.

Published by Pioneer Corporation.

Copyright © 2005 Pioneer Corporation.

All rights reserved.
