USER MANUAL XW-NAV1-K PIONEER

DVD Speaker system for iPod

Discover the benefits of registering your product online at http://www.pioneer.co.uk (or http://www.pioneer.eu).

Operating Instructions

Mode d'emploi

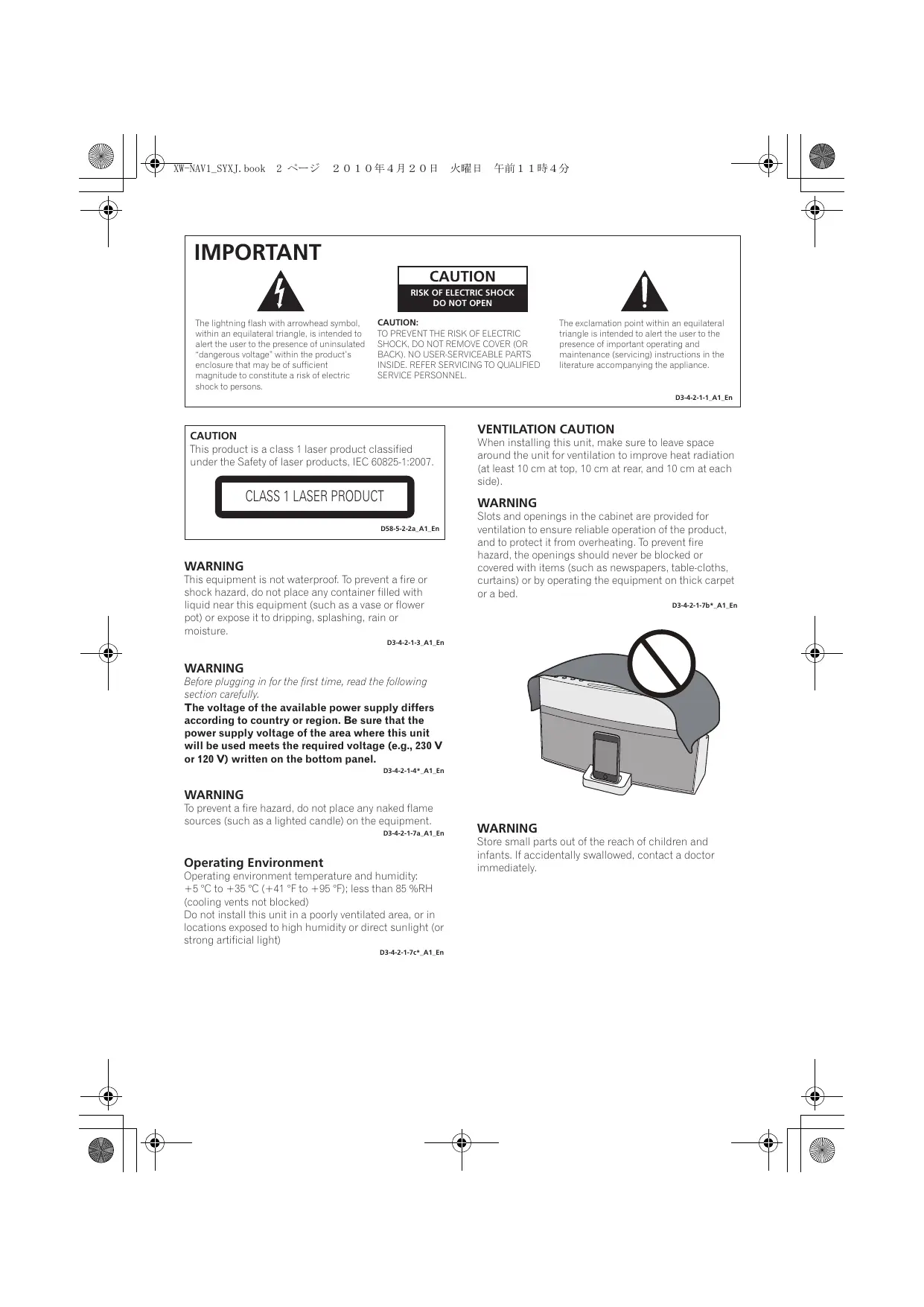

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USER-SERVICEABLE PARTS INSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

D3-4-2-1-1_A1_En

CAUTION

This product is a class 1 laser product classified under the Safety of laser products, IEC 60825-1:2007.

CLASS 1 LASER PRODUCT

D58-5-2-2a_A1_En

WARNING

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

D3-4-2-1-3_A1_En

WARNING

Before plugging in for the first time, read the following section carefully.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., 230 V or 120 V) written on the bottom panel.

D3-4-2-1-4*A1En

WARNING

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

D3-4-2-1-7a_A1_En

Operating Environment

Operating environment temperature and humidity:

+5°C to +35°C (+41°F to +95°F); less than 85%RH (cooling vents not blocked)

Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light)

D3-4-2-1-7c*A1_En

VENTILATION CAUTION

When installing this unit, make sure to leave space around the unit for ventilation to improve heat radiation (at least 10cm at top, 10cm at rear, and 10cm at each side).

WARNING

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, table-cloths, curtains) or by operating the equipment on thick carpet or a bed.

D3-4-2-1-7b*A1_EN

WARNING

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

If the AC plug of this unit does not match the AC outlet you want to use, the plug must be removed and appropriate one fitted. Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel. If connected to an AC outlet, the cut-off plug can cause severe electrical shock. Make sure it is properly disposed of after removal. The equipment should be disconnected by removing the mains plug from the wall socket when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-1a_A1_En

POWER-CORD CAUTION

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest PIONEER authorized service center or your dealer for a replacement.

S002*A1_EN

CAUTION

The OSTANDBY/ON switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

D3-4-2-2-2a*A1En

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

K041_A1_En

When using this product, confirm the safety information shown on the bottom of the unit.

D3-4-2-2-4_B1_En

Information for users on collection and disposal of old equipment and used batteries

(Symbol for equipment)

Symbol examples for batteries

Pb

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union.

For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

K058a_A1_En

[For UK model]

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT: THE MOULDED PLUG

This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 5 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by ASTA or BSI to BS1362.

Check for the ASTA mark or the BSI mark on the body of the fuse.

If the plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced. If you lose the fuse cover the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be obtained from your local dealer.

If the fitted moulded plug is unsuitable for your socket outlet, then the fuse shall be removed and the plug cut off and disposed of safely. There is a danger of severe electrical shock if the cut off plug is inserted into any 13 amp socket.

If a new plug is to be fitted, please observe the wiring code as shown below. If in any doubt, please consult a qualified electrician.

IMPORTANT: The wires in this mains lead are coloured in accordance with the following code: Blue : Neutral . Brown : Live

As the colours of the wires in the mains lead of this appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

How to replace the fuse: Open the fuse compartment with a screwdriver and replace the fuse.

D3-4-2-1-2-2*A2En

Thank you for buying this Pioneer product.

Please read through these operating instructions so that you will know how to operate your model properly. After you have finished reading the instructions, put them in a safe place for future reference.

Contents

01 Before you start

What's in the box 6

Loading the batteries in the remote control...6

Using the remote control 7

02 Connections

Connecting using an audio/video cable. . . . . .8

Connecting using an HDMI cable 8

Connecting to a TV 9

Connecting to an AV receiver or amplifier . . .9

Audio signals that can be output from this unit's HDMI OUT terminal 10

Plugging in 10

03 Controls and displays

Remote control 11

Front/top panel 14

04 iPod/Phone playback

Confirm what iPod/iPhone models are supported 15

Connecting your iPod/iPhone 16

Connecting your TV 16

Playing your iPod/iPhone. 17

05 Disc playback

Playing discs or files 18

Eject a disc from this unit 18

Example of display on the front panel display 18

Playing in the desired order (Programmed Play) 19

06 USB playback

Playing files stored on USB devices 20

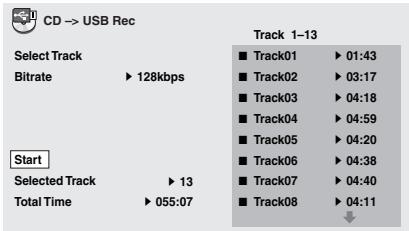

Recording audio CD tracks on USB devices 20

Recording all the tracks 21

Selecting the track(s) to be recorded 21

Playing in the desired order

(Programmed Play) 21

07 Using the tuner

Connect the FM antenna 22

Listening to the FM radio 22

Memorizing stations 22

Listening to station presets. 22

08 Other connections

Connecting auxiliary components 23

09 Changing the settings

Audio Settings parameters. 24

About Sound Retriever function 24

Video Adjust parameters. 25

Initial Settings parameters 26

Digital Audio Out settings 26

Video Output settings. 26

Language settings 26

Display settings. 27

Options settings 27

Setting the HDMI Resolution settings back to their defaults 27

Restoring all the settings to the defaults. 27

10 Sound settings

Using the Virtual Surround 28

Adjusting the bass and treble. 28

11 Using the timer

Setting the clock 29

Setting the wake-up timer. 29

Turning the wake-up timer on/off 30

Using the wake-up timer 30

Using the sleep timer 30

12 Playable discs and files on discs or USB storage devices

Playable discs 31

Playable files 32

13 Additional information

Troubleshooting 35

Language Code Table and Country/Area

Code Table 39

Language Code Table. 39

Country/Area Code Table 39

Setting the TV system 40

Cautions on use. 40

Handling discs 42

About iPod/iPhone 43

Specifications. 43

Chapter 1:

Before you start

What's in the box

Please confirm that the following accessories are in the box when you open it.

Remote Control
Audio/Video cable
Power cord
FM wire antenna
AA batteries (R6) x 2
Warranty card
- Operating instructions (this document)

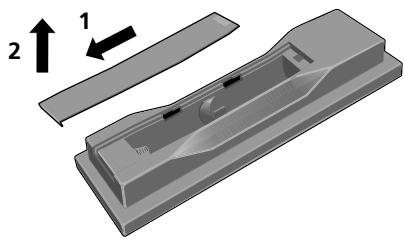

Loading the batteries in the remote control

1 Slide the rear lid in the direction.

Slide in the direction of the arrow () .

2 Open the rear lid.

3 Insert the batteries as shown on the diagram below.

4 Close the rear lid.

Caution

• Do not use any batteries other than the ones specified. Also, do not use a new battery together with an old one.
• When loading the batteries into the remote control, set them in the proper direction, as indicated by the polarity marks ( and ).
• Do not heat batteries, disassemble them, or throw them into flames or water.
• Batteries may have different voltages, even if they are the same size and shape. Do not use different types of batteries together.
• To prevent leakage of battery fluid, remove the batteries if you do not plan to use the remote control for a long period of time (1 month or more). If the fluid should leak, wipe it carefully off the inside of the case,

then insert new batteries. If a battery should leak and the fluid should get on your skin, flush it off with large quantities of water.

• When disposing of used batteries, please comply with governmental regulations or environmental public institution's rules that apply in your country/area.

WARNING

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Using the remote control

The remote has a range of about 7m at an angle of about 30^ from the remote sensor.

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote and the remote sensor on the unit.

• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the unit's remote sensor.

• Remote controllers for different devices can interfere with each other. Avoid using remotes for other equipment located close to this unit.

• Replace the batteries when you notice a fall off in the operating range of the remote.

Chapter 2: Connections

• Be sure to turn off the power and unplug the power cord from the power outlet whenever making or changing connections.
• Connect the power cord after all the connections between devices have been completed.

Connecting using an audio/video cable

This unit's rear panel

Connecting using an HDMI cable

By using an HDMI cable, digital signals can be transferred to an HDMI-compatible TV on a single cable with no loss of picture or sound quality. After connecting, make this unit's resolution and HDMI color settings according to the HDMI-compatible TV. Also refer to the HDMI-compatible TV's operating instructions.

HOMI

• HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Note

• When playing a disc or USB storage device content, this unit can transfer digital signals by the HDMI OUT terminal. When playing the other contents, use the audio/video cable.
• This unit's interface is designed based on the High-Definition Multimedia Interface specification.
• When an HDMI-compatible device is connected, the resolution is displayed on the front panel display.

• The resolution of the video signals output from this unit's HDMI OUT terminal is changed manually. Change the HDMI Resolution setting (page 26). Settings for two units can be stored in the memory.

• This unit is designed for connection to HDMI-compatible devices. It may not operate properly if connected to DVI devices.

Connecting to a TV This unit's rear panel

• If you connect this unit to your television with the HDMI cable, sound can not be transferred from your television to this unit. To listen to sound, connect the rear panel AUX IN mini-plug jack to your television.

Connecting to an AV receiver or amplifier

This unit's rear panel

Audio signals that can be output from this unit's HDMI OUT terminal

• 44.1 kHz to 96 kHz, 16-bit/20-bit/24-bit 2-channel linear PCM audio (including 2-channel downmixing)
• Dolby Digital 5.1-channel audio
• DTS 5.1-channel audio
  MPEG audio

DOLBY DIGITAL

• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Plugging in

After you've finished making all connections, plug the unit into an AC outlet.

1 Plug the supplied power cord into the AC IN socket on the back of the unit.
2 Plug the other end into a power outlet.

Important

• Before making or changing any connections, switch off the power and disconnect the power cord from the AC outlet.

Chapter 3:

Controls and displays

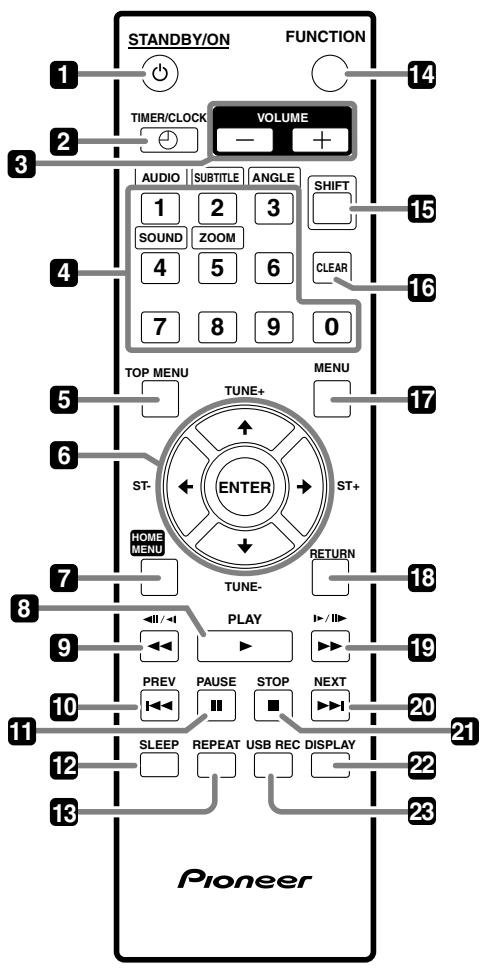

Remote control

1 STANDBY/ON

Press to turn the power on and off.

2 ⑦ TIMER/CLOCK

Use to set the clock (page 29).

3 VOLUME - / +

Use to set the listening volume. (Default setting: 10)

4 Number buttons (0 to 9)

Use these to specify and play the title, chapter, track or file you want to view/ listen to. Also use them to select the station preset when using the tuner, etc.

AUDIO*

For discs or files including multiple audio streams/ channels, the audio stream/ channel can be switched during playback. For files stored in iPod/iPhone, this button is not available.

SUBTITLE*

On DVD-Video or DivX discs containing subtitles in multiple languages, the subtitle can be switched during playback.

SOUND*

Turns the Virtual Surround on and off (page 28). Also use to adjust the bass and treble.

ANGLE*

On DVD-Video discs containing multiple angles, the angle can be switched during playback.

ZOOM*

Zooming on the image. For images stored in iPod/iPhone, this button is not available.

5 TOP MENU

Press to display the top menu of the DVD-Video.

6 / / /

Use these to select items, change settings and move the cursor. For iPod/iPhone's menu screen, this button is not available.

ENTER

Use this to implement the selected item or enter a setting that you have changed. For iPod/iPhone's menu screen, this button is not available.

ST+/-

Use these to select station presets.

TUNE + / -

Change the frequency one step at a time. To search for stations automatically, press and hold for about a few seconds.

7 HOME MENU

When selecting a DVD or USB storage device input, press to display/ hide the HOME MENU. When selecting the other input, this button is not available.

Audio Settings (page 24)
Video Adjust (page 25)
- Play Mode (this page)
- Disc Navigator (MENU on page 13)
- Initial Settings (page 26)
- CD -> USB Rec (page 20)

Play Mode

A-B Repeat

The specified section within a single title or track is played repeatedly.

Repeat

Plays titles, chapters, tracks or files repeatedly.

- Random

Plays titles, chapters or tracks in random order.

Program (page 19)

Plays titles, chapters, tracks or files in the order in which you program them.

Search Mode

Plays the specified number or time within the title, chapter, track or file.

The Play Mode function may not work for some discs or files. For files stored in iPod/iPhone, this function is not available.

8 PLAY

Press to start playback.

9

• Press during playback to fast-reverse.
• Press in the pause mode to move backward frame-by-frame. (DVD-Video or DVD VR discs only)
• Press and hold in while in the pause mode for slow play in the reverse direction. (DVD-Video or DVD VR discs only)

10 PREV

Press to return to the beginning of the currently playing title, chapter, track or file. Press twice to move back to the beginning of the previous title, chapter, track or file.

11 II PAUSE

Press to stop playback temporarily. Press again to resume.

12 SLEEP

Use to put the unit in sleep mode and select the amount of time before sleep (page 30).

13 REPEAT

Plays titles, chapters, tracks or files repeatedly. (For iPod/iPhone, this button is not available.)

14 FUNCTION

Use to select an input source. Press repeatedly to switch between iPod/iPhone, DVD/CD, USB, TUNER and external input (AUX).

15 SHIFT

Press to access the 'boxed' commands (above the buttons) on the remote. These buttons are marked with an asterisk (*) in this section.

16 CLEAR

Press to clear the selected item. Use this for example if you input the wrong number.

17 MENU

• Press to display the menu screen or Disc Navigator.
• Select and play the title, chapter, track or file from the Disc Navigator.
• For iPod/iPhone, this button is not available.

Ex.: DVD-Video Disc Navigator

18 RETURN

Press to return to the previous screen. Also, use to cancel the clock setting or the sound setting.

19 ▲/|□/||

• Press during playback to fast-forward.
• Press in the pause mode to move forward frame-by-frame. (DVD-Video, DVD VR, Video CD or DivX discs only)
• Press and hold in while in the pause mode for slow play in the forward direction. (DVD-Video, DVD VR, Video CD or DivX discs only)

20 NEXT

Press during playback to skips ahead to the beginning of the next title, chapter, track or file.

21 STOP

When STOP is pressed during playing a disc or USB storage device, the point at which playback was stopped is stored in the memory. When PLAY is pressed, playback resumes from the point at which it was stopped (except MP3 and WMA files).

22 DISPLAY

The elapsed time, amount remaining, etc., is displayed. (When playing files stored in iPod/ iPhone or playing in TUNER or AUX mode, they are not displayed.)

23 USBREC

Press to display the CD ->USB Rec and recoding starts. This unit records all tracks with the bitrate that is set at previous recording. Only when a CD is in the stop mode, this button is available. If you want to record the specified tracks or change the bitrate, press HOME MENU and select the CD ->USB Rec.

Front/top panel

1 STANDBY/ON

Switches the unit between standby and on.

2 FUNCTION

Use to select an input source. Press repeatedly to switch between iPod/iPhone, DVD/CD, USB, TUNER and external input (AUX).

3 /II PLAY/PAUSE

Press to start playback. During playback, pause/ unpause playback.

4 STOP

When STOP is pressed during playing a disc or USB storage device, the point at which playback was stopped is stored in the memory. When PLAY is pressed, playback resumes from the point at which it was stopped. When playing MP3 or WMA file, playback can not resume.

5 Disc slot

6 EJECT

Eject the disc.

7 VOLUME - / +

Use to set the listening volume. (Default setting: 10)

8 USB terminal

When no USB storage device is connected, install the USB terminal cover.

WARNING

Store the USB terminal cover out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

9 Display

10 TIMER indicator

When the wake-up timer is set to ON, this indicator lights.

11 HDMI indicator

When this unit is recognized by another HDMI compatible component, this indicator lights.

12 TUNE indicator

When the tuner receives FM broadcasts while the TUNER input is selected, this indicator lights.

13 Speaker units

14 iPod/iPhone connector ports

Chapter 4:

iPod/iPhone playback

Merely by connecting your iPod/iPhone to this speaker system, you can enjoy high-quality sound from your iPod/iPhone. This unit can also be connected to a television set, letting you view movies and images from your iPod/ iPhone. When connecting to a television set, use the included audio/video cable. This unit can not transfer iPod/iPhone's musics, movies and images from the HDMI OUT terminal.

Playback setting for iPod/iPhone music and images can be performed from this unit or the iPod/iPhone itself. This unit can not record sound of CD and tuner, etc. to iPod/iPhone.

Confirm what iPod/iPhone models are supported

The iPod/iPhone playable on this unit are shown below.1

iPod/iPhone	Audio	Video
iPod nano 1/2G	✓
iPod nano 3/4/5G	✓	✓
iPod classic 2007	✓	✓
iPod classic 2008	✓	✓
iPod classic 2009	✓	✓
iPod touch 1G	✓	✓
iPod touch 2G	✓	✓
iPod touch 2G 2009	✓	✓
iPhone	✓	✓
iPhone 3G/3GS	✓	✓

Always use the most recent version of iPod/ iPhone software available. Operation compatibility may vary depending on the version of the software used. You can confirm your software version by operating your iPod/ iPhone as follows:

1 Select 'Settings' from the top menu.

When using iPod touch or iPhone, select 'General' after selecting 'Settings'.

2 Select 'About'.

The software version will be displayed.

• Consult the Apple website regarding the newest software versions and instructions on how to update your version.

Tip

• When using an iPod/iPhone not supported by this unit, use a commercially available cable to connect the iPod/iPhone to the AUX IN connector of this unit.

Note

1 - Pioneer does not guarantee that this unit plays iPod/iPhone other than the ones specified.
- Some functions may be restricted depending on the model or software version.
- iPod/iPhone is licensed for reproduction of non-copyrighted materials or materials the user is legally permitted to reproduce.
- Features such as the equalizer cannot be controlled using this system, and we recommend switching the equalizer off before connecting.
- Pioneer cannot under any circumstances accept responsibility for any direct or indirect loss arising from any inconvenience or loss of recorded material resulting from the iPod/iPhone failure.
- For detailed instructions on using the iPod/iPhone, please refer to the manual supplied with the iPod/iPhone.

Connecting your iPod/iPhone

Caution

• When connecting an iPod/iPhone units, always use the universal dock adapter provided with your iPod/iPhone, or a commercially adapter designed to support iPod/iPhone. The iPod/iPhone cannot be connected without a universal dock adapter; attempting to connect an iPod/ iPhone without a universal dock adapter will cause damage or malfunction.

1 Attach the Universal dock adapter to iPod/iPhone connector port on the front panel of this unit.

• An iPod/iPhone universal dock adapter is not supplied with this unit.

When attaching the Universal dock adapter, be sure to orient the front-back directions of the Universal dock adapter correctly. To attach, first place the protruding tabs on the front side

of the adapter into the depressions on the iPod/iPhone connector port and press into position. When attaching the adapter, be careful not to strike the connectors.

2 Connect your iPod/iPhone.

• If an iPod/iPhone is connected when this unit is in standby mode, the power will turn on and playback of the iPod/iPhone will begin.

Connecting your TV

To watch iPod/iPhone images on a television, perform connections using the included audio/video cable. For details, see Connecting using an audio/video cable on page 8.

• When an iPod/iPhone is connected to this unit, the iPod/iPhone's TV output setting is automatically set to ON.2

Caution

• Before making or changing the connections, switch off the power and disconnect the power cord from the power outlet. Plugging in should be the final step.

Note

1 For detailed instructions on using the iPod/iPhone, please refer to the manual supplied with the iPod/iPhone.
2 • Some iPods allow the TV output setting to be changed while connected.
- When the iPod/iPhone is disconnected from this unit, the iPod/iPhone's TV output setting returns to its original state.

Playing your iPod/iPhone

Caution

• When your iPod/iPhone is connected to this unit and you wish to operate the iPod/iPhone by touching it directly, be sure to hold the iPod/iPhone steady with the other hand to prevent malfunctions due to faulty contacts.

1 Connect your iPod/iPhone.

• If an iPod/iPhone is connected when this unit is on, playback of the iPod/iPhone will not begin.

2 Press FUNCTION to select the iPod input.

'P ood' is displayed on the front panel display.

3 Press PLAY.

• The available iPod/iPhone's playback control by touching this unit directly is▶,▶,▶,▶▶,▶▶,▶▶.

• In the following case, operate your iPod/ iPhone directly¹:

• You want to search a file by artist name or genre.

• You want to play in the repeat or shuffle mode.
• You want to watch images stored in iPod/iPhone on your television.

Important

If this unit can not play the iPod/iPhone or 'Err' is displayed, perform the following troubleshooting checks:

• Check whether the iPod/iPhone was supported by this unit.

• Reconnect the iPod/iPhone to the unit. If this doesn't seem to work, try resetting your iPod/iPhone.

• Update the iPod/iPhone software to the latest version.

If the iPod/iPhone cannot be operated, check the following items:

• Is the iPod/iPhone connected correctly? Reconnect the iPod/iPhone to the unit.
• Is the iPod/iPhone experiencing a hangup? Try resetting the iPod/iPhone, and reconnect it to the unit.

Tip

• iPod/iPhone recharging occurs whenever an iPod/iPhone is connected to this unit. (This function is supported in standby mode as well.)
• When this unit's power is turned ON with another function is selected, even if an iPod/iPhone is connected, playback will not automatically begin.
• If the unit is set to standby when an iPod/ iPhone is connected, the iPod/iPhone's power will be turned OFF automatically.

Chapter 5: Disc playback

Playing discs or files

Note

• By using the number buttons (0 to 9), you can specify and play the title, chapter, track or file you want to view/ listen to.
• When playing a DVD-Video or DivX discs, turn the TV's power on and switch the TV's input before starting.
• This unit's screen display language can be changed (OSD Language on page 27).

1 Press STANDBY/ON to turn the power on.

The selected input is displayed on the front panel display.

2 Press FUNCTION to select the DVD/CD input.

Please wait until the indicator changes from flashing d,Sc' to -

When a disc has already been slotted in the disc slot, press EJECT to eject the disc.

3 Slot a disc.

Playback will begin automatically.

• Hold the disc as shown in the illustration, insert it in the center of the disc slot, and press in gently from above.
• The disc will then be automatically drawn into the slot.

Note

• If the disc does not load smoothly, do not attempt to force it. Remove it from the slot and try inserting it again. Attempting to force a disc causes damage or malfunction.
• Do not touch the recording surface of the disc, since the disc may not play properly if it has fingerprints or other soiling.
• Adapters for 8 cm CDs cannot be used when you play a 8 cm CD/DVD.

Eject a disc from this unit

Press EJECT.

Example of display on the front panel display

When the power is turned on (ON)

When the power is turned off (OFF)

When the disc is being loaded (LOAD)

When the title menu or menu is displayed (TITLE)

When the GUI is displayed or operated (GUI)

When the disc is stopped (STOP)

When no disc is loaded

Playing in the desired order (Programmed Play)

DVD-Video

WMA

Video CD

MP3

CD(R/RW)

DivX

1 Press HOME MENU.

The HOME MENU is displayed.

2 Use / to select 'Play Mode', then press ENTER.

The Play Mode screen is displayed.

3 Use / to select 'Program', then press ENTER or .

4 Use ↑/↓ to select 'Create/Edit', then press ENTER.

The Create/ Edit screen differs according to the disc or file.

5 Use / / / to select the title, chapter, track or file, then press ENTER.

• To add to a program, first select the place in the program (the program step), next select the title, chapter or track, then press ENTER (files are added at the end of program).
• Press RETURN to return to the previous screen. If you return to the previous screen when inputting it, the settings you have programmed are cleared.
• To delete a step, highlight it and press CLEAR.

6 Press to start playback.

• To play a program that has already been set, select 'Playback Start' from the program screen, then press ENTER.
  To resume normal playback, select 'Playback Stop' from the program screen, then press ENTER. The program remains in the memory.
• To cancel the entire program, select 'Program Delete' from the program screen, then press ENTER.

Note

• Programs can be played repeatedly. Select 'Program Repeat' from 'Repeat' on the play mode screen during programmed playback.
• Programs cannot be played in random order (random play is not possible during programmed play).

Chapter 6: USB playback

Playing files stored on USB devices

• This unit may not recognize the USB device, may not play files or may not supply power to the USB device. For details, see When a USB device is connected on page 36.
• Pioneer does not support that all files recorded on all USB devices will play or that power will be supplied to the USB device. Also note that Pioneer will accept no responsibility whatsoever for loss of files on USB devices caused by connection to this unit.

1 Press STANDBY/ON to turn the power on.

The selected input is displayed on the front panel display.

2 Press FUNCTION to select the USB input.

'U Sb' is displayed on the front panel display.

3 Connecting USB devices.

The Disc Navigator appears automatically.

When a USB storage device is connected to the USB terminal, remove the USB terminal cover.

1. Push the USB terminal cover as shown on the diagram below.

1. Pull the USB terminal cover.

WARNING

Store the USB terminal cover out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

4 Use / / / to select the file, then press ENTER.

Playback starts.

• If you press PLAY, this unit will play automatically files stored in a USB storage device.
• Turn the power off before removing the USB storage device.

Recording audio CD tracks on USB devices

• The tracks of audio CDs loaded in this unit can be recorded on a USB device connected to the USB terminal. This unit can not record the other input's sound.
• It may not be possible to record tracks of audio CDs on a USB device. For details, see When a USB device is connected on page 36.

Recording all the tracks

1 Load the audio CD.

• If playback starts automatically, press STOP to stop playback. Only when a CD is in the stop mode, recording can start.

2 Press USB REC.

The CD -> USB Rec screen is displayed.

Selecting the track(s) to be recorded

1 Load the audio CD.

• If playback starts automatically, press STOP to stop playback. Only when a CD is in the stop mode, recording can start.

2 Press HOME MENU.

The HOME MENU is displayed.

3 Use / / / to select 'CD -> USB Rec', then press ENTER.

4 Use / / / to select 'Select Track' 'Individual' the track(s) you want to record.

• Individual: Select 1 track at a time.

• Select All: Select all the tracks.

• All Clear: Deselect all the tracks.

5 Use / / / to select 'Bitrate' (transfer rate), then press ENTER.

Select '128kbps', '192kbps' or '320kbps'.

6 Use / / / to select 'Start', then press ENTER.

Recording starts.

Note

• If recording does not start, confirm this unit's settings on the TV screen.
• The audio signals are converted into MP3 format for output.
• 'CD -> USB Rec' can only be selected when the audio CD is stopped.
• When recording is completed, a folder named "PIONEER" is automatically created on the USB device. The recorded tracks are stored in this folder.

Playing in the desired order (Programmed Play)

This unit can play repeatedly files stored in the USB storage device. For details, see Playing in the desired order (Programmed Play) on page 19.

Chapter 7:

Using the tuner

• This unit can not transfer FM radio from the HDMI OUT terminal.

Connect the FM antenna

Connect the FM antenna plug onto the center pin of the FM antenna socket. This unit can not transfer FM radio from the HDMI OUT terminal.

Listening to the FM radio

The tuner can receive FM broadcasts, and lets you memorize your favorite stations so you don't have to manually tune in every time you want to listen.

1 Press FUNCTION to switch to the tuner.

The tuned frequency will be displayed on the front panel display (e.g., '87:50').

2 Tune to a station.

When the tuner receives FM broadcasts, the TUNE indicator lights.

There are two ways to do this:

Automatic tuning - To search for stations, press and hold TUNE + / - for about a few second. This unit will start searching for the next station, stopping when it has found one. Repeat to search for other stations.

Manual tuning - To change the frequency one step at a time, press TUNE +/-.

Memorizing stations

You can save up to 9 station presets so that you always have easy access to your favorite stations without having to tune in manually each time.2

• Manually saving station presets

1 Press FUNCTION to switch to the tuner.

The tuned frequency will be displayed on the front panel display.

2 Tune to an FM radio station.

3 Press number button (1 to 9) for three seconds.

The tuned frequency is preset to the selected number button. The previous station preset is overwritten.

• Automatically saving station presets

1 Press ST + for three seconds.

The tuned frequencies will be preset to the buttons in numerical order.

Auto tuning stops automatically after the FM band is finished, or after the limit of 9 presets has been reached.

Listening to station presets

1 Press FUNCTION to switch to the tuner.

The tuned frequency will be displayed on the front panel display.

2 Press number button (1 to 9) that is memorized the FM radio station.

Tip

• Press ST + repeatedly to selected the station preset in numerical order.

Note

To ensure optimum reception, make sure the FM antenna is fully extended and not coiled or hanging at the rear of the unit.
2 When a new broadcast frequency is stored in a station containing a previously stored frequency, the previous frequency will be overwritten with the new one.

Chapter 8: Other connections

• Before making or changing the connections, switch off the power and disconnect the power cord from the AC outlet.
• If the AUXIN mini-plug jack is connected to auxiliary phones jack, this unit's volume will be changed by the playback component's volume. If the sound is distorted after you lower this unit's volume, try lowering the auxiliary playback component's volume.
• This unit can not transfer the external input's sound from the HDMI OUT terminal.

Connecting auxiliary components

Connect the rear panel AUX IN mini-plug jack to your auxiliary playback component.

• This method can be used to play music on this unit from iPod/iPhones that do not support use of an iPod Dock.

• Press FUNCTION to switch to AUX input mode.

When the AUX input is selected, In' is displayed on the front panel display.

Chapter 9: Changing the settings

The factory default settings are indicated in italic.

Note

• The following settings is available for a disc or USB storage device content. These are not available for iPod/iPhone, tuner, external input (AUX).
• In the USB mode, you can only change the Play Mode and Audio Settings on the HOME MENU screen.

Audio Settings parameters

Settings	What it does
Sound Retriever (High/Low/Off)	·The sound of a WMA or MP3 file is played with high sound quality. This is only valid for files with the extension“.wma” or“.mp3”. ·The effect depends on the file. Try different settings, and choose the one providing the good effect.
Equalizer (Off/Rock/Pop/Live/ Dance/ Techno/ Classic/Soft)	Select according to the genre of music to be listened to.
Audio DRC (High/Medium/Low/ Off)	·This makes loud sounds weaker and weak sounds louder. Change the setting for example when watching movies late at night. ·This setting only affects Dolby Digital sound. ·The effect depends on the volume of the connected TV, AV receiver or amplifier, speakers, etc. Try different settings, and choose the one providing the strongest effect.
Dialog (High/Medium/Low/ Off)	Change this setting if the sound of dialogs is low and the dialogs are hard to hear. This setting only affects multichannel sound.

About Sound Retriever function

When audio data is removed during the compression process, sound quality often degrades. The Sound Retriever function automatically enhances compressed audio and restores CD quality sound.

Note

• The following settings is available for a disc or USB storage device content. These are not available for iPod/iPhone, tuner, external input (AUX).
• In the USB mode, you can only change the Play Mode and Audio Settings on the HOME MENU screen.

Video Adjust parameters

Settings	What it does
Sharpness (Fine/Standard/Soft)	Adjusts the picture's sharpness.
Brightness (-20 to +20)	Adjusts the picture's brightness.
Contrast (-16 to +16)	Adjusts the ratio of the brightness of the brightest and darkest portions of the picture.
Gamma (-3 to +3)	Adjusts the look of the dark portions of the picture.
Hue (green 9 to red 9)	Adjusts the balance between green and red.
Chroma Level (-9 to +9)	Adjusts the density of the colors. This setting is effective for sources with many colors, such as cartoons.

Brightness, Contrast, Gamma, Hue and Chroma Level are set to 0 upon purchase.

Note

• The following settings is available for a disc or USB storage device content. These are not available for iPod/iPhone, tuner, external input (AUX).
• In the USB mode, you can only change the Play Mode and Audio Settings on the HOME MENU screen.

Initial Settings parameters

• This unit's detailed settings can be changed here.
• Initial Settings cannot be selected during playback. Stop the disc first.

Digital Audio Out settings

Settings	What it does
HDMI Out	Select the audio signals to be output from the HDMI OUT terminal (LPCM (2CH)/Auto/Off) according to the connected HDMI-compatible device.

Video Output settings

Settings	What it does
TV Screen	Change the picture's display format (4:3 (Letter Box)/4:3 (Pan & Scan)/16:9 (Wide)/16:9 (Compressed)), according to the connected TV.
HDMI Resolution	Change the resolution of the video signals output from the HDMI OUT terminals (720x480i/720x576i/ 720x480p/720x576p/1280x720p/ 1920x1080i/1920x1080p). If the image does not appear correctly after changing the setting, return the setting to " 720x480p/720x576p." Refer to Setting the HDMI Resolution settings back to their defaults on page 27.
HDMI Color	Change the video signals output from the HDMI OUT terminal (Full range RGB/RGB/Component).

Language settings

Settings	What it does
Audio Language	Change the language when listening to the sound of DVD-Video discs (English/available languages/Other Language).
Subtitle Language	Change the language of the subtitles displayed for DVD-Video discs (English/available languages/Other Language).
DVD Menu Lang.	Change the language used for the menu displays of DVD-Video discs (w/ Subtitle Lang./available languages/Other Language).
Subtitle Display	Select whether to display subtitles (On) or not (Off).

• If the above setting is used to select "Other Language," perform operations while referring to Language Code Table on page 39.

Note

• The following settings is available for a disc or USB storage device content. These are not available for iPod/iPhone, tuner, external input (AUX).
• In the USB mode, you can only change the Play Mode and Audio Settings on the HOME MENU screen.

Display settings

Settings	What it does
OSD Language	Change the language of the operation messages (Play, Stop, etc.) displayed on the TV screen (English/available languages).
Angle Indicator	Select whether to display the angle mark on the TV screen (On) or not (Off).
On Screen Display	Select whether to display operation messages (Play, Stop, etc.) on the TV screen (On) or not (Off).

Options settings

Settings	What it does
Parental Lock	Restrict DVD-Video viewing (Password/Level Change/Country Code). See Country/Area Code Table on page 39 in order to set the “Country Code.”
DivX VOD	Display the registration code required for playing DivX VOD files (Activate/Deactivate).

Setting the HDMI Resolution settings back to their defaults

1 Press STANDBY/ON to turn this unit's power off.
2 Press STANDBY/ON while pressing VOLUME -.

Use the buttons on this unit's top panel. The power turns on.

Restoring all the settings to the defaults

Note

• The preceding settings is restore to the default.

1 Press STANDBY/ON to turn this unit's power off.
2 Press STANDBY/ON while pressing STOP.

8:88:88' is displayed during restoring all the settings.

Chapter 10: Sound settings

Using the Virtual Surround

You can add exciting effects to audio sources.

• Default setting: ON

1 Press SHIFT and SOUND to select 'SURROUND'.

2 Use / to select 'S 0 n' or 'S 0 F F'.

The newly set value displays for 5 seconds, and then the setting is completed.

50 -The Virtual Surround is set to on.
S OFF - The Virtual Surround is set to off.

Adjusting the bass and treble

Use the bass and treble controls to adjust the overall tone.

1 Press SHIFT and SOUND to select 'BASS' or 'TREBLE'.

2 Use / to adjust the bass or treble.

You can adjust low and high sounds on a scale of -5 to +5 (eleven steps).

$$ \begin{array}{l} \begin{array}{c c} \text {B S} & \text {S - B a s s + 5} \end{array} \ b 5 - 5 - B a s s - 5 \ \begin{array}{c c} \text {t b} & \text {S - T r e b l e + 5} \end{array} \ \text {t b} - 5 - \text {T r e b l e} - 5 \ \end{array} $$

The newly set value displays for 5 seconds, and then the setting is completed.

Chapter 11:

Using the timer

Setting the clock

Setting the clock allows you to use the timer.

• Default setting: -----

1 With the power turned ON, press

① TIMER/CLOCK.

The current time is displayed on the front panel display.

2 Press TIMER/CLOCK again.

' R du:CL ' is displayed on the front panel display.

3 Press ENTER.

The hour blinks on the front panel display.

• When the clock is not set, --- = --- is displayed on the front panel display.

4 Use / to set the hour, then press ENTER.

The minute blinks on the front panel display.

5 Use / to set the minute, then press ENTER.

The newly set value displays for 5 seconds, and then the setting is completed.

Setting the wake-up timer

1 With the power turned ON, press ⑦ TIMER/CLOCK.

The current time is displayed on the front panel display.

2 Press TIMER/CLOCK twice.

S E E: R L is displayed on the front panel display.

3 Press ENTER.

The hour blinks on the front panel display.

• When the wake-up timer is not set, 'R -- --' is displayed on the front panel display.

4 Use / to set the hour, then press ENTER.

The minute blinks on the front panel display.

5 Use / to set the minute, then press ENTER.

Turning the wake-up timer on/off

1 With the power turned ON, press ⑦ TIMER/CLOCK.

The current time is displayed on the front panel display.

2 Press TIMER/CLOCK three times.

The newly set value displays for 5 seconds on the front panel.

3 Press ENTER to select 'AL On' or 'ALOFF'.

The newly set value displays for 5 seconds, and then the setting is completed.

RL On - The wake-up timer is set to on.

ALOFF - The wake-up timer is set to off.

Using the wake-up timer

1 Set the wake-up timer to on, and connect iPod/iPhone or USB storage device or slot a disc.
2 Press FUNCTION to select the input function that this unit plays when the wakeup timer works.
3 Press STANDBY/ON to turn the power off.
4 At the wake-up time, this unit will be turned on automatically, and this unit will play on the selected input function.

If this unit is not operated for 60 minutes or more after playback is started by the wake-up timer, power will automatically turn OFF (standby mode).

Note

• If at the wake-up time iPod/iPhone or USB storage device is not connected to this unit or a disc is not slotted, this unit will be turned to on and not play back the track.
  Some discs may not be played automatically at the wake-up time.

Using the sleep timer

The sleep timer switches off the unit after a specified time so you can fall asleep without worrying about it.

- Press SLEEP repeatedly to select a switch off time.

The newly set value displays for 3 seconds, and then the setting is completed.

• If you press SLEEP while the sleep timer is set, the remaining time will be displayed.1

Chapter 12:

Playable discs and files on discs or USB storage devices

Playable discs

DVD-Video	• Commercially available DVD-Video discs • DVD-R/ -RW/ -R DL and DVD+R/ +RW/ +R DL discs recorded in the Video mode
DVD VR	DVD-R/ -RW/ -R DL discs recorded in the VR mode
Video CD	Video CDs
CD(R/RW)	• Commercially available audio CDs • CD-R/ -RW/ -ROM discs containing music recorded in the CD-DA format
JPEG	JPEG files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB devices
DivX®	DivX video files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB devices
WMA	WMA files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB devices
MP3	MP3 files recorded on DVD-R/ -RW/ -R DL discs, CD-R/ -RW/ -ROM discs or USB devices
Fujicolor CD
KODAK Picture CD

• Unfinalized discs are not compatible with this unit.
• Discs recorded in packet write mode (UDF format) are not compatible with this unit.
• Adapters for 8 cm CDs cannot be used when you play a 8 cm CD/DVD.
  DVD is a trademark of DVD Format/Logo Licensing Corporation.
  is a trademark of FUJIFILM Corporation.

Note

• For detailed instructions on files that iPod/iPhone can play, refer to the manual supplied with the iPod/iPhone.
• This unit does not support multisession discs or multiborder recording.
• Multisession/ multiborder recording is a method in which data is recorded on a single disc in two or more sessions/borders. A "session" or "border" is one recording unit, consisting of a complete set of data from lead-in to lead-out.

Discs that cannot be played

DVD-Audio discs
DVD-RAM discs
SACDs
CD-G
- Blu-ray discs
HD DVDs
- Discs that have not been finalized
- Discs recorded with packet writing

About region numbers

DVD-Video: 2

(For Russian model: 5)

DVDs: 2 (including 2) and ALL

(For Russian model: 5 (including 5) and ALL)

DVD player and DVD-Video discs are assigned region numbers according to the region in which they are sold.
- Discs not including these numbers cannot be played.
- Discs playable on this unit are as shown below.

Regarding copy protected CDs

This unit is designed to conform to the specifications of the audio CD format. This unit does not support the playback or function of discs that do not conform to these specifications.

About playing DualDiscs

A DualDisc is a new two-sided disc, one side of which contains DVD content - video, audio, etc. - while the other side contains non-DVD content such as digital audio material.

• The DVD side of a DualDisc can be played on this unit (excluding any DVD-Audio content).

• The non-DVD, audio side of the disc is not compatible with this unit.

• It is possible that when loading or ejecting a DualDisc, the opposite side to that being played will be scratched. Scratched discs may not be playable.

• For more detailed information on the DualDisc specification, please refer to the disc manufacturer or disc retailer.

Playing discs created on computers or BD/DVD recorders

• It may not be possible to play discs recorded using a computer due to the application settings or computer's environment settings. Record discs in a format playable on this unit. For details, contact the dealer.
• It may not be possible to play discs recorded using a computer or a BD/DVD recorder, if burn quality is not good due to characteristics of the disc, scratches, dirt on the disc, dirt on the recorder's lens, etc.

Playable files

• Only discs recorded in ISO9660 Level 1, Level 2 and Joliet can be played.
• Files protected by DRM (Digital Rights Management) cannot be played.
• Files other than the ones below (WMV, MPEG4-AAC, etc.) are not guaranteed to play.

Supported video file formats

DivX

• DivX is a media technology created by DivX, Inc. DivX media files contain image data.

• DivX files may also include such advanced playback functions as menu screens and selection of multiple subtitle languages/ audio tracks.

• Plays DivX® video, including premium content
  DivX® is a registered trademark of DivX, Inc., and is used under license.

File extensions:.avi and .divx (these must be used for this unit to recognize DivX video files). Note that all files with the .avi extension are recognized as MPEG4, but not all of these are necessarily DivX video files and therefore may not be playable on this unit.

• Files not containing DivX video signals cannot be played, even if they have the extension“.avi”.

Displaying external subtitle files

• The font sets listed below are available for external subtitle files. You can see the proper font set on-screen by setting the Subtitle Language on page 26 to match the subtitle file.
• This unit supports the following language groups:

Group 1 Afrikaans (af), Basque (eu), Catalan (ca), Danish (da), Dutch (nl), English (en), Faroese (fo), Finnish (fi), French (fr), German (de), Icelandic (is), Irish (ga), Italian (it), Norwegian (no), Portuguese (pt), Rhaeto-Romantic (rm), Scottish (gd), Spanish (es), Swedish (sv)

Group 2 Albanian (sq), Croatian (hr), Czech (cs), Hungarian (hu), Polish (pl), Romanian (ro), Slovak (sk), Slovenian (sl)

Group 3 Bulgarian (bg), Byelorussian (be), Macedonian (mk), Russian (ru), Serbian (sr), Ukrainian (uk)

Group 4 Hebrew (iw), Yiddish (ji)

Group 5 Turkish (tr)

• Some external subtitle files may be displayed incorrectly or not at all.
• For external subtitle files the following subtitle format filename extensions are supported (please note that these files are not shown within the disc navigation menu): .srt, .sub, .ssa, .smi
• The filename of the movie file has to be repeated at the beginning of the filename for the external subtitle file.
• The number of external subtitle files which can be switched for the same movie file is limited to a maximum of 10.

Supported image file formats

JPEG

Resolution: Up to 3072 x 2048 pixels

File extensions: .jpg and .JPG (must be used for this unit to recognize JPEG files - do not use for other file types)

• This unit supports baseline JPEG.
• This unit supports Exif Ver.2.2.
• This unit does not support progressive JPEG.

Supported audio file formats

• This unit does not support VBR (Variable Bit Rate).
• This unit does not support lossless encoding.

Windows Media™ Audio (WMA)

Sampling frequencies: 32 kHz, 44.1 kHz and 48 kHz

Bit rate: Up to 192 kbps

File extensions: .wma and .WMA

• This unit supports files encoded using Windows Media Player Ver. 7/ 7.1, Windows Media Player for Windows XP and Windows Media Player 9 Series.
• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
• This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from Microsoft Licensing, Inc.

MPEG-1 Audio Layer 3 (MP3)

Sampling frequencies: 32 kHz, 44.1 kHz and 48 kHz

Bit rate: Any (128 kbps or higher recommended)

File extensions:.mp3 (these must be used for this unit to recognize MP3, WMA and MPEG-4 AAC files - do not use for other file types)

Chapter 13:

Additional information

Troubleshooting

Incorrect operations are often mistaken for trouble and malfunctions. If you think that there is something wrong with this component, check the points below. Sometimes the trouble may lie in another component. Investigate the other components and electrical appliances being used. If the trouble cannot be rectified even after exercising the checks listed below, ask your nearest Pioneer authorized service center or your dealer to carry out repair work.

• If the unit does not operate normally due to external effects such as static electricity disconnect the power plug from the outlet and insert again to return to normal operating conditions.

General problem

Problem	Check	Remedy
Settings you have made have been cleared.	Was the power cord unplugged forcibly while this unit's power was on?	Be sure to press ∅ STANDBY/ON on this unit's front panel or press ∅ STANDBY/ON on the remote control and wait for the OFF indicator on the front panel display to turn off before unplugging the power cord.
Difference in volume between DVDs, CDs, MP3, WMA, iPod/iPhone and Tuner.	This is not a problem with this unit.	The volume may sound differently depending on the input source and recording format.
This unit cannot be operated with the remote control.	Are you operating from far away?	Operate from within a distance of Operate within 7 m, 30° of the remote sensor on the front panel (refer to page 7).
	Is the remote control sensor exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.?	The remote control signals may not be received properly if the remote control sensor is exposed to direct sunlight or strong artificial light from a fluorescent bulb, etc.
	Are the batteries dead?	Replace the batteries (page 6).
Disc cannot be played or disc is ejected automatically.	Is the disc scratched?	Scratched discs may not play.
	Is the disc dirty?	Wipe the dirt off the disc (page 42).
	Is the disc properly slotted?	Slot a disc with the label side facing front.
	Does the disc have the right region number?	Disks with the region number "2 (including 2)" and "ALL" can be played on this unit. Russian model can play with the region number is "5 (including 5)" and "ALL".
	Is this unit placed in a humid location?	There could be condensation inside. Wait a while for the condensation to evaporate. Do not place this unit near an air-conditioner, etc. (page 41).
Picture is stretched, or aspect ratio cannot be switched.	Is the aspect ratio properly set on the connected TV?	Refer to the TV's operating instructions and set the TV's aspect ratio properly.
	Is TV Screen properly set?	Set TV Screen properly (page 26). This setting is available for a disc or USB storage device content. For movies and images stored in iPod/iPhone, operate your iPod/iPhone.
During playback, picture is disturbed or dark.	This is not a problem with this unit.	This unit supports Rovi copy protection. With some TVs, the picture may not display properly when playing discs including copy prevention signals. This is not a malfunction.
	Are this unit and TV connected via a video deck?	When this unit and TV are connected via a video deck, this unit's analog copy protect function may cause the picture being played on the video deck not to display properly. Connect this unit and TV directly.
	Is the TV system properly set?	The factory default setting is AUTO. If the picture is distorted, switch the TV system to the one used in your country or region (NTSC or PAL) (page 40).
Folder or file names are not recognized.	Have you exceeded the maximum number of folder or file names this unit can recognize?	Up to 299 folders can be recognized on one disc. Up to 648 files can be recognized within one folder. Depending on the folder structure, however, this unit may not be able to recognized certain folders or files.
Time is required to play JPEG files.	Are you playing large files?	Some time may be required to display large files.
Black bars are displayed when playing JPEG files.	Are you playing files with different aspect ratios?	Black bars may be displayed along the top and bottom or sides when JPEG files with different aspect ratios are played.

When a USB device is connected

Problem	Check	Remedy
USB device is not recognized.	Is the USB device properly connected?	Connect the device securely (all the way in).
	Is the USB device connected via a USB hub?	This unit does not support USB hubs. Connect the USB device directly.
		This unit only supports USB mass storage class devices.
		This unit supports portable flash memory and digital audio playback devices.
		Only the FAT16 and FAT32 file systems are supported. Other file systems (ex. FAT, NTFS, etc.) are not supported.
	This is not a problem with this unit.	Turn the power off then back on.
		Some USB devices may not be recognized properly.
File cannot be played.	Is the file copyright-protected (by DRM)?	Copyright-protected files cannot be played.
	This is not a problem with this unit.	Files stored on a computer cannot be played.
		It may not be possible to play some files.
Folder or file names are not displayed or are not properly displayed.	Do the folder of file names contain more than 14 characters?	The maximum number of characters displayable for the folder and file names on the Disc Navigator is 14.
Folder or file names are not displayed in alphabetical order.	This is not a problem with this unit.	The order of the folder and file names displayed on the Disc Navigator depends on the order in which the folders or files were recorded on the USB device.
Much time is required to recognized the USB device.	What is the USB devices capacity?	Some time may be required to load the data when large capacity USB devices are connected (this could take several minutes).
Power is not supplied to the USB device.	Is Err displayed on the front panel display? No power is supplied if the power consumption is too high.	Turn the power off then back on.
		Turn the power off, then disconnect and reconnect the USB device.
		Press FUNCTION to switch to the other mode, then switch again to the USB mode. (When the input is switched back to USB, 'USB' is displayed on the front panel display.)
		If the USB device is equipped with an AC adapter, use the USB device with the AC adapter connected.
Audio CD tracks cannot be recorded on a USB device.	Is there enough free space on the USB device?	Recording is not possible if there is not enough free space left on the USB device. In this case, Available USB space is low is displayed.
	Are there 300 or more folders on the USB device?	Recording is not possible if the USB device contains 300 or more folders.
	Are there already 99 PIONEER folders on the USB device?	Recording is not possible if there are already 99 PIONEER folders on the USB device.

When connected to an HDMI-compatible device

Problem	Check	Remedy
Picture is not displayed.	Is the resolution properly set?	Set HDMI Resolution properly for the connected device (page 26).
		Restore HDMI Resolution to the default setting (720x480p/720x576p) (page 27).
	Is the HDMI cable properly connected?	Connect the cable securely (all the way in).
		With some cables, 1080p video signals will not be output.
Sound is not produced or is distorted.	Is HDMI Out properly set?	Set HDMI Out to LPCM (2CH) or Auto (page 26).
Multichannel audio signals are not output.	Is HDMI Out properly set?	Set HDMI Out to Auto (page 26).
Colors are not properly displayed on TV screen.	Is HDMI Color properly set?	Change the HDMI Color setting (page 26).

When an iPod/iPhone is connected

Problem	Remedy
Can't operate the iPod/ iPhone by the remote control.	Make sure the iPod/iPhone is connected correctly (refer to Connecting your iPod/iPhone on page 16).
Can't operate the iPod/ iPhone.	Make sure the iPod/iPhone is connected correctly (refer to Connecting your iPod/iPhone on page 16).If the iPod/iPhone is experiencing a hangup, try resetting the iPod/iPhone, and reconnect it to the unit.

Language Code Table and Country/Area Code Table

Language Code Table

Language names (codes) and input codes:

Japanese (ja), 1001

English (en), 0514

French (fr), 0618

German (de), 0405

Italian (it), 0920

Spanish (es), 0519

Chinese (zh), 2608

Dutch (nl), 1412

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (lo), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto,Pushto (ps),1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

Country/Area Code Table

Country/Area name, Input codes and Country/ Area code

United States, 2119, us

Argentina, 0118, ar

United Kingdom, 0702, gb

Italy, 0920, it

India, 0914, in

Indonesia, 0904, id

Australia, 0121, au

Austria, 0120, at

Netherlands, 1412, nl

Canada, 0301, ca

Korea, Republic of, 1118, kr

Singapore, 1907, sg

Switzerland, 0308, ch

Sweden, 1905, se

Spain, 0519, es

Thailand, 2008, th

Taiwan, 2023, tw

China, 0314, cn

Chile, 0312, cl

Denmark, 0411, dk

Germany, 0405, de

Japan, 1016.jp

New Zealand, 1426, nz

Norway, 1415, no

Pakistan, 1611, pk

Philippines, 1608, ph

Finland, 0609, fi

Mexico, 1324, mx

Russian Federation, 1821, ru

Brazil, 0218, br

France, 0618, fr

Belgium, 0205, be

Portugal, 1620, pt

Hong Kong, 0811, hk

Malaysia, 1325, my

Setting the TV system

• This setting is available for a disc or USB storage device content. For iPod/iPhone's TV out setting, operate your iPod/iPhone.
• If the picture of the disc being played is distorted, switch the TV system to the one used in your country or region.
• When the TV system is switched, the types of discs that can be played are limited.
• The factory default setting is AUTO.

1 Press STANDBY/ON to turn the unit's power off.

2 Press STANDBY/ON while pressing VOLUME+.

Use the buttons on the unit's top panel.

The power turns on and the TV system switches as shown below.

• AUTO NTSC
• NTSC PAL
• PAL AUTO

Types of discs/files	Format	Playing setting
		NTSC	PAL	AUTO
DVD-Video	NTSC	NTSC	PAL	NTSC
DVD VR	PAL	NTSC	PAL	PAL
Video CD
DivX®
CD(R/RW)	—	NTSC	PAL	NTSC or PAL
WMA
MP3
JPEG no disc

Cautions on use

When moving this unit

When moving this unit, check first that there is no disc loaded and disconnect the iPod/ iPhone. Then press STANDBY/ON on this unit (or STANDBY/ON on the remote control), wait for the OFF indicator on the front panel display to turn off, then unplug the power cord. Damage may occur if the unit is transported or moved with a disc inserted, or when another device is connected to the iPod/ iPhone connector port, USB terminal, or AUX IN mini-plug jack.

Place of installation

• Choose a stable place near the TV or stereo system being used with this unit.
• Do not place this unit on top of a TV or color monitor. Also install it away from cassette decks and other devices easily affected by magnetic forces.

Avoid the following types of places:

• Places exposed to direct sunlight
• Humid or poorly ventilated places
• Extremely hot places
• Places exposed to vibrations
• Places in which there is much dust or cigarette smoke
• Places exposed to soot, steam or heat (kitchen, etc.)

Do not place objects on this unit.

Do not place any objects on top of this unit.

Do not obstruct the ventilation holes.

Do not use this unit on shaggy rugs, beds, sofas, etc., or wrapped in cloth, etc. Doing so will prevent the heat from dispersing, leading to damage.

Do not expose to heat.

Do not place this unit on top of an amplifier or other component that generates heat. When placing it in a rack, to avoid the heat given off by the amplifier or other audio component, place it on a shelf below the amplifier.

• Turn off the unit's power when not using it.
• Depending on signal conditions, striped patterns may appear on a TV screen and noise may enter the sound of radio broadcasts when the unit's power is on. If this happens, turn the unit's power off.

About condensation

If this unit is moved suddenly from a cold place into a warm room (in winter, for example) or if the temperature in the room in which this unit is installed rises suddenly due to a heater, etc., water droplets (condensation) may form inside (on operating parts and the lens). When condensation is present, this unit will not operate properly and playback is not possible. Let this unit stand at room temperature for 1 or 2 hours with the power turned on (the time depends on the extent of condensation). The water droplets will dissipate and playback will become possible. Condensation can also occur in the summer if this unit is exposed to the direct wind from an air-conditioner. If this happens, move this unit to a different place.

Cleaning the product

• Unplug the power cord from the power outlet when cleaning this unit.
• Clean this unit using a soft cloth. For tough dirt, apply some neutral detergent diluted in 5 to 6 parts water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe again with a soft, dry cloth.

• Alcohol, thinner, benzene, insecticides, etc., could cause the print or paint to peel off. Also, leaving rubber or vinyl products in contact with this unit for long periods of time could mar the cabinet.

• When using chemical-impregnated wipes, etc., read the cautions included with the wipes carefully.

Cleaning the lens

• This unit's lens should not become dirty in normal use, but if for some reason it should malfunction due to dust or dirt, consult your nearest Pioneer authorized service center. Although lens cleaners for players are commercially available, we advise against using them since some may damage the lens.

About copyrights

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Rovi Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Rovi Corporation. Reverse engineering or disassembly is prohibited.

Handling discs

Storing

• Always place discs in their cases and store them vertically, avoiding hot, humid places, places exposed to direct sunlight and extremely cold places.
• Be sure to read the cautions included with the disc.

Cleaning discs

• Discs may not play if there are fingerprints or dust on them. In this case, use a cleaning cloth, etc., to gently wipe the disc from the inside towards the outside. Do not use dirty cleaning cloths.

• Do not use benzene, thinner or other volatile chemicals. Also do not use record spray or antistatic agents.
• For tough dirt, apply some water to a soft cloth, wring out thoroughly, wipe off the dirt, then wipe off the moisture with a dry cloth.
• Do not use damaged (cracked or warped) discs.
• Do not let the signal surface of discs get scratched or dirty.
• Do not attach pieces of paper or stickers to discs. Doing so could warp discs, making it impossible to play them. Also note that rental discs often have labels attached to

them, and the label's glue may have oozed out. Check that there is no glue around the edges of such labels before using rented discs.

About specially shaped discs

Specially shaped discs (heart-shaped, hexagonal, etc.) cannot be played on this unit. Do not attempt to play such discs, as they could damage this unit.

About iPod/iPhone

Made for iPod

Works with iPhone

"Made for iPod" means that an electronic accessory has been designed to connect specifically to iPod and has been certified by the developer to meet Apple performance standards.

"Works with iPhone" means that an electronic accessory has been designed to connect specifically to iPhone and has been certified by the developer to meet Apple performance standards.

Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards.

iPod is a trademark of Apple Inc., registered in the U.S. and other countries. iPhone is a trademark of Apple Inc.

Specifications

- Amplifier section

RMS Power Output:

Front Left/Right. 10 W + 10 W

(1 kHz, 10%, T.H.D., 8 Ω)

Speaker section

Enclosure Passive radiator System 1-way system

Speakers:

Fullrange 6.6 cm cone

Passive radiator 7.7 cm cone

Frequency range. 60 Hz to 20 kHz

Miscellaneous

iPod 5V,500mA

USB 5V,500mA

Power requirements

AC 220 V to 240 V, 50 Hz/60 Hz

Power consumption. 20 W

In standby. 0.5 W

Dimensions

370 mm (W) x 175 mm (D) x 216 mm (H)

Weight (without package) 3.5 kg

- Accessories

Remote control 1

AA batteries (R6) 2

Power cord 1

Audio/Video cable. 1

FM wire antenna. 1

Warranty card. 1

Operating instructions (This document)

Note

• Specifications and the design are subject to possible modifications without notice, due to improvements.

Published by Pioneer Corporation.

Copyright © 2010 Pioneer Corporation.

All rights reserved.

IMPORTANT

Disc Navigator: Title 01:49

18 RETURN

La lecture commence.

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (lo), 1215

Lithuanian (lt), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto,Pushto (ps),1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

(1 kHz, 10%, T.H.D., 8 Ω)

Section Enceintes

Publication de Pioneer Corporation.

© 2010 Pioneer Corporation.

Disc Navigator: Title 01:49

18 RETURN

Portuguese (pt), 1620

Swedish (sv), 1922

Russian (ru), 1821

Korean (ko), 1115

Greek (el), 0512

Afar (aa), 0101

Abkhazian (ab), 0102

Hungarian (hu), 0821

Armenian (hy), 0825

Interlingua (ia), 0901

Interlingue (ie), 0905

Inupiak (ik), 0911

Indonesian (in), 0914

Icelandic (is), 0919

Hebrew (iw), 0923

Yiddish (ji), 1009

Javanese (jw), 1023

Georgian (ka), 1101

Kazakh (kk), 1111

Greenlandic (kl), 1112

Cambodian (km), 1113

Kannada (kn), 1114

Kashmiri (ks), 1119

Kurdish (ku), 1121

Kirghiz (ky), 1125

Latin (la), 1201

Lingala (In), 1214

Laothian (lo), 1215

Lithuanian (It), 1220

Latvian (lv), 1222

Malagasy (mg), 1307

Maori (mi), 1309

Macedonian (mk), 1311

Malayalam (ml), 1312

Mongolian (mn), 1314

Moldavian (mo), 1315

Marathi (mr), 1318

Malay (ms), 1319

Maltese (mt), 1320

Burmese (my), 1325

Nauru (na), 1401

Nepali (ne), 1405

Norwegian (no), 1415

Occitan (oc), 1503

Oromo (om), 1513

Oriya (or), 1518

Panjabi (pa), 1601

Polish (pl), 1612

Pashto,Pushto (ps),1619

Quechua (qu), 1721

Rhaeto-Romance (rm), 1813

Kirundi (rn), 1814

Romanian (ro), 1815

Kinyarwanda (rw), 1823

Sanskrit (sa), 1901

Sindhi (sd), 1904

Sangho (sg), 1907

Serbo-Croatian (sh), 1908

Sinhalese (si), 1909

Slovak (sk), 1911

Slovenian (sl), 1912

Samoan (sm), 1913

Shona (sn), 1914

Somali (so), 1915

Albanian (sq), 1917

Serbian (sr), 1918

Siswati (ss), 1919

Sesotho (st), 1920

Vietnamese (vi), 2209

Volapuk (vo), 2215

Wolof (wo), 2315

Xhosa (xh), 2408

Yoruba (yo), 2515

Zulu (zu), 2621

(1 kHz, 10%, T.H.D., 8 Ω)

Copyright © 2010 Pioneer Corporation.

Published by Pioneer Corporation.

Copyright © 2010 Pioneer Corporation.

All rights reserved.

Publication de Pioneer Corporation.

© 2010 Pioneer Corporation.

PIONEER ELECTRONICS (USA) INC.

P.O. BOX 1540, Long Beach, California 90801-1540, U.S.A. TEL: [phone]

PIONEER ELECTRONICS OF CANADA, INC.

300 Allstate Parkway, Markham, Ontario L3R 0P2, Canada TEL: [phone]

PIONEER EUROPE NV

Haven 1087, Keetberglaan 1, B-9120 Melsele, Belgium TEL: [phone]

PIONEER ELECTRONICS ASIACENTRE PTE. LTD.

253 Alexandra Road, #04-01, Singapore 159936 TEL: [phone]

PIONEER ELECTRONICS AUSTRALIA PTY. LTD.

178-184 Boundary Road, Braeside, Victoria 3195, Australia, TEL: [phone]

PIONEER ELECTRONICS DE MEXICO S.A. DE C.V.

Blvd.Manuel Avila Camacho 138 10 piso Col.Lomas de Chapultepec, Mexico, D.F. 11000 TEL: [phone]

K002_B1_En
