HD-V9000 - Media player PIONEER - Free user manual and instructions

Product type	Professional media player
Brand	Pioneer
Model	HD-V9000
Dimensions (W x H x D)	430 x 88 x 360 mm
Weight	5.5 kg
Power supply	100-240 V AC, 50/60 Hz
Power consumption	35 W (max)
Playback formats	Video files (MPEG-2, H.264), audio (MP3, AAC), images (JPEG)
Video outputs	HDMI, Composite, Component
Audio outputs	Analog stereo, digital coaxial and optical
Inputs	USB (host), SDHC
Network	Ethernet 10/100/1000 Base-T
Main functions	Media content playback, firmware update via SDHC/USB/LAN, control via HD PILOT
Maintenance and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Do not disconnect the device during a firmware update. Use an easily accessible power outlet.
Spare parts and repairability	SDHC card recommended for updates. Contact an authorized service center for repairs.
General information	Network use via HD PILOT, remote update possible. Compatible with control systems.

Frequently Asked Questions - HD-V9000 PIONEER

How to update the firmware of the Pioneer HD-V9000?

To update the firmware, download the file n-firmware_vX_XX.tar.gz. Copy it to an SDHC card (in the 'system' folder) or a USB drive (at the root). Insert the media while the device is in standby, then turn it on. The update starts automatically. Do not disconnect the device during the process.

How to check the installed firmware version?

Press and hold the Display button on the device: the version appears on the first line of the LCD screen. You can also go to the Set-up menu > Player Property.

What to do if the firmware update fails?

If the screen displays FAILURE, press the STANDBY button to turn off the device. Check that the SDHC card or USB drive is not write-protected and try again. If the problem persists, contact technical support.

Which storage media are compatible for the update?

An SDHC memory card (at least 40 MB free) or a USB drive formatted in FAT32. The SDHC card must contain a 'system' folder with the firmware file. The USB drive must have the file at the root.

Can I update the firmware via the network?

Yes, via the HD PILOT software. Connect the device to the network, then in HD PILOT, go to Tasks > Firmware Update Players. Select the firmware file and click Send then RemoteUpdate. Do not cut power during the operation.

How long does a firmware update take?

Approximately ten minutes. The LCD screen displays 'UPDATE SD XX.XX' or 'UPDATE USB XX.XX'. Do not press any buttons during this time.

What to do if the LCD screen remains off during the update?

This is normal. The LCD backlight turns off automatically during the update and does not turn back on even if you press buttons. Wait for the process to finish.

Is the Pioneer HD-V9000 compatible with modern video codecs?

This player supports MPEG-2 and H.264 formats. For other codecs like H.265, check the technical specifications or perform a firmware update.

How to clean the Pioneer HD-V9000?

Use a soft, dry cloth. Never use cleaning products, solvents, or damp cloths. Avoid scratching the surface.

Where to find spare parts for the HD-V9000?

Contact an authorized Pioneer service center. SDHC cards are recommended for updates. For other parts, contact the manufacturer.

USER MANUAL HD-V9000 PIONEER

Firmware Update Procedure for HD-V9000

Notes

• Do not disconnect the power cord during firmware update.
  This may cause a problem.
• Do not perform other operations during firmware update.

Firmware Update Startup (SDHC card / USB memory)

Updating will begin when firmware stored on a SDHC card or USB memory is detected.

1. Copy new firmware (n-firmware_vX_XX.tar.gz) to a SDHC card or USB memory and put it in the player.

SDHC card: Copy in [system] folder

USB memory: Copy in root directory

Notes

• Do not use any application while downloading the file.
• The file extension should be“.gz”.

2. HD-V9000 must be in standby (power-off) mode when the SDHC card or USB memory is inserted.

3. Turn on the player.

If firmware is stored on a SDHC card or USB memory that is recognized by the player, the firmware update will automatically begin.

During the update, the LCD front panel display on the player shows "UPDATE SD XX.XX" or "UPDATE USB XX.XX."

Firmware version is displayed as "XX.XX."

The firmware update will be completed in approx. ten minutes..

The LCD back light is automatically turned off during the update process. The LCD back light will not light up again even if the keys are pressed.

Note:

Firmware cannot be updated if the SDHC card or USB memory is write-protected (locked).

4. Check the firmware update results.

When the firmware update has been successfully completed, "SUCCEED" is displayed on the LCD front panel of the player.

After a few seconds, the player will automatically restart. After the player restarts, the player has been successfully updated.

If updating is interrupted or failed, "FAILURE" is displayed on the LCD front panel of the player. When you press the STANDBY key, the player turns Off (Standby).

5. Check the Firmware Version

You can check the firmware version by either of the following methods:

(1). Press and hold the Display key on the player. The version is displayed on the first line of the LCD front panel.
(2). Go to the [Set-up Menu], select., [Player Property] option which shows the player's "Firmware Version."

HD PILOT Updating (LAN)

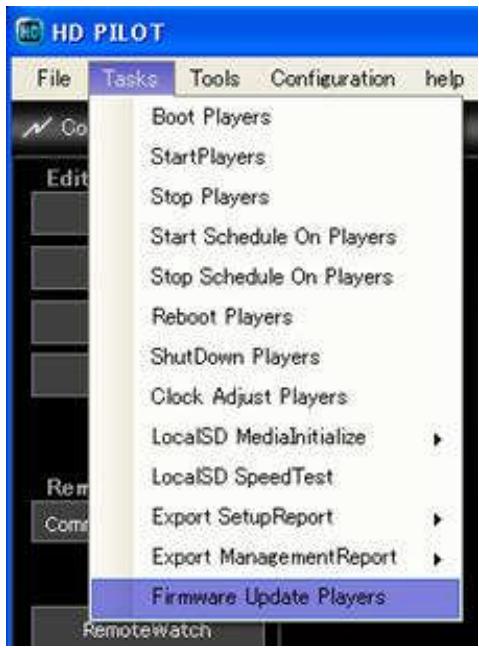

When HD PILOT is single or group connected via the network, [Firmware Update Players] on the [Tasks] menu is active.

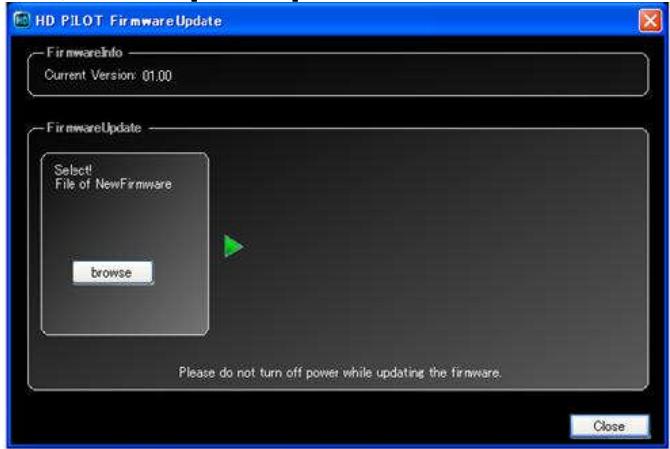

Click this to open the [Firmware Update] screen.

This can be used to upload new firmware to the HD-V9000.

First, click the [browse] button to select firmware file.

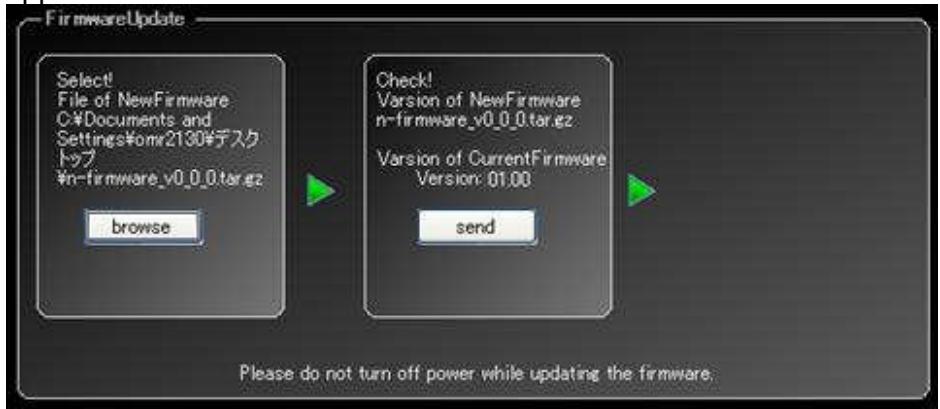

When selected, the screen shown below appears.

Check that new version of firmware has been selected and which version of firmware is currently applied on the HD-V9000.

If the information is correct, click [send] button to begin sending firmware file, then wait

NOTE: With group connections, the version currently applied on the first HD-V9000 in the group is displayed as the currently applied firmware version.

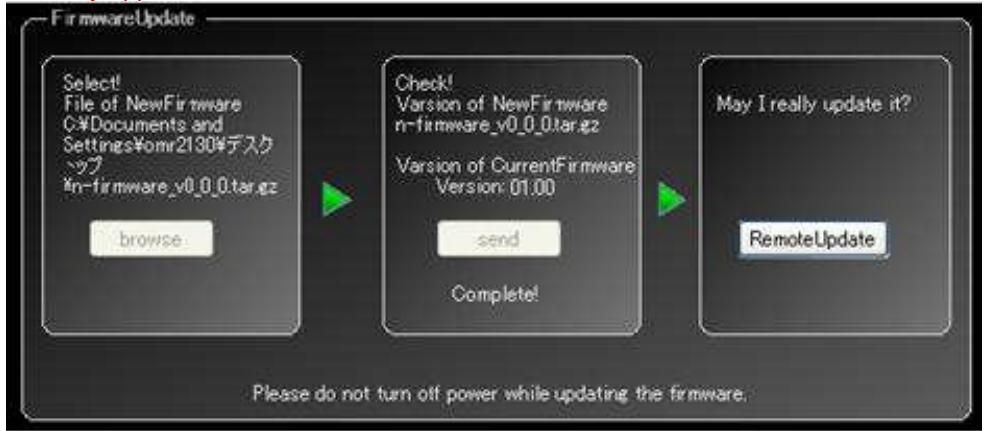

Once file has been received a screen like the one above appears.

Once you are ready, click [RemoteUpdate] button.

Application of firmware starts on the HD-V9000. Several minutes are required for firmware to be applied.

HD PILOT waits for application of firmware to be completed on the HD-V9000.

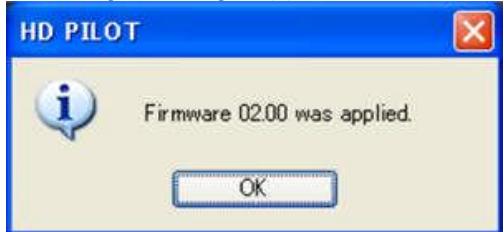

Once HD PILOT confirms that application of firmware has been successfully completed, the following message appears:

This version number is only an example.

Click [OK] button to close the [FirmwareUpdate] screen.

HD PILOT and the HD-V9000 are now connected, and the online functions of HD PILOT can be used.

NOTE: Do not turn off the HD-V9000's power during the process.

NOTE: Before executing, insert an SDHC card with at least 40 MB of free space into the HD-V9000.

NOTE: This function cannot be executed with serial connections.

NOTE: The screens shown above are from the development stage: the actual firmware file names and version indications will differ.

NOTE: With group connections, the selected firmware is applied to all HD-V9000s.
