Operating instructions

Mode d'emploi

Thank you for buying Pioneer's product.

Please read through the Operating Instructions to learn how to operate your model safely and properly.

Please be advised to keep the Operating Instructions in your place for future reference.

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

IMPORTANT NOTICE

Record the model number and serial number of this equipment below.

Model No. PDK-1015 Serial No.

Keep these numbers for future use.

Contents

Cautions 2

Checking the Standard Accessories 3

Assembling the Stand 3

Attaching the Plasma Display 4

Installing the Product on a TV table etc. 5

Preventing Equipment from Falling Over 6

Preparing the cables 7

Detaching the Plasma Display from the Stand .... 7

Specifications 8

Dimensions Diagram 8

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

Cautions

This product is a table top stand exclusively designed for Plasma Display (PRO-1540HD / PDP-607XD) from Pioneer. Use with other model is capable of resulting in instability causing possible injury. For further information, please contact the store where you purchased your display.

• Do not install or modify the product other than specified.
• Do not use this stand for a Plasma Display other than those designated and do not modify it or use it for other purposes.

Improper installation is extremely dangerous because it may result in it falling over or other accident.

Installation Location

• Select a location that is strong enough to support the weight of the stand and the displays.
• Make sure to place it in a level and stable location.
• Do not install it outdoors, at a hot spring, or near a beach.
• Do not install the stand where it may be subjected to vibration or shock.

Assembling and Installation

• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations.
  There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.
• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet.

Prevent accidents caused by the product falling over by taking reliable measures to prevent it from falling over (see Page 6).

Checking the Standard Accessories

Check to make sure that you have all the standard accessories before assembly and installation.

Note that a Phillips screwdriver (not included) is required for assembly.

- Base cover x 1

- Screws
(M5 x 10 mm: silver) x 6

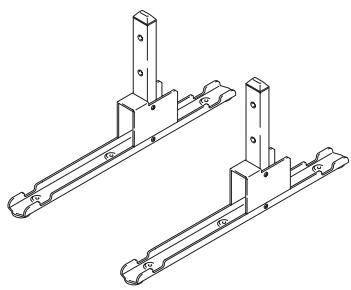

- Stand pipes
(left and right, interchangeable) × 2
- Installation bolts

(M6 x 20 mm: black) x 4

- Cable clamps × 2

- Operating instructions
(this document) x 1

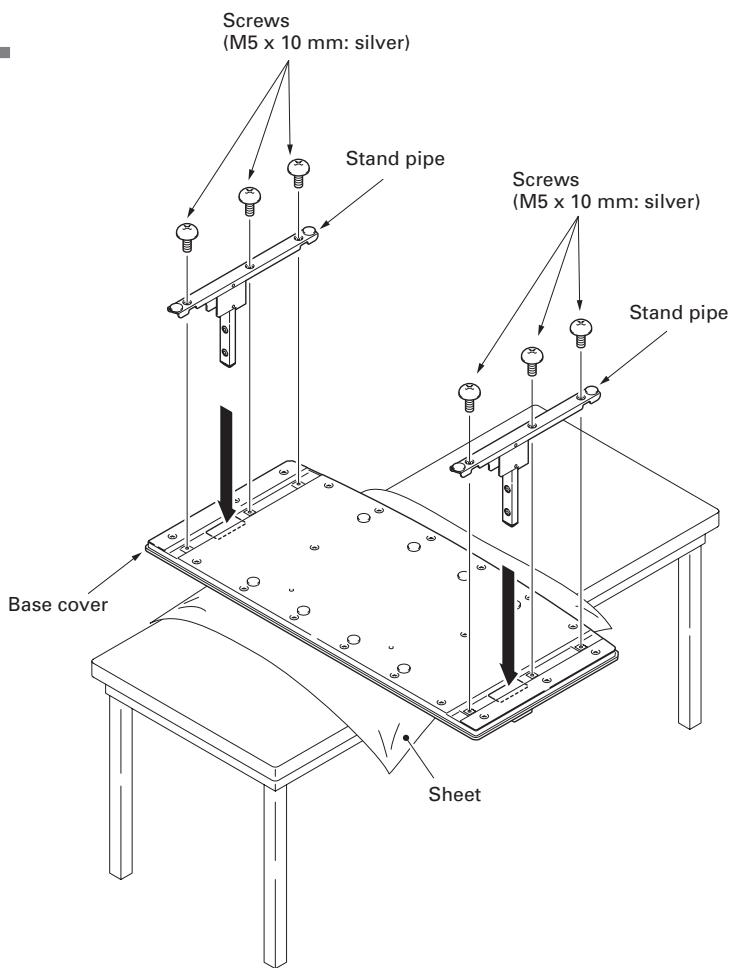

Assembling the Stand

Assembly Procedure

1 Turn the base cover over so the underside is facing up.

Note

When the base cover is turned over, be very careful not to scratch or damage the front surface of the base cover.

2 Insert the stand pipes into the base cover.
3 Tighten the screws to stabilize the stand pipes.

Note

• Assemble the stand with a soft sheet placed under the base cover.
  If a sheet is not laid before assembly, the front surface of the base cover may be scratched.
• Due to the manufacturing process of the base cover, there may be a "weld line" exposed in the plastic. Note that this will not cause any damage to the product, and does not reflect any flaws in the product design.

Attaching the Plasma Display

The weight of a Plasma Display is about 50kg (110 lbs), they have no depth, and are unstable. Therefore, at least two people must assemble and install them.

Note

• Be sure to install it on a flat stable location.
• Insert the screws in the holes vertically and tighten them firmly.

Attachment Method

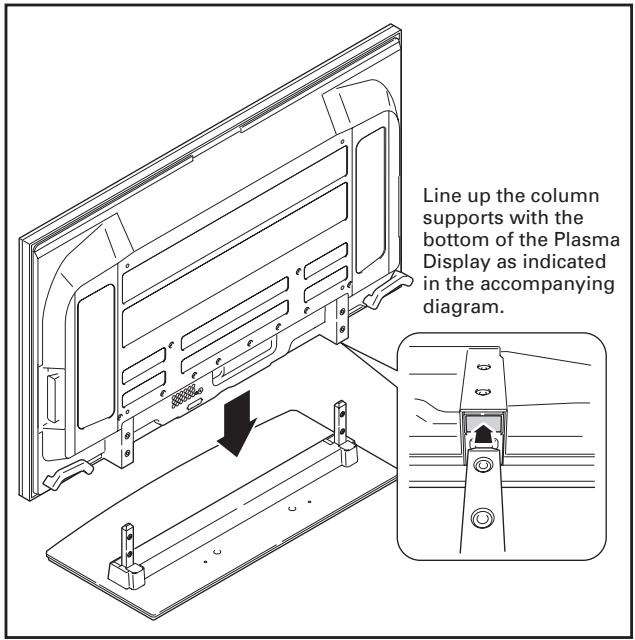

1 Attaching the Plasma Display to the stand.

Fit the stand's support columns to the bottom of the Plasma Display as indicated by the arrows, then slowly insert them vertically. Be extremely careful not to insert the support columns of the stand into any part of the Plasma Display other than the stand insertion slots. Note that doing so might damage the Plasma Display panel or its ports or result in the warping of the stand.

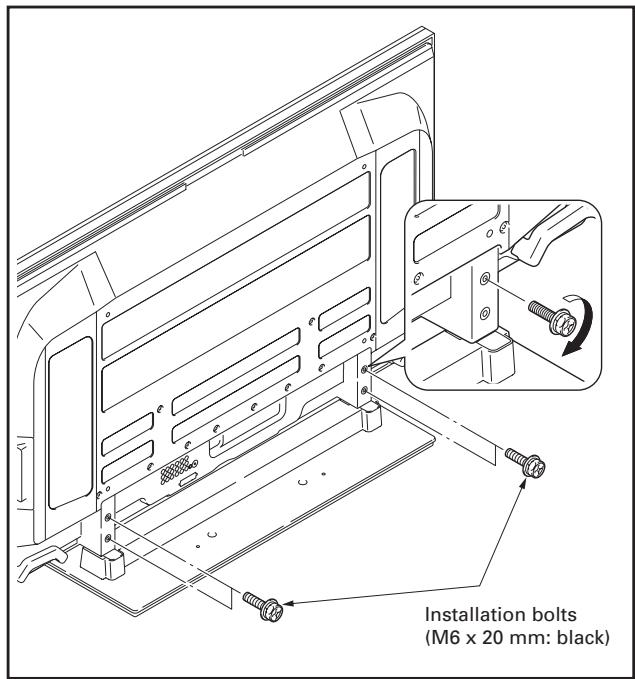

2 Securing the Plasma Display with Installation bolts.

Attach the Plasma Display at the points indicated below using the phillips screwdriver.

Installing the Product on a TV table etc.

Be sure to observe the following precautions when moving or installing this product with a Plasma Display into a TV table or other enclosure.

Caution

When installing on a TV table, etc., please be sure that the Plasma Display is held by two people.

Precautions when moving

Caution

• When moving the product more than a few meters, first remove the speaker, then remove the Plasma Display from the stand and move the speaker, Plasma Display, and stand separately.
• When detaching the Plasma Display from the stand, be sure to follow the procedure described in "Detaching the Plasma Display from the Stand" on page 7.

Precautions when installing in a TV table or other enclosure

Caution

When installing in a TV table or other enclosure, hold the Plasma Display by the handle at the bottom, with your other hand hold the top. If you hold the speakers, they may be damaged or twisted.

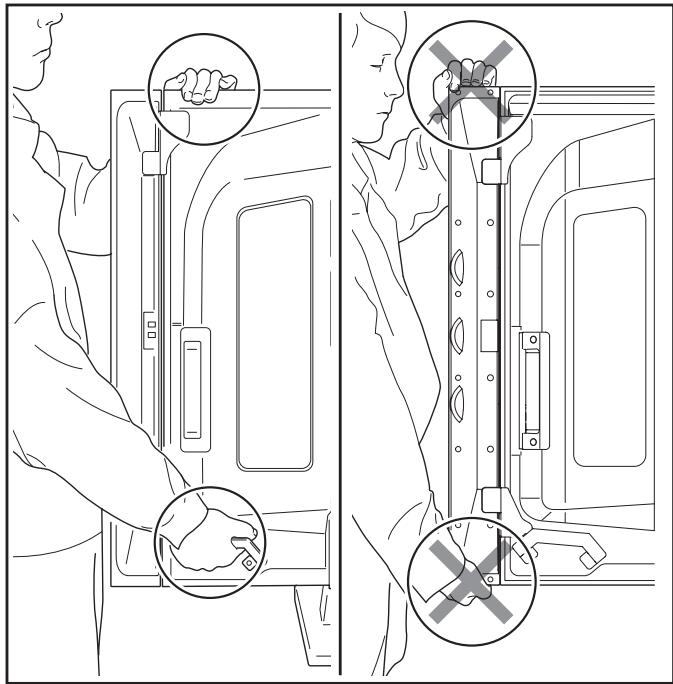

Do not hold the speaker

Hold the Plasma Display by the handle at the bottom, with your other hand hold the top.

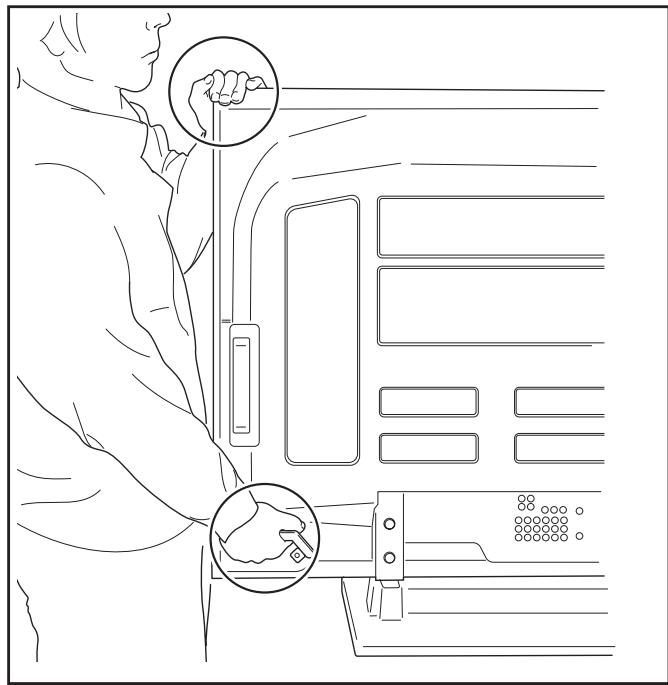

Except side speaker model

Hold the Plasma Display by the handle at the bottom, with your other hand hold the top.

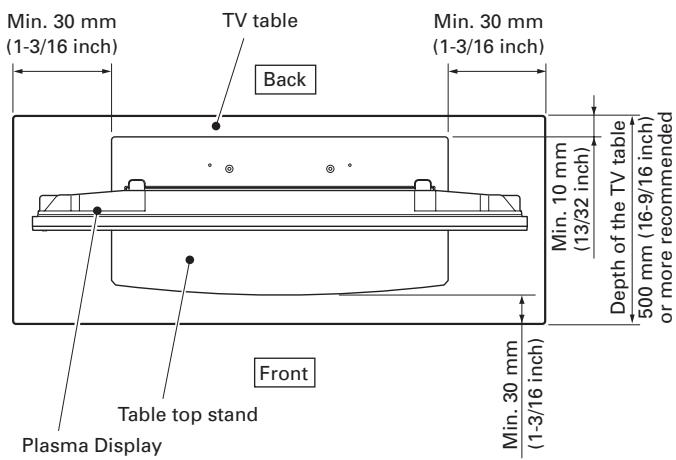

Installation precautions

Make sure that you always secure a space at least as large as that shown in the following diagram in front of and behind the table top stand.

Preventing Equipment from Falling Over

After installing the stand, be sure to take special care to ensure that the equipment will not fall over.

• Because of the Plasma Display's weight, if it could fall down, this can result in injury.
• For safety, be sure to take special care to ensure that the Plasma Display will not fall over.

Stabilizing on TV table or other location

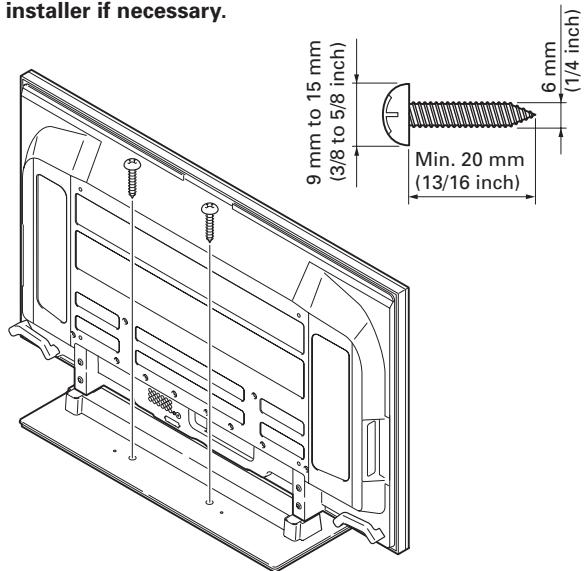

Stabilize the equipment as shown in the diagram using screws that are available on the market.

Note

• A TV table with adequate strength, width and depth should always be used to support the Plasma Display. Failure to do so could result in falling over.
• To stabilize the Plasma Display on a TV table, use screws that have a nominal diameter of 6mm (1/4 inch). Select the appropriate screws after consulting a professional installer if necessary.

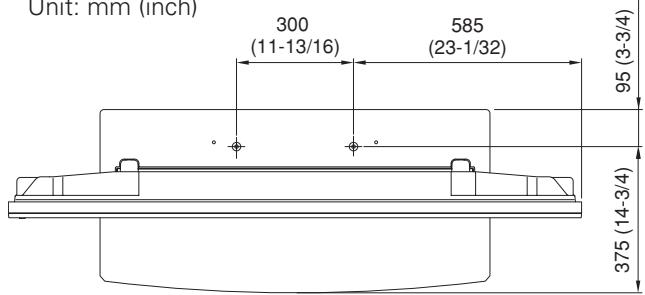

Position of table screws

When stabilizing the stand to a TV table, use nominal diameter 6 mm (1/4 inch) with a length above 20 mm (13/16 inch).

Unit: mm (inch)

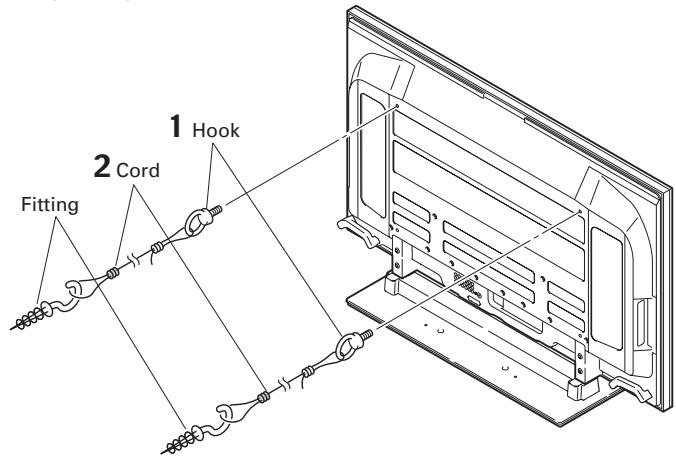

Using a wall for stabilization

1 Attaching falling prevention bolts (hooks) to the Plasma Display.
2 Using strong cords to stabilize it appropriately and firmly to a wall, pillar, or other sturdy element.

Perform this work in the same way on the left and right sides.

Note

Use hooks, cords, and fittings that are available on the market.

Recommended hook:

Nominal diameter M8

Length 12 mm to 15 mm (1/2 inch to 5/8 inch)

12 mm to 15 mm
(1/2 inch to 5/8 inch)

Caution

• A table or an area of the floor with adequate strength should always be used to support the Plasma Display. Failure to do so could result in personal injury and physical damage.
• When installing the Plasma Display, please take the necessary safety measures to prevent it from falling or overturning in case of emergencies, such as earthquakes, or of accidents.
• If you do not take these precautions, the Plasma Display could fall down and cause injury.
• The screws, hooks, chains and other fittings that you use to secure the Plasma Display to prevent it from overturning will vary according to the composition and thickness of the surface to which it will be attached.
• Select the appropriate screws, hooks, chains and other fittings after first inspecting the surface carefully to determine its thickness and composition and after consulting a professional installer if necessary.

Preparing the cables

Use the enclosed cable clamps to bind the cables.

Note

Be very careful not to apply force to the bases of the cables.

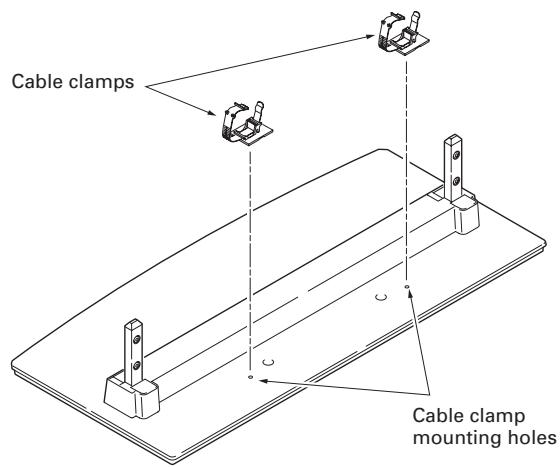

1 Insert the cable clamps into the cable clamp mounting holes.

2 Bundle the cables and place them on each cable clamp.

3 Close each cable clamp, and then pull its extremity to make the cables immobile.

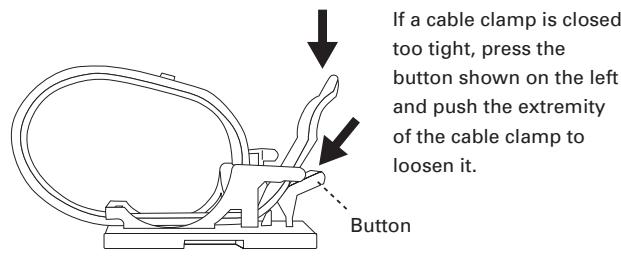

Loosening a cable clamp

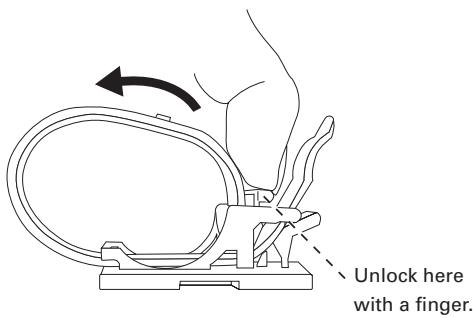

Opening a cable clamp

Detaching the Plasma Display from the Stand

Caution

To remove the Plasma Display from the stand, be sure to always follow the procedure described below to prevent accidents.

1 First clear a space on a flat floor etc. where you can lay the Plasma Display flat, then lay a sheet to protect it from scratches or other damage.
2 Remove the speakers.

3 Referring to step 2 in "Attaching the Plasma Display" (Page 4.), remove the installation bolts (4 screws).
4 Holding the Plasma Display by its handles at the bottom, with your other hand hold the top, lift the display vertically.
5 Place the Plasma Display slowly onto the sheet laid out in step 1 with its screen facing downwards.

Specifications

External dimensions 1000 mm (W) x 222.5 mm (H) x 470 mm (D) (39-3/8 in. (W) x 8-3/4 in. (H) x 18-1/2 (D) in.)

Weight 10.0 kg (22.0 lbs)

• The above specifications and exterior may be modified without prior notice to improve the product.

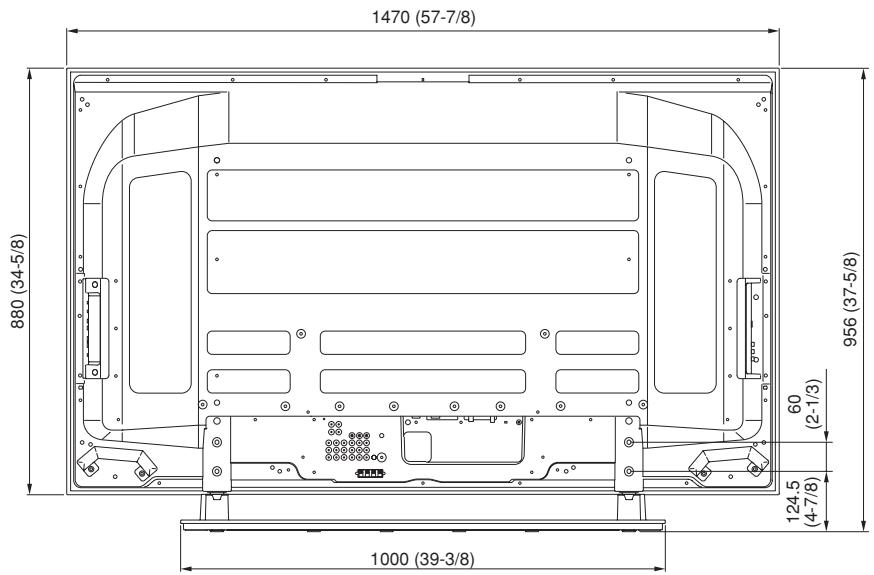

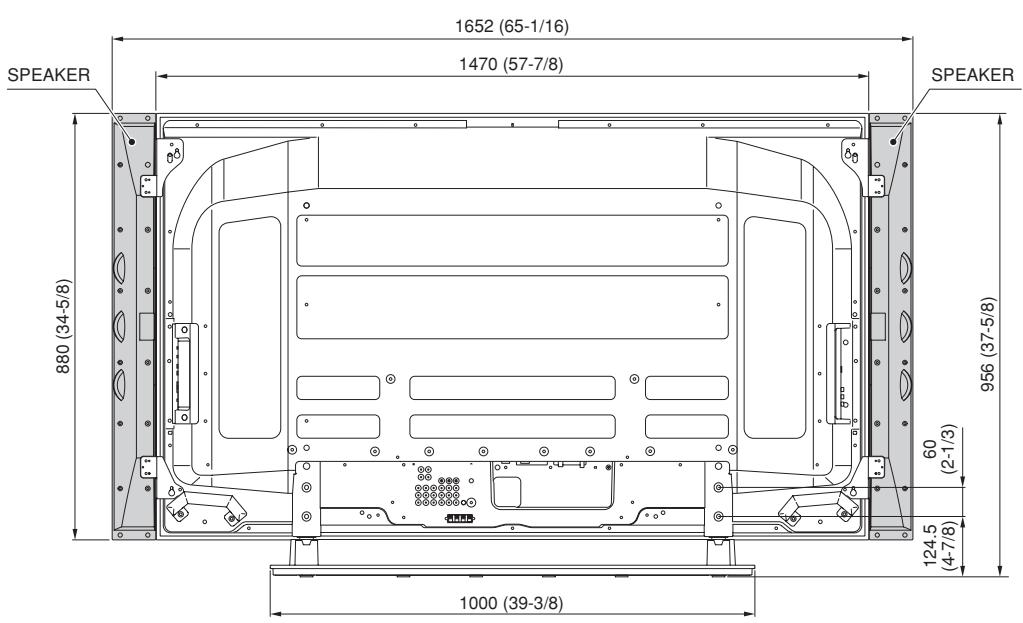

Dimensions Diagram

Unit: mm (inch)

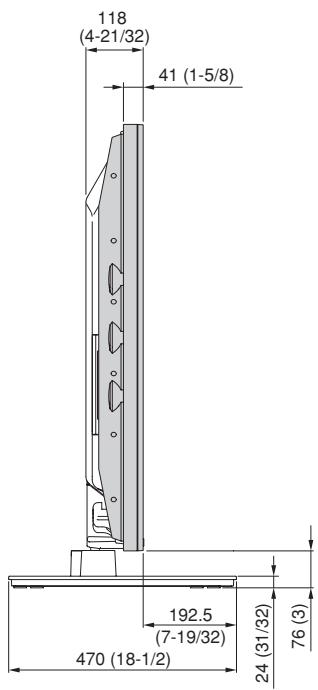

Side speaker model

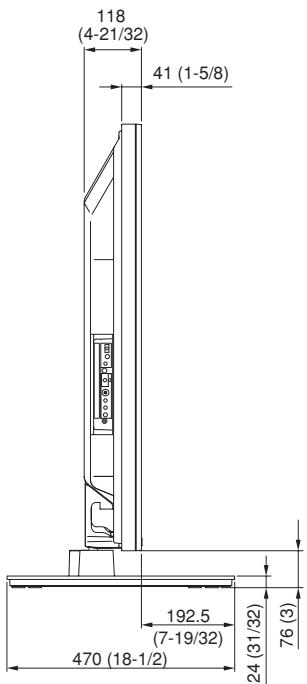

Except side speaker model
