USER MANUAL PDK-1012 PIONEER

Thank you for buying Pioneer's product.

Please read through the Operating Instructions to learn how to operate your model safely and properly.

Please be advised to keep the Operating Instructions in your place for future reference.

Installation

• Consult your dealer if you encounter any difficulties with this installation.
• Pioneer is not liable for any damage resulting from improper installation, improper use, modification, or natural disasters.

Contents

Cautions 2
Checking the Enclosed Parts 3
Assembling the Stand 4
Attaching the Plasma Display 5
Forward/Backward Angle of Inclination
Adjustment Mechanism 6
Installing the Product on a Rack etc. 7
Preparing the Cables 8
Preventing Equipment from Falling Over 9
Detaching the Plasma Display from the Stand .... 10
Specifications 10
Dimensions Diagram 10

CAUTION

This symbol refers to a hazard or unsafe practice which can result in personal injury or property damage.

Cautions

This product is a table top stand exclusively designed for plasma displays (PRO-1120HD/PRO-920HD/PRO-1110HD/ PRO-910HD) from Pioneer. Use with other model is capable of resulting in instability causing possible injury. For further information, please contact the store where you purchased your display.

Do not install or modify the product other than specified.

Do not use this stand for a plasma display other than those designated and do not modify it or use it for other purposes.

Improper installation is extremely dangerous because it may result in it falling over or other accident.

Installation Location

• Select a location that is strong enough to support the weight of the stand and the displays.
• Make sure to place it in a level and stable location.
• Do not install it outdoors, at a hot spring, or near a beach.
• Do not install the stand where it may be subjected to vibration or shock.

Assembling and Installation

• Assemble the stand in accordance with the assembly instructions and securely attach all screws at the designated locations.
  There have been cases where unforeseen accidents such as the equipment breaking or falling over occurred after the installation of the display because the stand was not installed as instructed.
• The display must always be installed by two or more people to assure it is installed safely.
• Before installation, turn off the power for the display and peripheral devices then remove the power cord plug from the power outlet.

This product rotates 10^ to the left and right and inclines 2^ forward and backward.

Do not place objects within the range of rotation of this product and the plasma display. Install this product so that during routine use or when it is rotated, it does not protrude from the rack or other location it has been installed. Failure to do so could cause unforeseen accidents such as the equipment breaking or falling over (see page 7).

Prevent accidents caused by the product falling over by taking reliable measures to prevent it from falling over (see Page 9).

Checking the Enclosed Parts

Check to make sure that you have all the enclosed parts before assembly and installation.

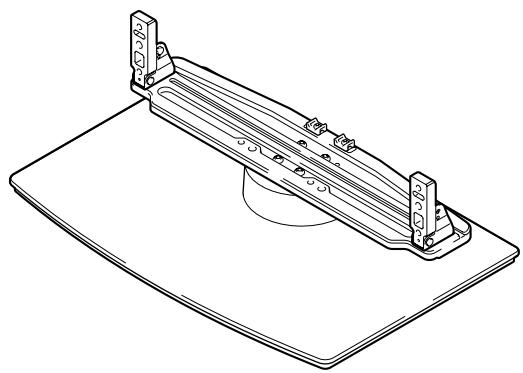

- Table top stand x 1

- Installation screws ① (M8 x 16 mm [5/8 inch]: silver) x 4 [used to anchor the support columns and the table top stand]

- Support columns x 2

- Installation screws ② (M8 x 30 mm [1-3/16 inch]: black) x 2
- Installation screws ③ (M8 x 40 mm [1-9/16 inch]: black) x 2

- Cable binders x 2

- Hexagonal wrench x 1 (Diagonal size: 6 mm [1/4 inch])

- Operating instructions (this document) x 1

C wrench × 1 (10 mm [3/8 inch])

Assembling the Stand

Note

• Always assemble it on a flat table etc.
• Insert the screws in the holes vertically and do not tighten them with more force than necessary.

Assembly Procedure

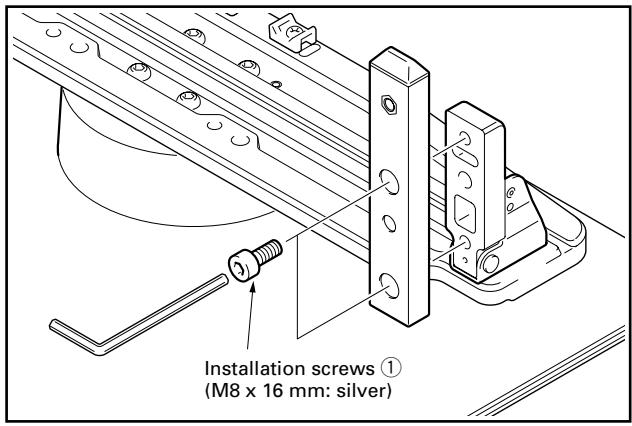

1 Secure the support column to the stand with the Installation screws (1) (4 locations on the left and right).

Using the enclosed hexagonal wrench, first loosely attach the top attachment screw, then loosely attach the bottom attachment screw.

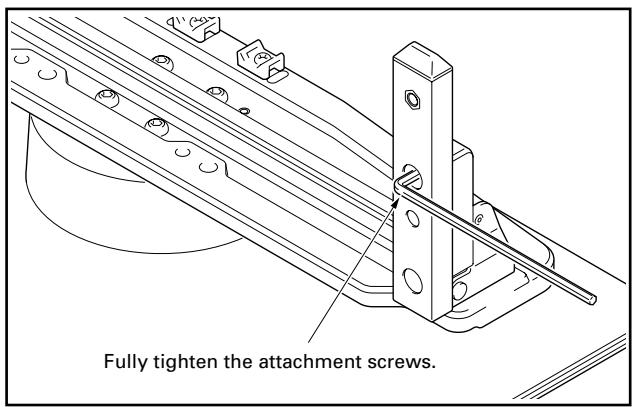

2 Fully tighten the Installation screws (4 locations on the left and right).

Attaching the Plasma Display

The weight of a 50 inch plasma display is about 40kg (88 lbs), that of a 43 inch model is about 30kg (66 lbs), they have no depth, and are unstable. Therefore, at least two people must assemble and install them.

Note

• Be sure to install it on a flat stable location.
• Insert the screws in the holes vertically and do not tighten them with more force than necessary.
• Make sure that you install the support columns reliably according to the settings of the type of speakers you have purchased with reference to the procedure in Assembling the Stand.

Attachment Method

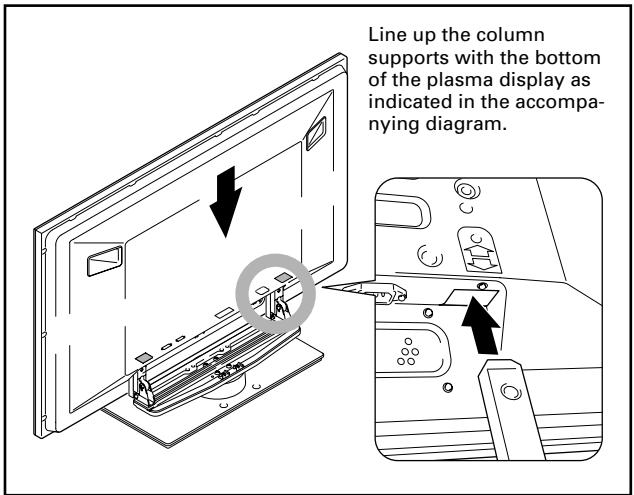

1 Attaching the plasma display to the stand.

Fit the stand's support columns to the bottom of the plasma display as indicated by the arrows, then slowly insert them vertically. Be extremely careful not to insert the support columns of the stand into any part of the plasma display other than the stand insertion slots. Note that doing so might damage the plasma display panel or its ports or result in the warping of the stand.

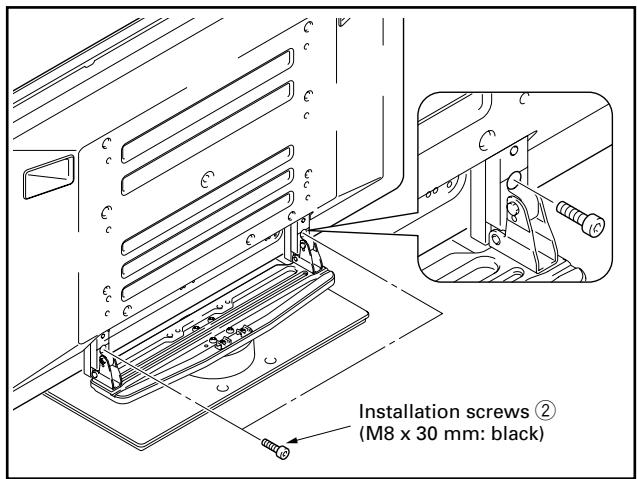

2 Securing the plasma display with Installation screws ②.

Secure them using the enclosed hexagonal wrench.

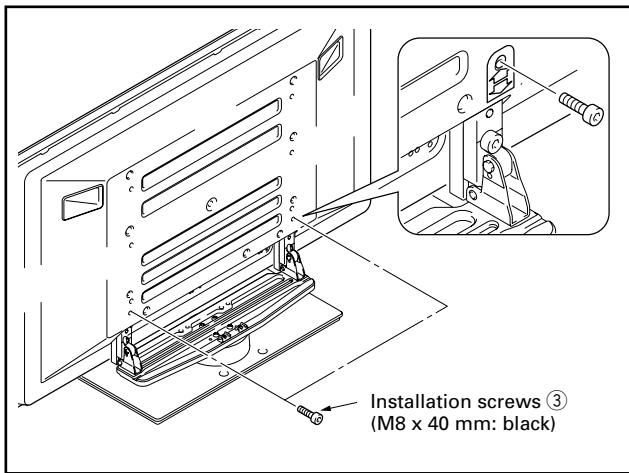

3 Securing the plasma display with Installation screws ③.

Attach the plasma display at the points indicated by the arrows using the enclosed hexagonal wrench.

4 Attaching the speakers.

Refer to the operating instructions for the speaker for the installation method.

Forward/Backward Angle of Inclination Adjustment Mechanism

On this stand, you can adjust the angle of inclination of the plasma display within a range of 2^ forward or backward according to your preference.

Note

• Be sure to adjust the angle only after you have attached the plasma display.
• Be sure to install it on a flat table or other flat surface.
• Be sure to hold the top of the plasma display with your hand while adjusting the angle.

Adjustment Procedure

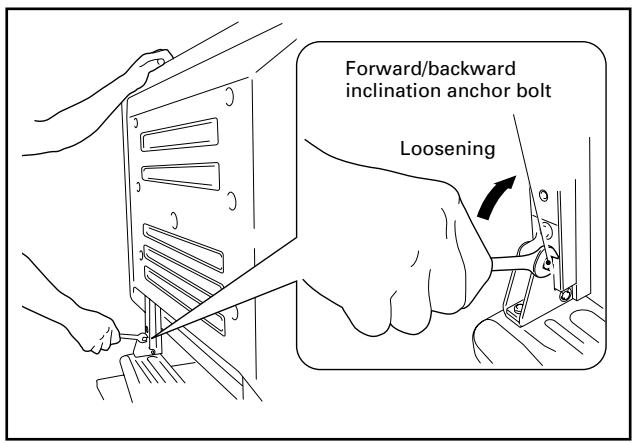

1 Loosen the forward/backward inclination anchor bolts using the enclosed C wrench.

While being sure to hold the top of the plasma display with your hand, loosen the forward/backward inclination anchor bolts on the left and right sides by rotating them upwards using the enclosed C wrench.

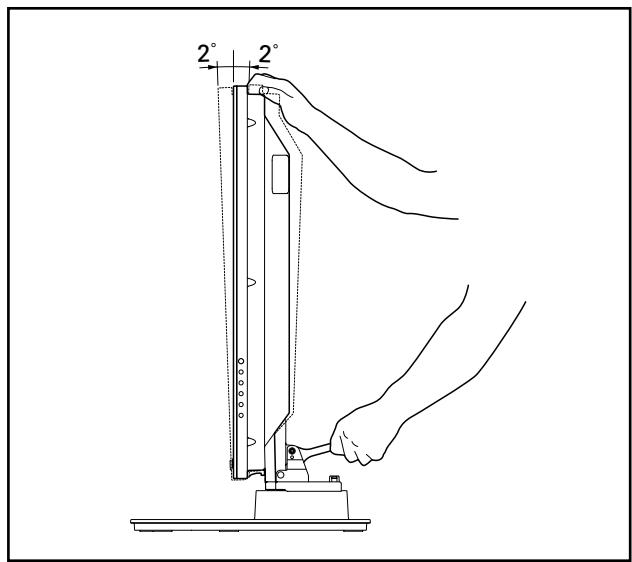

2 Set the angle you prefer.

Set the angle you prefer by slowly moving the plasma display.

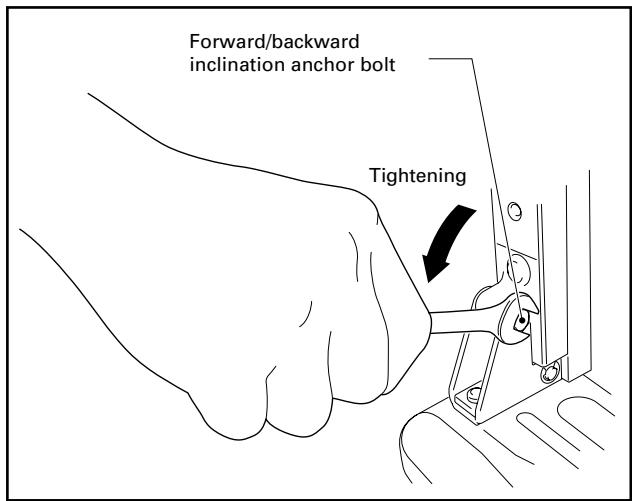

3 Tighten the forward/backward inclination anchor bolts.

Firmly tighten the forward/backward inclination anchor bolts on the left and right sides by rotating them downward using the enclosed C wrench.

Be sure to hold the top of the plasma display with your hand until you have fully tightened the bolts.

4 Check once more to make sure that the forward/backward inclination anchor bolts are fully tightened.

Installing the Product on a Rack etc.

Be sure to observe the following precautions when moving or installing this product with a plasma display into a rack or other enclosure.

Precautions when moving

Caution

• When moving the product more than a few meters, first remove the speaker, then remove the plasma display from the stand and move the speaker, plasma display, and stand separately.
• When detaching the plasma display from the stand, be sure to follow the procedure described in "Detaching the Plasma Display from the Stand" on page 10.

Precautions when installing in a rack or other enclosure

Caution

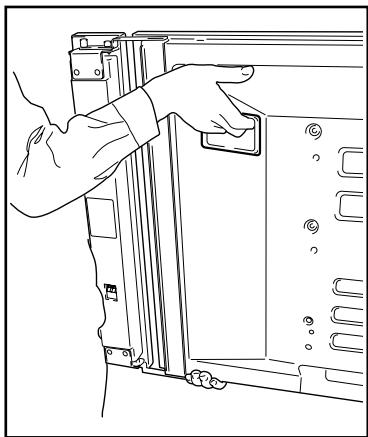

When installing in a rack or other enclosure, hold the plasma display by the handles located on the rear and bottom of the plasma display. If you hold the speakers, they may be damaged or twisted.

Hold the plasma display by its handles and from the bottom.

Installation precautions

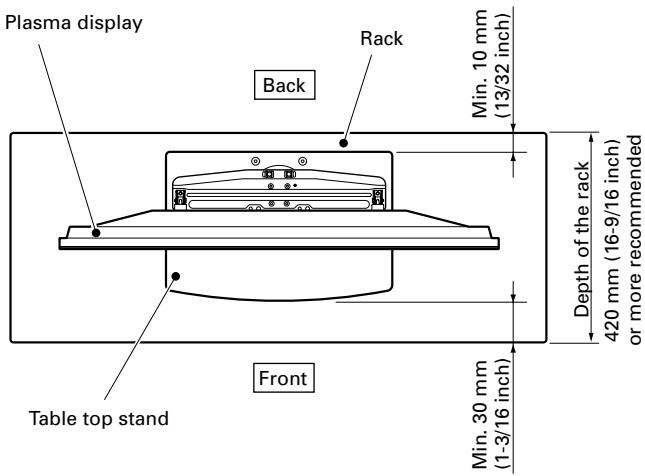

Make sure that you always secure a space at least as large as that shown in the following diagram in front of and behind the table top stand.

Caution

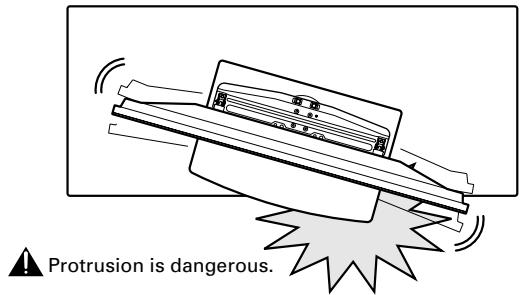

• If the stand protrudes from the rack, it could cause unforeseen accidents such as the equipment breaking or falling over.
• When rotating, take care not to allow the display to bump into walls or surrounding objects.

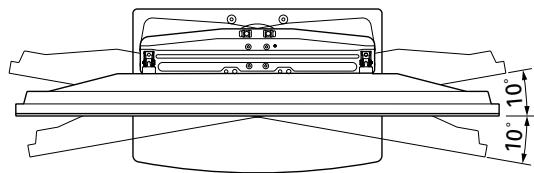

Range of angle rotation

Forward/Backward angle of inclination adjustment range

Preparing the Cables

Use the enclosed cable binders to bind the cables.

Note

Be very careful not to apply force to the bases of the cables.

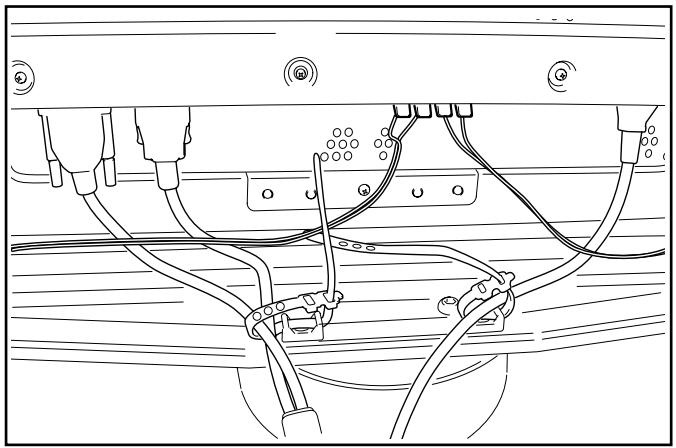

When installing speakers on both sides of the plasma display

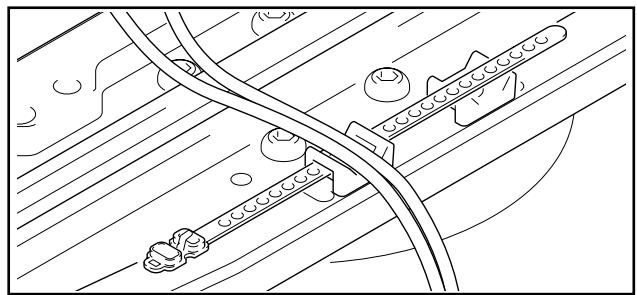

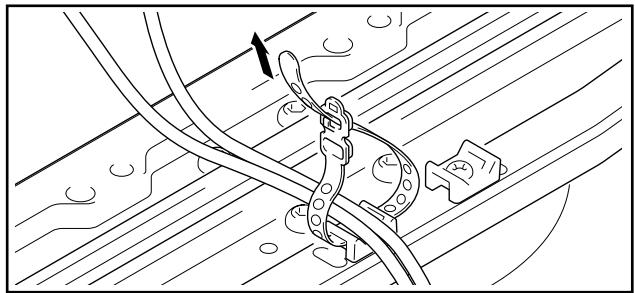

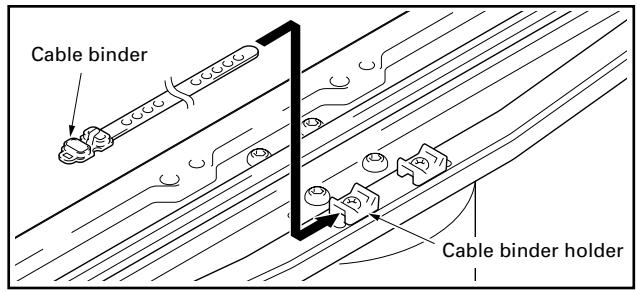

Using the cable binders

1 Passing a cable binder though the cable binder holder on the top of the rotating platform of the stand.

2 Gathering cables and placing them on the cable binder.

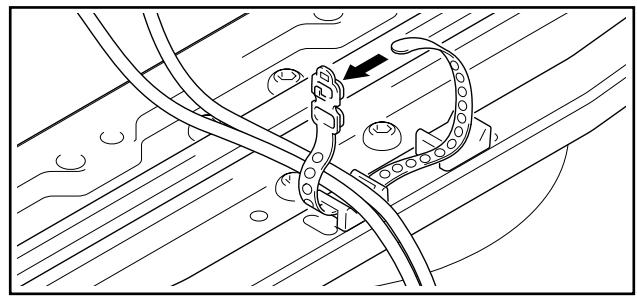

3 Passing the cable binder through the hole on its end.

4 Pulling the end of the cable binder to secure the cables.

Removing a cable binder

If the secured part is removed from the cable binder hole, it is unlocked.

Preventing Equipment from Falling Over

After installing the stand, be sure to take measures so that the equipment will not fall over.

Stabilizing on the floor

Stabilize the equipment as shown in the diagram using screws that are available on the market.

Note

To stabilize the equipment on the floor use screws that have a nominal diameter of 6mm (1/4 inch) and that are at least 20mm (13/16 inch) long.

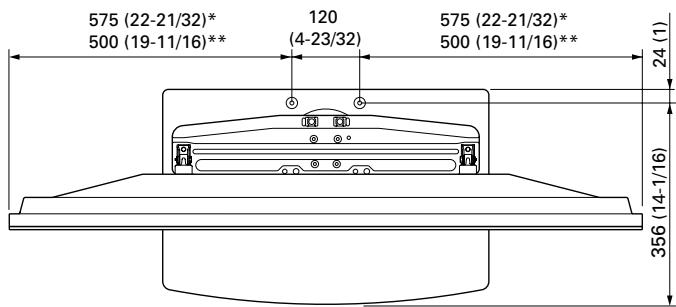

Position of floor screws: Without speakers

Unit: mm (inch)

: 50 inch display model
*: 43 inch display model

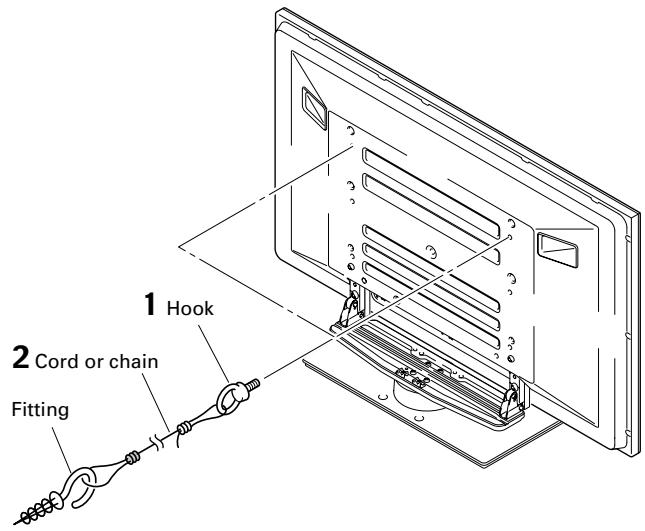

Using a wall for stabilization

(43 inch display model in the figure)

1 Attaching falling prevention bolts (hooks) to the plasma display.
2 Using strong cords or chains to firmly stabilize it to a wall, pillar, or other sturdy element.

• Perform this work in the same way on the left and right sides.
• The length of the cords or chains used must be long enough to allow the stand to rotate freely.

Note

Use hooks, ropes, chains, and fittings that are available on the market.

Recommended hook:

Nominal diameter 8 mm (3/8 inch) Length 12 to 15 mm (1/2 to 5/8 inch)

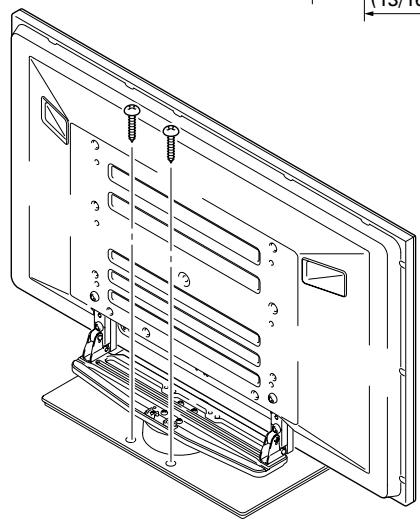

Fixing the rotation to the front

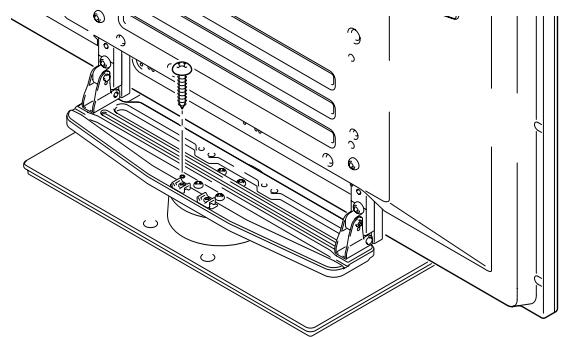

Stabilize the equipment as shown in the diagram using screws that are available on the market.

Note

Use a screw that has a nominal diameter of 4 mm (3/16 inch) and length from 15 to 20 mm (5/8 to 13/16 inch) to fix the rotation to the front.

Detaching the Plasma Display from the Stand

To remove the plasma display from the stand, be sure to always follow the procedure described below to prevent accidents

1 First, confirm that the forward/backward inclination anchor bolt is securely tightened.
2 First clear a space on a flat floor etc. where you can lay the plasma display flat, then lay a sheet to protect it from scratches or other damage.
3 Remove the speakers.

4 Referring to steps 2 and 3 in Attaching the Plasma Display (Page 5.), remove the black screws (4 screws).

Note

Do not remove the silver screws. If you do, the column supports might slip out of place and fall over.

5 Holding the plasma display by its handles and from the bottom, lift the display vertically.
6 Place the plasma display slowly onto the sheet laid out in step 2 with its screen facing downwards.

Note

When reattaching the plasma display to the stand, be certain that the left/right support columns are set at the same angle.

Specifications

External dimensions 577 (W) x 255(H) x 380 (D) mm (22-3/4 (W) x 10 (H) x 15 (D) in.)

Weight 9.5 kg (20.16 lbs)

• The above specifications and exterior may be modified without prior notice to improve the product.

Dimensions Diagram

Unit: mm (inch)

The illustration measurements do not include the fixtures for attaching the speakers.

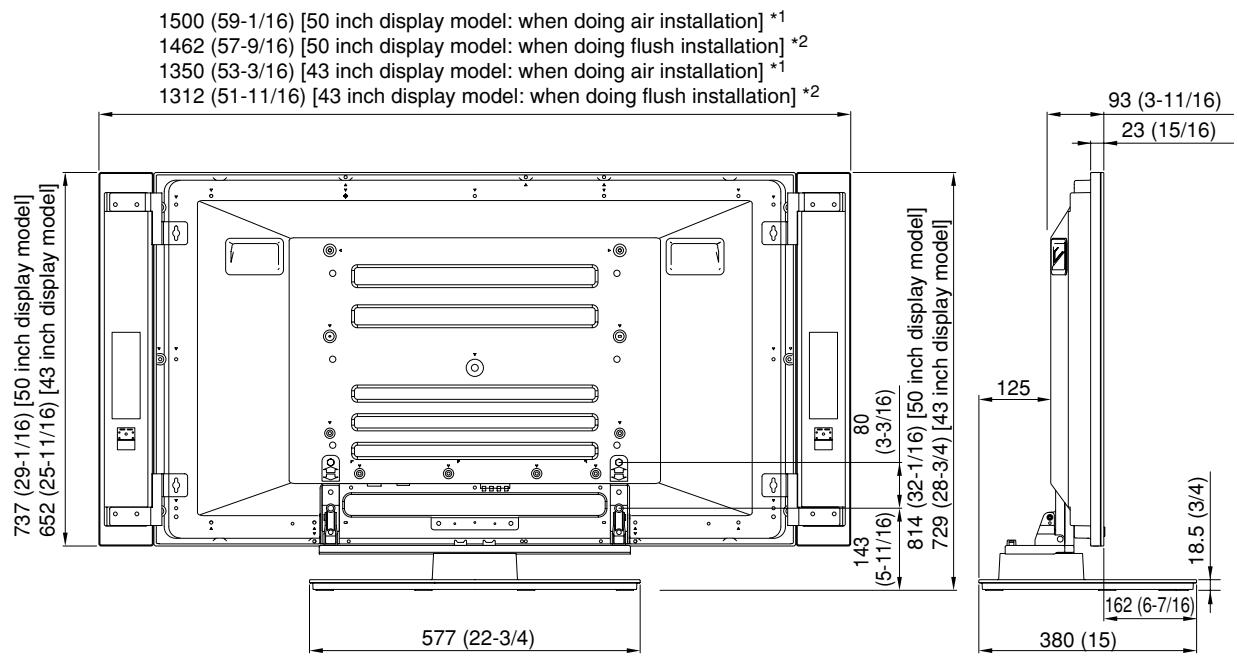

When installing the PDP-S23-LR or the PDP-S24-LR speakers

1 Air installation: Attached to allow adjustment of the speaker angle
2 Flush installation: Attached to fix the speaker angle and give the system a more compact width

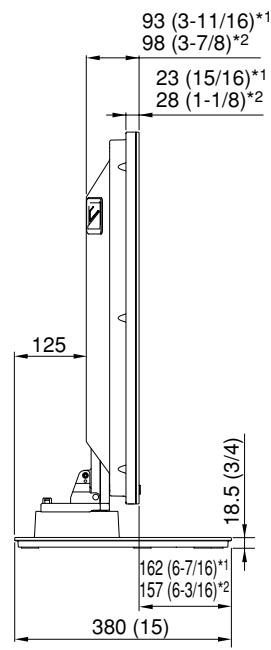

Without speakers

1 ......... PRO-920HD/PRO-1120HD
2 ....... PRO-910HD/PRO-1110HD
