Dear Buyer!

We congratulate you on having bought the device under trade name «Saturn». We are sure that our devices will become faithful and reliable assistance in your housekeeping.

Avoid extreme temperature changes. Rapid temperature change (e.g. when the unit is moved from freezing temperature to a warm room) may cause condensation inside the unit and a malfunction when it is switched on. In this case leave the unit at room temperature for at least 1.5 hours before switching it on.

If the unit has been in transit, leave it indoors for at least 1.5 hours before starting operation.

Description of the appliance

• Modern and elegant design

- Multiple air-filter system guarantees a

hygienic cleaning

- Drivers accessories: floor brush, noz-

zle etc

- User-friendly wire rewinder pedal

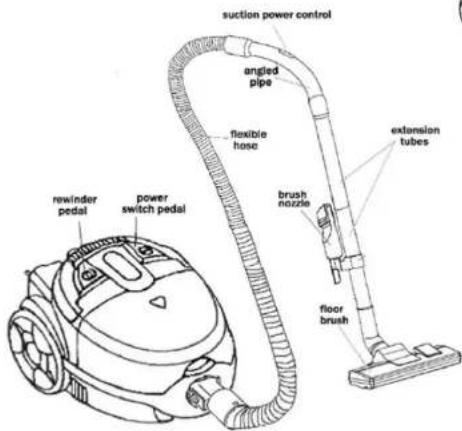

Know your vacuum cleaner

Important safety instructions: Before connecting the device to the mains, check whether the supply voltage indicated on the device corresponds to the mains voltage. The device must be plugged into a grounded outlet. If the supply cord is damaged, the manufacture or its service agent must replace it in order to avoid a hazard.

For household use only

Forbid

Important

Important safety instructions: Before connecting the device to the mains, check whether the supply voltage indicated on the device corresponds to the mains voltage. The device must be plugged into a grounded outlet. If the supply cord is damaged, the manufacture or its service agent must replace it in order to avoid a hazard. For household use only

Forbid

Do not use for absorbing detergent, kerosene, glass, needle, cigarette ash, water, match etc.

Forbid

The appliance should not be exposed to heat

Forbid

Do not vacuum any moist or liquid substances, Never immerse the appliance in water.

Forbid

Unplug the appliance from the mains supply socket after use and before every cleaning pull the mains cable, in order to disconnect the appliance from the mains.

Forbid

Do not put any object into openings. Do not use with any opening blocked. Keep the appliance free of dust, lint, hair etc.

Forbid

Do not use the vacuum cleaner without dust container or dust filter in place.

Forbid

Do not vacuum any flour, cement etc, in order to avoid the overloads.

Forbid

The appliance should only be cleaned with a dry or damp cloth, it should never immersed in water. Do not use any solvents for cleaning

Assembly vacuum cleaner:

Connect the hose with the vacuum cleaner

Insert flexible hose into the air-intake: Press the knob until it clicks into the position.

Remove the flexible hose: unplug the appliance and press the knob at the end of the hose. Remove it from the air-intake opening.

Fit the extension tube to be the angled pipe Fit the floor brush to the extension tube

Operation:

A yellow mark on power cord shows the ideal cable length. Do not expend the cable beyond the red mark.

To rewind the power cord, press the rewinder pedal with one hand and guide the cord with the other hand.

Press the power switch to switch the appliance on.

The suction power can be adjusted with the sliding control on the angled pipe.

Put the extension tube into the fixing hook of the appliance when you have a

break.

Caution: Do not transfer the appliance when the fixing hook is used.

Cleaning tools

Crevice tool:

For cleaning corner edge and draws etc, Where is difficult to reach, such as gaps and the keyboard, bookshelf and windows.

Convertible brush:

Turn the crevice tool 90° and attach it on the extension tube for cleaning bed, sofa, curtain etc.

Use of the selector on floor brush:

Bristles extended for carpets. Bristles retracted for hard floors. If the angled pipe has blockage, insert it into the air-intake and switch the appliance on.

Cleaning and maintenance

Empty the dust container

After removing the flexible hose, press the cover lock button and open the dust container.

Remove the dust filter from the con-

tainer.

Replace the dust filter in the container. Close the dust container until it is locked in the position.

Change filter

Replace the motor filter:

Open the dust container and remove the motor filter. Fix the new filter in the position

Replace the outlet filter:

Detach the grille by pulling firmly away from the appliance, remove the outlet filter and replace the new filter. Fix the grille again

Clean the filter

Clean the filter in water and allow them to dry completely before replace them. Clean the cloth dust bag

Clean the cloth dust bag with water and a little detergent (if needed). Allow the bag to dry completely before replacing.

Error detection:

Before you contact our services center, please check the following points:

Problem Possible reason		Active
Motor does not start	-Power card not firmly plugged into outlet -Outlet damaged -Cleaner not switch on	-Plug unit firmly -Check the outlet -Switch on the appli- ance.
Suction power is weaker	-Unit clogged -Dust filter needs cleaning -Dust con- tainer not in position -Filter blocked	-Remove the block- age -Clean the dust filter -Close the dust con- tainer -Clean the filter
The wire cannot be winded completely.	The wire may diverge the wire wheel.	Draw the wire a little then rewind.

The wire cannot be draw out.	The wire may wind disorder	Press the rewinder button and try again.
Speed ad-just does not work	Appliance is defective	Repair the appliance (only specialist)
Power card winds unwanted back	Rewind mechanisms is defective	Repair the appliance (Only specialist)
The dust container can not be closed	Dust filter is not in the position	Fix the dust filter and try again

Specifications

Rated voltage: 220-230V AC

Rated frequency: 50Hz

Power: 1600 W

Rated current: 7,2A

Set

Vacuum cleaner body 1

Crevice nozzle 1

Floor brush Instruction manual with

Warranty Card 1

Environment friendly disposal

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

The manufacturer reserves the right to change the specification and design of goods.
