USER MANUAL ST VC7296 Saturn

Red vacuum cleaner with black handle and silver filter, shown against white background (no text or symbols visible)

GB

Vacuum cleaner

Dear Buyer!

We congratulate you on having bought the device under trade name «Saturn». We are sure that our devices will become faithful and reliable assistance in your housekeeping.

Important safety instructions

The use of any electrical appliance requires the following common sense safety rules. Primarily there is danger of injury or death and secondly the danger of damage to the appliance. These are indicated in the text by the following two conventions:

Warning: Danger to the person!

IMPORTANT: Damage to the appliance! In addition we offer the following safety advice.

Location

- Do not use or keep this product outside when it is raining.

- Do not store the appliance near hot ovens or heating appliances.

Mains lead

- Do not allow the mains lead to become strained or run this appliance over it.

- If the electrical cable becomes damaged, the complete cable assembly must be replaced. Do not attempt this task yourself. Contact the local retailers.

Children

Children do not understand the dangers associated with operating electrical appliances. Never allow children to use this appliance.

Personal safety

- The plug must be removed from the wall socket before cleaning or maintaining the appliance.

● Never modify the cleaner in any way.

● Never use in the presence of explosive liquids or vapors.

- Never pick up inflammable or poisonous liquids such as petrol, copier toner or other volatile substances. Never pick up acids, asbestos or asbestos dust.

● Repairs to electrical appliances are only to be undertaken by trained personnel. Unprofessional repairs can be dangerous for users.

● The appliance must never be left running when unsupervised.

Product safety

● Never use the appliance without the filters being installed.

● Never use the appliance to vacuum hot ashes, broken glass, sharp objects or liquids.

● To protect against fire, electric shock and personal injury do not immerse cord, plug or cleaner in water or other liquid.

Electrical requirements

Check that the voltage on the rating plate corresponds with your house electricity supply which must be A.C (alternating current)

If the socket outlets in your home are not suitable for the plug supplied with this appliance the plug should be removed and the appropriate one fitted.

If you cut off the plug and let go of the cable it will rewind into the machine.

Therefore you must pull out a length of the cable and secure it before cutting off the plug and refitting a new one.

IMPORTANT: The plug removed from the mains lead. If severed, must be destroyed as a plug with a bared flexible cord is hazardous if engaged into a live socket outlet.

ILLUSTRATION

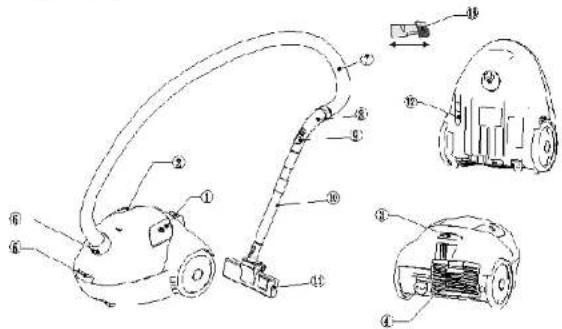

Features

1. Cable rewind button

2. On/off switch-button

3. Variable power switch

4. Air outlet

5. the front cover button

6. Hose inlet

7. Flexible hose

8. Hose handle

9. Airflow regulator

10. Plastic tube / metal telescopic tube

11. Floor brush

12. Tube storage clip

13. Multi purpose nozzles (crevice nozzle /upholstery nozzle)

Quick start

1. Assemble the nozzle, the tube and hose.

2. Pull out the mains cable to its full length and plug into the mains supply.

3. Switch on by pressing the On/off switch-button.

Accessories

Insert the flexible hose

Fit the hose to the cleaner by inserting the hose end into the hose inlet until it clicks to the position.

TO remove the flexible hose

When removing, squeeze the clips both side and pull.

Fitting the tubes and accessories

1. Attach the tube to the handle end of the hose. The hose handle features an airflow regulator which allows suction to be reduced as required.

2. Attach the floor brush to the tube.

3. Attach the multi purpose nozzle to the tube.

Turn the rotating nozzle as the arrowhead show; it can be used as the upholstery nozzle (for curtains and upholstery).

Turn the rotating nozzle backwards to the home position; it can be used as the crevice nozzle (for awkward places, behind radiator; or for hard surfaces, pelmets, delicate objects etc).

Controls

Power

The on/off control is operated by On/off switch-button.

Variable power

A Variable power switch 3 varies the suction power as required. For example, maximum suction can be used for cleaning carpets, hard floors etc, and reduced suction for cleaning upholstery and curtains.

Suction can also be controlled using the airflow regulator on the handle. Closed for maximum suction, open for reduced suction.

Automatic cable rewind

After use, unplug and press the cable rewind button to retract the cable.

WARNING: When using the cable rewind, always hold the plug as the cable will rewind quickly.

Dust disposal

The indicator is red when the dust is full, please clean the dust bag or replace it in time. Take out the hose connector. Press the front cover button to open the front cover and take out the dustbag.

Replace the dustbag

- If paper dustbag is adopted. Please throw away and replace new one.

- If textile filter is adopted, take down the dust bag, throw off the dust and fix it again.

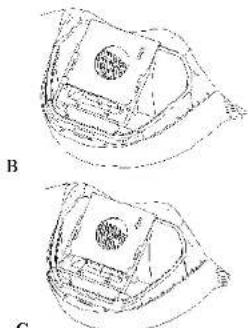

Installing the dustbag

- Insert the bag collar into the grooves of dustbag support.

Two technical line drawings of a mechanical component or housing, labeled B and C, with no visible text or symbols.

C

Cleaning the HEPA filter

To maintain the suction of the cleaner, the HEPA filter must be washed regularly.
1. Open the Air outlet cover. D
2. Remove the Air outlet sponge with the filter grille.
3. Resemble a new Air outlet sponge back to the place.

IMPORTANT: The Air outlet sponge must be thoroughly dry before the machine is used.

Line drawing of a vacuum cleaner with a detached fan (no text or symbols)

D

Storage position

When finished you can store the tube by locating the tube storage clip into the slot on the back of the cleaner as shown. E

Line drawing of a mechanical device with no visible text or symbols

Set

Vacuum cleaner ....

Instruction Manual ....

Warranty Book ....1

Package ....1

Specifications

Voltage: 220-230 V

Frequency: 50 Hz

Power consumption: 1600 W

Rated Current: 7,27 A

Environment friendly disposal

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal centre.

The manufacturer reserves the right to change the specification and design of goods.
