IMAC 24-INCH VESA MOUNT ADAPTER - Computer Accessories APPLE - Free user manual and instructions

Product Type	VESA Mount Adapter
Brand	Apple
Model	iMac 24-inch VESA Mount Adapter
Compatibility	iMac 24-inch (2021 and later models)
VESA Standard	VESA compliant (standard 100x100 mm)
Kit Contents	Mount adapter, collar, screws, two bolts, hex key, Torx key, access card
Main Material	Metal (stainless steel or aluminum alloy)
Adapter Dimensions	Approximately 20 x 20 x 2 cm
Adapter Weight	Approximately 200 g
Main Functions	Allows mounting the iMac 24-inch on a VESA-compatible wall mount or articulating arm
Installation	Requires removing the original stand and installing the collar and adapter using the provided tools
Required Tools	Torx key and hex key included
Maximum Supported Load	Must be used with a VESA mount that can support the weight of the iMac 24-inch (approximately 4.5 kg)
Care and Cleaning	Wipe with a soft, dry cloth. Do not use abrasive products or solvents.
Safety Precautions	Turn off and unplug the iMac before installation. Use only the provided access card to unlock the latch.
Replacement Parts	Available through Apple Support or at Apple website
Warranty	1 year (standard Apple warranty)
Repairability	Not user-repairable; contact Apple in case of malfunction

Frequently Asked Questions - IMAC 24-INCH VESA MOUNT ADAPTER APPLE

Is the VESA adapter compatible with all iMac 24-inch models?

Yes, the adapter is designed for iMac 24-inch (2021 and later models). Check your iMac's serial number to confirm compatibility.

What tools are included in the kit?

The kit contains a Torx key, a hex key, an access card, a screw, two bolts, a collar, and the mount adapter.

Can I use the adapter with a VESA articulating arm?

Yes, the adapter is compatible with any VESA mount (articulating arm, wall mount) that can support the weight of the iMac 24-inch (approximately 4.5 kg).

How do I install the adapter on my iMac?

Turn off and unplug the iMac, place it face down on a soft cloth, remove the original stand by unscrewing 8 screws with the Torx key, attach the collar, then the adapter with the screw and bolts. Follow the step-by-step guide provided.

What if I lose or damage the access card?

You can order a replacement card from the Apple Support website at www.apple.com/support/imac/diy/vesa.

Does the VESA adapter affect the iMac's warranty?

No, the adapter is an official Apple accessory designed for the iMac. Proper installation does not affect the warranty.

Can I reuse the screws from the original stand to attach the collar?

Yes, the 8 screws removed from the stand are reused to attach the collar to the iMac.

Are there any safety precautions during installation?

Ensure the iMac is turned off and unplugged. Handle the screen with care and place it on a soft surface. Use only the provided access card to unlock the latch.

What are the dimensions of the adapter?

The adapter measures approximately 20 x 20 x 2 cm and weighs approximately 200 g.

Where can I find the full adapter manual?

The manual is available for free download in PDF format on the website notice-facile.com.

USER MANUAL IMAC 24-INCH VESA MOUNT ADAPTER APPLE

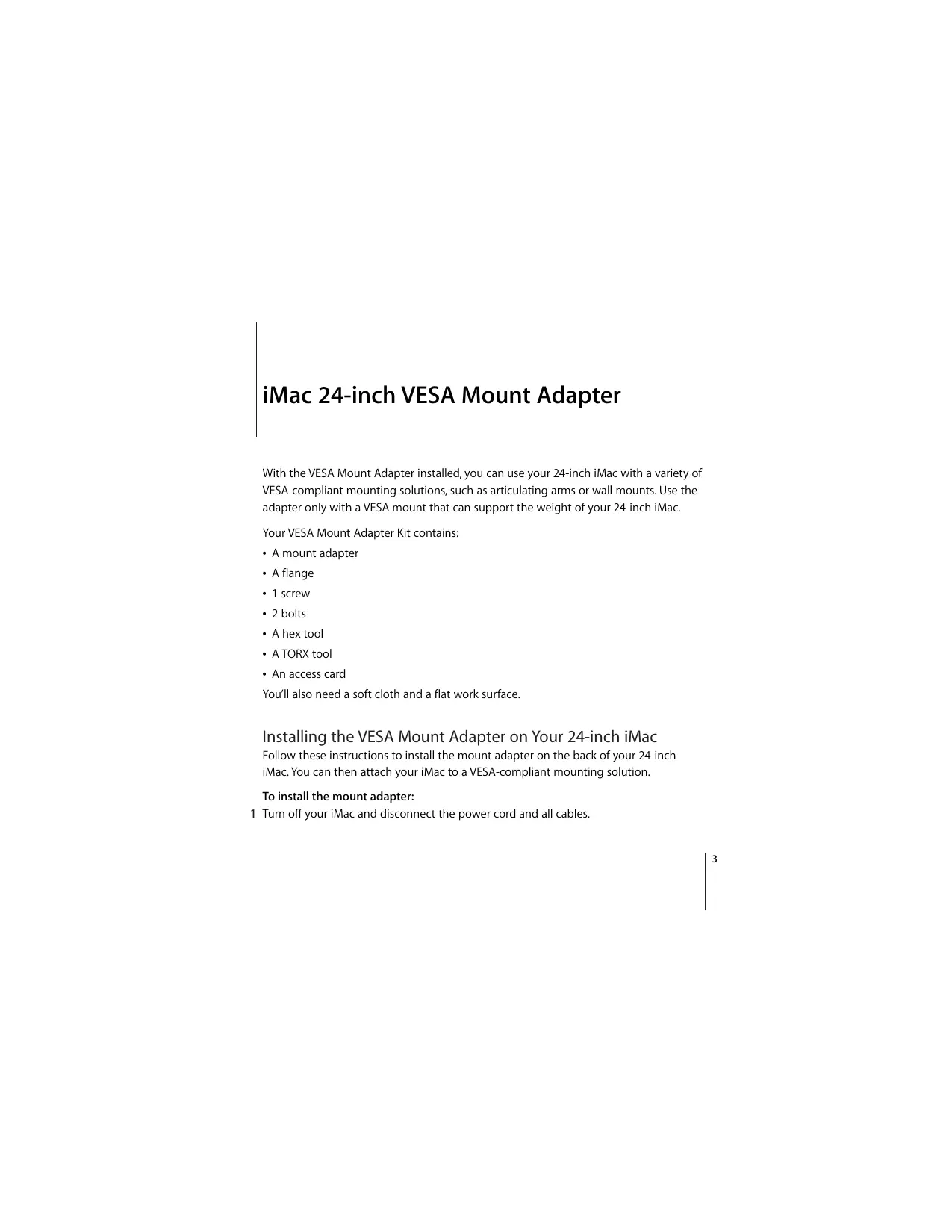

iMac 24-inch VESA Mount Adapter

With the VESA Mount Adapter installed, you can use your 24-inch iMac with a variety of VESA-compliant mounting solutions, such as articulating arms or wall mounts. Use the adapter only with a VESA mount that can support the weight of your 24-inch iMac.

Your VESA Mount Adapter Kit contains:

• A mount adapter
  A flange
  1 screw
  2 bolts
  A hex tool
• A TORX tool
  An access card

You'll also need a soft cloth and a flat work surface.

Installing the VESA Mount Adapter on Your 24-inch iMac

Follow these instructions to install the mount adapter on the back of your 24-inch iMac. You can then attach your iMac to a VESA-compliant mounting solution.

To install the mount adapter:

1 Turn off your iMac and disconnect the power cord and all cables.

2 Turn your iMac so that the back is facing you, and then rotate the top forward until it won't go any further.

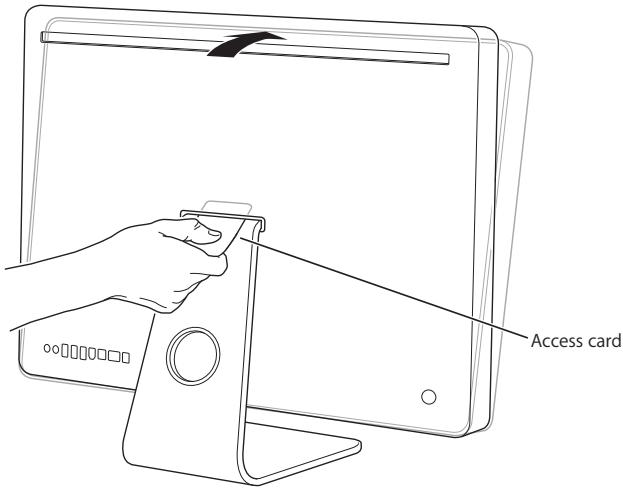

3 Release the latch by inserting the access card in the space directly above the top of the stand.

The access card should go into the space at a slight upward angle for about 3/4 of an inch. If it goes in farther, you've missed the latch, so try again.

Important: Use only the access card provided with the kit for this step. Use of any other object or instrument could result in personal injury, and damage to your iMac. If your access card has become lost or damaged, go to www.apple.com/support/imac/diy/vesa to purchase a replacement access card.

4 Rotate your iMac forward another 10 degrees until the 8 screws on top of the stand are visible and the stand is locked in place.

Important: Keep your iMac upright until the stand is locked in place.

5 Hold the sides of your iMac and carefully lay it down so that the screen is resting on a soft towel or cloth on a flat surface and the stand hangs over the edge of your work surface.

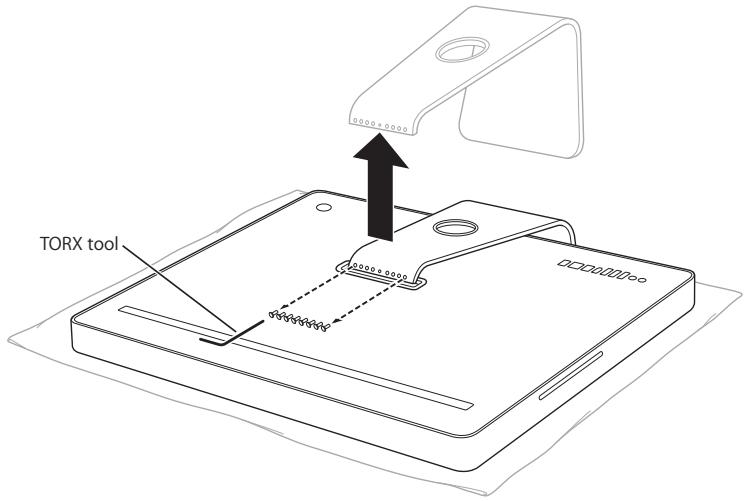

6 Use the TORX tool to remove the 8 screws that attach the stand to the back of your iMac. You'll need these screws to attach the flange to your iMac, so set them aside.

TORX tool

Hex tool

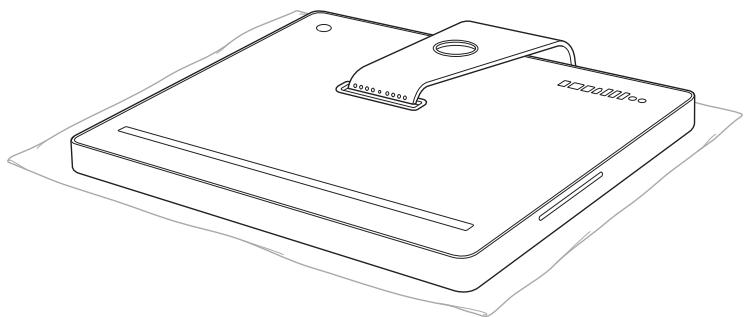

7 Remove the stand and put it in a safe place in case you want to reattach it.

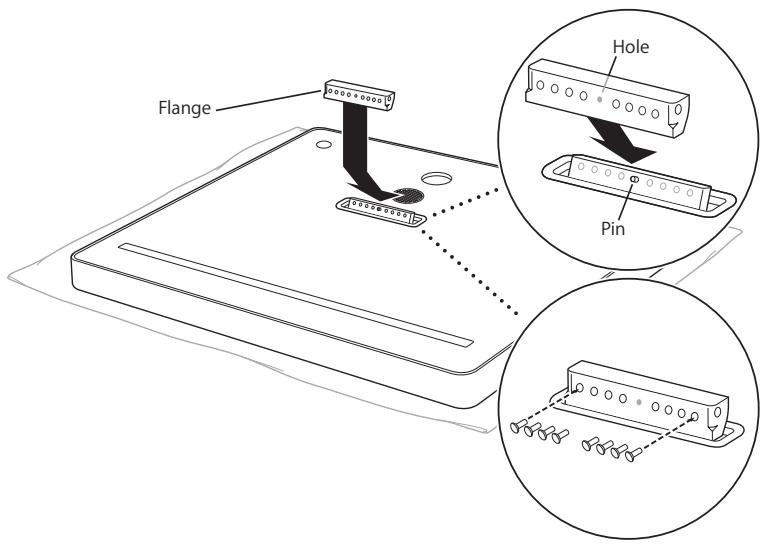

8 Align the hole in the flange with the pin on the back of your iMac, and then use the TORX tool and the 8 screws you removed from the stand to attach the flange.

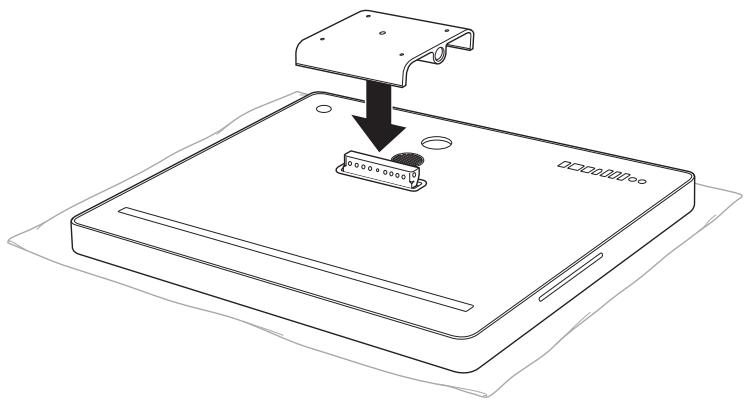

9 Place the mount adapter over the flange.

Important: Keep the flange in the locked position while you attach the mount adapter.

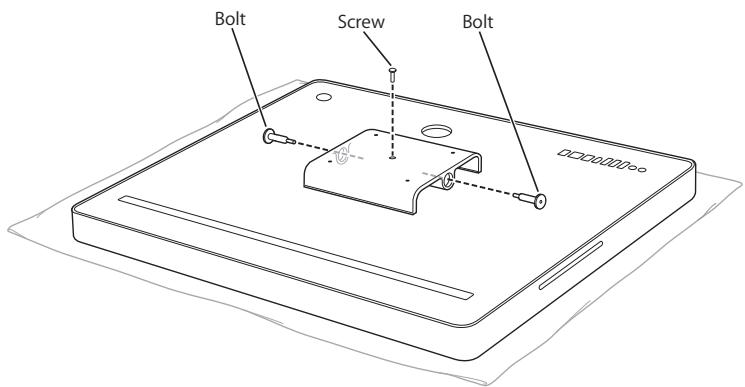

10 Use the TORX tool to screw the screw into the top of the mount adapter, and then use the hex tool and the two bolts to attach the mount adapter to the back of your iMac.

11 Follow the instructions included with the VESA-compliant mounting solution to attach it to your 24-inch iMac.
12 Connect the power cord and cables to your iMac.

iMac 24-inch VESA Mount Adapter

© 2006 Apple Computer, Inc. All rights reserved.

Apple, the Apple logo, and iMac are trademarks of Apple

Computer, Inc., registered in the U.S. and other countries.

Other company and product names mentioned herein are trademarks of their respective companies.

Printed in XXXX
