USER MANUAL ENL60710S AEG-ELECTROLUX

3 Police mraznicky a chladnicky

Fordu ringer after service... 39

Be sure to keep for safety! 49

Installation Guide 52

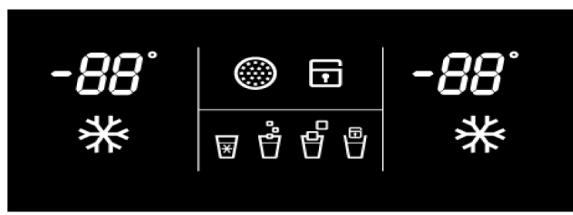

Control Panel 53

Temperature Control 54

How To change the Interior Light Bulb __ 55

How to use the interior parts 56

Magic cool zone (Option) 58

How to use the Dispenser 58

How to use the Automatic Icemaker 59

Care & Cleaning 60

Before You Call for Service... 62

Something strange? Don't worry.

Here is the answer 63

Installation Preparation 64

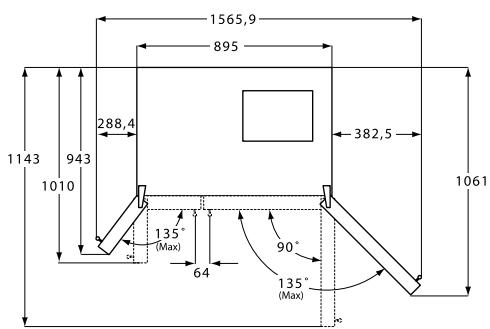

If the refrigerator cannot pass through a door during installation, follow these steps 67

Refrigerator Levelling & Door Adjustment (If needed.) 68

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste.

In the European Union and Other European countries: there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous conditions for the

environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources.

Please do not therefore dispose of your old electrical and electronic equipment with your household waste.

For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

SAFETY WARNING (R-600a Models Only)

This appliance contains a certain amount of isobutane refrigerant (R600a) a natural gas with high environmental compatibility that is, however, also combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged.

Refrigerant squirting out of the pipes could ignite or cause an eye injury. If a leak is detected, avoid any naked flames or potential sources of ignition and air the room in which appliance is standing for several minutes.

• In order to avoid the creation of a flammable gas-air mixture if a leak in the refrigerating circuit occurs, the size of the room in which the appliance may be sited depends on the amount of refrigerant

used. The room must be 1m^3 in size for every 8g of R600a refrigerant inside the appliance. The amount of refrigerant is shown on the identification plate inside the appliance.

• Never start up an appliance showing any signs of damage. If in doubt, consult your dealer.

RoHS (Directive 2002/95/EC) Compliant

This environment-friendly product does not contain the EU RoHS restricted substances (Pb, Hg, Cd, Cr6+, PBB, and PBDE).

Be sure to keep for safety!

Read these safety instructions thoroughly and carefully before using. Please keep this user guide to hand for future reference.

Warning! Indicates the possibility of danger of death or serious injury.

Caution! Indicates the possibility of risk of personal injury or material damage.

Other Signs

DO NOT remove or disassemble!

NO., DO NOT...

Be sure to unplug from receptacle (outlet/mains)!

Be sure to keep and follow!

Caution!

• If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
• The appliance must be positioned so that the plug is accessible.

Warning

Never let the power cord be crushed by the refrigerator itself or other (heavy) objects. Never bend power cord excessively.

If the cord is damaged or peeled, it can be a cause of fire and electric shock.

Do not plug several appliances into the same wall outlet (receptacle). It can be a cause of overheating and/or fire. Use an exclusive grounding receptacle for the refrigerator.

Never hold the power cord or plug with wet hands.

There is a risk of electric shock.

Never use a damaged power cord or plug, or loose main socket.

There is a risk of fire, electric shock or serious injury.

Be sure to ground. Check if your wall outlet is grounded (earthed).

There is a risk of electric shock hazards.

Never unplug by pulling only the power cord wire. Always grip the plug firmly.

Let the cord from the plug outlet be directed Downwards.

If it is directed up, the cord near the plug is bent and can be damaged, which can cause an electric shock or fire.

Do not install the refrigerator on a wet floor or in a place with much humidity moisture.

Electric insulation gets weakened, resulting in a risk of electric shock hazards.

Warning
	Never let the power cord touch or pass over heating appliances. Power cord can be damaged, resulting in a risk of electric shock hazards.	Check if plug is loose from the wall outlet. Electric insulation gets weakened, resulting in a risk of electric shock hazards.
	Never pour or spray water into the refrigerator (both interior and exterior). Electric insulation gets weakened, resulting in a risk of electric shock hazards.	Do not place containers with water or liquid on top of refrigerator. Water can be poured into the refrigerator and can cause electric shock hazards or damage.
	Do not let children hang on the refrigerator doors. Refrigerator can fall and do harm to them.	Do not move or remove compartment shelves/pockets while foods and containers are on them. Hard container (of glass, metal etc.) can fall to hurt you and can break shelf glass and interior parts.
	Never repair or disassemble or amend the refrigerator on your own. There is a risk of personal injury or damage to the refrigerator. It is recommended that any service be carried out by a qualified person.	Never store any flammable gas or liquid in the refrigerator.
	Never use flammable gas, benzene, thinner, gasoline, spray etc. near the refrigerator. There is a risk of fire, explosion and personal injury or damage.	If a gas leak is found near the refrigerator or in the kitchen, ventilate it immediately without touching power plug or refrigerator.
	Do not store medicine, academic research samples which require strict temperature control in the refrigerator.	Never insert fingers or hands into the bottom of refrigerator, especially into the bottom back. You can be hurt by sharp metal edges or can receive an electric shock.
	Do not change fuse or light bulb on your own. Call the service agent to change them.	When you find the power cord damaged or cut, call the service agent immediately.
	When you get rid of your old refrigerator, be sure to remove the door packings first. Children can be entrapped and suffocated in an abandoned refrigerator. Leaving it for “just a few days” can be very dangerous!
CAUTION
Be sure to unplug when the refrigerator is not used for a long time.	Never touch foods and containers especially of metal with wet hands in the freezer compartment. You can be hurt by chilblains or cold burn.
Never eat any decayed or deteriorated food at all. Foods stored too long in the refrigerator can be decayed or deteriorated.	Never place bottles and containers of glass in the freezer compartment. Glass containers and bottles can be broken so can hurt you.
When moving the refrigerator (horizontally or tilted), more than 2 persons are required to hold it. (One to hold top back handles, the other, bottom holder.)If other parts gripped, it is very dangerous and likely to slip.	Be sure to turn up the wheel first before moving the refrigerator. ·The wheels can damage or scratch the floor. If you move it a long distance, never forget to fasten the interior parts tightly with tapes. ·The parts can collide and break each other.

Installation Guide

Read these safety instructions carefully before use and follow precautions for your safety.

Precautions in installation and power connection

To prevent fire, electric shock or leakage:

1. Never install the refrigerator on a wet, watery floor or where water can easily gather.

2. Check the following before power connection.

3. Connect power plug only to a grounded wall receptacle (an earthed mains).

4. Do not plug refrigerator power together with other appliances to the same receptacle (socket).

5. Do not use an adapter plug or an extension cord.

6. Do not let power cord be crushed down by other (heavy) objects.

7. If you hear a strange noise or a strong chemical odour or find smog etc. from the refrigerator after power plugin, pull out the plug immediately and call the service agent or ELECTROLUX customer service Dept.

8. Wait about 5 minutes before you plugin again in order to prevent any damage to the compressor and electrical devices of refrigerator.
9. Wait 2~3 hours until the inside gets cold enough after the first power plugin, then store foods inside. (There can be some peculiar smell of plastic parts at initial operation of refrigerator after plugin. The smell fades away as the refrigerator works and doors are opened and closed.)

Precautions in use

To prevent personal injury, fire, electric shock etc. read this user guide carefully before use and keep it at hand for any reference.

Accessories
	Filter Box

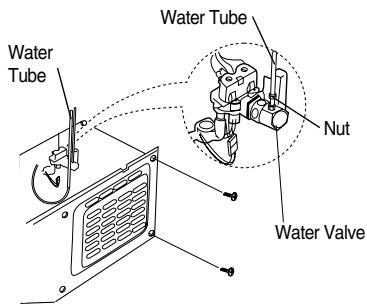

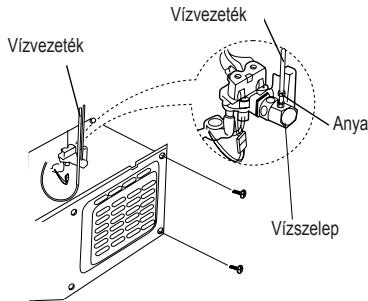

	Water supply Kit
	User guide

After 6 month of first power input, "CHANGE FILTER" icon is ON.

When the time comes to change the filter or reset:

1. Push the button.
2. Push the button for 3 seconds. Then "CHANGE FILTER" icon is OFF.

Children may push any button on the panel for fun, resulting in disorder of temperature and function of refrigerator.

• Press this button to lock out this possibility and to keep temperature and function setting.
• Push Lock button again for more than 3 seconds to stop it.

For your convenience you can select WATER, CRUSHED ICE, CUBED ICE and ICE MAKER LOCK.

The icon lights up to indicate your selection is ON.

To obtain the water or ice, push the pad smoothly with your cup and your selection will come out 1~2 seconds later.

• Try to avoid placing the rim of your glass near the bottom of pad, otherwise Water or Ice cubes may spill or splash.
• You will hear a snap sound 2 seconds after the ice cubes come out. This is from the shut off ice-out valve.
• Wait 2~3 seconds after pushing the pad to get all the available water or ice cubes.

When cleaning the ice cubes case assembly or when you do not use for a long period of time, remove the ice cubes in the ice storage case and press the button to stop making ice cubes.

Note! Interior lights of refrigerator turn off when the doors are open for more than 10 minutes.

• In case either freezer or refrigerator door is open for more than a minute, door alarm rings for 5 minutes with 1 minute interval.

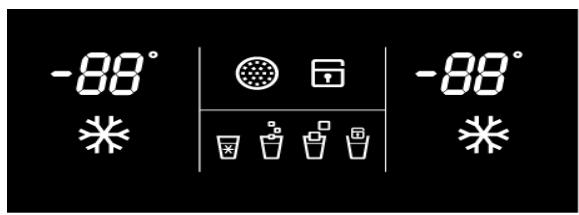

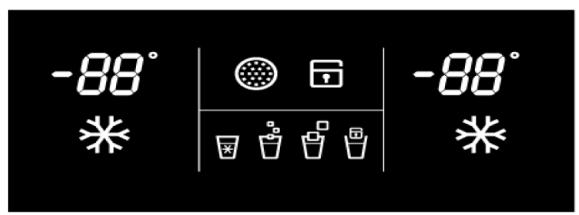

Temperature Control

When this refrigerator is first plugged in, the temperature mode is set to [Middle].

1 1 1 1 1 1

1 1

Freezer Compartment

Push the button and the setting temperature changes as the figure shows.

• Sequential Temperature Change

Faster Freezing...

When you want faster freezing, push the SUPER button. Just push the button once again when you want to stop the mode.

Refrigerator Compartment

Push the button and the setting temperature changes as the figure shows.

• Sequential Temperature Change

Faster Cooling or Refrigeration

When you want faster refrigeration, push the SUPER button. Just push the button once again when you want to stop the mode.

Caution! Foods in the refrigerator can be frozen if the ambient temperature of the refrigerator is below 5^ C .

How To change the Interior Light Bulb

The lamp shall be replaced only by a service agent or similarly qualified person.

Change of Freezer Lights

1. Remove the 2 screws retaining the light cover.

1. Hold the botton of the light cover and pull forward to remove.

1. Change the light bulb.

2. Follow the reverse order of disassembling after changing the light.

Change of Refrigerator Lights

Refrigerator Top Lights

1. Remove the screws retaining the light cover.

1. Hold the bottom of cover and pull forward to remove.

1. Change the light bulbs.

2. Follow the reverse order of disassembling when assembling back.

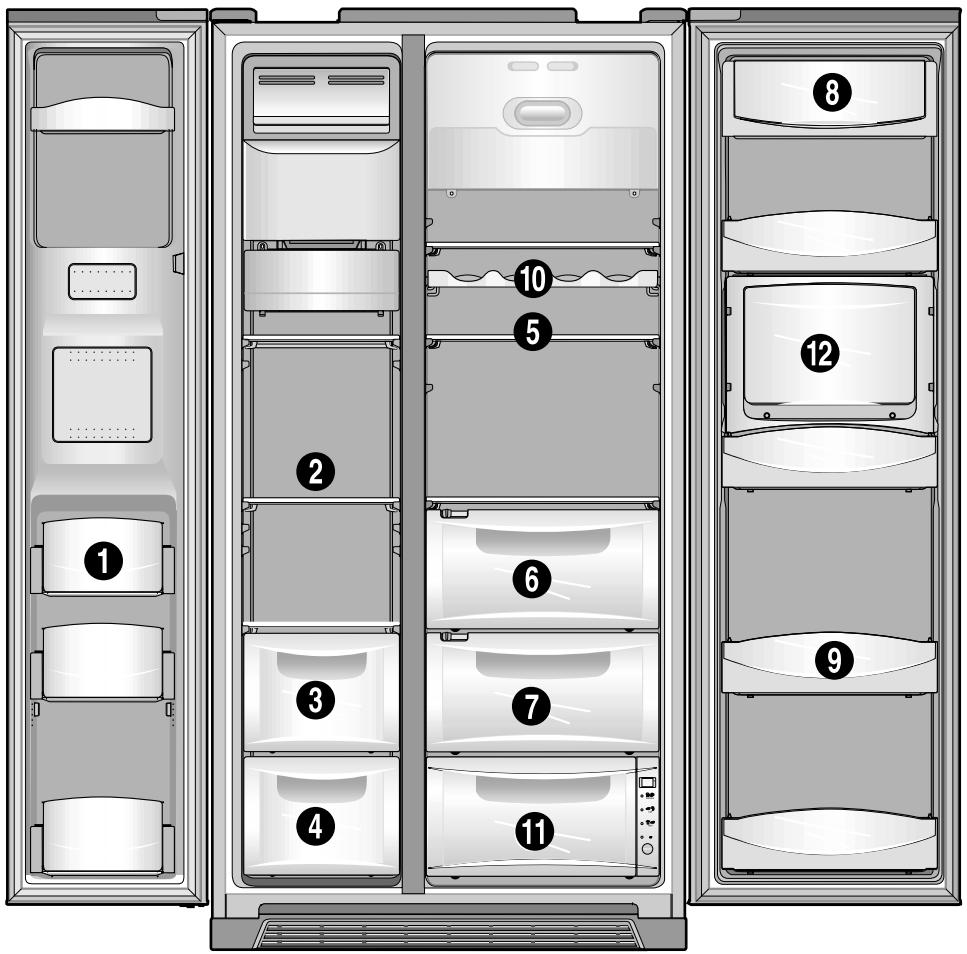

How to use the interior parts

Full-option models illustrated. Features are model-dependent.

Caution!

• Do not touch or hold with wet hands foods (foods container) in the freezer compartment.
  There is a risk of chilblains (cold burn).
• Do not store medicine, academic research samples etc. in the refrigerator.
• Do not store vegetables in the chilled room, for they can be frozen.

! Note! Egg case can be placed on a refrigerator shelf as you like.

1. Freezer Pocket

For storing frozen foods

(Do not store ice cream or long stored foods on the top freezer pocket.)

1. Freezer Shelf (tempered glass)

For storing frozen foods such as meat, fish, ice-cream...

1. Drying Case of Freezer

For storing dried foods for so long (dried squid, dried anchovy etc.)

1. Meat case of Freezer

For storing meat, fish, chicken with foil cover or vinyl wrap

1. Refrigerator Shelf (tempered glass)

For storing common foods

1. Vegetable Case

2. Fruit Case

For storing fruits

1. Dairy Pocket

For storing dairy products such as butter and cheese

1. Refrigerator Pocket

For storing refrigerating foods, milk, juice, beer bottle etc.

10.Wine Keeper (Option)

11.Magic Cool Zone (Option)

Refer to page 10.

1. Refreshment Pocket (Refreshment Pocket Models Only)

For frequently used cans, drink water, beverages

Food Storage Tips
Wash foods before storing.	Be careful in storing such tropical fruit as bananas, pineapples, tomatoes, for they can easily deteriorate in lower temperature.
Divide and separate foods into smaller pieces.	Keep enough space between the foods as possible. If too tight or too close, cold air circulation is hindered, resulting in poor refrigeration.
Place watery foods or foods with much moisture in front of shelves (close to door side). • If they are placed close to the cold air spout, they can be frozen.	Never forget to cover or wrap foods to prevent odour of foods.
Warm or hot foods should be cooled down enough before storing to reduce power consumption and to enhance refrigeration performance.

Magic cool zone (Option)

Magic cool zone Control graphic and Control function

VEGETABLE

FISH

MEAT

When you plug in first, "OFF" LED is ON.

You can choose "OFF" "VEGETABLE"

"FISH" "MEAT" by pushing the "SELECT" button.

Step	Display
OFF	-
VEGETABLE	3°
FISH	-1°
MEAT	-3°

The LEDs and temperatures indicate what you have selected.

• Displayed temperature means a target setting value, so it may differ from the actual room temperature.

How to use the Dispenser

Select WATER / CRUSHED ICE / CUBED ICE and press the cup on the PUSH pad for your convenience.

Press the

button to

select WATER and ICON lights up to show it is on.

Press the

button to

select CRUSHED ICE and ICON turns on.

Press the

button to

select CUBED ICE and ICON turns on.

WATER

CRUSHED ICE

CUBED ICE

When you get [CUBED ICE] or [CRUSHED ICE], remove the cup from the pad when it is half full. (If you don't, the remaining ICES will make the cup overflow or the dispenser outlet will become blocked.)

Caution!

• Avoid using thin fragile cups or crystal glasses when taking (crushed) ice cubes.
• For your safety, never insert your fingers or other tools into the dispenser outlet.
• If you find the (crushed/cubed) ices discolored, stop using the dispenser and call the service agent.
• 1 hour after you get [CUBED ICE] or [CRUSHED ICE], the selection mode returns to [WATER] automatically.

How to use the Automatic Icemaker

• About 10 ice cubes (7~8 times a day) are made at one time. If the ice storage case is full, icemaking stops.
• It is normal for the icemaker to make banging sounds when the ice cubes are falling into the ice storage case.
• To prevent a bad odour or smells, regularly clean the Ice cubes Storage Case.
• If the amount of ice in the storage case is not sufficient, the ice may not be dispensed. Wait a day or so to make more ice.
• If the ice does not dispense easily, ensure the dispenser outlet is not blocked.

In case the icemaker doesn't work

1. If the ice cubes get stuck and not dispensed

2. Pull out the ice storage case and separate any ice cubes that may have stuck together.

3. If the amount of water which is supplied to the icemaker needs adjusting. Call for the service agent.

4. In case of power failure

5. The ice cubes in the case may melt to flow down to the freezer room. If long hours of power failure is predicted, pull out the case, remove the ice cubes in it and replace it back.

! Note! Use only the ices out of this refrigerator.

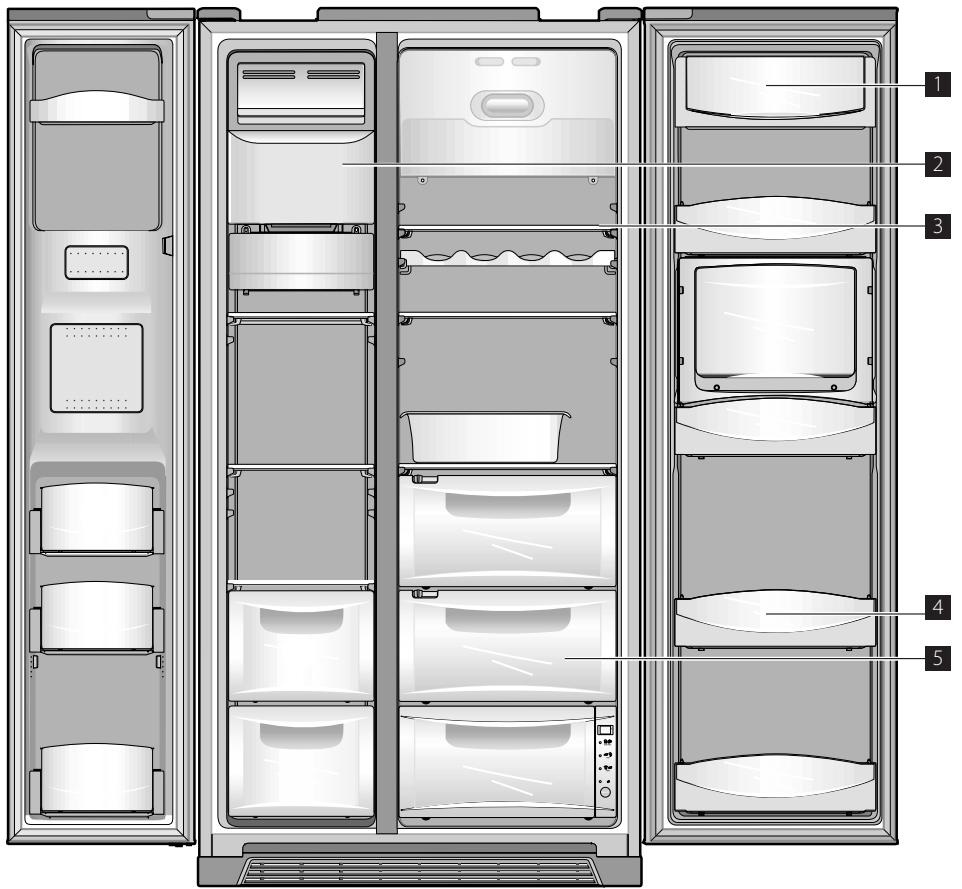

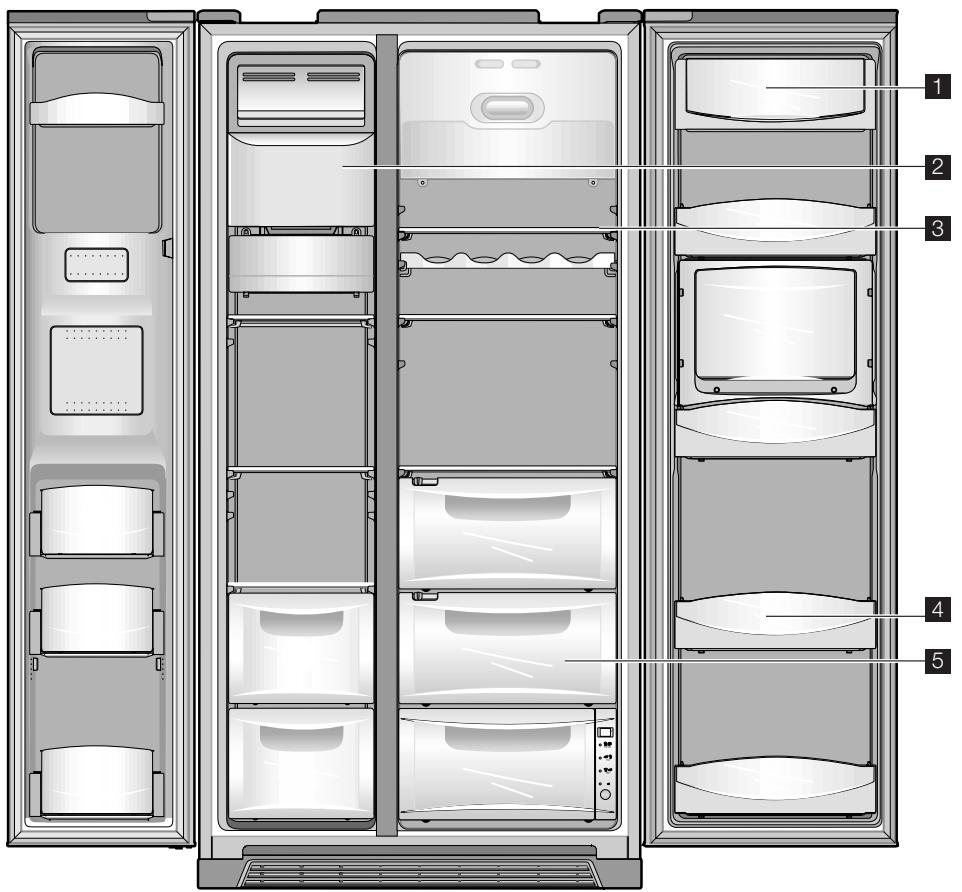

Care & Cleaning

Be sure to unplug first!

Full-option models illustrated.

1 Diary Pocket

• Diary Pocket Cover; Open the cover a little, hold both ends and push left to remove.
• Diary Pocket; Hold both ends and pull upward to remove.

2 Ice cubes storage Case

• Removing; Pull up the case assembly forward to remove.

• Replacing; Fit to the side grooves and insert to the end. If it is difficult to fully insert the case, remove it, rotate the swirl coil in the case or drive mechanism a quarter turn and insert again. Do not store the ice cubes too long.

3 Freezer & Refrigerator Shelves

• Open the doors fully, then pull the shelves forward to remove.

4 Freezer & Refrigerator Pockets

• Hold both ends and pull up.

5 Vegetable Case & Fruit Case

• Pull forward and lift up a little to remove.

Dispenser Water Shelf

• Remove the spill grill and clean the water shelf regularly.

(The spill shelf is not self-draining.)

! Note! Never use any other electrical appliances together in the inside of the refrigerator for fear of electric shock or fire.
Caution! For your safety, press the (ICE MAKER LOCK) once, when cleaning (removing & replacing) the ice cubes storage assembly.

• Be careful not to hurt your hands and fingers when cleaning the assembly.

How to Clean

Interior Parts

• Use cloth with water and mild (neutral) detergent to clean.

Door Packing

• Use cloth with mild (neutral) detergent.

Back (Machine Room)

• Remove dust on grill with a vacuum cleaner at least once a year.

Caution! Never use gasoline (petrol), benzene (benzol), thinners etc., for they can damage the surfaces.

Before You Call for Service...

Please check up the following troubleshooting tips before you call for service!

Problem	Checkup Point	Action
It never gets cold inside. Freezing & refrigerating is not so good.	·Is the refrigerator unplugged? ·Is the temperature set to [Low Mode]? ·Is the refrigerator under direct sunlight or is any heat appliance placed near it? ·Is the space between refrigerator back and the wall too close?	·Plug in the refrigerator. ·Set the temperature mode to Middle or High. ·Move to a place where there is no direct sunlight, no heat appliances around. ·Keep sufficient space (more than 10 cm) between refrigerator back and the wall.
Foods in the refrigerator get frozen.	·Is temperature set to [Strong]? ·Is surrounding temperature too low? ·Is the food with much moisture stored close to the cold air spout?	·Set the temperature to [Middle] or [Low]. ·Foods can be frozen if ambient temperature is below 5 °C. Move to a place where the temperature is over 5 °C. ·Place foods with moisture on the shelves close to the doors.
Strange sound from the refrigerator.	·Is floor beneath the refrigerator uneven? ·Is the space between refrigerator back and the wall too close? ·Do any objects or other stuff touch the refrigerator?	·Move the refrigerator to a level and even floor. ·Keep sufficient space. ·Remove any object away which touches the refrigerator.
Odour or disgusting smell from the inside.	·Is the food stored uncovered or unwrapped? ·Are the shelves and pockets stained with food stuff? ·Is the food stored too long?	·Be sure to cover and wrap the foods. ·Clean them regularly. Once smell gets soaked to those parts, it is not easy to remove. ·Do not store foods for so long. ·A refrigerator is neither a perfect nor a permanent foods keeper.

Something strange? Don't worry. Here is the answer

Case	Explanation
Heat Front and side of refrigerator feels warm or hot.	·Pipes (refrigerant vessel) are placed beneath the surface to prevent moisture forming on it.
Door is sticky Doors do not open easily.	·When you close the door and then open again immediately, the door is not easy to open. Warm air rushes into the inside to make the pressure difference. In this case wait for a minute, then it will open easily.
Strange Sound It sounds like water is flowing from the refrigerator.	·When the compressor starts to run or stops, refrigerant which makes the inside cold flowing in the pipes can make such a sound. ·Defrosted water can also make such a sound. (This refrigerator adopts an automatic defrosting system.)
Something cracking or click sound.	·Inside parts shrink and/or expand due to temperature change – When the inside gets cold or when the door is open – such sound can be made.
Humming or buzz sound.	·Compressor or fans for cold air circulation can make such working sound. (If the refrigerator is not level, the sound can be louder.)
Frost & Dew Dew or frost on the wall and/or food container surface in the freezer and refrigerator compartment.	·Frost and/or dew can be made in the following cases: ·High temperature and/or high humidity around the refrigerator. ·When doors are open too long. ·Foods with much moisture are stored uncovered or unwrapped. –You can see the same appearance when cold water is poured in a glass cup and dew is forming on the surface of it.
Dew on the interior lights cover.	·The light bulb radiates heat while it is on, so when doors are open too long, dew can form on the light cover due to temperature difference.
Dew on the cabinet surface.	·In case it is highly humid around the refrigerator, moisture in the air sticks to the surface to form the dew.

Installation Preparation

Check if the refrigerator can pass a doorway or enter a door first.

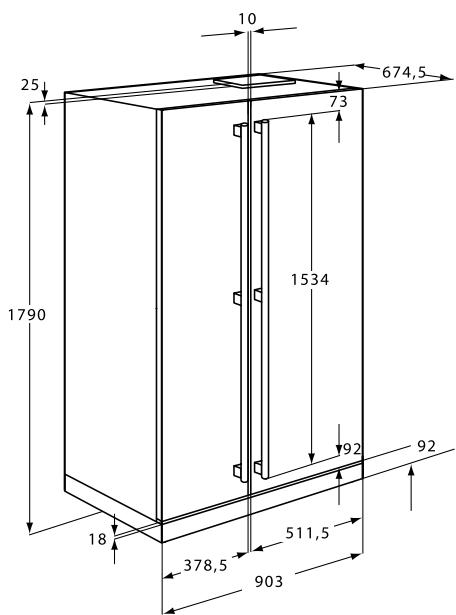

Dimensions (including Door Handles)

(WidthDepthHeight)

903 mm x 721.5 mm x 1790 mm

Find a suitable place to install

Sufficient space from refrigerator back to the wall for free air ventilation

Avoid direct sunlight.

Note! Once the installation place is ready follow the installation instructions.

If surrounding temperature of refrigerator is low (below 5^ ), foods can be frozen or the refrigerator can work in abnormal way.

①

②

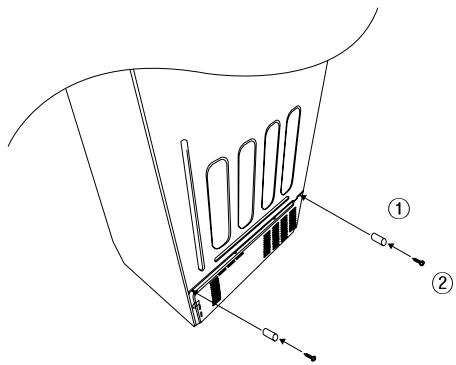

1 Spacer Kits
Screw

Notice!

"Place the enclosed spacers in the designed holder on the back of the appliance and screw them. This ensures that there is a minimum distance between the appliance and the wall".

Replacing Freezer Door

1. Insert the water tube into the hole of the bottom hinge pin first (Dispenser Models Only). Insert the bottom of freezer door into the bottom hinge pin.

1. Insert the bottom hole of freezer door straight to the bottom hinge pin.

1. Let the top of door close to the cabinet and insert the top hinge pin to the top hole of freezer door. (Insert the back of hinge to the groove of protrusion first, then front to the top hole of door.)

1. Turn the hinge fastener tightly to the end.

Connect harness wirings and screw ground wire.

1. Insert the water tube far into the coupling.

Dispenser Models Only

Replacing Refrigerator Door

1. Insert the bottom hole of refrigerator door straight to the bottom hinge pin.

1. Let the top of door close to the cabinet and insert the top hinge pin to the top hole of freezer door. (Insert the back of hinge to the groove of protrusion first, then front to the top hole of door.)

1. Turn the hinge fastener tightly to the end.

Connect harness wirings and screw ground wire.

Click and screw the top hinge cover.

If the refrigerator cannot pass through a door during installation, follow these steps

Removing Freezer Door

Remove front bottom cover first, if it is attached.

1. Remove the bottom cover first. Pull out the left collar of the coupling first, then hold the coupling and pull out the left water tube. (Dispenser Models Only)

1. Unscrew top hinge cover with a screwdriver.

1. Turn top hinge fastener counterclockwise 3~4 times. Disconnect the harness wires.

1. Lift up the front of hinge to remove. (After the hinge is removed the door can fall down forward. Be careful!)

1. Be careful not to damage the water line when removing the door.

Removing Refrigerator Door

1. Unscrew top hinge cover with a screwdriver. Insert a thin screwdriver into the side groove of the cover to remove.

1. Turn top hinge fastener counterclockwise 3~4 times. Disconnect harness wires.

1. Lift up the front of hinge to remove. (After the hinge is removed the door can fall down forward. Be careful!)

1. Lift the door straight up to remove.

Refrigerator Levelling & Door Adjustment (If needed.)

Refrigerator must be level in order to maintain optimal performance and desirable front appearance. (If the floor beneath the refrigerator is uneven, freezer and refrigerator doors look unbalanced.)

In case freezer door is lower than refrigerator door...

Insert a screwdriver (flat tip) into a groove of the left wheel (bottom of freezer) and turn it clockwise until the door is balanced. (Clockwise to raise freezer door; counterclockwise to lower).

In case refrigerator door is lower than freezer door...

Insert a screwdriver (flat tip) into a groove of the right wheel (bottom of refrigerator) and turn it clockwise until the door is balanced. (Clockwise to raise refrigerator door; counterclockwise to lower).

Front Cover

After installation and/or door levelling, fasten front cover with screws. (Remove the screws on the front bottom panel first. Click and screw the cover.)

Caution! The front of refrigerator needs to be higher just a little than the back for easy door closing, but if the wheel is raised too much for door balance, i.e. front of refrigerator is higher than the back, it can be difficult to open the door.

How to install Water Line (Dispenser Models Only)

1. The water pressure should be 2.0 12.5kgf/cm^2 or more to run the automatic icemaker.

2. Check your tap water pressure; if a cup of 180 cc is full within 10 seconds, the pressure is OK.

3. When installing the water tubes, ensure they are not close to any hot surfaces.

4. The water filter only "filters" water; it does not eliminate any bacteria or microbes.
5. If the water pressure is not high enough to run the icemaker, call the local plumber to get an additional water pressure pump.

6. The filter life depends on the amount of use. We recommend you replace the filter at least once every 6 months.

7. When attaching the filter, place it for easy access (removing & replacing).

8. After installation of refrigerator and water line system, select [WATER] on your control panel and press it for 2~3 minutes to supply water into the water tank and dispense water.

Installation Procedure (Dispenser Models Only)

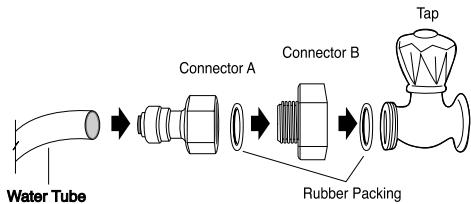

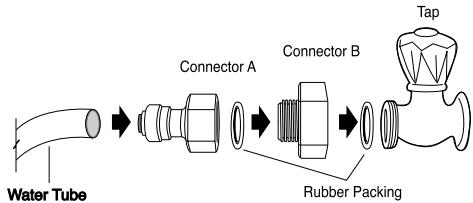

1. Join Connector to the tap water line

Figure A

Figure B

1. Use sealing tape to every connection of pipes/tubes to ensure there is no water leak.
2. The water tube should be connected to the cold water line.

WATER SUPPLY KIT

Check the parts below for installing water supply. Some other necessary parts are available at your local service agents.

Connector (3014454520)

Holder (3012020700)

Screw × 4 ea (7112401211)

Fastener A×3ea (3011202000)

Filter Box (3019974100)

Water tube A/B
(A:3019503200
B:3019503300)

! Place the rubber washer inside the tap connector and screw onto the water tap.

1. Get ready to install the Water Filter

2. Measure an approximate distance between the filter and the Water Tube and cut the tube off filter vertically.

3. Connect the tubes to the filter as the figure shows.

Leave a sufficient distance when cutting the tubes.

Ref Side

1. Remove any substances in the filter

2. Open the main tap water valve and check if water comes out of the Water Tube.

3. Check if the Water Valve is open in case water does not come out.

4. Leave the valve open until clean water is coming out.

5. Initial water may contain some substances out of filter (manufacturing process).

1. Attach the Filter Box

2. Screw and fasten the filter holder to the left/right side of the back of refrigerator.

3. In case the holder is not fastened well, remove the back paper of the tape on the filter holder and attach it.
4. Insert the filter box into the holder.

1. Connect the Water Tube to the refrigerator

2. Remove the rear cover at the bottom back of the refrigerator.

3. Insert the fastening ring into the Water tube. (Be careful to follow the direction of the nut.)
4. Insert the Water Tube into the top of the Water Valve, turn the nut clockwise to fasten it. (The Water valve is to the right of the motors.)
5. Check for any bent tubes or water leaks; if so, re-check installation procedure.
6. Replace the rear cover. (The Water Tube should be placed between the

groove of the refrigerator back and motor cover.)

! Set the tube upright as the figure shows.

1. Fasten the Water Tube

2. Fasten the Water Tube with the [Fastener A].

3. Check if the tube is bent or squeezed. If so, set it right to prevent any water leak.

1. After installation of Water Supply System

2. Plug in the refrigerator, press the [WATER] button on the control panel for 2~3 minutes to remove any air (bubble) in the pipes and drain out the initial water.

3. Check for the water leaks again through the water supply system (tubes, connectors and pipes). Rearrange the tubes again and do not move the refrigerator.

Sisallysluettelo

Ruuvi x 4
(7112401211)

Kiinnitin A x 3
(3011202000)

Suodatinkotelo
(3019974100)

Vesiputki A/B
(A:3019503200
B:3019503300)

KIT D'ALIMENTATION D'EAU

! Set the tube upright as the figure shows.

Vite x 4ea (7112401211)

Parafuso x 4ea (7112401211)

Fixador A x 3ea (3011202000)

NO guitar ni desmontar

PROHIBICION. NO...

He cTaBbTe B MOpO3nIbHyu KaMepy 6BytIKN I EMMKCTN I3 CTeKla.

CTeKJIaHHbIe EMKOCTn 6yTbJIKN MOnyT pa36bNTcbN HaHeCTn TpaBMbl.

4To6blI nepeMeCTnTb XoIoAnlbHnK (B rOp3HOHTaBHom IIN HAKIOHHOM noLoKeHN), Tpe6yEtcH He MeHee 2 qenOBek.

(OdHn dEpxnt 3a pyKn, pacnoJoxeHHbIe HabePxy c3aI, BtOpoi — CH3y).

Дерхать 3a Дугп чаtn onacho,pykn MOryT COckOJIb3HyTb.

PpeKJe Yem nepemeaTb XoIoIbHnK, y6eIntecb, yTO erO Koneca NOBepHytbl Bnepeid.

Koleca Moryt NOBpeiNb IINI NoapanaTbI ONI. PnI nepeMeuHn Ha 60JIbUne pacCTOHN He 3a6bBaIte npOHO 3aKePNITB BHTpeHHne YaCTN JInIKoJeHTOnI.
- Oин могут удариься дpyг о дpyга па3бntься.

PykoBoDCTBO NO yCTaHOBKe

Ipeep TEm, KaK npicCTyNaTb K kCkPnlyaTaun, BHIMaTeNbHO npOuHTne HaCToRusHe HNCTpyKUnn PO6eONaChOCTn IN CneDyIne IM.

Mepblnpedoctopoxknoctn npu yctahOBke npoekloueHH K cTeN 3JeKtpoNTaHn

YTo6bI NCKIIOUHTB BO3rOpaHne, IopaxKeHne əJIeKtpruYeCKIM TOKOM UIN YTeKy Toka:

1. HNkorda He yctaHaBnBaIte XOJIOINbHNIK Ha MOKpbI INI BnAChbI NOI INI B MeCTax, rDe MOKeT 6bICTPO CkANBaTbCBA Oda.

2. Перед подклоченем К сети заектpondыни роверпту слесуошee.

3. Bключай Te BИнky ceTeBorO ka6eЯ TOLьКВ 3a3eMЛeHHyI Opo3eTKy (B cTeb C 3a3eMЛeHHeM).

4. He BKNIOUaIte XOLOINbHNK B ODNy PO3eTKy C DpyrIMN 6blTOBbIMn pnp6Opamn.

5. Пи подклочени Кэльсторети He ИспOLTьут eуДинHTeINи ИПи пэрхODнКИ.
   4.CneInte，yTo6bIcTeBoiKa6eJIbHe6blpa3dabIeHApYIMN（TajKeJIbMI）npEIMTaMn。

6. EcniyucbluHnTe Heo6bUHbI uym, NoYBCTByeTe CInbHbI «XIMnueckn» 3aIax, yBvNITe Dblm I.T.I. OT XONOJIbHbNka NocIe BkLIOHeHnE oE B CeTb, HEmeJdNeHHO BblIOHTe erO n3 CETn I O6paTntEc b K npedctabNTeIc cepBnCHOn cIyK6bl IIN OtJeNa pAOtBc I NOKyNaTeJIaMn KOMnAHN ElectLECTUX.

7. UTo6bI NCKJIIOUHTb NOBpeJxHeHnKOMPiEeCCopa I KOMNHOHeHTOB 3JIeKTpuYeCKO CXEmbl XOLOdINbHnKa, IIOJOxDInTe 5 MNHyT, IpexKeJe CEM BkJIIOUHTb eRO CHObA.
8. Послеспервогов ВКLOчЕня рОJOxДиTe 2-3 уас,ЧТБы xOLOДиьнК ДОCTaTOчО OXlaДиLCBHTPy,ЗАtemВ Hero MOЖН OПОJOKNTb pNOДуKTbl. (В наразе ЗСКПИyaTациN XOLOДиьнКа BOМоЖен HeбОЛьшо СсeциФИчecку 3aIax ПЯСТмССOBыx DeТалe. ПО мeled pa60Ты xOLOДиьнК, KOrda DBeRры 6ydUT OKрьВaTBcR И 3aKрьВaTBcR, 3TOT 3aIax NOCTeENH ИСЧEЗHT.)

Mepbippeoctopoxhoctn pni 3kcnnyataun

YTO6bI NCKLIOUHTb IONUyeHne TpaBM, BO3ROPaHne, nopaJxHene 3JIeKTPnueCKM TOKOM nT,I, npEKeJe qem HaunHaTb NCNOJb3ObaHne, BHIMaTeNbHO n3yUHe TaHHoe pyKOBOdCTBO u XpaHnte erO B DOCTyHOM MecTe dIra CnpaBOK.

PpinaJdxHocstn

Dopma nla ran

KOMPnEeTdIpyoDaun BObl

PykoBoIOCTBO

Yepe3 6 MecaeB nocne hauana
ncnoJIb3ObaHnA 3aIopntc3NaUOK CHANGES FILTER (3AMEHHTb ΦNJIbTP).

Korda Na HactyniT Bpema 3aMeHbI ΦnIbTpau NnIc6poca yctahOBKn:

1. Haxmte KhoKy 2. Haxmte KhoKy n yedpkuBaiTe ee haxaToB TeueHne 3 cekynd. Nocle toro 3hauOK CHANGE FILTER (3AMEHHTb DfNlbTP) noracHet.

IeTn,Irpaar,MOrTy HauKaTb IIO6yKHOJKy Ha NaHeJI, YTO npuBeTeT KHapUSeHnIO TempePaTyPuro pexIma nOfHKUOHINPOBaHNX OJOOniNbHNka.

Hakmte 3Ty KhoNky, cyTo6b6JIOKnpoBaTb TaKyIO BO3MOxHOCTb N COxpaHHTb HaCTpoiKN.
- YTO6bI BYKJIIOUHTb FyHKLIIO 6JOKINPOBKN, HaxMITE KHOKNy BLOKINPOBA Ee pa3 n yapedxnbaiTe haxaToi 60ane 3 cekyHd.

Bb6paHHb BapnaHT yka3bIaetc CBETaUMc3HaYKOM.

YTO6bI NOJUyHtB BOdy NIN JEL, PJIaBHO HauaBHTe Ha pbyar yawkoN uyepe3 1-2 cekynDbI NOJUyHte Bbl6paHHe.

• CṭapaɪTecb He nɒmèuət b kpaɪ CTaKaHa pɪrʌm c HɪŋkHɪm Kpæm pbluərɑ, B ᵇTOM Cnʊyae Bɔdɑ ᶅnɪ Ieɪ MOrγT IπρOIŋTbCra Iɪn paCsbɪnTaBcA.
  Yepe3 2 cekyHbI nocne Bbvrgy3Kn bda pa3dacTc
  IeNvok. 3To O3Naaet 3akpbItne KnaHa noDaun
  lbda.
  ПлддгпгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдгдgBbIbI BblpyjkeHbI BCTaKaH.

ПичNTKe ЛбдoreHepaTopa Ил ecn ON He IcNoIb3yETcI JIInTeIbHoe BpeM, уДАЛТe BCE КБИКИЛьда ИЗ EMKOTNДЯ XpaHEnHЯ Лда ИнжмITEЭТУ KHOKNY, ЧТБblпркраTыИЗROTOВЕнUE КБИКOB Льда.

Пимачин!Еспдеверcaotkpытболee10 MHyT,TO BHTpeHHeO CBeWeeHne XOLOДьHnka BbKJIIOuayaETcA.

• EcnI DBePca XoIoNbHbNka nnMOpOzHbNka OKpBtA 6OJee MInHyTbI,TO pa3dAeTc3ByKOBoCnIHaJI,KOTOpbI NOBOTOPaETcB TeueHHe 5 MInHTc CMnHyTHbIM INHTepBaIOM.

YcTaHOBka TemnepaTypbl

ПрипегвOMВКЛЮЧЕнИXОЛДиьнika yctановлен cpeДн (Middle) TempepaTypHbIpyekIM.

1 1 系 1 中 1 园 1 系 1

1 1

Mop03nIbHoe otDeneHne

HaJMMTe KHONky, n HAcTpoJa TemnepaTpybl n3MeHHTcA, KaK POKa3aHO Ha pUCyHke.

• IocneobateIbHoe n3MeHeHne TempeaTypb

HaJMMITE KHOKNy, IN HAcTpoIka TemnepaTpybl n3MeHHTCAY, KaK POKa3aHO Ha PucYHke.

• IocneobatebHoe n3MeHeHne TempepaTpyb

Быстрoe oxлaxдене

Ecn Heo6xOJIMo 6bIcTpo OXlaIITb IPOdyKTb,TO hAKMITE KONKy SUPER. UTo6bl BbIKIOUHTb 3TOT peKIM, HAKMITE KONKy eue pa3.

BHHMaHHe! IpoJyKTbI B XOJIoJNbHnKe MOrTy 3aMOpO3NtBcA,ecJIu TempeaTypa OKpykaUoJero BO3dYxa Hnke 5^

3aMeHa IaMnbl BHyTpeHHeRo OcBeIeHInr

JaMny DoJxKeH 3aMeHЯr TOnbKO npEcdTaBnTeJIb cepBnCHoN CnyK6bl IINI CneUmaINC, IMeIoUnn aHaIOnuHyIO KBaJIINΦKaUIO.

3aMeHa lamm MOp0nIbHnKa

1. BbInHTnte 2 BnHTa, ydepKINBaIOUne nlafoH.

1. YTo6bI n3BVeueh pIafoH, BO3bMntEc b 3a erO HnKHOIO uACTb I NOTAHTE BpepeI.

1. KoHTeHepIaIy cyXoro 3aMopaxINBaHnIa

TempeaTpybI N CBeToIOIObl yKa3blBaIoT Ha CdeJaHHbI Bbl6Op.

• OTo6paJaaemaj TemnepaTpyo 03Haayet cJebeOe 3aJaHHoe 3HaueHne, PO3OMy OHa MOKeT OTInuHaTbCry OT aKTNUeCKoTtempeaTpyb B OTdeneHIN.

IcnoJb3ObaHne I03aTopa

Bb6epnte:BODA/KOJOTbIJIJEI/KYBNUKINbDAHAKMTEyawkoHa pUcarcHaDnncbHAXATb.

YTo6bIyBb6paTbBODA,HaKMTe KHOIIky,IN3arOpNTc3HAUYOK.

YtO6bI BvI6paTb KONOTblI JEL, HaaMmTE KeHONKy , 3a4opntc 3HAQOK.

YTO6bI Bv6paTb KYBKNJbDA, HaKMNTe KHOJIky , 3aROpNTc3HAQOK.

BOДA

KOLONTbIJIeD

KyBKNIbDA

I IpnBbIpy3Ke KOJOTOrIo JIOda NnN Ky6NKOB Ibda y6epNTe YaWKy OT pbHara, KOrDa OHa 3aONHITcra HAnOBoHNy.（Ecnn 3To He cEnaTb, TO OCTabWsiCnJe npepeOnHIT YaWKu NTbEpCTne DnB bIpy3Kn 6yDet nepeKpbITO.

! BHMaHne!

-ДяВыгрузК（KOLOTbIX）КУБИКOBЛьда He CLEДуET ИСПОЛБ3ОВАТХуРКЕЧаШКИ NIMN XpyCTaJIbHble CTaKaHbl.
B ceJx 6eOanachOCTn He CneJyET BCTaJIaTb NaIbCuI INI npYIe IpeJMeTb I OTBepCTne DnA Bblrpy3Kn.
- EclnIeN I3MeHNT CBT,TO npeKpaTNe IcNoIb3OBAHne IbDoreHePA Topa N Bbl3OBtNE npEcdTabInTe cepBnCHOn Cnyk6bl.
Yepe3 1 yac nocne ot6opa koloToro Ibda nn Ky6NKOB Ibda peXIM Bb6opa ABTomaTnueckn BO3Bpa7aetcB NIOJoxeHne «BOIDA».

IcnoJIb3OBAHnne aBTOMaTnueeCKOrO IbDOrEHaPaToPa

3aOnnpa3N3rotablnBaetc np6n3nteBHO 10ky6nKOBlbda7-8pa3BdeH).EcInemKocTb dIyXpAHnY K6nKOBlbda3aONHeHa,To npiroTOBLeHne lbda npekpaaaetc.
Kornda Kuybukn Ibda napaot B EMKoCTb Iy Ibda, pa3daetcTcYk. 3To HOpMaIbHO.
- UTo6bI npEoTbpaTnTb NOBJIeHne HEnpIraTHoro 3aIaxa, peryIaRHO MOIte EMKOCTb DInxpaHeHnKy6NKOB Nbda.
- EcnI KOJIueCTBO Nbda B E MKOCTn IaXpaHeHnI HeIOCTaTOUHO, TO JeI MOKeT He BbIpyKaTbcr. IIOJxIte npIMepHo DeHb, YTO6b HaKoPiNIOcb 6OJbIe Nbda.
- EcnIJIeB BByIpyJxAeTc TtpyOM, IPOBepbTe, He 3acOpeHOn JIn OTBepCTne DnIy BByp3Kn.

EcnIyIbOreHepaTOp He pa6oTaET

1. Ecni Ky6nKi Nbda CInnaIaIOTc N He BbIpyKaIOTc

2. ɪЗ藓ʌнгəнгəукьɒнгəнгəунгəнгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəунгəy

3. EcnI KOJIYcEeTBO BODI, BbIpyJXaEMOJIbDOReHepATOpOM, HeIOCTatoHNOJIbDOReHepaTOp Heo6XoDMOTperyIynopOBaT.ObpatneBcI pIpeDCTabINeIIO cepBnCHOn cIyKbI.

4. B clyuae c6o8 3neKtpoNTaHn

5. Ky6nKn IbDa B ATOM CNYae MOryT paCTaTb, N BODa BbIteUeT B MOpO3nIbHoe OTDeJIeHne. EcNI OxNJaETc JINITeBHOe OTKnIOUeHne 3NeKtPo3HeprN, To DOCTaHbTe EMKOCTb, YdaJInte IN Hee BCE Ky6nKn IuCTaHOBIne 06paTHo.

！PnmeaHne.NcnoB3yNeTe TOnbKOJeN 13 DaHHORO XONODINbHNKa.

y6eDntecb, yTO BnIka BblHyta n3 po3eKn!

Ha pncyHke npedctabIeHa moIeIb CO BcEMn fynKUJMaM.

1 RILLK DnIa MOIOUHbIX npOdyKTOB

KpbuKa Jnka Dnma MONOuHbIX PNOyKTOB; UTO6bl CHaTb KpbuKy, PNIOKTPOIe ee, BO3bMNTEc b C DBYx CTOPOH N cDINhTe BNEBO.
- ⅢIIMK DII MOJIOpHbIX IPOJyKTOB; YTO6blIOCTaTb IYIIN, BO3bMNTeCb C DByX CTOPOH INOTAHHTe BBePX.

2 EMKoCTbIJIyXpaHEnHn Ky6NIOB Nbda

-Перемшени;чTo6bln3BLech,NotAHHTeBpepe.

• 06paTHaY yCTaHOBKa; yCTaHOBnTe B 60KOBbIe nppe3n N BCTaBbTe Do KOHcA.
  Ecnj EMKOCTb BCTaBJTcRc TpydOM, TO nBZbKeNtE ee, NOBepHNTe CnnpaJIb Ha emKOCTn INI M EmaHn3Me Ha YeTBePb
  O6Opota N BCTaBbTe ee CHoBA.
  He xpaHnte Ky6nKn IbDa cnLshKom DoJIo.

3 Плки морозиьнika и XOLOДиьнka

• Yo6bI OOCTaTb NOJIKN, NOJHOCTbIO OTKpOHTe DBepCb, NOTAHNTe NOJKN Bpepe.

4 I山KIMMOPO3NJIbHNiKa n XOLOJINbHnKa

• BO3bMNTEcB C dByX CTOPOH INOTAHNTe BBepx

5 IuziKnIyIxApaHeHnOBOUeI nΦpykTob

• UTo6bI n3BVeCy, NotaHInTe Bnpei N HEMHO I pINIOHNIMTe.

Ponka dozatopa BODbl

• BbHbTe peWetky N BbIMoIte IOnIKy O6bUH cnOco6om.

IopIroTOBka K yctaHOBKe

Y6eHntecb, yTO xOJOnuJIbHnK npoIeT B dBepHO npoem.

Ta6apuTHbIe pa3Mpeblc dEbpHbIMn pyUkaMn)

CHINMITE CHaHaJIapepeHIO HIXKHOI KpbIShKy,ecNI OHA yCTaHOBJIeHa.

1. CHHMMTe cchayana HnKHHIO KpbIshky. IOTyHNTe 3a JEBbYXOMYT COeHNHeHNA, NOTOM yJePxNBAJTE COeHNHeHne N BItaUHTe JEByTO Tpy6y DJIa BOdbI (ToIbKO dIra MoDeJIe C Do3aTOPOM).

1. OTKpyTnTe OTBepTKoK KpbIshky BepxHne neTnI.

1. ПовернITE замок ВорхөнүпүлүрOTичасов стpeнкн Ha 3-4 obopota. OTCоeДИНITEpyOK пювODOB.

1. YTO6bI cHrT bNeTIO, NOHMnTe ee nepeHNHOaCTb. (Pocne toro kac netTIA 6yET cHtA, DBepca MoJcT yNactb BnpeD. Bydte octOpOxHbI!)

1. CneiTe 3a Tem, UTo6bI, ChnMaJ DBePcU, He NOBpeiNtB LInHIO NOdau BObl.

Charne dbepbXoJOnBnHnKa

1. OTKpyTnTe OTBepTKoK pblkky BepXHeI neTIn. T06bI CHaTb KpbIkKy, BCTaBbTe TOHkyO OTBepTKy B 6okoby npope3b Ha Hei.
2. ПовернITE замок Ворх新聞 петли рpoTNb uacobои стpeknHa 3-4 o6opota.ОтcoeINHITe nyuOK npoBOIOB.

1. YTo6bI cHAtb peTnIO,poHNIMTe ee nepeHIOU qactb.(Pocne toro kak peTIA 6ydtc HrtA, DBeprca MoKET ynpctb BnpeEd. Bydte octOpOxHbl!)

1. YTo6bI cHbTb DBePcUy, NOdHIMMITE ee BBepx

BbipabHnBaHne xoJOniNbHnK npeyInpOBKa DBePcbl (ecIn Heo6xoDIMO)

YtOb6I ObecneuHT HopMaJIbHyIO pa6Ory N BHeUHNI BIVX XOJOniNbHnKa,ero CJIeDyET BByPOBnTb.（ECIN NOI NOJ XOJOniNbHnKOM HEPOBnH,BdEpcI MOpOJIbNHa KxOJOniNbHnKa BBrIJaT HeC6aANHCIpOBoHaHHo

Ecn nDbepca Mopo3nIbHnKa HNXe DBepuXoJOnuNbHnKa...

BCTaBbTe OTBepTkCy C NIOCKM KOHcOM B pOpe3b IeBOr KOJecA (BHN3y MOPo3NJIbHNiKA) IN NOBOpaunBaIte ee no cAcOBoi CTpeJIke, NOKa DBepu He bIpOBnEraTc. (No cAcOBoi CTpeJIke, yTObI pOnHЯTb DBepUy MOpO3NJbHnKa, npOTIN - YTO6bI ONYCTNTb).

Ecn nDbepca xoJodunbHnka Hxke DbepcI MOpO3unbHnka

BCTaBbTe OTBepTkCy C NIOCKNIM KOHcOM B NpOpe3b npaBOrO KOnEca (BnH3y XoJOnuNbHnKA) INOBOPaUHBaIe ee no cAcoboi CTpeJIke, noka DBepCu He bIpOBHNeTc. (No cAcoboi CTpeJIke, uTO6bI pOdHЯTb DBepCu xoJOnuNbHnKA, npOTINB -uTO6bI ONyCTtNb).

IpeednKa Kpbioka

EN Bulb lamps used in this appliance are special lamps selected for household appliances use only!

They cannot be used for the full or partial illumination of a household room!

If it becomes necessary to replace the lamp use one of the same power and specifically designed for household appliances only.
