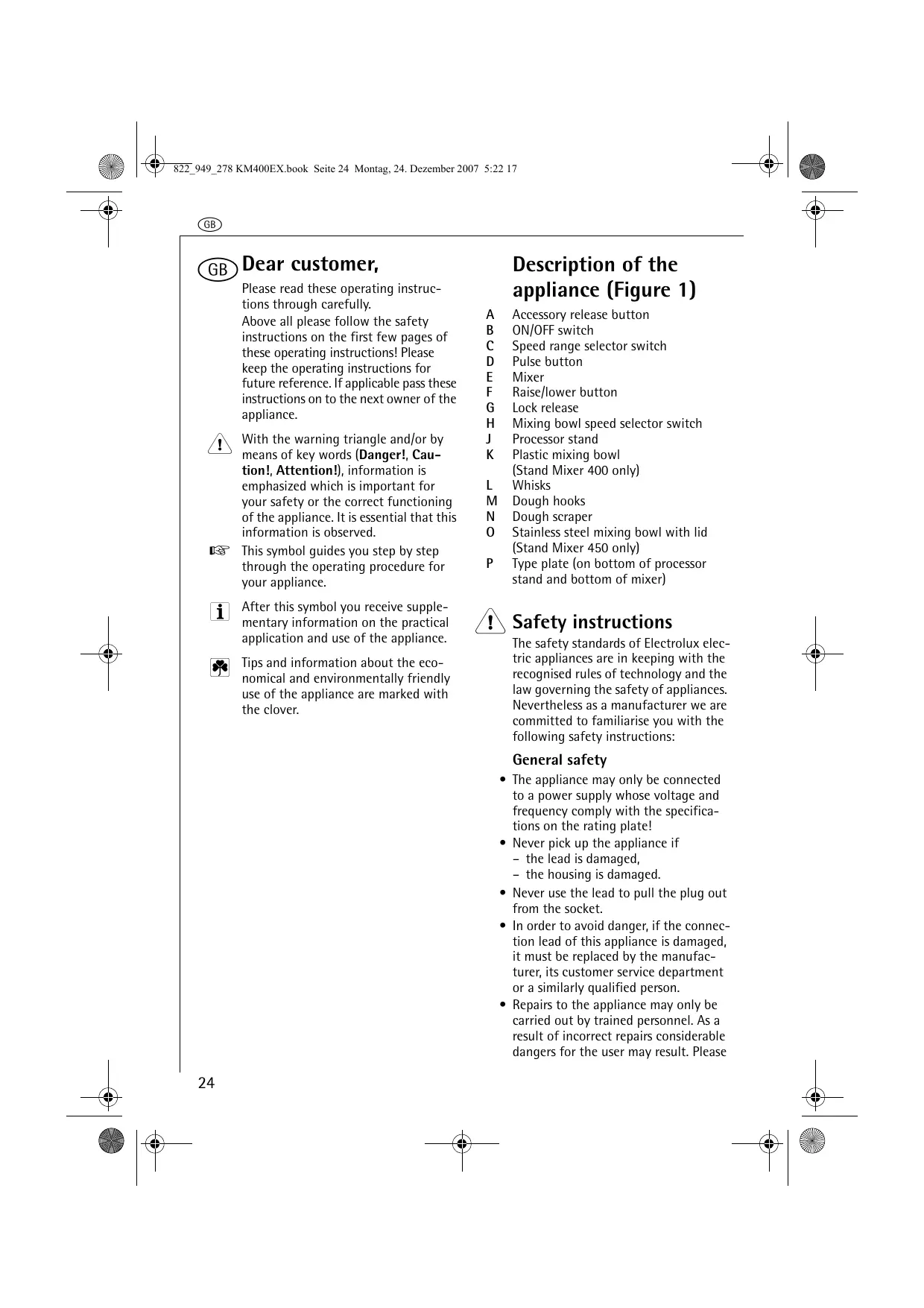

g Dear customer, Please read these operating instructions through carefully. Above all please follow the safety instructions on the first few pages of these operating instructions! Please keep the operating instructions for future reference. If applicable pass these instructions on to the next owner of the appliance. With the warning triangle and/or by means of key words (Danger!, Caution!, Attention!), information is emphasized which is important for your safety or the correct functioning of the appliance. It is essential that this information is observed. 0 This symbol guides you step by step through the operating procedure for your appliance.

After this symbol you receive supplementary information on the practical application and use of the appliance.

Tips and information about the economical and environmentally friendly use of the appliance are marked with the clover. Description of the appliance (Figure 1)

Accessory release button ON/OFF switch Speed range selector switch Pulse button Mixer Raise/lower button Lock release Mixing bowl speed selector switch Processor stand Plastic mixing bowl (Stand Mixer 400 only) Whisks Dough hooks Dough scraper Stainless steel mixing bowl with lid (Stand Mixer 450 only) Type plate (on bottom of processor stand and bottom of mixer) 1 Safety instructions The safety standards of Electrolux electric appliances are in keeping with the recognised rules of technology and the law governing the safety of appliances. Nevertheless as a manufacturer we are committed to familiarise you with the following safety instructions: General safety

• The appliance may only be connected to a power supply whose voltage and frequency comply with the specifications on the rating plate!
• Never pick up the appliance if – the lead is damaged, – the housing is damaged.
• Never use the lead to pull the plug out from the socket.
• In order to avoid danger, if the connection lead of this appliance is damaged, it must be replaced by the manufacturer, its customer service department or a similarly qualified person.
• Repairs to the appliance may only be carried out by trained personnel. As a result of incorrect repairs considerable dangers for the user may result. Please

contact the Electrolux customer service department or your dealer in the event of repairs being necessary.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Safety of children
• Never leave the appliance unattended when on and supervise particularly carefully if young children are around!
• Children should be supervised to ensure that they do not play with the appliance. When using your appliance
• Never release the accessories while the processor/mixer is running.
• Ensure fingers are kept away from moving whisks and dough hooks. This could result in injury!
• Never use the mixer if you have wet hands.
• Plastic parts may not be placed on or directly near to heaters.
• Do not use this appliance to stir paints (lacquers, polyesters etc.) This could result in an explosion!
• The appliance should be switched off and unplugged before any cleaning or maintenance work is done on it.
• Never clean the appliance under running water or submerge it in washingup water.
• The manufacturer is not liable for any damages which are caused by using the appliance for any other purpose than that intended or incorrect use. Installation, connection and initial use
• The attachments are only to be inserted into or removed from the appliance when it is switched off.
• The hand mixer can be used to mix food in any suitable bowl. You are advised, however, to use the supplied mixing bowls.
• Never switch on the appliance until the working attachments are in the mixing bowl with the ingredients to be processed. Always wait until the attachments stop before you remove the bowl.
• Do not hold any hard objects (e.g. a spoon, knife or whisk) against the moving attachments and do not touch them with your hand. This could result in injury!
• When you have finished working with the appliance, switch it off and unplug it from the electricity supply. Disposal

Packaging material The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Operation You can use the processor/hand mixer to mix, knead and whisk food. The mixer and mixing bowl are each driven separately by their own motors, and the speeds of the mixer and mixing bowl can be individually adjusted. However the mixer/processor has a single ON/OFF switch. The mixer can be easily removed from the processor stand in a moment and used as a standard hand mixer. When used in this way, move the hand mixer in a smooth circular motion around the inside of the bowl containing the ingredients.

The dough hooks (Figure 1/M) are used for heavy doughs, such as yeast dough, short crust pastry, potato batters and cake mixes. The whisk (Figure 1/L) is suitable for light cake mixes, egg white, cream, mayonnaise, purées and for stirring sauces and dessert powders.

• Stand Mixer 400 models are supplied with a plastic mixing bowl.
• Stand Mixer 450 models are supplied with a stainless steel mixing bowl with lid. Preparing for use Inserting/removing accessories (Figure 3) Before releasing the accessories, switch off the mixer and remove the plug from the mains socket! 0 Push the whisks or dough hooks into the accessory slots on the underside of the mixers, until they click into place. 1 The two dough hooks have different plug shapes and must be pushed into the correct slots. Insertion the wrong way round would lead to the dough being transported upwards! 0 One of the dough hooks has an additional small ring near the collar on the shaft. This dough hook will only fit in the slot for which it is intended. This is identified by a symbol.

0 To remove the accessories, hold firmly with one hand, while pressing the accessory release button (Figure 1/A). Raising/lowering the mixer (Figure 4) Ensure that the mixer is switched off before raising/lowering! 0 Press the raise/lower button (Figure 1/F) and swing the mixer up or down, until it clicks in place.

Fitting the mixer to/removing from the processor stand (Figure 2) Before fitting or removing the mixer, switch off the processor/mixer and remove the plug from the mains socket! 0 To fit, push the mixer on to the processor stand (the two latches on the processor stand engage in the mixer) and press down to lock. 0 To remove, press the lock release (Figure 1/G) and pull the mixer upwards. Locating/removing the mixing bowl (Figure 5)

With the mixer raised, the accessories can be easily changed and the mixing bowl located on the processor stand or removed. 0 Locate the mixing bowl on the guide on the base and latch in place by gently turning clockwise. 0 To remove the mixing bowl, turn anticlockwise to unlatch.

It may be necessary to hold the base to prevent it rotating. The off-centre position of the mixer makes it easy to add ingredients while the processor is in operation.

Working with the mixer/ processor

When the mixer is attached to the processor stand, the mixing bowl is automatically switched on when the mixer is switched on.

The appliance can be used for up to 10 minutes without stopping. It should be allowed to cool each time following prolonged, continuous operation (for at least 20 minutes after using for 10 minutes without stopping).

Maximum processing quantities: Processing in the mixing bowl must not exceed 1.5 kg solid or 1.75 l liquid foodstuffs. Switching the mixer ON (Figure 6) 0 Select the speed range with the speed range selector switch (Figure 1+6/C): low speeds, or high speeds. 0 The ON/OFF switch (Figure 1+6/B) is used to: – switch the mixer ON and OFF, – control the mixer speed (5 speed settings) in the pre-selected speed range. 0 As long as the Pulse button (Figure 1+6/D) is pressed and held when the appliance is in operation, the mixer operates at its maximum speed. Selecting the mixing bowl speed (Figure 7) The mixing bowl has two speed settings. 0 The mixing bowl speed selector switch (Figure 1/H) is used to select the mixing bowl speed: I = low speed II = high speed Switching the mixer OFF 0 Slide the ON/OFF switch (Figure 1+6/B) to "0". – The mixer and mixing bowl are switched off. Selecting the correct settings The following notes can be used as a guide. Mixer speed Speed range selector switch (Figure 1+6/C) ON/OFF switch (Figure 1+6/B)

• Kneading, Mixing: start with 1 or 2, than speed up to 5

• Stirring: start with 2 or 3, than speed up

• Whisking, Frothing: 4 or 5

Start all types of processing at a low speed. This will avoid powdery foods and liquids spraying out.

Mixing bowl speed Use speed "II" for whisking egg white, cream and light cake mixtures. Use speed "I" for heavy dough and large quantities. Store the dough hooks and whisks in the mixing bowl located on the processor base. This will protect them from damage. Cleaning and care

Mixer and processor stand Remove the plug from the mains socket before cleaning. Ensure that no water penetrates into the inside of the appliance! Never clean the appliance under running water and never immerse in water. 0 Wipe the mixer and processor stand with a damp cloth.

Accessories Whisks and dough hooks 0 Clean the whisks and dough hooks with a brush or a cloth under running water or in the dishwasher! Stainless steel mixing bowl (Stand Mixer 450 only) 0 The stainless steel mixing bowl (not the lid!) can be washed in the dishwasher.

The lid of the stainless steel mixing bowl must not be washed in the dishwasher. Plastic mixing bowl (Stand Mixer 400 only) Wash the plastic mixing bowl in water with washing-up liquid.

Technical data Residues of carrot and red cabbage juice can be removed from the plastic parts with cooking oil before the appliance is cleaned. If you wish to wash the plastic mixing bowl in the dishwasher, it must be placed in the upper basket. Mains voltage: 230 - 240 V Power consumption: 380 W Maximum continuous operating time: 10 minutes

This appliance conforms with the following EC Directives:

• Low Voltage Directive 2006/95/EC
• EMC Directive 89/336/EEC with amendments 92/31/EEC and 93/68/EEC Popis pøístroje (obr. 1)
