Type	Ceiling Fan
Brand	Evolar
Model	EVO-CF52SN
Blade Span	52 inches
Number of Blades	5
Control	Remote control with light dimmer and reverse switch
Light Kit	Included (LED)
Reversible Motor	Yes
Mounting	Downrod
Minimum Ceiling Height	7 ft (2.3 m)
Clearance from Walls	30 inches (76 cm)
Power Supply	120V~60Hz
Weight	Approx. 15 lbs (6.8 kg)
Speed Settings	3 speeds
Safety Rating	Requires fan-rated outlet box with support up to 100 lbs
Installation	DIY with provided hardware; professional electrician recommended
Cleaning	Dry dust cloth or lightly dampened cloth; no water or detergents
Included Accessories	Remote control, mounting bracket, downrod, blade balancing kit, light kit

Frequently Asked Questions - EVO-CF52SN Evolar

Why doesn't my fan turn on?

Check that the power is on at the circuit breaker or fuse box. Ensure all wire connections are secure and the remote control batteries are properly installed. If using a wall switch, verify it is in the ON position.

Why is my fan noisy?

Tighten all screws on the blade brackets and motor. Ensure the canopy is not too close to the ceiling (leave at least 3mm gap). If the noise is from the motor, run the fan for at least 8 hours to break in. If noise persists, contact a qualified electrician.

Why does my fan wobble?

First, check that all blade screws are tight. Measure the clearance between each blade tip and the ceiling; adjust if necessary. If wobbling continues, use the included balancing kit: attach a clip to a blade, test, and move until the wobble improves, then attach a weight.

How do I use the balancing kit?

Turn the fan to high speed and note the wobble. Turn off and place the clip midway on a blade. Turn on again; if wobble improves, leave it; if not, try other blades. Once found, move the clip along the blade for best results, then attach the weight at that position.

How to reverse the airflow?

Use the reverse switch on the remote control. Ensure the fan is completely stopped before switching. In summer, blades spin counterclockwise to create a downdraft; in winter, spin clockwise to circulate warm air.

The remote control does not work. What should I do?

Check that the batteries are installed correctly and have charge. If there are other remote fans nearby, they may interfere. Ensure the power is on. Try the learning code procedure: within 30 seconds of powering on, press and hold the '' button on the remote for 5 seconds until a long beep sounds.

Can I use a dimmer switch to control the fan speed?

No. Using a full-range dimmer switch will cause a loud humming noise and may damage the fan. Only use the fan with the provided remote control or a speed control specifically designed for ceiling fans. Do not use solid state speed controls.

How do I install the light kit?

First, remove the pre-installed screws from the light kit mounting plate. Connect the light kit wires to the fan wires (match colors). Then lift the light kit into place and secure with the screws. Refer to the manual for detailed wiring diagrams.

What type of bulbs does the light kit use?

The manual does not specify bulb type. It likely uses integrated LED modules. If the light kit has replaceable bulbs, see the sticker on the fixture. For safety, use only bulbs recommended by the manufacturer.

How to clean the fan and blades?

Use a dry dust cloth or a lightly dampened cloth. Do not use water, detergents, or abrasive cleaners. To avoid injury, turn off the fan and wait for it to stop before cleaning.

USER MANUAL EVO-CF52SN Evolar

Line drawing of a five-blade ceiling fan with a top-mounted head and four blades (no text or symbols)

EVO-CF52CG/MW/SN

Collection of nine different hand tools and objects, including pliers, tools, and a hammer, displayed in separate boxes (no text or labels visible)

Technical line drawings of various mechanical components including washers, screws, and a nut (no text or labels)

Three simple geometric shapes: two overlapping squares and one with a folded paperclip (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' symbol on the right page (no text or labels)

Plafondventilator installeren

Stap 1 - Verlengstang en motor monteren

1	2
3
4

Stap 2 - Plafondhouder en ventilatorelement installeren

Line drawing of a ceiling fan with attached blades and screwdriver (no text or symbols)

Line drawing of a five-petal air conditioner fan with a rotating base and airflow direction indicator (no text or symbols)

Stap 5 - Ventilator inschakelen

Simple line drawing of an elliptical device with a small circular component and signal waves (no text or symbols)

Line drawing of a ceiling fan with five blades and airflow arrows indicating direction (no text or symbols)

Ventilator trilt of wiebelt

Line drawing of a curved mechanical component with a labeled part (1), no text or symbols present

evolar

Line drawing of a five-blade ceiling fan with a top-mounted head and four blades (no text or symbols)

EVO-CF52CG/MW/SN

Ceiling fan Installation instructions

SAFETY TIPS

WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories.

READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.

CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.

1. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code. If you are unfamiliar with electrical wiring or if the house/building wires are different colors than those referred to in the instruction please use a qualified electrician.

2. Make sure you have a location selected for your fan that allows clear space for the blades to rotate and at least seven (7) feet (2.3 meters) of clearance between the floor and the fan blade tips. The fan should be mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other upright structures.

3. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least 100 Pounds (45.4 kilograms). The outlet box must be supported directly by the building structure. Make sure the electrical box that will hold the ceiling fan is fan-rated. There should be an inscription on the box indicating it.

WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked “Acceptable for Fan Support,” and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

1. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on opposite sides of the outlet box.

WARNING: To reduce the risk of electrical shock, fire and to prevent humming noise do not use this fan with any solid state speed control device or control fan speed with a full range dimmer switch. Using a full range dimmer switch to control fan speed will cause a loud humming noise from fan.

1. Do not operate the reverse switch until fan has come to a complete stop.(If included Forward/Reverse Switch)

6.Do not insert anything between the fan blades while they are rotating.

WARNING: To reduce the risk of personal Injury, do not bend the blade brackets when installing the brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.

1. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.

WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER than those provided with this fan will void the warranty.

NOTE: The important safety precautions and instructions appearing in the manual are not meant to Cover all possible conditions and situations that may occur. It must be understood that common sense and caution are necessary factors in the installation and operation of this fan.

Preparing for installation

Package Lists

1.Canopy

2.Bracket

1. Down rod

1. Yoke cover

9.Remote control unit

Line drawings of four different electronic devices: a remote control, a remote, a battery pack, and a remote device (no text or symbols present)

Technical line drawing of a ceiling lamp with three blades and a central hub (no text or symbols)

5.Motor

Circular diagram with concentric rings and a central cross, no text or symbols present

6.Light kit

8.Blades

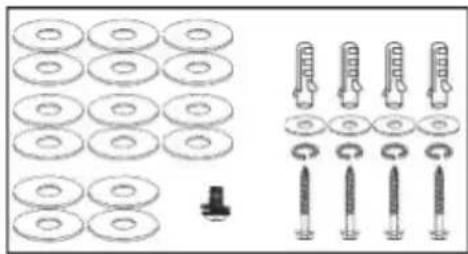

Installation kit

Technical line drawings of various mechanical components including washers, screws, and a nut (no text or labels)

Blade balancing kit Instructions manual

Three simple geometric shapes: two overlapping squares and one with a folded paperclip (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' symbol on the right page (no text or labels)

Installing the ceiling fan

Step 1(Down rod and motor assembling)

1	2
3
4

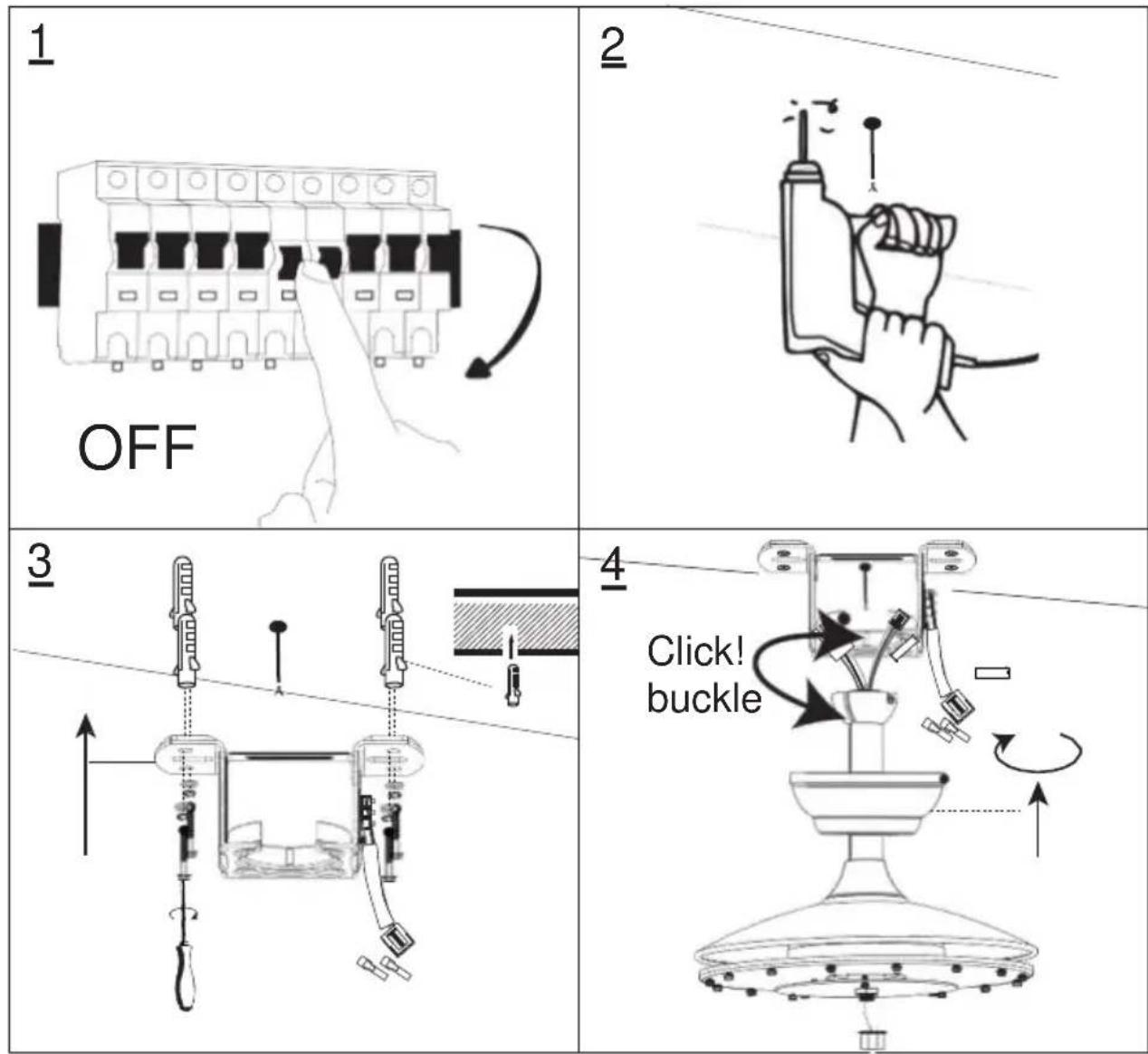

Step 2 (Ceiling bracket and fan body installation)

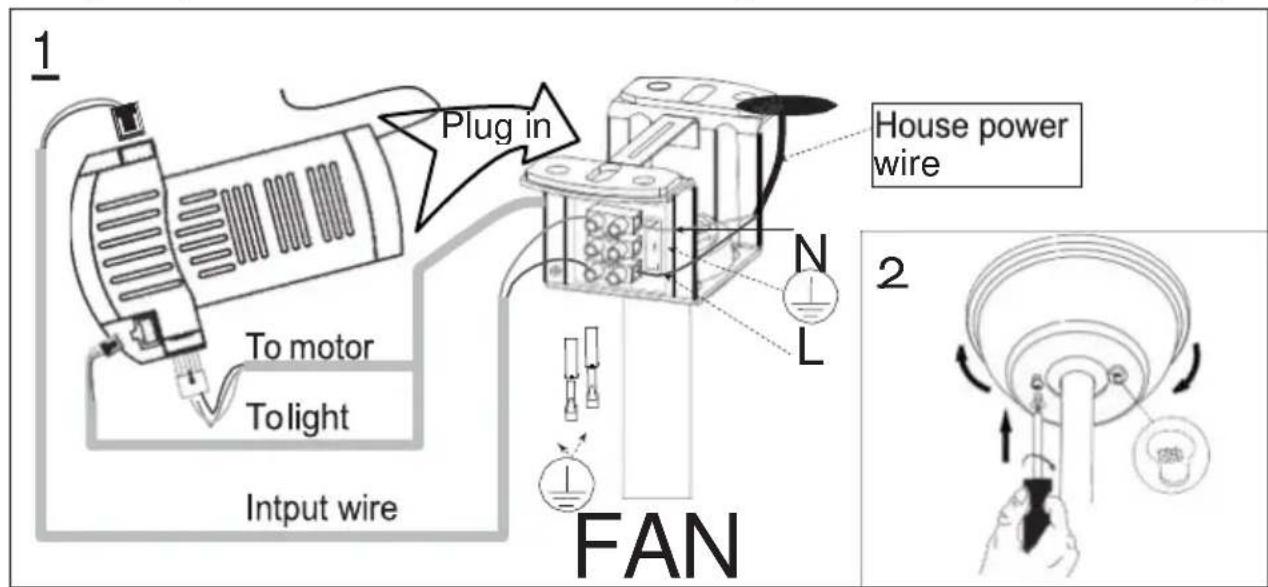

Step 3 (Put receiver into ceiling bracket and wiring)

Step 4 ( Blades and Light kit installation)

1

Line drawing of a ceiling fan with three blades and a handle, no text or symbols present

Take out the pre-installed screws, aim the blades to the right hole position and then screw tightly

2

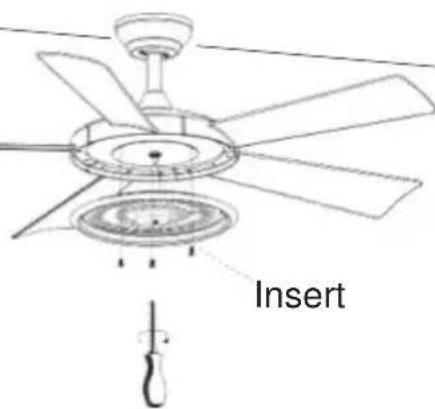

Remove the pre-installed screws.

Connect the light kit cable, and then lock the light kit.

3

Line drawing of a five-petal air conditioner fan with a circular base and top panel, no text or symbols present.

Step 5(Switch on and ceiling fan works)

Simple line drawing of an elliptical device with a sensor icon and signal waves (no text or symbols)

Line drawing of a ceiling fan with blades and a central hub, showing airflow direction (no text or symbols)

Remote control (emitter) operation

Reverse switch

Fan speed

Fan on/off

Fan timer switch

Light on/off

Turn down/up the brightness

Light color Change

If emitter can not control the far

1. Please check whether the battery is installed correctly and whether it is charged. If necessary, replace the remote control battery.
2. Please check if there are similar remote control products working nearby, because remote control products of the same frequency will interfere with each other.
3. Use learning code matching mode is used between emitter and receiver Turn "ON" the supply power within 30 seconds and press the emitter, 's " 🔊" button for 5 seconds. it can load normally after hearing a long sound"bee", which means learning successfully and it can works normally.

TroubleShooting

Fan does not work

1. Check all fuses or circuit breakers if disconnecting the power supply to the fan.
2. Turn off electrical power and check all wire connections to fan and in switch housing. It must be carried out by a electrician

Fan is noisy

1. Assure that the screws fastening blade arm to motor are tight and the lock washers provided for that purpose have been used
2. Lower the upper canopy to ensure a separation from the ceiling of no less than 3mm to reduce noisy
3. Check to see if any of the blades are cracked .If so,replace all of the blades
4. If this is the first use, leave the fan on for at least 8 hours. In the event that mechanical noise continues after this period, contact certified electrician

Fan turns but airflow is inadequate

1. The fan may be running in reverse, so air is going upward.
2. The room may contain items that obstruct the air flow.
3. The fan may be too small for size of the room.

Fan shakes or wobbles

1. The fan blades are not parallel to the ceiling. See Fig.1 how to inspect
2. Make sure mounting bracket is tightened at outlet box with no movement at all.
3. Make sure all screws holding the blades to the blade arm and blade arm to motor are tight.
4. Use the balance kit and instructions to balance the fan. Please see the last pages described.

Balancing – Wobbling problems during fan operation

If the fan body wobbles during its operation, this is not a sign of malfunctioning (even if it wobbles a few centimeters). To reduce wobbling, you can, while the fan is off:

1. Check that all blades are properly fastened by tightening their screws.
2. Check the distance between each blade and the ceiling. Measurements to the ceiling can be carried out as shown in the following diagram. If variations exist and you have already correctly tightened the screws, check that all blades have the same shape. If any of them have a shape that is visibly different, this may be causing an imbalance during fan operation.

Silhouette of a mechanical device with a ruler and scale, labeled Fig.1 (no text or symbols on the diagram itself)

If you have completed the previous steps and the wobbling has not resolved, you should apply dynamic balancing with the kit provided, as explained below:

1. Turn the fan on to the highest speed so that the greatest amount of wobbling is produced.
2. Turn off the fan. Select a blade and place a clip on it (see diagram) halfway between the fastening and the far edge of the blade.
3. Turn on the fan and check whether the wobbling has improved or gotten worse. Turn it off once again and if the wobbling has not improved, place the clip on another blade. Repeat this process and determine on which blade it improves the wobbling.
4. Leave the clip on the blade that produces the best results. Move the clip forward or backwards on this blade until finding the position that offers the best results.
5. Afterwards, remove the clip and place one of the weights on the upper part of the center line of the blade at the position where the clip was located.

Line drawing of a curved mechanical component with a labeled part (1), no text or symbols present

Line drawing of a bird wing with labeled parts (no text or symbols)
