EVO-CF52BWD - Fan Evolar - Free user manual and instructions

Type	Ceiling Fan
Brand	Evolar
Model	EVO-CF52BWD
Blade Span	52 inches (132 cm)
Number of Blades	3
Mounting	Down rod or close-to-ceiling
Power Supply	110-120 V AC, 60 Hz
Motor Type	AC motor
Remote Control	Included (emitter and receiver)
Light Kit	Included (LED, color temperature adjustable)
Reversible Motor	Yes (forward/reverse switch)
Fan Speed Settings	Multi-speed via remote
Timer Function	Yes (on remote)
Minimum Ceiling Height	7 ft (2.13 m) from floor to blade tips
Minimum Blade Clearance	30 inches (76 cm) from walls
Weight	Approx. 15 lbs (6.8 kg)
Materials	Metal motor housing, plastic blades
Cleaning	Dry or slightly damp cloth; no water or detergents
Safety Certification	cETLus listed (typical)
Warranty	Lifetime motor warranty (assumed)

Frequently Asked Questions - EVO-CF52BWD Evolar

What should I do if the fan does not work at all?

First, check that the circuit breakers and fuses are intact. Then turn off power and verify all wire connections in the switch housing and at the fan. If you are not confident, call a qualified electrician.

Why is my fan making noise?

Ensure all screws (blade to arm, arm to motor) are tight and the lock washers are used. Lower the canopy so it is at least 3 mm from the ceiling. Check for cracked blades and replace if needed. For new fans, run for 8 hours; if noise persists, contact a certified electrician.

The fan wobbles when running. How can I fix it?

First, tighten all screws. Measure blade-to-ceiling distance as shown in the manual; if unequal, check blade shape. Use the balancing kit: attach a clip to a blade, test, and move until wobble reduces, then apply a weight at that position. See the balancing steps in the manual.

The remote control does not operate the fan.

Make sure the battery is installed correctly and charged. Replace if necessary. Check that no other similar remote products are nearby causing interference. Perform the learning code match: turn on power, within 30 seconds press the 'S' button on the emitter for 5 seconds until you hear a long 'bee' sound.

The fan runs but airflow is weak.

The fan might be in reverse mode (for winter) pushing air upward. Check the reverse switch. Also ensure there are no obstructions like furniture blocking airflow. If the room is large, the fan may be too small for the space.

Can I use a dimmer switch to control the fan speed?

No, using a solid state speed control or full range dimmer switch can cause a loud humming noise and may damage the fan. Only use the supplied remote control or a fan-specific speed control.

How do I clean the fan and blades?

Use a dry dust cloth or a slightly damp cloth. Do not use water or detergents as they may damage the finish or electrical parts.

What is the minimum height required for installation?

The fan blades must be at least 7 feet (2.13 m) above the floor and at least 30 inches (76 cm) from walls or other upright structures.

The light kit is not working. What should I check?

Ensure the light kit cable is properly connected and the light bulbs are not loose. Check that the remote control is functioning (try to turn on/off the light). If the fan works but light does not, contact a qualified electrician.

How do I change the direction of the fan?

The fan has a reverse switch (usually on the motor housing). Turn the fan off completely, then flip the switch to change direction: counterclockwise for summer (downward airflow) and clockwise for winter (upward airflow).

USER MANUAL EVO-CF52BWD Evolar

Line drawing of a four-pole ceiling fan with a top-mounted head and three blades (no text or symbols)

EVO-CF52BWD

Row of nine black-and-white icons representing different tools or components (e.g., pliers, tools, tools, and a camera), no text or symbols present.

Technical diagram showing various mechanical components and parts (no text or labels)

Three simple geometric shapes: two overlapping squares and one with a folded paperclip (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' symbol on the right page (no text or labels)

Plafondventilator installeren

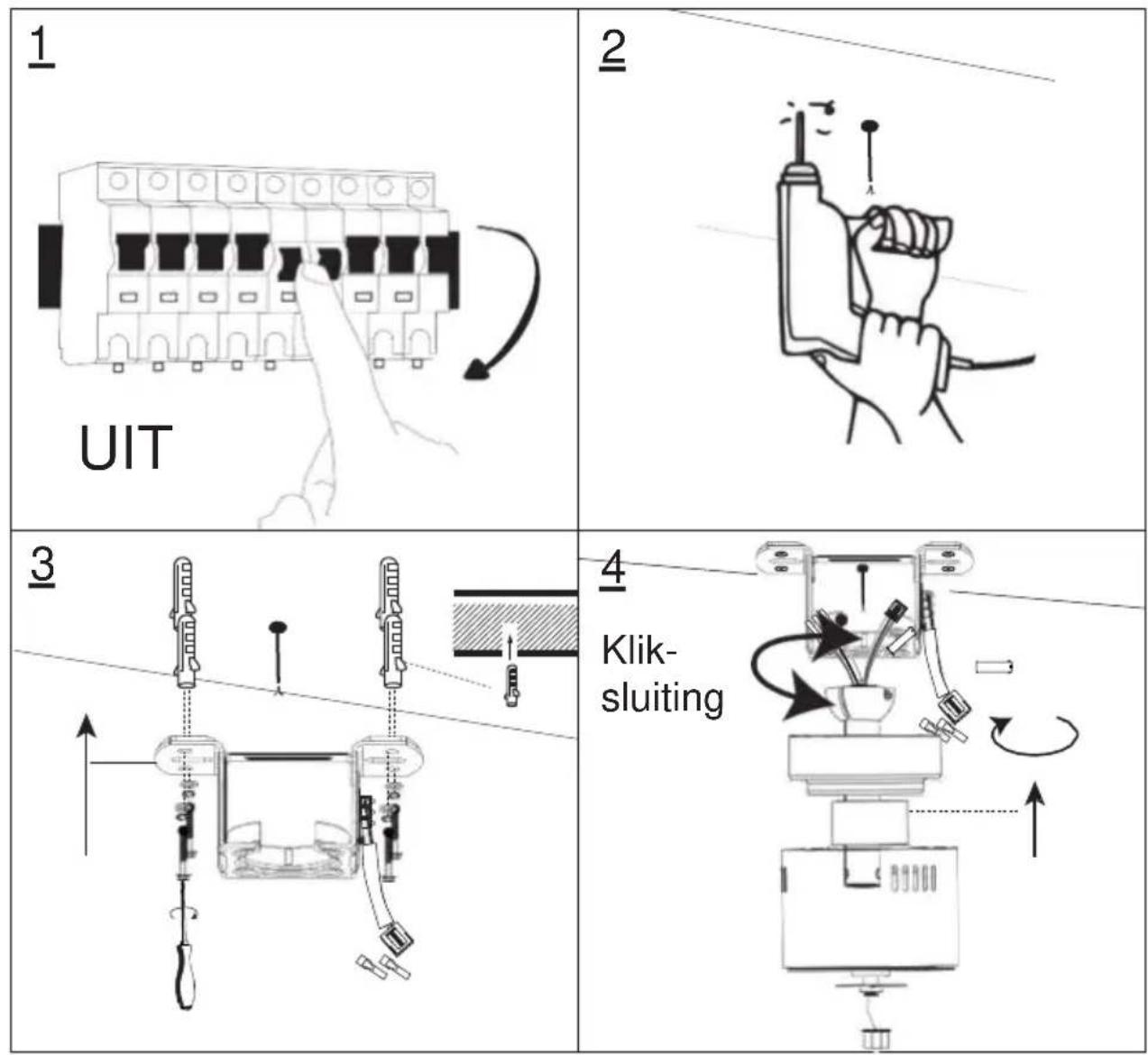

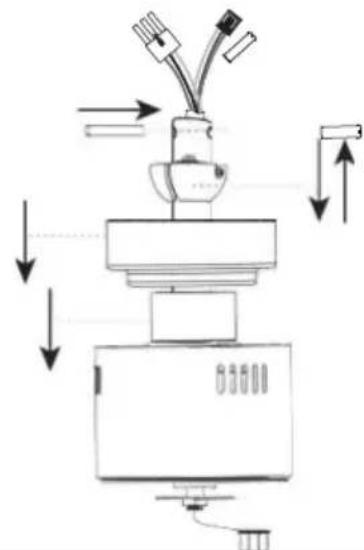

Stap 1 - Verlengstang en motor monteren

1	2
3
4

Stap 2 - Plafondhouder en ventilatorelement installeren

Technical line drawing of a mechanical device with a circular component and two hanging parts (no text or symbols)

Line drawing of a five-petal air conditioner with a central hub and mounting bracket (no text or symbols)

Stap 5 - Plafondventilator inschakelen

Simple line drawing of an elliptical device with concentric rings and a signal wave icon (no text or symbols)

Diagram of a four-blade ceiling fan with airflow arrows indicating direction (no text or symbols)

Ventilator trilt of wiebelt

Line drawing of a curved mechanical component with a labeled step '1' (no text or symbols on the diagram itself)

Line drawing of a bird wing with labeled parts (no text or symbols)

evolar

Line drawing of a four-pole ceiling fan with a top-mounted head and three blades (no text or symbols)

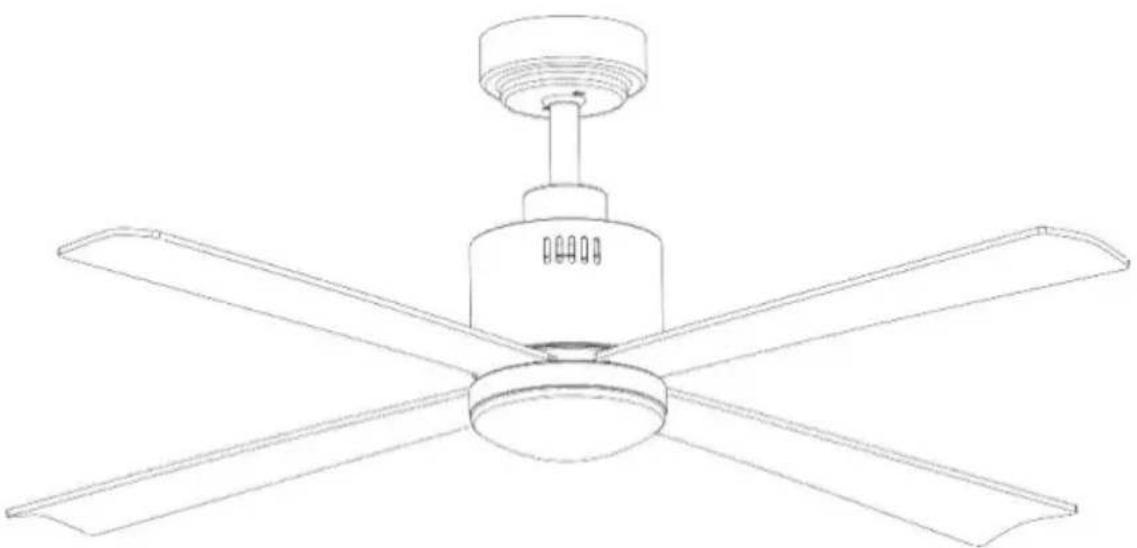

EVO-CF52BWD Ceiling fan Installation instructions

SAFETY TIPS

WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories.

READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.

CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.

1. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code. If you are unfamiliar with electrical wiring or if the house/building wires are different colors than those referred to in the instruction please use a qualified electrician.

2. Make sure you have a location selected for your fan that allows clear space for the blades to rotate and at least seven (7) feet (2.3 meters) of clearance between the floor and the fan blade tips. The fan should be mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other upright structures.

3. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least 100 Pounds (45.4 kilograms). The outlet box must be supported directly by the building structure. Make sure the electrical box that will hold the ceiling fan is fan-rated. There should be an inscription on the box indicating it.

WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked “Acceptable for Fan Support,” and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

1. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on opposite sides of the outlet box.

WARNING: To reduce the risk of electrical shock, fire and to prevent humming noise do not use this fan with any solid state speed control device or control fan speed with a full range dimmer switch. Using a full range dimmer switch to control fan speed will cause a loud humming noise from fan.

1. Do not operate the reverse switch until fan has come to a complete stop.(If included Forward/Reverse Switch)

2. Do not insert anything between the fan blades while they are rotating.

WARNING: To reduce the risk of personal Injury, do not bend the blade brackets when installing the brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.

1. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.

WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER than those provided with this fan will void the warranty.

NOTE: The important safety precautions and instructions appearing in the manual are not meant to Cover all possible conditions and situations that may occur. It must be understood that common sense and caution are necessary factors in the installation and operation of this fan.

Preparing for installation

Package Lists

1. Down rod
2. Yoke cover


9.Remote control unit

Line drawings of four different electronic devices: a remote control, a remote control with buttons, and a remote device (no text or symbols present)

Installation kit

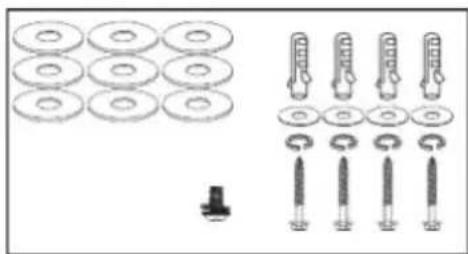

Technical diagram showing various mechanical components and fasteners arranged in rows (no text or labels)

Blade balancing kit Instructions manual

Three simple geometric shapes: two overlapping squares and one with a folded paperclip (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' symbol on the right page (no text or labels)

Installing the ceiling fan

Step 1(Down rod and motor assembling)

1	2
3
4

Step 2 (Ceiling bracket and fan body installation)

Step 3 (Put receiver into ceiling bracket and wiring)

Step 4 ( Blades and Light kit installation)

1

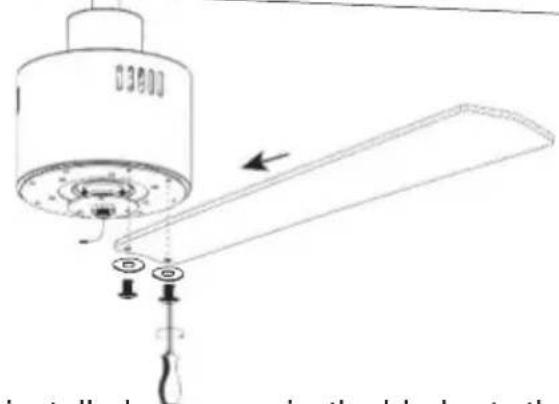

Take out the pre-installed screws, aim the blades to the right hole position and then screw tightly

2

Remove the pre-installed screws.

Connect the light kit cable, and then lock the light kit.

3

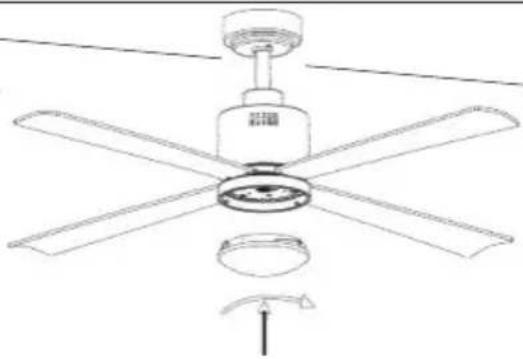

Line drawing of a five-petal air conditioner with a central hub and fan base (no text or symbols)

Step 5(Switch on and ceiling fan works)

Simple line drawing of an remote control with signal waves (no text or symbols)

Line drawing of a four-blade ceiling fan with directional arrows indicating airflow or rotation (no text or symbols)

Remote control (emitter) operation

Reverse switch

Fan speed

Fan on/off

Fan timer switch

Light on/off

Turn down/up the brightness

Light color Change

Troubleshooting

Fan does not work

1. Check all fuses or circuit breakers if disconnecting the power supply to the fan.
2. Turn off electrical power and check all wire connections to fan and in switch housing. It must be carried out by a electrician

Fan is noisy

1. Assure that the screws fastening blade arm to motor are tight and the lock washers provided for that purpose have been used
2. Lower the upper canopy to ensure a separation from the ceiling of no less than 3mm to reduce noisy
3. Check to see if any of the blades are cracked. If so, replace all of the blades
4. If this is the first use, leave the fan on for at least 8 hours. In the event that mechanical noise continues after this period, contact certified electrician

If emitter can not control the far

1. Please check whether the battery is installed correctly and whether it is charged. If necessary, replace the remote control battery.
2. Please check if there are similar remote control products working nearby, because remote control products of the same frequency will interfere with each other.
3. Use learning code matching mode is used between emitter and receiver Turn "ON" the supply power within 30 seconds and press the emitter, 's" 🔊" button for 5 seconds. it can load normally after hearing a long sound"bee", which means learning successfully and it can works normally.

Fan turns but airflow is inadequate

1. The fan may be running in reverse, so air is going upward.
2. The room may contain items that obstruct the air flow.
3. The fan may be too small for size of the room.

Fan shakes or wobbles

1. The fan blades are not parallel to the ceiling. See Fig.1 how to inspect
2. Make sure mounting bracket is tightened at outlet box with no movement at all.
3. Make sure all screws holding the blades to the blade arm and blade arm to motor are tight.
4. Use the balance kit and instructions to balance the fan. Please see the last pages described.

Balancing – Wobbling problems during fan operation

If the fan body wobbles during its operation, this is not a sign of malfunctioning (even if it wobbles a few centimeters). To reduce wobbling, you can, while the fan is off:

1. Check that all blades are properly fastened by tightening their screws.
2. Check the distance between each blade and the ceiling. Measurements to the ceiling can be carried out as shown in the following diagram. If variations exist and you have already correctly tightened the screws, check that all blades have the same shape. If any of them have a shape that is visibly different, this may be causing an imbalance during fan operation.

Silhouette of a mechanical device with a ruler and scale, labeled Fig.1 (no text or symbols on the diagram itself)

If you have completed the previous steps and the wobbling has not resolved, you should apply dynamic balancing with the kit provided, as explained below:

1. Turn the fan on to the highest speed so that the greatest amount of wobbling is produced.
2. Turn off the fan. Select a blade and place a clip on it (see diagram) halfway between the fastening and the far edge of the blade.
3. Turn on the fan and check whether the wobbling has improved or gotten worse. Turn it off once again and if the wobbling has not improved, place the clip on another blade. Repeat this process and determine on which blade it improves the wobbling.
4. Leave the clip on the blade that produces the best results. Move the clip forward or backwards on this blade until finding the position that offers the best results.
5. Afterwards, remove the clip and place one of the weights on the upper part of the center line of the blade at the position where the clip was located.

Line drawing of a curved mechanical component with a labeled part (1), no text or symbols present
