Product Type	Ceiling Fan
Brand	Evolar
Model	EVO-CF48WWD
Blade Span	48 inches (122 cm)
Number of Blades	5
Motor Type	AC Motor
Voltage	120V / 60Hz
Maximum Wattage	70W
Reversible Motor	Yes (Summer/Winter mode)
Remote Control	Included
Light Kit	Included (LED)
Mounting Type	Downrod mount
Blade Pitch	12 degrees
Airflow	Approx. 5000 CFM
Noise Level	~30 dB (Low)
Weight	Approx. 15 lbs (6.8 kg)
Safety Certification	UL Listed
Warranty	Lifetime on motor, 2 years on parts
Maintenance	Clean blades with damp cloth; no water on motor
Spare Parts Available	Blades, hardware, remote control

Frequently Asked Questions - EVO-CF48WWD Evolar

How do I install the Evolar EVO-CF48WWD ceiling fan?

Refer to the included manual. Ensure the ceiling box can support the fan weight (15 lbs). Use the provided downrod and safety cable. Follow wiring instructions for the fan and light kit.

How do I clean the fan blades?

Use a damp cloth to wipe the blades. Do not use water or chemicals directly on the motor. For dust, a soft brush attachment on a vacuum can be used.

How do I use the remote control?

Install 2 AAA batteries in the remote. Press the fan button to cycle speeds. The light button controls the LED light. If not working, ensure the receiver dip switches match the remote.

Can I use the fan without the light kit?

Yes, the fan operates independently. If the light is not desired, you can remove the light kit and cap the wires.

How do I reverse the fan direction?

Locate the reverse switch on the motor housing. Slide it to the opposite position. The fan must be off when changing direction.

The fan is wobbling or making noise. What should I do?

Check that all blades are securely fastened. Use the included balancing kit to adjust blade weights. Ensure ceiling mount is tight. If noise persists, check for loose screws.

What is the warranty on the Evolar EVO-CF48WWD?

The motor has a lifetime warranty. Parts such as blades, hardware, and remote are covered for 2 years. Proof of purchase required.

Can I install this fan on a sloped ceiling?

Yes, it can be installed on sloped ceilings up to 15 degrees. Use appropriate downrod length.

How do I pair the remote control to the fan?

Turn off the fan and light at the wall switch. Insert batteries in the remote. Within 30 seconds, press and hold the 'pair' button (if present) or follow manual instructions for dip switches.

What type of light bulb does the fan use?

The fan includes an integrated LED light module. It is not replaceable. If it fails, contact customer service for replacement.

USER MANUAL EVO-CF48WWD Evolar

Line drawing of a three-blade ceiling fan with a dome and three blades (no text or symbols)

EVO-CF48WWD

Collection of nine different hand tools and objects, including climbing ladders, pliers, tools, and a hammer (no text or labels visible)

Exploded view diagram of a ceiling lamp with exposed internal components and cable connectors (no text or labels)

5.Motor

—6.Lampenset

—7.Lampenkap

9.Afstandsbediening

Line drawings of three electronic devices: a portable phone, a remote control, and a small device with batteries (no text or symbols)

Simple line drawing of a three-tiered object with stepped edges (no text or symbols)

8.Bladen

Installatieset

Technical illustration of various mechanical fasteners and washers with no visible text or symbols

Three simple geometric shapes: two overlapping squares and one with a folded paper-like form (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' symbol on the right page (no text or labels)

Plafondventilator installeren

Stap 1 - Verlengstang en motor monteren

Stap 2 - Plafondhouder en ventilatorelement installeren

Diagram of a ceiling lamp with internal components and an arrow indicating direction (no text or symbols)

Line drawing of a multi-compete ceiling fan with a propeller and fan assembly (no text or symbols)

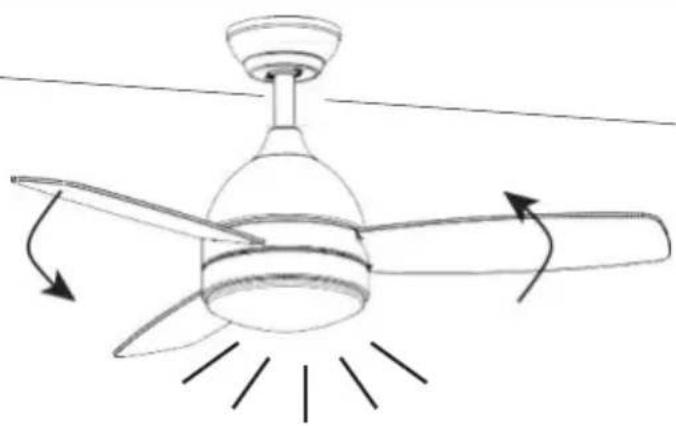

Stap 5 - Plafondventilator inschakelen

Simple line drawing of an elliptical device with a small circular component and signal waves (no text or symbols)

Line drawing of a three-bladed air conditioner fan with airflow arrows indicating direction (no text or symbols)

Ventilator trilt of wiebelt

Line drawing of a curved mechanical component with a labeled part (1), no text or symbols present

evolar

Line drawing of a three-blade ceiling fan with a dome-shaped head and three blades (no text or symbols)

EVO-CF48WWD Ceiling fan Installation instructions

SAFETY TIPS

WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories.

READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.

CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.

1. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code. If you are unfamiliar with electrical wiring or if the house/building wires are different colors than those referred to in the instruction please use a qualified electrician.

2. Make sure you have a location selected for your fan that allows clear space for the blades to rotate and at least seven (7) feet (2.3 meters) of clearance between the floor and the fan blade tips. The fan should be mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other upright structures.

3. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least 100 Pounds (45.4 kilograms). The outlet box must be supported directly by the building structure. Make sure the electrical box that will hold the ceiling fan is fan-rated. There should be an inscription on the box indicating it.

WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked “Acceptable for Fan Support,” and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

1. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on opposite sides of the outlet box.

WARNING: To reduce the risk of electrical shock, fire and to prevent humming noise do not use this fan with any solid state speed control device or control fan speed with a full range dimmer switch. Using a full range dimmer switch to control fan speed will cause a loud humming noise from fan.

1. Do not operate the reverse switch until fan has come to a complete stop.(If included Forward/Reverse Switch)

7.Do not insert anything between the fan blades while they are rotating.

WARNING: To reduce the risk of personal Injury, do not bend the blade brackets when installing the brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.

1. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.

WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER than those provided with this fan will void the warranty.

NOTE: The important safety precautions and instructions appearing in the manual are not meant to Cover all possible conditions and situations that may occur. It must be understood that common sense and caution are necessary factors in the installation and operation of this fan.

Preparing for installation

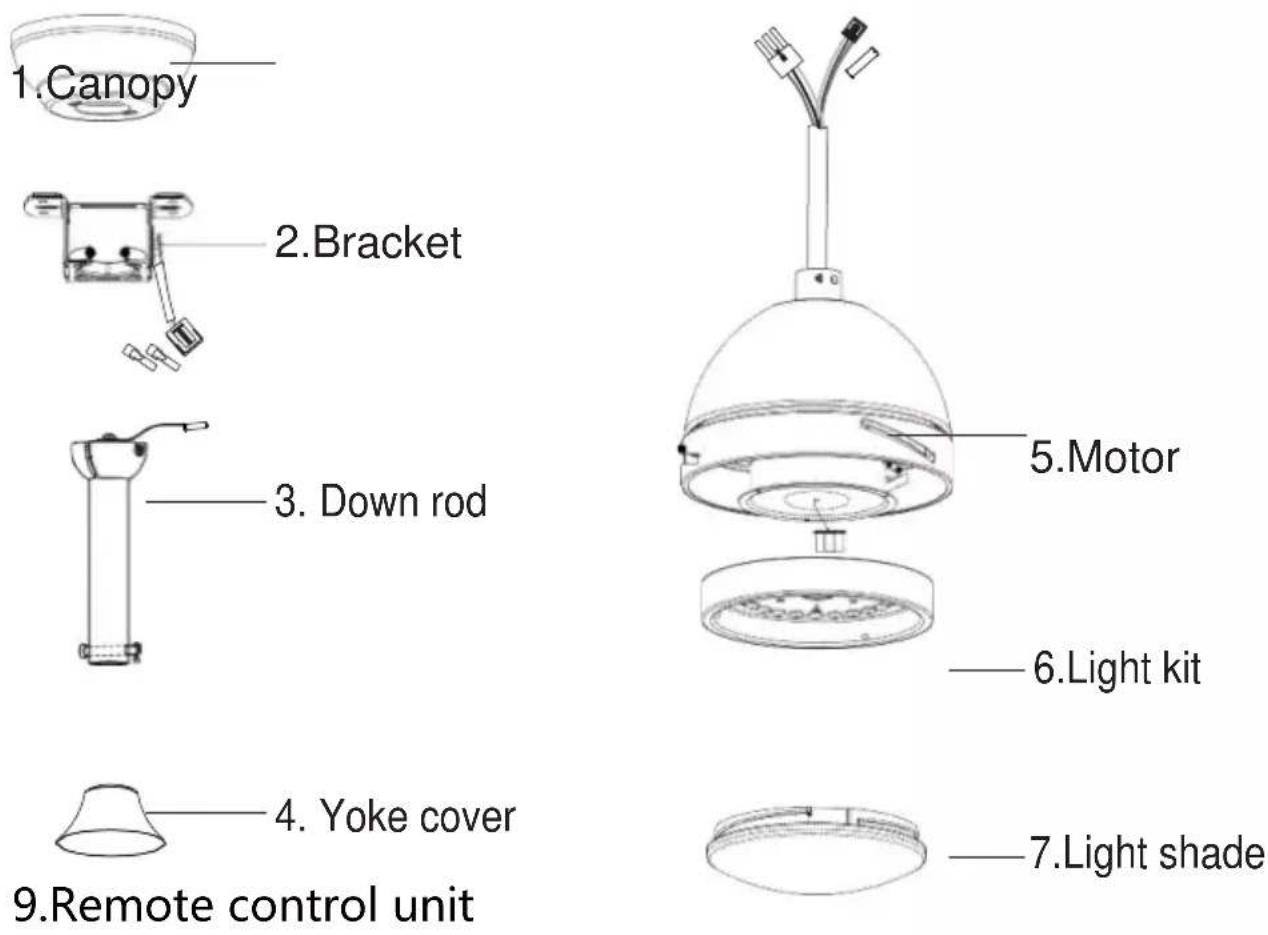

Package Lists

Line drawings of three electronic devices: a handheld device, a remote control, and a battery pack (no text or symbols)

Simple line drawing of a three-tiered mechanical component (no text or symbols)

8.Blades

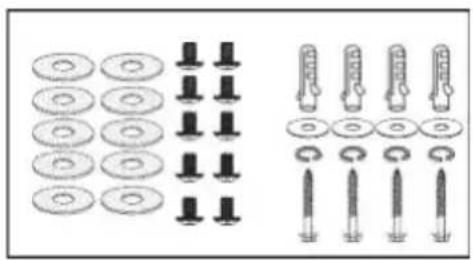

Installation kit

Technical illustration of various mechanical components including washers, screws, and flanges (no text or labels)

Blade balancing kit Instructions manual

Three simple geometric shapes: two overlapping squares and one tilted rectangular prism, drawn with thin lines on a white background (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' symbol on the right page (no text or labels)

Installing the ceiling fan

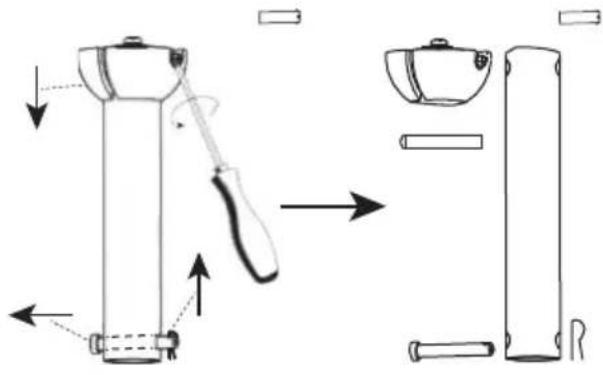

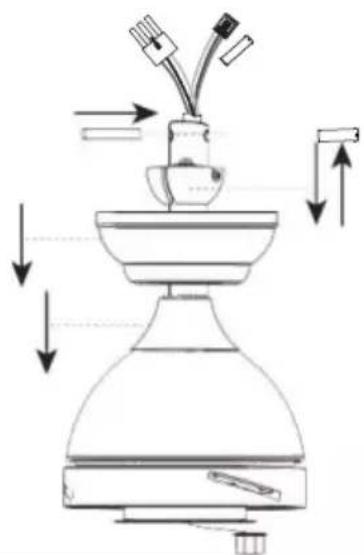

Step 1(Down rod and motor assembling)

1	2
3
4

Step 2 (Ceiling bracket and fan body installation)

Step 3 (Put receiver into ceiling bracket and wiring)

Step 4 ( Blades and Light kit installation)

1

Diagram of a ceiling lamp with internal components and an arrow indicating direction (no text or symbols)

Insert blades and then screw it tightly.

Remove the pre-installed screws.

Connect the light kit cable, and then lock the light kit.

Line drawing of a multi-compete ceiling fan with a propeller and fan assembly (no text or symbols)

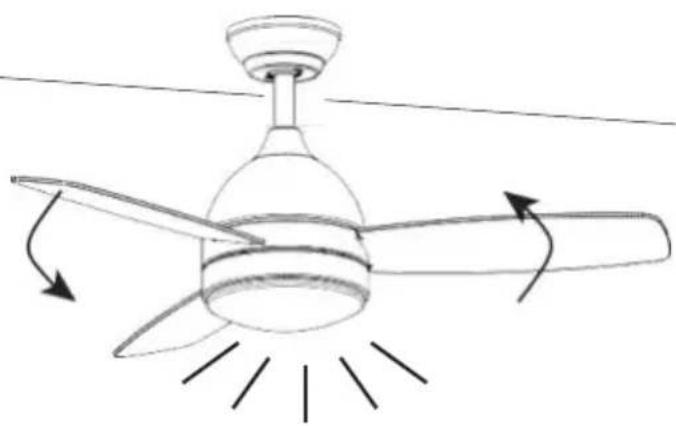

Step 5(Switch on and ceiling fan works)

Simple line drawing of an elliptical device with a small circular component and signal waves (no text or symbols)

Line drawing of a three-bladed ceiling fan with directional arrows indicating airflow or motion (no text or symbols)

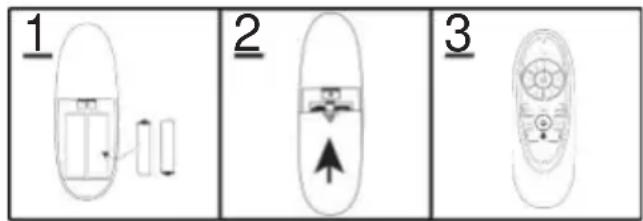

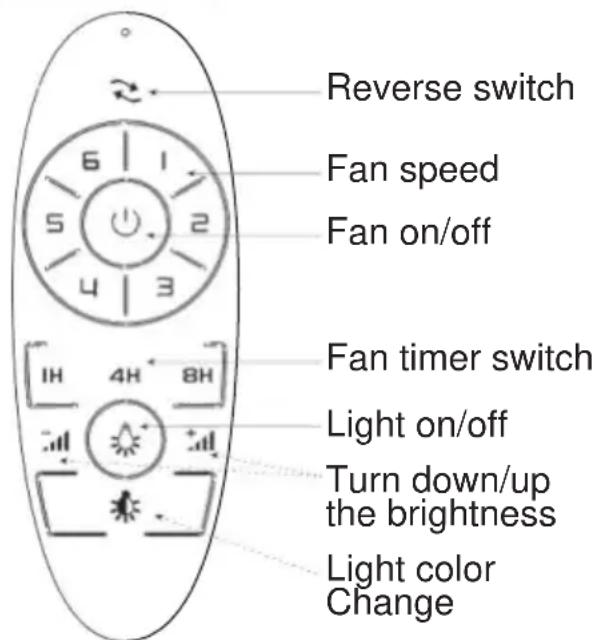

Remote control (emitter) operation

If emitter can not control the far

1. Please check whether the battery is installed correctly and whether it is charged. If necessary, replace the remote control battery.
2. Please check if there are similar remote control products working nearby, because remote control products of the same frequency will interfere with each other.
3. Use learning code matching mode is used between emitter and receiver Turn "ON" the supply power within 30 seconds and press the emitter, 's " 🔊" button for 5 seconds. it can load normally after hearing a long sound"bee", which means learning successfully and it can works normally.

TroubleShooting

Fan does not work

1. Check all fuses or circuit breakers if disconnecting the power supply to the fan.
2. Turn off electrical power and check all wire connections to fan and in switch housing. It must be carried out by a electrician

Fan is noisy

1. Assure that the screws fastening blade arm to motor are tight and the lock washers provided for that purpose have been used
2. Lower the upper canopy to ensure a separation from the ceiling of no less than 3mm to reduce noisy
3. Check to see if any of the blades are cracked .If so,replace all of the blades
4. If this is the first use, leave the fan on for at least 8 hours. In the event that mechanical noise continues after this period, contact certified electrician

Fan turns but airflow is inadequate

1. The fan may be running in reverse, so air is going upward.
2. The room may contain items that obstruct the air flow.
3. The fan may be too small for size of the room.

Fan shakes or wobbles

1. The fan blades are not parallel to the ceiling. See Fig.1 how to inspect
2. Make sure mounting bracket is tightened at outlet box with no movement at all.
3. Make sure all screws holding the blades to the blade arm and blade arm to motor are tight.
4. Use the balance kit and instructions to balance the fan. Please see the last pages described.

Balancing – Wobbling problems during fan operation

If the fan body wobbles during its operation, this is not a sign of malfunctioning (even if it wobbles a few centimeters). To reduce wobbling, you can, while the fan is off:

1. Check that all blades are properly fastened by tightening their screws. 2. Check the distance between each blade and the ceiling. Measurements to the ceiling can be carried out as shown in the following diagram. If variations exist and you have already correctly tightened the screws, check that all blades have the same shape. If any of them have a shape that is visibly different, this may be causing an imbalance during fan operation.

Silhouette of a mechanical device with a ruler and labeled Fig.1 (no text or symbols on the diagram itself)

If you have completed the previous steps and the wobbling has not resolved, you should apply dynamic balancing with the kit provided, as explained below:

1. Turn the fan on to the highest speed so that the greatest amount of wobbling is produced.
2. Turn off the fan. Select a blade and place a clip on it (see diagram) halfway between the fastening and the far edge of the blade.
3. Turn on the fan and check whether the wobbling has improved or gotten worse. Turn it off once again and if the wobbling has not improved, place the clip on another blade. Repeat this process and determine on which blade it improves the wobbling.
4. Leave the clip on the blade that produces the best results. Move the clip forward or backwards on this blade until finding the position that offers the best results.
5. Afterwards, remove the clip and place one of the weights on the upper part of the center line of the blade at the position where the clip was located.

Line drawing of a curved mechanical component with a labeled part (1), no text or symbols present
