Product Type	Ceiling fan with light
Brand	Evolar
Model	EVO-CF30B
Blade Span	30 inches
Number of Blades	5
Motor Type	AC reversible motor
Light Source	Integrated LED (color temperature adjustable)
Dimmable Light	Yes, with remote control
Speed Settings	3 speeds (adjustable via remote)
Control Type	Wireless remote control (RF)
Remote Functions	Fan on/off, speed, light on/off, brightness, color temperature, timer, reverse switch
Timer	Yes (fan timer)
Reverse Switch	Yes (summer/winter mode)
Mounting	Ceiling mount on fan-rated outlet box
Minimum Clearance	7 ft (2.3 m) from floor, 30 in (76 cm) from walls
Power Supply	120 V AC, 60 Hz
Remote Battery	CR2032 (1 piece, included)
Balancing Kit	Included for wobble correction
Cleaning	Use a dry or slightly damp cloth; do not use water or detergents
Installation Tools	Screwdriver, wire stripper, pliers (not included)

Frequently Asked Questions - EVO-CF30B Evolar

Why doesn't my fan work?

Check that all fuses and circuit breakers are on. Turn off power and verify all wire connections in the switch housing and at the fan. Make sure the remote control battery is installed correctly and charged. If the remote uses learning code mode, press the 'bee' button for 5 seconds within 30 seconds of power-on to pair.

What should I do if the fan is noisy?

Ensure all screws fastening the blade arms to the motor are tight and that the lock washers are used. Lower the canopy to keep at least 3 mm from the ceiling. Check for cracked blades and replace if necessary. If this is first use, allow an 8-hour break-in period; if noise persists, contact a certified electrician.

How can I reduce fan wobbling?

First, ensure the fan is off. Tighten all blade screws and blade arm screws. Measure each blade's distance to the ceiling; if not equal, check blade shape. Use the included balancing kit: attach a clip to a blade, test fan, move clip to find best position, then apply the weight at that spot.

The remote control doesn't work. What can I do?

Check that the battery is installed with correct polarity and has charge. Ensure no other remote products of the same frequency are nearby, as they can cause interference. Perform the learning code pairing: turn on power, within 30 seconds press the 'bee' button on the remote for 5 seconds until you hear a long beep.

Why is the fan on but airflow is weak?

The fan may be running in reverse direction (air blowing upward). Locate the reverse switch on the fan body or remote and flip it. Also check that no furniture or objects block airflow, and verify the fan size is adequate for the room.

How do I clean the ceiling fan?

Use a dry dust cloth or a slightly damp cloth. Do not use water, detergents, or any liquid cleaners as they may damage the motor or finish. Avoid bending the blade brackets during cleaning.

What is the proper installation height?

The fan blades must be at least 7 feet (2.3 meters) from the floor and at least 30 inches (76 centimeters) from walls or upright structures. The ceiling outlet box must be fan-rated and capable of supporting at least 100 pounds (45.4 kg).

Can I use a standard dimmer switch to control the fan speed?

No, do not use any solid state speed control device or full range dimmer switch. Doing so will cause loud humming noise and may create a fire hazard. Use only the supplied remote control to adjust fan speed.

The light is not turning on. How do I fix it?

Check that the light bulb (if replaceable) is not burnt out, or that the LED module is properly connected. Ensure the remote control is paired and the light function is enabled. If using a learning code remote, re-pair as described. Also verify wiring connections at the fan and receiver.

How do I balance the fan blades?

Turn the fan to highest speed to maximize wobble. Turn off and attach the included clip to one blade between the holder and outer edge. Turn on; if wobble improves, leave clip; if not, move to another blade. Find the best blade and position, then replace clip with the adhesive weight on the top center line of the blade.

USER MANUAL EVO-CF30B Evolar

Line drawing of a five-blade propeller with a central hub and fan blade (no text or symbols)

1. Plafondhouder

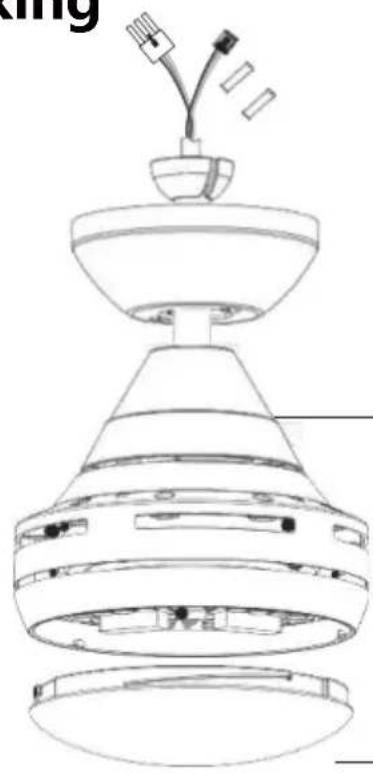

Exploded view diagram of a ceiling lamp with exposed internal components and wiring (no text or symbols)

1. Motor / Ventilator-element
2. Lampenkap

Afstandsbediening

Line drawings of three electronic devices: a remote control unit, a remote control with a keypad, and a water dispenser (no text or symbols)

Line drawing of a curved mechanical component with multiple grooves (no text or symbols)

Diagram showing various types of mechanical fasteners and bolts arranged in rows, with no visible text or labels.

Three simple geometric shapes: two overlapping squares and one with a folded paperclip (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' symbol on the right page (no text or labels)

Plafondventilator installeren

Stap 1 - Plafondhouder en ventilatorelement installeren

Ventilator trilt of wiebelt

Line drawing of a curved object with a labeled component (1), no text or symbols present

evolar

Line drawing of a five-blade propeller with a conical top and three blades (no text or symbols)

EVO-F30MW/B

Ceiling fan Installation instructions

SAFETY TIPS

WARNING: To reduce the risk of electrical shock, turn off the electricity to the fan at the main fuse box or circuit panel before you begin the fan installation or before servicing the fan or installing accessories.

READ ALL INSTRUCTIONS AND SAFETY INFORMATION CAREFULLY BEFORE INSTALLING YOUR FAN AND SAVE THESE INSTRUCTIONS.

CAUTION: To avoid personal injury, the use of gloves may be necessary while handling fan parts with sharp edges.

1. Make sure all electrical connections comply with Local Codes or Ordinances, the National Electrical Code. If you are unfamiliar with electrical wiring or if the house/building wires are different colors than those referred to in the instruction please use a qualified electrician.

2. Make sure you have a location selected for your fan that allows clear space for the blades to rotate and at least seven (7) feet (2.3 meters) of clearance between the floor and the fan blade tips. The fan should be mounted so that the tips of the blades are at least thirty (30) inches (76 centimeters) from walls or other upright structures.

3. The outlet box and ceiling support joist used must be securely mounted, and capable of supporting at least 100 Pounds (45.4 kilograms). The outlet box must be supported directly by the building structure. Make sure the electrical box that will hold the ceiling fan is fan-rated. There should be an inscription on the box indicating it.

WARNING: To reduce the risk of fire, electrical shock, or personal injury, mount to the outlet box marked “Acceptable for Fan Support,” and use the mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of lighting fixtures are not acceptable for fan support and may need to be replaced. Consult a qualified electrician if in doubt.

1. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on opposite sides of the outlet box.

WARNING: To reduce the risk of electrical shock, fire and to prevent humming noise do not use this fan with any solid state speed control device or control fan speed with a full range dimmer switch. Using a full range dimmer switch to control fan speed will cause a loud humming noise from fan.

1. Do not operate the reverse switch until fan has come to a complete stop.(If included Forward/Reverse Switch)

7.Do not insert anything between the fan blades while they are rotating.

WARNING: To reduce the risk of personal Injury, do not bend the blade brackets when installing the brackets, balancing the blades, or cleaning the fan. Do not insert foreign objects in between rotating fan blades.

WARNING: To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.

1. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.

WARNING: To reduce the risk of personal injury, use only parts provided with this fan. The use of parts OTHER than those provided with this fan will void the warranty.

NOTE: The important safety precautions and instructions appearing in the manual are not meant to Cover all possible conditions and situations that may occur. It must be understood that common sense and caution are necessary factors in the installation and operation of this fan.

Preparing for installation

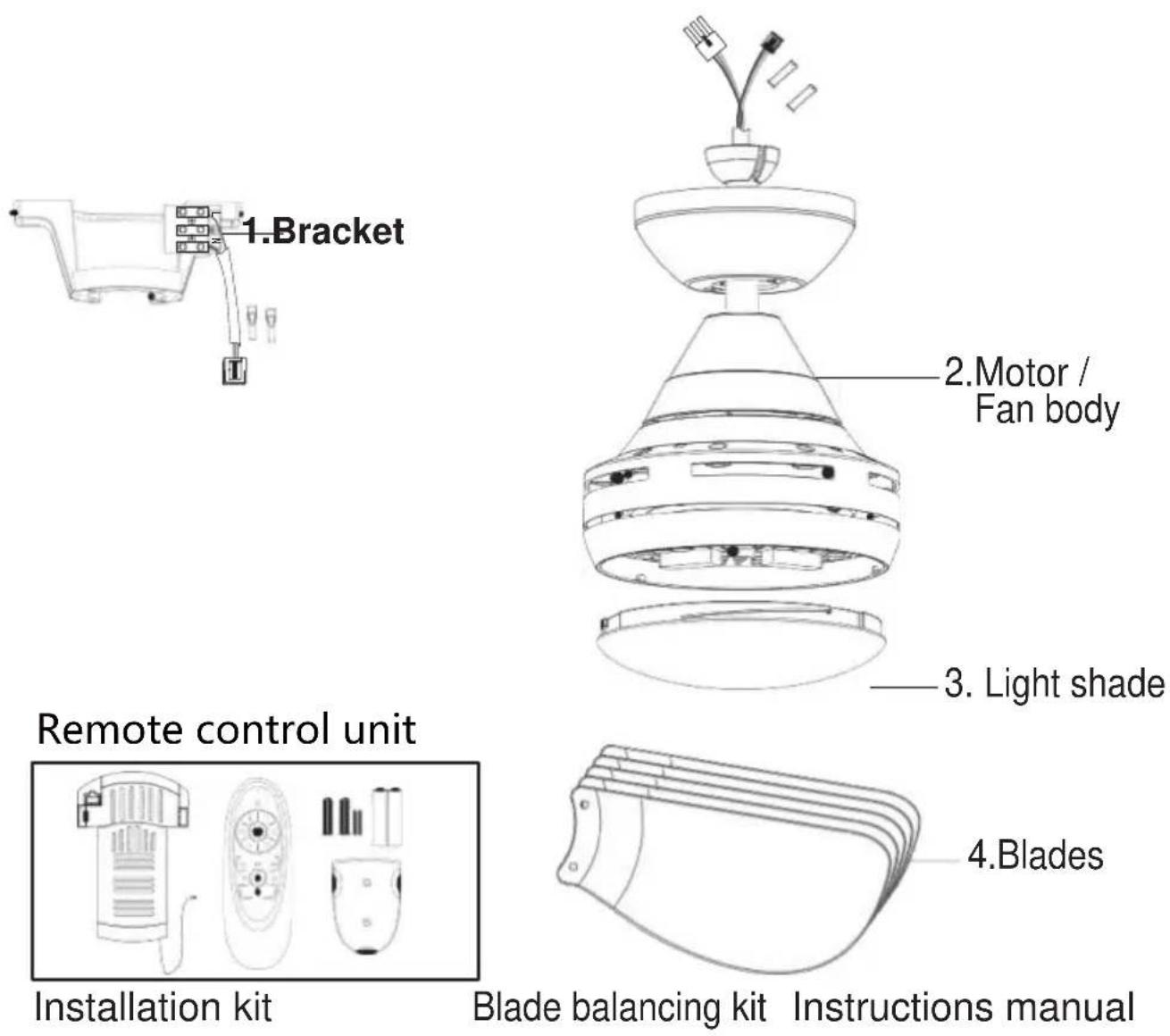

Package Lists

Diagram showing various mechanical components including bolts, screws, and washers arranged in rows (no text or labels)

Three simple geometric shapes: two squares and one U-shaped paperclip, drawn with thin lines on a white background (no text or symbols)

Simple line drawing of an open book with a lowercase 'i' symbol on the right page (no text or labels)

Installing the ceiling fan

Step 1 (Ceiling bracket and fan body installation)

Step 2 (Put receiver into ceiling bracket and wiring)

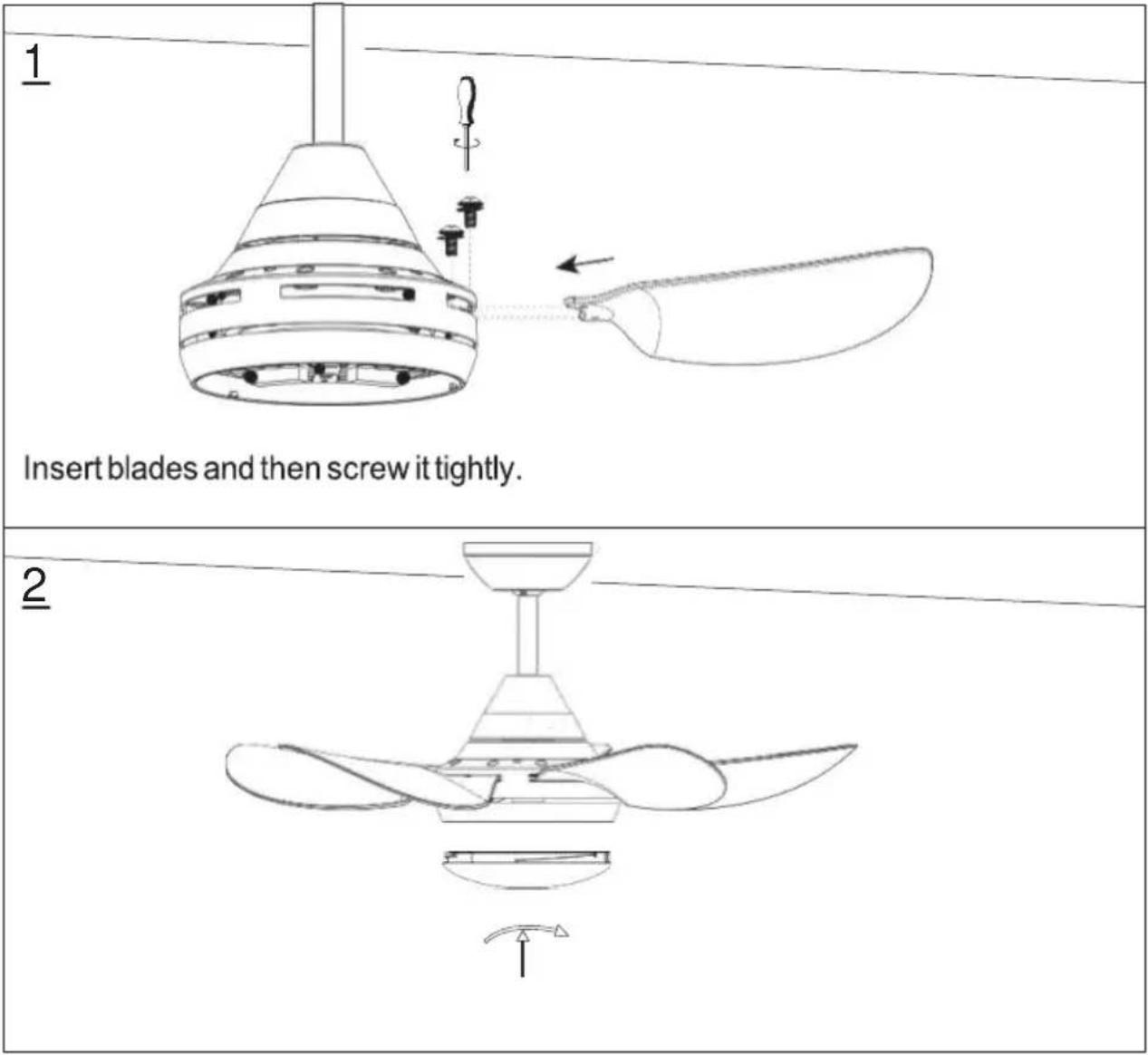

Step 3 ( Blades and Light Shade installation)

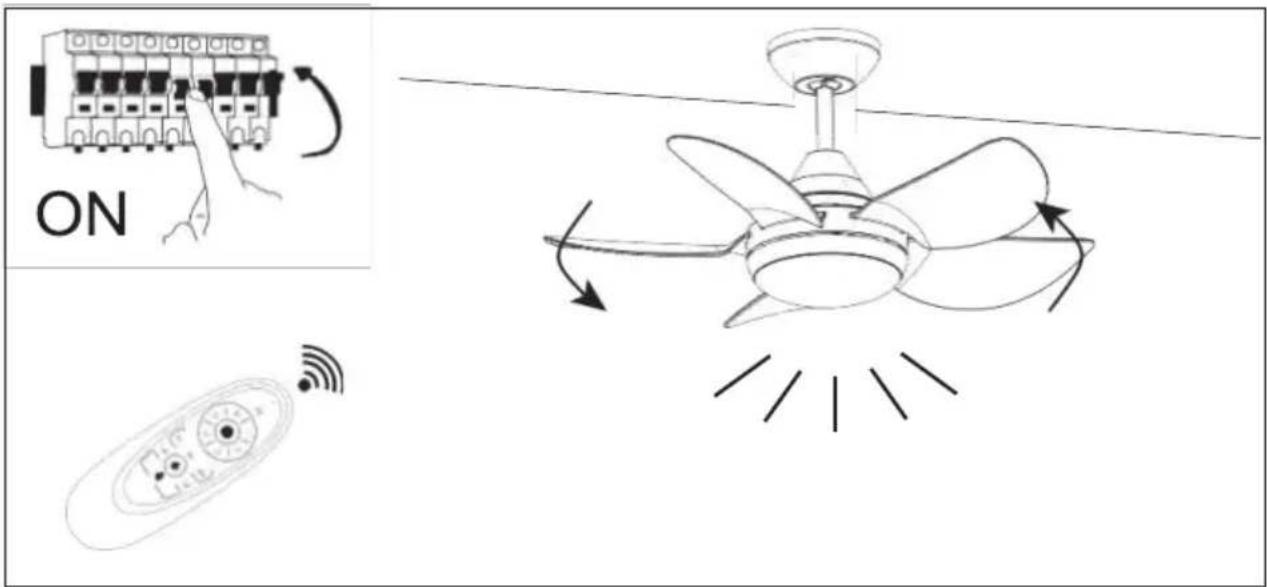

Step 4(Switch on and ceiling fan works)

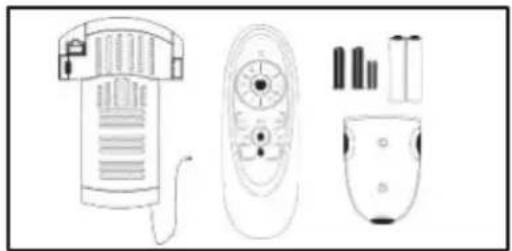

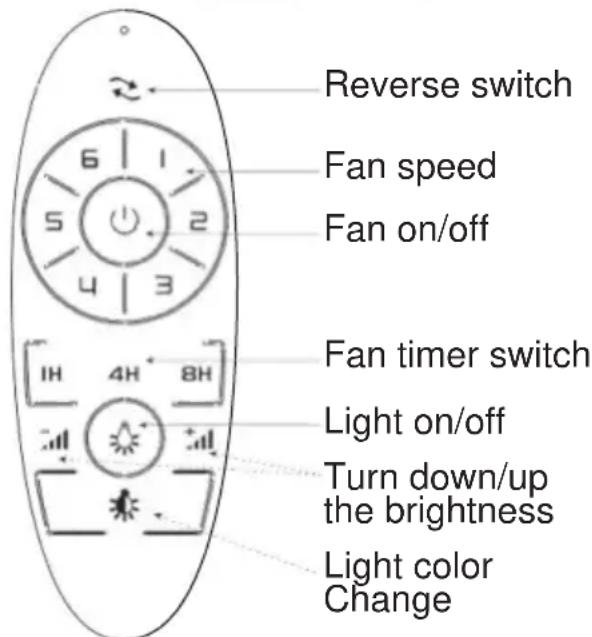

Remote control (emitter) operation

If emitter can not control the far

1. Please check whether the battery is installed correctly and whether it is charged. If necessary, replace the remote control battery.
2. Please check if there are similar remote control products working nearby, because remote control products of the same frequency will interfere with each other.
3. Use learning code matching mode is used between emitter and receiver Turn "ON" the supply power within 30 seconds and press the emitter, 's " 🔊" button for 5 seconds. it can load normally after hearing a long sound"bee", which means learning successfully and it can works normally.

TroubleShooting

Fan does not work

1. Check all fuses or circuit breakers if disconnecting the power supply to the fan.
2. Turn off electrical power and check all wire connections to fan and in switch housing. It must be carried out by a electrician

Fan is noisy

1. Assure that the screws fastening blade arm to motor are tight and the lock washers provided for that purpose have been used
2. Lower the upper canopy to ensure a separation from the ceiling of no less than 3mm to reduce noisy
3. Check to see if any of the blades are cracked. If so, replace all of the blades
4. If this is the first use, leave the fan on for at least 8 hours. In the event that mechanical noise continues after this period, contact certified electrician

Fan turns but airflow is inadequate

1. The fan may be running in reverse, so air is going upward.
2. The room may contain items that obstruct the air flow.
3. The fan may be too small for size of the room.

Fan shakes or wobbles

1. The fan blades are not parallel to the ceiling. See Fig.1 how to inspect
2. Make sure mounting bracket is tightened at outlet box with no movement at all.
3. Make sure all screws holding the blades to the blade arm and blade arm to motor are tight.
4. Use the balance kit and instructions to balance the fan. Please see the last pages described.

Balancing – Wobbling problems during fan operation

If the fan body wobbles during its operation, this is not a sign of malfunctioning (even if it wobbles a few centimeters). To reduce wobbling, you can, while the fan is off:

1. Check that all blades are properly fastened by tightening their screws.
2. Check the distance between each blade and the ceiling. Measurements to the ceiling can be carried out as shown in the following diagram. If variations exist and you have already correctly tightened the screws, check that all blades have the same shape. If any of them have a shape that is visibly different, this may be causing an imbalance during fan operation.

Silhouette of a mechanical device with a ruler and scale, labeled Fig.1 (no text or symbols on the diagram itself)

If you have completed the previous steps and the wobbling has not resolved, you should apply dynamic balancing with the kit provided, as explained below:

1. Turn the fan on to the highest speed so that the greatest amount of wobbling is produced.
2. Turn off the fan. Select a blade and place a clip on it (see diagram) halfway between the fastening and the far edge of the blade.
3. Turn on the fan and check whether the wobbling has improved or gotten worse. Turn it off once again and if the wobbling has not improved, place the clip on another blade. Repeat this process and determine on which blade it improves the wobbling.
4. Leave the clip on the blade that produces the best results. Move the clip forward or backwards on this blade until finding the position that offers the best results.
5. Afterwards, remove the clip and place one of the weights on the upper part of the center line of the blade at the position where the clip was located.

Line drawing of a curved mechanical component with a labeled part (1), no text or symbols present
