Product Type	Audio-Video Receiver
Brand	ONKYO
Model	HT-R358
Dimensions (W × H × D)	435 mm × 150 mm × 318 mm
Weight	7.6 kg
Power Supply	AC 230 V, 50 Hz / AC 120 V, 60 Hz
Standby Power Consumption	0.3 W
Output Power	100 W per channel at 6 ohms (IEC)
Number of Channels	5.1 (up to 7.1 input)
Speaker Impedance	6 Ω to 16 Ω
FM/AM Tuner	Yes, with 40 presets
HDMI Inputs	4 (HDMI IN 1-4)
HDMI Outputs	1 (HDMI OUT)
Digital Audio Inputs	2 optical, 1 coaxial
Component Video Inputs	2
Component Video Output	1
Universal Port	Yes (for iPod/iPhone/DAB+ dock)
RIHD Function (HDMI Control)	Yes
Listening Modes	Dolby Pro Logic II, DTS Neo:6, Direct, Stereo, Mono, DSP modes
Music Optimizer	Yes (for compressed files)
Sleep Timer	Yes (10-90 minutes)
Supplied Accessories	FM antenna, AM loop antenna, remote control RC-762M, AA/R6 batteries, quick start guide
Maintenance and Cleaning	Wipe with a soft, dry cloth. Do not use solvents.
Safety	Do not expose to water, do not open the casing, built-in thermal protection

Frequently Asked Questions - HT-R358 ONKYO

How to reset the AV receiver to factory settings?

Turn on the unit, then while holding down the VCR/DVR button, press ON/STANDBY. All settings return to default values.

What to do if the remote control does not work?

Check the batteries: insert two new AA/R6 batteries observing polarity. Ensure the remote sensor is not obstructed and the remote is pointed at the receiver.

How to connect an iPod/iPhone?

Use an Onkyo docking station (UP-A1 series) connected to the UNIVERSAL PORT on the rear. Select the PORT input source on the receiver.

Why is the sound cut off or absent?

Check that MUTING is not activated (indicator flashes). Press MUTING again or adjust volume. Ensure the audio source is correctly selected and speakers are connected.

How to set the speaker distance?

In the Sp Distance menu (OSD setup menu), set the distance of each speaker from the listening position, in feet or meters. This optimizes sound reproduction.

What does the HDMI THRU indicator mean?

The HDMI THRU indicator lights up when the HDMI Through function is enabled. It allows HDMI audio/video signals to be transmitted to the TV even if the receiver is in standby.

How to use Auto Standby?

In the Hardware menu, set Auto Standby to On. The unit will automatically enter standby after 30 minutes of inactivity without audio/video signal.

Can I record from a digital source?

No, recording is only possible from analog sources. Digital inputs (HDMI, optical, coaxial) cannot be recorded. Use analog inputs (RCA) for recording.

How to select the appropriate listening mode?

Use the MOVIE/TV, MUSIC, GAME or STEREO buttons on the remote or front panel. The optimal mode depends on the content (movie, music, game) and audio format.

What to do if the unit does not turn on?

Check that the power cord is properly plugged into a working AC outlet. If the problem persists, the internal fuse may be defective; contact a qualified technician.

USER MANUAL HT-R358 ONKYO

(9) Prises video composite et audio analogue (BD/DVD IN, VCR/DVR IN et OUT, CBL/SAT IN, GAME IN, TV/CD IN)
10 MONITOR OUT V prize

TP (Traffic Program)

Types de programmes RDS (PTY)

COAXIAL, OPTICAL1, OPTICAL2:

■ Wireless Front, Wireless Surr (Surround)

Left, Center, Right, Surround Right, Surround Left, Subwoofer

Left, Center ^+1 , Right, Surround Right, Surround Left

m = 311

2

12x - 1 > 0

E

A

( x - 1) ( x + 3) = 0

3

m = 311 ;

A

A

m - 1 0 ;

m - 1 0 ;

4

m - 1 0 ;

m - 1 0 ;

A

6

m = 311 ;

Menu

HDMI Setup

HDMI Ctrl (RIHD)

Off

On

1 V p-p/75 Ω (Composite)

87.5 MHz - 108,0 MHz, RDS

522/530 kHz - 1611/1710 kHz

Stations programmables

40

Généralités

Alimentation

CA 230V - 50Hz

Consummation

330 W

Consommation electrique insonore

40W

3D, Audio Return Channel, DeepColor, x.v.Color, LipSync, CEC (RIHD)

Entres videos

Composantes IN1,IN2

Composite BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX

Sorties video

Composantes OUT

Composite MONITOR OUT, VCR/DVR OUT

Entres audio

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.

Tel: [phone] Fax: [phone]

http://www.us.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY

Tel: [phone] Fax: [phone]

http://www.eu.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH (UK BRANCH)

The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK

Tel: [phone] Fax: [phone]

ONKYO CHINA LIMITED

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong.

Tel: [phone] Fax: [phone]

http://www.onkyochina.com/

ONKYO CHINA PRC

1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai,

China 200041, Tel: [phone] Fax: [phone]

http://www.cn.onkyo.com/

ONKYO

5.1ch Home Cinema Package

HTP-358

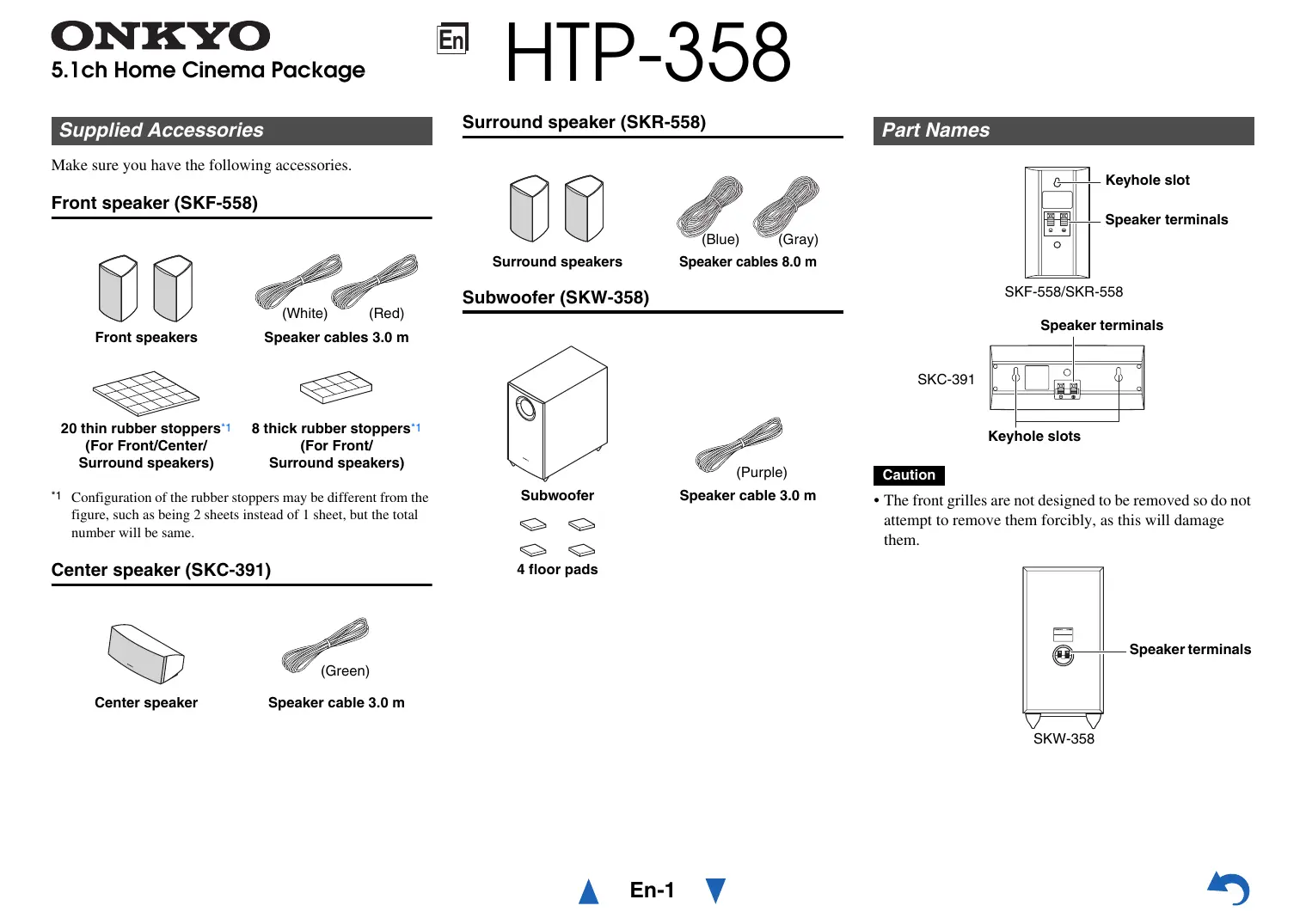

Supplied Accessories

Make sure you have the following accessories.

Front speaker (SKF-558)

Front speakers

(White)
(Red)
Speaker cables 3.0m

20 thin rubber stoppers*1
(For Front/Center/
Surround speakers)

8 thick rubber stoppers*1
(For Front/
Surround speakers)

*1 Configuration of the rubber stoppers may be different from the figure, such as being 2 sheets instead of 1 sheet, but the total number will be same.

Center speaker (SKC-391)

Center speaker

Speaker cable 3.0m

Surround speaker (SKR-558)

Surround speakers

(Blue)

Speaker cables 8.0 m

Subwoofer (SKW-358)

Subwoofer

4 floor pads

(Purple)
Speaker cable 3.0m

Part Names

Keyhole slot
Speaker terminals
SKF-558/SKR-558

Speaker terminals
SKC-391
Keyhole slots

Caution

• The front grilles are not designed to be removed so do not attempt to remove them forcibly, as this will damage them.

SKW-358

Before Using the Home Cinema Package

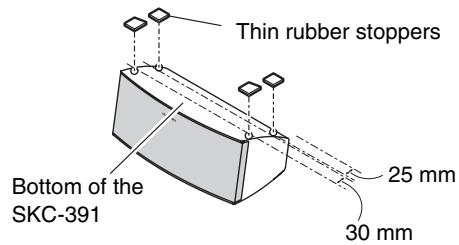

Using the Rubber Stoppers for a More Stable Platform

We recommend using the supplied rubber stoppers to achieve the best possible sound from your speakers. The rubber stoppers prevent the speakers from moving, providing a more stable platform.

Using the Floor Pads for Subwoofer

If the subwoofer is placed on a hard floor (wood, vinyl, tile, etc.) and playback is very loud, the subwoofer's feet may damage the flooring. To prevent this, place the supplied pads underneath the subwoofer's feet. The pads also provide a stable base for the subwoofer.

Wall Mounting

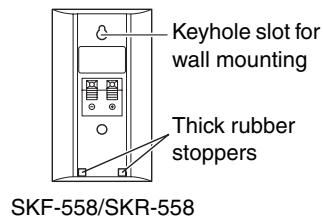

To mount the front/surround speakers vertically, use the keyhole slot shown to hang each speaker on a screw that's securely screwed into the wall.

To mount the center speaker horizontally, use the two keyhole slots shown to hang the speaker on two screws that are securely screwed into the wall.

Keyhole slots for wall mounting

Tip

• If the center speaker is tilted, loosen the screw on the declined side to move upward so that the speaker could be adjusted vertically.

Caution

• A mounting screw's ability to support a speaker depends on how well it's anchored to the wall. If you have hollow walls, screw each mounting screw into a stud. If there are no studs, or the walls are solid, use suitable wall anchors. Use screws with a head diameter of 9mm or less and a shank d or less. With hollow walls, use a cable/ check for any power cables or water pip any holes.

• Leave a gap of between 5mm and 10mm between the wall and the base of the screw head, as shown (We recommend that you consult a home installation professional).

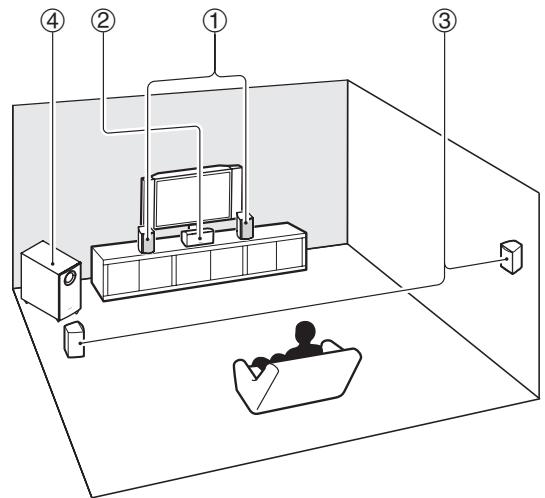

Enjoying Home Cinema

The Home Cinema means that you can enjoy surround sound with a real sense of movement in your own home — just like being in a movie theater or concert hall.

① Front left and right speakers (SKF-558)

They should be positioned facing the listener at about ear level, and equally spaced from the TV. Angle them inward slightly so as to create a triangle, with the listener at the apex.

② Center speaker (SKC-391)

Position it close to your TV (preferably on top) facing forward at about ear level, or at the same height as the front left and right speakers.

③ Surround left and right speakers (SKR-558)

Position them at the sides of the listener, or slightly behind, about 60 to 100cm above ear level. Ideally they should be equally spaced from the listener.

④ Subwoofer (SKW-358)

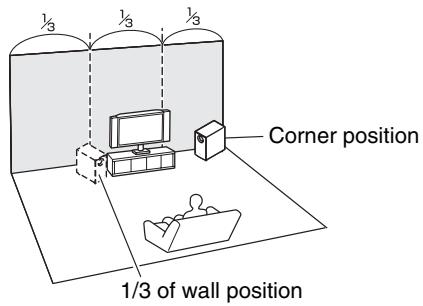

The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel and bass from the satellite speakers when a crossover is specified. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one-third the way along the front wall, as shown.

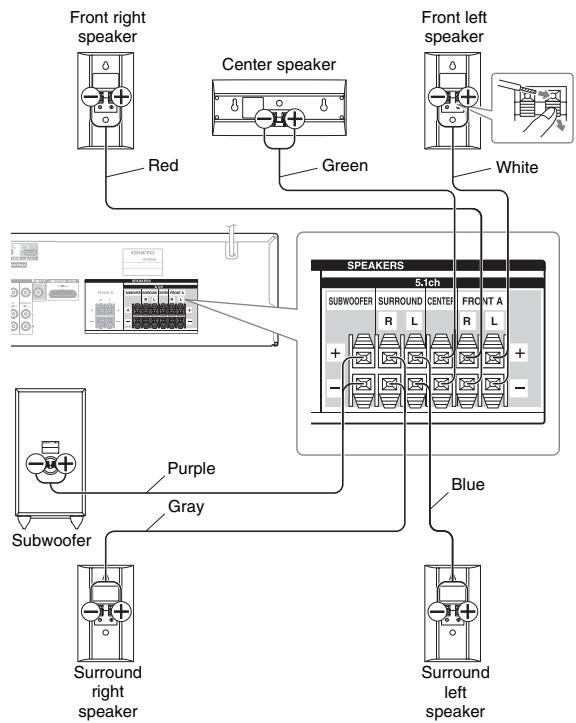

Connecting the Speakers

Speaker Connection Precautions

Read the following before connecting your speakers:

• Turn off your receiver before making any connections.
• Pay close attention to speaker wiring polarity. Connect positive (+) terminals to only positive (+) terminals, and negative (-)

terminals to only negative (-) terminals. If the speakers are wired incorrectly, the sound will phase and will sound unnatural.

• Be careful not to short the positive and negative wires. Doing so may damage your amp.

Specifications

Passive Subwoofer (SKW-358)

Type	Bass-reflex type Passive subwoofer
Impedance	6 Ω
Maximum input power	130 W
Sensitivity	82 dB/W/m
Frequency response	30 Hz to 150 Hz
Cabinet capacity	24 L
Dimensions (W × H × D)	211 mm × 425 mm × 381 mm (incl. projection)
Weight	5.5 kg
Drivers unit	16 cm Cone × 1
Terminal	Spring type color coded
Other	Non-magnetic shielding

■ Front Speakers (SKF-558)

Type	Full Range Bass-reflex
Impedance	6 Ω
Maximum input power	120 W
Sensitivity	81 dB/W/m
Frequency response	80 Hz to 20 kHz
Cabinet capacity	1.1 L
Dimensions (W × H × D)	101 mm × 175 mm × 116 mm(incl. grille and projection)
Weight	0.7 kg
Drivers unit	8 cm Cone × 1
Terminal	Spring type color coded
Keyhole slot	Available
Grille	Fixed
Other	Magnetic shielding

Center Speaker (SKC-391)

Type	Full Range Bass-reflex
Impedance	6 Ω
Maximum input power	120 W
Sensitivity	80 dB/W/m
Frequency response	80 Hz to 20 kHz
Cabinet capacity	1.8 L
Dimensions (W × H × D)	240 mm × 102 mm × 121 mm(incl. grille and projection)
Weight	0.8 kg
Drivers unit	8 cm Cone × 1
Terminal	Spring type color coded
Keyhole slot	Available
Grille	Fixed
Other	Non-magnetic shielding

Surround Speakers (SKR-558)

Type	Full Range Bass-reflex
Impedance	6 Ω
Maximum input power	120 W
Sensitivity	81 dB/W/m
Frequency response	80 Hz to 20 kHz
Cabinet capacity	1.1 L
Dimensions (W × H × D)	101 mm × 175 mm × 116 mm(incl. grille and projection)
Weight	0.7 kg
Drivers unit	8 cm Cone × 1
Terminal	Spring type color coded
Keyhole slot	Available
Grille	Fixed
Other	Non-magnetic shielding

Specifications and appearance are subject to change without prior notice.

Note

For non-magnetic shielded speakers:

Try moving the speakers away from your TV or monitor. If discoloration should occur, turn off your TV or monitor, wait 15 to 30 minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic field, thereby removing any discoloration effects.
