Product Type	Video Projector
Brand	Hitachi
Model	CP-AW2519NMEF
Display Technology	LCD (3LCD)
Native Resolution	1280 x 800 (WXGA)
Brightness	2500 Lumens
Contrast Ratio	3000:1 (typical)
Lamp Life	Up to 5000 hours (Normal mode)
Input Ports	2x COMPUTER IN (D-sub 15), 1x HDMI, 1x S-VIDEO, 1x VIDEO (RCA), 1x USB Type A, 1x USB Type B, 1x LAN (RJ-45)
Output Ports	1x MONITOR OUT (D-sub 15), 1x CONTROL (RS-232C), 1x Audio Out (stereo mini)
Audio	Built-in 16W speaker
Network	Ethernet (LAN) for control and presentation, PJLink compatible
Control	RS-232C, Network (TCP #23, #9715), IR remote
Keystone Correction	Vertical and horizontal, plus Corner adjustment (Perfect Fit)

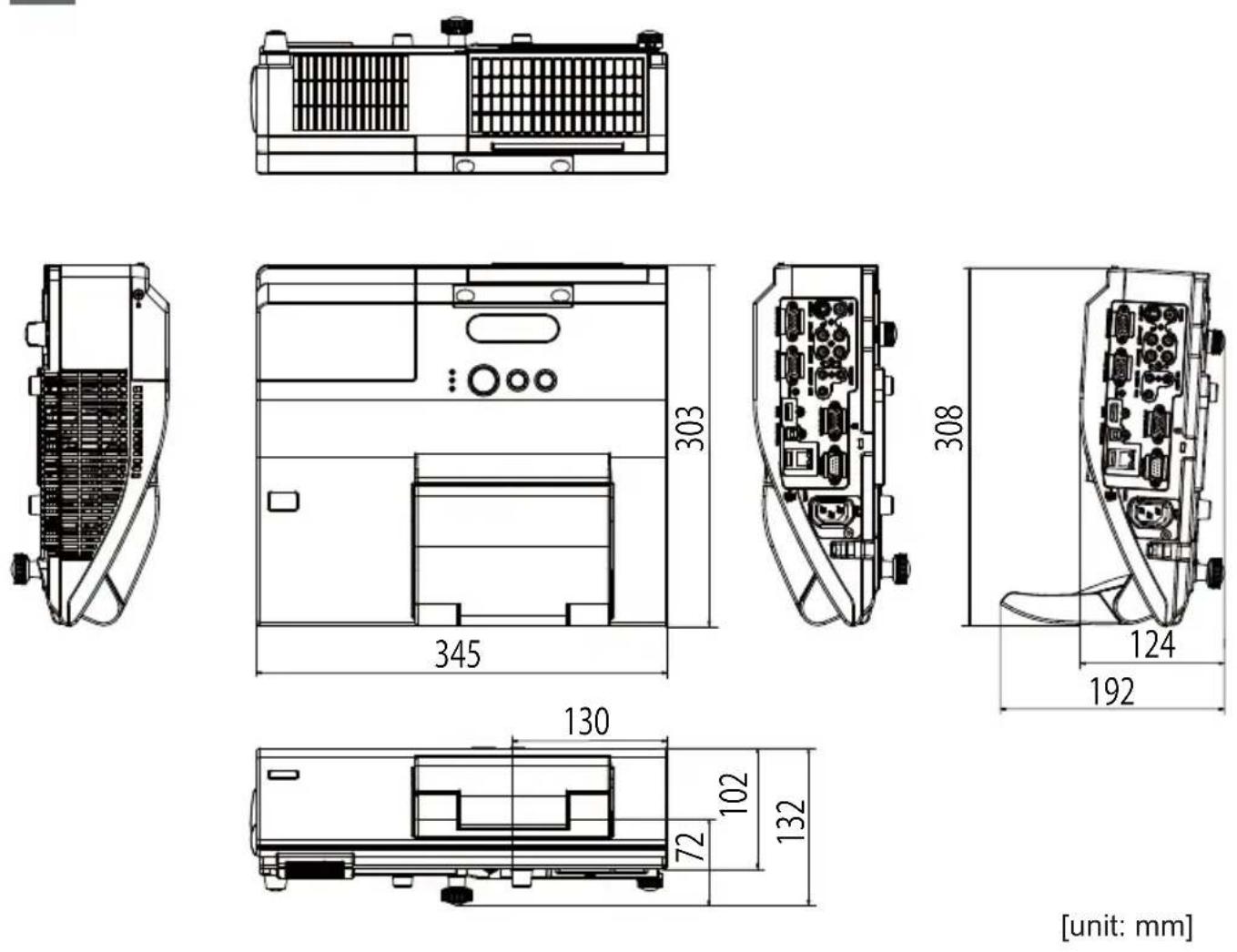

Dimensions (W x H x D)	345 x 85 x 303 mm (without protrusions)
Weight	Approx. 3.2 kg
Power Supply	AC 100-240V, 50/60 Hz
Power Consumption	290 W (Normal mode), <0.5 W (Standby)
Noise Level	33 dB (Normal mode)
Other Features	Digital zoom, D-shift, Picture mode, Gamma, Color temperature, Active iris, My Memory, Network Bridge

Frequently Asked Questions - CP-AW2519NMEF HITACHI

How do I connect my laptop to the projector?

Connect your laptop to the COMPUTER IN1 or COMPUTER IN2 port using a VGA cable, or use the HDMI port for digital video and audio. Ensure the projector is powered on and select the correct input source via the INPUT button or menu.

How can I adjust the keystone distortion?

Go to the IMAGE menu and select KEYSTONE for vertical or horizontal adjustment. For advanced corner correction, use PERFECT FIT in the same menu to adjust each corner individually.

What is the maximum resolution supported?

The projector can display signals up to UXGA (1600x1200), but the internal panel resolution is 1280x800. For best quality, set your source to the native resolution.

How do I clean the air filter?

Turn off and unplug the projector. Remove the filter cover, gently clean the filter with a vacuum cleaner or soft brush, and reinstall. Reset the filter time in OPTION > FILTER TIME after cleaning.

Can I control the projector via network?

Yes, connect the projector to your network via the LAN port. Use a web browser or RS-232C commands over TCP ports 23 or 9715. Configure network settings in NETWORK menu.

How often should I replace the lamp?

The lamp typically lasts up to 5000 hours in Normal mode. When the lamp time reaches near the end, a warning message appears. Replace the lamp promptly using a genuine Hitachi replacement.

What does the 'My Memory' function do?

My Memory allows you to save and recall up to four sets of image adjustments (brightness, contrast, color, etc.). Helps quickly switch between different content settings.

How do I freeze the current image?

Press the FREEZE button on the remote control. To unfreeze, press the button again. This is useful for pausing a presentation without closing the source.

Why is the projector showing 'No Signal'?

Check that the source device is powered on and correctly connected. Verify the input source selected on the projector matches the port used. Press AUTO ADJUST or cycle through inputs.

How do I reset the lamp timer after replacement?

After installing a new lamp, go to OPTION > LAMP TIME and select RESET. Confirm the reset. This ensures accurate remaining lamp life tracking.

User questions about CP-AW2519NMEF HITACHI

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

No questions yet. Be the first to ask one.

Download the instructions for your Vidéo-projecteur in PDF format for free! Find your manual CP-AW2519NMEF - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CP-AW2519NMEF by HITACHI.

USER MANUAL CP-AW2519NMEF HITACHI

COMPUTER-IN, STILZETTEN, RESOLUTIE

D-zOOM, D-SHIFT, BEELDPOSITIE H,

KEYSTONE, KEYSTONE, PERFECT PAS,

VOLUME, LUIDSPREKER, AUDIOBRON,

HDMI AUDIO, MIC NIVEAU, MIC VOLUME

TAAL, POSITIE MENU, BLANK, OPSTARTEN,

NAAM VAN BRON, PATROON, G.B.

AUTOM. ZOEKEN, DIRECT AAN, AUTOM. UIT,

USB TYPE B, LAMPTIJD, FILTERTIJD, MIJN KNOP,

SIGNAALBRON, SERVICE

INSTELLEN, PROJECTORNAAM, MIJN BEELD,

AMX D.D., PRESENTATIE, INFORMATIE, SERVICE

VEILIGH. PASW. VERANDEREN,

MIJN TEKST WEERG., MIJN TEKST BIJW.

GEHEUGEN_OPENEN-4 TIJDELIJKE CONDITIE WEET U ZEKER DAT U VILT DOORGAAN MET LADEN? ●NEE ●JA

Optimize Performance (Optimaliseer prestaties)


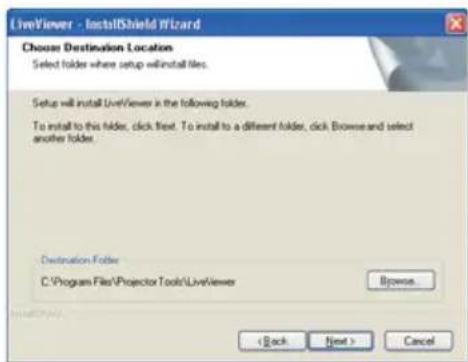

$LiveViewer - InstlShield Wizard Choose Destination Location Select folder where setup will install files. Setup will install LiveViewer in the following folder. To install to this folder, click next. To install to a different folder, click Browse and select another folder. Destination Folder C:\Program Files\Projector Tools\LiveViewer Browse... < Back Next > Cancel$

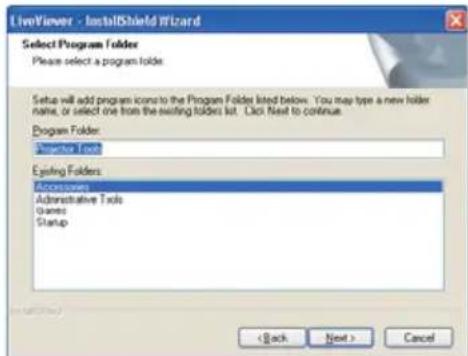

LiveViewer - InstallShield Wizard Select Program Folder Please select a program folder. Setup will add program icons to the Program Folder listed below. You may type a new folder name, or select one from the existing folders list. Click Next to continue. Program Folder: Searcher Tools Existing Folders: Accessories Administrative Tools Quants Startup < Back Next > Cancel

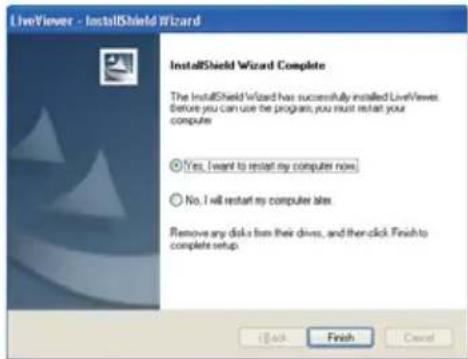

LiveViewer - InstallShield Wizard InstallShield Wizard Complete The InstallShield Wizard has successfully installed LiveViewer. Before you can use the program, you must restart your computer Yes, I want to restart my computer now No, I will restart my computer later Remove any disk from their drive, and then click. Finish to complete setup Back Finish Cancel

■ Are you sure that you want to turn on the network adapter? (Weet u zeker dat u de netwerkadaptor in wilt schakelen?)

Enter PassCode (Voer de Passcode in)

3) Klik op [Connect].

1.6.1 Profielverbinding

Mode (modus): INFRASTRUCTURE

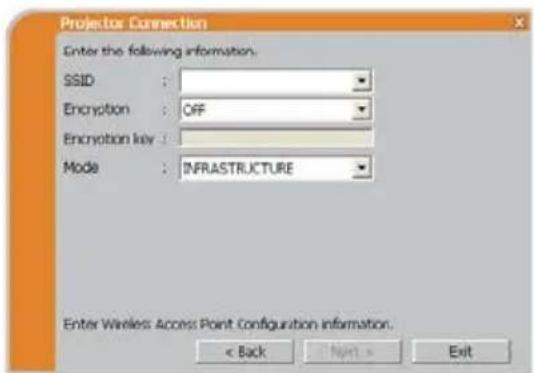

Projector Connection Enter the following information. SSID : Encryption : OFF Encryption key : Mode : INFRASTRUCTURE Enter Wireless Access Point Configuration information. < Back Next > Exit

2) Klik op [Next].

4) Klik op [Connect].

2) Klik op [Connect].

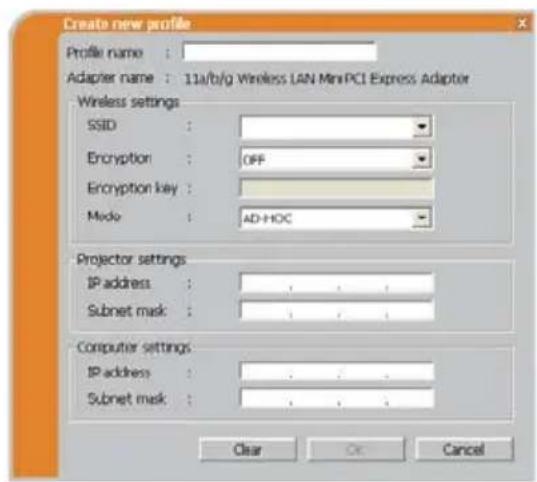

Create new profile Profile name : Adapter name : 11a/b/g Wireless LAN MiniPCI Express Adapter Wireless settings SSID : Encryption : OFF Encryption key : Mode : AD-HOC Projector settings IP address : Subnet mask : Computer settings IP address : Subnet mask : Clear On Cancel

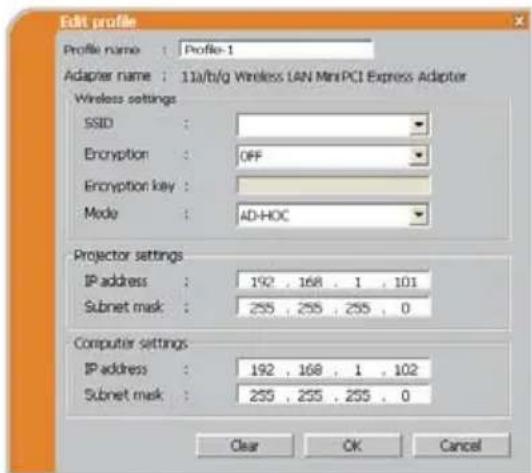

Edit profile Profile name : Profile-1 Adapter name : 11a/b/g Wireless LAN MiniPCI Express Adapter Wireless settings SSID : Encryption : OFF Encryption key : Mode : AD-HOC Projector settings IP address : 192 , 168 , 1 , 101 Subnet mask : 255 , 255 , 255 , 0 Computer settings IP address : 192 , 168 , 1 , 102 Subnet mask : 255 , 255 , 255 , 0 Clear OK Cancel

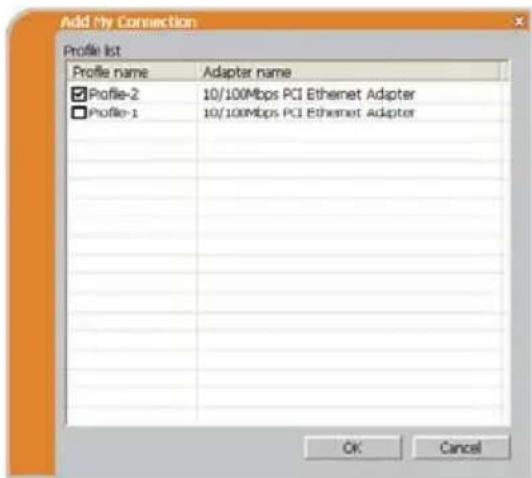

Add My Connection Profile list Profile name Adapter name ✓Profile-2 10/100Mbps PCI Ethernet Adapter □Profile-1 10/100Mbps PCI Ethernet Adapter OK Cancel

De verbinding is verbroken
HITACHI CP-AW2519NMEF - Profielverbinding - 5

Niet aangesloten
HITACHI CP-AW2519NMEF - Profielverbinding - 6

Hold
Options Not displaying confirmation dialog for adding Network settings. Optimize Performance Transmission speed Image quality Presenter Mode Display User Name: Unnamed Display LiveViewer Close

N.B. • Internet Explorer 6.0 of later is vereist.

Date
Time
IP	Address	<Projector
MAC	Address	<Projector

IP-adres> MAC-ac

7.2 Projectorbeheer m.b.v. SNMP

Example of computer signal

Resolution (H x V)	H. frequency (kHz)	V. frequency (Hz)	Rating Signal mode
720 x 400	37.9 85.0 VESA TEXT
640 x 480 31.5	59.9 VESA VGA (60Hz)
640 x 480 37.9	72.8 VESA VGA (72Hz)
640 x 480 37.5	75.0 VESA VGA (75Hz)
640 x 480 43.3	85.0 VESA VGA (85Hz)
800 x 600 35.2	56.3 VESA SVGA (56Hz)
800 x 600 37.9	60.3 VESA SVGA (60Hz)
800 x 600 48.1	72.2 VESA SVGA (72Hz)
800 x 600 46.9	75.0 VESA SVGA (75Hz)
800 x 600 53.7	85.1 VESA SVGA (85Hz)
832 x 624 49.7	74.5 Mac 16" mode
1024 x 768 48.4	60.0 VESA XGA (60Hz)
1024 x 768 56.5	70.1 VESA XGA (70Hz)
1024 x 768 60.0	75.0 VESA XGA (75Hz)
1024 x 768 68.7	85.0 VESA XGA (85Hz)
1152 x 864 67.5	75.0 VESA		1152 x 864 (75Hz)
1280 x 768 47.7	60.0 VESA W-XGA (60Hz)
1280 x 800 49.7	60.0 VESA		1280 x 800 (60Hz)
1280 x 960 60.0	60.0 VESA		1280 x 960 (60Hz)
1280 x 1024	64.0 60.0 VESA SXGA (60Hz)
1280 x 1024	80.0 75.0 VESA SXGA (75Hz)
*1280 x 1024	91.1 85.0 VESA SXGA (85Hz)
1440 x 900 55.9	59.9 VESA WXGA+ (60Hz)
1680 x 1050	65.3 60.0 VESA WSXGA+ (60Hz)
*1600 x 1200	75.0 60.0 VESA UXGA (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.

Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.
The HDMI ^TM input does not support the signals marked with *.

Initial set signals

The following signals are used for the initial settings. The signal timing of some computer models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu.

Data Active video (c)

Resolution (H x V)	Horizontal signal timing (μs)				Vertical signal timing (lines)				Signal mode
Resolution (H x V)	(A)	(B)	(C)	(D)	(a)	(b)	(c)	(d)	Signal mode
720 x 400	2.0	3.0	20.3	1.0	3	4	0	1	TEXT
640 x 480	3.8	1.9	25.4	0.6	2	33	480	10	VGA (60Hz)
640 x 480	1.3	4.1	20.3	0.8	3	28	480	9	VGA (72Hz)
640 x 480	2.0	3.8	20.3	0.5	3	16	480	1	VGA (75Hz)
640 x 480	1.6	2.2	17.8	1.6	3	25	480	1	VGA (85Hz)
800 x 600	2.0	3.6	22.2	0.7	2	22	600	1	SVGA (56Hz)
800 x 600	3.2	2.2	20.0	1.0	4	23	600	1	SVGA (60Hz)
800 x 600	2.4	1.3	16.0	1.1	6	23	600	37	SVGA (72Hz)
800 x 600	1.6	3.2	16.2	0.3	3	21	600	1	SVGA (75Hz)
800 x 600	1.1	2.7	14.2	0.6	3	27	600	1	SVGA (85Hz)
832 x 624	1.1	3.9	14.5	0.6	3	39	624	1	Mac 16" mode
1024 x 768	2.1	2.5	15.8	0.4	6	29	768	3	XGA (60Hz)
1024 x 768	1.8	1.9	13.7	0.3	6	29	768	3	XGA (70Hz)
1024 x 768	1.2	2.2	13.0	0.2	3	28	768	1	XGA (75Hz)
1024 x 768	1.0	2.2	10.8	0.5	3	36	768	1	XGA (85Hz)
1152 x 864	1.2	2.4	10.7	0.6	3	864	1		1152 x 864 (75Hz)
1280 x 768	1.7	2.5	16.0	0.8	3	23	768	1	W-XGA (60Hz)
1280 x 800	1.6	2.4	15.3	0.8	3	800	1		1280 x 800 (60Hz)
1280 x 960	1.0	2.9	11.9	0.9	3	36	960	1	1280 x 960 (60Hz)
1280 x 1024	1.0	2.3	11.9	0.4	3	38	1024	1	SXGA (60Hz)
1280 x 1024	1.1	1.8	9.5	0.1	3	38	1024	1	SXGA (75Hz)
1280 x 1024	1.0	1.4	8.1	0.4	3	44	1024	1	SXGA (85Hz)
1440 x 900	1.4	2.2	13.5	0.8	6	25	900	3	WXGA+ (60Hz)
1680 x 1050	1.2	1.9	11.5	0.7	6	30	1050	3	WSXGA+ (60Hz)
1600 x 1200	1.2	1.9	9.9	0.4	3	46	1200	1	UXGA (60Hz)

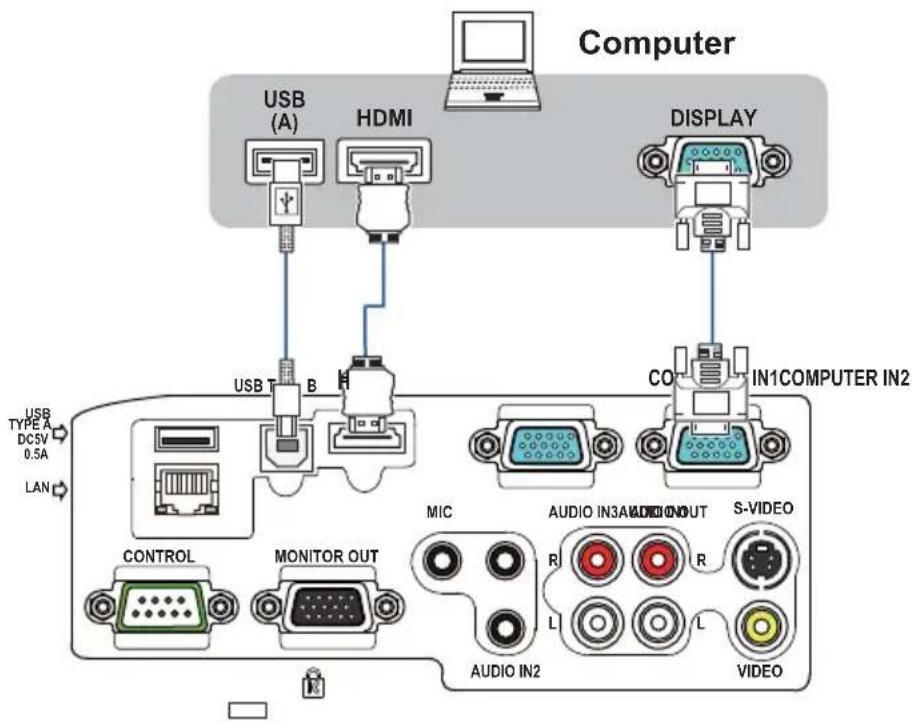

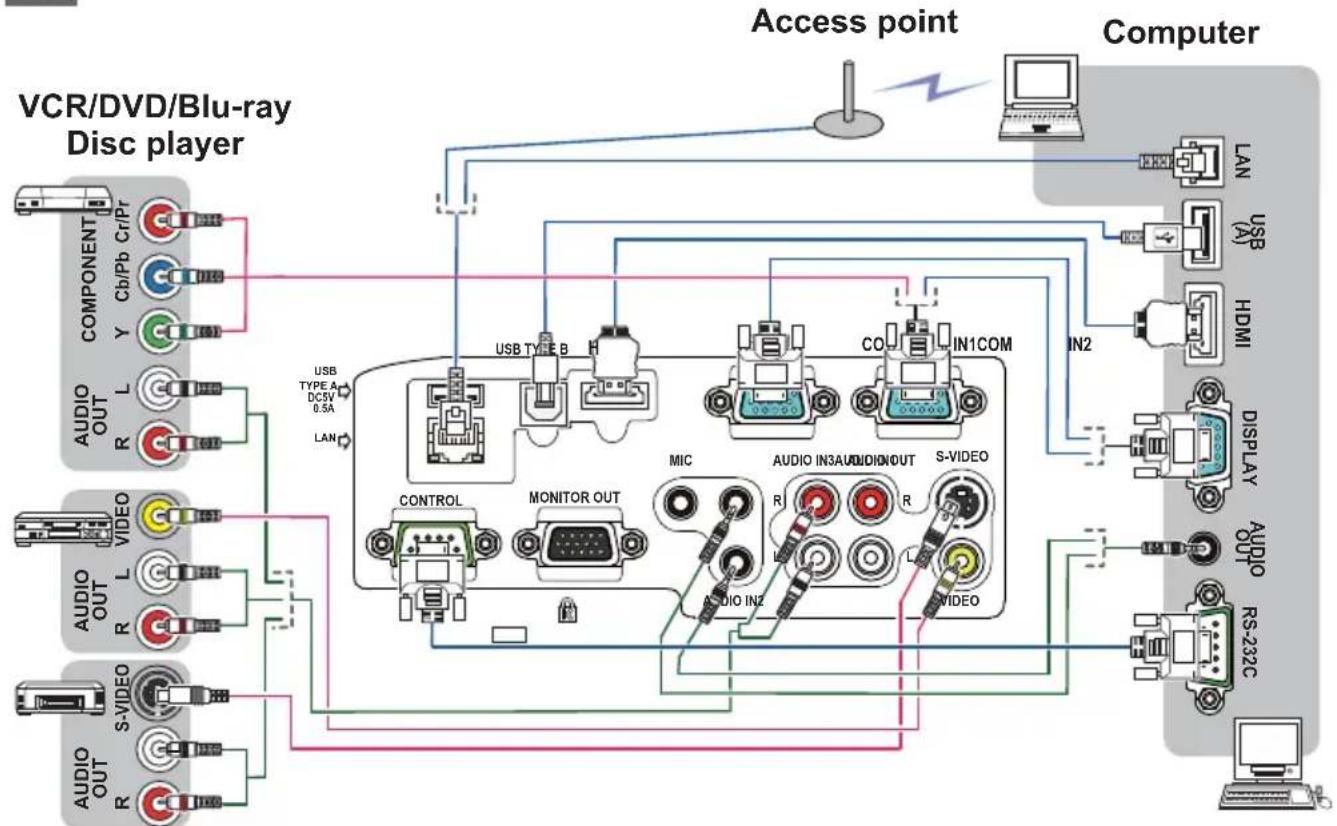

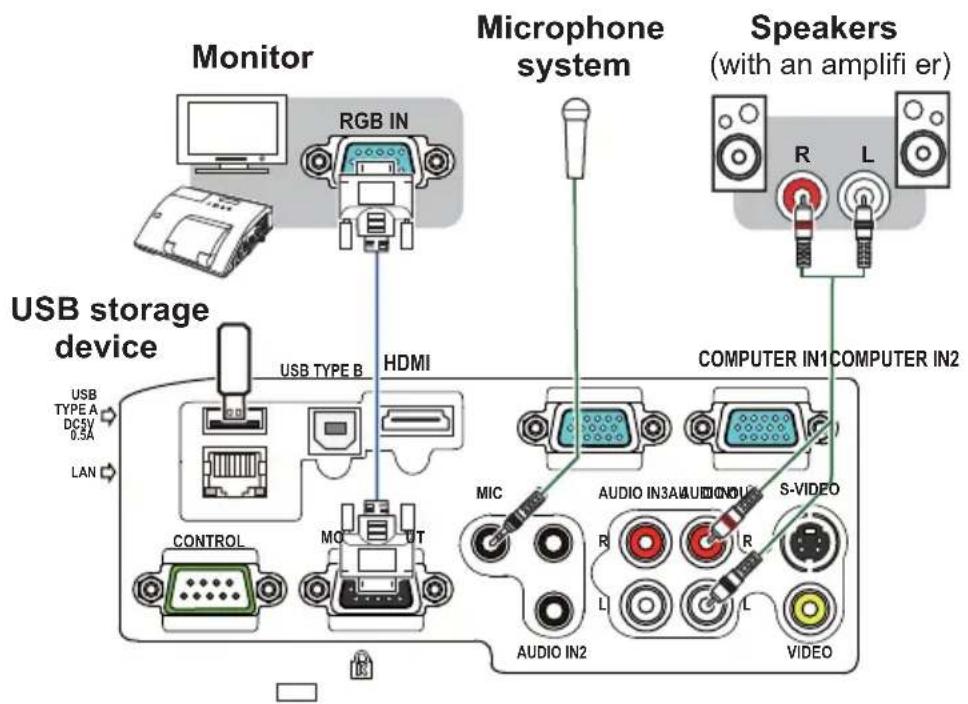

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

▶ Only the signal that is input from the COMPUTER IN1 or IN2 can be output from the MONITOR OUT port.

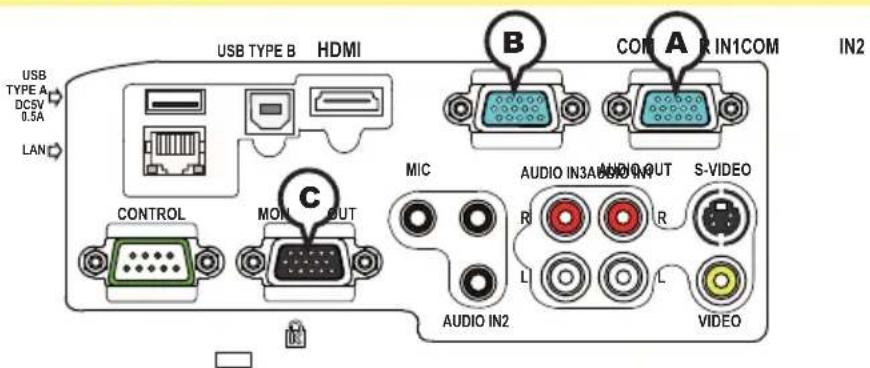

USB TYPE A DCSV 0.5A LAN USB TYPE B HDMI B CON A R IN1COM IN2 CONTROL MON OUT C MIC AUDIO IN3A AUDIO OUT S-VIDEO R L L AUDIO IN2 VIDEO

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒸMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level

Pin	Signal Pin Signal
1	Video Red 10 Ground
2	Video Green 11 (No connection)
3	Video Blue	12	A: SDA (DDC data)B, C: (No connection)
4	(No connection)	12	A: SDA (DDC data)B, C: (No connection)
5	Ground 13 H. sync / Composite sync.
6	Ground Red 14 V. sync.
7	Ground Green	15	A: SCL (DDC clock)B, C: (No connection)
8	Ground Blue	15	A: SCL (DDC clock)B, C: (No connection)
9	(No connection) -	-

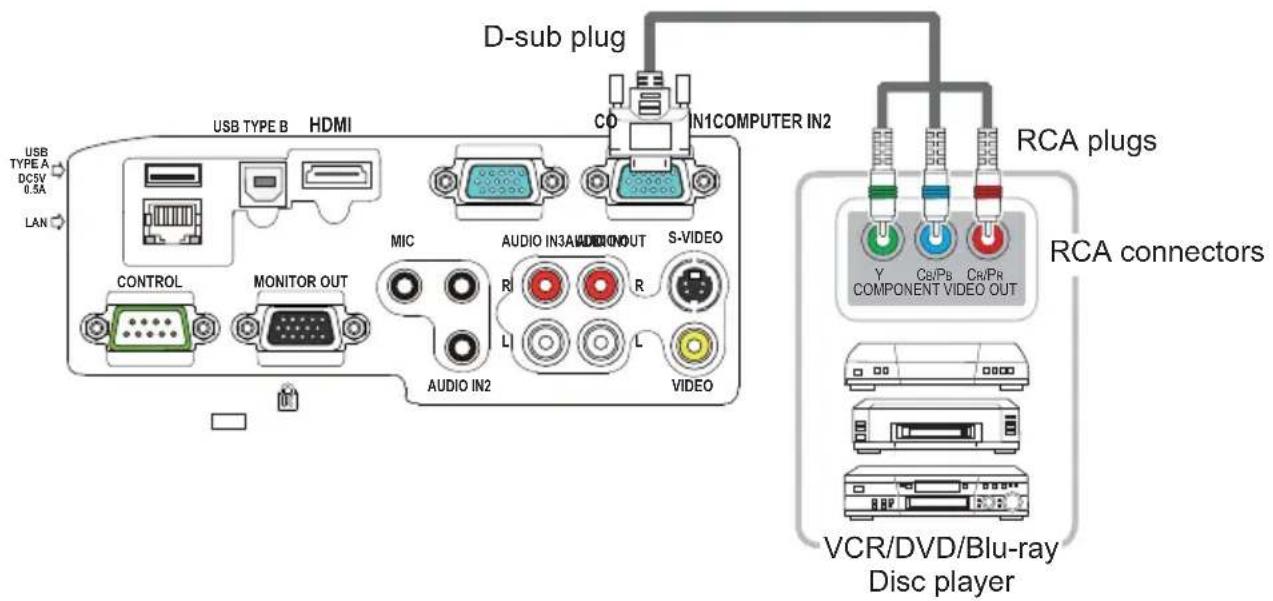

(2) for Component signal

Y : Component video Y with composite sync, 1.0±0.1 Vp-p, 75 Ω terminator
Cr/Pr : Component video Cr/Pr, 0.7±0.1 Vp-p, 75 Ω terminator
Cb/Pb : Component video Cb/Pb , 0.7±0.1 Vp-p, 75 Ω terminator

System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60

Pin	Signal Pin Signal
1	Cr/Pr	9 (No connection)
2 Y		10 Ground
3 Cb/Pb		11 (No connection)
4 (No connection)		12 (No connection)
5 Ground 13 (No connection)
6 Ground Cr/Pr		14 (No connection)
7 Ground Y		15 (No connection)
8 Ground Cb/Pb		-	-

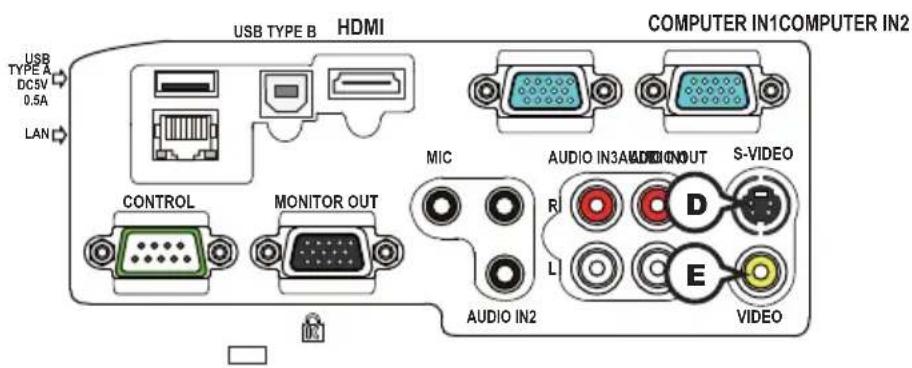

USB TYPE B HDMI COMPUTER IN1COMPUTER IN2 USB TYPE A DC5V 0.5A LAN CONTROL MONITOR OUT MIC AUDIO IN3AVSINOUT S-VIDEO R D L E AUDIO IN2 VIDEO

DS-VIDEO

Mini DIN 4pin jack

HITACHI CP-AW2519NMEF - DS-VIDEO - 1

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)

Pin Signal
1	Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

©VIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL(60Hz)
• 1.0±0.1Vp-p, 75Ω terminator

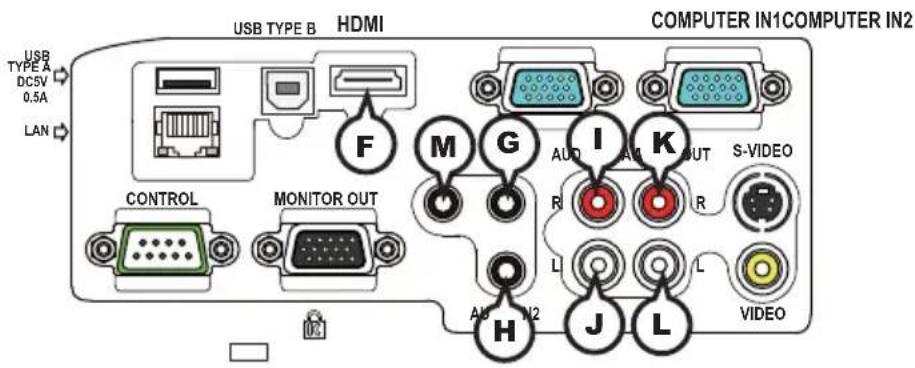

USB TYPE B HDMI COMPUTER IN1COMPUTER IN2 USB TYPE A DC5V 0.5A LAN F M G I K CONTROL MONITOR OUT AUD OUT S-VIDEO R L L H J L AUDIO

FHDMI

Type :Digital audio/video connector
• Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

2 4 6 8 10 12 14 16 18 1 3 5 7 9 11 13 15 17 19

Pin	Signal Pin Signal Pin Signal
1 T	M.D.S. Data2 + 8 T.M.D.S. Data0	Shield 15 SCL
2 T	M.D.S. Data2 Shield 9 T.M.D.S. Data0 - 16 SDA
3 T	M.D.S. Data2 - 10 T.M.D.S. Clock	+ 17 DDC/CEC Ground
4	T.M.D.S. Data1 +	11 T.M.D.S. Clock Shield	18	+5V Power
5 T	M.D.S. Data1 Shield	12 T.M.D.S. Clock -	19 Hot	Plug Detect
6 T	M.D.S. Data1 - 13 CEC
7 T	M.D.S. Data0 +	14 Reserved(N.C. on device)

©AUDIO IN1, ⒽAUDIO IN2

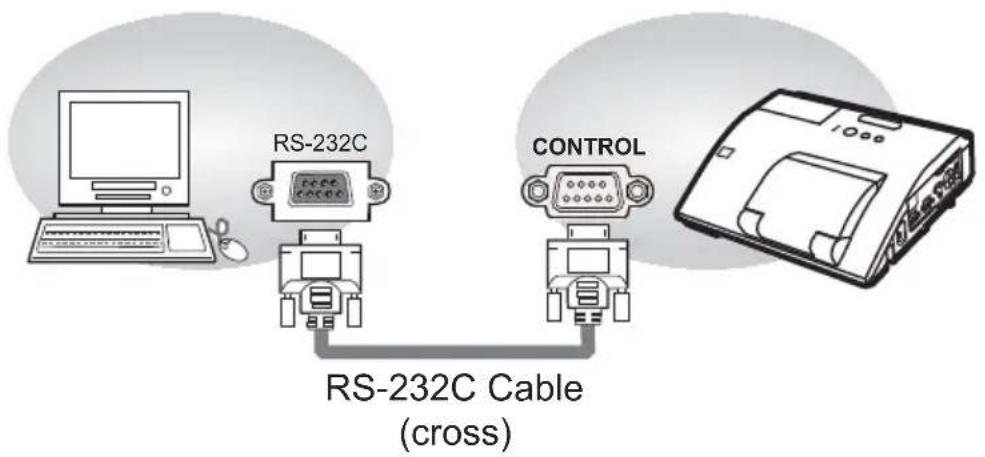

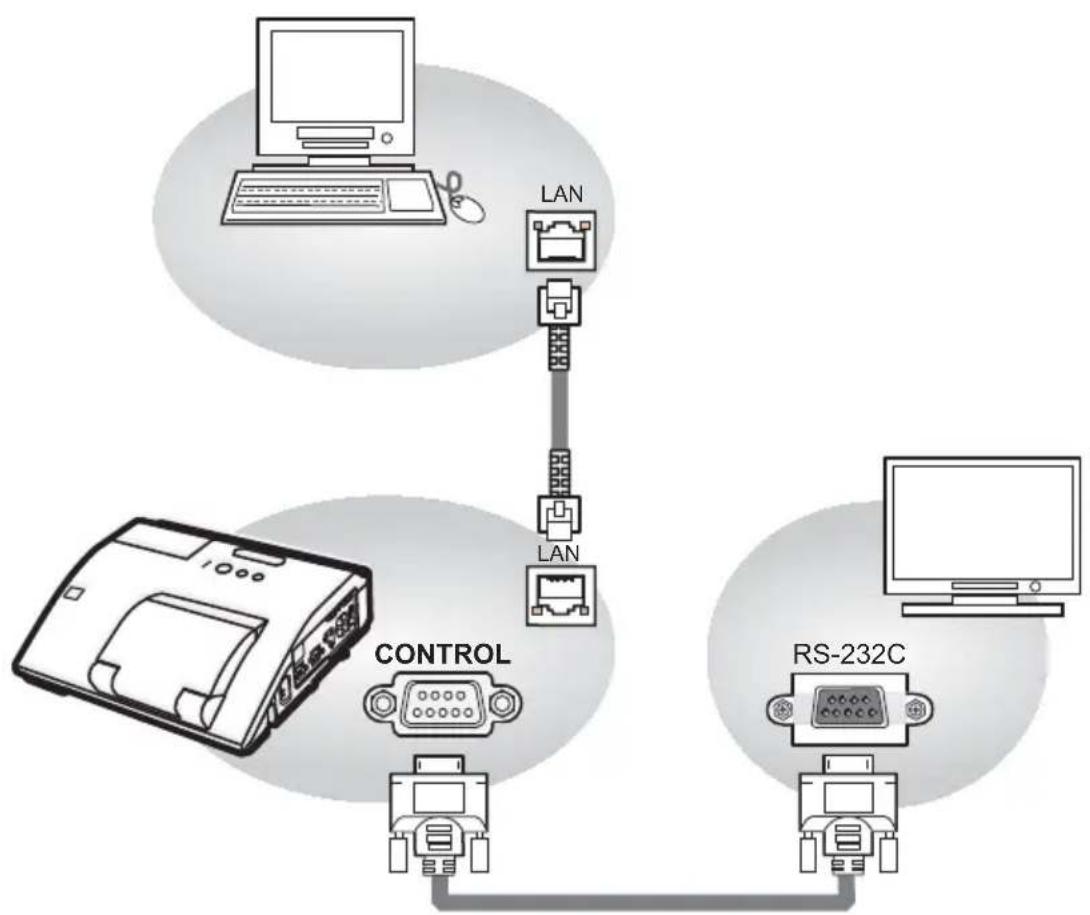

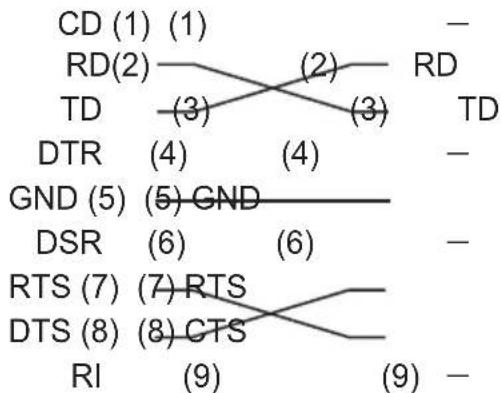

- About the details of RS-232C communication, please refer to the section "RS-232C Communication".

⑨⑧⑦⑥ ⑤④③②①

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)

©LAN

RJ-45 jack

Pin	Signal Pin	Signal P	n Signal
1	TX+	4	-	7	-
2	TX-	5	-	8	-
3	RX+	6	RX-

HITACHI CP-AW2519NMEF - ©LAN - 1

To input component video signal to COMPUTER IN ports

ex.

USB TYPE A DC5V 0.5A LAN USB TYPE A HDMI D-sub plug CO N1COMPUTER IN2 CONTROL MONITOR OUT MIC AUDIO IN3A AUDIO OUT S-VIDEO R L L AUDIO IN2 VIDEO RCA plugs Y C#/P# C#/Pr COMPONENT VIDEO OUT VCR/DVD/Blu-ray Disc player RCA connectors

To input component video signal to the COMPUTER IN1 or IN2 port of the projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the descriptions about COMPUTER IN1 and IN2 port (☐3).

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

Connection

Turn off the projector and the computer.
Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfi Ils the specifi cation shown in fi gure
Turn the computer on, and after the computer has started up turn the projector on.
Set the COMMUNICATION TYPE to OFF. (OPTION menu - SERVICE - COMMUNICATION in the User's Manual - Operating Guide)

HITACHI CP-AW2519NMEF - Connection - 1

RS-232C port of the computer
HITACHI CP-AW2519NMEF - Connection - 2

CONTROL port of the projector
HITACHI CP-AW2519NMEF - Connection - 3

HITACHI CP-AW2519NMEF - Connection - 4

Communication settings

1. Protocol

19200bps,8N1

2. Command format ("h" shows hexadecimal)

Byte Number

CommandAction

Header Data

Header code

Packet L

Data size

CRC flag

Action Type

Setting code

Change setting to desired value [(cL)(cH)] by [(bL)(bH)].

03h

06h

00h

(aL)

(aH)

01h

00h

(bL)

(bH)

(cL)

(cH)

Read projector internal setup value [(bL) (bH)].

(aL)

(aH)

02h

00h

(bL)

(bH)

00h

Increment setup value [(bL)(bH)] by 1.

(aL)

(aH)

04h

00h

(bL)

(bH)

00h

Decrement setup value [(bL)(bH)] by 1.

(aL)

(aH)

05h

00h

(bL)

(bH)

00h

Run a command [(bL)(bH)].

(aL)

(aH)

06h

00h

(bL)

(bH)

00h

[Header code] [Packet] [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0\~4.

[CRC flag]

For byte number 5, 6, refer to RS-232C Communication / Network command table (17).

[Action]

Set functional code to byte number 7, 8.

= [01h, 00h], = [02h, 00h], = [04h, 00h]

= [05h, 00h], = [06h, 00h]

Refer to the Communication command table (above).

[Type] [Setting code]

For byte number 9\~12, refer to RS-232C Communication / Network command table (17).

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code.

(2) NAK reply : 15h

When the projector cannot understand the received command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply : 1Ch + 0000h

When the projector cannot execute the received command for any reasons, the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply : 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns the response code and 2 bytes of data.

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

Operation cannot be guaranteed when the projector receives an undefined command or data.
Provide an interval of at least 40ms between the response code and any other code.
The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
Commands are not accepted during warm-up.
When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer.

Command Control via the Network

When the projector connects network, the projector can be controlled with RS-232C commands from the computer with web browser.

For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

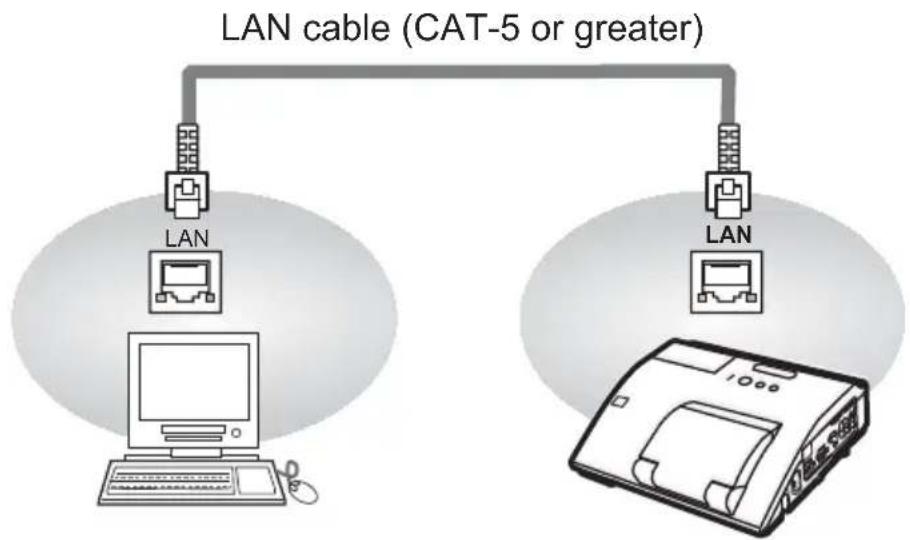

Connection

Turn off the projector and the computer.
Connect the projector's LAN port and the computer's LAN port with a LAN cable. Use the cable that fulfi Ils the specifi cation shown in fi gure (Use CAT-5 or greater LAN Cable when LAN ports are used)
Turn the computer on, and after the computer has started up turn the projector on.

HITACHI CP-AW2519NMEF - Connection - 1

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Configure the following items form a web browser when command control is used.

Port Settings
Network Control Port1 (Port: 23)	Port open	Click the [Enable] check box to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is “Enable”.
Network Control Port1 (Port: 23)	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Disable”.
Network Control Port2 (Port: 9715)	Port open	Click the [Enable] check box to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is “Enable”.
Network Control Port2 (Port: 9715)	Authentication	Click the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Enable”.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network Control	Authentication Password	Enter the desired authentication password. This setting will be the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
	Re-enter Authentication Password

Command control settings

[TCP #23]

1. Command format

Same as RS-232C communication, refer to RS-232C Communicaton command format.

2. Response code / Error code ("h" shows hexadecimal)

Four of the response / error code used for TCP#23 are the same as RS-232C Communication (1)\~(4). One authentication error reply (5) is added.

(1) ACK reply : 06h

Refer to RS-232C communication (10).

(2) NAK reply : 15h

Refer to RS-232C communication (10).

(3) Error reply : 1Ch + 0000h

Refer to RS-232C communication (10).

(4) Data reply : 1Dh + xxxxh

Refer to RS-232C communication (10).

(5) Authentication error reply : 1Fh + 0400h

When authentication error occurred, the projector returns the error code.

[TCP #9715]

1. Command format

The commands some datum are added to the head and the end of the ones of TCP#9715 are used.

Header Data	length RS-232	C command Check sum	m Connection ID
0×02 0×0D	13 bytes 1 byte	1 byte

02, Fixed

[Data Length]

RS-232C commands byte length (0×0D, Fixed)

[RS-232C commands]

Refer to RS-232C Communication command format (☐9).

[Check Sum]

This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

[Connection ID]

Random value from 0 to 255 (This value is attached to the reply data).

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

- Provide an interval of at least 40ms between the response code and any other code.

- Commands are not accepted during warm-up.

2. Response code / Error code ("h" shows hexadecimal)

The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format.

(××h : connection ID)

(1) ACK reply : 06h + xxh
(2) NAK reply : 15h + xxh
(3) Error reply : 1Ch + 0000h + xxh
(4) Data reply : 1Dh + xxxxh + xxh
(5) Authentication error reply : 1Fh + 0400h + xxh
(6) Projector busy reply: 1Fh + xxxxh + xxh

When the projector is too busy to receive the command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the authentication password and digest this data with the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the authentication password is set to “password” and the random 8 bytes are “a572f60c”.

1) Select the projector.
2) Receive the random 8 bytes "a572f60c" from the projector.
3) Bind the random 8 bytes "a572f60c" and the authentication password "password" and it becomes "a572f60cpassword".
4) Digest this bind "a572f60cpassword" with MD5 algorithm.
It will be "e3d97429adffa11bce1f7275813d4bde".
5) Add this "e3d97429adffa11bce1f7275813d4bde" in front of the commands and send the data.
Send “e3d97429adffa11bce1f7275813d4bde”+command.
6) When the sending data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

Network Bridge Communication

This projector is equipped with NETWORK BRIDGE function.

When the projector connects to the computer by LAN communicaton, an external device that is connected with this projector by RS-232C communication can be controlled from the computer as a network terminal.

For details, see the 6. Network Bridge Function - Network Guide.

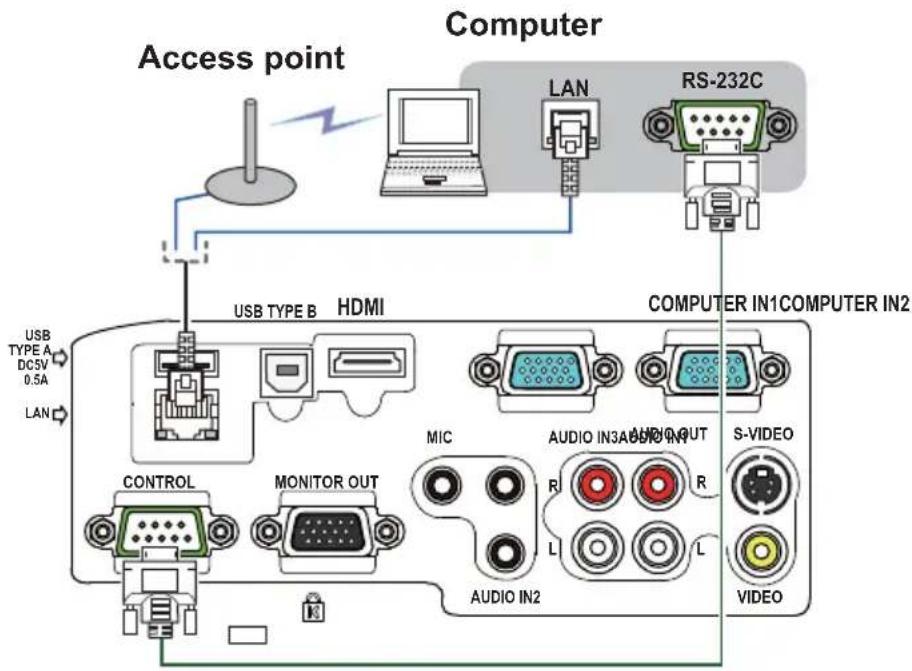

Connection

Connect the computer's LAN port and the projector's LAN port with a LAN cable.
Connect the projector's CONTROL port and the RS-232C port of the devices that you want to control with a RS-232C cable.
Turn the computer on, and after the computer has started up turn the projector on.
Set the COMMUNICATION TYPE to NETWORK BRIDGE. (OPTION menu - SERVICE - COMMUNICATION in the User's Manual - Operating Guide)

HITACHI CP-AW2519NMEF - Connection - 1

Communication settings

For communication setting, use the OPTION - SERVICE - COMMUNICATION menu. (OPTION menu - SERVICE - COMMUNICATION in the User's Manual - Operating Guide)

Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (fixed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (fixed)
Stop bit 1 bit (fixed)
Transmission method HALF-DUPLEX/FULL-DUPLEX

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

Turn off (the power of) both the projector and other devices and unplug, beore connecting them.
For details of Transmission method, refer to 6.4 Transmission method - Network Guide.

RS-232C Communication / Network command table

Names Operation Type Header								Command Data
Names Operation Type Header								CRC Action Type Setting code
Power	Set	Turn off BE E	F 03 06 00 2A	D3 01 00	00 60 00	00
	Set	Turn on BE E	F 03 06 00 BA	D2 01 00	00 60 01	00
	Get		BE EF 03 06	00 19 D3	02 00 00	60 00 00
	Get		[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input Source	Set	COMPUTER IN1 BE	BE EF 03 06 00	FE D2 01	00 00 20	00 00
		COMPUTER IN2 BE	BE EF 03 06 00	3E D0 01	00 00 20	04 00
		HDMI	BE EF	03	06 00	0E D2	01 00	00 20	03 00
		S-VIDEO	BE EF	03 06	00 9E D3	01 00 00	20 02 00
		VIDEO	BE EF	03 06	00 6E D3	01 00 00	20 01 00
		USB TYPE A	BE EF	03	06 00	5E D1	01 00	00 20	06 00
		LAN	BE EF	03	06 00	CE D5	01 00	00 20	0B 00
		USB TYPE B	BE EF	03	06 00	FE D7	01 00	00 20	0C 00
	Get		BE EF	03	06 00	CD D2	02 00	00 20	00 00
Error Status	Get		BE EF	03 06	00 D9 D8	02 00 20	60 00 00
Error Status	Get		[Example return]00 00 01 00 02 00 03 00[Normal] [Cover error] [Fan error] [Lamp error]04 00 05 00 07 00 08 00 0C 00[Temp error] [Air flow error] [Cold error] [Filter error] [Lens Door error]
MAGNIFY	Get		BE EF	03 06	00 7C D2	02 00 07	30 00 00
	Increment BE EF		03 06 00	1A D	2 04 00 07	30 00 00
	Decrement		BE EF	03 06	00 CB	D3 05 00	07 30 00	00
FREEZE	Set	NORMAL	BE EF	03 06	00 83 D2	01 00 02	30 00 00
	Set	FREEZE	BE EF	03 06	00 13 D3	01 00 02	30 01 00
	Get		BE EF	03 06	00 B0 D2	02 00 02	30 00 00
PICTURE MODE	Set	NORMAL	BE EF	03 06	00 23 F6	01 00 BA	30 00 00
		CINEMA	BE EF	03 06	00 B3 F7	01 00 BA	30 01 00
		DYNAMIC	BE EF	03 06	00 E3 F4	01 00 BA	30 04 00
		BOARD(BLACK)	BE EF	03 06	00 E3 EF	01 00 BA	30 20 00
		BOARD(GREEN)	BE EF	03 06	00 73 EE	01 00 BA	30 21 00
		WHITEBOARD	BE EF	03 06	00 83 EE	01 00 BA	30 22 00
		DAYTIME	BE EF	03 06	00 E3 C7	01 00 BA	30 40 00
	Get		BE EF	03 06	00 10 F6	02 00 BA	30 00 00
	Get		[Example return]00 00 01 00 04 00 10 00[Normal] [Cinema] [Dynamic] [Custom]20 00 21 00 22 00 40 00[BOARD(BLACK)][BOARD(GREEN)][WHITEBOARD][DAY TIME]
BRIGHTNESS	Get		BE EF	03 06	00 89 D2	02 00 03	20 00 00
	Increment BE EF		03 06 00	EF D	2 04 00 03	20	00 00
	Decrement		BE EF	03 06	00 3E D3	05 00 03	20 00 00
BRIGHTNESS Reset	Execute BE EF		03 06 00	58 D3	06 00 00	70 00 00
CONTRAST	Get		BE EF	03 06	00 FD D3	02 00 04	20 00 00
	Increment BE EF		03 06 00	9B D	3 04 00 04	20 00 00
	Decrement		BE EF	03 06	00 4A D2	05 00 04	20 00 00
CONTRAST Reset		Execute BE EF		03 06 00	A4 D2	06 00 01	70 00 00
GAMMA	Set	1 DEFAULT BE	EF 03 06	00 07	E9 01 00	A1 30 20	00
		1 CUSTOM BE	EF 03 06	00 07	FD 01 00	A1 30 10	00
		2 DEFAULT BE	EF 03 06	00 97	E8 01 00	A1 30 21	00
		2 CUSTOM BE	EF 03 06	00 97	FC 01 00	A1 30 11	00
		3 DEFAULT BE	EF 03 06	00 67	E8 01 00	A1 30 22	00
		3 CUSTOM BE	EF 03 06	00 67	FC 01 00	A1 30 12	00
		4 DEFAULT BE	EF 03 06	00 F7	E9 01 00	A1 30 23	00
		4 CUSTOM BE	EF 03 06	00 F7	FD 01 00	A1 30 13	00
		5 DEFAULT BE	EF 03 06	00 C7	EB 01 00	A1 30 24	00
		5 CUSTOM BE	EF 03 06	00 C7	FF 01 00	A1 30 14	00
		6 DEFAULT BE	EF 03 06	00 57	EA 01 00	A1 30 25	00
		6 CUSTOM BE	EF 03 06	00 57	FE 01 00	A1 30 15	00
	Get BE EF 03		06 00 F4	F0 02	00 A1 30	00 00
User Gamma Pattern	Set	Off BE EF	03 06 00	FB FA	01 00 80	30 00 00
		9 steps gray scale B	BE EF 03	06 00	6B FB 01	00 80 30	01 00
		15 steps gray scale	BE EF 03	06 00	00 9B FB	01 00 80	30 02 00
		Ramp	BE EF 03	06 00	00 0B FA	01 00 80	30 03 00
	Get BE EF 03		06 00 C8	FA	02 00 80	30 00 00
User Gamma Point 1		Get BE EF		03 06 00	08 FE	02 00 90	30 00 00
		Increment		BE EF	03	06 00	6E FE	04 00	90 30	00 00
		Decrement		BE EF	03	06 00	BF FF	05 00	90 30	00 00
User Gamma Point 1 Reset		Execute BE EF		03 06 00	58 C2	06 00 50	70 00 00
User Gamma Point 2		Get BE EF		03 06 00	F4 FF	02 00 91	30 00 00
		Increment		BE EF	03 06	00 92	FF 04 00	91 30 00	00
		Decrement		BE EF	03 06	00 43	FE 05 00	91 30 00	00
User Gamma Point 2 Reset		Execute BE EF		03 06 00	A4 C3	06 00 51	70 00 00
User Gamma Point 3		Get BE EF		03 06 00	B0 FF	02 00 92	30 00 00
		Increment		BE EF	03	06 00	D6 FF	04 00	92 30	00 00
		Decrement		BE EF	03 06	00 07	FE 05 00	92 30 00	00
User Gamma Point 3 Reset		Execute BE EF		03 06 00	E0 C3	06 00 52	70 00 00
User Gamma Point 4		Get BE EF		03 06 00	4C FE	02 00 93	30 00 00
		Increment		BE EF	03 06	00 2A	FE 04 00	93 30 00	00
		Decrement		BE EF	03	06 00	FB FF	05 00	93 30	00 00
User Gamma Point 4 Reset		Execute BE EF		03 06 00	1C	C2 06 00	53 70 00	00
User Gamma Point 5		Get BE EF		03 06 00	38 FF	02 00 94	30 00 00
		Increment		BE EF	03 06	00 5E	FF 04 00	94 30 00	00
		Decrement		BE EF	03 06	00 8F	FE 05 00	94 30 00	00
User Gamma Point 5 Reset		Execute BE EF		03 06 00	68 C3	06 00 54	70 00 00
User Gamma Point 6		Get BE EF		03 06 00	C4 FE	02 00 95	30 00 00
		Increment		BE EF	03	06 00	A2 FE	04 00	95 30	00 00
		Decrement		BE EF	03 06	00 73	FF 05 00	95 30 00	00
User Gamma Point 6 Reset		Execute BE EF		03 06 00	94 C2	06 00 55	70 00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header									Command Data
Names Operation Type Header									CRC Action Type		Setting code
User Gamma Point 7	Get BE EF 03		06 00 80	FE 02	00 96	30	00 00
	Increment BE EF		03 06 00	E6 FE	04 00 96	30	00 00
	Decrement BE EF		03 06 00	37 FF	05 00 96	30	00 00
User Gamma Point 7 Reset	Execute BE EF		03 06 00	D0 C2	06 00 56	70	00 00
User Gamma Point 8	Get BE EF 03		06 00 70	FF 02	00 97	30	00 00
	Increment BE EF		03 06 00	1A FF	04 00 97	30	00 00
	Decrement BE EF		03 06 00	CB FE	05 00 97	30	00 00
User Gamma Point 8 Reset	Execute BE EF		03 06 00	2C C3	06 00 57	70	00 00
COLOR TEMP	Set	1 HIGH BE EF	03 06 00	0B F5	01 00 B0	30	03 00
		1 CUSTOM	BE EF 03	06 00 CB F8		01 00 B0	30	13 00
		2 MID BE EF	03 06 00	9B F4	01 00 B0	30	02 00
		2 CUSTOM	BE EF 03	06 00 5B F9		01 00 B0	30	12 00
		3 LOW	BE EF 03	06 00 6B F4		01 00 B0	30	01 00
		3 CUSTOM	BE EF 03	06 00 AB F9		01 00 B0	30	11 00
		4 Hi-BRIGHT-1	BE EF 03	06 00 3B F2		01 00 B0	30	08 00
		4 CUSTOM	BE EF 03	06 00 FB FF		01 00 B0	30	18 00
		5 Hi-BRIGHT-2	BE EF 03	06 00 AB F3		01 00 B0	30	09 00
		5 CUSTOM	BE EF 03	06 00 6B FE		01 00 B0	30	19 00
		6 Hi-BRIGHT-3	BE EF 03	06 00 5B F3		01 00 B0	30	0A 00
		6 CUSTOM	BE EF 03	06 00 9B FE		01 00 B0	30	1A 00
	Get BE EF 03		06 00 C8	F5 02	00 B0	30	00
COLOR TEMP GAIN R	Get BE EF 03		06 00 34	F4 02	00 B1	30	00 00
	Increment BE EF		03 06 00	52 F4	04 00 B1	30	00 00
	Decrement BE EF		03 06 00	83 F5	05 00 B1	30	00 00
COLOR TEMP GAIN R Reset	Execute BE EF		03 06 00	10 C6	06 00 46	70	00 00
COLOR TEMP GAIN G	Get BE EF 03		06 00 70	F4 02	00 B2	30	00 00
	Increment BE EF		03 06 00	16 F4	04 00 B2	30	00 00
	Decrement BE EF		03 06 00	C7 F5	05 00 B2	30	00 00
COLOR TEMP GAIN G Reset	Execute BE EF		03 06 00	EC C7	06 00 47	70	00 00
COLOR TEMP GAIN B	Get BE EF 03		06 00 8C	F5 02	00 B3	30	00
	Increment BE EF		03 06 00	EA F5	04 00 B3	30	00 00
	Decrement BE EF		03 06 00	3B F4	05 00 B3	30	00
COLOR TEMP GAIN B Reset	Execute BE EF		03 06 00	F8 C4	06 00	48	70 00
COLOR TEMP OFFSET R	Get BE EF 03		06 00 04	F5 02	00 B5	30	00 00
	Increment BE EF		03 06 00	62 F5	04 00 B5	30	00 00
	Decrement BE EF		03 06 00	B3 F4	05 00 B5	30	00 00
COLOR TEMP OFFSET R Reset	Execute BE EF		03 06 00	40 C5	06 00 4A	70	00 00
COLOR TEMP OFFSET G	Get BE EF 03		06 00 40	F5 02	00 B6	30	00 00
	Increment BE EF		03 06 00	26 F5	04 00 B6	30	00 00
	Decrement BE EF		03 06 00	F7 F4	05 00 B6	30	00 00
COLOR TEMP OFFSET G Reset	Execute BE EF		03 06 00	BC C4	06 00 4B	70	00 00
COLOR TEMP OFFSET B	Get BE EF 03		06 00 BC	F4 02	00 B7	30 00 00
	Increment BE EF	03 06 00	DA F4	04 00 B7	30 00 00
	Decrement BE EF	03 06 00	0B F5	05 00 B7	30 00 00
COLOR TEMP OFFSET B Reset	Execute BE EF		03 06 00	C8 C5	06 00 40	70 00 00
COLOR	Get BE EF 03		06 00 B5	72 02	00 02 22	00 00
	Increment BE EF	03 06 00	D3 72	04 00 02	22 00 00
	Decrement BE EF	03 06 00	02 73	05 00 02	22 00 00
COLOR Reset	Execute BE EF		03 06 00	80 D0	06 00 0A	70 00 00
TINT	Get BE EF 03		06 00 49	73 02	00 03 22	00 00
	Increment BE EF	03 06 00	2F 73	04 00 03	22 00 00
	Decrement BE EF	03 06 00	FE 72	05 00 03	22 00 00
TINT Reset	Execute BE EF		03 06 00	7C D1	06 00 0B	70 00 00
SHARPNESS	Get BE EF 03		06 00 F1	72 02	00 01 22	00 00
	Increment BE EF	03 06 00	97 72	04 00 01	22 00 00
	Decrement BE EF	03 06 00	46 73	05 00 01	22 00 00
SHARPNESS Reset	Execute BE EF		03 06 00	C4 D0	06 00 09	70 00 00
ACTIVE IRIS	Set		OFF BE EF	03 06 00	0B 22	01 00 04	33 00 00
			THEATER	BE EF 03 06	00 CB 2F	01 00 04	33 10 00
			PRESENTATION	BE EF	03	06 00	5B 2E	01 00	04 33	11 00
	Get BE EF 03	06 00 38	22 02	00 04 38	00 00
MY MEMORY Load	Set		1	BE EF 03 06	00 0E D7	01 00 14	20 00 00
			2	BE EF 03 06	00 9E D6	01 00 14	20 01 00
			3	BE EF 03 06	00 6E D6	01 00 14	20 02 00
			4	BE EF 03 06	00 FE D7	01 00 14	20 03 00
MY MEMORY Save	Set		1	BE EF 03 06	00 F2 D6	01 00 15	20 00 00
			2	BE EF 03 06	00 62 D7	01 00 15	20 01 00
			3	BE EF 03 06	00 92 D7	01 00 15	20 02 00
			4	BE EF 03 06	00 02 D6	01 00 15	20 03 00
ASPECT	Set		4:3 BE EF	03 06 00	9E	D0 01 00	08 20 00	00
			16:9 BE EF	03 06 00	0E	D1 01	00 08 20	01 00
			NATIVE	BE EF	03	06 00	5E D7	01 00	08 20	08 00
			14:9 BE EF	03 06 00	CE D6	01 00 08	20 09 00
			16:10	BE EF 03 06	00 3E D6	01 00	08 20 0A	00
			NORMAL	BE EF 03 06	00 5E DD	01 00 08	20 10 00
	Get BE EF 03		06 00 AD	D0 02	00 08	20 00 00
OVER SCAN	Get BE EF 03		06 00 91	70 02	00 09 22	00 00
	Increment BE EF		03 06 00	F7 70	04 00 09	22 00 00
	Decrement BE EF		03 06 00	26 71	05 00 09	22 00 00
OVER SCAN Reset	Execute BE EF		03 06 00	EC D9	06 00 27	70 00 00
V POSITION	Get BE EF 03		06 00 0D	83 02	00 00 21	00 00
	Increment BE EF		03 06 00	6B 83	04 00 00	21 00 00
	Decrement BE EF		03 06 00	BA 82	05 00	00 21 00	00
V POSITION Reset	Execute BE EF		03 06 00	E0	D2 06 00	02 70 00	00
H POSITION	Get BE EF 03		06 00 F1	82 02	00 01	21	00 00
	Increment BE EF		03 06 00	97 82	04 00 01		21 00 00
	Decrement BE EF		03 06 00	46 83	05 00 01		21 00 00
H POSITION Reset	Execute BE EF		03 06 00	1C D3	06 00 03		70 00 00
H PHASE	Get BE EF 03		06 00 49	83 02	00 03	21	00 00
	Increment BE EF		03 06 00	2F 83	04 00 03		21 00 00
	Decrement BE EF		03 06 00	FE 82	05 00 03		21 00 00
H SIZE	Get BE EF 03		06 00 B5	82 02	00 02	21	00 00
	Increment BE EF		03 06 00	D3 82	04 00 02		21 00 00
	Decrement BE EF		03 06 00	02 83	05 00 02		21 00 00
H SIZE Reset	Execute BE EF		03 06 00	68 D2	06 00 04		70 00 00
AUTO ADJUST EXECUTE	Execute BE EF		03 06 00	91 D0	06 00 0A		20 00 00
PROGRESSIVE	Set		OFF BE EF	03 06 00	4A 72	01 00 07		22 00 00
			TV	BE EF	03 06	00 DA 73		01 00 07	22 01 00
			FILM BE EF	03 06 00	2A 73	01 00 07		22 02 00
	Get BE EF 03		06 00 79	72 02	00 07	22	00 00
VIDEO NR	Set		LOW BE EF	03 06 00	26 72	01 00 06		22 01 00
			MID	BE EF	03 06	00 D6 72		01 00 06	22 02 00
			HIGH	BE EF	03 06	00 46 73		01 00 06	22 03 00
	Get BE EF 03		06 00 85	73 02	00 06	22	00 00
COLOR SPACE	Set		AUTO	BE EF	03 06	00 0E 72		01 00 04	22 00 00
			RGB BE EF	03 06 00	9E 73	01 00 04		22 01 00
			SMPTE240	BE EF	03 06	00 6E 73		01 00 04	22 02 00
			REC709	BE EF	03 06	00 FE 72		01 00 04	22 03 00
			REC601	BE EF	03 06	00 CE 70		01 00 04	22 04 00
	Get BE EF 03		06 00 3D	72 02	00 04	22	00 00
S-VIDEO FORMAT	Set		AUTO	BE EF	03 06	00 E6 70		01 00 12	22 0A 00
			NTSC BE EF	03 06 00	86 74	01 00 12		22 04 00
			PAL	BE EF	03 06	00 16 75		01 00 12	22 05 00
			SECAM	BE EF	03 06	00 16 70		01 00 12	22 09 00
			NTSC4.43	BE EF	03 06	00 26 77		01 00 12	22 02 00
			M-PAL	BE EF	03 06	00 86 71		01 00 12	22 08 00
			N-PAL	BE EF	03 06	00 76 74		01 00 12	22 07 00
	Get BE EF 03		06 00 75	76 02	00 12	22	00 00
C-VIDEO FORMAT	Set		AUTO	BE EF	03	06 00		A2 70	01 00	11 22	OA 00
			NTSC BE EF	03 06 00	C2 74	01 00 11		22 04 00
			PAL	BE EF	03	06 00		52 75	01 00	11 22	05 00
			SECAM	BE EF	03 06	00 52 70		01 00 11	22 09 00
			NTSC4.43	BE EF	03 06	00 62 77		01 00 11	22 02 00
			M-PAL	BE EF	03	06 00		C2 71	01 00	11 22	08 00
			N-PAL	BE EF	03	06 00		32 74	01 00	11 22	07 00
	Get BE EF 03		06 00 31	76 02	00 11	22	00 00
HDMI FORMAT	Set		AUTO	BE EF	03	06 00		BA 77	01 00	13 22	00 00
			VIDEO	BE EF	03	06 00		2A 76	01 00	13 22	01 00
			COMPUTER	BE EF	03	06 00		DA 76	01 00	13 22	02 00
	Get		BE EF	03	06 00		89 77	02 00	13 22	00 00
HDMI RANGE	Set		AUTO BE EF	03 06 00	86 D8	01 00 22	20 00 00
			NORMAL BE EF	03 06 00	0 16 D	9 01 00 22	20 01 00
			ENHANCED BE	EF 03 06	00 E6	D9 01 00	22 20 02 00
	Get BE EF 03		06 00 B5	D8 02	00 22 20	00 00
COMPUTER IN1	Set		AUTO	BE EF	03	06 00	CE D6	01 00	10 20	03 00
	Set		SYNC ON G OFF	BE EF	03	06 00	5E D7	01 00	10 20	02 00
	Get		BE EF	03	06 00	0D D6	02 00	10 20	00 00
COMPUTER IN2	Set		AUTO	BE EF	03	06 00	32 D7	01 00	11 20	03 00
	Set		SYNC ON G OFF	BE EF	03	06 00	A2 D6	01 00	11 20	02 00
	Get		BE EF	03	06 00	F1 D7	02 00	11 20	00 00
FRAME LOCK - COMPUTER IN1	Set		OFF	BE EF	03	06 00	3B C2	01 00	50 30	00 00
	Set		ON	BE EF	03	06 00	AB C3	01 00	50 30	01 00
	Get		BE EF	03	06 00	08 C2	02 00	50 30	00 00
FRAME LOCK - COMPUTER IN2	Set		OFF	BE EF	03	06 00	0B C3	01 00	54 30	00 00
	Set		ON	BE EF	03	06 00	9B C2	01 00	54 30	01 00
	Get		BE EF	03	06 00	38 C3	02 00	54 30	00 00
FRAME LOCK - HDMI	Set		OFF	BE EF 03	06 00	07F C2 01	100 53 30	00 00
	Set		ON	BE EF 03	06 00	0EF C3 01	100 53 30	01 00
	Get BE EF 03		06 00 4C	C2 02	00 53	30 00 00
D-ZOOM	Get		BE EF	03	06 00	D0 D0	02 00	0A 30	00 00
	Increment		BE EF	03	06 00	B6 D0	04 00	0A 30	00 00
	Decrement		BE EF	03	06 00	67 D1	05 00	0A 30	00 00
D-ZOOM Reset	Execute		BE EF	03	06 00	98 C9	06 00	70 70	00 00
D-SHIFT V	Get		BE EF	03	06 00	2C D1	02 00	0B 30	00 00
	Increment		BE EF	03	06 00	4A D1	04 00	0B 30	00 00
	Decrement		BE EF	03	06 00	9B D0	05 00	0B 30	00 00
D-SHIFT V Reset	Execute		BE EF	03	06 00	A8 C8	06 00	74 70	00 00
D-SHIFT H	Get		BE EF	03	06 00	58 D0	02 00	0C 30	00 00
	Increment		BE EF	03	06 00	3E D0	04 00	0C 30	00 00
	Decrement		BE EF	03	06 00	EF D1	05 00	0C 30	00 00
D-SHIFT H Reset	Execute		BE EF	03	06 00	54 C9	06 00	75 70	00 00
PICT.POSIT.H	Set		RIGHT	BE EF	03	06 00	46 D5	01 00	1E 20	01 00
			MIDDLE	BE EF	03	06 00	D6 D4	01 00	1E 20	00 00
			LEFT	BE EF	03	06 00	B6 D5	01 00	1E 20	02 00
	Get		BE EF	03	06 00	E5 D4	02 00	1E 20	00 00
KEYSTONE V	Get		BE EF	03	06 00	B9 D3	02 00	07 20	00 00
	Increment		BE EF	03	06 00	DF D3	04 00	07 20	00 00
	Decrement		BE EF	03	06 00	OE D2	05 00	07 20	00 00
KEYSTONE V Reset	Execute		BE EF	03	06 00	08 D0	06 00	0C 70	00 00
KEYSTONE H	Get		BE EF	03	06 00	E9 D0	02 00	0B 20	00 00
	Increment		BE EF	03	06 00	8F D0	04 00	0B 20	00 00
	Decrement		BE EF	03	06 00	5E D1	05 00	0B 20	00 00
KEYSTONE H Reset	Execute		BE EF	03	06 00	98 D8	06 00	20 70	00 00
PERFECT FIT	Set		Disable	BE EF	03	06 00	FE 88	01 00	20 21	00 00
	Set		Enable	BE EF	03	06 00	6E 89	01 00	20 21	01 00
	Get		BE EF	03	06 00	CD 88	02 00	20 21	00 00
PERFECT FIT Left Top -H	Get BE EF 03	06 00 31	89 02	00 21	21	00 00
	Increment BE EF	03 06 00	57 89	04 00 21		21 00 00
	Decrement BE EF	03 06 00	86 88	05 00 21		21 00 00
PERFECT FIT Left Top -V	Get BE EF 03	06 00 75	89 02	00 22	21	00 00
	Increment BE EF	03 06 00	13 89	04 00 22		21 00 00
	Decrement BE EF	03 06 00	C2 88	05 00 22		21 00 00
PERFECT FIT Right Top -H	Get BE EF 03	06 00 89	88 02	00 23	21	00 00
	Increment BE EF	03 06 00	EF 88	04 00 23		21 00 00
	Decrement BE EF	03 06 00	3E 89	05 00 23		21 00 00
PERFECT FIT Right Top -V	Get BE EF 03	06 00 FD	89 02	00 24	21	00 00
	Increment BE EF	03 06 00	9B 89	04 00 24		21 00 00
	Decrement BE EF	03 06 00	4A 88	05 00 24		21 00 00
PERFECT FIT Left Bottom -H	Get BE EF 03	06 00 01	88 02	00 25	21	00 00
	Increment BE EF	03 06 00	67 88	04 00 25		21 00 00
	Decrement BE EF	03 06 00	B6 89	05 00 25		21 00 00
PERFECT FIT Left Bottom -V	Get BE EF 03	06 00 45	88 02	00 26	21	00 00
	Increment BE EF	03 06 00	23 88	04 00 26		21 00 00
	Decrement BE EF	03 06 00	F2 89	05 00 26		21 00 00
PERFECT FIT Right Bottom -H	Get BE EF 03	06 00 B9	89 02	00 27	21	00 00
	Increment BE EF	03 06 00	DF 89	04 00 27		21 00 00
	Decrement BE EF	03 06 00	0E 88	05 00 27		21 00 00
PERFECT FIT Right Bottom -V	Get BE EF 03	06 00 AD	8A 02	00 28	21	00 00
	Increment BE EF	03 06 00	CB 8A	04 00 28		21 00 00
	Decrement BE EF	03 06 00	1A 8B	05 00 28		21 00 00
PERFECT FIT All Corners Reset	Execute BE EF	03 06 00	D5 8A	06 00 29		21 00 00
PERFECT FIT Left Side Distortion	Get BE EF 03	06 00 31	97 02	00 41	21	00 00
	Increment BE EF	03 06 00	57 97	04 00 41		21 00 00
	Decrement BE EF	03 06 00	86 96	05 00 41		21 00 00
PERFECT FIT Right Side Distortion	Get BE EF 03	06 00 75	97 02	00 42	21	00 00
	Increment BE EF	03 06 00	13 97	04 00 42		21 00 00
	Decrement BE EF	03 06 00	C2 96	05 00 42		21 00 00
PERFECT FIT Distortion Position V	Get BE EF 03	06 00 89	96 02	00 43	21	00 00
	Increment BE EF	03 06 00	EF 96	04 00 43		21 00 00
	Decrement BE EF	03 06 00	3E 97	05 00 43		21 00 00
PERFECT FIT Top Side Distortion	Get BE EF 03	06 00 FD	97 02	00 44	21	00 00
	Increment BE EF	03 06 00	9B 97	04 00 44		21 00 00
	Decrement BE EF	03 06 00	4A 96	05 00 44		21 00 00
PERFECT FIT Bottom Side Distortion	Get BE EF 03	06 00 01	96 02	00 45	21	00 00
	Increment BE EF	03 06 00	67 96	04 00 45		21 00 00
	Decrement BE EF	03 06 00	B6 97	05 00 45		21 00 00
PERFECT FIT Distortion Position H	Get BE EF 03	06 00 45	96 02	00 46	21	00 00
	Increment BE EF	03 06 00	23 96	04 00 46		21 00 00
	Decrement BE EF	03 06 00	F2 97	05 00 46		21 00 00
PERFECT FIT All Sides Reset	Execute BE EF	03 06 00	3D 96	06 00 47		21 00 00
AUTO ECO MODE	Set	OFF BE EF	03 06 00	FB 27		01 00 10 33			00 00
	Set	ON	BE EF	03	06 00	6B 26	01 00	10 33	01 00
	Get		BE EF	03	06 00	C8 27	02 00	10 33	00 00

RS-232C Communication / Network command table (continued)

Names Operation Type Header								Command Data
Names Operation Type Header								CRC Action Type	Setting code
ECO MODE	Set	NORMAL BE	EF 03 06	00 3B	23 01 00	00 33 00	00
	Set	ECO BE EF	03 06 00	AB 2	201 00 00	33 01 00
	Get BE EF 03		06 00 08	23 02	00 00 33	00 00
MIRROR	Set	NORMAL BE	EF 03 06	00 C7	D2 01 00	01 30 00	00
		H:INVERT BE	EF 03 06	00 57	D3 01 00	01 30 01	00
		V:INVERT BE	EF 03 06	00 A7	D3 01 00	01 30 02	00
		H&V:INVERT	BE EF	03 06	00 37 D2	01 00 01	30 03 00
	Get BE EF 03		06 00 F4	D2 02	00 01 30	00 00
STANDBY MODE	Set	NORMAL BE	EF 03 06	00 D6	D2 01 00	01 60 00	00
	Set	SAVING	BE EF	03 06	00 46 D3	01 00 01	60 01 00
	Get BE EF 03		06 00 E5	D2 02	00 01 60	00 00
MONITOR OUT - COMPUTER IN1	Set	COMPUTER IN1 BE	EF 03	06 00	3E F4 01	00 B0 20	00	00
	Set	OFF	BE EF	03 06	00 CE B5	01 00 B0	20	FF 00
	Get BE EF 03		06 00 0D	F4 02	00 B0 20	00	00
MONITOR OUT - COMPUTER IN2	Set	COMPUTER IN2 BE	EF 03	06 00	CE F7 01	00 B4 20	04	00
	Set	OFF	BE EF	03 06	00 FE B4	01 00 B4	20	FF 00
	Get BE EF 03		06 00 3D	F5 02	00 B4 20	00	00
MONITOR OUT - S-VIDEO	Set	COMPUTER IN1 BE	EF 03	06 00	86 F5 01	00 B2 20	00	00
		COMPUTER IN2 BE	EF 03	06 00	46 F7 01	00 B2 20	04	00
		OFF	BE EF	03 06	00 76 B4	01 00 B2	20	FF 00
	Get BE EF 03		06 00 B5	F5 02	00 B2 20	00	00
MONITOR OUT - VIDEO	Set	COMPUTER IN1 BE	EF 03	06 00	C2 F5 01	00 B1 20	00	00
		COMPUTER IN2 BE	EF 03	06 00	02 F7 01	00 B1 20	04	00
		OFF	BE EF	03 06	00 32 B4	01 00 B1	20	FF 00
	Get BE EF 03		06 00 F1	F5 02	00 B1 20	00	00
MONITOR OUT - HDMI	Set	COMPUTER IN1	BE EF	03	06 00	7A F4	01 00	B3 20	00 00
		COMPUTER IN2	BE EF	03	06 00	BA F6	01 00	B3 20	04 00
		OFF	BE EF	03	06 00	8A B5	01 00	B3 20	FF 00
	Get		BE EF	03	06 00	49 F4	02 00	B3 20	00 00
MONITOR OUT - LAN	Set	COMPUTER IN1	BE EF	03	06 00	1A F6	01 00	BB 20	00 00
		COMPUTER IN2	BE EF	03	06 00	DA F4	01 00	BB 20	04 00
		OFF	BE EF	03	06 00	EAB7	01 00	BB 20	FF 00
	Get		BE EF	03	06 00	29 F6	02 00	BB 20	00 00
MONITOR OUT - USB TYPE A	Set	COMPUTER IN1	BE EF	03	06 00	B6 F4	01 00	B6 20	00 00
		COMPUTER IN2	BE EF	03	06 00	76 F6	01 00	B6 20	04 00
		OFF	BE EF	03	06 00	46 B5	01 00	B6 20	FF 00
	Get		BE EF	03	06 00	85 F4	02 00	B6 20	00 00
MONITOR OUT - USB TYPE B	Set	COMPUTER IN1	BE EF	03	06 00	6E F7	01 00	BC 20	00 00
		COMPUTER IN2	BE EF	03	06 00	AE F5	01 00	BC 20	04 00
		OFF	BE EF	03	06 00	9E B6	01 00	BC 20	FF 00
	Get		BE EF	03	06 00	5D F7	02 00	BC 20	00 00
MONITOR OUT - STANDBY	Set	COMPUTER IN1 BE	EF 03	06 00	2A F7 01	00 BF 20	00	00
		COMPUTER IN2 BE	EF 03	06 00	EA F5 01	00 BF 20	04	00
		OFF	BE EF	03	06 00	DA B6	01 00	BF 20	FF 00
	Get BE EF 03		06 00 19	F7 02	00 BF 20	00	00
VOLUME - COMPUTER IN1	Get BE EF 03		06 00	CD CC	02 00	60 20 00	00
	Increment BE EF		03 06 00	AB	CC 04 00	60 20	00 00
	Decrement		BE EF	03	06 00	7A CD	05 00	60 20	00 00
VOLUME - COMPUTER IN2	Get		BE EF	03	06 00	FD CD	02 00	64 20	00 00
	Increment BE EF		03 06	00 9B	CD 04 00	64 20	00 00
	Decrement		BE EF	03	06 00	4A CC	05 00	64 20	00 00
VOLUME - S-VIDEO	Get BE EF 03	06 00 75	CD 02	00 62	20 00 00
	Increment BE EF	03 06 00	13 CD	04 00 62	20 00 00
	Decrement BE EF	03 06 00	C2	CC 05 00	62 20 00	00
VOLUME - VIDEO	Get BE EF 03	06 00 31	CD 02	00 61	20 00 00
	Increment BE EF	03 06 00	57 CD	04 00 61	20 00 00
	Decrement BE EF	03 06 00	86 CC	05 00 61	20 00 00
VOLUME - HDMI	Get	BE EF	03	06 00	89 CC	02 00	63 20	00 00
	Increment	BE EF	03	06 00	EF CC	04 00	63 20	00 00
	Decrement	BE EF	03	06 00	3E CD	05 00	63 20	00 00
VOLUME - LAN	Get	BE EF	03	06 00	E9 CE	02 00	6B 20	00 00
	Increment	BE EF	03	06 00	8F CE	04 00	6B 20	00 00
	Decrement	BE EF	03	06 00	5E CF	05 00	6B 20	00 00
VOLUME - USB TYPE A	Get	BE EF	03	06 00	45 CC	02 00	66 20	00 00
	Increment	BE EF	03	06 00	23 CC	04 00	66 20	00 00
	Decrement	BE EF	03	06 00	F2 CD	05 00	66 20	00 00
VOLUME - USB TYPE B	Get	BE EF	03	06 00	9D CF	02 00	6C 20	00 00
	Increment	BE EF	03	06 00	FB CF	04 00	6C 20	00 00
	Decrement	BE EF	03	06 00	2A CE	05 00	6C 20	00 00
VOLUME - STANDBY	Get BE EF 03	06 00 D9	CF 02	00 6F	20 00 00
	Increment BE EF	03 06 00	BF CF	04 00 6F	20 00 00
	Decrement BE EF	03 06 00	6E CE	05 00 6F	20 00 00
MUTE	Set	OFF	BE EF	03	06 00	46 D3	01 00	02 20	00 00
	Set	ON	BE EF	03 06	00 D6 D2	01 00 02	20 01 00
	Get BE EF 03		06 00	75 D3	02 00	02 20 00	00
SPEAKER	Set	ON	BE EF	03	06 00	FE D4	01 00	1C 20	01 00
	Set	OFF	BE EF	03	06 00	6E D5	01 00	1C 20	00 00
	Get BE EF 03		06 00 5D	D5 02	00 1C	20	00 00
AUDIO SOURCE - COMPUTER IN1	Set	AUDIO IN1	BE EF	03 06	00 6E DC	01 00 30	20 01 00
		AUDIO IN2	BE EF	03 06	00 9E DC	01 00 30	20 02 00
		AUDIO IN3	BE EF	03 06	00 0E DD	01 00 30	20 03 00
		OFF	BE EF	03 06	00 FE DD	01 00 30	20 00 00
	Get BE EF 03		06 00	CD DD	02 00	30 20 00	00
AUDIO SOURCE - COMPUTER IN2	Set	AUDIO IN1	BE EF	03 06	00 5E DD	01 00 34	20 01 00
		AUDIO IN2	BE EF	03 06	00 AE DD	01 00	34 20 02	00
		AUDIO IN3	BE EF	03 06	00 3E DC	01 00 34	20 03 00
		OFF	BE EF	03	06 00	CE DC	01 00	34 20	00 00
	Get BE EF 03		06 00	FD DC	02 00	34 20 00	00
AUDIO SOURCE LAN	Set	OFF	BE EF	03	06 00	DA DF	01 00	3B 20	00 00
		AUDIO IN1	BE EF	03	06 00	4A DE	01 00	3B 20	01 00
		AUDIO IN2	BE EF	03	06 00	BA DE	01 00	3B 20	02 00
		AUDIO IN3	BE EF	03	06 00	2A DF	01 00	3B 20	03 00
	Get		BE EF	03	06 00	E9 DF	02 00	3B 20	00 00
AUDIO SOURCE - USB TYPE A	Set	OFF	BE EF	03	06 00	76 DD	01 00	36 20	00 00
		AUDIO IN1	BE EF	03	06 00	E6 DC	01 00	36 20	01 00
		AUDIO IN2	BE EF	03	06 00	16 DC	01 00	36 20	02 00
		AUDIO IN3	BE EF	03	06 00	86 DD	01 00	36 20	03 00
	Get		BE EF	03	06 00	45 DD	02 00	36 20	00 00
AUDIO SOURCE USB TYPE B	Set	OFF BE EF 03 06 00 AE DE 01 00 3C 20 00 00
		AUDIO IN1 BE EF 03 06 00 3E DF 01 00 3C 20 01 00
		AUDIO IN2 BE EF 03 06 00 CE DF 01 00 3C 20 02 00
		AUDIO IN3 BE EF 03 06 00 5E DE 01 00 3C 20 03 00
	Get BE EF 03 06 00 9D DE 02 00 3C 20 00 00
AUDIO SOURCE - HDMI	Set	OFF BE EF 03 06 00 BA DD 01 00 33 20 00 00
		AUDIO IN1 BE EF 03 06 00 2A DC 01 00 33 20 01 00
		AUDIO IN2 BE EF 03 06 00 DA DC 01 00 33 20 02 00
		AUDIO IN3 BE EF 03 06 00 4A DD 01 00 33 20 03 00
		HDMI BE EF 03 06 00 7A C4 01 00 33 20 20 00
	Get BE EF 03 06 00 89 DD 02 00 33 20 00 00
AUDIO SOURCE - S-VIDEO	Set	AUDIO IN1 BE EF 03 06 00 D6 DD 01 00 32 20 01 00
		AUDIO IN2 BE EF 03 06 00 26 DD 01 00 32 20 02 00
		AUDIO IN3 BE EF 03 06 00 66 DC 01 00 32 20 03 00
		OFF BE EF 03 06 00 46 DC 01 00 32 20 00 00
	Get		BE EF 03 06 00 75 DC 02 00 32 20 00 00
AUDIO SOURCE - VIDEO	Set	AUDIO IN1 BE EF 03 06 00 92 DD 01 00 31 20 01 00
		AUDIO IN2 BE EF 03 06 00 62 DD 01 00 31 20 02 00
		AUDIO IN3 BE EF 03 06 00 F2 DC 01 00 31 20 03 00
		OFF BE EF 03 06 00 02 DC 01 00 31 20 00 00
	Get		BE EF 03 06 00 31 DC 02 00 31 20 00 00
AUDIO SOURCE STANDBY	Set	AUDIO IN1 BE EF 03 06 00 7A DF 01 00 3F 20 01 00
		AUDIO IN2 BE EF 03 06 00 8A DF 01 00 3F 20 02 00
		AUDIO IN3 BE EF 03 06 00 1A DE 01 00 3F 20 03 00
		OFF BE EF 03 06 00 EA DE 01 00 3F 20 00 00
	Get		BE EF 03 06 00 D9 DE 02 00 3F 20 00 00
HDMI AUDIO	Set	1 BE EF 03 06 00 AE C6 01 00 40 20 01 00
	Set	2 BE EF 03 06 00 5E C6 01 00 40 20 02 00
	Get BE EF 03 06 00 02 00 40 20 00 00
MIC LEVEL	Set	LOW BE EF 03 06 00 02 F1 01 00 A1 20 00 00
	Set	HIGH BE EF 03 06 00 92 F0 01 00 A1 20 01 00
	Get BE EF 03 06 00 31 F1 02 00 A1 20 00 00
MIC VOLUME	Get BE EF 03 06 00 75 F1 02 00 A2 20 00 00
	Increment		BE EF 03 06 00 13 F1 04 00 A2 20 00 00
	Decrement		BE EF 03 06 00 C2 F0 05 00 A2 20 00 00
LANGUAGE	Set	ENGLISH BE EF 03 06 00 F7 D3 01 00 05 30 00 00
		FRANÇAIS BE EF 03 06 00 67 D2 01 00 05 30 01 00
		DEUTSCH BE EF 03 06 00 97 D2 01 00 05 30 02 00
		ESPAÑOL BE EF 03 06 00 07 D3 01 00 05 30 03 00
		ITALIANO BE EF 03 06 00 37 D1 01 00 05 30 04 00
		NORSK BE EF 03 06 00 A7 D0 01 00 05 30 05 00
		NEDERLANDS BE EF 03 06 00 57 D0 01 00 05 30 06 00
		PORTUGUÊS BE EF 03 06 00 C7 D1 01 00 05 30 07 00
		日本語 BE EF 03 06 00 37 D4 01 00 05 30 08 00
		简体中文 BE EF 03 06 00 A7 D5 01 00 05 30 09 00
		繁體中文 BE EF 03 06 00 37 DE 01 00 05 30 10 00
		한글 BE EF 03 06 00 57 D5 01 00 05 30 0A 00
		SVENSKA BE EF 03 06 00 C7 D4 01 00 05 30 0B 00
		PYCCKIЙ BE EF 03 06 00 F7 D6 01 00 05 30 0C 00
		SUOMI BE EF 03 06 00 67 D7 01 00 05 30 0D 00
	NOTE) Not all of the languages in this table are supported.

RS-232C Communication / Network command table (continued)

Names Operation Type Header				Command Data
				CRC Action Type	Setting code
LANGUAGE	Set	POLSKI BE EF 03 06 00 97 D7 01 00 05 30 0E		00
		TÜRKÇE BE EF 03 06 00 07 D6 01 00 05 30 0F		00
		DANSK BE EF 03 06 00 A7 DF 01 00 05 30 11		00
		ČESKY BE EF 03 06 00 57 DF 01 00 05 30 12		00
		MAGYAR	BE EF 03 06 00 C7 DE 01 00 05 30 13 00	30 13 00
		ROMÂNĂ	BE EF 03 06 00 F7 DC 01 00 05 30 14 00	30 14 00
		SLOVENSKI	BE EF 03 06 00 67 DD 01 00 05 30 15 00	30 15 00
		HRVATSKI	BE EF 03 06 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00	01 00 05 30 17 00
		ΕΛΛΗΝΙΚΑ	BE EF 03 06 00 07 DC 01 00 05 30 18 00	30 18 00
		LIETUVIŲ	BE EF 03 06 00 F7 D9 01 00 05 30 19 00	30 19 00
		EESTI	BE EF 03 06 00 67 D8 01 00 05 30 1A 00	30 1A 00
		LATVIEŠU	BE EF 03 06 00 97 D8 01 00 05 30 1B 00	30 1B 00
		Inu	BE EF 03 06 00 07 D9 01 00 05 30 1C 00	30 1C 00
		اللغة العربية	BE EF 03 06 00 37 DB 01 00 05 30 1D 00	30 1D 00
		فارسی	BE EF 03 06 00 A7 DA 01 00 05 30 1E 00	30 1E 00
		PORTUGUÊS BRA	BE EF 03 06 00 57 DA 01 00 05 30 1F 00	30 1F 00
		BAHASA IND	BE EF 03 06 00 C7 DB 01 00 05 30 20 00	30 20 00
		TIENG VIET	BE EF 03 06 00 37 CA 01 00 05 30 20 00	30 20 00
	Get		BE EF 03 06 00 C4 D3 02 00 05 30 00 00	30 00 00
	NOTE) Not all of the languages in this table are supported.
MENU POSITION H	Get		BE EF 03 06 00 04 D7 02 00 15 30 00 00	30 00 00
	Increment		BE EF 03 06 00 62 D7 04 00 15 30 00 00	30 00 00
	Decrement		BE EF 03 06 00 B3 D6 05 00 15 30 00 00	30 00 00
MENU POSITION H Reset	Execute BE EF 03 06 00 DC C6 06 00 43 70 00 00
MENU POSITION V	Get		BE EF 03 06 00 40 D7 02 00 16 30 00 00	30 00 00
	Increment		BE EF 03 06 00 26 D7 04 00 16 30 00 00	30 00 00
	Decrement		BE EF 03 06 00 F7 D6 05 00 16 30 00 00	30 00 00
MENU POSITION V Reset	Execute BE EF 03 06 00 A8 C7 06 00 44 70 00 00
BLANK	Set	MyScreen	BE EF 03 06 00 FB CA 01 00 00 30 30 20 00	30 30 20 00
		ORIGINAL	BE EF 03 06 00 FB E2 01 00 00 30 40 00	30 40 00
		BLUE	BE EF 03 06 00 CB D3 01 00 00 30 30 03 00	30 30 03 00
		WHITE	BE EF 03 06 00 6B D0 01 00 00 30 05 00	30 05 00
		BLACK	BE EF 03 06 00 6B D0 9B D0 01 00 00 30 30 06 00	30 30 06 00
	Get		BE EF 03 06 00 08 D3 02 00 30 30 00 00	30 30 06 00
BLANK On/Off	Set	OFF	BE EF 03 06 00 FB D8 01 00 20 30 00 00	30 30 06 00
		ON	BE EF 03 06 00 6B D9 01 00 20 30 01 00	30 30 06 00
	Get		BE EF 03 06 00 C8 D8 02 00 20 30 00 00	30 30 06 00
START UP	Set	MyScreen	BE EF 03 06 06 00 CB CB 01 00 04 30 30 20 00	30 30 20 00
		ORIGINAL	BE EF 03 06 00 0B D2 01 00 04 30 00 00	30 30 20 00
		OFF	BE EF 03 06 00 9B D3 01 00 04 30 30 20 00	30 30 20 00
	Get		BE EF 03 06 00 38 D2 02 00 30 30 20 00	30 30 20 00
MyScreen Lock	Set	OFF	BE EF 03 06 00 3B EF 01 00 C0 30 30 20 00	30 30 20 00
		ON	BE EF 03 06 00 AB EE 01 00 C0 30 30 20 00	30 30 20 00
	Get		BE EF 03 06 00 8F EF 02 00 C0 30 30 20 00	30 30 20 00
MESSAGE	Set	OFF	BE EF 03 06 00 8F D6 01 00 17 30 30 20 00	30 30 20 00
		ON	BE EF 03 06 00 1F D7 01 00 17 30 30 20 00	30 30 20 00
	Get		BE EF 03 06 00 BC D6 02 00 17 30 30 20 00	30 30 20 00
TEMPLATE	Set	TEST PATTERN BE EF 03 06 00 43 D9 01 00 22 30 00 00
		DOT-LINE1 BE EF 03 06 00 D3 D8 01 00 22 30 01 00
		DOT-LINE2 BE EF 03 06 00 23 D8 01 00 22 30 02 00
		DOT-LINE3 BE EF 03 06 00 B3 D9 01 00 22 30 03 00
		DOT-LINE4 BE EF 03 06 00 83 DB 01 00 22 30 04 00
		CIRCLE 1 BE EF 03 06 00 13 DA 01 00 22 30 05 00
		CIRCLE 2 BE EF 03 06 00 E3 DA 01 00 22 30 06 00
		MAP 1 BE EF 03 06 00 06 00 83 D4 01 00 22 30 10 00
		MAP 2 BE EF 03 06 00 06 00 13 D5 01 00 22 30 11 00
	Get		BE EF 03 06 00 70 D9 02 00 22 30 00 00
TEMPLATE On/Off	Set	OFF	BE EF 03 06 00 BF D8 01 00 23 30 00 00
		ON	BE EF 03 06 00 2F D9 01 00 23 30 01 00
	Get		BE EF 03 06 00 8C D8 02 00 23 30 00 00
C. C. - DISPLAY	Set	OFF	BE EF 03 06 00 FA 62 01 00 00 37 00 00
		ON	BE EF 03 06 00 6A 63 01 00 00 37 01 00
		AUTO	BE EF 03 06 00 9A 63 01 00 00 37 02 00
	Get		BE EF 03 06 00 C9 62 02 00 00 37 00 00
C. C. - MODE	Set	CAPTIONS BE EF 03 06 00 06 63 01 00 01 37 00 00
		TEXT	BE EF 03 06 00 96 62 01 00 01 37 01 00
	Get		BE EF 03 06 00 35 63 02 00 01 37 00 00
C. C. - CHANNEL	Set	1	BE EF 03 06 00 D2 62 01 00 02 37 01 00
		2	BE EF 03 06 00 22 62 01 00 02 37 02 00
		3	BE EF 03 06 00 B2 63 01 00 02 37 03 00
		4	BE EF 03 06 00 82 61 01 00 02 37 04 00
	Get		BE EF 03 06 00 71 63 02 00 02 37 00 00
AUTO SEARCH	Set	OFF	BE EF 03 06 00 B6 D6 01 00 16 20 00 00
		ON	BE EF 03 06 00 26 D7 01 00 16 20 01 00
	Get		BE EF 03 06 00 85 D6 02 00 16 20 00 00
DIRECT POWER ON	Set	OFF	BE EF 03 06 00 3B 89 01 00 20 31 00 00
		ON	BE EF 03 06 00 AB 88 01 00 20 31 01 00
	Get		BE EF 03 06 00 08 89 02 00 20 31 00 00
AUTO POWER OFF	Get		BE EF 03 06 00 08 86 02 00 10 31 00 00
	Increment		BE EF 03 06 00 6E 86 04 00 10 31 00 00
	Decrement		BE EF 03 06 00 BF 87 05 00 10 31 00 00
USB TYPE B	Set	MOUSE	BE EF 03 06 00 00 00 6F 23 01 00 50 26 00 00
		USB DISPLAY	BE EF 03 06 00 6F 22 01 00 50 26 01 00
	Get		BE EF 03 06 00 6F 23 02 00 50 26 00 00
LAMP TIME	Get		BE EF 03 06 00 C2 FF 02 00 90 10 00 00
LAMP TIME Reset	Execute BE EF		03 06 00 58 DC 06 00 30 70 00 00
FILTER TIME	Get		BE EF 03 06 00 C2 F0 02 00 A0 10 00 00
FILTER TIME Reset	Execute BE EF		03 06 00 98 C6 06 00 40 70 00 00
MY BUTTON-1	Set		COMPUTER IN1 BE EF 03 06 00 3A 33 01 00 00 36 00 00
			COMPUTER IN2 BE EF 03 06 00 FA 31 01 00 00 36 04 00
			LAN BE EF 03 06 00 0A 34 01 00 00 36 0B 00
			USB TYPE A BE EF 03 06 00 9A 30 01 00 00 36 06 00
			USB TYPE B BE EF 03 06 00 3A 36 01 00 00 36 0C 00
			HDMI BE EF 03 06 00 CA 33 01 00 00 36 03 00
			S-VIDEO BE EF 03 06 00 5A 32 01 00 00 36 02 00
			VIDEO BE EF 03 06 00 06 00 AA 32 01 00 00 36 01 00
			SLIDESHOW BE EF 03 06 00 9A 2B 01 00 00 36 22 00
			MY IMAGE BE EF 03 06 00 5A 3D 01 00 00 36 16 00
			MESSENGER BE EF 03 06 00 AA 29 01 00 00 36 25 00
			INFORMATION BE EF 03 06 00 FA 3E 01 00 00 36 10 00
			MY MEMORY BE EF 03 06 00 06 00 9A 3F 01 00 00 36 15 00
			ACTIVE IRIS BE EF 03 06 00 AA 3D 01 00 00 36 15 00
			PICTURE MODE BE EF 03 06 00 06 00 0A 3E 01 00 00 36 13 00
			FILTER RESET BE EF 03 06 00 3A 3C 01 00 00 36 14 00
			AV MUTE BE EF 03 06 00 06 00 AA 38 01 00 00 36 16 00
			TEMPLATE BE EF 03 06 00 CA 39 01 00 00 36 1B 00
			D-ZOOM BE EF 03 06 00 06 00 FA 3B 01 00 00 36 1C 00
			D-SHIFT BE EF 03 06 00 06 00 6A 3A 01 00 00 36 1D 00
			RESOLUTION BE EF 03 06 00 9A 3A 01 00 00 36 1E 00
			MIC VOLUME BE EF 03 06 00 9A 24 01 00 00 36 36 00
			ECO MODE BE EF 03 06 00 0A 25 01 00 00 36 37 00
			CALIBRATE BE EF 03 06 00 06 00 3A 0F 01 00 00 36 16 00
	Get		BE EF 03 06 00 09 33 02 00 00 36 00 00
MY BUTTON-2	Set		COMPUTER IN1 BE EF 03 06 00 C6 32 01 00 01 36 00 00
			COMPUTER IN2 BE EF 03 06 00 06 30 01 00 01 36 04 00
			LAN BE EF 03 06 00 F6 35 01 00 01 36 0B 00
			USB TYPE A BE EF 03 06 00 66 31 01 00 01 36 06 00
			USB TYPE B BE EF 03 06 00 C6 37 01 00 01 36 0C 00
			HDMI BE EF 03 06 00 36 32 01 00 01 36 03 00
			S-VIDEO BE EF 03 06 00 A6 33 01 00 01 36 02 00
			VIDEO BE EF 03 06 00 56 33 01 00 01 36 01 00
			SLIDESHOW BE EF 03 06 00 66 2A 01 00 01 36 22 00
			MY IMAGE BE EF 03 06 00 A6 3C 01 00 01 36 16 00
			MESSENGER BE EF 03 06 00 56 28 01 00 01 36 25 00
			INFORMATION BE EF 03 06 00 06 3F 01 00 01 36 10 00
			MY MEMORY BE EF 03 06 00 66 3E 01 00 01 36 12 00
			ACTIVE IRIS BE EF 03 06 00 56 3C 01 00 01 36 15 00
			PICTURE MODE BE EF 03 06 00 F6 3F 01 00 01 36 13 00
			FILTER RESET BE EF 03 06 00 C6 3D 01 00 01 36 14 00
			AV MUTE BE EF 03 06 00 56 39 01 00 01 36 19 00
			TEMPLATE BE EF 03 06 00 36 38 01 00 01 36 1B 00
			D-ZOOM BE EF 03 06 00 06 3A 01 00 01 36 1C 00
			D-SHIFT BE EF 03 06 00 96 3B 01 00 01 36 1D 00
			RESOLUTION BE EF 03 06 00 66 3B 01 00 01 36 1E 00
			MIC VOLUME BE EF 03 06 00 66 25 01 00 01 36 36 00
			ECO MODE BE EF 03 06 00 F6 24 01 00 01 36 37 00
			CALIBRATE BE EF 03 06 00 C6 0E 01 00 01 36 50 00
	Get		BE EF 03 06 00 F5 32 02 00 01 36 00 00
MY SOURCE	Set	COMPUTER IN1 BE EF 03 06 00 FA 38 01 00 20 36 00 00
		COMPUTER IN2 BE EF 03 06 00 3A 3A 01 00 20 36 04 00
		LAN BE EF 03 06 00 CA 3F 01 00 20 36 0B 00
		USB TYPE A BE EF 03 06 00 06 00 5A 3B 01 00 20 36 0C 00
		USB TYPE B BE EF 03 06 00 FA 3D 01 00 20 36 0C 00
		HDMI BE EF 03 06 00 0A 38 01 00 20 36 03 00
		S-VIDEO BE EF 03 06 00 9A 39 01 00 20 36 02 00
		VIDEO BE EF 03 06 00 6A 39 01 00 20 36 01 00
	Get		BE EF 03 06 00 C9 38 02 00 20 36 00 00
Magnify Position H	Get		BE EF 03 06 00 C8 D7 02 00 10 30 00 00
	Increment		BE EF 03 06 00 AE D7 04 00 10 30 00 00
	Decrement		BE EF 03 06 00 7F D6 05 00 10 30 00 00
Magnify Position V	Get		BE EF 03 06 00 34 D6 02 00 11 30 00 00
	Increment		BE EF 03 06 00 52 D6 04 00 11 30 00 00
	Decrement		BE EF 03 06 00 83 D7 05 00 11 30 00 00
REMOTE FREQ. NORMAL	Set	OFF	BE EF 03 06 00 FF 3D 01 00 30 26 00 00
		ON	BE EF 03 06 00 6F 3C 01 00 30 26 01 00
	Get		BE EF 03 06 00 CC 3D 02 00 30 26 00 00
REMOTE FREQ. HIGH	Set	OFF	BE EF 03 06 00 03 3C 01 00 31 26 00 00
		ON	BE EF 03 06 00 93 3D 01 00 31 26 01 00
	Get		BE EF 03 06 00 30 3C 02 00 31 26 00 00
MY IMAGE	Set	OFF	BE EF 03 06 00 3A C3 01 00 00 35 00 00
		IMAGE-1	BE EF 03 06 00 AA C2 01 00 00 35 01 00
		IMAGE-2	BE EF 03 06 00 5A C2 01 00 00 35 02 00
		IMAGE-3	BE EF 03 06 00 6A C3 01 00 00 35 03 00
		IMAGE-4	BE EF 03 06 00 FA C1 01 00 00 35 04 00
	Get		BE EF 03 06 00 09 C3 02 00 00 35 00 00
MY IMAGE IMAGE-1 Delete	Execute		BE EF 03 06 00 71 C3 06 00 01 35 00 00
MY IMAGE IMAGE-2 Delete	Execute		BE EF 03 06 00 35 C3 06 00 02 35 00 00
MY IMAGE IMAGE-3 Delete	Execute		BE EF 03 06 00 C9 C2 06 00 03 35 00 00
MY IMAGE IMAGE-4 Delete	Execute		BE EF 03 06 00 BD C3 06 00 04 35 00 00
INTERACTIVE CALIBRATE	Execute		BE EF 03 06 00 89 93 06 00 50 21 00 00

PJLink command

Commands	Control Description Parameter or Response
POWR Power Contorol		0 = Standby
POWR Power Contorol		1 = Power On
POWR ? Power Status inquiry		0 = Standby
		1 = Power On
		2 = Cool Down
INPT Input Source selection		11 = COMPUTER IN 1
		12 = COMPUTER IN 2
		22 = S-VIDEO
		23 = VIDEO
		31 = HDMI
		41 = USB TYPE A
		51 = LAN
		52 = USB TYPE B
INPT ? Input Source inquiry		11 = COMPUTER IN 1
		12 = COMPUTER IN 2
		22 = S-VIDEO
		23 = VIDEO
		31 = HDMI
		41 = USB TYPE A
		51 = LAN
		52 = USB TYPE B
AVMT AV	Mute	10 = BLANK off
		11 = BLANK on
		20 = Mute off
		21 = Mute on
		30 = AV Mute off
		31 = AV Mute on
AVMT ? AV	Mute inquiry	10 = BLANK off
		11 = BLANK on
		20 = Mute off
		21 = Mute on
		30 = AV Mute off
		31 = AV Mute on
ERST ? Error Status inquiry		1st byte: Refers to Fan error; one of 0 to 2
		2nd byte: Refers to Lamp error; one of 0 to 2
		3rd byte: Refers to Temptrature error; one of 0 to 2
		4th byte: Refers to Cover error; one of 0 to 2
		5th byte: Refers to Filter error; one of 0 to 2
		6th byte: Refers to Other error; one of 0 to 2

		The meaning of 0 to 2 is as given below
		0 = Error is not detected; 1 = Warning; 2 = Error
LAMP ? Lamp Status inquiry		1st number (digits 1 to 5): Lamp Time
LAMP ? Lamp Status inquiry		2nd number : 0 = Lamp off, 1 = Lamp on
INST ? Input Source List inquiry 11 12		22 23 31 41 51 52
NAME ? Projector Name inquiry		Responds with the name set in "PROJECTOR NAME" of "NETWORK"
INF1 ?	Manufacturer's Name inquiry	HITACHI
INF2 ? Model Name inquiry CP-AW25		19N
INFO ? Other Information inquiry		Responds with the factory information and so on
CLSS ? Class Information inquiry 1

NOTE • The password used in PJLink™ is the same as the password set in the Web Brouwser Comtrol. To use PJLink™ without authentication, do not set any password in Web Browser Control.

- For specifications of PJLink™, see the web site of the Japan Business Machine and Information System Industries Association.

AC IN
Netsnoer

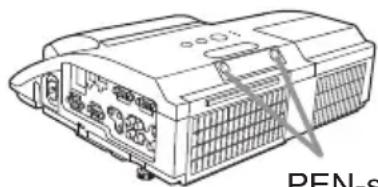

HITACHI CP-AW2519NMEF - Communication settings - 1

PEN-sensor

HITACHI CP-AW2519NMEF - Communication settings - 2

F-2

- Mounted on the wall or ceiling

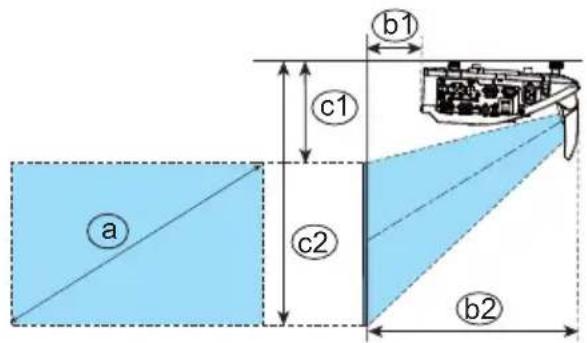

a c1 c2 b1 b2

T-1

Screen size (diagonal) a		Projection distance Screen height
Screen size (diagonal) a		b1 b2 c1 c2		○		○		○
type(inch)	m m inch	ch m inch	m inch m inch
60	1.5	0.120	4.7	0.426	16.8	0.29	5	11.6	102
70	1.8	0.188	7.4	0.494	19.5	0.33	2	13.1	1.274
80	2.0	0.256	10.1	0.562	22.1	0.369	14.5	1.446	56.9
90	2.3	0.324	12.8	0.631	24.8	0.407	16.0	1.618	63.7
100	2.5	0.392	15.4	0.699	27.5	0.444	17.5	1.791	70.5

F-3
HITACHI CP-AW2519NMEF - T-1 - 1

    style VCR/DVD/Blu-ray Disc Player fill:#f9f,stroke:#333
    style Access Point fill:#ccf,stroke:#333
    style Computer fill:#cfc,stroke:#333

F-4

Monitor RGB IN Microphone system Speakers (with an amplifi er) USB storage device USB TYPE B HDMI COMPUTER IN1 COMPUTER IN2 CONTROL MO UT MIC AUDIO IN3A AUDIO IN2 S-VIDEO AUDIO IN2 VIDEO

F-5

HITACHI CP-AW2519NMEF - F-5 - 1

F-6

Computer USB (A) HDMI DISPLAY USB T B CO IN1COMPUTER IN2 CONTROL MONITOR OUT MIC AUDIO IN3A AUDIO OUT S-VIDEO AUDIO IN2 VIDEO LAN TYPE A DCSV 0.5A

F-7
HITACHI CP-AW2519NMEF - F-6 - 2
[unit: mm]

F-8
(1)
HITACHI CP-AW2519NMEF - F-6 - 3

(5)
HITACHI CP-AW2519NMEF - F-6 - 4

(9)
HITACHI CP-AW2519NMEF - F-6 - 5

(2)
HITACHI CP-AW2519NMEF - F-6 - 6

(6)
HITACHI CP-AW2519NMEF - F-6 - 7

(10)*
HITACHI CP-AW2519NMEF - F-6 - 8

(3)
HITACHI CP-AW2519NMEF - F-6 - 9

(7)
HITACHI CP-AW2519NMEF - F-6 - 10

(11)
HITACHI CP-AW2519NMEF - F-6 - 11

(4)
HITACHI CP-AW2519NMEF - F-6 - 12

(8)
HITACHI CP-AW2519NMEF - F-6 - 13

NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Business Solutions Group

900 Hitachi way, Chula Vista

CA 91914-3556 USA CANADA

Tel: +1 -800-448-2244

http://www.hitachi-america.us/projectors

Hitachi Europe Ltd., Digital Media Group Consumer Affairs Department

Whitebrook Park, Lower Cookham Road, Maidenhead

Berkshire SL6 8YA UNITED KINGDOM

Tel: 0844 481 0297

Email: consumer.mail@hitachi-eu.com

Hitachi Europe S.A.S., Digital Media Group

Email: customerservice.italy@hitachi-eu.com

Hitachi Europe S.A.

Gran Via Carles III, 86 Planta 5 ^a

Denmark Tel: +46 8 562 711 00

http://www.hitachidigitalmedia.com

Hitachi Australia Pty Ltd.

Suite 801, Level 8, 123 Epping Road

North Ryde N.S.W 2113 AUSTRALIA

Tel: +61 -2-9888-4100

http://www.hitachi.com.au

Hitachi (Hong Kong), Ltd.

18/F., Ever Gain Centre, 28 On Muk Street.,

Shatin, N.T. HONG KONG

Tel: +852 -2113-8883

http://www.hitachi-hk.com.hk

Hitachi Sales (Malaysia) Sdn. Bhd.

Lot 12, Jalan Kamajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan MALAYSIA

Tel: +60 -3-8911-2670

http://www.hitachiconsumer.com.my

Hitachi Home Electronics Asia (S) Pte. Ltd.

438A Alexandra Road #01-01/02/03

Alexandra Technopark, 119967 SINGAPORE

Tel: +65 -6536-2520

http://www.hitachiconsumer.com.sg

Hitachi Sales Corp. of Taiwan

2nd Floor, No.65, Nanking East Road, Section 3,

Taipei 104 TAIWAN

Tel: +886-2-2516-0500

http://www.hsct.com.tw

Hitachi Sales (Thailand), Ltd.

994, 996 Soi Thonglor, Sukhumvit 55 Rd.,

Klongtonnua, Vadhana, Bangkok 10110

THAILAND

Tel: +66 -2381-8381-98

http://www.hitachi-th.com

Hitachi Consumer Electronics Co., Ltd.

292 Yoshida-cho, Totsuka-ku

Yokohama 244-0817 JAPAN

CP-AW2519NMEF - Vidéo-projecteur HITACHI - Free user manual and instructions

This manual is not available in your language

Frequently Asked Questions - CP-AW2519NMEF HITACHI

User questions about CP-AW2519NMEF HITACHI

USER MANUAL CP-AW2519NMEF HITACHI

INSTELLING menu ..... 4 5

SCHERM menu ..... 5 0

OPTIE menu 56

NETWERK menu 67

VEILIGHEID menu 74

Optimize Performance (Optimaliseer prestaties)

Enter PassCode (Voer de Passcode in)

1.6.1 Profielverbinding

N.B. • Internet Explorer 6.0 of later is vereist.

7.2 Projectorbeheer m.b.v. SNMP

Initial set signals

Connection to the ports

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒸMONITOR OUT

(2) for Component signal

DS-VIDEO

©VIDEO

FHDMI

©AUDIO IN1, ⒽAUDIO IN2

©LAN

To input component video signal to COMPUTER IN ports

RS-232C Communication

Connection

Communication settings

1. Protocol

2. Command format ("h" shows hexadecimal)

[Header code] [Packet] [Data size]

[CRC flag]

[Action]

[Type] [Setting code]

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

(2) NAK reply : 15h

(3) Error reply : 1Ch + 0000h

(4) Data reply : 1Dh + xxxxh

Command Control via the Network

Connection

Communication Port

Command control settings

[TCP #23]

1. Command format

2. Response code / Error code ("h" shows hexadecimal)

[TCP #9715]

1. Command format

[Header]

[Data Length]

[RS-232C commands]

[Check Sum]

[Connection ID]

2. Response code / Error code ("h" shows hexadecimal)

Automatic Connection Break

Authentication

Network Bridge Communication

Connection

Communication settings

F-2

T-1

F-5

F-6

Hitachi Europe Ltd., Digital Media Group Consumer Affairs Department

Hitachi Europe S.A.S., Digital Media Group

Hitachi Europe S.A.

Hitachi Australia Pty Ltd.

Hitachi (Hong Kong), Ltd.

Hitachi Sales (Malaysia) Sdn. Bhd.

Hitachi Home Electronics Asia (S) Pte. Ltd.

Hitachi Sales Corp. of Taiwan

Hitachi Sales (Thailand), Ltd.

THAILAND

Hitachi Consumer Electronics Co., Ltd.

Other manuals HITACHI

MP-WU8101B

ED-X50EP

CPWX12WNEF

CP-X3020EF

CP-X2511NEF
