ED-X50EP - Projector HITACHI - Free user manual and instructions

Product Type	Video Projector
Brand	Hitachi
Model	ED-X50EP
Display Technology	LCD (3-panel)
Native Resolution	XGA (1024 x 768)
Brightness	2500 ANSI lumens (typical)
Contrast Ratio	500:1 (typical)
Lamp Type	UHP
Lamp Life (Normal Mode)	2000 hours (approx.)
Lamp Life (Eco Mode)	3000 hours (approx.)
Projection Lens	Manual zoom and focus
Keystone Correction	Vertical: ±30° (manual and auto)
Dimensions (W x D x H)	340 x 100 x 270 mm (approx.)
Weight	3.5 kg (approx.)
Power Consumption	310 W (max), Standby: <0.5 W
Power Supply	AC 100-120 V / 220-240 V, 50/60 Hz
Input Terminals	COMPUTER IN1, COMPUTER IN2, S-VIDEO, VIDEO, AUDIO IN1, AUDIO IN2, CONTROL (RS-232C)
Output Terminals	MONITOR OUT (D-sub 15-pin), AUDIO OUT (stereo mini)
Supported Video Signals	NTSC, PAL, SECAM, 480i/p, 576i/p, 720p, 1080i/p
Built-in Speaker	1 x 7 W (mono)
Noise Level	32 dB (typical)
Filter Cleaning	Removable and washable filter (every 100 hours)
Security	Kensington lock slot, password protection
Remote Control	Included (IR)

Frequently Asked Questions - ED-X50EP HITACHI

How do I replace the lamp in the Hitachi ED-X50EP?

Turn off the projector and unplug it. Allow the lamp to cool for at least 45 minutes. Remove the lamp cover by loosening the screw, then pull out the lamp unit. Insert the new lamp and tighten the screw. Reset the lamp timer via the menu: OPTION > LAMP TIME > RESET.

What is the native resolution of this projector?

The Hitachi ED-X50EP has a native resolution of XGA (1024 x 768). It can accept signals up to UXGA (1600x1200) but will scale them to the panel resolution.

Can I connect a component video source?

Yes, you can use an RCA-to-D-sub adapter cable to connect component video (Y, Cb/Pb, Cr/Pr) to the COMPUTER IN1 or COMPUTER IN2 port. Refer to the manual for pin assignments.

How do I clean or replace the air filter?

Turn off the projector and unplug it. Remove the filter cover (located on the side or bottom). Take out the filter and either vacuum it or wash it with mild detergent. Allow it to dry completely before reinserting. Replace if damaged. Reset the filter timer via OPTION > FILTER TIME > RESET.

Why does the projector display 'Lamp Error'?

This could indicate lamp failure, overheating, or a faulty ballast. Check the lamp for damage, ensure proper cooling (air filters clean), and let the projector cool down. If persistent, replace the lamp or contact service.

How do I adjust the keystone correction?

Press the KEYSTONE button on the remote or go to SETTING > KEYSTONE. Use the arrow keys to adjust vertical keystone manually. Alternatively, enable AUTO KEYSTONE in the OPTION menu to automatically correct when the tilt sensor detects an angle.

Can I control the projector via computer?

Yes, connect a RS-232C crossover cable from the projector's CONTROL port to your computer. Use the communication settings: 19200 bps, 8 data bits, no parity, 1 stop bit. Commands are sent in hex format (see RS-232C command table in manual).

What is the maximum image size?

The maximum image size depends on throw distance. With zoom lens, a 300-inch diagonal image is achievable at approximately 10-12 meters. Refer to lens specifications for exact distances.

How do I reset the lamp timer?

Go to the OPTION menu, select LAMP TIME, then choose RESET. Confirm the reset. This should be done only after replacing the lamp.

What should I do if the image is flickering or unstable?

Check the input source signal timing. For computer signals, ensure the resolution and refresh rate are supported (see the PC signal table). Adjust H PHASE and H SIZE in the IMAGE menu. Also try using the AUTO ADJUST function.

USER MANUAL ED-X50EP HITACHI

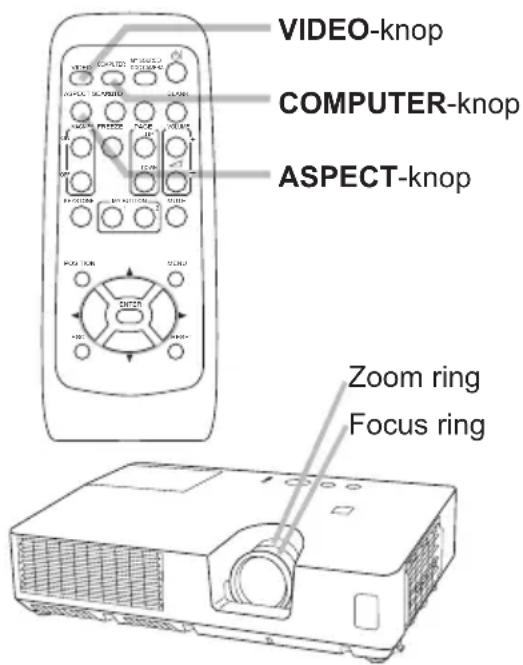

Line drawing of a projector with ventilation grilles and a circular lens (no text or symbols)

The image contains two horizontal lines, which are stylistic or background elements. According to the correction guidelines, such lines must be ignored by the OCR result. Therefore, the corrected OCR text is: [Empty String]

FOTO Menu 28

HELDER, CONTRAST, GAMMA, KLEURTEMP.,

KLEUR, TINT, SCHERPTE, GEHEUGEN

BEELD Menu .... 31

ASPECT, OVERSCAN, V POSIT, H POSIT,

H FASE, H SIZE, AUTOM.AANPAS.UITVOEREN

INPUT Menu 33

PROGRESSIEF, VIDEO NR, KLEURVARIATIE,

VIDEO FORMAT, COMPUTER-IN, STILZETTEN,

RESOLUTIE

INSTELLING Menu .... 36

AUTO KEYSTONE, KEYSTONE,

NAAM VAN BRON, PATROON, G.B.

OPTIE Menu 45

AUTOM. ZOEKEN, AUTO KEYSTONE,

DIRECT AAN, AUTOM. UIT, LAMPTIJD,

FILTERTIJD, MIJN KNOP, SIGNAALBRON,

SERVICE

VEILIGHEID Menu ..... 50

VEILIGH. PASW. VERANDEREN,

MIJN TEKST WEERG., MIJN TEKST BIJW.

Onderhoud. 56

De lamp vervangen ..... 56

Technical line drawing of a car air conditioner unit with 12° angle annotation (no text or symbols on the diagram itself)

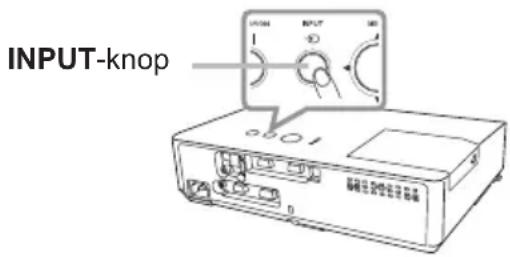

Line drawing of a device with a control panel and labeled parts (no readable text or symbols)

Diagram showing a room layout with a cabinet, chair, and monitor, connected by dashed lines to a wall (no text or symbols)

Technical line drawing of a car air conditioner unit with 12° angle标注 (no text or symbols beyond measurement)

Diagram of a device with a circular component and directional arrows indicating motion (no text or symbols)

Diagram of a device with a circular component and a cross symbol, no text or labels present

Line drawing of a device with a control panel and indicator lights (no text or symbols)

Diagram of a solar panel array with grid layout and side panel (no text or symbols)

Two rectangular objects with grid patterns, one tilted and one upright, shown without any text or symbols.

Filter (grove mazen)

Filter (fi jne mazen)

Back view of a computer interface with ports and connectors (no visible text or labels)

[eenheid: mm]

Oplossingen vinden - Garantie en service

User's Manual (detailed)

Operating Guide – Technical

Example of PC signal

Resolution (H x V)	H. frequency (kHz)	V. frequency (Hz)	Rating Signal mode
720 x 400	37.9 85.0 VESA TEXT
640 x 480 31.5	59.9 VESA VGA (60Hz)
640 x 480 37.9	72.8 VESA VGA (72Hz)
640 x 480 37.5	75.0 VESA VGA (75Hz)
640 x 480 43.3	85.0 VESA VGA (85Hz)
800 x 600 35.2	56.3 VESA SVGA (56Hz)
800 x 600 37.9	60.3 VESA SVGA (60Hz)
800 x 600 48.1	72.2 VESA SVGA (72Hz)
800 x 600 46.9	75.0 VESA SVGA (75Hz)
800 x 600 53.7	85.1 VESA SVGA (85Hz)
832 x 624 49.7	74.5 Mac 16" mode
1024 x 768 48.4	60.0 VESA XGA (60Hz)
1024 x 768 56.5	70.1 VESA XGA (70Hz)
1024 x 768 60.0	75.0 VESA XGA (75Hz)
1024 x 768 68.7	85.0 VESA XGA (85Hz)
1152 x 864 67.5	75.0 VESA		1152 x 864 (75Hz)
1280 x 768 47.7	60.0 VESA W-XGA (60Hz)
1280 x 800 49.7	60.0 VESA		1280 x 800 (60Hz)
1280 x 960 60.0	60.0 VESA		1280 x 960 (60Hz)
1280 x 1024	64.0 60.0 VESA SXGA (60Hz)
1280 x 1024	80.0 75.0 VESA SXGA (75Hz)
1280 x 1024	91.1 85.0 VESA SXGA (85Hz)
1400 x 1050	65.2 60.0 VESA SXGA+ (60Hz)
1600 x 1200	75.0 60.0 VESA UXGA (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.
- Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
- Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
- Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
- The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Initial set signals

The following signals are used for the initial settings. The signal timing of some PC models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu.

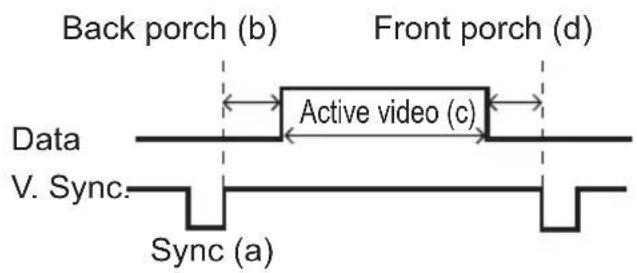

Resolution (H x V)	Horizontal signal timing (μs)				Vertical signal timing (lines)				Signal mode
	(A)	(B)	(C)	(D)	(a)	(b)	(c)	(d)
720 x 400	2.0	3	0	20.3	1.0	3	4	2	400 1 TEXT
640 x 480 3.8	1.9	2	5.4	0.6	2	33	480	10 V	GA (60 Hz)
640 x 480 1.3	4.1	2	0.3	0.8	3	28	480	9 VGA	(72Hz)
640 x 480 2.0	3.8	2	0.3	0.5	3	16	480	1 VGA	(75Hz)
640 x 480 1.6	2.2	1	7.8	1.6	3	25	480	1 VGA	(85Hz)
800 x 600 2.0	3.6	2	2.2	0.7	2	22	600	1 SV	GA (56 Hz)
800 x 600 3.2	2.2	2	0.0	1.0	4	23	600	1 SV	GA (60 Hz)
800 x 600 2.4	1.3	1	6.0	1.1	6	23	600	37	SVGA (72Hz)
800 x 600 1.6	3.2	1	6.2	0.3	3	21	600	1 SV	GA (75 Hz)
800 x 600 1.1	2.7	1	4.2	0.6	3	27	600	1 SV	GA (85 Hz)
832 x 624 1.1	3.9	1	4.5	0.6	3	39	624	1	Mac 16" mode
1024 x 768	2.1	2	5	15.8	0.4	6	29	768 3 XGA	(60Hz)
1024 x 768	1.8	1	9	13.7	0.3	6	29	768 3 XGA	(70Hz)
1024 x 768	1.2	2	2	13.0	0.2	3	28	768 1 XGA	(75Hz)
1024 x 768	1.0	2	2	10.8	0.5	3	36	768 1 XGA	(85Hz)
1152 x 864	1.2		2.4		10.7		0.6	3	32	864
1280 x 768	1.7		2.5		16.0		0.8	3	23	768
1280 x 800	1.6		2.4		15.3		0.8	3	24	800
1280 x 960	1.0		2.9		11.9		0.9	3	36	960
1280 x 1024	1.0		2.3		11.9		0.4	3	38	1024
1280 x 1024	1.1		1.8		9.5		0.1	3	38	1024
1280 x 1024	1.0		1.4		8.1		0.4	3	44	1024
1400 x 1050	1.2		2.0		11.4		0.7	3	33	1050
1600 x 1200	1.2		1.9		9.9		0.4	3	46	1200

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒸMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)
• H/V. sync. signal: TTL level (positive/negative)
- Composite sync. signal: TTL level

- Video signal:

-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated

-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

-Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

System: 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60

Pin	Signal Pin Signal
1	Video Red, Cr/Pr	9	(No connection)
2	Video Green, Y 10 Ground
3	Video Blue, Cb/Pb 11 (No connection)
4	(No connection)	12	A: SDA (DDC data), (No connection)B, C: (No connection)
5	Ground
6	Ground Red, Ground Cr/Pr 13 H. sync /	15	Composite sync., (No connection)
7	Ground Green, Ground Y 14 V. sync., (No connection)
8	Ground Blue, Ground Cb/Pb

DS-VIDEO

Mini DIN 4pin jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)

Pin Signal
1	Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2 Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

©VIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)
• 1.0±0.1Vp-p, 75Ω terminator

④AUDIO IN1, ⑤AUDIO IN2

- About the details of RS-232C communication, please refer to the following page.

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7 RTS
2 RD 5 Ground 8 CTS
3 TD 6 (No connection) 9 (No connection)

To input component video signal to COMPUTER IN ports

ex.

To input component video signal to the COMPUTER IN1 or IN2 port of the projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the descriptions about COMPUTER IN1 and IN2 port (3).

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication command table (10).

Connection

1. Turn off the projector and the computer.
2. Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfi IIs the specifi cation shown in fi gure.
3. Turn the computer on, and after the computer has started up turn the projector on.

RS-232C port of the computer

CONTROL port of the projector

Communication settings

1. Protocol

19200bps,8N1

1. Command format ("h" shows hexadecimal)

Byte Number

0

1

2

3

4

5

8

9

1

0

1

CommandAction

Header Data

Header code

Packet L

Data size

CRC flag

Action Type

Setting code

L

H

L

H

L

H

L

H

L

H

L

H

Change setting to desired value [(cL)(cH)] by [(eL)(eH)].

03h

06h

00h

(aL)

(aH)

01h

00h

(bL)

(bH)

(cL)

(cH)

Read projector internal setup value [(bL) (bH)].

(aL)

(aH)

02h

00h

(bL)

(bH)

00h

00h

Increment setup value [(bL)(bH)] by 1.

(aL)

(aH)

04h

00h

(bL)

(bH)

00h

00h

Decrement setup value [(bL)(bH)] by 1.

(aL)

(aH)

05h

00h

(bL)

(bH)

00h

00h

Run a command [(bL)(bH)].

(aL)

(aH)

06h

00h

(bL)

(bH)

00h

00h

[Header code], [Packet], [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0 \~ 4.

[CRC fl ag]

For byte number 5, 6, refer to RS-232C Communication command table.

[Action]

Set functional code to byte number 7, 8.

lt; SET gt; = [0 1 h, 0 0 h], lt; GET gt; = [0 2 h, 0 0 h], lt; INCREMENT gt; = [0 4 h, 0 0 h]

lt; DECREMENT gt; = [0 5 h, 0 0 h], lt; EXECUTE gt; = [0 6 h, 0 0 h]

Refer to the command table above.

[Type], [Setting code]

For byte number 9\~12, refer to RS-232C Communication command table.

RS-232C Communication command table

Names	Operation		Type Header				Command Data
							CRC Action Type Setting Code
Power Set Turn	off BE	EF 03 06 00 2A D3 01	00 00 60	00 00
		Turn on BE EF	03 06 00 BA D2 01	00 00 60	01 00
	Get BE EF 03 06		00 19 D3 02 00 00	60 00 00
			[Example return]00 00 [Off] 01 00 [On] 02 00[Cool down]
Input Source	Set	COMPUTER IN1	BE EF	03	06 00	FE D2	01 00	00 20	00 00
		COMPUTER IN2	BE EF 03	06 00	3E D0 01	00 00	20 04 00
		S-VIDEO BE EF	03 06 00 9E D3 01	00 00	20 02 00
		VIDEO	BE EF 03	06 00	6E D3 01	00 00	20 01 00
	Get BE EF 03 06		00 CD D2	02 00	00 20	00 00
Error Status Get BE EF 03 06 00 D9 D8 02 00			20 60	00 00
			[Example return]00 00 01 00 02 00 03 00[Normal] [Cover error] [Fan error] [Lamp error]04 00 05 00 07 00 08 00[Temp error] [Air flow error] [Cold error] [Filter error]
MAGNIFY	Get BE EF 03 06		00 7C D2	02 00	07 30	00 00
	Increment		BE EF 03	06 00	1A D2 04	00 07	30 00 00
	Decrement		BE EF 03	06 00	CB D3 05	00 07	30 00 00
FREEZE	Set	NORMAL	BE EF	03	06 00	83 D2	01 00	02 30	00 00
		FREEZE	BE EF 03	06 00	13 D3 01	00 02 30 01	00
	Get BE EF 03 06		00 B0 D2	02 00	02 30	00 00
PICTURE MODE	Set	NORMAL	BE EF	03	06 00	23 F6	01 00	BA 30	00 00
		CINEMA	BE EF 03	06 00	B3 F7 01	00 BA 30	01 00
		DYNAMIC	BE EF 03	06 00	E3 F4 01	00 BA 30	04 00
		BOARD(BLACK) BE	EF 03 06	00 E3	EF 01 00 BA	30	20 00
		BOARD(GREEN) BE	EF 03 06	00 73	EE 01 00 BA	30	21 00
		WHITEBOARD	BE EF 03	06 00	83 EE 01	00 BA 30	22 00
		DAYTIME	BE EF 03	06 00	E3 C7 01	00 BA 30	40 00
	Get BE EF 03 06		00 10 F6	02 00 BA	30	00 00
			[Example return]00 00 01 00 04 00 10 00[Normal] [Cinema] [Dynamic] [Custom]20 00 21 00 22 00 40 00[BOARD(BLACK)] [BOARD(GREEN)] [WHITEBOARD] [DAY TIME]
BRIGHTNESS	Get BE EF 03 06		00 89 D2	02 00	3 20 00 00
	Increment		BE EF 03	06 00	EF D2 04	00 03	20 00 00
	Decrement		BE EF 03	06 00	3E D3 05	00 03	20 00 00
BRIGHTNESS Reset	Execute		BE EF	03	06 00	58 D3	06 00	00 70	00 00
CONTRAST	Get BE EF 03 06		00 FD D3	02 00	04 20	00 00
	Increment		BE EF 03	06 00	9B D3 04	00 04	20 00 00
	Decrement		BE EF 03	06 00	4A D2 05	00 04	20 00 00
CONTRAST Reset	Execute		BE EF	03	06 00	A4 D2	06 00	01 70	00 00

(continued on next page)

Names	Operation		Type	Header				Command Data
								CRC Action Type Setting Code
GAMMA Set DEFAULT-1 BE EF 03 06 00 07			E9 01 00 A1 30 20 00
			CUSTOM-1 BE EF 03 06 00 07 FD 01 00 A1 30 10 00
			DEFAULT-2 BE EF 03 06 00 97 E8 01 00 A1 30 21 00
			CUSTOM-2 BE EF 03 06 00 97 FC 01 00 A1 30 11 00
			DEFAULT-3 BE EF 03 06 00 67 E8 01 00 A1 30 22 00
			CUSTOM-3 BE EF 03 06 00 67 FC 01 00 A1 30 12 00
			DEFAULT-4 BE EF 03 06 00 F7 E9 01 00 A1 30 23 00
			CUSTOM-4 BE EF 03 06 00 F7 FD 01 00 A1 30 13 00
			DEFAULT-5 BE EF 03 06 00 C7 EB 01 00 A1 30 24 00
			CUSTOM-5 BE EF 03 06 00 C7 FF 01 00 A1 30 14 00
			DEFAULT-6 BE EF 03 06 00 57 EA 01 00 A1 30 25 00
			CUSTOM-6 BE EF 03 06 00 57 FE 01 00 A1 30 15 00
			Get	BE EF 03 06 00 F4 F0 02 00 A1 30 00			00
User Gamma Pattern	Set	Off	BE EF	03	06 00	FB FA	01 00	80 30	00 00
		9 steps gray scale	BE EF 03 06 00 6B FB 01 00 80 30				01 00
		15 steps gray scale	BE EF 03 06 00 9B FB 01 00 80 30				02 00
		Ramp	BE EF 03 06 00 0B FA 01 00 80 30				03 00
	Get		BE EF 03 06 00 C8 FA 02 00 80 30				00 00
User Gamma Point 1	Get		BE EF	03	06 00	08 FE	02 00	90 30	00 00
	Increment		BE EF	03	06 00	6E FE	04 00	90 30	00 00
	Decrement		BE EF 03 06 00 BF FF 05 00 90 30				00 00
User Gamma Point 1 Reset	Execute		BE EF	03	06 00	58 C2	06 00	50 70	00 00
User Gamma Point 2	Get		BE EF	03	06 00	F4 FF	02 00	91 30	00 00
	Increment		BE EF	03	06 00	92 FF	04 00	91 30	00 00
	Decrement		BE EF	03	06 00	43 FE	05 00	91 30	00 00
User Gamma Point 2 Reset	Execute		BE EF	03	06 00	A4 C3	06 00	51 70	00 00
User Gamma Point 3	Get		BE EF	03	06 00	B0 FF	02 00	92 30	00 00
	Increment		BE EF	03	06 00	D6 FF	04 00	92 30	00 00
	Decrement		BE EF	03	06 00	07 FE	05 00	92 30	00 00
User Gamma Point 3 Reset	Execute		BE EF	03	06 00	E0 C3	06 00	52 70	00 00
User Gamma Point 4	Get		BE EF	03	06 00	4C FE	02 00	93 30	00 00
	Increment		BE EF	03	06 00	2A FE	04 00	93 30	00 00
	Decrement		BE EF 03 06 00 FB FF 05 00 93 30				00 00
User Gamma Point 4 Reset	Execute		BE EF	03	06 00	1C C2	06 00	53 70	00 00
User Gamma Point 5	Get		BE EF	03	06 00	38 FF	02 00	94 30	00 00
	Increment		BE EF	03	06 00	5E FF	04 00	94 30	00 00
	Decrement		BE EF	03	06 00	8F FE	05 00	94 30	00 00
User Gamma Point 5 Reset	Execute		BE EF	03	06 00	68 C3	06 00	54 70	00 00
User Gamma Point 6	Get		BE EF	03	06 00	C4 FE	02 00	95 30	00 00
	Increment		BE EF	03	06 00	A2 FE	04 00	95 30	00 00
	Decrement		BE EF	03	06 00	73 FF	05 00	95 30	00 00
User Gamma Point 6 Reset	Execute		BE EF	03	06 00	94 C2	06 00	55 70	00 00
User Gamma Point 7	Get		BE EF	03	06 00	80 FE	02 00	96 30	00 00
	Increment		BE EF	03	06 00	E6 FE	04 00	96 30	00 00
	Decrement		BE EF	03	06 00	37 FF	05 00	96 30	00 00
User Gamma Point 7 Reset	Execute		BE EF	03	06 00	D0 C2	06 00	56 70	00 00

(continued on next page)

RS-232C Communication command table (continued)

Names	Operation		Type	Header				Command Data
								CRC Action Type Setting Code
User Gamma Point 8	Get		BE EF 03 06 00	7C FF 02	00 97 30 00			00
	Increment		BE EF 03 06 00	1A FF 04	00 97 30 00			00
	Decrement		BE EF 03 06 00	CB FE 05	00 97 30 00			00
User Gamma Point 8 Reset	Execute		BE EF 03 06 00	2C C3 06	00 57 70 00			00
COLOR TEMP Set	HIGH		BE EF 03 06 00	0B F5 01	00 B0 30 03			00
			1 CUSTOM	BE EF 03 06 00	CB F8 01	00 B0 30 13		00
			2 MID	BE EF 03 06 00	9B F4 01	00 B0 30 02		00
			2 CUSTOM	BE EF 03 06 00	5B F9 01	00 B0 30 12		00
			3 LOW	BE EF 03 06 00	6B F4 01	00 B0 30 01		00
			3 CUSTOM	BE EF 03 06 00	AB F9 01	00 B0 30 11		00
			4 Hi-BRIGHT-1	BE EF 03 06 00	3B F2 01	00 B0 30 08		00
			4 CUSTOM	BE EF 03 06 00	FB FF 01	00 B0 30 18		00
			5 Hi-BRIGHT-2	BE EF 03 06 00	AB F3 01	00 B0 30 09		00
			5 CUSTOM	BE EF 03 06 00	6B FE 01	00 B0 30 19		00
			6 Hi-BRIGHT-3	BE EF 03 06 00	5B F3 01	00 B0 30		0A 00
			6 CUSTOM	BE EF 03 06 00	9B FE 01	00 B0 30		1A 00
	Get		BE EF 03 06 00	C8 F5 02	00 B0 30 00			00
COLOR TEMP GAIN R	Get		BE EF 03 06 00	34 F4 02	00 B1 30 00			00
	Increment		BE EF 03 06 00	52 F4 04	00 B1 30 00			00
	Decrement		BE EF 03 06 00	83 F5 05	00 B1 30 00			00
COLOR TEMP GAIN R Reset	Execute		BE EF 03 06 00	10 C6 06	00 46 70 00			00
COLOR TEMP GAIN G	Get		BE EF 03 06 00	70 F4 02	00 B2 30 00			00
	Increment		BE EF 03 06 00	16 F4 04	00 B2 30 00			00
	Decrement		BE EF 03 06 00	C7 F5 05	00 B2 30 00			00
COLOR TEMP GAIN G Reset	Execute		BE EF 03 06 00	EC C7 06	00 47 70 00			00
COLOR TEMP GAIN B	Get		BE EF 03 06 00	8C F5 02	00 B3 30 00			00
	Increment		BE EF 03 06 00	EA F5 04	00 B3 30 00			00
	Decrement		BE EF 03 06 00	3B F4 05	00 B3 30 00			00
COLOR TEMP GAIN B Reset	Execute		BE EF 03 06 00	F8 C4 06	00 48 70 00			00
COLOR TEMP OFFSET R	Get		BE EF 03 06 00	04 F5 02	00 B5 30 00			00
	Increment		BE EF 03 06 00	62 F5 04	00 B5 30 00			00
	Decrement		BE EF 03 06 00	B3 F4 05	00 B5 30 00			00
COLOR TEMP OFFSET R Reset	Execute		BE EF 03 06 00	40 C5 06	00 4A 70 00			00
COLOR TEMP OFFSET G	Get		BE EF 03 06 00	40 F5 02	00 B6 30 00			00
	Increment		BE EF 03 06 00	26 F5 04	00 B6 30 00			00
	Decrement		BE EF 03 06 00	F7 F4 05	00 B6 30 00			00
COLOR TEMP OFFSET G Reset	Execute		BE EF 03 06 00	BC C4 06	00 4B 70 00			00
COLOR TEMP OFFSET B	Get		BE EF 03 06 00	BC F4 02	00 B7 30 00			00
	Increment		BE EF 03 06 00	DA F4 04	00 B7 30 00			00
	Decrement		BE EF 03 06 00	OB F5 05	00 B7 30 00			00
COLOR TEMP OFFSET B Reset	Execute		BE EF 03 06 00	C8 C5 06	00 4C 70 00			00

(continued on next page)

RS-232C Communication command table (continued)

Names	Operation		Type	Header			Command Data
							CRC Action Type Setting Code
COLOR Get BE	EF 03 06 00 B5 72 02 00 02		22 00 00
	Increment BE EF 03		06 00 D3	72 04 00 02 22 00		00
	Decrement BE EF 03		06 00 02	73 05 00 02 22 00		00
COLOR Reset Execute	Get BE EF 03 06		00 49 73	02 00 03 22 00 00
	Increment BE EF 03		06 00 2F	73 04 00 03 22 00		00
	Decrement BE EF 03		06 00 FE	72 05 00 03 22 00		00
TINT	Execute		BE EF	03	06 00	7C D1	06 00	0B 70	00 00
SHARPNESS	Get BE EF 03 06		00 F1 72	02 00 01 22 00 00
	Increment BE EF 03		06 00 97	72 04 00 01 22 00		00
	Decrement BE EF 03		06 00 46	73 05 00 01 22 00		00
SHARPNESS Reset	Execute		BE EF	03	06 00	C4 D0	06 00	09 70	00 00
MY MEMORY Load	Set	1	BE EF	03	06 00	0E D7	01 00	14 20	00 00
		2	BE EF 03	06 00	9E D6 01 00	01 14 20 01	00
		3	BE EF 03	06 00	6E D6 01 00	01 14 20 02	00
		4	BE EF 03	06 00	FE D7	01 00 14 20	00 3 00
MY MEMORY Save	Set	1	BE EF	03	06 00	F2 D6	01 00	15 20	00 00
		2	BE EF 03	06 00	62 D7 01 00	01 15 20 01	00
		3	BE EF 03	06 00	92 D7 01 00	01 15 20 02	00
		4	BE EF 03	06 00	02 D6 01 00	01 15 20 03	00
ASPECT	Set 4:3 BE EF 03		06 00 9E	D0 01	00 08 20 00	00
	16:9 BE EF 03		06 00 0E	D1 01	00 08 20 01	00
	14:9 BE EF 03		06 00	CE D6	01 00	08 20 09 00
	16:10		BE EF 03	06 00	3E D6 01	00 08 20 0A	00
	NORMAL		BE EF	03	06 00	5E DD	01 00	08 20	10 00
	Get BE EF 03 06		00 AD	D0	02 00 08	20 00 00
OVER SCAN	Get BE EF 03 06		00 91 70	02 00 09	22 00 00
	Increment BE EF 03		06 00 F7	70 04 00	09 22 00	00
	Decrement BE EF 03		06 00 26	71 05 00	22 00 00	00
OVER SCAN Reset	Execute		BE EF	03	06 00	EC D9	06 00	27 70	00 00
V POSITION Get BE	EF 03	06 00 0D 83 02	00 00 21	00 00
	Increment BE EF 03		06 00 6B	83 04 00	21 00	00
	Decrement BE EF 03		06 00 BA	82	05 00 00	21 00 00
V POSITION Reset Execute	Execute BE EF 03 06 00 E0 D2		06 00 02	70 00 00
H POSITION Get BE	EF 03	06 00 F1 82 02	00 01 21	00 00
	Increment BE EF 03		06 00 97	82 04 00	21 00	00
	Decrement BE EF 03		06 00 46	83 05 00	21 00	00
H POSITION Reset Execute			BE EF	03	06 00	1C D3	06 00	03 70	00 00
H PHASE	Get BE EF 03 06		00 49 83	02 00 03	21 00 00
	Increment BE EF 03		06 00 2F	83 04 00	21 00	00
	Decrement BE EF 03		06 00 FE	82 05 00	21 00	00

(continued on next page)

RS-232C Communication command table (continued)

Names Operation Type Header							Command Data
							CRC Action Type Setting Code
H SIZE Get BE	EF 03 06 00 B5 82 02 00 02		21 00 00
	Increment BE EF 03 06 00 D3		82 04 00 02 21 00			00
	Decrement BE EF 03 06 00 02		83 05 00 02 21 00			00
H SIZE Reset Execute	BE EF 03 06 00 68 D2 06		00 04 70 00 00
AUTO ADJUST EXECUTE	Execute BE EF 03 06 00 91 D0 06 00 0A 20					00 00
PROGRESSIVE Set		OFF BE EF 03 06	00 4A	72 01 00 07		22 00 00
		TV	BE EF 03 06 00	DA 73 01 00		00 07 22 01	00
		FILM	BE EF 03 06 00	2A 73 01 00		00 07 22 02	00
	Get BE EF 03 06 00 79 72 02 00 07 22 00 00
VIDEO NR	Set	LOW	BE EF	03	06 00	26 72	01 00	06 22	01 00
		MID	BE EF 03 06 00	D6 72 01 00		00 06 22 02	00
		HIGH BE EF 03 06 00 46	73 01 00	00 06 22 03		00
	Get BE EF 03 06 00 85 73 02 00 06 22 00 00
COLOR SPACE Set		AUTO BE EF 03 06	00 0E 72 01 00 04 22 00 00
		RGB	BE EF 03 06 00	9E 73 01 00		00 04 22 01	00
		SMPTE240	BE EF 03 06 00	6E 73 01 00		00 04 22 02	00
		REC709	BE EF 03 06 00	FE 72 01 00		00 04 22 03	00
		REC601	BE EF 03 06 00	CE 70 01 00		00 04 22 04	00
	Get BE EF 03 06 00 3D 72 02 00 04 22 00 00
S-VIDEO FORMAT	Set	AUTO	BE EF	03	06 00	E6 70	01 00	12 22	0A 00
		NTSC	BE EF 03 06 00	86 74 01 00		12 22 04	00
		PAL	BE EF 03 06 00	16 75 01 00		12 22 05	00
		SECAM	BE EF 03 06 00	16 70 01 00		12 22 09	00
		NTSC4.43	BE EF 03 06 00	26 77 01 00		12 22 02	00
		M-PAL	BE EF 03 06 00	86 71 01 00		12 22 08	00
		N-PAL	BE EF 03 06 00	76 74 01 00		12 22 07	00
	Get BE EF 03 06 00 75 76 02 00 12 22 00 00
C-VIDEO FORMAT	Set	AUTO	BE EF	03	06 00	A2 70	01 00	11 22	0A 00
		NTSC	BE EF 03 06 00	C2 74 01 00		11 22 04	00
		PAL	BE EF 03 06 00	52 75 01 00		11 22 05	00
		SECAM	BE EF 03 06 00	52 70 01 00		11 22 09	00
		NTSC4.43	BE EF 03 06 00	62 77 01 00		11 22 02	00
		M-PAL	BE EF 03 06 00	C2 71 01 00		11 22 08	00
		N-PAL	BE EF 03 06 00	32 74 01 00		11 22 07	00
	Get BE EF 03 06 00 31 76 02 00 11 22 00 00
COMPUTER IN1	Set	AUTO	BE EF	03	06 00	CE D6	01 00	10 20	03 00
		SYNC ON G OFF	BE EF 03 06 00	5E D7 01		10 20 02	00
	Get BE EF 03 06 00 0D D6		02	00 10 20 00		00
COMPUTER IN2	Set	AUTO BE EF 03 06 00 32 D7 01 00 11 20 03				00
		SYNC ON G OFF	BE EF 03 06 00	A2 D6		01 00 11 20 02 00
	Get BE EF 03 06 00 F1 D7 02 00 11 20 00 00

(continued on next page)

Names Operation Type Header									Command Data
									CRC Action Type Setting Code
FRAME LOCK - COMPUTER IN1	Set	OFF BE EF 03 06 00 3B	C2 01 00 50 30 00 00
		ON BE EF 03	06 00 AB	C3 01 00 50 30 01 00
	Get BE EF 03 06		00 08 C2	02 00 50 30 00 00
FRAME LOCK - COMPUTER IN2	Set	OFF BE EF 03 06 00 0B	C3 01 00 54 30 00 00
		ON BE EF 03	06 00 9B	C2 01 00 54 30 01 00
	Get BE EF 03 06		00 38 C3	02 00 54 30 00 00
AUTO KEYSTONE V EXECUTE	Execute BE EF 03		06 00 E5	01 06 00 0D 20 00 00
KEYSTONE V	Get BE EF 03 06		00 B9 D3	02 00 07 20 00 00
	Increment		BE EF	03	06 00	DF D3		04 00	07 20	00 00
	Decrement		BE EF 03	06 00	OE D2 05	00	07	20 00 00
KEYSTONE V Reset	Execute BE EF 03		06 00 08	00 06 00 0C 70 00 00
AUTO ECO MODE	Set	OFF	BE EF	03	06 00	FB 27		01 00	10 33	00 00
		ON BE EF 03	06 00 6B	26 01 00 10 33 01 00
	Get BE EF 03 06		00 C8 27	02 00 10 33 00 00
ECO MODE	Set	BRIGHT	BE EF	03	06 00	3B 23		01 00	00 33	00 00
		NORMAL	BE EF	03	06 00	AB 22		01 00	00 33	01 00
	Get BE EF 03 06		00 08 23	02	00 00	33 00 00
MIRROR	Set	NORMAL	BE EF	03	06 00	C7 D2		01 00	01 30	00 00
		H:INVERT	BE EF 03	06 00	57 D3 01	00 01 30 01		00
		V:INVERT	BE EF	03	06 00	A7 D3		01 00	01 30	02 00
		H&V:INVERT	BE EF	03	06 00	37 D2		01 00	01 30	03 00
	Get BE EF 03 06		00 F4 D2	02 00	01 30 00 00
STANDBY MODE	Set	NORMAL	BE EF	03	06 00	D6 D2		01 00	01 60	00 00
		SAVING	BE EF 03	06 00	46 D3 01 00	01 60		01 00
	Get BE EF 03 06		00 E5 D2	02 00	01 60 00 00
MONITOR OUT - COMPUTER IN1	Set	COMPUTER1	BE EF 03	06 00	3E F4 01	00 B0 20 00		00
		OFF BE EF 03	06 00 CE	35	01 00 B0 20	FF		00
	Get BE EF 03 06		00 0D F4	02 00 B0 20 00 00
MONITOR OUT - COMPUTER IN2	Set	COMPUTER2	BE EF	03	06 00	CE F7		01 00	B4 20	04 00
		OFF BE EF 03	06 00	FE B4	01 00 B4 20	FF		00
	Get BE EF 03 06		00 3D F5	02 00 B4 20 00 00
MONITOR OUT - S-VIDEO	Set	COMPUTER1	BE EF 03	06 00	86 F5 01	00 B2 20 00		00
		COMPUTER2	BE EF 03	06 00	46 F7 01	00 B2 20 04		00
		OFF BE EF 03	06 00 76	B4 01 00	B2 20	FF 00
	Get BE EF 03 06		00 B5 F5	02 00 B2 20 00 00
MONITOR OUT - VIDEO	Set	COMPUTER1	BE EF 03	06 00	C2 F5 01	00 B1 20 00		00
		COMPUTER2	BE EF 03	06 00	02 F7 01	00 B1 20 04		00
		OFF BE EF 03	06 00 32	B4 01 00	B1 20	FF 00
	Get BE EF 03 06		00 F1 F5	02 00 B1 20 00 00
MONITOR OUT - STANDBY	Set	COMPUTER1	BE EF	03	06 00	2A F7		01 00	BF 20	00 00
		COMPUTER2	BE EF	03	06 00	EA F5		01 00	BF 20	04 00
		OFF BE EF 03	06 00 DA	B6 01	00 BF 20	FF 00
	Get BE EF 03 06		00 19 F7	02 00 BF 20				00 00
VOLUME - COMPUTER IN1	Get BE EF 03 06		00 CD	CC	02 00 60	20 00 00
	Increment		BE EF	03	06 00	AB CC		04 00	60 20	00 00
	Decrement		BE EF 03	06 00	7A CD 05	00 60 20 00		00

(continued on next page)

RS-232C Communication command table (continued)

Names	Operation		Type	Header			Command Data
							CRC Action Type Setting Code
VOLUME - COMPUTER IN2	Get BE EF 03 06		00 FD CD	02 00	64 20 00 00
	Increment BE EF 03		06 00 9B	CD 04	00 64 20 00	00
	Decrement BE EF 03		06 00 4A	CC 05	00 64 20 00	00
VOLUME - S-VIDEO	Get BE EF 03 06 00 75 CD 02		00 62 20 00	00
	Increment BE EF 03		06 00 13	CD 04	00 62 20 00	00
	Decrement BE EF 03		06 00 C2	CC 05	00 62 20 00	00
VOLUME - VIDEO	Get BE EF 03 06 00 31 CD 02		00 61 20 00	00
	Increment BE EF 03		06 00 57	CD 04	00 61 20 00	00
	Decrement BE EF 03		06 00 86	CC 05	00 61 20 00	00
VOLUME - AUDIO OUT STANDBY	Get BE EF 03 06		00 D9 CF	02 00	6F 20 00	00
	Increment BE EF 03		06 00 BF	CF 04	00 6F	20 00 00
	Decrement BE EF 03		06 00 6E	CE 05	00 6F	20 00 00
MUTE	Set	OFF	BE EF	03	06 00	46 D3	01 00	02 20	00 00
		ON	BE EF 03	06 00	D6 D2 01	00 02 20 01	00
	Get BE EF 03 06		00 75	D3 02	00 02 20 00	00
SPEAKER	Set	ON	BE EF	03	06 00	FE D4	01 00	1C 20	01 00
		OFF	BE EF	03	06 00	6E D5	01 00	1C 20	00 00
	Get BE EF 03 06		00 5D D5	02 00	1C 20	00 00
AUDIO SOURCE - COMPUTER IN1	Set	AUDIO IN1	BE EF 03	06 00	6E DC 01	00 30 20 01	00
		AUDIO IN2	BE EF 03	06 00	9E DC 01	00 30 20 02	00
		OFF BE EF 03		DD 01	00 30 20 00	00
	Get BE EF 03 06		00 CD	DD	02 00 30	20 00 00
AUDIO SOURCE - COMPUTER IN2	Set	AUDIO IN1	BE EF 03	06 00	5E DD 01	00 34 20 01	00
		AUDIO IN2	BE EF 03	06 00	AE DD	01 00 34 20 02 00
		OFF BE EF 03		DC	01 00 34	20 00 00
	Get BE EF 03 06		00 FD DC	02 00	34 20 00 00
AUDIO SOURCE - S-VIDEO	Set	AUDIO IN1	BE EF 03	06 00	D6 DD 01	00 32 20 01	00
		AUDIO IN2	BE EF 03	06 00	26 DD 01	00 32 20 02	00
		OFF BE EF 03		DC 01	00 32 20 02	20 00 00
	Get BE EF 03 06		00 75 DC	02 00	32 20 00 00
AUDIO SOURCE - VIDEO	Set	AUDIO IN1	BE EF 03	06 00	92 DD 01	00 31 20 01	00
		AUDIO IN2	BE EF 03	06 00	62 DD 01	00 31 20 02	00
		OFF BE EF 03		DC 01	00 31 20 00	20 00 00
	Get BE EF 03 06		00 31 DC	02 00	31 20 00 00
AUDIO OUT STANDBY	Set	AUDIO IN1	BE EF	03	06 00	7A DF	01 00	3F 20	01 00
		AUDIO IN2	BE EF	03	06 00	8A DF	01 00	3F 20	02 00
		OFF BE EF 03		DE	01 00 3F	20 00 00
	Get BE EF 03 06		00 D9 DE	02 00	3F 20 00	00

(continued on next page)

Names	Operation		Type	Header				Command Data
								CRC Action Type Setting Code
LANGUAGE * Set	ENGL	SH BE EF 03 06 00 F7	D3 01 00 05 30 00 00
		FRANÇAIS BE EF 03 06 00 67 D2 01 00 05 30 01 00
		DEUTSCH BE EF 03 06 00 97 D2 01 00 05 30 02 00
		ESPAÑOL BE EF 03 06 00 07 D3 01 00 05 30 03 00
		ITALIANO BE EF 03 06 00 37 D1 01 00 05 30 04 00
		NORSK	BE EF 03 06 00 A7 D0 01 00 05 30 05 00
		NEDERLANDS	BE EF 03 06 00 57 D0 01 00 05 30 06 00
		PORTUGUÈS	BE EF 03 06 00 C7 D1 01 00 05 30 07 00
		日本語	BE EF 03 06 00 37 D4 01 00 05 30 08 00
		简体中文	BE EF 03 06 00 A7 D5 01 00 05 30 09 00
		繁體中文	BE EF 03 06 00 37 DE 01 00 05 30 10 00
		한글	BE EF 03 06 00 57 D5 01 00 05 30 0A 00
		SVENSKA BE EF 03 06 00 C7 D4 01 00 05 30 0B 00
		PYCCKIЙ	BE EF 03 06 00 06 00 F7 D6 01 00 05 30 0C 00
		SUOMI	BE EF 03 06 00 67 D7 01 00 05 30 0D 00
		POLSKI	BE EF 03 06 00 97 D7 01 00 05 30 0E 00
		TÜRKÇE	BE EF 03 06 00 07 D6 01 00 05 30 0F 00
		DANSK	BE EF 03 06 00 A7 DF 01 00 05 30 11 00
		ČESKY	BE EF 03 06 00 57 DF 01 00 05 30 12 00
		MAGYAR BE EF 03 06 00 C7 DE 01 00 05 30 13 00
		ROMÁNÀ	BE EF 03 06 00 06 00 F7 DC 01 00 05 30 15 00
		SLOVENSKI	BE EF 03 06 00 67 DD 01 00 05 30 16 00
		HRVATSKI	BE EF 03 06 00 97 DD 01 00 05 30 16 00
		ΕΛΛΗΝΙΚΑ BE EF 03 06 00 07 DC 01 00 05 30 17 00
		LIETUVIU	BE EF 03 06 00 F7 D9 01 00 05 30 18 00
		EESTI	BE EF 03 06 00 67 D8 01 00 05 30 19 00
		LATVIEŠU BE EF 03 06 00 00 97 D8 01 00 05 30 1A 00
		ไทย	BE EF 03 06 00 07 D9 01 00 05 30 1B 00
		اللغة العربية	BE EF 03 06 00 37 DB 01 00 05 30 1C 00
		فارسی	BE EF 03 06 00 06 00 A7 DA 01 00 05 30 1D 00
		PORTUGUÈS BRA BE EF 03 06 00 00 57 DA 01 00 05 30 1E 00
	Get		BE EF 03 06 00 C4 D3 02 00 05 30 00 00
MENU POSITION H	Get		BE EF 03 06 00 04 D7 02 00 15 30 00 00
	Increment		BE EF 03 06 00 62 D7 04 00 15 30 00 00
	Decrement		BE EF 03 06 00 B3 D6 05 00 15 30 00 00
MENU POSITION H Reset	Execute		BE EF 03 06 00 03 06 00 DC C6 06 00 43 70 00 00
MENU POSITION V	Get		BE EF 03 06 00 40 D7 02 00 16 30 00 00
	Increment		BE EF 03 06 00 26 D7 04 00 16 30 00 00
	Decrement		BE EF 03 06 00 F7 D6 05 00 16 30 00 00
MENU POSITION V Reset	Execute		BE EF 03 06 00 A8 C7 06 00 44 70 00 00
BLANK	Set	MyScreen	BE EF 03 06 00 06 00 FB CA 01 00 00 30 20 00
		ORIGINAL	BE EF 03 06 00 06 00 FB E2 01 00 00 30 40 00
		BLUE	BE EF 03 06 00 06 00 CB D3 01 00 00 30 03 00
		WHITE	BE EF 03 06 00 6B D0 01 00 00 30 05 00
		BLACK	BE EF 03 06 00 06 00 9B DQ 01 00 00 30 06 00
	Get		BE EF 03 06 00 08 D3 02 00 00 30 00 00

* Not all of the languages in the table are supported.

(continued on next page)

RS-232C Communication command table (continued)

Names	Operation		Type	Header			Command Data
						CRC Action Type Setting Code
BLANK On/Off Set	OFF	BE EF 03 06 00 FB D8	01 00 20 30	00 00
		ON BE EF 03	06 00 6B	D9 01	00 20 30 01	00
	Get BE EF 03 06		00 C8 D8	02 00	20 30 00 00
START UP	Set	MyScreen	BE EF	03	06 00	CB CB	01 00	04 30
		ORIGINAL	BE EF 03	06 00	0B D2 01	00 04 30 00	00
		OFF BE EF 03	06 00 9B	D3 01	00 04 30 01	00
	Get BE EF 03 06		00 38	D2	02 00 04	30 00 00
MyScreen Lock Set	OFF	BE EF 03 06 00 3B EF	01 00	C0 30	00 00
		ON	BE EF	03	06 00	AB EE	01 00	C0 30
	Get		BE EF	03	06 00	08 EF	02 00	C0 30
MESSAGE Set O	OFF BE	EF 03 06 00 8F	D6 01 00 17	30 00	00
		ON BE EF 03	06 00 1F	D7	01 00 17 30	01 00
	Get BE EF 03 06		00 BC	D6 02	00 17 30 00	00
TEMPLATE	Set	TEST PATTERN	BE EF	03	06 00	43 D9	01 00	22 30
		DOT-LINE1	BE EF 03	06 00	D3 D8 01	00 22 30 01	00
		DOT-LINE2	BE EF	03	06 00	23 D8	01 00	22 30
		DOT-LINE3	BE EF 03	06 00	B3 D9 01	00 22 30 03	00
		DOT-LINE4	BE EF 03	06 00	B3 DB 01	00 22 30 04	00
		CIRCLE 1	BE EF	03 06	00 13 DA	01 00 22 30	05 00
		CIRCLE 2	BE EF	03 06	00 E3 DA	01 00 22 30	06 00
		MAP 1	BE EF	03	06 00	83 D4	01 00	22 30
		MAP 2	BE EF	03	06 00	13 D5	01 00	22 30
	Get BE EF 03 06		00 70	D9	02 00 22	30 00 00
TEMPLATE On/Off	Set	OFF BE EF 03 06 00 BF	D8 01 00	23 30 00	00
		ON BE EF 03	06 00 2F	D9	01 00 23 30	01 00
	Get BE EF 03 06		00 8C D8	02 00	23 30 00 00
C. C. - DISPLAY	Set	OFF	BE EF	03	06 00	FA 62	01 00	00 37
		ON	BE EF	03	06 00	6A 63	01 00	00 37
		AUTO	BE EF	03	06 00	9A 63	01 00	00 37
	Get		BE EF	03	06 00	C9 62	02 00	00 37
C. C. - MODE	Set	CAPTIONS	BE EF	03	06 00	06 63	01 00	01 37
		TEXT	BE EF 03	06 00	96 62	01 00 01 37	01 00
	Get BE EF 03 06		00 35	63 02	00 01 37 00	00
C. C. - CHANNEL	Set	1	BE EF	03	06 00	D2 62	01 00	02 37
		2	BE EF 03	06 00	22 62	01 00 02 37	02 00
		3	BE EF	03	06 00	B2 63	01 00	02 37
		4	BE EF 03	06 00	82 61	01 00 02 37	04 00
	Get BE EF 03 06		00 71	63 02	00 02 37 00	00
AUTO SEARCH Set	OFF	BE EF 03 06 00 B6 D6	01 00 16 20	00 00
		ON	BE EF	03	06 00	26 D7	01 00	16 20
	Get		BE EF	03	06 00	85 D6	02 00	16 20
AUTO KEYSTONE	Set	OFF BE EF 03 06 00 EA	D1 01 00	OF	20 00 00
		ON BE EF 03	06 00 7A	D0 01 00	OF	20 01 00
	Get BE EF 03 06		00 D9 D1	02 00	OF 20 00	00
DIRECT POWER ON	Set	OFF	BE EF	03	06 00	3B 89	01 00	20 31
		ON BE EF 03	06 00 AB	88 01	00 20 31 01	00
	Get BE EF 03 06		00 08	89 02	00 20 31 00	00

(continued on next page)

RS-232C Communication command table (continued)

Names	Operation		Type	Header			Command Data
							CRC Action Type Setting Code
AUTO POWER OFF Get BE EF 03 06 00 08 86 02			00 10 31 00	00
			Increment BE EF 03 06 00 6E	86 04	00 10 31 00	00
			Decrement BE EF 03 06 00 BF	87 05	00 10 31 00	00
LAMP TIME Get BE EF 03 06 00 C2 FF 02 00			90 10 00 00
LAMP TIME Reset Execute		BE EF 03	06 00 58 DC	06 00	30 70 00	00
FILTER TIME	Get		BE EF	03	06 00	C2 F0	02 00	A0 10	00 00
FILTER TIME Reset	Execute		BE EF	03	06 00	98 C6	06 00	40 70	00 00
MY BUTTON-1	Set	COMPUTER IN1	BE EF	03	06 00	3A 33	01 00	00 36	00 00
		COMPUTER IN2	BE EF 03	06 00	FA 31	01 00 00 36	04 00
		S-VIDEO	BE EF	03	06 00	5A 32	01 00	00 36	02 00
		VIDEO	BE EF 03	06 00	AA 32 01	00 00 36 01	00
		INFORMATION	BE EF 03	06 00	FA 3E 01	00 00 36 10	00
		AUTO KEYSTONE	BE EF 03	06 00	6A 3F 01	00 00 36	11 00
		MY MEMORY	BE EF 03	06 00	9A 3F	01 00 00 36	12 00
		PICTURE MODE BE	EF 03	06 00 0A	3E 01 00	00 36 13 00
		FILTER RESET	BE EF 03	06 00	3A 3C 01	00 00 36 14	00
		AV MUTE	BE EF 03	06 00	AA 38 01	00 00 36 19	00
		TEMPLATE	BE EF 03	06 00	CA 39 01	00 00 36	1B 00
		RESOLUTION	BE EF 03	06 00	9A 3A 01	00 00 36 1E	00
		ECO MODE	BE EF	03	06 00	0A 25	01 00	00 36	37 00
	Get BE EF 03 06 00 09 33		02 00 00	36 00 00
MY BUTTON-2	Set	COMPUTER IN1	BE EF	03	06 00	C6 32	01 00	01 36	00 00
		COMPUTER IN2	BE EF 03	06 00	06 30 01 00	01 36 04	00
		S-VIDEO	BE EF	03	06 00	A6 33	01 00	01 36	02 00
		VIDEO	BE EF 03	06 00	56 33 01 00	01 36 01	00
		INFORMATION	BE EF 03	06 00	06 3F 01 00	01 36 10	00
		AUTO KEYSTONE	BE EF 03	06 00	96 3E 01 00	01 36	11 00
		MY MEMORY	BE EF 03	06 00	66 3E 01 00	01 36 12	00
		PICTURE MODE BE	EF 03	06 00	F6 3F 01	00 01 36	13 00
		FILTER RESET	BE EF	03	06 00	C6 3D	01 00	01 36	14 00
		AV MUTE	BE EF 03	06 00	56 39 01 00	01 36 19	00
		TEMPLATE	BE EF 03	06 00	36 38 01 00	01 36	1B 00
		RESOLUTION	BE EF	03	06 00	66 3B	01 00	01 36	1E 00
		ECO MODE	BE EF 03	06 00	F6 24 01 00	01 36 37	00
	Get BE EF 03 06 00 F5 32		02 00 01	36 00 00

(continued on next page)

RS-232C Communication command table (continued)

Names	Operation		Type	Header					Command Data
									CRC Action Type Setting Code
MY BUTTON-BLANK Set COMPUTER IN1 BE EF 03		COMPUTER IN1 BE EF 03	06 00 5A	81 01 00	00 08 36 00	00
		COMPUTER IN2 BE	EF 03 06 00	9A 33	01 00 08	36 04 00
		S-VIDEO BE EF	03 06 00 3A	30 01	00 08 36	02 00
		VIDEO BE EF	03 06 00 CA	30 01	00 08 36 01	00
		INFORMATION BE	EF 03 06 00	9A 3C	01 00 08	36 10 00
		AUTO KEYSTONE BE	EF 03 06	00 0A	3D 01 00 08	36 11 00
		MY MEMORY	BE EF 03	06 00	FA 3D 01	00 08 36	12 00
		PICTURE MODE BE	EF 03	06 00	6A 3C 01	00 08 36 13	00
		FILTER RESET BE	EF 03 06	00 5A 3E	01 00 08	36	14 00
		AV MUTE	BE EF	03	06 00	CA 3A	01 00	08 36	19 00
		TEMPLATE	BE EF	03	06 00	AA 3B	01 00	08 36	1B 00
		RESOLUTION	BE EF 03	06 00	FA 38 01	00 08 36	1E 00
		ECO MODE	BE EF 03	06 00	6A 27 01	00 08 36 37	00
		BLANK	BE EF 03	06 00	9A 00 01	00 08 36 40	00
		FREEZE	BE EF 03	06 00	0A 01 01	00 08 36 41	00
		VOLUME	BE EF 03	06 00	FA 01 01	00 08 36	42 00
		AUTO	BE EF 03	06 00	6A 00 01	00 08 36 43	00
		Get	BE EF 03	06 00	69 31 02	00 08 36 00	00
MY SOURCE	Set	COMPUTER IN1	BE EF	03	06 00	FA 38	01 00	20 36	00 00
		COMPUTER IN2 BE	EF 03 06	00 3A 3A	01 00	20 36 04	00
		S-VIDEO BE EF	03 06 00 9A	39 01	00 20 36	02 00
		VIDEO BE EF	03 06 00 6A	39 01	00 20 36 01	00
	Get		BE EF 03	06 00	C9 38 02	00 20 36 00	00
Magnify Position H	Get		BE EF	03	06 00	C8 D7	02 00	10 30	00 00
	Increment		BE EF	03	06 00	AE D7	04 00	10 30	00 00
	Decrement		BE EF 03	06 00	7F D6 05	00 10 30	00 00
Magnify Position V	Get		BE EF	03	06 00	34 D6	02 00	11 30	00 00
	Increment		BE EF 03	06 00	52 D6 04	00 11 30 00	00
	Decrement		BE EF 03	06 00	83 D7 05	00 11 30 00	00

HITACHI

Inspire the Next

Hitachi America, Ltd.

Digital Media Division

900 Hitachi way, Chula Vista

CA 91914-3556 USA CANADA

Tel: [phone]

Fax: [phone]

http://www.hitachi-america.us/digitalmedia

Hitachi Europe Ltd., Consumer Affairs Department

PO Box 3007

Maidenhead

Berkshire SL6 8ZE UNITED KINGDOM

Tel: [phone]

Email: [e-mail]

Hitachi Europe S.A.S., Digital Media Group

Level 3, 82 Waterloo Road

North Ryde N.S.W 2113 AUSTRALIA

Tel: [phone]

Fax: [phone]

http://www.hitachi.com.au

Hitachi (Hong Kong), Ltd.

18/F., Ever Gain Centre, 28 On Muk Street.,

Shatin, N.T. HONG KONG

Tel: [phone]

Fax: [phone]

http://www.hitachi-hk.com.hk

Hitachi Sales (Malaysia) Sdn. Bhd.

Lot 12, Jalan Kamajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan

MALAYSIA

Tel: [phone]

Fax: [phone]

http://www.hitachiconsumer.com.my

Hitachi Home Electronics Asia, (S) Pte Ltd.

438A Alexandra Road #01-01/02/03

Alexandra Technopark, 119967 SINGAPORE

Tel: [phone]

Fax: [phone]

http://www.hitachiconsumer.com.sg

Hitachi Sales Corp. of Taiwan

2nd Floor, No.65, Nanking East Road, Section 3,

Taipei 104 TAIWAN

Tel: [phone]

Fax: [phone]

http://www.hsct.com.tw

Hitachi Sales (Thailand), Ltd.

994, Soi Thonglor, Sukhumvit 55 Road,

Klongtonnua, Vadhana, Bangkok 10110

THAILAND

Tel: [phone]

Fax: [phone]-0021

http://www.hitachi-th.com

Hitachi Consumer Electronics Co., Ltd.

292 Yoshida-cho, Totsuka-ku

Yokohama 244-0817 JAPAN

Tel: [phone]

Fax: [phone]
