USER MANUAL CPWX12WNEF HITACHI

natural_image Line drawing of a projector with ventilation grilles and a circular lens (no text or symbols)

(1) Lampbehuizing (93)

Part names (continued)

Bedieningspaneel

(1) STANDBY/ON-knop (19)
(2) INPUT-knop (22, 29)
(3) MENU-knop (29)

natural_image Diagram of a room layout with a printer, monitor, and chair, showing spatial arrangement without any text or symbols.

Opstellen

natural_image Mechanical component diagram showing a lever mechanism with a downward arrow indicating motion (no text or symbols present)

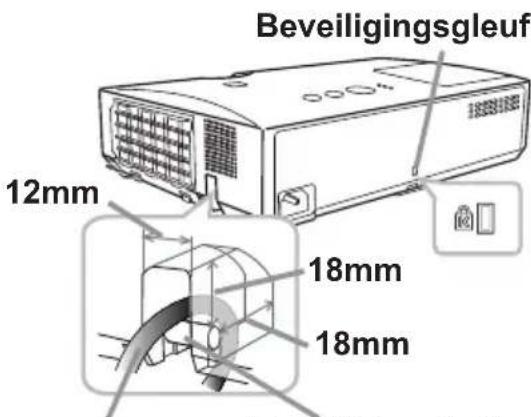

Beveiligingsgleuf 12mm 18mm 18mm

natural_image Diagram of a camera with an upward arrow indicating motion or force (no text or symbols)

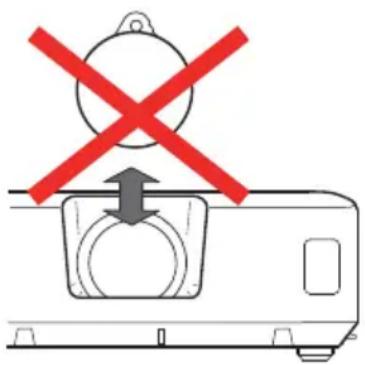

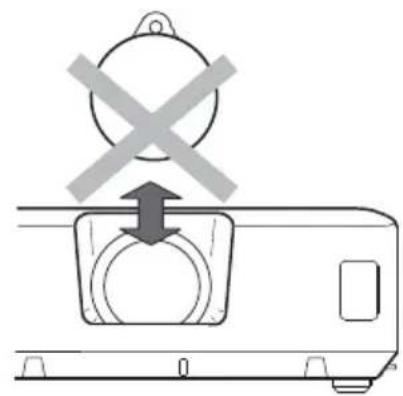

Diagram showing a device with a red X symbol above it and an arrow pointing to a circular component, indicating prohibition or disapproval.

In werking

Volume aanpassen

VOLUME+/- -knop

natural_image Technical line drawing of a portable air conditioner unit with 12° angle annotation (no text or symbols on the device itself)
natural_image Illustration of a projector with a handle and two wheels, showing mechanical components (no text or symbols)
natural_image Line drawing of a projector with an inset showing its internal components (no text or symbols)

GEHEUGEN_OPENEN-4 TIJDELIJKE CONDITIE WEET U ZEKER DAT U VILT DOORGAAN MET LADEN? ●NEE ▶JA

Transmission speed (Overbrengingsnelheid)

natural_image Line drawing of a device with a tray and control panel, no text or symbols present
natural_image Diagram of a solar panel array with a grid and adjacent panel (no text or symbols)
natural_image Two rectangular objects with grid patterns, possibly battery packs or enclosures, shown without any text or symbols.

Filter (grove mazen)

natural_image Line drawing of a projector with ventilation grille and front panel (no text or symbols)

(z.o.z.)

(z.o.z.)

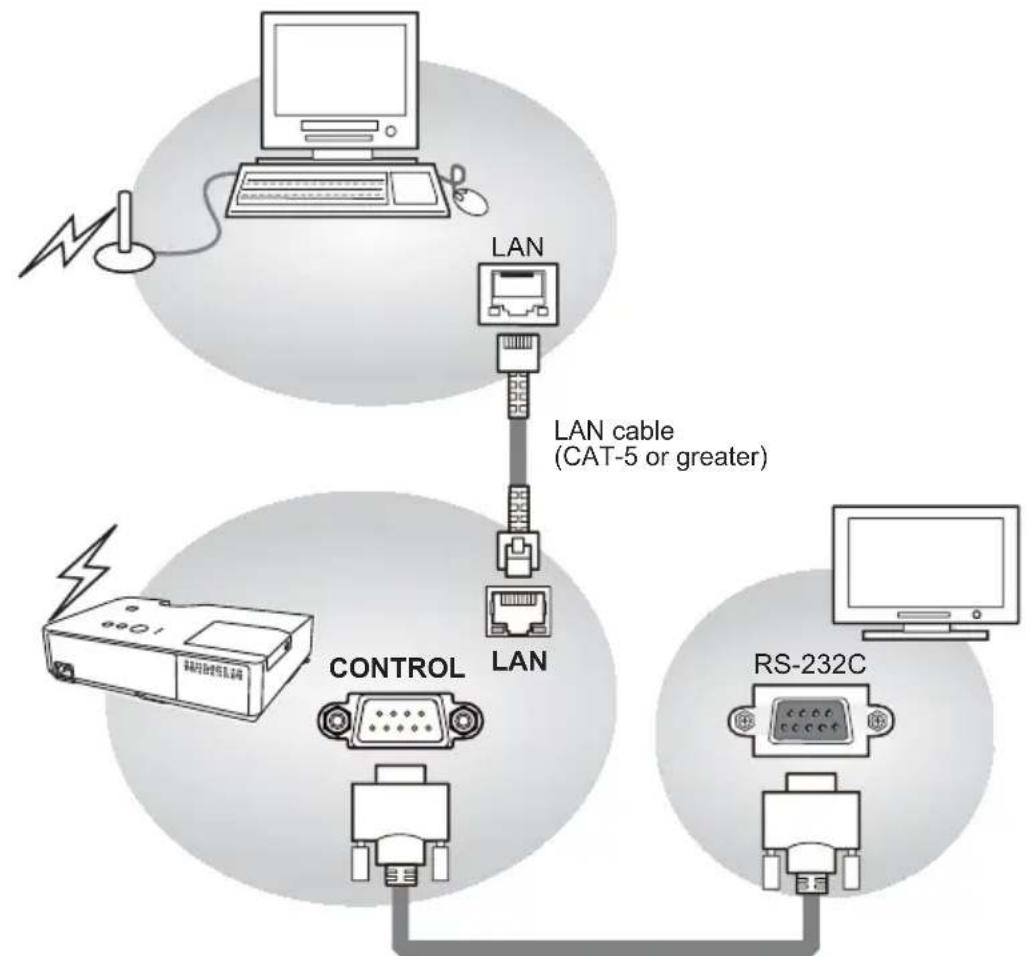

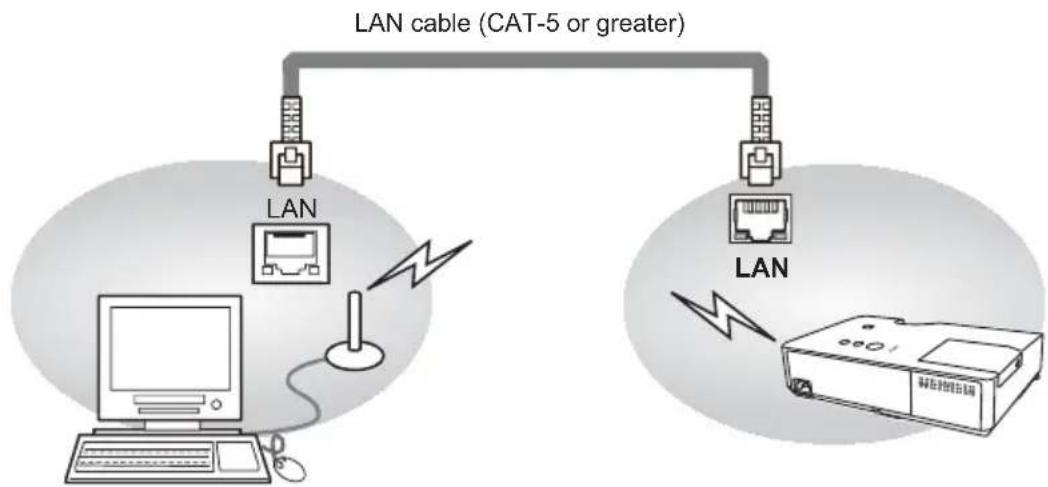

1.4 Handmatige netwerkverbinding installatie - draadloze LAN -

natural_image Illustration of a laptop connected to a projector (no text or symbols present)

3) Selecteer "Internet Protocol version 4 (TCP/IPv4)" en klik op [Eigenschappen].

Data Edit Data settings: 100% Data Data settings: 100% Data Data settings: 100% Data Data settings: 100% Data Data settings: 100% Data Data settings: 100% Data Data settings: 100% Data Data settings: 100% Data Data settings: 100% Data Data settings: 100% Data Data settings: 100% Dashed-line Data settings: 100% Dashed-line Data settings: 100% Dashed-line Data settings: 100% Dashed-line Data settings: 100% Dashed-line Data settings: 100% Dashed-line Data settings: 100% Dashed-line Data settings: 100% Dashed-line Data settings: 100% Dashed-line Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Data settings: Dashed-line Edit Edit Settings

(z.o.z.)

[Over het IP-adres]

(Network address: 192.168.10 in dit geval)

(Network address: 192.168.10 in dit geval)

N.B. • Internet Explorer® 6.0 of later is vereist.

IP Address <Projector

MAC Address <Projector

IP-adres>

MAC-ad

7.2 Projectorbeheer m.b.v. SNMP

User's Manual (detailed)

Operating Guide – Technical

Example of PC signal

Resolution (H x V)H. frequency (kHz)V. frequency (Hz)Rating Signal mode
720 x 40037.9 85.0 VESA TEXT
640 x 480 31.559.9 VESA VGA (60Hz)
640 x 480 37.972.8 VESA VGA (72Hz)
640 x 480 37.575.0 VESA VGA (75Hz)
640 x 480 43.385.0 VESA VGA (85Hz)
800 x 600 35.256.3 VESA SVGA (56Hz)
800 x 600 37.960.3 VESA SVGA (60Hz)
800 x 600 48.172.2 VESA SVGA (72Hz)
800 x 600 46.975.0 VESA SVGA (75Hz)
800 x 600 53.785.1 VESA SVGA (85Hz)
832 x 624 49.774.5 Mac 16" mode
1024 x 768 48.460.0 VESA XGA (60Hz)
1024 x 768 56.570.1 VESA XGA (70Hz)
1024 x 768 60.075.0 VESA XGA (75Hz)
1024 x 768 68.785.0 VESA XGA (85Hz)
1152 x 864 67.575.0 VESA1152 x 864 (75Hz)
1280 x 768 47.760.0 VESA W-XGA (60Hz)
1280 x 800 49.760.0 VESA1280 x 800 (60Hz)
1280 x 960 60.060.0 VESA1280 x 960 (60Hz)
1280 x 102464.0 60.0 VESA SXGA (60Hz)
1280 x 102480.0 75.0 VESA SXGA (75Hz)
*1 1280 x 102491.1 85.0 VESA SXGA (85Hz)
*2 1400 x 105065.2 60.0 VESA SXGA+ (60Hz)
1440 x 90055.9 59.9 VESA WXGA+ (60Hz)
*3 1680 x 105065.360.0VESAWSXGA+ (60Hz)
*1 1600 x 120075.060.0VESAUXGA (60Hz)

*1) Supported except for HDMI input. *2) Only for CPX10WN and CPX11WN.

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.

  • Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
  • Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
  • Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
    • Automatic adjustment may not function correctly with some input signals.
  • The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Initial set signals

The following signals are used for the initial settings. The signal timing of some PC models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu.

Back porch (B) Front porch (D) Active video (C) Data H. Sync. Sync (A)

Back porch (b) Front porch (d) Data Active video (c) V. Sync. Sync (a)

Resolution (H x V)Horizontal signal timing (μs)Vertical signal timing (lines)Signal mode
(A)(B)(C)(D)(a)(b)(c)(d)
720 x 4002.03.020.31.03.424001TEXT
640 x 480 3.81.925.40.623348010 VGA (60Hz)
640 x 480 1.34.120.30.83284809 VGA (72Hz)
640 x 480 2.03.820.30.53164801 VGA (75Hz)
640 x 480 1.62.217.81.63254801 VGA (85Hz)
800 x 600 2.03.622.20.72226001SVGA (56Hz)
800 x 600 3.22.220.01.04236001SVGA (60Hz)
800 x 600 2.41.316.01.162360037 SVGA (72Hz)
800 x 600 1.63.216.20.33216001SVGA (75Hz)
800 x 600 1.12.714.20.63276001SVGA (85Hz)
832 x 624 1.13.914.50.63396241Mac 16" mode
1024 x 768 2.12.515.80.46297683 XGA (60Hz)
1024 x 768 1.81.913.70.36297683 XGA (70Hz)
1024 x 768 1.22.213.00.23287681 XGA (75Hz)
1024 x 768 1.02.210.80.53367681 XGA (85Hz)
1152 x 864 1.22.410.70.633286411152 x 864 (75Hz)
1280 x 768 1.72.516.00.83237681 W-XGA (60Hz)
1280 x 800 1.62.415.30.83248001 W-XGA (60Hz)
1280 x 960 1.02.911.90.93369601 W-XGA (60Hz)
1280 x 10241.02.311.90.433810241SXGA (60Hz)
1280 x 1024 1.1.11.89.50.133810241 SXGA (75Hz)
1280 x 1024 1.01.48.10.434410241 SXGA (85Hz)
1400 x 1050 1.22.011.40.73331050 1 SXGA+ (60Hz)
1440 x 900 1.42.213.50.86259003 W XGA+ (60Hz)
1680 x 10501.21.911.50.763010503WSXGA+ (60Hz)
1600 x 1200 1.21.99.90.434612001 UXGA (60Hz)

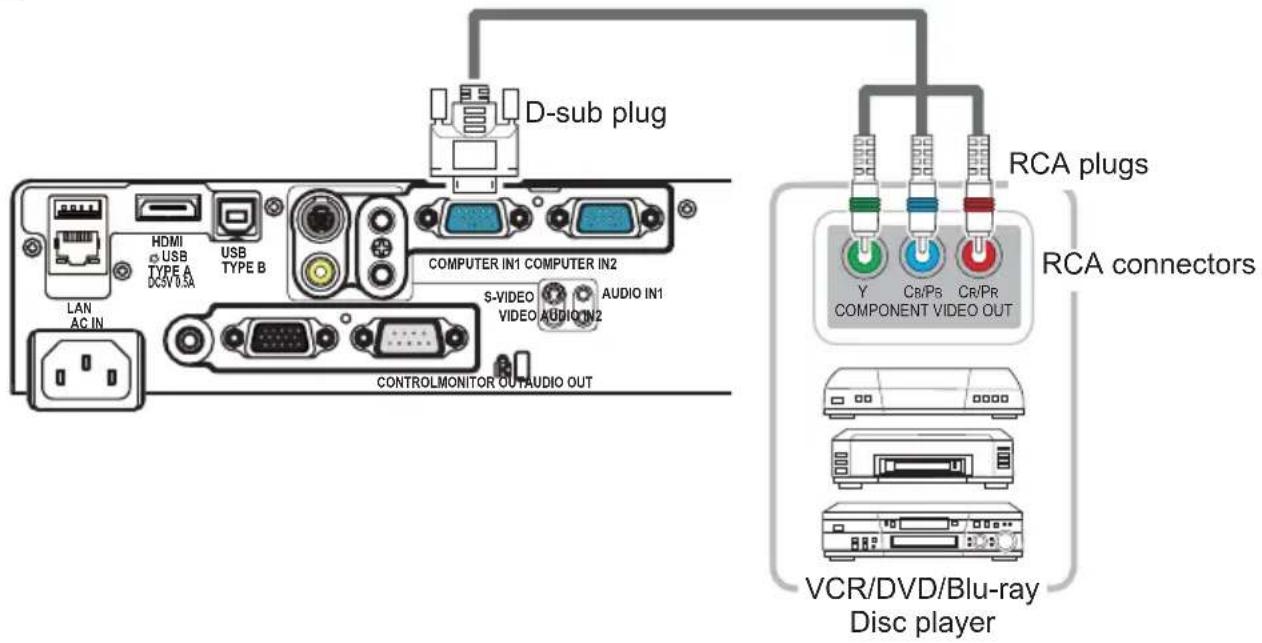

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

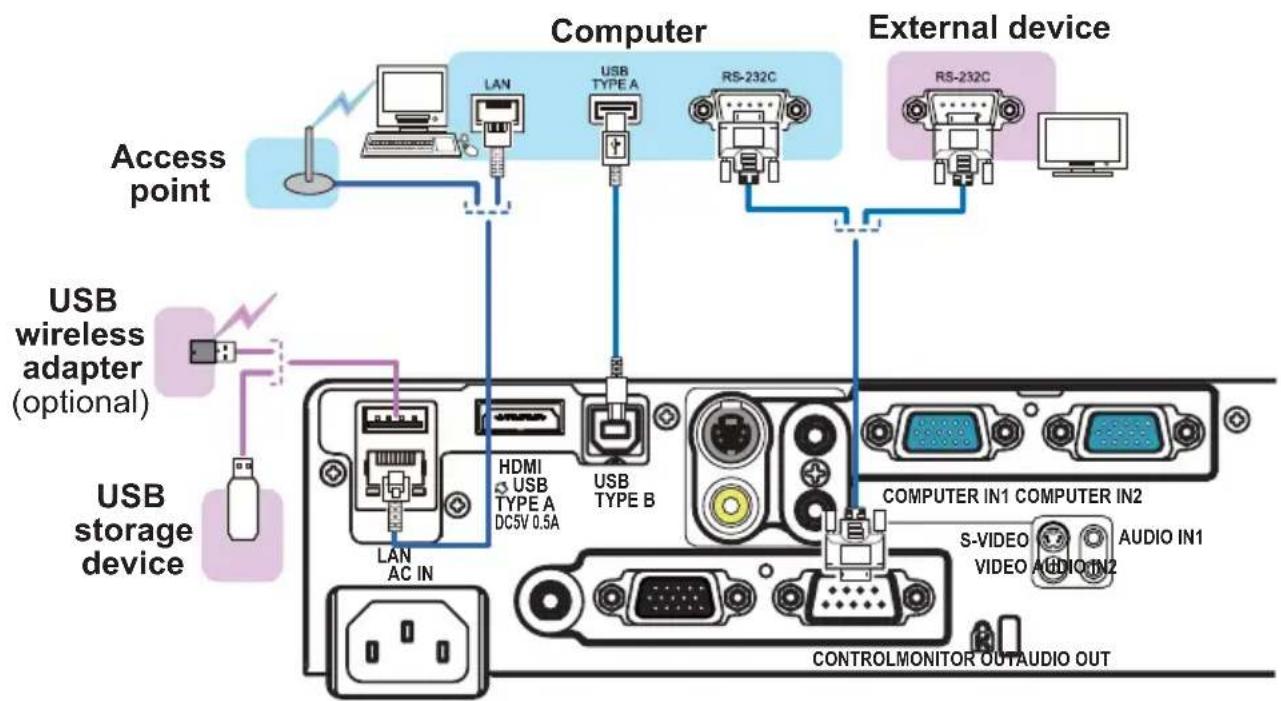

LAN AC IN HDMI USB TYPE A DC5V 0.5A USB TYPE B A B C COMPUTER IN1 COMPUTER IN2 S-VIDEO VIDEO AUDIO IN1 AUDIO IN2 CONTROLMONITOR OUTAUDIO OUT

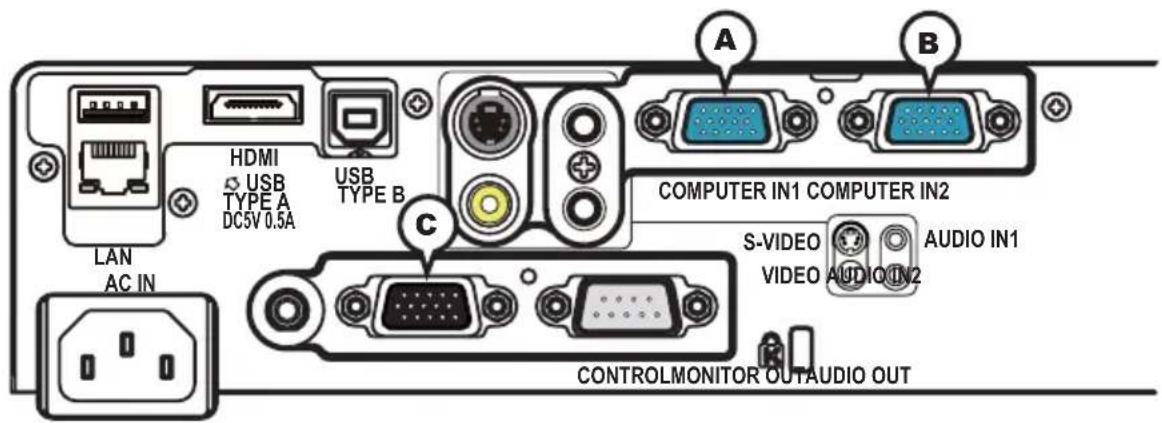

A COMPUTER IN1, B COMPUTER IN2, C MONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

- Composite sync. signal: TTL level

- Video signal:

①⑬⑭⑮⑯ ⑥①⑤ ①④③②①③④⑤⑥⑦⑧⑨⑪⑫⑬⑭⑮⑯⑰⑱⑲⑳⑴⑵⑶⑷⑩⑪⑫⑬⑭⑮⑯⑰⑱⑲⑳⑴⑵⑶⑷⑩⑪⑫⑬⑭⑮⑯⑰⑱⑲⑳⑴⑵⑶⑷⑩⑪⑫⑬⑭⑮⑯⑰⑱⑲⑳⑴⑵⑶⑷⑩⑪⑫⑬⑭⑯⑰⑱⑲⑳⑴⑵⑥⑦⑧ 432

987

-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated

-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

-Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

System: 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60

PinSignal Pin Signal
1Video Red, Cr/Pr9(No connection)
2Video Green, Y10Ground
3Video Blue, Cb/Pb11(No connection)
4(No connection)12A: SDA (DDC data), (No connection)B, C: (No connection)
5Ground
6Ground Red, Ground Cr/Pr13H. sync / Composite sync., (No connection)
7Ground Green, Ground Y14V. sync., (No connection)
8Ground Blue, Ground Cb/Pb15A: SCL (DDC clock), (No connection)B, C: (No connection)

F HDMI USB TYPE A DC5V 0.5A USB TYPE B D COMPUTER IN1 COMPUTER IN2 E S-VIDEO AUDIO IN1 VIDEO AUDIO IN2 LAN AC IN CONTROLMONITOR OUTAUDIO OUT

DS-VIDEO

Mini DIN 4pin jack

HITACHI CPWX12WNEF - DS-VIDEO - 1

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)

Pin Signal
1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

©VIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)
• 1.0±0.1Vp-p, 75Ω terminator

F HDMI

  • Type :HDMI TM connector
  • Audio signal : Linear PCM (Sampling rate; 32/44.1/48 kHz)

18 16 14 12 10 8 6 4 2 19 17 15 13 11 9 7 5 3 1

PinSignal Pin Signal Pin Signal
1T.M.D.S. Data2 +8T.M.D.S. Data0 Shield15SCL
2T.M.D.S. Data2 Shield9T.M.D.S. Data0 -16SDA
3T.M.D.S. Data2 -10T.M.D.S. Clock +17DDC/CEC Ground
4T.M.D.S. Data1 +11T.M.D.S. Clock Shield18+5V Power
5T.M.D.S. Data1 Shield12T.M.D.S. Clock -19Hot Plug Detect
6T.M.D.S. Data1 -13CEC
7T.M.D.S. Data0 +14Reserved(N.C. on device)

LAN AC IN HDMI USB TYPE A DC5V USB TYPE B G I H COMPUTER IN1 COMPUTER IN2 S-VIDEO AUDIO IN1 VIDEO AUDIO IN2 CONTROLMONITOR OUTAUDIO OUT

©AUDIO IN1, ⒽAUDIO IN2

- About the details of RS-232C communication, please refer to the next chapter.

⑨⑧⑦⑥ ⑤④③②①

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7RTS
2 RD 5 Ground 8 CTS
3TD6(No connection)9(No connection)

©USB TYPE A

USB A type jack

PinSignal
1+5V
2- Data
3+ Data
4Ground

HITACHI CPWX12WNEF - ©USB TYPE A - 1

LUSB TYPE B

USB B type jack

Pin Signal
1+5V
2- Data
3+ Data
4Ground

HITACHI CPWX12WNEF - LUSB TYPE B - 1

©MLAN

RJ-45 jack

PinSignalPinSignalPinSignal
1TX+4-7-
2TX-5-8-
3RX+6RX-

1 2 3 4 5 6 7 8

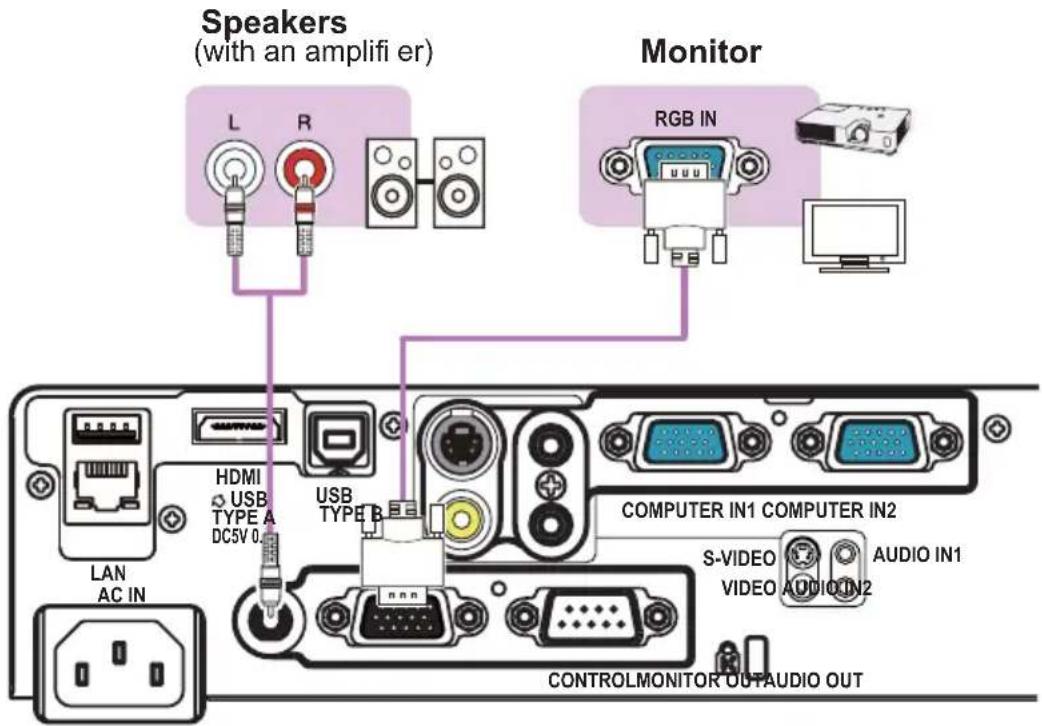

To input component video signal to COMPUTER IN ports

ex.

D-sub plug HDMI USB TYPE A DC5V 0.5A USB TYPE B COMPUTER IN1 COMPUTER IN2 S-VIDEO AUDIO IN1 VIDEO AUDIO IN2 CONTROLMONITOR OUTAUDIO OUT RCA plugs Y Cr/Ps Cr/PR COMPONENT VIDEO OUT RCA connectors VCR/DVD/Blu-ray Disc player

To input component video signal to the COMPUTER IN1 or COMPUTER IN2 port of the projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the descriptions about COMPUTER IN1 or COMPUTER IN2 port (3).

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

Connection

  1. Turn off the projector and the computer.
  2. Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfills the specification shown in figure.
  3. Turn the computer on, and after the computer has started up turn the projector on.
  4. Set the COMMUNICATION TYPE to OFF. OPTION menu - SERVICE - COMMUNICATION in the Operating Guide)

HITACHI CPWX12WNEF - Connection - 1

RS-232C port of the computer
③ ⑧ ⑦ ⑥ ⑤ ① ③ ② ①

CONTROL port of the projector
⑨ 8 7 6 ⑤ 4 3 2 1

HITACHI CPWX12WNEF - Connection - 4

Communication settings

1. Protocol

19200bps,8N1

  1. Command format ("h" shows hexadecimal)
Byte Number01234569101
CommandActionHeader Data
Header codePacketData sizeCRC flagAction TypeSetting code
LHLHLHLHLHLH
BEhEFh03h06h00h(aL)(aH)01h00h(bL)(bH)(cL)(cH)
(aL)(aH)02h00h(bL)(bH)00h00h
(aL)(aH)04h00h(bL)(bH)00h00h
(aL)(aH)05h00h(bL)(bH)00h00h
(aL)(aH)06h00h(bL)(bH)00h00h

[Header code], [Packet], [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0 \~ 4.

[CRC flag]

For byte number 5, 6, refer to RS-232C Communication / Network command table (17).

[Action]

Set functional code to byte number 7, 8.

lt; SET gt; = [0 1 h, 0 0 h], lt; GET gt; = [0 2 h, 0 0 h], lt; INCREMENT gt; = [0 4 h, 0 0 h]

lt; DECREMENT gt; = [0 5 h, 0 0 h], lt; EXECUTE gt; = [0 6 h, 0 0 h]

Refer to the command table above.

[Type], [Setting code]

For byte number 9\~12, refer to RS-232C Communication / Network command table (17).

3. Response code / Error code ("h" shows hexadecimal)

(1) ACK reply : 06h

When the projector receives the Set, Increment, Decrement or Execute command correctly, the projector changes the setting data for the specified item by [Type], and it returns the code.

(2) NAK reply : 15h

When the projector cannot understand the received command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

(3) Error reply : 1Ch + 0000h

When the projector cannot execute the received command for any reasons, the projector returns the error code.

In such a case, check the sending code and the setting status of the projector.

(4) Data reply : 1Dh + xxxxh

When the projector receives the GET command correctly, the projector returns the response code and 2 bytes of data.

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

  • Operation cannot be guaranteed when the projector receives an undefined command or data.
  • Provide an interval of at least 40ms between the response code and any other code.
  • The projector outputs test data when the power supply is switched ON, and when the lamp is lit. Ignore this data.
  • Commands are not accepted during warm-up.
  • When the data length is greater than indicated by the data length code, the projector ignore the excess data code. Conversely when the data length is shorter than indicated by the data length code, the projector returns the error code to the computer.

Command Control via the Network

When the projector connects network, the projector can be controlled with RS-232C commands from the computer with web browser.

For details of RS-232C commands, refer to RS-232C Communication / Network command table (17).

NOTE • If data is transferred via wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

  1. Turn off the projector and the computer.
  2. If you use wired LAN, connect the projector's LAN port to the computer's LAN port with a LAN cable. Use the cable that fulfills the specification shown in figure. If you use wireless LAN, insert the USB wireless adapter into the projector's USB TYPE A port.
  3. Turn the computer on, and after the computer has started up turn the projector on.

HITACHI CPWX12WNEF - Connection - 1

Communication Port

The following two ports are assigned for the command control.

TCP #23

TCP #9715

Configure the following items form a web browser when command control is used.

Port Settings
Network Control Port1 (Port: 23)Port openClick the [Enable] check box to open [Network Control Port1 (Port: 23)] to use TCP #23. Default setting is “Enable”.
AuthenticationClick the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Disable”.
Network Control Port2 (Port: 9715)Port openClick the [Enable] check box to open [Network Control Port2 (Port: 9715)] to use TCP #9715. Default setting is “Enable”.
AuthenticationClick the [Enable] check box for the [Authentication] setting when authentication is required. Default setting is “Enable”.

When the authentication setting is enabled, the following settings are required.

Security Settings
Network ControlAuthentication PasswordEnter the desired authentication password. ConfirmThis setting will be the same for [Network Control Port1 (Port: 23)] and [Network Control Port2 (Port: 9715)]. Default setting is blank.
Re-enter Authentication Password

Command control settings

[TCP #23]

1. Command format

Same as RS-232C communication, refer to RS-232C Communicaton command format.

2. Response code / Error code ("h" shows hexadecimal)

Four of the response / error code used for TCP#23 are the same as RS-232C

Communication (1)\~(4). One authentication error reply (5) is added.

(1) ACK reply : 06h

Refer to RS-232C communication (10).

(2) NAK reply : 15h

Refer to RS-232C communication (10).

(3) Error reply : 1Ch + 0000h

Refer to RS-232C communication (10).

(4) Data reply : 1Dh + xxxxh

Refer to RS-232C communication (10).

(5) Authentication error reply : 1Fh + 0400h

When authentication error occurred, the projector returns the error code.

[TCP #9715]

1. Command format

The commands some datum are added to the head and the end of the ones of TCP#9715 are used.

Header Data length RS-232C command Check sum Connection ID
0×02 0×0D13 bytes 1 byte1 byte

02, Fixed

[Data Length]

RS-232C commands byte length (0×0D, Fixed)

[RS-232C commands]

Refer to RS-232C Communication command format (9).

[Check Sum]

This is the value to make zero on the addition of the lower 8 bits from the header to the checksum.

[Connection ID]

Random value from 0 to 255 (This value is attached to the reply data).

NOTE • Operation cannot be guaranteed when the projector receives an undefined command or data.

- Provide an interval of at least 40ms between the response code and any other code.

- Commands are not accepted during warm-up.

2. Response code / Error code ("h" shows hexadecimal)

The connection ID is attached for the TCP#23's response / error codes are used. The connection ID is same as the sending command format.

(1) ACK reply : 06h + xxh (xxh : connection ID)
(2) NAK reoly : 15h + xxh
(3) Error reply : 1Ch + 0000h + xxh
(4) Data reply : 1Dh + xxxxh + xxh
(5) Authentication error reply : 1Fh + 0400h + xxh
(6) Projector busy reply: 1Fh + xxxxh + xxh

When the projector is too busy to receive the command, the projector returns the error code.

In such a case, check the sending code and send the same command again.

Automatic Connection Break

The TCP connection will be automatically disconnected after there is no communication for 30 seconds after being established.

Authentication

The projector does not accept commands without authentication success when authentication is enabled. The projector uses a challenge response type authentication with an MD5 (Message Digest 5) algorithm. When the projector is using a LAN, a random 8 bytes will be returned if authentication is enabled. Bind this received 8 bytes and the authentication password and digest this data with the MD5 algorithm and add this in front of the commands to send.

Following is a sample if the authentication password is set to “password” and the random 8 bytes are “a572f60c”.

1) Select the projector.
2) Receive the random 8 bytes "a572f60c" from the projector.
3) Bind the random 8 bytes "a572f60c" and the authentication password "password" and it becomes "a572f60cpassword".
4) Digest this bind "a572f60cpassword" with MD5 algorithm.
It will be "e3d97429adffa11bce1f7275813d4bde".
5) Add this "e3d97429adffa11bce1f7275813d4bde" in front of the commands and send the data.
Send “e3d97429adffa11bce1f7275813d4bde”+command.
6) When the sending data is correct, the command will be performed and the reply data will be returned. Otherwise, an authentication error will be returned.

NOTE • As for the transmission of the second or subsequent commands, the authentication data can be omitted when the same connection.

Network Bridge Communication

This projector is equipped with NETWORK BRIDGE function.

When the projector connects to the computer by wired or wireless LAN communication, an external device that is connected with this projector by RS-232C communication can be controlled from the computer as a network terminal. For details, see the 6. Network Bridge function in the Network Guide.

NOTE • If data is transferred via wireless and wired LAN at the same time, the projector may not be able to process the data correctly.

Connection

  1. If you use wired LAN, connect the computer's LAN port and the projector's LAN port with a LAN cable. Use the cable that fulfills the specification shown in figure. If you use wireless LAN, insert the USB wireless adapter into the projector's LAN port.
  2. Connect the projector's CONTROL port and the RS-232C port of the devices that you want to control with a RS-232C cable.
  3. Turn the computer on, and after the computer has started up turn the projector on.
  4. Set the COMMUNICATION TYPE to NETWORK BRIDGE. (OPTION menu - SERVICE - COMMUNICATION in the Operating Guide)

HITACHI CPWX12WNEF - Connection - 1

Communication settings

For communication setting, use the OPTION - SERVICE - COMMUNICATION menu. (OPTION menu - SERVICE - COMMUNICATION in the Operating Guide)

Item Condition
BAUD RATE 4800bps / 9600bps / 19200bps / 38400bps
Data length 8 bit (fixed)
PARITY NONE/ODD/EVEN
Start bit 1 bit (fixed)
Stop bit 1 bit (fixed)
Transmission method HALF-DUPLEX/FULL-DUPLEX

NOTE • For connecting the projector to your devices, please read the manual for each devices, and connect them correctly with suitable cables.

- Turn off (the power of) both the projector and other devices and unplug, beore connecting them.

- For details of Transmission method, refer to 6.4 Transmission method in the Network Guide.

RS-232C Communication / Network command table

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
PowerSetTurn off BE EF03 06 00 2AD3 0100 00 60 00 00
Turn on BE EF03 06 00 BAD2 0100 00 60 01 00
GetBE EF 0306 0019 D3 02 00 00 60 0000
[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input SourceSetCOMPUTER IN1 BEEF 03 06 00FE D201 00 0020 00 00
COMPUTER IN2 BEEF 03 06 003E D001 00 0020 04 00
HDMI BE EF 0306 00 0ED2 0100 00 20 0300
S-VIDEOBE EF 0306 009E D3 01 00 00 20 0200
VIDEOBE EF 0306 006E D3 01 00 00 20 0100
LANBE EF0306 00CE D501 0000 200B 00
USB TYPE ABE EF0306 005E D101 0000 2006 00
USB TYPE BBE EF0306 00FE D701 0000 200C 00
GetBE EF0306 00CD D202 0000 2000 00
Error StatusGetBE EF 0306 00D9 D8 02 00 20 60 0000
[Example return]00 00 01 00 02 00 03 00[Normal] [Cover error] [Fan error] [Lamp error]04 00 05 00 07 00 08 00[Temp error] [Air flow error] [Cold error] [Filter error]
MAGNIFYGetBE EF 0306 007C D2 02 00 07 30 0000
IncrementBE EF 0306 001A D2 04 00 07 30 0000
DecrementBE EF 0306 00CB D3 05 00 07 30 0000
FREEZESetNORMALBE EF 0306 00B3 D2 01 00 02 30 0000
FREEZEBE EF 0306 0013 D3 01 00 02 30 0100
GetBE EF 0306 00B0 D2 02 00 02 30 0000
PICTURE MODESetNORMALBE EF0306 0023 F601 00BA 3000 00
CINEMABE EF 0306 00B3 F7 01 00 BA 3001 00
DYNAMICBE EF 0306 00E3 F4 01 00 BA 3004 00
BOARD(BLACK) BEEF 03 06 00E3 EF 01 00BA 3020 00
BOARD(GREEN)BE EF0306 0073 EE01 00BA 3021 00
WHITEBOARDBE EF 0306 00B3 EE 01 00 BA 3022 00
DAYTIMEBE EF0306 00E3 C701 00BA 3040 00
GetBE EF0306 0010 F602 00BA 3000 00
[Example return]00 00 01 00 04 00 10 00[Normal] [Cinema] [Dynamic] [Custom]20 00 21 00 22 00 40 00[BOARD(BLACK)] [BOARD(GREEN)] [WHITEBOARD] [DAY TIME]
BRIGHTNESSGetBE EF 0306 0089 D2 02 00 03 20 0000
IncrementBE EF 0306 00EF D2 04 00 03 20 0000
DecrementBE EF 0306 003E D3 05 00 03 20 0000
BRIGHTNESS ResetExecuteBE EF0306 0058 D306 0000 7000 00
CONTRASTGetBE EF 0306 00FD D3 02 00 04 20 0000
IncrementBE EF 0306 009B D3 04 00 04 20 0000
DecrementBE EF 0306 004A D2 05 00 04 20 0000
CONTRAST ResetExecuteBE EF0306 00A4 D206 0001 7000 00

(continued on next page)

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
GAMMASetDEFAULT-1BEEF 03060007E9 0100A1 30 2000
CUSTOM-1BEEF 03060007FD 0100A1 30 1000
DEFAULT-2BEEF 03060097E8 0100A1 30 2100
CUSTOM-2BEEF 03060097FC 0100A1 30 1100
DEFAULT-3BEEF 03060067E8 0100A1 30 2200
CUSTOM-3BEEF 03060067FC 0100A1 30 1200
DEFAULT-4BEEF 030600F7E9 0100A1 30 2300
CUSTOM-4BEEF 030600F7FD 0100A1 30 1300
DEFAULT-5BEEF 030600C7EB 0100A1 30 2400
CUSTOM-5BEEF 030600C7FF 0100A1 30 1400
DEFAULT-6BEEF 03060057EA 0100A1 30 2500
CUSTOM-6BEEF 03060057FE 0100A1 30 1500
GetBEEF 030600F4F0 0200A1 30 0000
User Gamma PatternSetOffBEEF 030600FBFA 010080 30 0000
9 steps gray scaleBEEF 0306006BFB 010080 30 0100
15 steps gray scaleBEEF 0306009BFB 010080 30 0200
RampBEEF 0306000BFA 010080 30 0300
GetBEEF 030600C8FA 020080 30 0000
User Gamma Point 1GetBEEF 03060008FE 020090 30 0000
IncrementBEEF 0306006EFE 040090 30 0000
DecrementBEEF 030600BFFF 050090 30 0000
User Gamma Point 1 ResetExecuteBEEF 03060058C2 060050 70 0000
User Gamma Point 2GetBEEF 030600F4FF 020091 30 0000
IncrementBEEF 03060092FF 040091 30 0000
DecrementBEEF 03060043FE 050091 30 0000
User Gamma Point 2 ResetExecuteBEEF 030600A4C3 060051 70 0000
User Gamma Point 3GetBEEF 030600B0FF 020092 30 0000
IncrementBEEF 030600D6FF 040092 30 0000
DecrementBEEF 03060007FE 050092 30 0000
User Gamma Point 3 ResetExecuteBEEF 030600E0C3 060052 70 0000
User Gamma Point 4GetBEEF 0306004CFE 020093 30 0000
IncrementBEEF 0306002AFE 040093 30 0000
DecrementBEEF 030600FBFF 050093 30 0000
User Gamma Point 4 ResetExecuteBEEF 0306001CC2 060053 70 0000
User Gamma Point 5GetBEEF 03060038FF 020094 30 0000
IncrementBEEF 0306005EFF 040094 30 0000
DecrementBEEF 0306008FFE 050094 30 0000
User Gamma Point 5 ResetExecuteBEEF 03060068C3 060054 70 0000
User Gamma Point 6GetBEEF 030600C4FE 020095 30 0000
IncrementBEEF 030600A2FE 040095 30 0000
DecrementBEEF 03060073FF 050095 30 0000
User Gamma Point 6 ResetExecuteBEEF 03060094C2 060055 70 0000
User Gamma Point 7GetBEEF 03060080FE 020096 30 0000
IncrementBEEF 030600E6FE 040096 30 0000
DecrementBEEF 03060037FF 050096 30 0000
User Gamma Point 7 ResetExecuteBEEF 030600D0C2 060056 70 0000

(continued on next page)

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
User Gamma Point 8Get BE EF 03 06 00 7C FF 02 00 97 30 00 00
Increment BE EF 03 06 00 1A FF 04 00 97 30 00 00
Decrement BE EF 03 06 00 CB FE 05 00 97 30 00 00
User Gamma Point 8 ResetExecute BE EF 03 06 00 2C 03 06 00 57 70 00 00
COLOR TEMPSet1 HIGH BE EF 03 06 00 0B F5 01 00 B0 30 03 00
1 CUSTOMBE EF 03 06 00 CB F8 01 00 B0 30 13 00
2 MIDBE EF 03 06 00 9B F4 01 00 B0 30 02 00
2 CUSTOMBE EF 03 06 00 5B F9 01 00 B0 30 12 00
3 LOWBE EF 03 06 00 6B F4 01 00 B0 30 01 00
3 CUSTOMBE EF 03 06 00 AB F9 01 00 B0 30 11 00
4 Hi-BRIGHT-1BE EF 03 06 00 3B F2 01 00 B0 30 08 00
4 CUSTOMBE EF 03 06 00 FB FF 01 00 B0 30 18 00
5 Hi-BRIGHT-2BE EF 03 06 00 AB F3 01 00 B0 30 09 00
5 CUSTOMBE EF 03 06 00 6B FE 01 00 B0 30 19 00
6 Hi-BRIGHT-3BE EF 03 06 00 5B F3 01 00 B0 30 0A 00
6 CUSTOMBE EF 03 06 00 9B FE 01 00 B0 30 1A 00
Get BE EF 03 06 00 C8 F5 02 00 B0 30 00 00
COLOR TEMP GAIN RGet BE EF 03 06 00 34 F4 02 00 B1 30 00 00
Increment BE EF 03 06 00 52 F4 04 00 B1 30 00 00
Decrement BE EF 03 06 00 83 F5 05 00 B1 30 00 00
COLOR TEMP GAIN R ResetExecute BE EF 03 06 00 10 C6 06 00 46 70 00 00
COLOR TEMP GAIN GGet BE EF 03 06 00 70 F4 02 00 B2 30 00 00
Increment BE EF 03 06 00 16 F4 04 00 B2 30 00 00
Decrement BE EF 03 06 00 C7 F5 05 00 B2 30 00 00
COLOR TEMP GAIN G ResetExecute BE EF 03 06 00 EC C7 06 00 47 70 00 00
COLOR TEMP GAIN BGet BE EF 03 06 00 8C F5 02 00 B3 30 00 00
Increment BE EF 03 06 00 EA F5 04 00 B3 30 00 00
Decrement BE EF 03 06 00 3B F4 05 00 B3 30 00 00
COLOR TEMP GAIN B ResetExecute BE EF 03 06 00 F8 C4 06 00 48 70 00 00
COLOR TEMP OFFSET RGet BE EF 03 06 00 04 F5 02 00 B5 30 00 00
Increment BE EF 03 06 00 62 F5 04 00 B5 30 00 00
Decrement BE EF 03 06 00 B3 F4 05 00 B5 30 00 00
COLOR TEMP OFFSET R ResetExecute BE EF 03 06 00 40 C5 06 00 4A 70 00 00
COLOR TEMP OFFSET GGet BE EF 03 06 00 40 F5 02 00 B6 30 00 00
Increment BE EF 03 06 00 26 F5 04 00 B6 30 00 00
Decrement BE EF 03 06 00 F7 F4 05 00 B6 30 00 00
COLOR TEMP OFFSET G ResetExecute BE EF 03 06 00 BC C4 06 00 4B 70 00 00
COLOR TEMP OFFSET BGet BE EF 03 06 00 BC F4 02 00 B7 30 00 00
Increment BE EF 03 06 00 DA F4 04 00 B7 30 00 00
Decrement BE EF 03 06 00 0B F5 05 00 B7 30 00 00
COLOR TEMP OFFSET B ResetExecute BE EF 03 06 00 C8 C5 06 00 4C 70 00 00
COLORGet BE EF 03 0600 B5 7202 00 0222 00 00
Increment BE EF 0306 00 D372 04 0002 22 0000
Decrement BE EF 0306 00 0273 05 0002 22 0000
COLOR Reset ExecuteGet BE EF 03 06 00 80 D0 0600 0A 7000 00
TINTGet BE EF 03 0600 49 7302 00 0322 00 00
Increment BE EF 0306 00 2F73 04 0003 22 0000
Decrement BE EF 0306 00 FE72 05 0003 22 0000
TINT Reset ExecuteGet BE EF 03 06 00 7C D1 0600 0B 70 0000
SHARPNESSGet BE EF 03 0600 F1 7202 00 0122 00 00
Increment BE EF 0306 00 9772 04 0001 22 0000
Decrement BE EF 0306 00 4673 05 0001 22 0000
SHARPNESS Reset ExecuteExecute BE EF 03 06 00 C4 D006 00 0970 00 00
MY MEMORY LoadSet1BE EF 0306 00OE D7 0100 14 20 0000
2BE EF 0306 009E D6 0100 14 20 0100
3BE EF 0306 006E D6 0100 14 20 0200
4BE EF 0306 00FE D701 00 14 2000 03 00
MY MEMORY SaveSet1BE EF 0306 00F2 D6 0100 15 20 0000
2BE EF 0306 0062 D7 0100 15 20 0100
3BE EF 0306 0092 D7 0100 15 20 0200
4BE EF 0306 0002 D6 0100 15 20 0300
ASPECTSet4:3BE EF 0306 009E D0 0100 08 20 0000
16:9BE EF 0306 00OE D1 0100 08 20 0100
14:9BE EF0306 00CE D601 0008 2009 00
16:10BE EF 0306 003E D6 0100 08 20 0A00
(*) NATIVEBE EF 0306 005E D7 0100 08 20 0800
NORMALBE EF0306 005E DD01 0008 2010 00
Get BE EF 03 0600 ADD002 00 0820 00 00
OVER SCANGet BE EF 03 0600 91 7002 00 0922 00 00
Increment BE EF 0306 00 F770 04 0009 22 0000
Decrement BE EF 0306 00 2671 05 0009 22 0000
OVER SCAN Reset ExecuteBE EF 0306 00EC D906 0027 70 00 00
V POSITIONGet BE EF 03 0600 0D 8302 00 0021 00 00
Increment BE EF 0306 00 6B83 04 0000 21 0000
Decrement BE EF 0306 00 BA82 05 0000 21 0000
V POSITION ResetExecuteBE EF 0306 00E0 D2 0600 02 70 0000
H POSITIONGet BE EF 03 0600 F1 8202 00 0121 00 00
Increment BE EF 0306 00 9782 04 0001 21 0000
Decrement BE EF 0306 00 4683 05 0001 21 0000
H POSITION ResetExecuteBE EF 0306 001C D306 00 0370 00 00
H PHASEGetBE EF 0306 0049 83 0200 03 21 0000
IncrementBE EF 0306 002F 83 0400 03 21 0000
DecrementBE EF 0306 00FE 82 0500 03 21 0000

(*) only for CPWX12WN
(continued on next page)

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
H SIZEGetBE EF 03 06 00B5 82 02 00 02 21 0000
IncrementBE EF 03 06 00D3 82 04 00 02 21 0000
DecrementBE EF 03 06 0002 83 05 00 02 21 0000
H SIZE Reset ExecuteBE EF 03 06 0068 D2 06 00 04 70 0000
AUTO ADJUST EXECUTEExecute BE EF 03 06 00 91 D0 06 000A 20 00 00
PROGRESSIVESetOFFBE EF 03 06 004A 72 01 00 07 22 0000
TVBE EF 03 06 00DA 73 01 00 07 22 0100
FILMBE EF 03 06 002A 73 01 00 07 22 0200
GetBE EF 03 06 0079 72 02 00 07 22 0000
VIDEO NRSetLOWBE EF 03 06 0026 72 01 00 06 22 0100
MIDBE EF 03 06 00D6 72 01 00 06 22 0200
HIGHBE EF 03 06 0046 73 01 00 06 22 0300
GetBE EF 03 06 0085 73 02 00 06 22 0000
COLOR SPACESetAUTOBE EF 03 06 000E 72 01 00 04 22 0000
RGBBE EF 03 06 009E 73 01 00 04 22 0100
SMPTE240BE EF 03 06 006E 73 01 00 04 22 0200
REC709BE EF 03 06 00FE 72 01 00 04 22 0300
REC601BE EF 03 06 00CE 70 01 00 04 22 0400
GetBE EF 03 06 003D 72 02 00 04 22 0000
S-VIDEO FORMATSetAUTOBE EF 03 06 00E6 70 01 00 12 22 0A00
NTSCBE EF 03 06 0086 74 01 00 12 22 0400
PALBE EF 03 06 0016 75 01 00 12 22 0500
SECAMBE EF 03 06 0016 70 01 00 12 22 0900
NTSC4.43BE EF 03 06 0026 77 01 00 12 22 0200
M-PALBE EF 03 06 0086 71 01 00 12 22 0800
N-PALBE EF 03 06 0076 74 01 00 12 22 0700
GetBE EF 03 06 0075 76 02 00 12 22 0000
C-VIDEO FORMATSetAUTOBE EF 03 06 00A2 70 01 00 11 22 0A00
NTSCBE EF 03 06 00C2 74 01 00 11 22 0400
PALBE EF 03 06 0052 75 01 00 11 22 0500
SECAMBE EF 03 06 0052 70 01 00 11 22 0900
NTSC4.43BE EF 03 06 0062 77 01 00 11 22 0200
M-PALBE EF 03 06 00C2 71 01 00 11 22 0800
N-PALBE EF 03 06 0032 74 01 00 11 22 0700
GetBE EF 03 06 0031 76 02 00 11 22 0000
HDMI FORMATSetAUTOBE EF 03 06 00BA 77 01 00 13 22 0000
VIDEOBE EF 03 06 002A 76 01 00 13 22 0100
COMPUTERBE EF 03 06 00DA 76 01 00 13 22 0200
GetBE EF 03 06 0089 77 02 00 13 22 0000
HDMI RANGESetAUTOBE EF 03 06 0086 D8 01 00 22 20 0000
NORMALBE EF 03 06 0016 D9 01 00 22 20 0100
ENHANCEDBE EF 03 06 00E6 D9 01 00 22 20 0200
GetBE EF 03 06 00B5 D8 02 00 22 20 0000
COMPUTER IN1SetAUTOBE EF 03 06 00CE D6 01 00 10 20 0300
SYNC ON G OFFBE EF 03 06 005E D7 01 00 10 20 0200
GetBE EF 03 06 00OD D6 02 00 10 20 0000
COMPUTER IN2SetAUTO BE EF 03060032D7010011 20 0300
SYNC ON G OFF BEEF030600A2D601 00 1120 02 00
Get BE EF 03 0600F1D70200120 00 00
FRAME LOCK - COMPUTER IN1SetOFFBEEF0306003BC2 0100 50 30 0000
ONBEEF030600ABC3 0100 50 30 0100
GetBEEF03060008C2 0200 50 30 0000
FRAME LOCK - COMPUTER IN2SetOFF BE EF 0306000BC3010054 30 0000
ON BE EF 0306009BC2010054 30 0100
Get BE EF 03 060038C302005430 00 00
FRAME LOCK - HDMISetOFFBEEF0306007FC2 0100 53 30 0000
ONBEEF030600EFC3 0100 53 30 0100
GetBEEF0306004CC2 0200 53 30 0000
AUTO KEYSTONE EXECUTEExecute BE EF 030600E5D106000D 2000 00
KEYSTONE VGetBEEF030600B9D3 0200 07 20 0000
IncrementBEEF030600DFD3 0400 07 20 0000
DecrementBEEF030600OED2 0500 07 20 0000
KEYSTONE V ResetExecuteBEEF03060008D0 0600 0C 7000 00
AUTO ECO MODESetOFFBEEF030600FB27 0100 10 33 0000
ONBEEF0306006B26 0100 10 33 0100
GetBEEF030600C827 0200 10 33 0000
ECO MODESetNORMALBEEF0306003B23 0100 00 33 0000
ECOBEEF030600AB22 0100 00 33 0100
INTELLIGENT ECOBEEF030600FB2E 0100 00 33 1000
GetBEEF0306000823 0200 00 33 0000
INSTALLATIONSetFRONT / DESKTOPBEEF030600C7D2 0100 01 30 0000
REAR / DESKTOPBEEF03060057D3 0100 01 30 0100
REAR / CEILINGBEEF030600A7D3 0100 01 30 0200
FRONT / CEILINGBEEF03060037D2 0100 01 30 0300
GetBEEF030600F4D2 0200 01 30 0000
STANDBY MODESetNORMALBEEF030600D6D2 0100 01 60 0000
SAVINGBEEF03060046D3 0100 01 60 0100
GetBEEF030600E5D2 0200 01 60 0000
MONITOR OUT - COMPUTER IN1SetCOMPUTER IN1BEEF0306003EF4 0100 B0 2000 00
OFFBEEF030600CEB5 0100 B0 20FF 00
GetBEEF030600ODF4 0200 B0 20 0000
MONITOR OUT - COMPUTER IN2SetCOMPUTER IN2BEEF030600CEF7 0100 B4 20 0400
OFF BE EF 030600FEB4 0100B4 20FF 00
Get BE EF 03 06003DF5D200B4 20 00 00
MONITOR OUT - S-VIDEOSetCOMPUTER IN1BEEF03060086F5 0100 B2 2000 00
COMPUTER IN2BEEF03060046F7 0100 B2 2004 00
OFFBEEF03060076B4 0100 B2 20FF 00
GetBEEF030600B5F5 0200 B2 2000 00
MONITOR OUT - VIDEOSetCOMPUTER IN1BEEF030600C2F5 0100 B1 20 0000
COMPUTER IN2BEEF03060002F7 0100 B1 2004 00
OFFBEEF03060032B4 0100 B1 20FF 00
GetBEEF030600F1F502 00 B1 20 00 00
MONITOR OUT - HDMISetCOMPUTER IN1BE EF 03 06 007A F4 01 00 B3 20 0000
COMPUTER IN2 BEEF 03 06 00 BA F601 00 B3 20 04 00
OFFBE EF 03 06 008A B5 01 00 B3 20 FF00
GetBE EF 03 06 0049 F4 02 00 B3 20 0000
MONITOR OUT - LANSetCOMPUTER IN1 BEEF 03 06 00 1A F601 00 BB 20 00 00
COMPUTER IN2 BEEF 03 06 00 DA F401 00 BB 20 04 00
OFF BE EF 03 06 00 EA B7 01 00 BB 20 FF00
Get BE EF 03 06 00 29 F6 02 00 BB 20 00 00
MONITOR OUT - USB TYPE ASetCOMPUTER IN1 BEEF 03 06 00 B6 F401 00 B6 20 00 00
COMPUTER IN2 BEEF 03 06 00 76 F601 00 B6 20 04 00
OFF BE EF 03 06 00 46 B5 01 00 B6 20 FF00
Get BE EF 03 06 00 85 F4 02 00 B6 20 00 00
MONITOR OUT - USB TYPE BSetCOMPUTER IN1 BEEF 03 06 00 6E F701 00 BC 20 00 00
COMPUTER IN2 BEEF 03 06 00 AE F501 00 BC 20 04 00
OFF BE EF 03 06 00 9E B6 01 00 BC 20 FF00
Get BE EF 03 06 00 5D F7 02 00 BC 20 00 00
MONITOR OUT - STANDBYSetCOMPUTER IN1BE EF 03 06 002A F7 01 00 BF 20 0000
COMPUTER IN2 BEEF 03 06 00 EA F501 00 BF 20 04 00
OFFBE EF 03 06 00DA B6 01 00 BF 20 FF00
GetBE EF 03 06 0019 F7 02 00 BF 20 0000
VOLUME - COMPUTER IN1GetBE EF 03 06 00CD CC 02 00 60 2000 00
IncrementBE EF 03 06 00AB CC 04 0060 20 00 00
DecrementBE EF 03 06 007A CD 05 00 60 20 0000
VOLUME - COMPUTER IN2Get BE EF 03 06 00 FD CD02 00 64 20 00 00
Increment BE EF 03 06 00 9B CD 04 00 64 2000 00
DecrementBE EF 03 06 004A CC 05 00 64 20 0000
VOLUME - S-VIDEOGetBE EF 03 06 0075 CD 02 00 62 20 0000
IncrementBE EF 03 06 0013 CD 04 00 62 20 0000
DecrementBE EF 03 06 00C2 CC 05 00 62 20 00 00
VOLUME - VIDEOGetBE EF 03 06 0031 CD 02 00 61 20 0000
IncrementBE EF 03 06 0057 CD 04 00 61 20 0000
DecrementBE EF 03 06 0086 CC 05 00 61 20 0000
VOLUME - HDMIGetBE EF 03 06 0089 CC 02 00 63 20 0000
IncrementBE EF 03 06 00EF CC 04 00 63 20 00 00
DecrementBE EF 03 06 003E CD 05 00 63 20 00 00
VOLUME - LANGet BE EF 03 06 00 E9 CE 02 00 6B 20 00 00
Increment BE EF 03 06 00 8F CE 04 00 6B 20 0000
DecrementBE EF 03 06 005E CF 05 00 6B 20 0000
VOLUME - USB TYPE AGet BE EF 03 06 00 45 CC 02 00 66 20 00 00
Increment BE EF 03 06 00 23 CC 04 00 66 2000 00
DecrementBE EF 03 06 00F2 CD 05 00 66 20 0000
VOLUME - USB TYPE BGet BE EF 03 06 00 9D CF 02 00 6C 20 00 00
Increment BE EF 03 06 00 FB CF 04 00 6C 20 0000
DecrementBE EF 03 06 002A CE 05 00 6C 20 0000
VOLUME - AUDIO OUT STANDBYGetBE EF 03 06 00D9 CF 02 00 6F 20 0000
IncrementBE EF 03 06 00BF CF 04 00 6F 20 0000
DecrementBE EF 03 06 006E CE 05 00 6F 20 0000
MUTESetOFF BE EF 03 06 00 46 D3 01 00 02 20 00 00
ON BE EF 03 06 00 D6 D2 01 00 02 20 01 00
Get BE EF 03 06 00 75 D3 D2 00 02 20 00 00
SPEAKERSetON BE EF 03 06 00 FE D4 01 00 1C 20 01 00
OFF BE EF 03 06 00 6E D5 01 00 1C 20 00 00
Get BE EF 03 06 00 5D D5 02 00 1C 20 00 00
AUDIO SOURCE - COMPUTER IN1SetAUDIO IN1 BE EF 03 06 00 6E DC 01 00 30 20 01 00
AUDIO IN2 BE EF 03 06 00 9E DC 01 00 30 20 02 00
OFF BE EF 03 06 00 FE DD 01 00 30 20 00 00
Get BE EF 03 06 00 CD DD 02 00 30 20 00 00
AUDIO SOURCE - COMPUTER IN2SetAUDIO IN1 BE EF 03 06 00 5E DD 01 00 34 20 01 00
AUDIO IN2 BE EF 03 06 00 AE DD 01 00 34 20 02 00
OFF BE EF 03 06 00 CE DC 01 00 34 20 00 00
Get BE EF 03 06 00 FD DC 02 00 34 20 00 00
AUDIO SOURCE - HDMISetOFF BE EF 03 06 00 BA DD 01 00 33 20 00 00
AUDIO IN1 BE EF 03 06 00 2A DC 01 00 33 20 01 00
AUDIO IN2 BE EF 03 06 00 DA DC 01 00 33 20 02 00
AUDIO_HDMI BE EF 03 06 00 7A C4 01 00 33 20 20 00
Get BE EF 03 06 00 89 DD 02 00 33 20 00 00
AUDIO SOURCE - S-VIDEOSetAUDIO IN1 BE EF 03 06 00 D6 DD 01 00 32 20 01 00
AUDIO IN2 BE EF 03 06 00 26 DD 01 00 32 20 02 00
OFF BE EF 03 06 00 46 DC 01 00 32 20 00 00
Get BE EF 03 06 00 75 DC 02 00 32 20 00 00
AUDIO SOURCE - VIDEOSetAUDIO IN1 BE EF 03 06 00 92 DD 01 00 31 20 01 00
AUDIO IN2 BE EF 03 06 00 62 DD 01 00 31 20 02 00
OFF BE EF 03 06 00 02 DC 01 00 31 20 00 00
Get BE EF 03 06 00 31 DC 02 00 31 20 00 00
AUDIO SOURCE - LANSetOFF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BEEF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EF BE EFEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEEFBEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEBFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEFLFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELLFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEENFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEERFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEESFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEETFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEENTFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFELEFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELEFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELEFEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEEFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELLFEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEELFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLFEEPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFP FLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFL GFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGPPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFLGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSFPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPPRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPRRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGRFSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPPFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPRTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFRGSPTFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGL FREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFREGLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFL FRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLET FLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFL FLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFLETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRETFLFRET FL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FFETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRETFL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FRET FL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FTFTFL FRET FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFTFL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL FTFT FL
USB TYPE B SOUND ENABLESetDisable BE EF 03 06 00 32F0 01 00A5 20 00 00
Enable BE EF 03 06 00 A2F1 01 00A5 20 01 00
Get BE EF 03 06 00 01 F0 02 00 A5 20 00 00
HDMI AUDIOSet1BE EF0306 00AE C601 0040 2001 00
2 BE EF 03 06 00 5E C601 0040 2002 00
GetBE EF0306 000D C702 0040 2000 00
LANGUAGE *SetENGLISHBE EF0306 00F7 D301 0005 3000 00
FRANÇAISBE EF0306 0067 D201 0005 3001 00
DEUTSCHBE EF0306 0097 D201 0005 3002 00
ESPAÑOLBE EF0306 0007 D301 0005 3003 00
ITALIANOBE EF0306 0037 D101 0005 3004 00
NORSKBE EF0306 00A7 D001 0005 3005 00
NEDERLANDSBE EF0306 0057 D001 0005 3006 00
PORTUGUÉSBE EF0306 00C7 D101 0005 3007 00
日本語BE EF0306 0037 D401 0005 3008 00
简体中文BE EF 0306 00A7 D5 01 0005 3009 00
繁體中文BE EF 0306 0037 DE 01 0005 3010 00
한글BE EF0306 0057 D501 0005 300A 00
SVENSKABE EF0306 00C7 D401 0005 300B 00
PYCCKINÍBE EF0306 00F7 D601 0005 300C 00
SUOMIBE EF0306 0067 D701 0005 300D 00
POLSKIBE EF0306 0097 D701 0005 300E 00
TÜRKÇEBE EF0306 0007 D601 0005 300F 00
DANSKBE EF0306 00A7 DF01 0005 3011 00
ČESKYBE EF0306 0057 DF01 0005 3012 00
MAGYARBE EF0306 00C7 DE01 0005 3013 00
ROMÁNÁBE EF0306 00F7 DC01 0005 3014 00
SLOVENSKIBE EF0306 0067 DD01 0005 3015 00
HRVATSKIBE EF0306 0097 DD01 0005 3016 00
EÀAHNIKABE EF0306 0007 DC01 0005 3017 00
LIETUVIUBE EF0306 00F7 D901 0005 3018 00
EESTIBE EF0306 0067 D801 0005 3019 00
LATVIEŠUBE EF0306 0097 D801 0005 301A 00
ITIYIBE EF0306 0007 D901 0005 301B 00
کیب رعلا قغلاBE EF 0306 0037 DB 01 0005 301Q 00
کسیفBE EF0306 00A7 DA01 0005 301D 00
PORTUGUÉS BRA BE EF 03 0600 57DA 01 0005 301E 00
BAHASA INDBE EF0306 00 C7DB 01 00 0530 1F 00
TIENG VIETBE EF0306 0037 CA01 0005 3020 00
GetBE EF0306 00C4 D302 0005 3000 00
MENU POSITION HGetBE EF0306 0004 D702 0015 3000 00
IncrementBE EF0306 0062 D704 0015 3000 00
DecrementBE EF0306 00B3 D605 0015 3000 00
MENU POSITION H ResetExecuteBE EF0306 00DC C606 0043 7000 00

* Not all of the languages in the table are supported. (continued on next page)

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
MENU POSITION VGet BE EF 03 0600 40 D7D2 001630 0000
Increment BE EF 0306 00 26D7 04001630 0000
Decrement BE EF 0306 00 F7D6 05001630 0000
MENU POSITION V ResetExecute BE EF 0306 00 A8C7 06004470 0000
BLANKSetMyScreen BE EF03 06 00FBCA0100 003020 00
ORIGINALBE EF 0306 00FBE2 01000030 4000
BLUEBE EF 0306 00CBD3 01000030 0300
WHITEBE EF 0306 006BD0 01000030 0500
BLACKBE EF 0306 009BD0 01000030 0600
Get BE EF 03 0600 08 D3D2 000030 0000
BLANK On/OffSetOFFBE EF 0306 00FBD8 01002030 0000
ONBE EF 0306 006BD9 01002030 0100
Get BE EF 03 0600 C8 D8D2 002030 0000
START UPSetMyScreen BE EF03 06 00CBCB0100 043020 00
ORIGINALBE EF 0306 000BD2 01000430 0000
OFFBE EF 0306 009BD3 01000430 0100
Get BE EF 03 0600 38 D2D2 000430 0000
MyScreen LockSetOFFBE EF 0306 003BEF 0100C03000 00
ONBE EF030600AB EE01 00C0 3001 00
Get BE EF 03 0600 08 EFD2 00C03000 00
MESSAGESetOFFBE EF 0306 008FD6 01001730 0000
ONBE EF 0306 001FD7 01001730 0100
Get BE EF 03 0600 BC D6D2 00173000 00
TEMPLATESetTEST PATTERNBE EF 0306 0043D9 01002230 0000
DOT-LINE1BE EF 0306 00D3D8 01002230 0100
DOT-LINE2BE EF 0306 0023D8 01002230 0200
DOT-LINE3BE EF 0306 00B3D9 01002230 0300
DOT-LINE4BE EF 0306 00B3DB 01002230 0400
CIRCLE 1BE EF 0306 0013DA 01002230 0500
CIRCLE 2BE EF 0306 00E3DA 01002230 0600
MAP 1BE EF03060083 D401 0022 3010 00
MAP 2BE EF03060013 D501 0022 3011 00
Get BE EF 03 0600 70 D9D2 002230 0000
TEMPLATE On/OffSetOFFBE EF 0306 00BFD8 01002330 0000
ONBE EF 0306 002FD9 01002330 0100
Get BE EF 03 0600 8C D8D2 002330 0000
C. C. - DISPLAYSetOFFBE EF030600FA 6201 0000 3700 00
ONBE EF0306006A 6301 0000 3701 00
AUTOBE EF0306009A 6301 0000 3702 00
Get BE EF 03 0600 C9 62D2 000037 0000
C. C. - MODESetCAPTIONSBE EF 0306 000663 01000137 0000
TEXTBE EF 0306 009662D1 000137 0100
Get BE EF 03 0600 3563 02000137 0000
C. C. - CHANNELSet1BE EF 0306 00D262 01000237 0100
2BE EF 0306 002262D1 000237 0200
3BE EF 0306 00B263D1 000237 0300
4BE EF 0306 008261D1 000237 0400
GetBE EF 0306 007163D2 000237 0000

(continued on next page)

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
AUTO SEARCHSetOFF BE EF 0306 00 B6D6 0100 16 20 0000
ON BE EF 0306 00 26D7 0100 16 20 0100
Get BE EF 03 0600 85 D602 0016 20 00 00
AUTO KEYSTONESetOFF BE EF 0306 00 EAD1 0100 0F 20 0000
ON BE EF 0306 00 7AD0 0100 0F 20 0100
Get BE EF 03 0600 D9 D102 000F 20 00 00
DIRECT POWER ONSetOFF BE EF 0306 00 3BB9 0100 20 31 0000
ON BE EF 0306 00 ABB8 0100 20 31 0100
Get BE EF 03 0600 08 8902 0020 31 00 00
AUTO POWER OFFGet BE EF 03 0600 08 8602 0010 31 00 00
Increment BE EF 0306 00 6EB6 0400 10 31 0000
Decrement BE EF 0306 00 BFB7 0500 10 31 0000
USB TYPE BSetMOUSEBE EF0306 00FF 2301 0050 2600 00
USB DISPLAYBE EF0306 006F 2201 0050 2601 00
GetBE EF0306 00CC 2302 0050 2600 00
LAMP TIMEGet BE EF 03 0600 C2 FF02 0090 10 00 00
LAMP TIME ResetExecuteBE EF0306 0058 DC06 0030 7000 00
FILTER TIMEGet BE EF 03 0600 C2 F002 00A0 10 00 00
FILTER TIME ResetExecuteBE EF0306 0098 C606 0040 7000 00
MY BUTTON-1SetCOMPUTER IN1 BEEF 03 0600 3A38 01 00 00B6 00 00
COMPUTER IN2BE EF0306 00FA 3101 0000 3604 00
HDMIBE EF 0306 00CA 33 0100 00 36 0300
S-VIDEOBE EF 0306 005A 32 0100 00 36 0200
VIDEOBE EF 0306 00AA 32 0100 00 36 0100
LAN BE EF 0306 00 0A 3401 00 00 360B 00
USB TYPE ABE EF0306 009A 3001 0000 3606 00
USB TYPE BBE EF0306 003A 3601 0000 360C 00
INFORMATIONBE EF 0306 00FA 3E 0100 00 36 1000
AUTO KEYSTONE BEEF 03 0600 6A3F 01 00 003611 00
MY MEMORYBE EF 0306 009A 3F 0100 00 36 1200
PICTURE MODEBE EF 0306 000A 3E 0100 00 36 1300
FILTER RESETBE EF 0306 003A 3C 0100 00 36 1400
AV MUTEBE EF 0306 00AA 38 0100 00 36 1900
TEMPLATEBE EF 0306 00CA 39 0100 00 36 1B00
RESOLUTIONBE EF 0306 009A 3A 0100 00 36 1E00
ECO MODEBE EF 0306 000A 25 0100 00 36 3700
MY IMAGEBE EF0306 005A 3D01 0000 3616 00
SLIDESHOWBE EF0306 009A 2B01 0000 3622 00
MESSENGERBE EF0306 00AA 2901 0000 3625 00
Get BE EF 03 0600 09 3302 00 0036 00 00
MY BUTTON-2SetCOMPUTER IN1 BEEF 03 06 00C6 3201 00 0136 00 00
COMPUTER IN2 BEEF 03 06 0006 3001 00 01 3604 00
HDMI BE EF 03 06 00 3632 0100 01 36 0300
S-VIDEO BE EF03 06 00 A633 0100 01 36 0200
VIDEO BE EF03 06 00 5633 0100 01 36 0100
LANBE EF0306 00F6 3501 0001 360B 00
USB TYPE ABE EF 0306 0066 31 01 0001 36 06 00
USB TYPE BBE EF0306 00C6 3701 0001 360C 00
INFORMATIONBE EF0306 0006 3F01 0001 3610 00
AUTO KEYSTONE BEEF 03 060096 3E 0100 01 3611 00
MY MEMORYBE EF0306 0066 3E01 0001 3612 00
PICTURE MODEBE EF0306 00F6 3F01 0001 3613 00
FILTER RESETBE EF 0306 00C6 3D 0100 01 36 1400
AV MUTEBE EF 0306 0056 39 0100 01 36 19 00
TEMPLATEBE EF 0306 0036 38 0100 01 36 1B 00
RESOLUTIONBE EF0306 0066 3B01 0001 361E 00
ECO MODE BE EF03 06 00F624 0100 01 36 3700
MY IMAGEBE EF0306 00A6 3C01 0001 3616 00
SLIDESHOWBE EF0306 0066 2A01 0001 3622 00
MESSENGERBE EF0306 0056 2801 0001 3625 00
GetBE EF0306 00F5 3202 0001 3600 00
MY BUTTON-ECOSetCOMPUTER IN1BE EF0306 005A 3101 0008 3600 00
COMPUTER IN2 BEEF 0306 009A 3301 00 08 36 0400
HDMI BE EF 0306 00 AA31 0100 0836 03 00
S-VIDEOBE EF0306 003A 3001 0008 3602 00
VIDEO BE EF03 06 00 CA30 0100 0836 01 00
LANBE EF0306 006A 3601 0008 360B 00
USB TYPE ABE EF0306 00FA 3201 0008 3606 00
USB TYPE BBE EF0306 005A 3401 0008 360C 00
INFORMATIONBE EF 0306 009A 3C 0100 0836 10 00
AUTO KEYSTONE BEEF 03 0600 0A8D 01 00 083611 00
MY MEMORYBE EF 0306 00FA 3D 0100 0836 12 00
PICTURE MODEBE EF0306 006A 3C01 0008 3613 00
FILTER RESETBE EF 0306 005A 3E 0100 08 36 1400
AV MUTEBE EF 0306 00CA 3A 0100 0836 19 00
TEMPLATEBE EF0306 00AA 3B01 0008 361B 00
RESOLUTIONBE EF0306 00FA 3801 0008 361E 00
ECO MODE BE EF03 06 006A27 01 00 0B36 37 00
MY IMAGEBE EF 0306 00 3A 3F01 00 08 3616 00
SLIDESHOWBE EF0306 00FA 2901 0008 3622 00
MESSENGERBE EF0306 00CA 2B01 0008 3625 00
BLANKBE EF0306 009A 0001 0008 3640 00
FREEZEBE EF0306 000A 0101 0008 3641 00
VOLUMEBE EF0306 00FA 0101 0008 3642 00
AUTOBE EF0306 006A 0001 0008 3643 00
GetBE EF 0306 0069 31 02 0D08 36 00 00

(continued on next page)

RS-232C Communication / Network command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
MY SOURCESetCOMPUTER IN1 BEEF 03 06 00FA 3801 00 2036 00 00
COMPUTER IN2 BEEF 03 06 003A 3A01 00 20 3604 00
HDMI BE EF 0306 00 0A38 0100 20 36 0300
S-VIDEO BE EF03 06 00 9A39 0100 20 36 0200
VIDEOBE EF 0306 006A 39 01 0020 36 0100
LANBE EF 0306 00CA 3F 01 0020 360B 00
USB TYPE ABE EF 0306 005A 3B 01 0020 36 06 00
USB TYPE BBE EF 0306 00FA 3D 01 0020 360C 00
GetBE EF 0306 00C9 3802 00 20 3600 00
Magnify Position HGetBE EF 0306 00C8 D7 0200 10 30 0000
IncrementBE EF 0306 00AE D7 0400 10 30 0000
DecrementBE EF0306 007F D605 0010 3000 00
Magnify Position VGetBE EF 0306 0034 D602 00 11 3000 00
IncrementBE EF0306 0052 D604 0011 3000 00
DecrementBE EF 0306 0083 D705 00 11 3000 00
MY IMAGESetOFFBE EF 0306 003A C3 01 0000 35 00 00
IMAGE-1BE EF 0306 00AA C201 00 00 3501 00
IMAGE-2BE EF 0306 005A C2 01 0000 35 02 00
IMAGE-3BE EF0306 00CA C301 0000 3503 00
IMAGE-4BE EF 0306 00FA C101 00 00 3504 00
GetBE EF 0306 0009 C3 02 0000 35 00 00
MY IMAGE IMAGE-1 DeleteExecuteBE EF 0306 0071 C3 06 0001 35 00 00
MY IMAGE IMAGE-2 DeleteExecuteBE EF 0306 0035 C3 06 0002 35 00 00
MY IMAGE IMAGE-3 DeleteExecuteBE EF0306 00C9 C206 0003 3500 00
MY IMAGE IMAGE-4 DeleteExecuteBE EF0306 00BD C306 0004 3500 00
VOLUME - ALLGetBE EF 0306 00CD C302 00 50 2000 00
IncrementBE EF0306 00AB C304 0050 2000 00
DecrementBE EF 0306 007A C205 00 50 2000 00

PJLink command

CommandsControl Description Parameter or Response
POWR Power ControlPower Control0 = Standby
1 = Power On
POWR ? Power Status inquiryPower Status inquiry0 = Standby
1 = Power On
2 = Cool Down
INPT Input Source selectionSource selection11 = COMPUTER IN 1
12 = COMPUTER IN 2
22 = S-VIDEO
23 = VIDEO
31 = HDMI
41 = USB TYPE A
51 = LAN
52 = USB TYPE B
INPT ? Input Source inquirySource inquiry11 = COMPUTER IN 1
12 = COMPUTER IN 2
22 = S-VIDEO
23 = VIDEO
31 = HDMI
41 = USB TYPE A
51 = LAN
52 = USB TYPE B
AVMT AVMute10 = BLANK off
11 = BLANK on
20 = Mute off
21 = Mute on
30 = AV Mute off
31 = AV Mute on
AVMT ? AVMute inquiry10 = BLANK off
11 = BLANK on
20 = Mute off
21 = Mute on
30 = AV Mute off
31 = AV Mute on

(continued on next page)

CommandsControl Description Parameter or Response
ERST ? Error Status inquiry1st byte: Refers to Fan error; one of 0 to 2
2nd byte: Refers to Lamp error; one of 0 to 2
3rd byte: Refers to Temptrature error; one of 0 to 2
4th byte: Refers to Cover error; one of 0 to 2
5th byte: Refers to Filter error; one of 0 to 2
6th byte: Refers to Other error; one of 0 to 2
The meaning of 0 to 2 is as given below
0 = Error is not detected; 1 = Warning; 2 = Error
LAMP ? Lamp Status inquiry1st number (digits 1 to 5): Lamp Time
2nd number : 0 = Lamp off, 1 = Lamp on
INST ? Input Source List inquiry 11 1222 23 31 41 51 52
NAME ? Projector Name inquiryResponds with the name set in "PROJECTOR NAME" of "NETWORK"
INF1 ?Manufacturer's Name inquiryHITACHI
INF2 ? Model Name inquiryYour model name, "CPX10WN", "CPX11WN" or "CPWX12WN".
INFO ? Other Information inquiryResponds with the factory information and so on
CLSS ? Class Information inquiry 1

NOTE • The password used in PJLink™ is the same as the password set in the Web Brouwser Comtrol. To use PJLink™ without authentication, do not set any password in Web Browser Control.

- For specifications of PJLink™, see the web site of the Japan Business Machine and Information System Industries Association.

natural_image Line drawing of hands using a handheld device to press or install an electronic device (no text or symbols visible)

1

HITACHI CPWX12WNEF - Communication settings - 1

natural_image Illustration of a hand holding a tool with two cylindrical components, labeled with number 2 (no text or symbols on the diagram itself)

HITACHI CPWX12WNEF - Communication settings - 2

natural_image Hand holding a device with a downward arrow indicating compression (no text or symbols)
natural_image Technical line drawing of a car air conditioner unit with 12° angle标注 (no text or symbols on the diagram itself)
natural_image Illustration of a projector with two base sensors and an upward arrow indicating motion (no text or symbols)
natural_image Diagram of a device with a circular component and directional arrow, no text or symbols present

HITACHI CPWX12WNEF - Communication settings - 3

natural_image Diagram of a device with a circular component and an X-shaped symbol above it, indicating no text or symbols present.

STANDBY/ON-knop POWER-controlelampje STANDBY/ON INPUT MENU LAMP TEMP POWER

natural_image Line drawing of a printer or printer device with no visible text, numbers, or symbols

HITACHI CPWX12WNEF - Communication settings - 5

HOOG VOLTAGE

HITACHI CPWX12WNEF - HOOG VOLTAGE - 1

HOGE TEMPERATUUR

HITACHI CPWX12WNEF - HOGE TEMPERATUUR - 1

HOGE DRUK

natural_image Diagram of a solar panel array mounted on a base, with no visible text or symbols
natural_image Two rectangular electronic components with grid patterns, one tilted and one upright (no text or symbols visible)
  • Suspended from the ceiling
    HITACHI CPWX12WNEF - HOGE DRUK - 1

F-3

Computer AUDIO OUT HDMI USB TYPE A RGB OUT COMPUTER IN1 COMPUTER IN2 S-VIDEO VIDEO AUDIO IN1 AUDIO IN1 HDMI USB TYPE A DC5V 0.5A USB TYPE B LAN AC IN CONTROLMONITOR OUTAUDIO OUT

F-4
HITACHI CPWX12WNEF - F-3 - 2

ENGLISH
F-5

LAN AC IN HDMI USB TYPE A DC5V 0.5A USB TYPE B COM R IN1 COMPUTER IN2 S-VIDEO VIDEO AUDIO IN1 AUDIO IN2 CONTROLMONITOR OUTAUDIO OUT HDMI S-VIDEO OUT AUDIO OUT VIDEO OUT AUDIO OUT AUDIO OUT Y CuFe CuFe COMPONENT VIDEO OUT

VCR/DVD/Blu-ray Disc™ player

Speakers (with an amplifier) L R Monitor RGB IN HDMI USB TYPE A DC5V 0 USB TYPE B COMPUTER IN1 COMPUTER IN2 S-VIDEO AUDIO IN1 VIDEO AUDIO IN2 LAN AC IN CONTROLMONITOR OUTAUDIO OUT

HITACHI CPWX12WNEF - F-3 - 5
[unit: mm]

NOTE • The information in this manual is subject to change without notice. • The manufacturer assumes no responsibility for any errors that may appear in this manual. • The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Digital Media Division

900 Hitachi way, Chula Vista

CA 91914-3556 USA CANADA

Tel: +1 -800-225-1741

http://www.hitachi-america.us/digitalmedia

Hitachi Europe Ltd., Digital Media Group Consumer Affairs Department

Whitebrook Park, Lower Cookham Road, Maidenhead

Berkshire SL6 8YA UNITED KINGDOM

Tel: 0844 481 0297

Email: consumer.mail@hitachi-eu.com

Hitachi Europe S.A.S., Digital Media Group

Email: customerservice.italy@hitachi-eu.com

Hitachi Europe S.A.

Gran Via Carles III, 86 Planta 5 a

Denmark Tel: +46 8 562 711 00

http://www.hitachidigitalmedia.com

Hitachi Australia Pty Ltd.

Level 3,82 Waterloo Road

North Ryde N.S.W 2113 AUSTRALIA

Tel: +61 -2-9888-4100

http://www.hitachi.com.au

Hitachi (Hong Kong), Ltd.

18/F., Ever Gain Centre, 28 On Muk Street.,

Shatin, N.T. HONG KONG

Tel: +852 -2113-8883

http://www.hitachi-hk.com.hk

Hitachi Sales (Malaysia) Sdn. Bhd.

Lot 12, Jalan Kamajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan

MALAYSIA

Tel: +60 -3-8911-2670

http://www.hitachiconsumer.com.my

Hitachi Home Electronics Asia (S) Pte. Ltd.

438A Alexandra Road #01-01/02/03

Alexandra Technopark, 119967 SINGAPORE

Tel: +65 -6536-2520

http://www.hitachiconsumer.com.sg

Hitachi Sales Corp. of Taiwan

2nd Floor, No.65, Nanking East Road, Section 3,

Taipei 104 TAIWAN

Tel: +886-2-2516-0500

http://www.hsct.com.tw

Hitachi Sales (Thailand), Ltd.

994, 996 Soi Thonglor, Sukhumvit 55 Rd.,

Klongtonnua, Vadhana, Bangkok 10110

THAILAND

Tel: +66 -2381-8381-98

http://www.hitachi-th.com

Hitachi Consumer Electronics Co., Ltd.

292 Yoshida-cho, Totsuka-ku

Yokohama 244-0817 JAPAN

Tel: +81-45-415-2625

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HITACHI

Model : CPWX12WNEF

Category : Projector
