Product Type Video Projector
Brand Hitachi
Model CP-X3020EF
Display Technology 3LCD
Resolution XGA (1024 x 768)
Brightness 3000 Lumens
Contrast Ratio 500:1
Lamp Type UHP
Lamp Life (Normal Mode) 2000 Hours
Dimensions (W x H x D) 317 x 92 x 232 mm
Weight 3.5 kg
Power Supply AC 100-240V, 50/60Hz
Power Consumption 320W (Normal)
Audio Output 1 x 1W Mono Speaker
Input Ports VGA, S-Video, Composite, Audio
Noise Level 32 dB (Normal)
Keystone Correction Vertical ±30°
Cleaning Clean air filter every 100 hours
Safety Auto-off when overheating
Repairability Replaceable lamp and air filter

Frequently Asked Questions - CP-X3020EF HITACHI

How do I turn on the Hitachi CP-X3020EF projector?
Press the Power button on the remote control or the projector itself. Wait for the lamp to warm up (about 30 seconds).
What is the recommended projection distance for a 100-inch screen?
For a 100-inch diagonal image, place the projector approximately 3.2 to 4.0 meters from the screen, depending on zoom.
How do I clean the air filter?
Turn off the projector and unplug it. Remove the filter cover, take out the filter, and vacuum or wash with mild detergent. Reinstall when dry.
Why is the projector not displaying any image?
Check that the input source is correctly selected (e.g., VGA, S-Video). Ensure the cable is connected properly and the source device is on.
How do I replace the lamp?
Disconnect power. Remove the lamp cover, unscrew the old lamp, and insert a new Hitachi approved lamp. Reset the lamp timer via the menu.
The image is blurred, what should I do?
Adjust the focus ring on the lens. Also check the projection distance and keystone correction settings.
Can I connect a laptop to this projector?
Yes, use a VGA cable to connect the laptop's external monitor port to the projector's Computer In port. You may need to press the function key to enable external display.
What does the 'Lamp' indicator flashing mean?
A flashing lamp indicator usually means the lamp is near the end of its life or a malfunction. Check the lamp hours and replace if necessary.
How do I change the projection mode (front, rear, ceiling)?
Go to the Settings menu, select 'Installation', and choose from Front, Rear, Ceiling Front, or Ceiling Rear according to your setup.
Is it normal for the projector to get hot?
Yes, projectors generate heat. Ensure adequate ventilation and keep the air filter clean. The fan will run to cool the unit.

User questions about CP-X3020EF HITACHI

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Projector in PDF format for free! Find your manual CP-X3020EF - HITACHI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CP-X3020EF by HITACHI.

USER MANUAL CP-X3020EF HITACHI

natural_image Line drawing of a projector with ventilation grille and front panel (no text or symbols)

KLEUR, TINT, SCHERPTE, GEHEUGEN

BEELD Menu .... 3 1

ASPECT, OVERSCAN, V POSIT, H POSIT,

H FASE, H SIZE, AUTOM.AANPAS.UITVOEREN

INPUT Menu 33

PROGRESSIEF, VIDEO NR, KLEURVARIATIE,

VIDEO FORMAT, COMPUTER-IN, STILZETTEN,

RESOLUTIE

INSTELLING Menu .... 3 6

AUTO KEYSTONE, KEYSTONE,

NAAM VAN BRON, PATROON, G.B.

6OPTIE Menu 45

AUTOM. ZOEKEN, AUTO KEYSTONE,

DIRECT AAN, AUTOM. UIT, LAMPTIJD,

FILTERTIJD, MIJN KNOP, SIGNAALBRON,

SERVICE

VEILIGHEID Menu .... 5 0

VEILIGH. PASW. VERANDEREN,

MIJN TEKST WEERG., MIJN TEKST BIJW.

Onderhoud 56

De lamp vervangen ..... 56

Specifications....67

Inleiding

Kenmerken

natural_image Technical line drawing of a car air conditioner unit with 12° angle annotation (no text or symbols on the diagram itself)

GEHEUGEN_OPENEN-4 TIJDELLIKE CONDITIE WEET U ZEKER DAT U WILT DOORGAAN MET LADEN? :NEE :JA

natural_image Line drawing of a device with a control panel and labeled part 6 (no text or symbols on the diagram itself)

User's Manual (detailed)

Operating Guide – Technical

Example of PC signal

Resolution (H x V)H. frequency (kHz)V. frequency (Hz)Rating Signal mode
720 x 40037.9 85.0 VESA TEXT
640 x 480 31.559.9 VESA VGA (60Hz)
640 x 480 37.972.8 VESA VGA (72Hz)
640 x 480 37.575.0 VESA VGA (75Hz)
640 x 480 43.385.0 VESA VGA (85Hz)
800 x 600 35.256.3 VESA SVGA (56Hz)
800 x 600 37.960.3 VESA SVGA (60Hz)
800 x 600 48.172.2 VESA SVGA (72Hz)
800 x 600 46.975.0 VESA SVGA (75Hz)
800 x 600 53.785.1 VESA SVGA (85Hz)
832 x 624 49.774.5 Mac 16" mode
1024 x 768 48.460.0 VESA XGA (60Hz)
1024 x 768 56.570.1 VESA XGA (70Hz)
1024 x 768 60.075.0 VESA XGA (75Hz)
1024 x 768 68.785.0 VESA XGA (85Hz)
1152 x 864 67.575.0 VESA1152 x 864 (75Hz)
1280 x 768 47.760.0 VESA W-XGA (60Hz)
1280 x 800 49.760.0 VESA1280 x 800 (60Hz)
1280 x 960 60.060.0 VESA1280 x 960 (60Hz)
1280 x 102464.0 60.0 VESA SXGA (60Hz)
1280 x 102480.0 75.0 VESA SXGA (75Hz)
1280 x 102491.1 85.0 VESA SXGA (85Hz)
1400 x 105065.2 60.0 VESA SXGA+ (60Hz)
1600 x 120075.0 60.0 VESA UXGA (60Hz)

NOTE • Be sure to check jack type, signal level, timing and resolution before connecting this projector to a PC.
- Some PCs may have multiple display screen modes. Use of some of these modes will not be possible with this projector.
- Depending on the input signal, full-size display may not be possible in some cases. Refer to the number of display pixels above.
- Although the projector can display signals with resolution up to UXGA (1600x1200), the signal will be converted to the projector's panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and projector panel are identical.
• Automatic adjustment may not function correctly with some input signals.
- The image may not be displayed correctly when the input sync signal is a composite sync or a sync on G.

Initial set signals

The following signals are used for the initial settings. The signal timing of some PC models may be different. In such case, adjust the items V POSITION and H POSITION in the IMAGE menu.

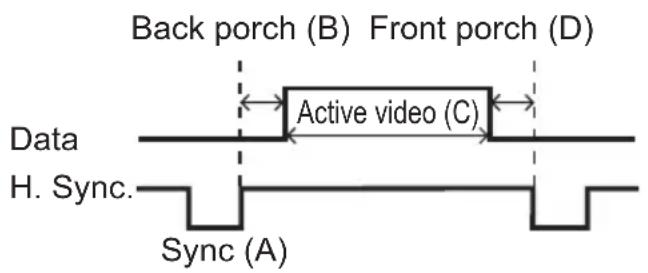

Back porch (B) Front porch (D) Data Active video (C) H. Sync. Sync (A)

Back porch (b) Front porch (d) Active video (c) Data V. Sync. Sync (a)

Resolution (H x V)Horizontal signal timing (μs)Vertical signal timing (lines)Signal mode
(A) (B) (C) (D) (a) (b) (c) (d)
720 x 4002.0 30 20.31.0 3 42 400 1TEXT
640 x 480 3.8 1.9 25.4 0.62 33 48010 VGA (60Hz)
640 x 480 1.3 4.1 20.3 0.83 28 4809 VGA (72Hz)
640 x 480 2.0 3.8 20.3 0.53 16 4801 VGA (75Hz)
640 x 480 1.6 2.2 17.8 1.63 25 4801 VGA (85Hz)
800 x 600 2.0 3.6 22.2 0.72 22 6001SVGA (56Hz)
800 x 600 3.2 2.2 20.0 1.04 23 6001SVGA (60Hz)
800 x 600 2.4 1.3 16.0 1.16 23 60037 SVGA (72Hz)
800 x 600 1.6 3.2 16.2 0.33 21 6001SVGA (75Hz)
800 x 600 1.1 2.7 14.2 0.63 27 6001SVGA (85Hz)
832 x 624 1.1 3.9 14.5 0.63 39 6241Mac 16" mode
1024 x 768 2.1 2.515.8 0.46 29 768 3 XGA (60Hz)
1024 x 768 1.8 1.913.7 0.36 29 768 3 XGA (70Hz)
1024 x 768 1.2 2.213.0 0.23 28 768 1 XGA (75Hz)
1024 x 768 1.0 2.210.8 0.53 36 768 1 XGA (85Hz)
1152 x 864 1.2 2.410.7 0.63 32 864 11152 x 864 (75Hz)
1280 x 768 1.7 2.516.0 0.83 23 768 1 W-XGA (60Hz)
1280 x 800 1.6 2.415.3 0.83 24 800 1 W-XGA (60Hz)
1280 x 960 1.0 2.911.90.9 3 36 960 1W-XGA (60Hz)
1280 x 10241.02.311.90.433810241SXGA (60Hz)
1280 x 10241.1 1.89.5 0.13 381024 1SXGA (75Hz)
1280 x 10241.0 1.48.1 0.43 441024 1SXGA (85Hz)
1400 x 10501.2 2.011.40.7 3 31050 1 SXGA+ (60Hz)
1600 x 12001.2 1.99.9 0.43 461200 1UXGA (60Hz)

Connection to the ports

NOTICE ▶ Use the cables with straight plugs, not L-shaped ones, as the input ports of the projector are recessed.

S-VIDEO VIDEO A B COMPUTER IN1 COMPUTER IN2 USB AUDIO IN1 AUDIO IN2 C AUDIO OUT MONITOR OUT CONTROL

ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒸMONITOR OUT

• Video signal: RGB separate, Analog, 0.7Vp-p, 75Ω terminated (positive)

• H/V. sync. signal: TTL level (positive/negative)

• Composite sync. signal: TTL level

- Video signal:

HITACHI CP-X3020EF - ⒶCOMPUTER IN1, ⒷCOMPUTER IN2, ⒸMONITOR OUT - 1

-Y, Analog, 1.0±0.1Vp-p with composite sync, 75Ω terminated

-Cb/Pb, Analog, 0.7±0.1Vp-p, 75Ω terminated

-Cr/Pr, Analog, 0.7±0.1Vp-p 75Ω terminated

System: 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60, 1080i@50/60, 1080p@50/60

PinSignal Pin Signal
1Video Red, Cr/Pr9(No connection)
2Video Green, Y 10 Ground
3Video Blue, Cb/Pb11(No connection)
4 (No connection)12A: SDA (DDC data), (No connection)B, C: (No connection)
5 Ground
6Ground Red, Ground Cr/Pr13H. sync / Composite sync., (No connection)
7 Ground Green, Ground Y 14 V. sync., (No connection)
8 Ground Blue, Ground Cb/Pb15A: SCL (DDC clock), (No connection)B, C: (No connection)

D S-VIDEO VIDEO E COMPUTER IN1 COMPUTER IN2 USB AUDIO IN1 AUDIO IN2 AUDIO OUT MONITOR OUT CONTROL

DS-VIDEO

Mini DIN 4pin jack

HITACHI CP-X3020EF - DS-VIDEO - 1

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)

Pin Signal
1Color signal 0.286Vp-p (NTSC, burst), 75Ω terminatorColor signal 0.300Vp-p (PAL/SECAM, burst) 75Ω terminator
2Brightness signal, 1.0Vp-p, 75Ω terminator
3 Ground
4 Ground

©VIDEO

RCA jack

• System: NTSC, PAL, SECAM, PAL-M, PAL-N, NTSC4.43, PAL (60Hz)

• 1.0±0.1Vp-p, 75Ω terminator

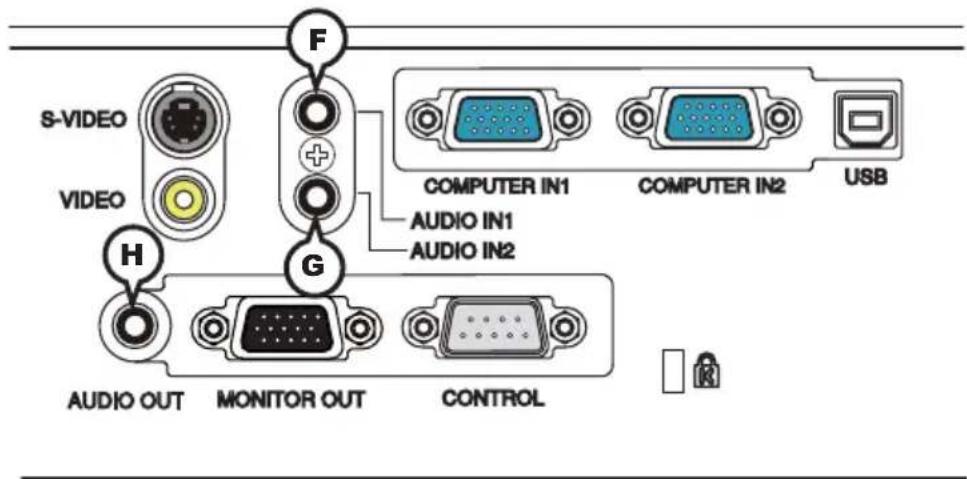

S-VIDEO VIDEO F COMPUTER IN1 COMPUTER IN2 USB AUDIO IN1 AUDIO IN2 H G AUDIO OUT MONITOR OUT CONTROL

④AUDIO IN1, ⑤AUDIO IN2

- About the details of RS-232C communication, please refer to the following page.

⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ①

Pin Signal Pin Signal Pin Signal
1 (No connection) 4 (No connection) 7RTS
2 RD 5 Ground 8 CTS
3TD6(No connection)9(No connection)

To input component video signal to COMPUTER IN ports

ex.

D-sub plug 8-VIDEO VIDEO AUDIO IN1 AUDIO IN2 COMPUTER IN1 COMPUTER IN2 USB AUDIO OUT MONITOR OUT CONTROL RCA plugs RCA connectors Y Cb/Pb Cr/Pr COMPONENT VIDEO OUT VCR/DVD/Blu-ray Disc player

To input component video signal to the COMPUTER IN1 or IN2 port of the projector, use a RCA to D-sub cable or adapter.

For about the pin description of the required cable or adapter, refer to the descriptions about COMPUTER IN1 and IN2 port (3).

RS-232C Communication

When the projector connects to the computer by RS-232C communication, the projector can be controlled with RS-232C commands from the computer. For details of RS-232C commands, refer to RS-232C Communication command table (10).

Connection

  1. Turn off the projector and the computer.
  2. Connect the projector's CONTROL port and the computer's RS-232C port with a RS-232C cable (cross). Use the cable that fulfills the specification shown in figure.
  3. Turn the computer on, and after the computer has started up turn the projector on.

HITACHI CP-X3020EF - Connection - 1

RS-232C port of the computer
② ⑧ ⑦ ⑥ ⑤ ④ ③ ② ①

CONTROL port of the projector
⑨ ⑧ ⑦ ⑥ ⑤ ④ ③ ② ①

HITACHI CP-X3020EF - Connection - 4

Communication settings

1. Protocol

19200bps,8N1

  1. Command format ("h" shows hexadecimal)
Byte Number01234589101
CommandActionHeader Data
Header codePacketData sizeCRC flagAction TypeSetting code
LHLHLHLHLHLH
BEhEFh03h06h00h(aL)(aH)01h00h(bL)(bH)(cL)(cH)
(aL)(aH)02h00h(bL)(bH)00h00h
(aL)(aH)04h00h(bL)(bH)00h00h
(aL)(aH)05h00h(bL)(bH)00h00h
(aL)(aH)06h00h(bL)(bH)00h00h

[Header code], [Packet], [Data size]

Set [BEh, EFh, 03h, 06h, 00h] to byte number 0 \~ 4.

[CRC flag]

For byte number 5, 6, refer to RS-232C Communication command table.

[Action]

Set functional code to byte number 7, 8.

lt; SET gt; = [0 1 h, 0 0 h], lt; GET gt; = [0 2 h, 0 0 h], lt; INCREMENT gt; = [0 4 h, 0 0 h]

lt; DECREMENT gt; = [0 5 h, 0 0 h], lt; EXECUTE gt; = [0 6 h, 0 0 h]

Refer to the command table above.

[Type], [Setting code]

For byte number 9\~12, refer to RS-232C Communication command table.

RS-232C Communication command table

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
Power Set Turnoff BEEF 03 06 00 2A D3 0100 00 60 00 00
Turn on BE EF03 06 00 BA D2 0100 00 60 01 00
Get BE EF 03 0600 19 D3 02 00 00 60 00 00
[Example return]00 00 01 00 02 00[Off] [On] [Cool down]
Input SourceSetCOMPUTER IN1BE EF0306 00FE D201 0000 2000 00
COMPUTER IN2 BEEF 03 06 00 3E D0 01 00 0020 04 00
S-VIDEOBE EF 03 06 009E D3 01 0000 00 20 0200
VIDEOBE EF 03 06 006E D3 01 0000 00 20 0100
Get BE EF 03 0600 CD D202 00 0020 00 00
Error StatusGet BE EF 03 0600 D9 D8 02 00 20 60 00 00
[Example return]00 00 01 00 02 00 03 00[Normal] [Cover error] [Fan error] [Lamp error]04 00 05 00 07 00 08 00[Temp error] [Air flow error] [Cold error] [Filter error]
MAGNIFYGet BE EF 03 0600 7C D2 02 00 07 30 00 00
IncrementBE EF 03 06 001A D2 04 0000 07 30 0000
DecrementBE EF 03 06 00CB D3 0500 07 30 0000
FREEZESetNORMALBE EF0306 0083 D201 0002 3000 00
FREEZE BE EF03 06 00 13 D3 0100 02 30 01 00
Get BE EF 03 0600 B0 D2 02 00 02 30 00 00
PICTURE MODESetNORMALBE EF0306 0023 F601 00BA 3000 00
CINEMA BE EF03 06 00 B3 F7 0100 BA 3001 00
DYNAMICBE EF 03 06 00E3 F4 01 00BA 3004 00
BOARD(BLACK) BEEF 03 06 00 E3 EF01 00 BA 3020 00
BOARD(GREEN)BE EF 03 06 0073 EE 01 00BA 3021 00
WHITEBOARDBE EF 03 06 0083 EE 01 00BA 3022 00
DAYTIMEBE EF0306 00E3 C701 00BA 3040 00
Get BE EF 03 0600 10 F6 02 00BA 3000 00
[Example return]00 00 01 00 04 00 10 00[Normal] [Cinema] [Dynamic] [Custom]20 00 21 00 22 00 40 00[BOARD(BLACK)] [BOARD(GREEN)] [WHITEBOARD] [DAY TIME]
BRIGHTNESSGet BE EF 03 0600 89 D2 02 00 03 20 00 00
IncrementBE EF 03 06 00EF D2 04 0000 03 20 0000
DecrementBE EF 03 06 003E D3 0500 03 20 0000
BRIGHTNESS ResetExecuteBE EF0306 0058 D306 0000 7000 00
CONTRASTGet BE EF 03 0600 FD D3 02 00 04 20 00 00
IncrementBE EF 03 06 009B D3 04 0000 04 20 0000
DecrementBE EF 03 06 004A D2 05 0000 04 20 0000
CONTRAST ResetExecuteBE EF0306 00A4 D206 0001 7000 00

(continued on next page)

RS-232C Communication command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
GAMMA Set DE FAULT-1 BE EF 03 06 00 07 E9 01 00 A1 30 20 00
Get BE EF 03 06 00 F4 F0 02 00 A1 30 00 00
User Gamma PatternSetOffBE EF0306 00FB FA01 0080 3000 00
9 steps gray scale BEEF 03 06 00 6B FB 01 0080 30 01 00
15 steps gray scaleBE EF 03 06 00 9B FB 01 00 80 3002 00
RampBE EF 03 06 00 0B FA 01 00 80 30 03 00
Get BE EF 03 06 00 C8 FA 02 00 80 3000 00
User Gamma Point 1GetBE EF0306 0008 FE02 0090 3000 00
IncrementBE EF 03 06 00 6E FE 04 00 90 3000 00
DecrementBE EF 03 06 00 BF FF 05 00 90 3000 00
User Gamma Point 1 ResetExecuteBE EF 03 06 00 58 C2 06 00 50 70 00 00
User Gamma Point 2GetBE EF0306 00F4 FF02 0091 3000 00
IncrementBE EF 03 06 00 92 FF 04 00 91 3000 00
DecrementBE EF 03 06 00 43 FE 05 00 91 30 00 00
User Gamma Point 2 ResetExecuteBE EF 03 06 00 A4 C3 06 00 51 7000 00
User Gamma Point 3Get BE EF 03 06 00 B0 FF 02 00 92 30 00 00
IncrementBE EF 03 06 00 D6 FF 04 00 92 3000 00
DecrementBE EF 03 06 00 07 FE 05 00 92 30 00 00
User Gamma Point 3 ResetExecuteBE EF 03 06 00 E0 C3 06 00 52 7000 00
User Gamma Point 4GetBE EF0306 004C FE02 0093 3000 00
IncrementBE EF 03 06 00 2A FE 04 00 93 3000 00
DecrementBE EF 03 06 00 FB FF 05 00 93 3000 00
User Gamma Point 4 ResetExecuteBE EF 03 06 00 1C C2 06 00 53 7000 00
User Gamma Point 5GetBE EF0306 0038 FF02 0094 3000 00
IncrementBE EF 03 06 00 5E FF 04 00 94 30 00 00
DecrementBE EF 03 06 00 8F FE 05 00 94 30 00 00
User Gamma Point 5 ResetExecuteBE EF 03 06 00 68 C3 06 00 54 70 00 00
User Gamma Point 6GetBE EF0306 00C4 FE02 0095 3000 00
IncrementBE EF 03 06 00 A2 FE 04 00 95 3000 00
DecrementBE EF 03 06 00 73 FF 05 00 95 3000 00
User Gamma Point 6 ResetExecuteBE EF 03 06 00 94 C2 06 00 55 70 00 00
User Gamma Point 7GetBE EF0306 0080 FE02 0096 3000 00
IncrementBE EF 03 06 00 E6 FE 04 00 96 3000 00
DecrementBE EF 03 06 00 37 FF 05 00 96 3000 00
User Gamma Point 7 ResetExecuteBE EF 03 06 00 D0 C2 06 00 56 7000 00

(continued on next page)

RS-232C Communication command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
User Gamma Point 8 GetBE EF 0306 007C FF 0200 97 30 0000
IncrementBE EF 0306 001A FF 0400 97 30 0000
DecrementBE EF 0306 00CB FE 0500 97 30 0000
User Gamma Point 8 ResetExecuteBE EF 0306 002C C3 0600 57 70 0000
COLOR TEMP SetHIGHBE EF 0306 000B F5 0100 B0 30 0300
1 CUSTOMBE EF 0306 00CB F8 0100 B0 30 1300
2 MIDBE EF 0306 009B F4 0100 B0 30 0200
2 CUSTOMBE EF 0306 005B F9 0100 B0 30 1200
3 LOWBE EF 0306 006B F4 0100 B0 30 0100
3 CUSTOMBE EF 0306 00AB F9 0100 B0 30 1100
4 Hi-BRIGHT-1BE EF 0306 003B F2 0100 B0 30 0800
4 CUSTOMBE EF 0306 00FB FF 0100 B0 30 1800
5 Hi-BRIGHT-2BE EF 0306 00AB F3 0100 B0 30 0900
5 CUSTOMBE EF 0306 006B FE 0100 B0 30 1900
6 Hi-BRIGHT-3BE EF 0306 005B F3 0100 B0 30 0A00
6 CUSTOMBE EF 0306 009B FE 0100 B0 30 1A00
Get BE EF 03 0600 C8 F502 00 B030 00 00
COLOR TEMP GAIN RGet BE EF 03 0600 34 F402 00 B130 00 00
IncrementBE EF 0306 0052 F4 0400 B1 30 0000
DecrementBE EF 0306 0083 F5 0500 B1 30 0000
COLOR TEMP GAIN R ResetExecuteBE EF 0306 0010 C6 0600 46 70 0000
COLOR TEMP GAIN GGet BE EF 03 0600 70 F402 00 B230 00 00
IncrementBE EF 0306 0016 F4 0400 B2 30 0000
DecrementBE EF 0306 00C7 F5 0500 B2 30 0000
COLOR TEMP GAIN G ResetExecuteBE EF 0306 00EC C7 0600 47 70 0000
COLOR TEMP GAIN BGet BE EF 03 0600 8C F502 00 B330 00 00
IncrementBE EF 0306 00EA F5 0400 B3 30 0000
DecrementBE EF 0306 003B F4 0500 B3 30 0000
COLOR TEMP GAIN B ResetExecuteBE EF 0306 00F8 C4 0600 48 70 0000
COLOR TEMP OFFSET RGet BE EF 03 0600 04 F502 00 B530 00 00
IncrementBE EF 0306 0062 F5 0400 B5 30 0000
DecrementBE EF 0306 00B3 F4 0500 B5 30 0000
COLOR TEMP OFFSET R ResetExecuteBE EF 0306 0040 C5 0600 4A 70 0000
COLOR TEMP OFFSET GGet BE EF 03 0600 40 F502 00 B630 00 00
IncrementBE EF 0306 0026 F5 0400 B6 30 0000
DecrementBE EF 0306 00F7 F4 0500 B6 30 0000
COLOR TEMP OFFSET G ResetExecuteBE EF 0306 00BC C4 0600 4B 70 0000
COLOR TEMP OFFSET BGet BE EF 03 0600 BC F402 00 B730 00 00
IncrementBE EF 0306 00DA F4 0400 B7 30 0000
DecrementBE EF 0306 00OB F5 0500 B7 30 0000
COLOR TEMP OFFSET B ResetExecuteBE EF 0306 00C8 C5 0600 4C70 00 00

(continued on next page)

RS-232C Communication command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
COLOR Get BEEF 03 06 00 B5 72 02 00 0222 00 00
Increment BE EF 0306 00 D372 04 0002 22 0000
Decrement BE EF 0306 00 0273 05 0002 22 0000
COLOR Reset ExecuteBE EF 03 06 00 80 D0 0600 0A 7000 00
TINT Get BEEF 03 06 00 49 73 02 00 03 222 00 00
Increment BE EF 0306 00 2F73 04 0003 22 0000
Decrement BE EF 0306 00 FE72 05 0003 22 0000
TINT Reset ExecuteBE EF 03 06 00 7C D1 0600 0B 7000 00
SHARPNESSGet BE EF 03 0600 F1 72 0200 0122 00 00
Increment BE EF 0306 00 9772 04 0001 22 0000
Decrement BE EF 0306 00 4673 05 0001 22 0000
SHARPNESS ResetExecute BE EF 0306 00 C400 06 0009 70 0000
MY MEMORY LoadSet1BE EF0306 000E D701 0014 2000 00
2BE EF 0306 009E D6 0101 14 20 0100
3BE EF 0306 006E D6 0101 14 20 0200
4BE EF 0306 00FE D701 00 14 20 03 00
MY MEMORY SaveSetBE EF 0306 00 F2D6 0101 15 20 0000
2BE EF 0306 0062 D7 0101 15 20 0100
3BE EF 0306 0092 D7 0101 15 20 0200
4BE EF 0306 0002 D6 0101 15 20 0300
ASPECTSet4:3BE EF0306 009E D001 0008 2000 00
16:9BE EF 0306 000E D1 0100 08 20 0100
14:9BE EF0306 00CE D601 0008 2009 00
16:10BE EF 030600 3E D601 00 08 20 0A 00
NORMALBE EF0306 005E DD01 0008 2010 00
Get BE EF 03 0600 ADD002 00 0820 00 00
OVER SCANGet BE EF 03 0600 91 7002 00 0922 00 00
Increment BE EF 0306 00 F770 04 0009 22 0000
Decrement BE EF 0306 00 2671 05 0009 22 0000
OVER SCAN ResetExecuteBE EF0306 00EC D906 0027 7000 00
V POSITIONGet BE EF 03 0600 0D 8302 00 0021 00 00
Increment BE EF 0306 00 6B83 04 0000 21 0000
Decrement BE EF 0306 00 BA82 05 0000 21 0000
V POSITION ResetExecute BE EF 0306 00 E0D2 06 0002 70 0000
H POSITIONGet BE EF 0306 00 F182 02 0001 21 0000
Increment BE EF 0306 00 9782 04 0001 21 0000
Decrement BE EF 0306 00 4683 05 0001 21 0000
H POSITION ResetExecuteBE EF0306 001C D306 0003 7000 00
H PHASEGet BE EF 03 0600 49 8302 00 0321 00 00
Increment BE EF 0306 00 2F83 04 0003 21 0000
Decrement BE EF 0306 00 FE82 05 0003 21 0000

(continued on next page)

RS-232C Communication command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
H SIZE Get BEEF 03 06 00 B5 82 02 00 0221 00 00
Increment BE EF 0306 00 D332 04 0000 21 0000
Decrement BE EF 0306 00 0233 05 0000 21 0000
H SIZE Reset ExecuteBE EF 03 06 00 68 D2 0600 04 70 0000
AUTO ADJUST EXECUTEExecute BE EF 0306 00 91 D006 000A 20 0000
PROGRESSIVE SetOFFBE EF 03 06 00 4A 72 0100 07 22 0000
TV BE EF 0306 00 DA 7301 0007 22 0100
FILMBE EF 0306 002A 73 0100 07 22 0200
Get BE EF 03 0600 79 72 0200 0722 00 00
VIDEO NRSetLOWBE EF0306 0026 7201 0006 2201 00
MIDBE EF 0306 00D6 72 0100 06 22 0200
HIGH BE EF 0306 00 4673 0100 06 22 0300
Get BE EF 03 0600 85 73 0200 0622 00 00
COLOR SPACESetAUTOBE EF0306 000E 7201 0004 2200 00
RGB BE EF 0306 009E 7301 00 0422 01 00
SMPTE240BE EF 030600 6E 7301 00 0422 02 00
REC709BE EF 030600 FE 7201 00 0422 03 00
REC601BE EF0306 00CE 7001 0004 2204 00
Get BE EF 0306 00 3D72 0200 04 22 0000
S-VIDEO FORMATSetAUTOBE EF0306 00E6 7001 0012 220A 00
NTSCBE EF 0306 0086 74 0100 12 2204 00
PALBE EF0306 0016 7501 0012 2205 00
SECAMBE EF 030600 16 7001 00 1222 09 00
NTSC4.43BE EF 030600 26 7701 00 1222 02 00
M-PALBE EF 030600 86 7101 00 1222 08 00
N-PALBE EF 030600 76 7401 00 1222 07 00
Get BE EF 0306 00 7576 0200 12 22 0000
C-VIDEO FORMATSetAUTOBE EF0306 00A2 7001 0011 220A 00
NTSCBE EF 0306 00C2 74 0100 11 22 0400
PALBE EF 030600 52 7501 00 1122 05 00
SECAMBE EF 030600 52 7001 00 1122 09 00
NTSC4.43BE EF 030600 62 7701 00 1122 02 00
M-PALBE EF 030600 C2 7101 00 1122 08 00
N-PALBE EF 030600 32 7401 00 1122 07 00
Get BE EF 0306 00 3176 0200 11 22 0000
COMPUTER IN1SetAUTOBE EF0306 00CE D601 0010 2003 00
SYNC ON G OFF BEEF 03 06 005E D701 00 1020 02 00
Get BE EF 0306 00 0DD6 0200 10 2000 00
COMPUTER IN2SetAUTOBE EF0306 0032 D701 0011 2003 00
SYNC ON G OFF BEEF 03 06 00A2 D601 00 1120 02 00
Get BE EF 0306 00 F1D7 0200 1120 00 00

(continued on next page)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
FRAME LOCK - COMPUTER IN1SetDFF BE EF 03 06 00 3BC2 01 00 50 30 0000
ON BE EF 0306 00 AB C3 01 00 50 30 0100
Get BE EF 03 0600 08 C2 02 00 50 30 00 00
FRAME LOCK - COMPUTER IN2SetDFF BE EF 03 06 00 0BC3 01 00 54 30 0000
ON BE EF 0306 00 9B C2 01 00 54 30 0100
Get BE EF 03 0600 38 C3 02 00 54 30 00 00
AUTO KEYSTONE V EXECUTEExecute BE EF 0306 00 E5 D1 06 00 0D 20 0000
KEYSTONE VGet BE EF 03 0600 B9 D3 02 00 07 20 00 00
Increment BE EF 0306 00 DF D3 04 00 07 20 0000
DecrementBE EF 03 06 00 0E D2 05 00 07 20 0000
KEYSTONE V ResetExecute BE EF 0306 00 08 D0 06 00 0C 70 0000
AUTO ECO MODESetDFF BE EF 03 06 00 FB27 01 00 10 33 0000
ON BE EF 0306 00 6B 26 01 00 10 33 0100
Get BE EF 03 0600 C8 27 02 00 10 33 00 00
ECO MODESetNORMALBE EF 0306 003B 2301 0000 3300 00
ECOBE EF 03 06 00AB 22 0100 00 33 0100
Get BE EF 03 0600 08 23 02 00 00 33 00 00
MIRRORSetNORMALBE EF 0306 00C7 D201 0001 3000 00
H:INVERTBE EF 03 06 0057 D3 0100 01 30 0100
V:INVERTBE EF 03 06 00A7 D3 0100 01 30 0200
H&V:INVERTBE EF 03 06 0037 D2 0100 01 30 0300
Get BE EF 03 0600 F4 D2 02 00 01 30 00 00
STANDBY MODESetNORMALBE EF 0306 00D6 D201 0001 6000 00
SAVINGBE EF 03 06 0046 D3 0100 01 60 0100
Get BE EF 03 0600 E5 D2 02 00 01 60 00 00
MONITOR OUT - COMPUTER IN1SetCOMPUTER1BE EF 03 06 003E F4 0100 B0 20 0000
OFF BE EF 0306 00 CE B5 0100 B0 20FF 00
Get BE EF 03 0600 0D F4 D2 00 B0 20 00 00
MONITOR OUT - COMPUTER IN2SetCOMPUTER2BE EF 03 06 00CE F7 0100 B4 20 0400
OFF BE EF 0306 00 FE B4 0100 B4 20 FF00
Get BE EF 03 0600 3D F5 D2 00 B4 20 00 00
MONITOR OUT - S-VIDEOSetCOMPUTER1BE EF 03 06 0086 F5 0100 B2 20 0000
COMPUTER2BE EF 03 06 0046 F7 0100 B2 20 0400
OFF BE EF 0306 00 76 B4 0100 B2 20 FF00
Get BE EF 03 0600 B5 F5 D2 00 B2 20 00 00
MONITOR OUT - VIDEOSetCOMPUTER1BE EF 03 06 00C2 F5 0100 B1 20 0000
COMPUTER2BE EF 03 06 0002 F7 0100 B1 20 0400
OFF BE EF 0306 00 32 B4 0100 B1 20 FF00
Get BE EF 03 0600 F1 F5 D2 00 B1 20 00 00
MONITOR OUT - STANDBYSetCOMPUTER1BE EF 03 06 002A F7 0100 BF 20 0000
COMPUTER2BE EF 03 06 00EA F5 0100 BF 20 0400
OFF BE EF 0306 00 DA B6 0100 BF 20FF 00
Get BE EF 03 0600 19 F7 D2 00BF 20 0000
VOLUME - COMPUTER IN1Get BE EF 03 0600 CD CC D2 0060 20 00 00
IncrementBE EF 03 06 00AB CC 0400 60 20 0000
DecrementBE EF 03 06 007A CD05 00 6020 00 00

(continued on next page)

RS-232C Communication command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
VOLUME - COMPUTER IN2Get BE EF 03 06 00 FD CD02 0064 20 00 00
Increment BE EF 0306 00 9BCD 0400 64 20 0000
Decrement BE EF 0306 00 4ACC 0500 64 20 0000
VOLUME - S-VIDEO GetBE EF 03 06 00 75 CD 0200 62 20 00 00
Increment BE EF 0306 00 13CD 0400 62 20 0000
Decrement BE EF 0306 00 C2CC 0500 62 20 0000
VOLUME - VIDEO GetBE EF 03 06 00 31 CD 0200 61 20 00 00
Increment BE EF 0306 00 57CD 0400 61 20 0000
Decrement BE EF 0306 00 86CC 0500 61 20 0000
VOLUME - AUDIO OUT STANDBYGet BE EF 03 06 00 D9 CF02 006F 20 00 00
Increment BE EF 0306 00 BFCF 0400 6F 20 0000
Decrement BE EF 0306 00 6ECE 0500 6F 20 0000
MUTESetOFFBE EF0306 0046 D301 0002 2000 00
ONBE EF 0306 00D6 D2 0100 02 20 0100
Get BE EF 03 06 00 75 D302 00 0220 00 00
SPEAKERSetONBE EF0306 00FE D401 001C 2001 00
OFFBE EF0306 006E D501 001C 2000 00
Get BE EF 03 06 00 5D D5 02 00 1C 2000 00
AUDIO SOURCE - COMPUTER IN1SetAUDIO IN1 BE EF 03 06 00 6E DC 01 00 30 20 01 00
AUDIO IN2BE EF 0306 009E DC01 00 30 20 02 00
OFFBE EF 0306 00FE DD01 00 30 20 00 00
Get BE EF 0306 00 CDDD 0200 30 20 00 00
AUDIO SOURCE - COMPUTER IN2SetAUDIO IN1BE EF0306 005E DD01 0034 2001 00
AUDIO IN2BE EF 0306 00AE DD 0100 34 20 02 00
OFFBE EF 0306 00CE DC01 00 34 20 00 00
Get BE EF 0306 00 FDDC 0200 34 20 00 00
AUDIO SOURCE - S-VIDEOSetAUDIO IN1 BE EF 03 06 00 D6 DD 01 00 32 20 01 00
AUDIO IN2BE EF 0306 0026 DD01 00 32 20 02 00
OFFBE EF0306 0046 DC01 0032 2000 00
Get BE EF 0306 00 75DC02 00 3220 00 00
AUDIO SOURCE - VIDEOSetAUDIO IN1BE EF0306 0092 DD01 0031 2001 00
AUDIO IN2BE EF 0306 0062 DD01 00 31 20 02 00
OFFBE EF0306 0002 DC01 0031 2000 00
Get BE EF 0306 00 31DC02 00 3120 00 00
AUDIO OUT STANDBYSetAUDIO IN1BE EF0306 007A DF01 003F 2001 00
AUDIO IN2BE EF 0306 008A DF01 00 3F 20 02 00
OFFBE EF0306 00EA DE01 003F 2000 00
Get BE EF 0306 00D9 DE02 00 3F20 00 00

(continued on next page)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
LANGUAGE * Set ENGLISH BE EF 03 06 00 F7D3 01 00 05 30 00
FRANÇAIS BE EF 03 06 00 67 D2 01 00 05 30 01 00
DEUTSCH BE EF 03 06 00 97 D2 01 00 05 30 02 00
ESPAÑOL BE EF 03 06 00 07 D3 01 00 05 30 03 00
ITALIANO BE EF 03 06 00 37 D1 01 00 05 30 04 00
NORSKBE EF 03 06 00 A7 D0 01 00 05 30 0500
NEDERLANDSBE EF 03 06 00 57 D0 01 00 05 30 0600
PORTUGUÊSBE EF 03 06 00 C7 D1 01 00 05 30 07 00
日本語BE EF 03 06 00 37 D4 01 00 05 30 0800
简体中文BE EF 03 06 00 A7 D5 01 00 05 30 0900
繁體中文BE EF 03 06 00 37 DE 01 00 05 30 1000
한글BE EF 03 06 00 57 D5 01 00 05 30 0A00
SVENSKA BE EF 03 06 00 C7 D4 01 00 05 30 0B 00
PYCCKIЙ BE EF 03 06 00 F7 D6 01 00 05 30 0C00
SUOMIBE EF 03 06 00 67 D7 01 00 05 300D 00
POLSKIBE EF 03 06 00 6 00 97 D7 01 00 05 30 0E 00
TÜRKÇEBE EF 03 06 00 07 D6 01 00 05 30 0F00
DANSKBE EF 03 06 00 A7 DF 01 00 05 30 11 00
ČESKYBE EF 03 06 00 57 DF 01 00 05 30 1200
MAGYARBE EF 03 06 00 C7 DE 01 00 05 30 30 13 00
ROMÄNÄBE EF 03 06 00 F7 DC 01 00 05 30 15 0001 0005 3013 00
SLOVENSKIBE EF 03 06 00 67 DD 01 00 05 30 15 00
HRVATSKI BE EF 03 06 00 97 DD 01 00 05 30 16 00
ΕΛΛΗΝΙΚΑ BE EF 03 06 00 07 DC 01 00 05 30 17 00
LIETUVIU BE EF 03 06 00 F7 D9 01 00 05 30 18 00
EESTIBE EF 03 06 00 67 D8 01 00 05 30 1900
LATVIEŠU BE EF 03 06 00 97 D8 01 00 05 30 A 00
ไทยBE EF 03 06 00 07 D9 01 00 05 301B 00
قىبىرىلا ئغىلاBE EF 03 06 00 37 DB 01 00 05 301C 00
كيسرافBE EF 03 06 00 03 06 00 A7 DA 01 00 05 30 1E 0001 0005 301D 00
PORTUGUÊS BRA BE EF 03 06 00 57 DA 01 00 05 30 1E 00
GetBE EF 03 06 00 C4 D3 02 00 05 30 00 00
MENU POSITION HGetBE EF 03 06 00 04 D7 02 00 15 30 0000
IncrementBE EF 03 06 00 62 D7 04 00 15 30 0000
DecrementBE EF 03 06 00 B3 D6 05 00 15 30 0000
MENU POSITION H ResetExecuteBE EF 03 06 00 03 06 00 DC C6 06 00 43 7006 0043 7000 00
MENU POSITION VGetBE EF 03 06 00 40 D7 02 00 16 30 0000
IncrementBE EF 03 06 00 26 D7 04 00 16 30 0000
DecrementBE EF 03 06 00 F7 D6 05 00 16 30 0000
MENU POSITION V ResetExecuteBE EF 03 06 00 A8 C7 06 00 44 70 0000
BLANKSetMyScreenBE EF 03 06 00 FB E2 01 00 00 30 40 0001 0000 3020 00
ORIGINAL BE EF 03 06 00 FB E2 01 00 00 30 40 00
BLUEBE EF 03 06 00 06 00 CB D3 01 00 00 30 3001 0000 3003 00
WHITEBE EF 03 06 00 6B D0 01 00 00 30 0500
BLACKBE EF 03 06 00 9B D0 01 00 00 30 0600
GetBE EF 03 06 00 08 D3 02 00 00 30 0000

* Not all of the languages in the table are supported.

(continued on next page)

RS-232C Communication command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
BLANK On/Off SetOFF BEEF 03 06 00 FB D8 01 00 20 3000 00
ON BE EF 0306 00 6BD9 0100 20 30 0100
Get BE EF 03 0600 C8 D802 0020 30 00 00
START UP Set MScreen BE EF 03 06 00CB CB01 0004 30 20 00
ORIGINALBE EF 0306 000B D2 0100 04 30 0000
OFF BE EF 0306 00 9BD3 0100 04 30 0100
Get BE EF 03 0600 38D202 00 0430 00 00
MyScreen Lock SetOFF BEEF 03 06 00 3B EF 01 00C0 3000 00
ONBE EF0306 00AB EE01 00C0 3001 00
GetBE EF0306 0008 EF02 00C0 3000 00
MESSAGESetOFFBE EF0306 008F D601 0017 3000 00
ON BE EF 0306 00 1FD701 00 17 3001 00
Get BE EF 03 0600 BC D60200 17 30 0000
TEMPLATESetTEST PATTERNBE EF0306 0043 D901 0022 3000 00
DOT-LINE1BE EF 0306 00D3 D8 0100 22 30 0100
DOT-LINE2BE EF0306 0023 D801 0022 3002 00
DOT-LINE3BE EF 0306 00B3 D9 0100 22 3003 00
DOT-LINE4BE EF 0306 0083 DB 0100 22 3004 00
CIRCLE 1BE EF 0306 0013 DA01 00 22 3005 00
CIRCLE 2BE EF 0306 00E3 DA 0100 22 3006 00
MAP 1BE EF0306 0083 D401 0022 3010 00
MAP 2BE EF0306 0013 D501 0022 3011 00
Get BE EF 03 0600 70D902 00 2230 00 00
TEMPLATE On/OffSetOFFBE EF0306 00BF D801 0023 3000 00
ON BE EF 0306 00 2FD901 00 23 3001 00
Get BE EF 03 0600 8C D802 0023 30 00 00
C. C. - DISPLAYSetOFFBE EF0306 00FA 6201 0000 3700 00
ON BE EF 0306 006A 6301 0000 37 01 00
AUTOBE EF0306 009A 6301 0000 3702 00
Get BE EF 03 0600 C96202 00 0037 00 00
C. C. - MODESetCAPTIONSBE EF0306 0006 6301 0001 3700 00
TEXTBE EF 0306 0096 6201 00 01 3701 00
Get BE EF 03 0600 3563 0200 01 37 0000
C. C. - CHANNELSet1BE EF0306 00D2 6201 0002 3701 00
2BE EF 0306 0022 6201 00 02 3702 00
3BE EF0306 00B2 6301 0002 3703 00
4BE EF 0306 0082 6101 00 02 3704 00
Get BE EF 03 0600 7163 0200 02 37 0000
AUTO SEARCH SetOFF BE EF 03 06 00 B6 D601 0016 20 0000
ON BE EF 0306 0026 D701 0016 20 01 00
Get BE EF 03 0600 85D602 00 1620 00 00
AUTO KEYSTONESetOFFBE EF0306 00EA D101 00OF 2000 00
ON BE EF 0306 00 7AD0 01 00OF 2001 00
Get BE EF 03 0600 D9 D102 00OF 2000 00
DIRECT POWER ONSetOFFBE EF0306 003B 8901 0020 3100 00
ON BE EF 0306 00 ABB801 00 20 3101 00
Get BE EF 03 0600 0889 0200 20 31 0000

(continued on next page)

RS-232C Communication command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
AUTO POWER OFF Get BE EF 03 06 00 08 86 0200 10 31 0000
Increment BE EF 0306 00 6E86 04 0010 31 0000
Decrement BE EF 0306 00 BF87 05 0010 31 0000
LAMP TIME Get BE EF 03 06 00 C2 FF 02 00 90 10 00 00
LAMP TIME Reset ExecuteBE EF0306 0058 DC06 0030 7000 00
FILTER TIME Get BE EF 03 06 00 C2 F0 02 00 A0 1000 00
FILTER TIME Reset ExecuteBE EF0306 0098 C606 0040 7000 00
MY BUTTON-1SetCOMPUTER IN1BE EF0306 003A 3301 0000 3600 00
COMPUTER IN2BE EF 0306 00FA 31 01 0000 00 36 0400
S-VIDEOBE EF 0306 005A 32 01 0000 00 36 0200
VIDEOBE EF 0306 00AA 32 01 0000 00 36 0100
INFORMATIONBE EF 0306 00FA 3E 01 0000 00 36 1000
AUTO KEYSTONEBE EF 030600 6A 3F01 00 00 3611 00
MY MEMORYBE EF 0306 009A 3F 01 0000 00 36 1200
PICTURE MODEBE EF 030600 0A 3E01 00 00 3613 00
FILTER RESETBE EF 030600 3A 3C01 00 00 3614 00
AV MUTEBE EF 0306 00AA 38 01 0000 00 36 1900
TEMPLATEBE EF 0306 00CA 39 01 0000 00 361B 00
RESOLUTIONBE EF 0306 009A 3A 01 0000 00 36 1E00
ECO MODEBE EF 0306 000A 25 01 0000 00 36 3700
Get BE EF 03 06 00 09 33 02 00 00 36 00 00
MY BUTTON-2SetCOMPUTER IN1BE EF0306 00C6 3201 0001 3600 00
COMPUTER IN2BE EF 0306 0006 30 01 0001 36 0400
S-VIDEOBE EF 0306 00A6 33 01 0001 36 0200
VIDEOBE EF 0306 0056 33 01 0001 36 0100
INFORMATIONBE EF 0306 0006 3F 01 0001 36 1000
AUTO KEYSTONEBE EF 030600 96 3E01 00 01 3611 00
MY MEMORYBE EF 0306 0066 3E 01 0001 36 1200
PICTURE MODEBE EF 030600 F6 3F01 00 01 3613 00
FILTER RESETBE EF0306 00C6 3D01 0001 3614 00
AV MUTEBE EF 0306 0056 39 01 0001 36 1900
TEMPLATEBE EF 0306 0036 38 01 0001 361B 00
RESOLUTIONBE EF 0306 0066 3B 01 0001 361E 00
ECO MODEBE EF 0306 00F6 24 01 0001 36 3700
Get BE EF 03 06 00 F5 32 02 00 01 36 00 00

(continued on next page)

RS-232C Communication command table (continued)

Names Operation Type HeaderCommand Data
CRC Action Type Setting Code
MY BUTTON-BLANK Set CCMPUTER IN1 BE EF 0306 00 5A 31 01 0008 36 0000
COMPUTER IN2 BEEF 03 06 009A 3301 00 0836 04 00
S-VIDEO BE EF03 06 00 3A30 0100 08 36 0200
VIDEO BE EF03 06 00 CA30 0100 08 36 0100
INFORMATION BEEF 03 06 009A 3C01 00 0836 10 00
AUTO KEYSTONE BEEF 03 0600 0A3D 01 00 0836 11 00
MY MEMORYBE EF 0306 00FA 3D 0100 08 36 1200
PICTURE MODEBE EF 0306 006A 3C 0100 08 36 1300
FILTER RESET BEEF 03 06 005A 3E01 00 08 3614 00
AV MUTEBE EF 0306 00CA 3A 0100 08 36 1900
TEMPLATEBE EF 0306 00AA 3B 0100 08 36 1B00
RESOLUTIONBE EF 0306 00FA 38 0100 08 36 1E00
ECO MODEBE EF 0306 00FA 26 0100 08 36 3600
BLANKBE EF 0306 009A 00 0100 08 36 4000
FREEZEBE EF 0306 000A 01 0100 08 36 4100
VOLUMEBE EF 0306 00FA 01 0100 08 36 4200
AUTOBE EF 0306 006A 00 0100 08 36 4300
GetBE EF 0306 0069 31 0200 08 36 0000
MY SOURCESet COMPUTER IN1 BE EF03 06 00 FA38 0100 20 36 0000
COMPUTER IN2 BEEF 03 06 003A 3A 0100 20 36 0400
S-VIDEO BE EF03 06 00 9A39 0100 20 36 0200
VIDEO BE EF03 06 00 6A39 0100 20 36 0100
GetBE EF 0306 00C9 3802 00 2036 00 00
Magnify Position HGetBE EF0306 00C8 D702 0010 3000 00
IncrementBE EF0306 00AE D704 0010 3000 00
DecrementBE EF 0306 007F D605 00 1030 00 00
Magnify Position VGetBE EF0306 0034 D602 0011 3000 00
IncrementBE EF 0306 0052 D604 00 1130 00 00
DecrementBE EF 0306 0083 D705 00 1130 00 00

Projector

CP-X2520/CP-X3020

natural_image Diagram showing a room layout with a cabinet, chair, and monitor, connected by dashed lines to a wall (no text or symbols)
natural_image Technical line drawing of a car air conditioner unit with 12° angle标注 (no text or symbols beyond measurement)
natural_image Diagram of a projector with a circular component and an upward arrow indicating motion (no text or symbols)

HITACHI CP-X3020EF - CP-X2520/CP-X3020 - 1

natural_image Diagram of a device with a circular component and a cross symbol, no text or labels present
natural_image Line drawing of a device with a control panel and indicator lights (no text or symbols)
natural_image Diagram of a solar panel array with grid layout and mounting base (no text or symbols)
natural_image Back view of a computer interface with ports and connectors (no visible text or labels)

HITACHI CP-X3020EF - CP-X2520/CP-X3020 - 2

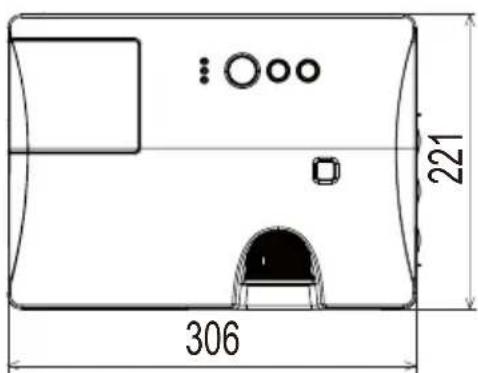

306 221

HITACHI CP-X3020EF - CP-X2520/CP-X3020 - 4

77 83

[eenheid: mm]

Oplossingen vinden - Garantie en service

Digital Media Division

900 Hitachi way, Chula Vista

CA 91914-3556 USA CANADA

Tel: +1 -800-225-1741

Fax: +1 -619-591-5418

http://www.hitachi-america.us/digitalmedia

Hitachi Europe Ltd., Consumer Affairs Department

PO Box 3007

Maidenhead

Berkshire SL6 8ZE UNITED KINGDOM

Tel: 0844 481 0297

Email: consumer.mail@hitachi-eu.com

Hitachi Europe S.A.S., Digital Media Group

http://www.hitachi.com.au

Hitachi (Hong Kong), Ltd.

18/F., Ever Gain Centre, 28 On Muk Street., Shatin, N.T. HONG KONG

Tel: +852 -2113-8883

Fax: +852 -2783-4178

http://www.hitachi-hk.com.hk

Hitachi Sales (Malaysia) Sdn. Bhd.

Lot 12, Jalan Kamajuan, Bangi Industrial Estate, 43650 Bandar Baru Bangi, Selangor Darul Ehsan MALAYSIA

Tel: +60 -3-8926-4168

Fax: +60 -3-8926-3013

http://www.hitachiconsumer.com.my

Hitachi Home Electronics Asia, (S) Pte Ltd.

438A Alexandra Road #01-01/02/03

Alexandra Technopark, 119967 SINGAPORE

Tel: +65 -6536-2520

Fax: +65 -6536-2521

http://www.hitachiconsumer.com.sg

Hitachi Sales Corp. of Taiwan

2nd Floor, No.65, Nanking East Road, Section 3,

Taipei 104 TAIWAN

Tel: +886-2-2516-0500

Fax: +886-2-2516-1501

http://www.hsct.com.tw

Hitachi Sales (Thailand), Ltd.

994, Soi Thonglor, Sukhumvit 55 Road, Klongtonnua, Vadhana, Bangkok 10110

THAILAND

Tel: +66 -2381-8381-98

Fax: +66 -2381-0210/2381-0021

http://www.hitachi-th.com

Hitachi Consumer Electronics Co., Ltd.

292 Yoshida-cho, Totsuka-ku

Yokohama 244-0817 JAPAN

Tel: +81-45-415-2625

Fax: +81-45-866-5821

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : HITACHI

Model : CP-X3020EF

Category : Projector
