| Product Type | Cordless Hammer Drill |
| Brand | BOSCH |
| Model | UNEO |
| Rated Voltage | 14.4 V |
| Rated Speed | 0 - 900 rpm |
| Impact Rate | 0 - 4800 rpm |
| Single Impact Energy | 0.5 J (EPTA 05/2009) |
| Tool Holder | SDS-Quick |
| Max. Drilling Diameter (Concrete) | 10 mm |
| Max. Drilling Diameter (Steel) | 8 mm |
| Max. Drilling Diameter (Wood) | 10 mm |
| Weight | 1.1 kg (EPTA 01/2003) |
| Battery Type | Lithium-ion |
| Battery Capacity | 1.3 Ah |
| Number of Cells | 4 |
| Charging Time | 3 hours |
| Sound Pressure Level | 84 dB(A) |
| Sound Power Level | 95 dB(A) |
| Vibration Emission Value (Hammer Drilling) | a_h = 20 m/s², K = 1.5 m/s² |
| Vibration Emission Value (Drilling Metal) | a_h = 4.0 m/s², K = 1.5 m/s² |
| Vibration Emission Value (Screwdriving) | a_h = 2.5 m/s², K = 1.5 m/s² |
| Functions | Hammer drilling, drilling without impact, screwdriving, reversible rotation, variable speed control |
| Safety | Hearing protection, insulated gripping surfaces, overload protection, Electronic Cell Protection (ECP) |
| Maintenance | Cleaning ventilation slots, replacing dust protection cap |
| After-Sales Service | Bosch Power Tools, France: 0 811 36 01 22, Belgium: +32 070 22 55 65, Switzerland: +41 044 8 47 15 12 |
| Reparability | Repair by authorized Bosch service, use of original spare parts |
Frequently Asked Questions - UNEO BOSCH
User questions about UNEO BOSCH
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Power tool in PDF format for free! Find your manual UNEO - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. UNEO by BOSCH.
USER MANUAL UNEO BOSCH
Power Tools Division
70745 Leinfelden-Echterdingen
Germany
www.bosch-pt.com
2 609 003 546 (2010.11) O / 131 WEU
2 609 003 546
WEU
BOSCH
de Originalbetriebsanleitung
en Original instructions
fr Notice originale
es Manual original
pt Manual original
it Istruzioni originali
nl Oorspronkelijke gebruiksaanwijzing
da Original brugsanvisning
sv Bruksanvisning i original
no Original driftsinstruks
fi Alkuperäiset ohjeet
el Πρωτότυπο οδηγιών χρήσης
tr Orijinal işletme talimatı
ar تعليمات التشفيل الأصلية
Sicherheitshinweise
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Montage
General Power Tool Safety Warnings
WARNING Read all safety warnings and all instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts.
Loose clothes, jewellery or long hair can be caught in moving parts.
16 | English
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Hammer Safety Warnings
▶ Wear ear protectors. Exposure to noise can cause hearing loss.
▶ Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fastener may contact hidden wiring. Cutting accessory and fasteners contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
▶ Use appropriate detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
▶ Switch off the power tool immediately when the tool insert jams. Be prepared for high reaction torque that can cause kick-back. The tool insert jams when:
- the power tool is subject to overload or - it becomes wedged in the workpiece.
- Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Keep your workplace clean. Blends of materials are particularly dangerous. Dust from light alloys can burn or explode.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.
▶ Before any work on the machine (e. g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.
Protect the power tool against heat, e. g., against continuous intense sunlight, fire, water, and moisture. Danger of explosion.
In case of damage and improper use of the battery, vapours may be emitted. Provide for fresh air and seek medical help in case of complaints. The vapours can irritate the respiratory system.
Safety Warnings for battery chargers
Keep the battery charger away from rain or moisture. Penetration of water in the battery charger increases the risk of an electric shock.
▶ Do not charge other batteries. The battery charger is suitable only for charging Bosch lithium ion batteries within the listed voltage range. Otherwise there is danger of fire and explosion.
- Keep the battery charger clean. Contamination can lead to danger of an electric shock.
Before each use, check the battery charger, cable and plug. If damage is detected, do not use the battery charger. Never open the battery charger yourself. Have repairs performed only by a qualified technician and only using original spare parts. Damaged battery chargers, cables and plugs increase the risk of an electric shock.
▶ Do not operate the battery charger on easily inflammable surfaces (e. g., paper, textiles, etc.) or surroundings. The heating of the battery charger during the charging process can pose a fire hazard.
▶ Children should be supervised to ensure that they do not play with the battery charger.
Products sold in GB only: Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.
The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.
Functional Description
Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
18 | English
Intended Use
The machine is intended for hammer drilling in concrete, brick and stone. It is also suitable for drilling without impact in wood, metal, ceramic and plastic. Machines with electronic control and right/left rotation are also suitable for screwdriving.
Use the battery charger only when you fully understand and can perform all functions without limitation, or have received appropriate instructions.
Product Features
The numbering of the product features refers to the illustration of the machine on the graphics page.
1 SDS-Quick tool holder
2 Dust protection cap
3 Locking sleeve
4 Selector switch for drilling/hammer drilling
5 Battery charge-control indicator
6 Indicator for right rotation
7 Indicator for left rotation
8 Rotational direction switch
9 On/Off switch
10 Universal bit holder*
11 Screwdriver bit*
12 Screwdriver bit with ball catch*
13 Drill bit with hexagon shank*
14 Drill bit with SDS-Quick tool holder*
15 Handle (insulated gripping surface)
16 Socket for charge connector
17 Charge connector
*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.
Technical Data
| Cordless Rotary Hammer | Uneo | |
| Article number | 3 603 J52 0.. | |
| Rated voltage | V= | 14.4 |
| Rated speed | min ^-1 | 0–900 |
| Impact rate | min ^-1 | 0–4800 |
| Impact energy per stroke according to EPTA-Procedure 05/2009 | J | 0.5 |
| Tool holder | SDS-Quick | |
| Max. drilling dia.- Concrete (with twist drill) | mm | 10 |
| - Steel | mm | 8 |
| - Wood | mm | 10 |
| Weight according to EPTA-Procedure 01/2003 | kg | 1.1 |
| Battery | Li-Ion | |
| Capacity | Ah | 1.3 |
| Number of battery cells | 4 | |
| Battery Charger | ||
| Article number | 2 607 225 463 (EU) | |
| 2 607 225 465 (UK) | ||
| 2 607 225 641 (AU) | ||
| Charging time | h | 3 |
| Please observe the article number on the type plate of your machine. The trade names of the individual machines may vary. | ||
Noise/Vibration Information
Measured sound values determined according to EN 60745.
Typically the A-weighted noise levels of the product are: Sound pressure level 84 dB(A); Sound power level 95 dB(A). Uncertainty K = 3 dB.
Wear hearing protection!
Vibration total values (triax vector sum) determined according to EN 60745:
Hammer drilling into concrete: Vibration emission value a_h=20 m/s^2 , Uncertainty K=1.5 m/s^2 ,
Drilling into metal: Vibration emission value a_h=4.0 m/s^2 , Uncertainty K=1.5 m/s^2 ,
Screwdriving: Vibration emission value a_h=2.5 m/s^2 , Uncertainty K=1.5 m/s^2 .
The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 60745 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.
The declared vibration emission level represents the main applications of the tool. However if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.
An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.
Declaration of Conformity
We declare under our sole responsibility that the product described under “Technical Data” is in conformity with the following standards or standardization documents: EN 60745 (battery powered products) and EN 60335 (battery chargers) according to the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC.
Technical file at:
Robert Bosch GmbH, PT/ESC,
D-70745 Leinfelden-Echterdingen
CE 08
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Mauca i.v. Wuzyu
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Assembly
▶ Before any work on the machine (e. g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.
Battery Charging (see figure A)
▶ Do not use other battery chargers. The supplied battery charger is designed for the Lithium-Ion battery in your machine.
▶ Observe the mains voltage! The voltage of the power supply must correspond with the data given on the nameplate of the battery charger. Battery chargers marked with 230 V can also be operated with 220 V.
Note: The battery is supplied partially charged. To ensure full capacity of the battery, completely charge the battery in the battery charger before using your power tool for the first time.
The lithium-ion battery can be charged at any time without reducing its service life. Interrupting the charging procedure does not damage the battery.
The lithium-ion battery is protected against deep discharging by the “Electronic Cell Protection (ECP)”. When the battery is empty, the machine is switched off by means of a protective circuit: The inserted tool no longer rotates.
WARNING
Do not continue to press the On/Off switch after the ma-
chine has been automatically switched off. The battery can be damaged.
20 | English
The battery is equipped with a NTC temperature control which allows charging only within a temperature range of between 0 °C and 45 °C. A long battery service life is achieved in this manner.
When the battery charge-control indicator 5 lights up red for approx. 5 seconds with the On/Off switch 9 pressed through halfway or fully, then the battery has less than 30% of its capacity and should be charged.
The charging procedure begins as soon as the mains plug of the battery charger is plugged into a socket outlet and the charge connector 17 is plugged into the socket 16 on the bottom of the handle.
The battery charge-control indicator 5 indicates the charging progress. During the charging process, the indicator flashes green. When the battery charge-control indicator 5 lights up green continuously, the battery is fully charged.
During the charging procedure, the handle of the machine warms up. This is normal.
Disconnect the battery charger from the mains supply when not using it for longer periods.
The power tool cannot be used during the charge procedure; it is not defective when inoperative during the charging procedure.
▶ Protect the battery charger against moisture!
Observe the notes for disposal.
Selecting Tools
For hammer drilling, SDS-Quick tools are required.
For drilling without impact in wood, metal, ceramic and plastic, a suitable SDS-Quick tool or an application tool with hexagon shank can be used.
For screwdriving, use only screwdriver bits with ball catch 12 (DIN 3126-E6.3). Other screwdriver bits 11 can be inserted via a universal bit holder with ball catch 10.
A selection of suitable application tools can be found in the Accessories Overview at the end of these instructions.
Changing the Tool
The SDS-Quick tool holder allows for simple and convenient changing of drilling tools without the use of additional tools.
Due to their working principle, SDS-Quick drilling tools move freely. This results in radial run-out at no-load. However, this has no effect on the accuracy of the drill hole, as the drill bit centres itself during drilling.
The SDS-Quick tool holder can also accommodate different drill-bit types with hexagon shank. For more information, see the accessories page at the end of these operating instructions.
The dust protection cap 2 largely prevents the entry of drilling dust into the tool holder during operation. When inserting the tool, take care that the dust protection cap 2 is not damaged.
▶ A damaged dust protection cap should be changed immediately. We recommend having this carried out by an after-sales service.
Inserting SDS-Quick Drilling Tools (see figure B)
Clean and lightly grease the shank end of the tool.
Insert the tool in a twisting manner into the tool holder until it latches itself.
Check the latching by pulling the tool.

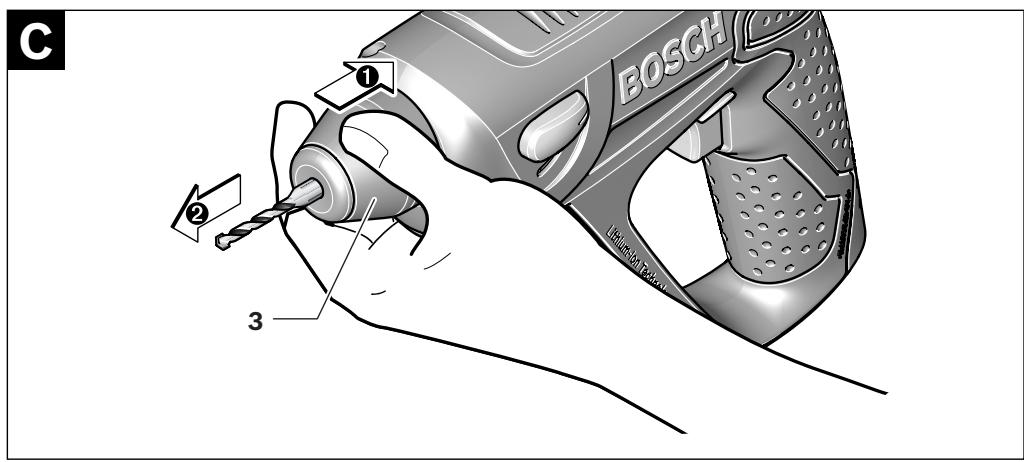

Removing SDS-Quick Drilling Tools (see figure C)
Push back the locking sleeve 3 and remove the tool.
Dust/Chip Extraction
Dusts from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.
Certain dusts, such as oak or beech dust, are considered as carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.
- Provide for good ventilation of the working place.
- It is recommended to wear a P2 filter-class respirator.
Observe the relevant regulations in your country for the materials to be worked.
Operation
Starting Operation
Setting the Operating Mode
With the selector switch for drilling/hammer drilling 4, the operating mode of the machine is selected.
Note: Change the operating mode only when the machine is switched off! Otherwise, the machine can be damaged.
To change the operating mode, turn the selector switch for “drilling/hammer drilling” 4 to the requested position.
Position for hammer drilling in concrete or stone
Position for drilling without impact in wood, metal, ceramic and plastic as well as for screwdriving

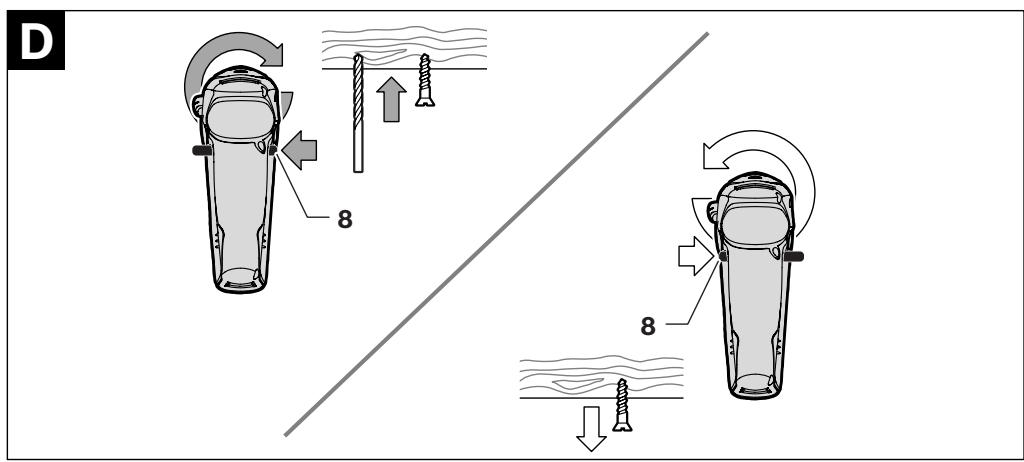

Reversing the Rotational Direction (see figure D)
▶ Actuate the rotational direction switch 8 only when the machine is at a standstill.
The rotational direction switch 8 is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch 9 actuated.
Right Rotation: For drilling and driving in screws, push the rotational direction switch 8 left to the stop.
The indicator for right rotation 6 lights up when the On/Off switch 9 is actuated and the motor is running.
Left Rotation: For loosening and unscrewing screws and nuts, press the rotational direction switch 8 through to the right stop.
The indicator for left rotation 7 lights up when the On/Off switch 9 is actuated and the motor is running.
Switching On and Off
To start the machine, press the On/Off switch 9 and keep it pressed.
To switch off the machine, release the On/Off switch 9.
For low temperatures, the power tool reaches the full hammer/impact capacity only after a certain time.
Setting the Speed/Impact Rate
The speed/impact rate of the switched on power tool can be variably adjusted, depending on how far the On/Off switch 9 is pressed.
Light pressure on the On/Off switch 9 results in low speed/impact rate. Further pressure on the switch increases the speed/impact rate.
Battery Charge-control Indication
The battery charge-control indicator 5 indicates the charge condition of the battery for a few seconds when the On/Off switch 9 is pressed through halfway of fully.
| LED | Capacity |
| Continuous lighting, green | >30% |
| Continuous lighting, red | ≤30% |
Temperature Dependent Overload Protection
When using as intended for, the power tool cannot be subject to overload. When the load is too high or the allowable battery temperature of 70 °C is exceeded, the electronic control switches off the power tool until the temperature is in the optimum temperature range again.
Additionally, the battery charge-control indicator 5 flashes green and red at the same time until the On/Off switch 9 is released.
22 | English
Working Advice
▶ Apply the power tool to the screw/nut only when it is switched off. Rotating tool inserts can slip off.
Maintenance and Service
Maintenance and Cleaning
▶ For safe and proper working, always keep the machine and ventilation slots clean.
▶ Before any work on the machine (e. g., maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the centre position. Unintentional actuation of the On/Off switch can lead to injuries.
▶ A damaged dust protection cap should be changed immediately. We recommend having this carried out by an after-sales service.
When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.
If the machine should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an after-sales service centre for Bosch power tools.
In all correspondence and spare parts order, please always include the 10-digit article number given on the type plate of the machine.
After-sales Service and Customer Assistance
Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:
www.bosch-pt.com
Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecentre@bosch.com
Ireland
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: +353 (01) 4 66 67 00
Fax: +353 (01) 4 66 68 88
Australia, New Zealand and Pacific Islands
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Republic of South Africa
Customer service
Hotline: +27 (011) 6 51 96 00
Gauteng - BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: +27 (011) 4 93 93 75
Fax: +27 (011) 4 93 01 26
E-Mail: bsctools@icon.co.za
KZN - BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: +27 (031) 7 01 21 20
Fax: +27 (031) 7 01 24 46
E-Mail: bsc.dur@za.bosch.com
Western Cape - BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: +27 (021) 5 51 25 77
Fax: +27 (021) 5 51 32 23
E-Mail: bsc@zsd.co.za
Bosch Headquarters
Midrand, Gauteng
Tel.: +27 (011) 6 51 96 00
Fax: +27 (011) 6 51 98 80
E-Mail: rbsa-hq.pts@za.bosch.com
Disposal
The machine, accessories and packaging should be sorted for environmental-friendly recycling.
Do not dispose of power tools into household waste!
Only for EC countries:
According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national right, power tools that are no longer usable must be collected
separately and disposed of in an environmentally correct manner.
Battery packs/batteries:
Do not dispose of battery packs/batteries into household waste, fire or water. Battery packs/batteries should, if possible, be discharged, collected, recycled or disposed
of in an environmental-friendly manner.
Only for EC countries:
Defective or dead out battery packs/batteries must be recycled according the guideline 2006/66/EC.
Batteries no longer suitable for use can be directly returned at:
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: boschservicecentre@bosch.com
When removing the battery from the machine, actuate the On/Off switch 9 until the battery is completely discharged. Unscrew the screw in the casing and take off the casing shell. Disconnect the connections on the battery and remove the battery.
Subject to change without notice.
24 | Français
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Montage
Robert Bosch (France) S.A.S.
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
16.11.2010
Montaje
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Montagem
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Montaggio
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Montage
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Mauca i.v. Wuzyu
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Montering
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Tel. Service Center: +45 (4489) 8855
Fax: +45 (4489) 87 55
E-Mail: vaerktoej@dk.bosch.com
Bortskaffelse
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Mauca i.v. Wuzyu
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Montage
Bosch Service Center
Telegrafvej 3
2750 Ballerup
Danmark
Tel.: +46 (020) 41 44 55
Fax: +46 (011) 18 76 91
Avfallshantering
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Mauca i.v. Wuzyu
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Montering
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Mauca i.v. Wuzyu
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Asennus
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Συναρμολόγηση
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen Head of Product Certification
ppa. Mauca i.v. Mozyu
Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 16.11.2010
Montaj
Bosch San. ve Tic. A.S.
Ahi Evran Cad. No:1 Kat:22
Polaris Plaza
80670 Maslak/Istanbul
Dr. Egbert Schneider Senior Vice President Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
i.v. Mogen
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
16.11.2010
البيانات الفنية
Universal
◇ 1/4"
◇ 1/4"

