Deutsch | 3

Deutsch

Dr. Egbert Schneider Senior Vice President Engineering

Helmut Heinzelmann
Head of Product Certification
PT/ETM9

Robert Bosch GmbH, Power Tools Division D-70745 Leinfelden-Echterdingen 22.05.2012

www.bosch-garden.com

Explanation of symbols

General hazard safety alert.

Read instruction manual.

Do not touch. After intensive use of the hedge cutter parts can get hot.

Switch off and remove plug from mains before adjusting, cleaning or if the cable is entangled and before leaving the garden product unattended for any period.

Wear eye protection.

Wear ear protection.

Do not use the machine in the rain or leave it outdoors when it is raining.

Never touch power supply or telephone lines. These lines conduct high voltage and there is severe danger of electric shock. Keep a minimum distance of 10m

General Power Tool Safety rules

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings

and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Before use check the supply and extension cord for signs of damage or ageing. If the cord becomes damaged during use, disconnect the cord from the supply immediately. DO NOT TOUCH THE CORD BEFORE DISCONNECTING THE SUPPLY. Do not use the garden product if the cord is damaged or worn.
If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- When in use perform a daily, visual inspection in order to identify any significant damage or defects this inspection must also be competed if the tool is dropped or subjected to any significant impacts.
It is recommended for increased electrical safety to use a Residual Current Device (RCD) with a tripping current of not more than 30mA . Always check your RCD every time you use it.
Always ensure tool ventilation openings are kept free of debris.
Observe also the safety notes and instructions in the user manual of the power unit.

F016L70916|(25.6.12)

Bosch Power Tools

English | 7

Hedge trimmer safety warnings

• Keep all parts of the body away from the cutter blade. Do not remove cut material nor hold material to be cut when blades are moving. Make sure the tool is switched off and unplugged when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
• Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
  Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord. Cutter blades contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
• Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.

Additional safety warnings

This tool is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Never allow children or people unfamiliar with these instructions to use the hedgecutter. Local regulations may restrict the age of the operator. When not in use, store the hedgecutter out of reach of children.
- When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
- Wait until the machine has come to a standstill before placing it down.
Other persons and animals should remain at a distance of 3 metres or more when the machine is being used. The operator is responsible for third persons in the working area.
Never grasp the blade of the hedgecutter.
Children or persons unfamiliar with these instructions must not operate the hedgecutter. Local regulations may restrict the age of the operator.
- Never cut a hedge while people, especially children or pets, are nearby.
The operator or user is responsible for accidents or hazards occurring to other people or their property.
Do not operate the hedgecutter when barefoot or wearing open sandals, always wear substantial footwear and long trousers. The use of sturdy gloves, non-skid footwear and safety glasses is recommended. Do not wear loose clothing or jewellery which can be caught in moving parts.
Thoroughly inspect the area where the hedgecutter is to be used and remove all wires and other foreign objects.

Prior to operation, check cutter blades, blade bolts and cutter assembly for wear or damage. Do not operate with a damaged or excessively worn cutting device.
Know how to stop the hedgecutter quickly in an emergency.
Before operation check the safe double locking function of the blade swivel mechanism. The blade can suddenly fold down, if unlocked and comes into contact with a branch.
Cut a hedge only in daylight or in good artificial light.
- Never operate the hedgecutter with defective guards or without the guard in place.
Always ensure all handles and guards supplied are fitted when using the hedgecutter. Never attempt to use an incomplete hedgecutter or one with an unauthorised modification.
Never hold the hedgecutter by the guard.
- While operating the hedgecutter always be sure of a safe and secure operating position at all times, especially when using steps or a ladder.
Always be aware of your surroundings and stay alert for possible hazards that you may not hear whilst operating the hedgecutter.
Remove the plug from the socket:

• before checking, clearing a blockage or working on the hedgecutter.
• after striking a foreign object, inspect the hedgecutter for damage and make repairs as necessary.
• if the hedgecutter starts to vibrate abnormally check immediately.

The hedgecutter should be stored in a dry, high or locked up place out of the reach of children.
Replace worn or damaged parts for safety.
Do not attempt to repair the machine unless you are qualified to do so.

Maintenance

Always wear gardening gloves when handling or working near the sharp blades.
Examine the machine and replace worn or damaged parts for safety.
Always lubricate the cutting blade with protective spray before storage.
- Keep all nuts, bolts and screws tight to be sure that the machine is in safe working condition.
Ensure replacement parts fitted are Bosch approved.

Symbols

The following symbols are important for reading and understanding the operating instructions. Please take note of the symbols and their meaning. The correct interpretation of the symbols will help you to use the garden product in a better and safer manner.

8|English

Symbol

Meaning

Wear protective gloves

Wear eye protection.

Reaction direction

Movement direction

Intended Use

This multi-tool attachment can only be operated by the power unit AMW 10.

The machine is intended for cutting and trimming hedges and bushes in domestic use.

Technical Data

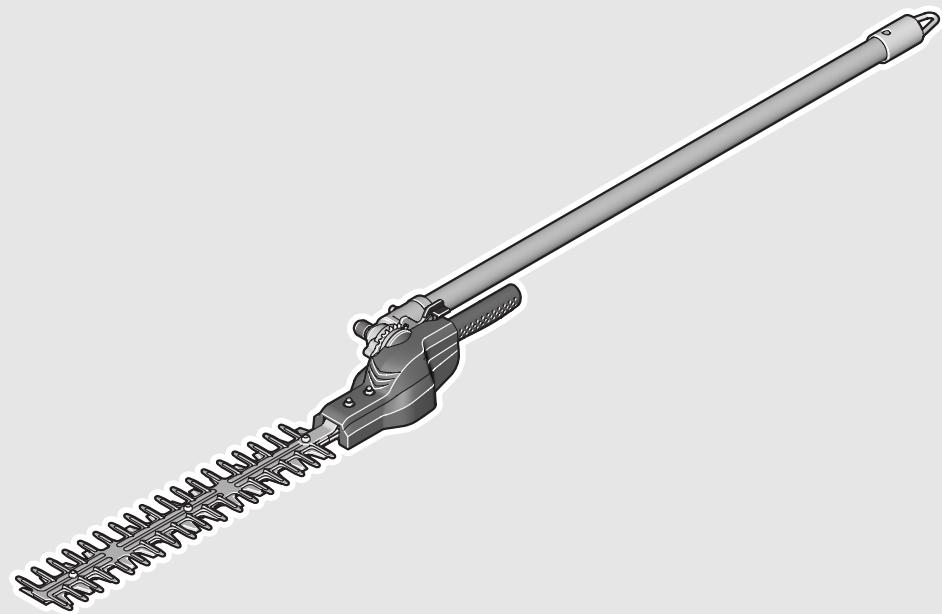

Pole Hedgecutter Attachment		AMW HS
Article number		0 600 8A3 A..
Cutting length	mm	430
Tooth opening	mm	15
Weight according to EPTA-Procedure 01/2003 without power unit	kg	2.25
Serial number	see type plate on the gar-den product
Please observe the article number on the type plate of your garden product. The trade names of the individual garden products may vary.

Declaration of Conformity C E

We declare under our sole responsibility that the product described under "Technical data" is in conformity with the following standards or standardization documents: EN 60335 according to the provisions of the directives 2006/95/EC, 2004/108/EC, 2006/42/EC, 2000/14/EC.

2000/14/EC: Guaranteed sound power level 103 dB(A).

Equipment category: 25

Technical file (2006/42/EC) at:

Bosch Lawn and Garden Ltd., PT-LG/ENS,

Stowmarket, Suffolk IP14 1EY, England

Dr. Egbert Schneider

Senior Vice President

Engineering

Helmut Heinzelmann

Head of Product Certification

PT/ETM9

Robert Bosch GmbH, Power Tools Division

D-70745 Leinfelden-Echterdingen

22.05.2012

Noise/Vibration Information

The following information is applicable for the attachment operated by the power unit:

Measured sound values determined according to EN ISO 10517.

Typically the A-weighted noise levels of the product are:

Sound pressure level 80,5 dB(A); sound power level

100.5 dB(A). Uncertainty K = 2.5 dB.

Vibration total values (triax vector sum): Vibration emission

value a_h = 2.5 m/s^2 , Uncertainty K = 1 dB .

Mounting and Operation

Action	Figure
Delivery Scope	1
Turn and fix blade in operating position	2
Fitting the multi-tool attachment	3
Set operating angle	4
Working Advice	5
Storage	6

Troubleshooting

Problem	Possible Cause	Corrective Action
Motor runs but blades remain stationary	Multitool-attachment not properly connected to power unit	Check for correct assembly
Cutting blade hot	Cutting blade blunt	Have blade sharpened
	Cutting blade has dents	Have blade inspected/overhauled
	Too much friction, due to lack of lubricant	Apply lubricant spray (1 609 200 399)

F016L70916|(26.6.12)

Bosch Power Tools

cais | 9

After-sales Service and Customer Assistance

www.bosch-garden.com

In all correspondence and spare parts orders, please always include the 10-digit article number given on the type plate of the garden product.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

Tel. Service: [phone]

Fax:[phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax:[phone]

E-Mail: [e-mail]

Disposal

Do not dispose of garden products into household waste!

Only for EC countries:

According to the European directive 2002/96/EC for Waste Electrical and Electronic Equipment and its implementation into national law, electrical and electronic equipment that are no longer usable must be collected separately and disposed of in an environmentally correct manner.

Subject to change without notice.
