Product type	Cordless work light
Brand	Bosch
Model	PML LI
Article number	3 603 J74 300
Rated voltage	14.4 V / 18 V (depending on battery)
Lighting duration	4 h (1.3 Ah battery) / 6.5 h (1.5 Ah battery)
Operating temperature	-10 °C to +40 °C
Weight (adapter + gooseneck + head)	250 g
Power supply	14.4 V or 18 V lithium-ion batteries (not included)
Usage modes	Floor lamp, headlamp, tube mounting, with diffuser
Supplied items	Battery adapter, gooseneck, lamp head, headband, universal adapter, tube holder, protective case, velcro straps, diffuser
Maintenance	Clean with a soft, dry cloth; do not use detergents or solvents
Safety	Do not look into the beam; do not use in explosive environments; do not cover the lamp while in operation
Spare parts	Original Bosch batteries, gooseneck, lamp head, battery adapter, etc.
After-sales service	Bosch Power Tools: 0811360122 (France)

Frequently Asked Questions - PML LI BOSCH

How do I set up the lamp in floor lamp mode?

Slide the base of the gooseneck into the guide grooves of the battery adapter until it clicks into place. Then insert the lamp head into the gooseneck and connect the cable. Insert a charged battery.

Can I use batteries of other brands or voltages?

No. Only use original Bosch 14.4 V or 18 V lithium-ion batteries. Using other batteries may cause injuries and fires.

How do I clean the lamp?

Clean the plastic lens with a soft, dry cloth. Do not use detergents or solvents as they may damage the lamp.

What should I do if the lamp does not turn on?

Check that the battery is inserted correctly and is charged. If the indicator is red, the battery is low. If the problem persists, contact Bosch after-sales service.

Is it dangerous to look directly into the beam?

Yes, never look directly into the light beam. Optical radiation can damage your eyes, even from a distance.

How do I attach the lamp to a tube?

Use the supplied tube holder. Slide the base of the gooseneck into the battery adapter, then attach the holder to the tube. The holder can pivot up to 12.5° to direct the light.

How do I use the diffuser?

The diffuser disperses the light for wider illumination, ideal as a reading lamp. Simply attach it to the lamp head.

How do I store the lamp in the protective case?

Place the battery with adapter in the case so that the switch is accessible. Route the cable through the slot. The case can be attached to a belt or object using the loop or velcro straps.

Where can I get spare parts or accessories?

Contact Bosch after-sales service or check the Bosch accessories program. For parts, provide the article number (3 603 J74 300).

How do I transport the lamp safely?

Remove the battery before transport. If shipping a battery, ensure the housing is intact, cover the contacts, and pack it to prevent movement. Follow national regulations for transporting lithium-ion batteries.

USER MANUAL PML LI BOSCH

Power Tools Division

70745 Leinfelden-Echterdingen

Germany

www.bosch-pt.com

1 609 929 W51 (2010.08) T / 112 UNI

1 609 929 W51

PML LI

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Please read and observe all safety warnings and instructions enclosed with the battery or the power tool, with which the battery was provided.
- Handle the cordless worklight with care. The cordless worklight generates intense heat, which leads to increased danger of fire and explosion.
Do not work with the cordless worklight in hazardous areas.
Do not continue to press the On/Off switch after the cordless worklight has been automatically switched off. The battery can be damaged.
Do not direct the light beam at persons or animals and do not stare into the light beam yourself (not even from a distance).
Use only original Bosch accessories.
Do not cover off the lamp head while operating the cordless worklight. The lamp head heats up during operation and can cause burns when the heat accumulates.
Do not use the cordless worklight in road traffic. The cordless worklight is not approved for illumination in road traffic.

CAUTION! Do not stare into the laser beam for longer periods. The optical radiation can be harmful for your eyes.

Use cordless worklight only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
- Use only original Bosch 14.4 V and 18 V lithium ion batteries. When using other batteries, e.g. imitations, reconditioned batteries or other brands, there is danger of injury as well as property damage through exploding batteries.

Functional Description

Product Features

The numbering of the product features refers to the illustration of the cordless worklight on the graphics page.

1 Lamp head
2 Flexible neck
3 Connection cable
4 Fastener with guide for cable and Velcro strap
5 Head strap
6 Universal adapter
7 Velcro strap (2x)
8 Pipe clamp
9 Protective pouch

10 Operation and charge-control indicator
11 On/Off switch
12 Battery adapter
13 Lens plate
14 Battery, 14.4 V (Li-ion) or 18 V (Li-ion)
15 Battery unlocking button
16 Release lever
17 Rubber ring (2x)

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

Technical Data

Cordless Worklight		PML LI
Article number		3 603 J74 300
Rated voltage1)	V=	14.4/18.0
Lighting duration, approx.1)	h	4.0/6.5
Operating temperature	°C	-10 ... +40
Weight2)	g	250

1) Depends on the battery pack (1.3/1.5 Ah) being used
2) Battery adapter, flexible neck and lamp head

Please observe the article number on the type plate of your cordless worklight. The trade names of the individual cordless worklights may vary.

Assembly

Battery Insertion/Removal (see figure A)

Inserting the Battery

Use only original Bosch lithium ion batteries with the voltage listed on the nameplate of your cordless worklight. Using other batteries can lead to injuries and pose a fire hazard.

Insert a charged battery 14 into the battery adapter 12. Take care to insert the battery in the right position, and that the battery unlocking button 15 can be felt to engage in the battery adapter 12.

Removing the Battery

To remove the battery 14, press the battery unlocking button 15 and pull the battery toward the rear out of the cordless worklight. Do not exert any force when doing this.

Battery Adapter (see figure B)

• Mount components to the worklight only when the battery 14 is not inserted.

Note: When inserting a completely mounted cordless worklight with the battery into the battery charger, the cordless worklight is automatically deactivated.

Connecting the lamp head with flexible neck to the battery adapter 12 makes a stand-lamp; connecting the head lamp to the connection cable on the universal adapter makes a head lamp, or connecting the lamp head to the pipe clamp makes a spotlight.

Connect the base of the flexible neck 2 or the base of the connection cable 3 with the battery adapter 12. Do not pull the cable!

The On/Off switch 11 as well as the operation and charge-control indicator 10, which lights up green as soon as a battery is inserted and the cordless worklight is switched on, are on the battery adapter 12. When the battery capacity is below 25% , the indicator lights up red.

Storage in the Protective Pouch (see figures C-D)

The protective pouch 9 is used for storage of the battery 14 together with the battery adapter 12. Position the battery adapter in such a manner that you can operate the On/Off switch 11 behind the symbol on the pouch. The connection cable 3 can be conducted through the slot in the pouch.

The protective pouch 9 can be fastened to your belt by the loop on its backside or to any object with a Velcro strap.

Mounting to a Stand-lamp (see figures B and E)

With the flexible neck 2, you can convert the cordless worklight to a stand-lamp.

Guide the base of the flexible neck alongside the guide grooves in the seat of the battery adapter 12 until it engages.
- Insert lamp head 1 into the flexible neck 2 until it engages.
- Insert the plug of the cable from the flexible neck 2 into the socket of the lamp head 1.
- Insert a battery (see "Inserting the Battery", page 11).

12 | English

Removing the Lamp Head (see figure F)

Firstly, switch off the cordless worklight and remove the battery. To remove the lamp head 1, pull out the cable, lightly press release lever 16 upward and pull the lamp head toward the rear off of the component.

Mounting with Pipe Clamp (see figures B and G)

The pipe clamp 8 is used for fastening the cordless worklight to pipes, handrails, tent poles, etc.

For optimal alignment of the light beam, the pipe clamp can be swivelled up to 12.5^ to the right or left.

Mounting with Head Strap (see figures B and H)

With the universal adapter 6 and the head strap 5, the cordless worklight can be used as a headlamp.

The universal adapter 6 can be tilted for optimal alignment of the light beam.

Universal Adapter with Velcro Strap (see figures B and I)

With the universal adapter and a Velcro strap, the cordless worklight can be used anywhere.

The universal adapter 6 can be tilted for optimal alignment of the light beam.

Operation

Starting Operation

Switching On and Off

To start the cordless worklight, press the On/Off switch 11.

Working Advice

Lens Plate (see figure J)

The lens plate 13 is used to scatter or diffuse the light when using the cordless worklight e.g., as a reading lamp.

Maintenance and Service

Maintenance and Cleaning

When the battery is no longer operative, please refer to an authorised after-sales service agent for Bosch power tools.

The cordless worklight is maintenance-free and contains no components that must be replaced or maintained.

To avoid damage, clean the plastic lens of the cordless worklight only with a dry, soft cloth. Do not use cleaning agents or solvent.

If the cordless worklight should fail despite the care taken in manufacturing and testing procedures, repair should be carried out by an authorized after-sales service agent for Bosch power tools.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the cordless worklight.

After-sales Service and Customer Assistance

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Ireland

Origo Ltd.

Unit 23 Magna Drive

Magna Business Park

City West

Dublin 24

Tel. Service: [phone]

Fax:[phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax:[phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch.com.au

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Transport

Before any work on the cordless worklight itself (e.g. assembling, maintenance, etc.), as well as when transporting and storing, remove the battery from the cordless worklight.

Dispatch batteries only when the housing is undamaged. Tape or mask off open contacts and pack up the battery in such a manner that it cannot move around in the packaging.

When dispatching lithium-ion batteries, compulsory labeling may be required. Please observe the respective national regulations.

14 | English

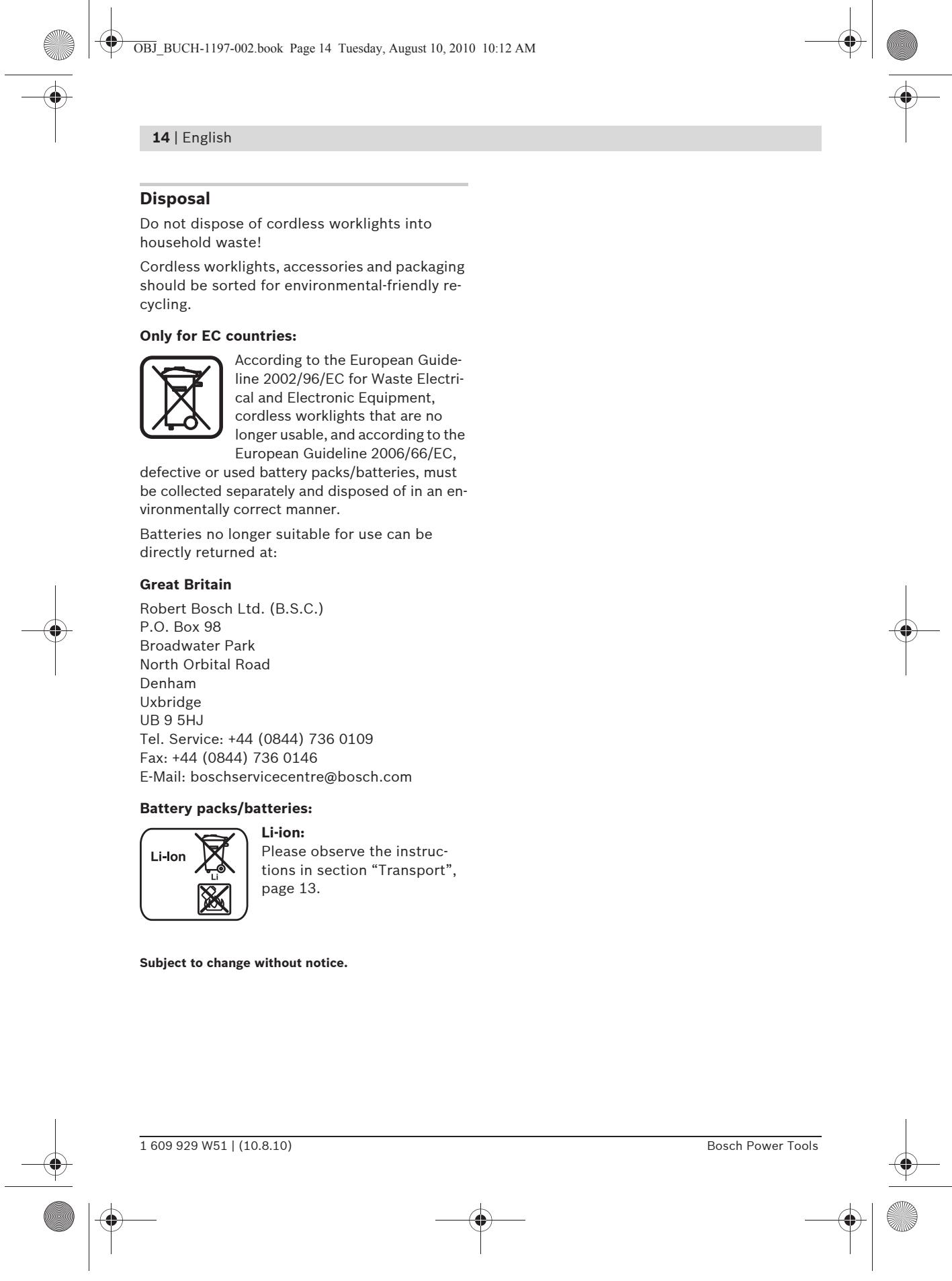

Disposal

Do not dispose of cordless worklights into household waste!

Cordless worklights, accessories and packaging should be sorted for environmental-friendly recycling.

Only for EC countries:

According to the European Guideline 2002/96/EC for Waste Electrical and Electronic Equipment, cordless worklights that are no longer usable, and according to the European Guideline 2006/66/EC,

defective or used battery packs/batteries, must be collected separately and disposed of in an environmentally correct manner.

Batteries no longer suitable for use can be directly returned at:

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O.Box 98

Broadwater Park

North Orbital Road

Denham

Uxbridge

UB 95HJ

Tel. Service: [phone]

Fax: [phone]

E-Mail: [e-mail]

Battery packs/batteries:

Li-ion:

Please observe the instructions in section "Transport", page 13.

Subject to change without notice.
